Ultra Power UP240 PLUS

180.00 $

Out of stock

Description

Ultra Power UP240 Overview

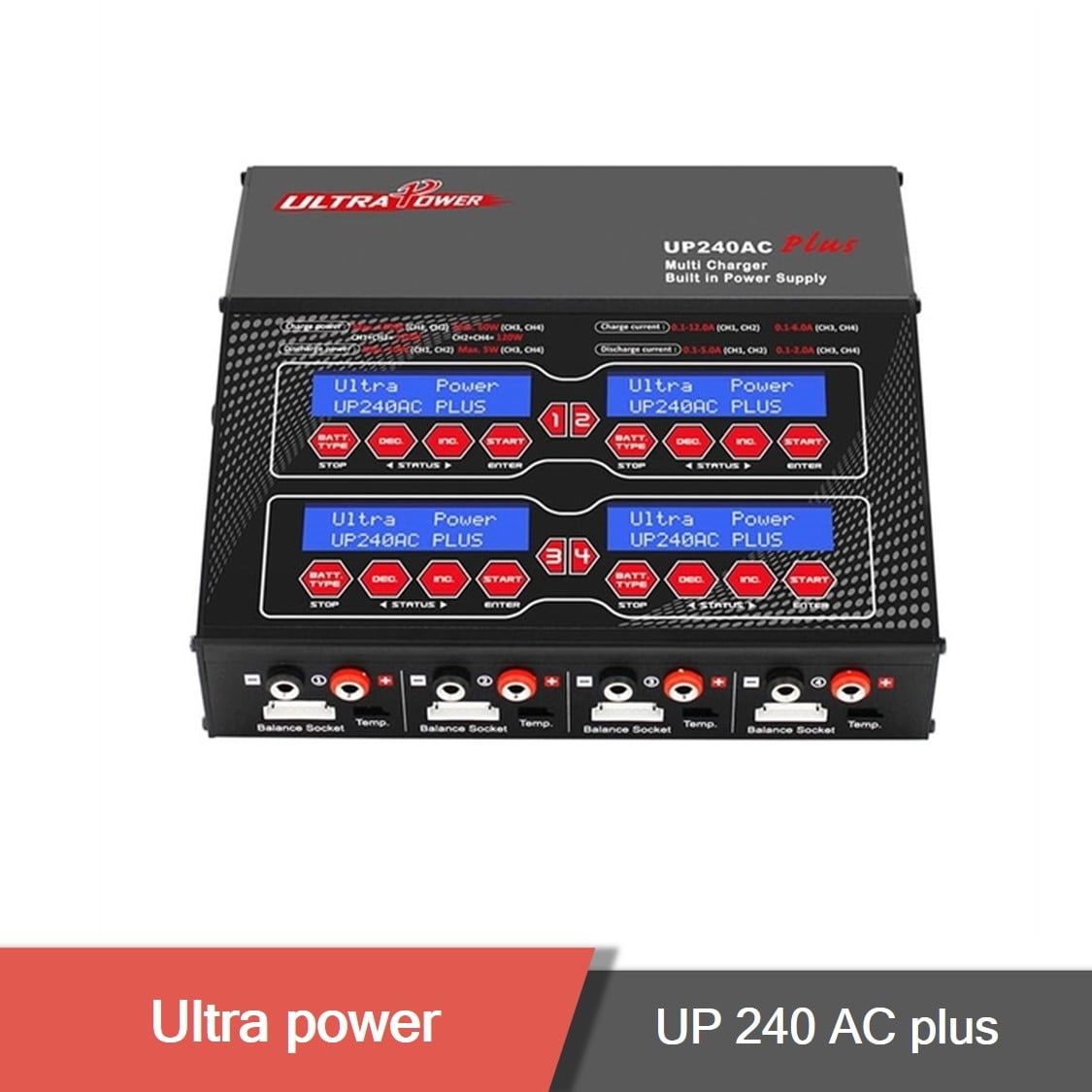

The Ultra Power UP240 AC/DC PLUS, manufactured by Hongkong-based company Ultra Power, is a fast charger focused on RC batteries. This powerhouse supports both AC and DC input voltages and provides the ability to charge four batteries at the same time. The UP240 PLUS is equipped with a high-performance microprocessor and specialized operating software and distributes 240 watts over 4 channels, with a maximum of 120 watts from CH1/CH2. When using the UP240 Plus in AC input mode, you can choose either 2x120W or 4x60W mode, i.e. CH1+CH2=2x120W; CH1+CH2+CH3+CH4=4x60W; CH1+CH3=120W; CH2+CH4=120W.  The built-in power supply of Ultra Power UP240 is adaptable to various battery chemistries such as Lilo, LiPo, LiFe, NiMH, NiCD, and Pb. The cyclic charging/discharging capability allows for lengthened battery life. Catered to the needs of both hobbyists and professionals, other key features of Ultra Power UP240 include selectable charge termination voltage and adjustable delta-peak (NiCd/NiMH). Other features are Individual cell balancing, battery meter function, data storage (10 profiles in memory), and a USB port support firmware upgrades and charging phones/tablets. For similar products in this category, please visit our Power Solutions page. For more information on the wide range of our products, please visit the Motionew Shop.

Ultra Power UP240 PLUS Features

  1. Balancing individual cells for battery discharging
  2. Covered by Ultra Power’s unconditional 1-year exchange guarantee
  3. Selectable charge termination voltage
  4. Four independent channels, charge 4pcs batteries at the same time
  5. Adaptable to various types of batteries
  6. Delta-peak sensitivity (NiMH/NiCd)
  7. Fast and storage mode of lithium battery
  8. Individual cell balancing on charge & discharge
  9. Battery meter function
  10. One button control factory setting
  11. Data storage (10 profiles in memory)
  12. Cyclic charging/discharging.
  13. Re-Peak mode of NiMH/NiCD battery
  14. USB port for firmware upgrades or charging phones or tablets
  15. Input Voltage: AC 110 or 220V / DC 11.0-18.0V
  16. Charge Power: 2x120W or 4x60W (240W)
  17. Discharge Power: 2x10W or 4x5W (20W)
  18. Charge Current Range: 0.1-12.0A(2x120W) 0.1-6.0A (4x60W)
  19. Discharge Current Range: 0.1-5.0A ( 2x120W) 0.1-2.0A (4x60W)

Package Included

UP240 Plus Charger
Multiple Balance Board with Connector Pin
T Plug Battery Connector
Charger plug
English Manual
2x Deans/T-plug style charge leads
2x JST-XH balance boards
AC power cord

instruction manual

Maximum power of 120W can be drawn from (CH1+CH3) or (CH2+CH4). For instance, when CH3 and CH4 draw 0W, CH1 and CH2 can draw up to 120W.
Max power up240 min - ultra power up240,ultra power charger,lipo charger,battery uav charger - motionew - 4

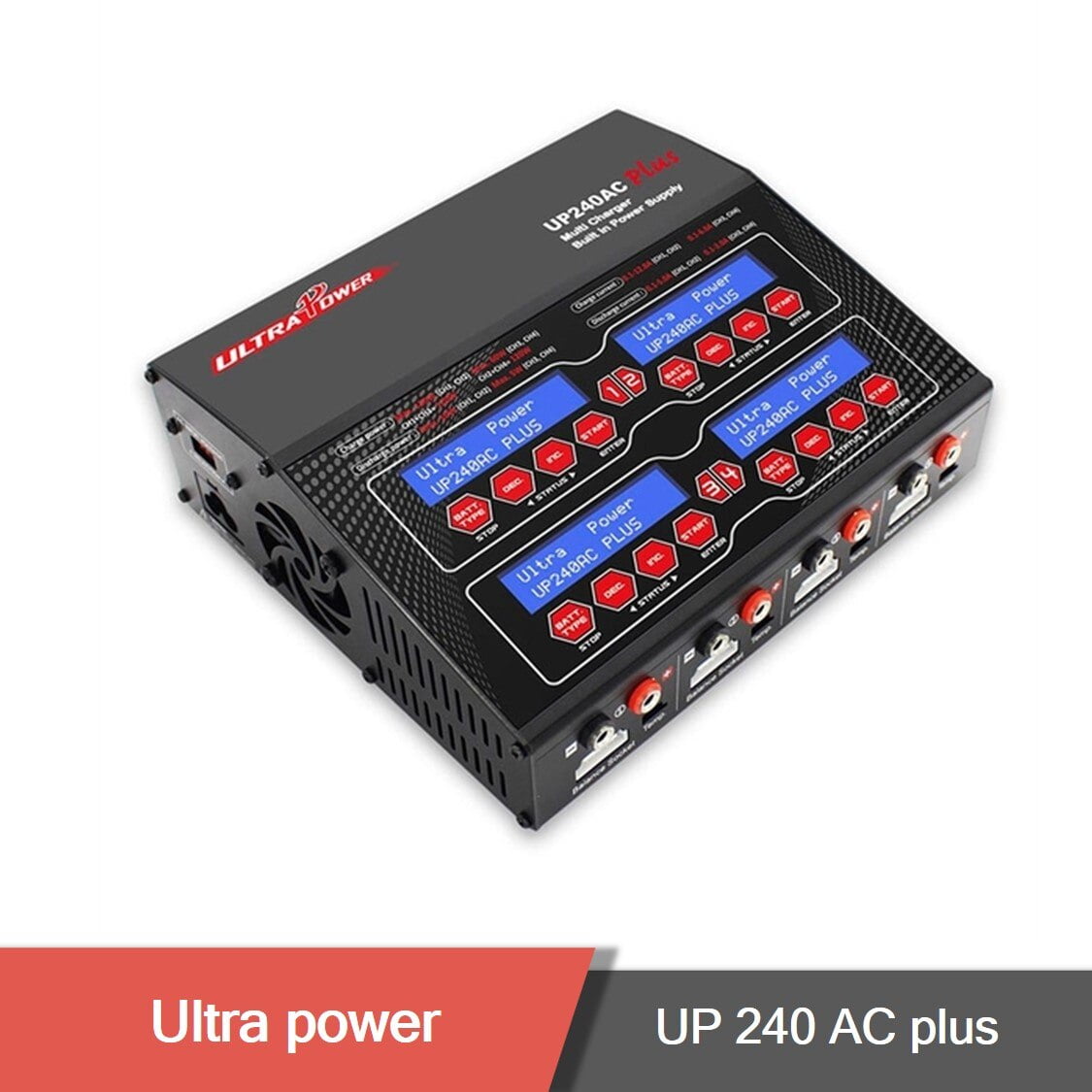

The Ultra Power UP240 AC/DC PLUS features four LCD screens and menu control buttons to modify and monitor charging dynamics via user-friendly menus.U40c2661f5c4040f7a629f74f94b09bb50 - ultra power up240,ultra power charger,lipo charger,battery uav charger - motionew - 5

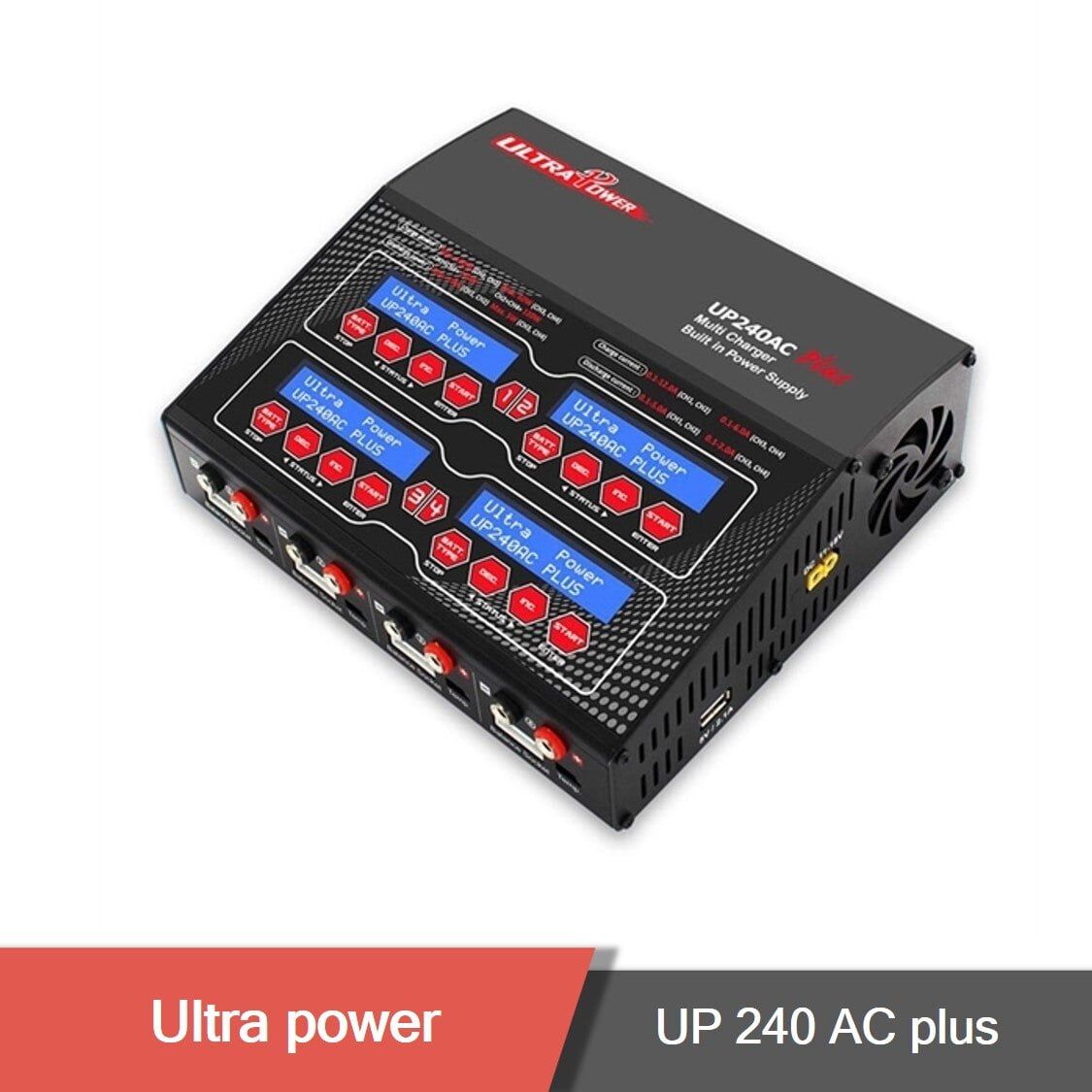

A cooling fan ensures the thermal stability of the Ultra Power UP240 AC/DC PLUS device. Uafda44f617ad44ac9999d9852b2059262 - ultra power up240,ultra power charger,lipo charger,battery uav charger - motionew - 6

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

Additional information

Weight 1.98 kg
Dimensions 20 × 15 × 10 cm

Specifications

Ultra Power UP240 AC/DC PLUS Specifications

Input Voltage AC 100-240V, DC 11-18V
Charge Power 2 x 120W or 4 x 60W
Power Distribution CH1+CH3=120W, CH2+CH4=120W
Discharge Power 2 x 10W or 4 x 5W
Charge Current 0.1-12A (CH1, CH2), 0.1-6A (CH3, CH4)
Discharge Current 0.1-5A (CH1, CH2), 0.1-2A (CH3, CH4)
LiPo/Li-ion/LiFe/LiHV cells 1-6
NiCd/NiMH cells 1-15
Pb cells 1-10

Specification up240 min - ultra power up240,ultra power charger,lipo charger,battery uav charger - motionew - 7
