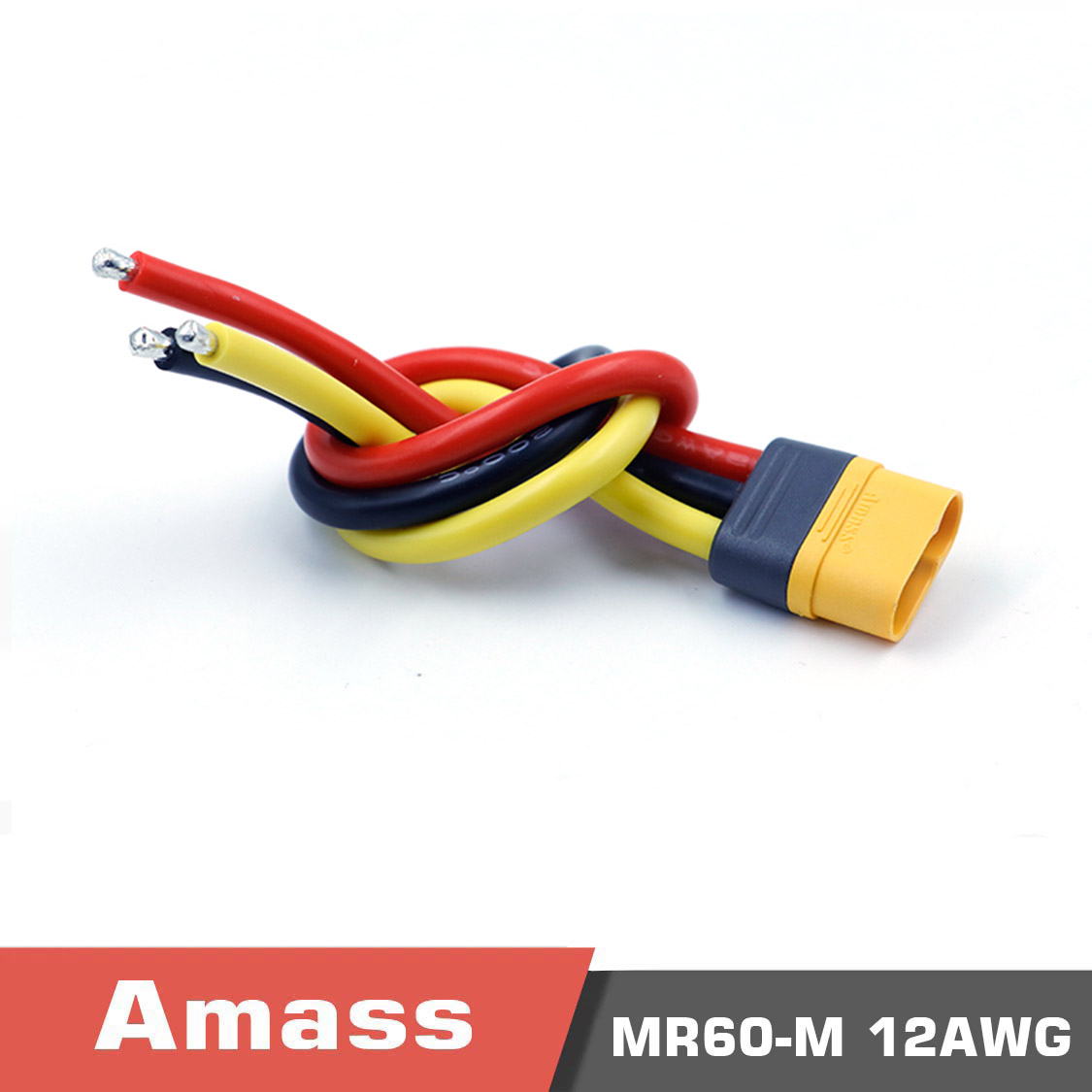

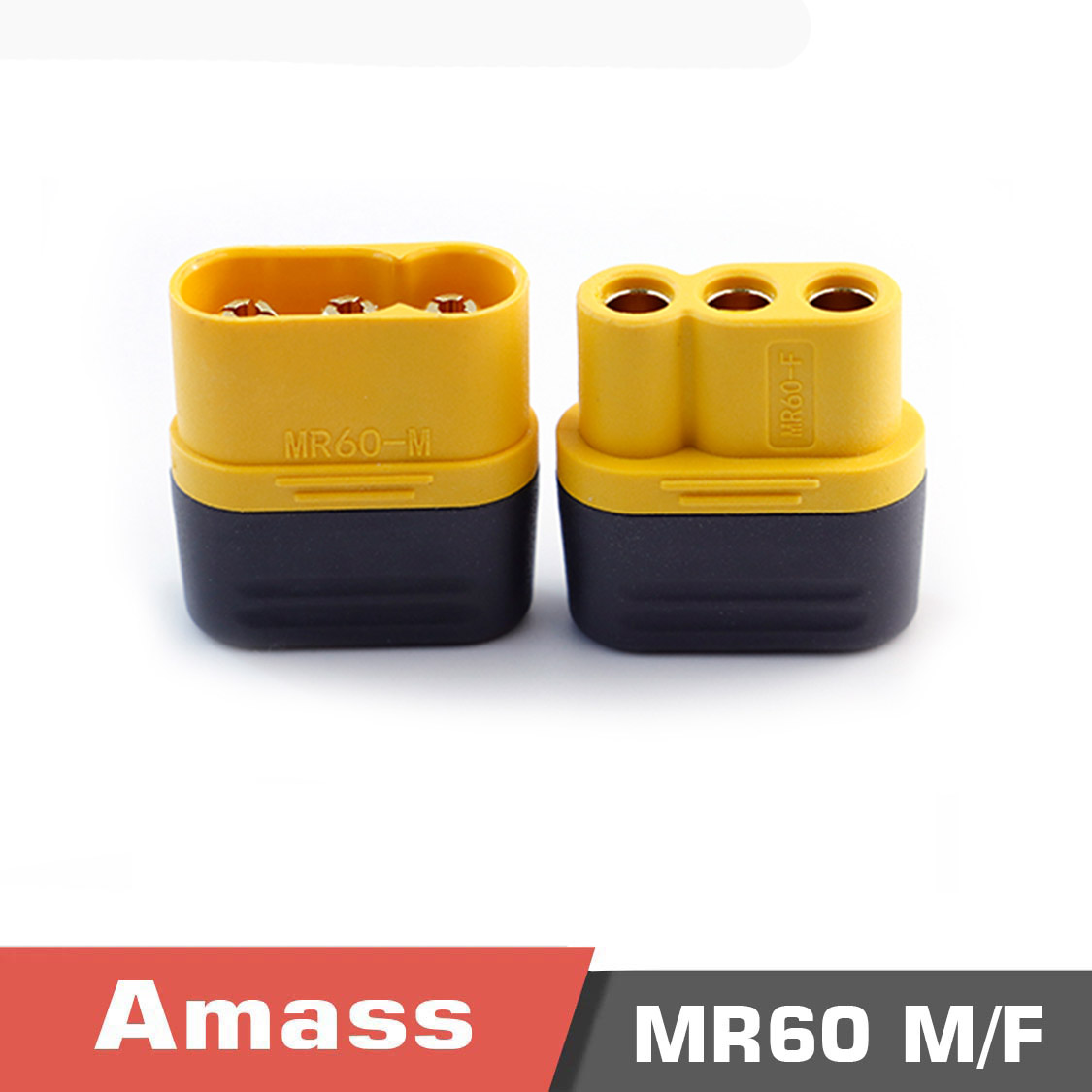

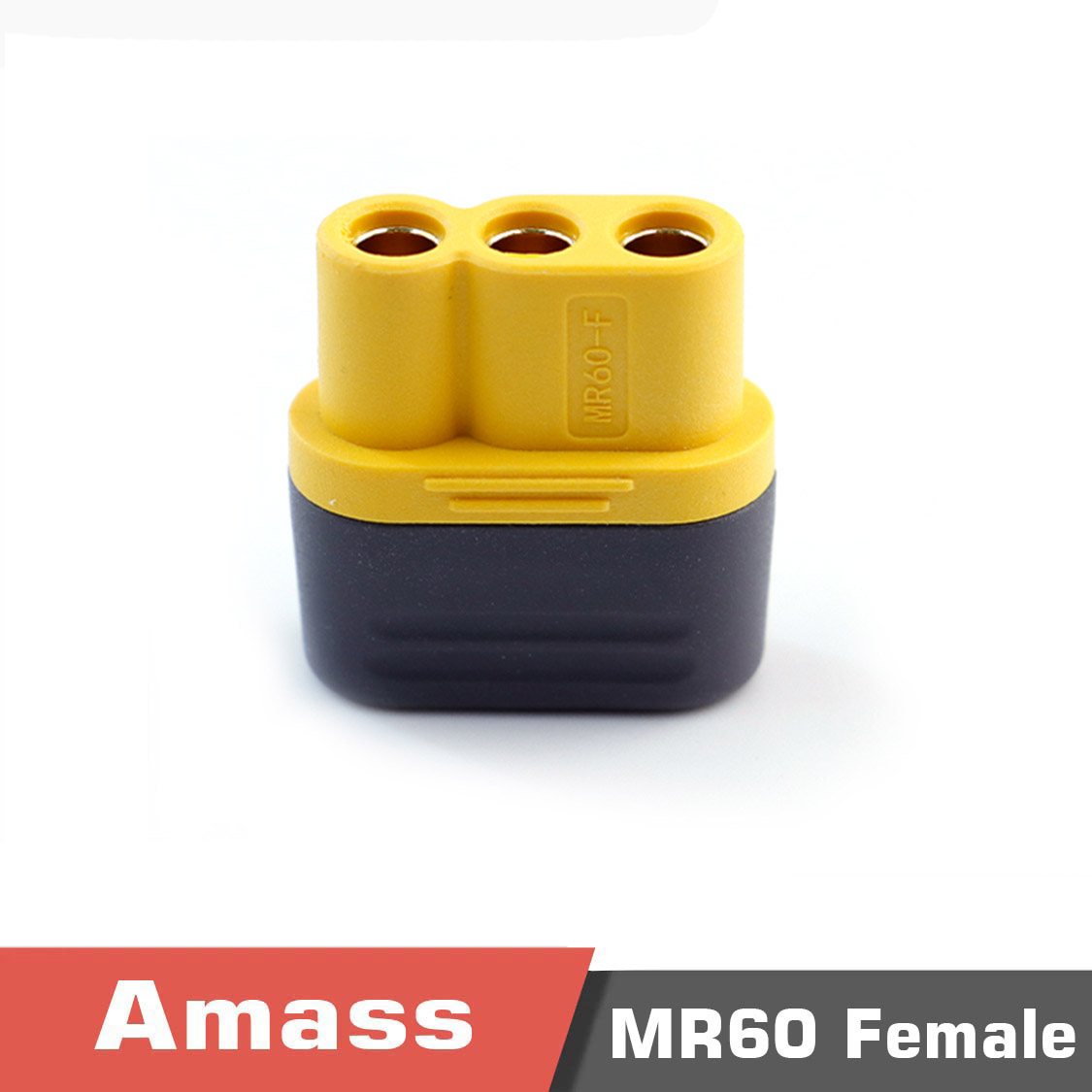

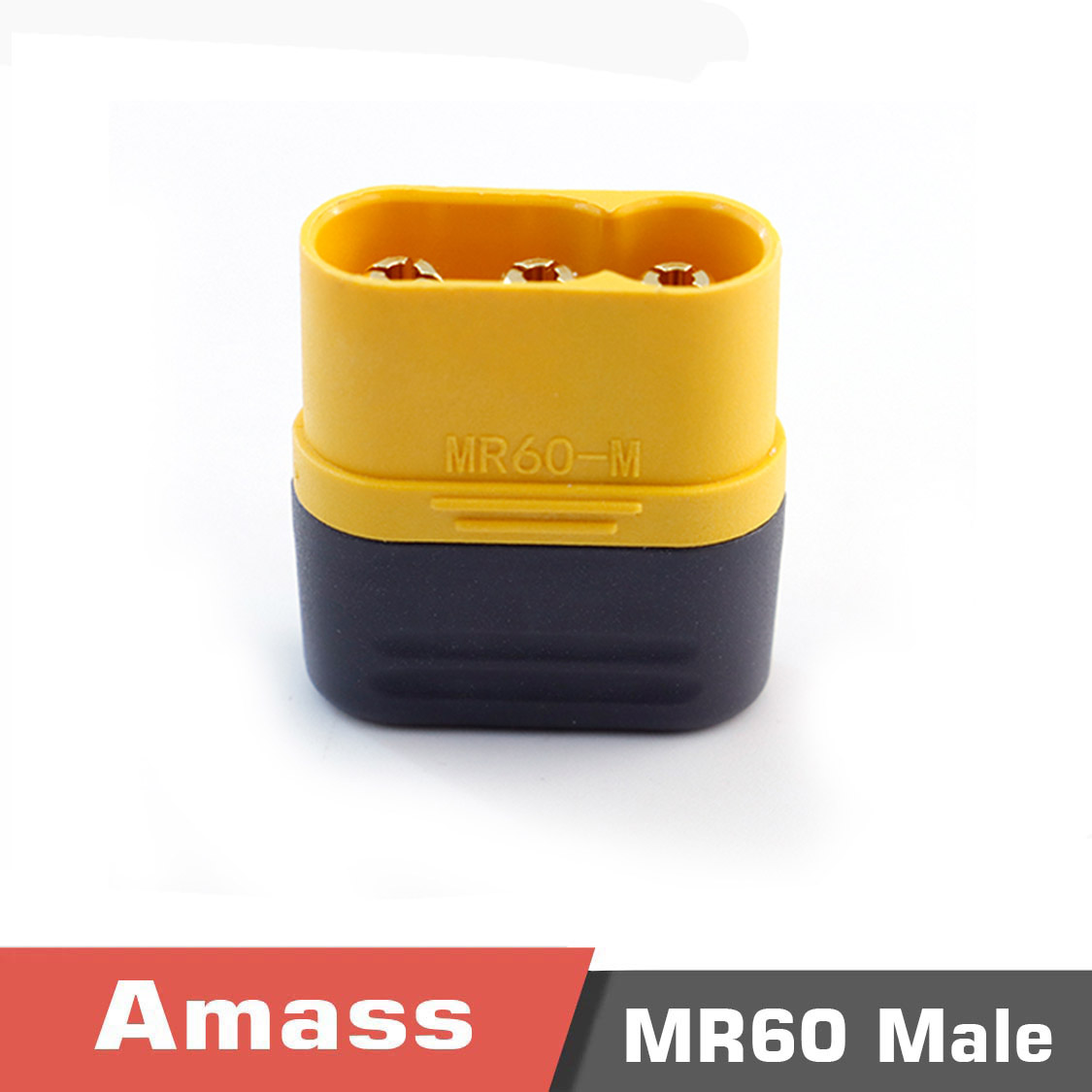

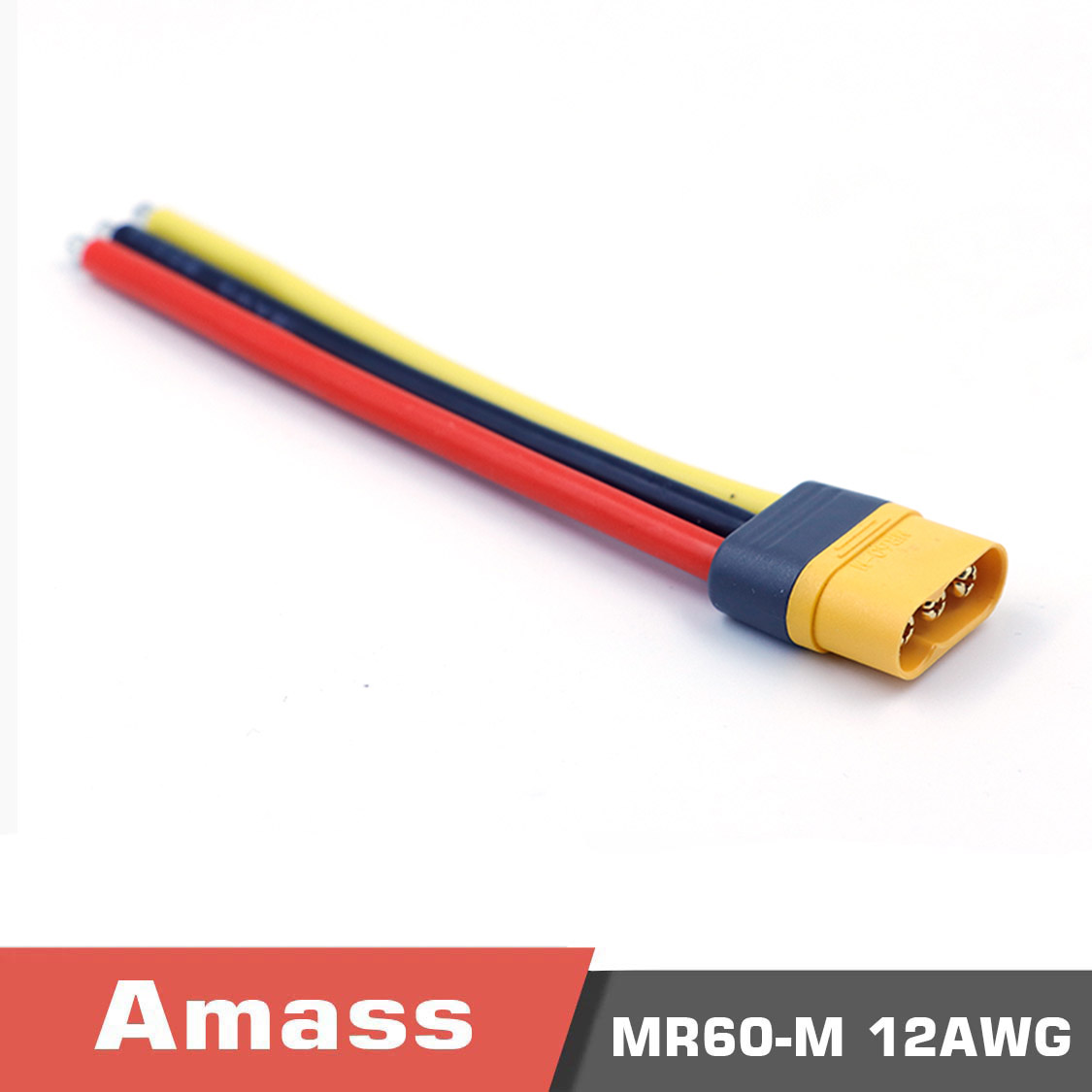

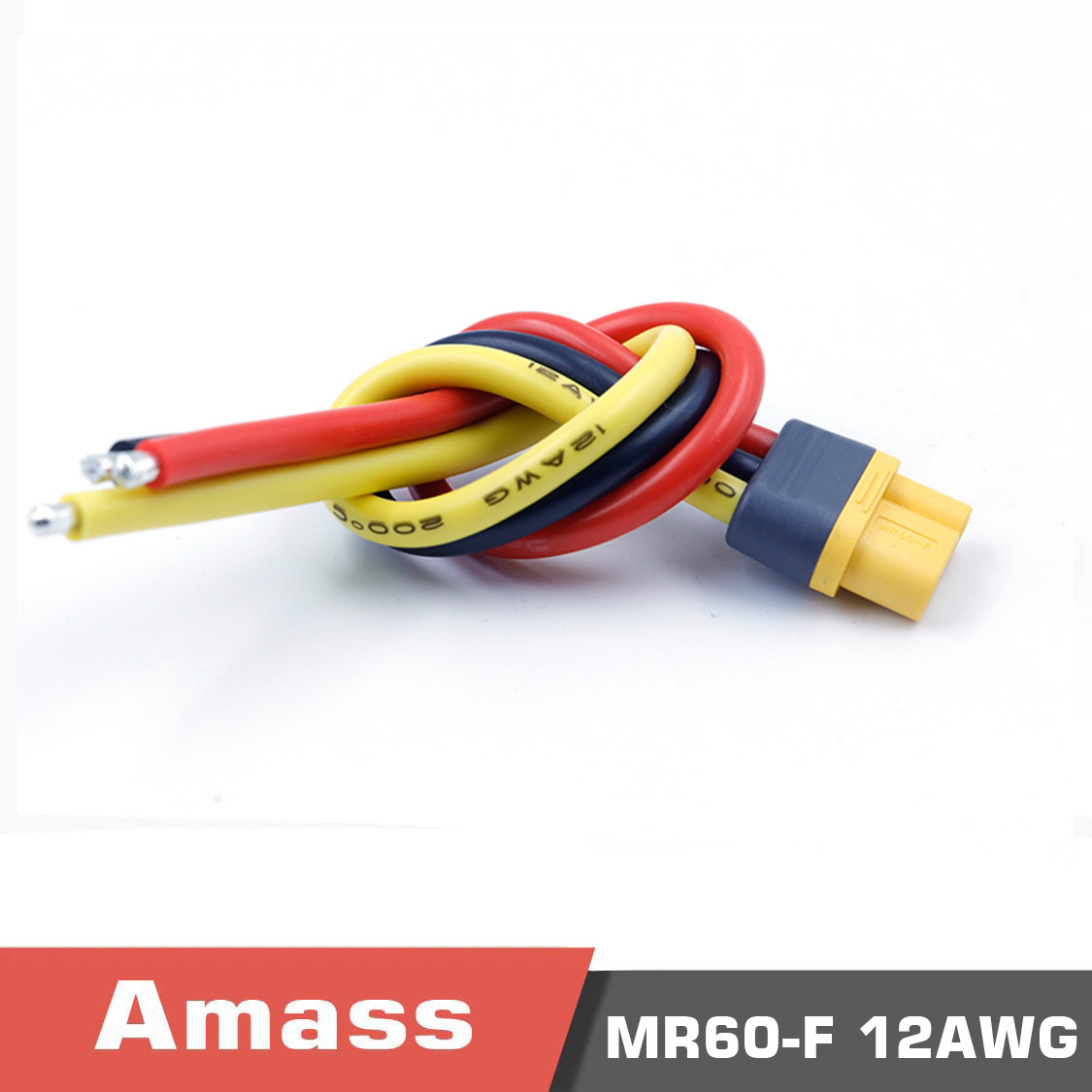

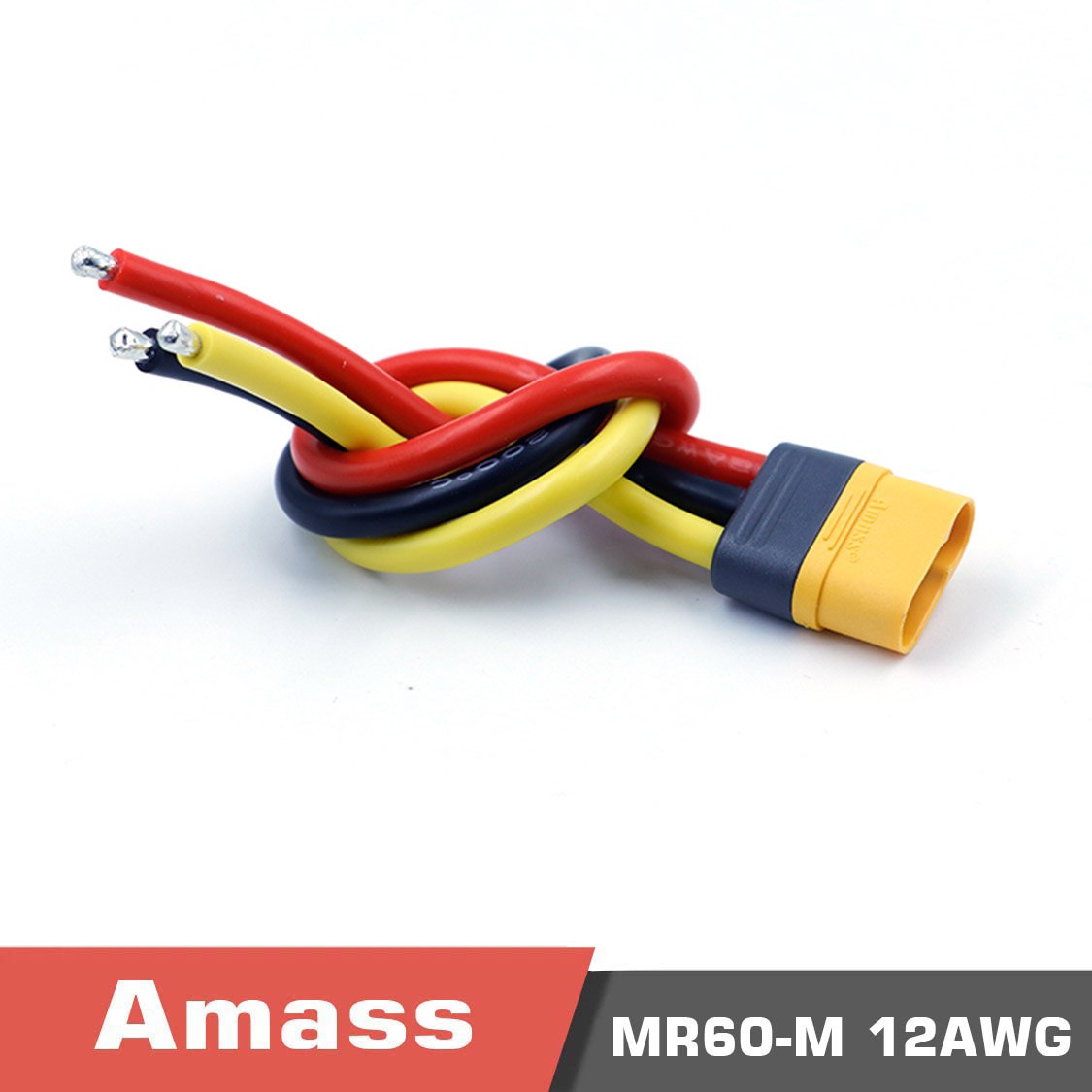

Amass MR60 plug three-core aircraft model high current plug charging male and female head pack of 5 pieces

The Amass MR60 series products are a classic 180° outlet welding injection type 3PIN connector, designed for high-performance power connections. These connectors feature an optional rear cover and are arranged in a rectangular shape, making them a standard plug-in choice for power lithium-ion motors.

Additionally, the MR60 series supports a wire-to-board design, allowing for versatile integration in various electrical applications. Their robust construction ensures reliable connections, making them suitable for demanding industrial and automotive environments. Designed for line-to-line connection scenarios, the MR60 series is commonly used in motors and controllers, where stable and efficient power transmission is essential.

Electrical Characteristics Amass MR60

The connectors boast excellent electrical characteristics, including a rated current of 35A MAX (12AWG/Δ <85°C) and a withstand voltage of 500V DC. They offer high insulation resistance (≥2000MΩ) and low contact resistance (≤1.0mΩ), ensuring minimal power loss.

Mechanical properties of MR60

With a mechanical service life of 100 cycles, the MR60 series maintains durability under repeated use. Additionally, its salt spray resistance of 48 hours enhances its longevity, making it resistant to corrosive environments.

About Environmental resistance

The MR60 series is built to withstand harsh conditions, featuring a protection level of IP40, which provides moderate dust resistance. Its wide working temperature range of -20°C to 120°C ensures stable performance in both extreme cold and high-heat applications. Moreover, the connectors meet UL94 V-0 flame retardant standards, enhancing safety by preventing fire hazards.

These features make the MR60 series an ideal choice for power distribution systems, ensuring efficiency, safety, and long-term reliability in various electrical and electronic applications.
