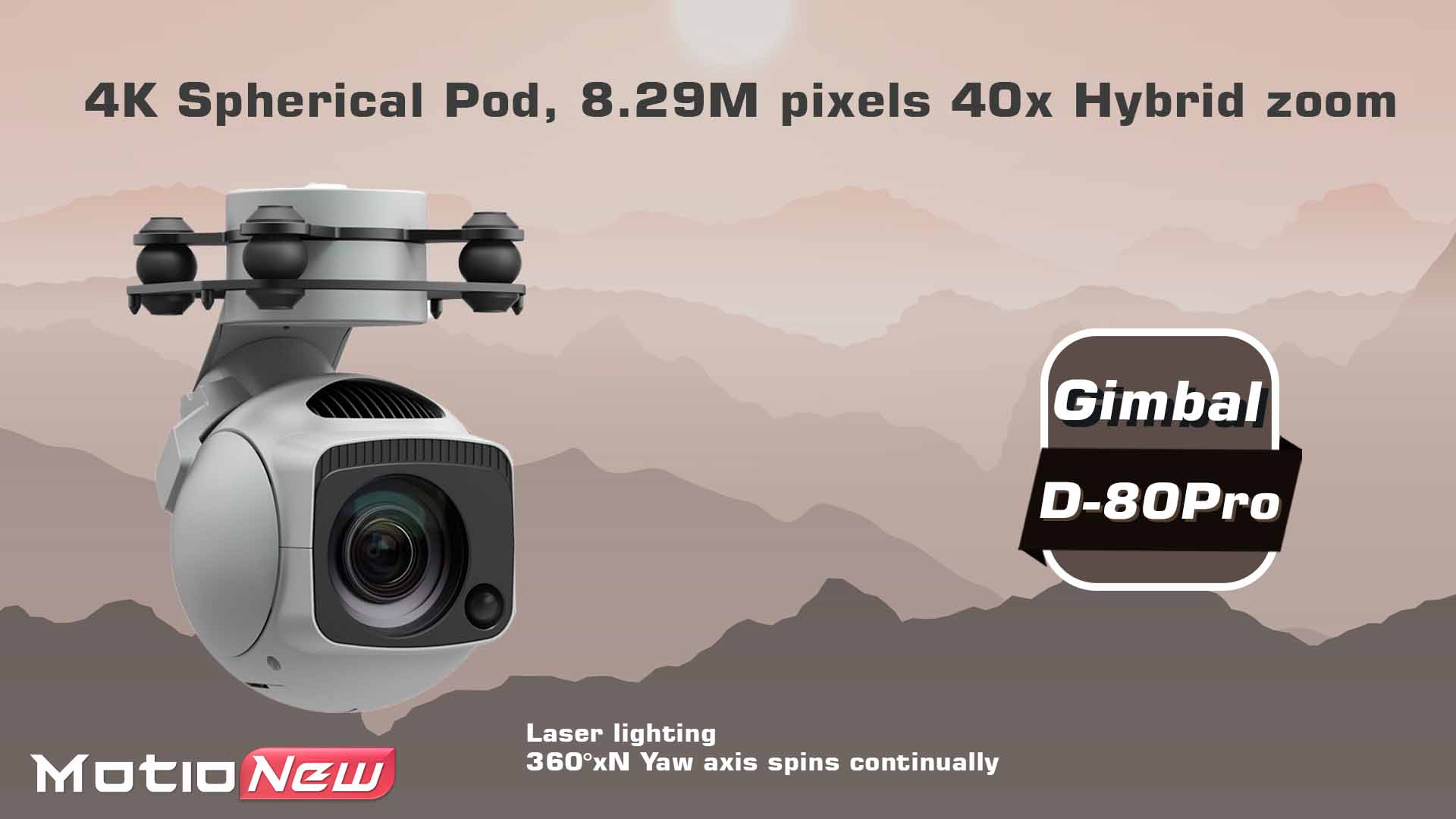

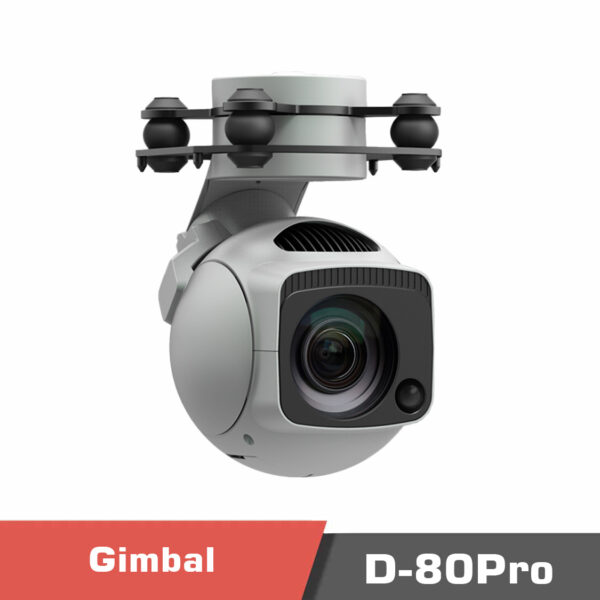

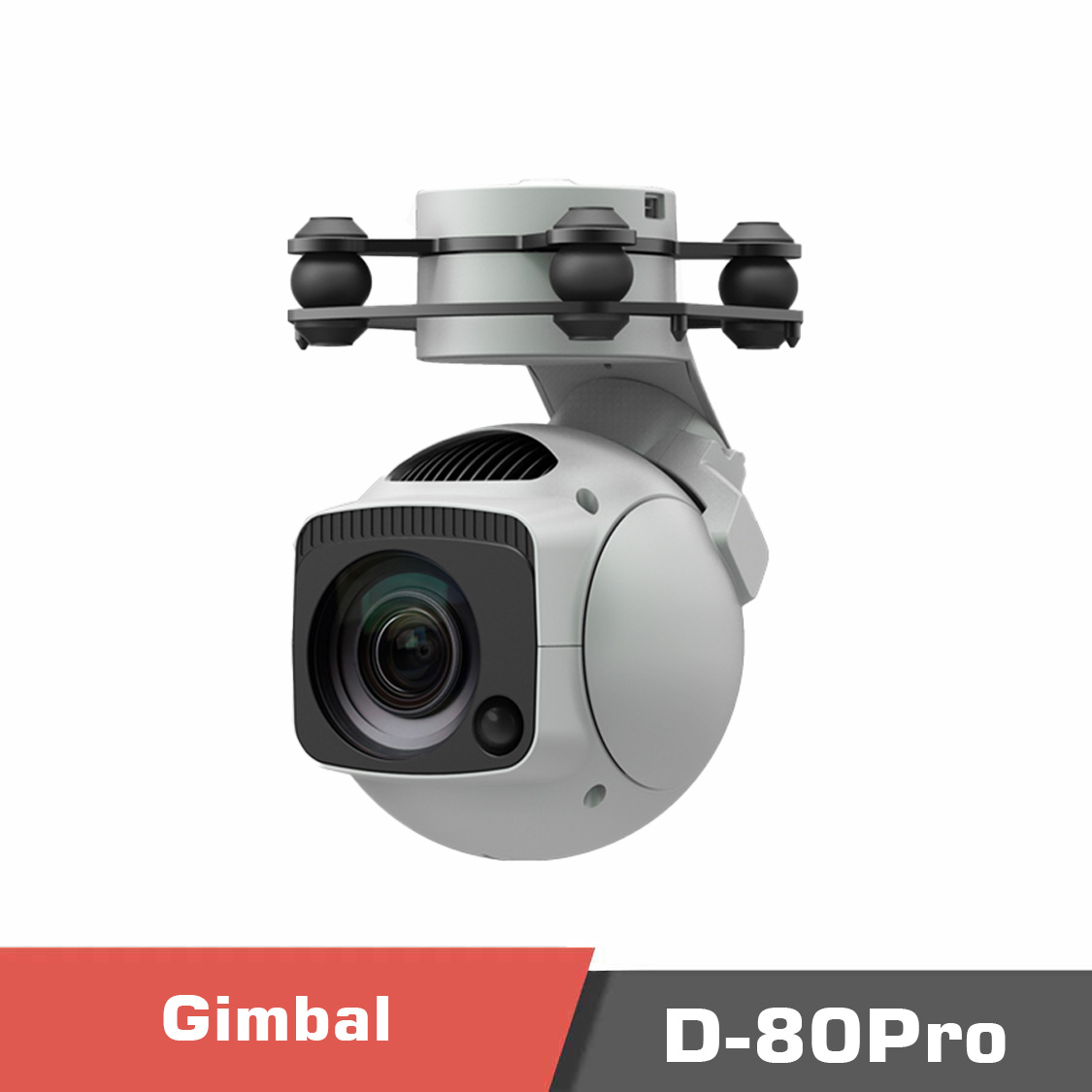

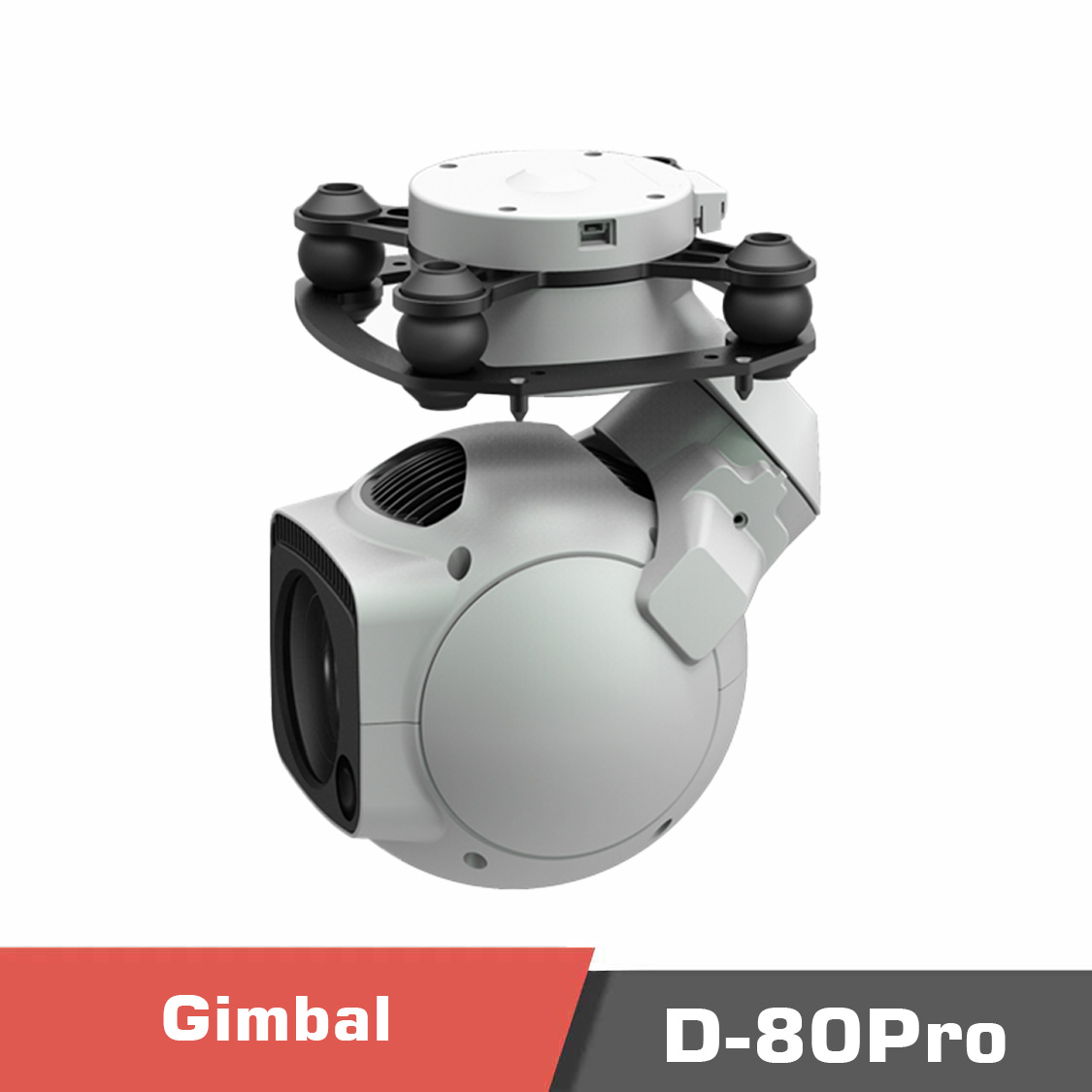

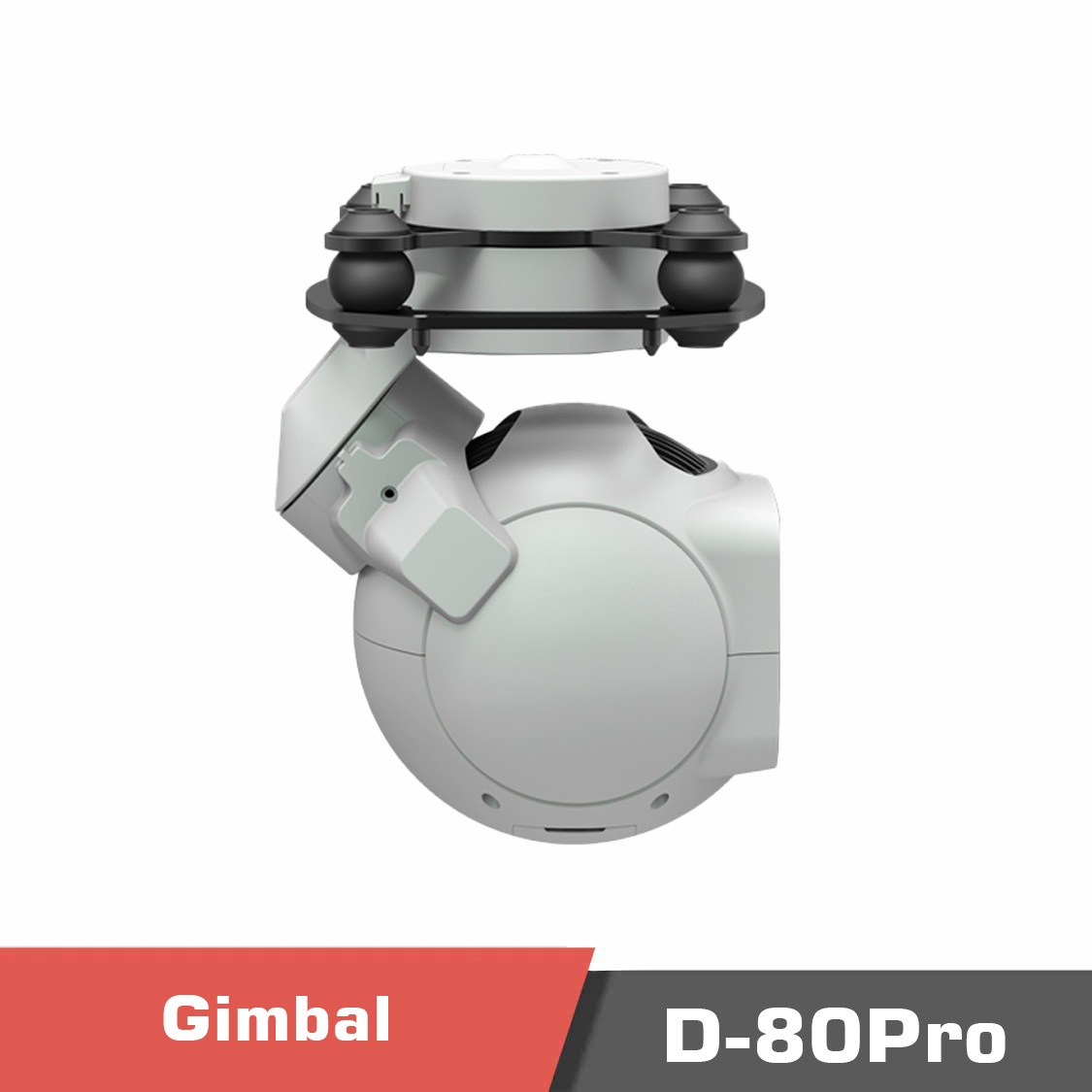

D-80Pro 40x (10x optical, 4x digital) 4K Spherical Pod

870.00 $

Description

D-80Pro 40x (10x optical, 4x digital) 4K Spherical Pod Overview

The D-80Pro 40x-4K Spherical Pod features a high-precision 3-axis nonorthogonal gimbal paired with an 8.29-megapixel 40x zoom camera (10x optical, 4x digital), enabling users to swiftly transition from a wide view to a highly magnified zoom for detailed target observation. Equipped with a laser lighting module, it ensures clear imaging even in complete darkness.

Its advanced target tracking function allows the pod to continuously follow a selected target on-screen with precision. Designed for versatility, the D-80Pro 40x-4K Spherical Pod supports tool-less mounting on various carriers in both downward and upward orientations. Through the GCU and Dragonfly software, users can view real-time footage and control the pod directly from a computer, ensuring efficient and seamless operation.

Characteristics D-80Pro 40x-4K Spherical Pod

• Carries an 8.29M pixels 40x hybrid zoom camera, which provides a video resolution of 4K@30fps and an image resolution of 3840×2160.

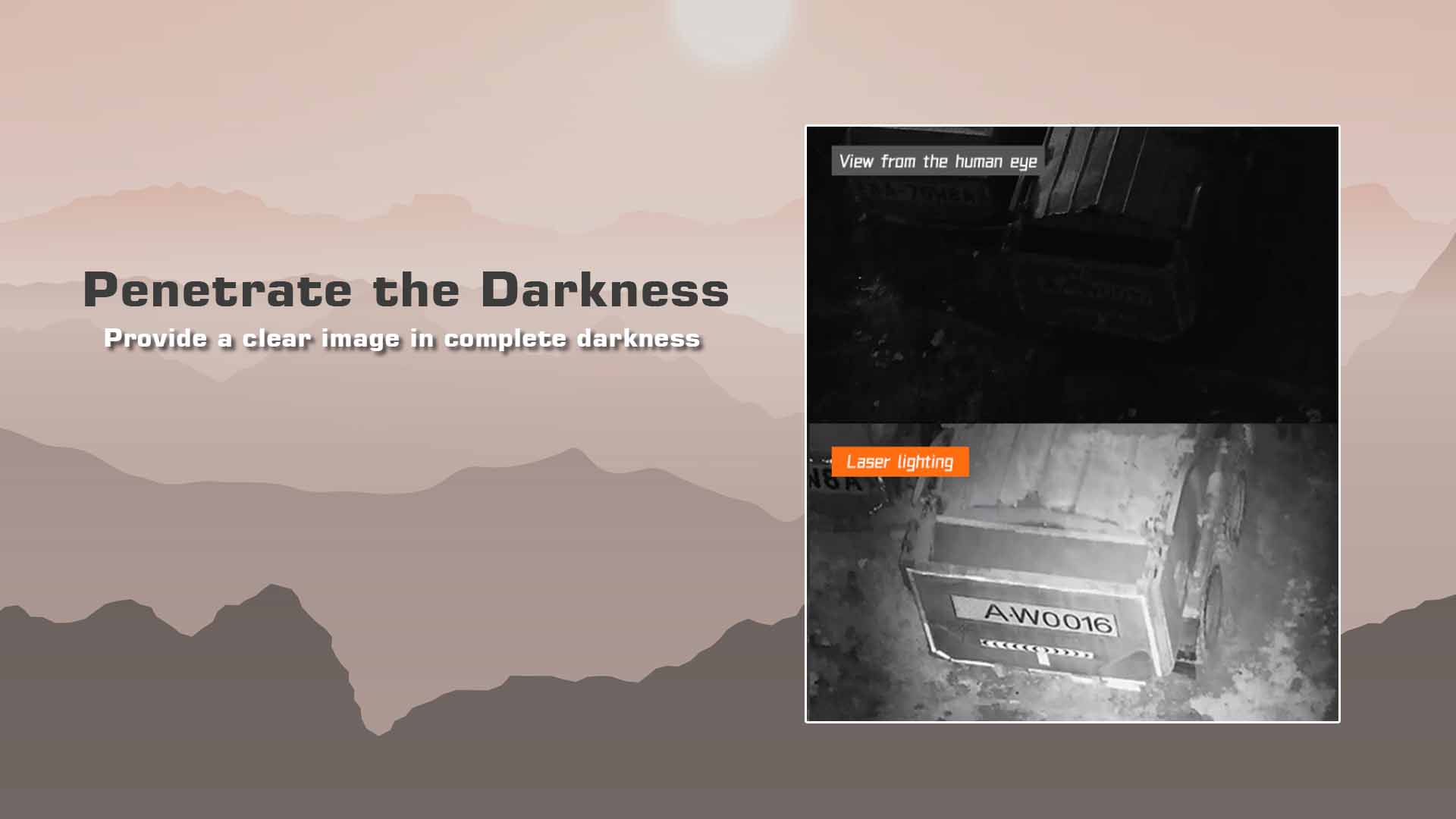

• Laser lighting module ensures the camera getting a clear image even in complete darkness.

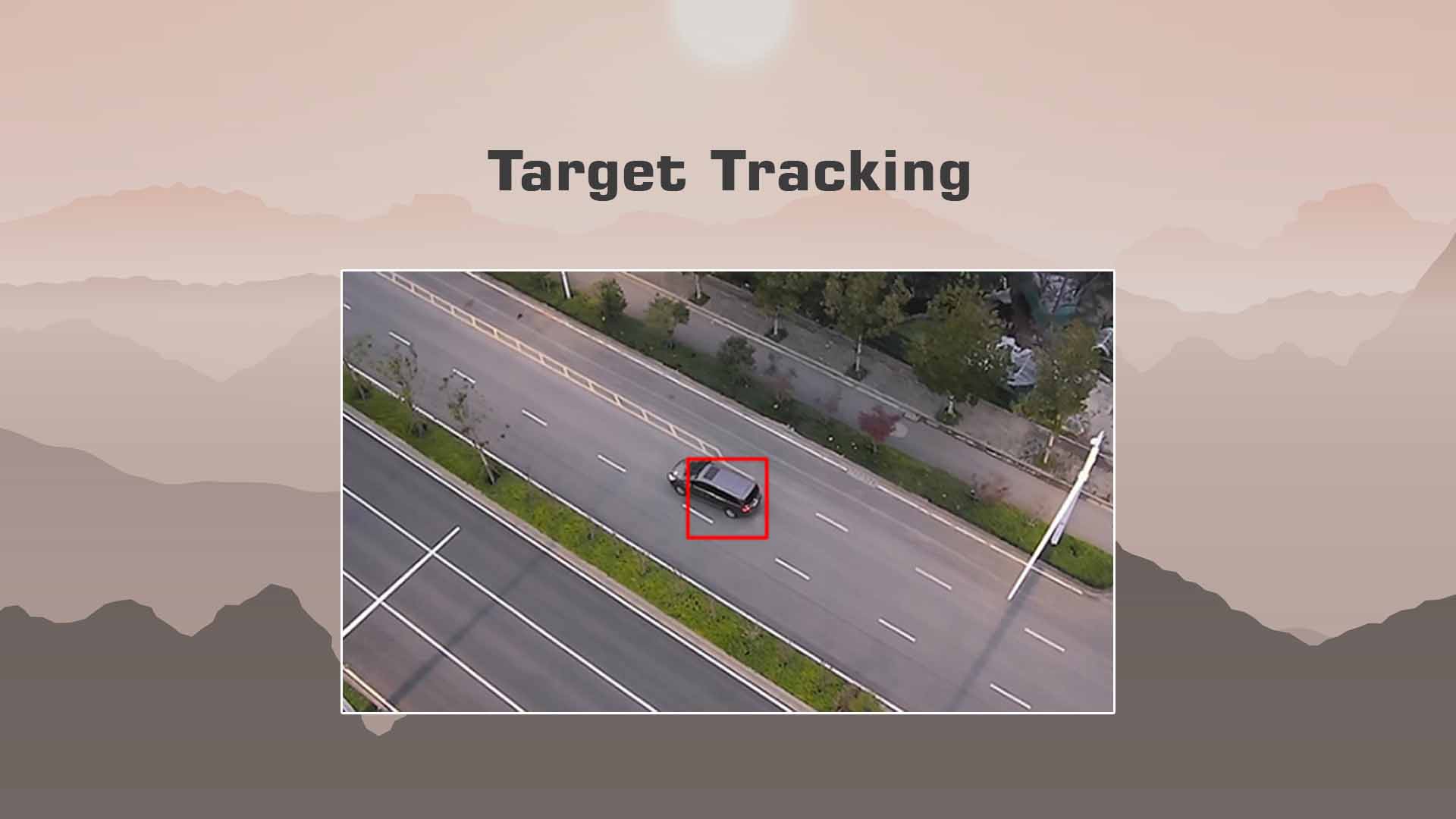

• Features auto target tracking, which can constantly track the target selected on screen.

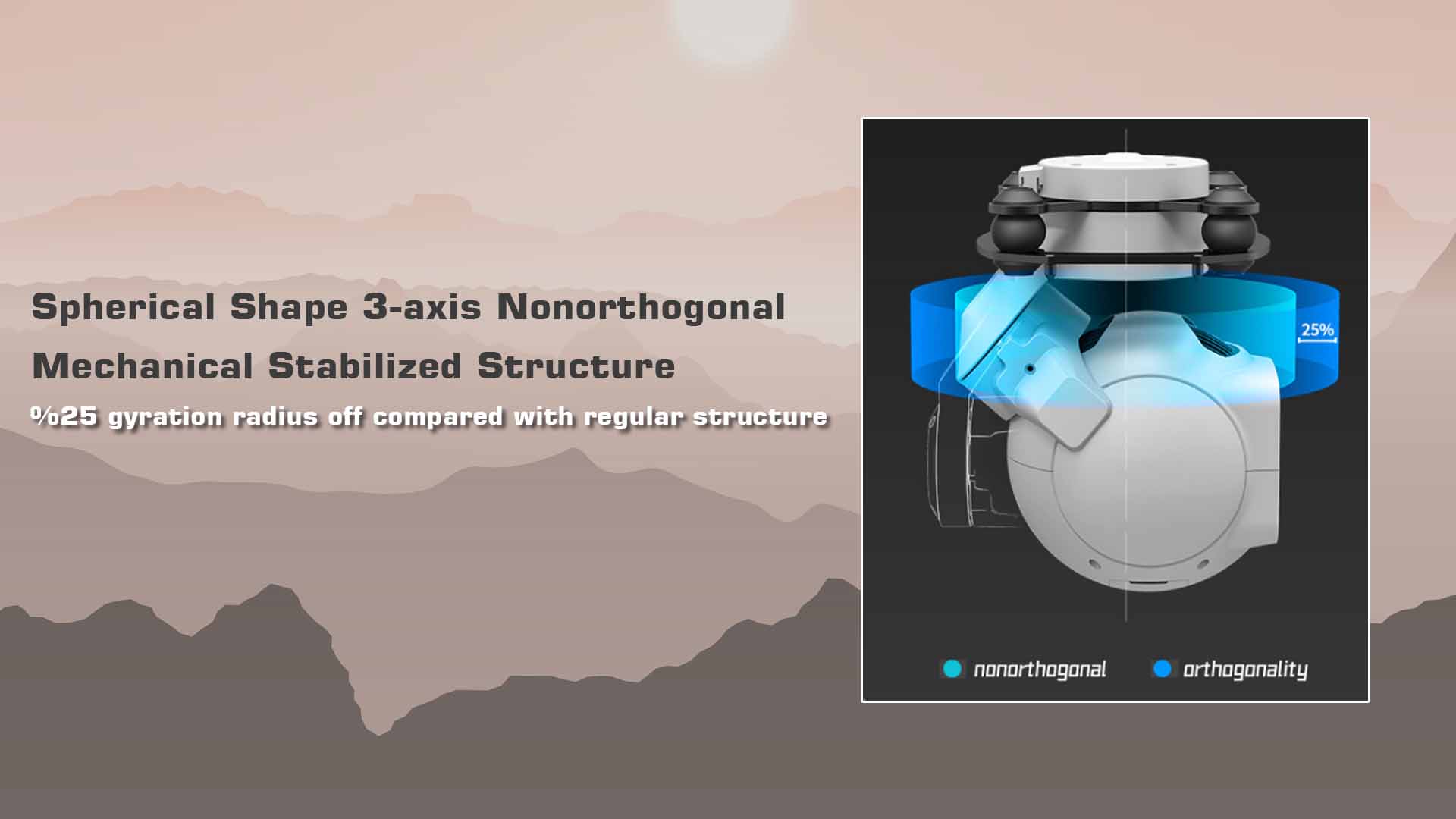

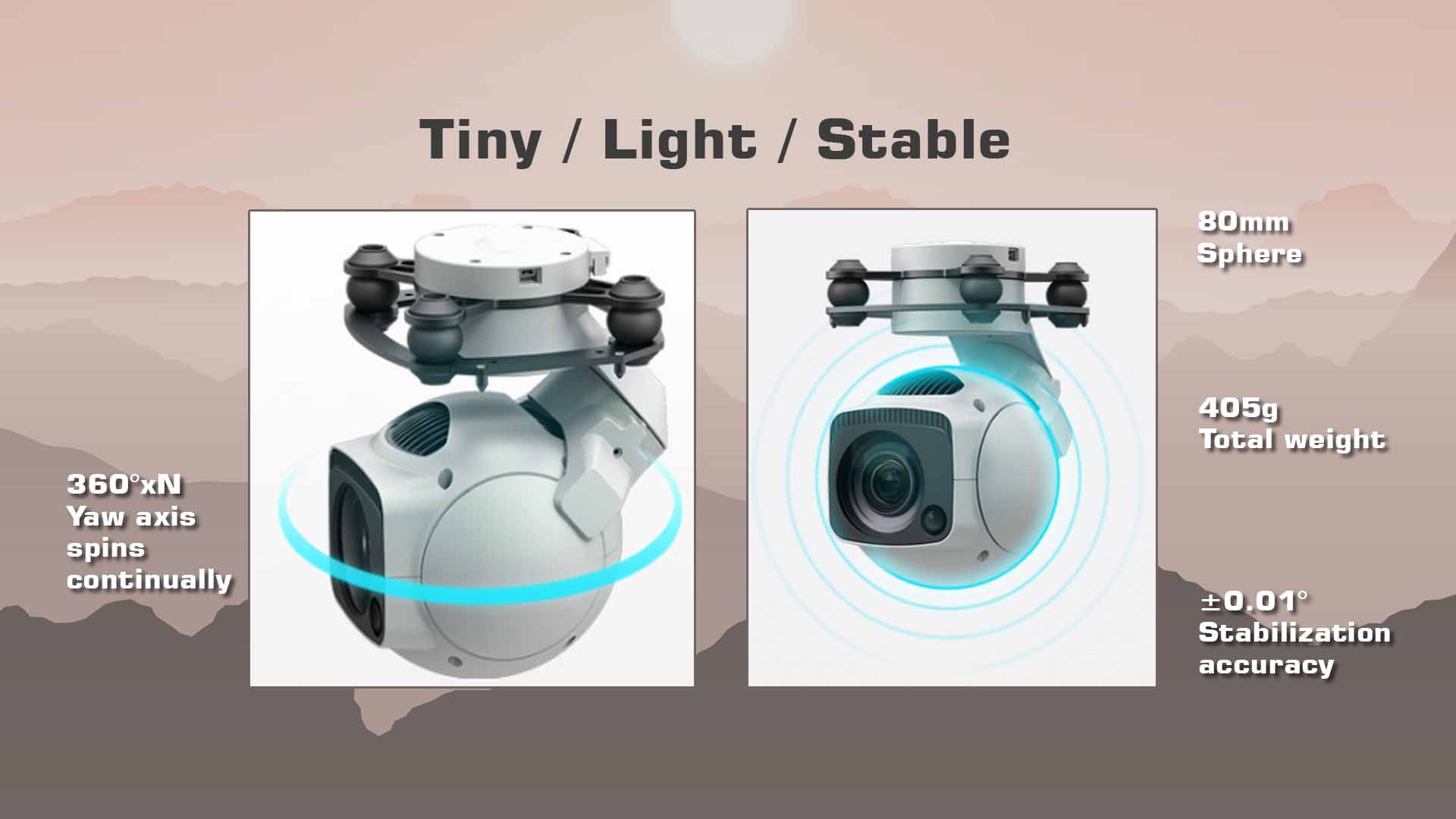

• Low-profile spherical shape and 3-axis nonorthogonal mechanical stabilized structure, minimize the gyration radius and the wind resistance of the pod. The D-80Pro is able to spin continually around its yaw axis.

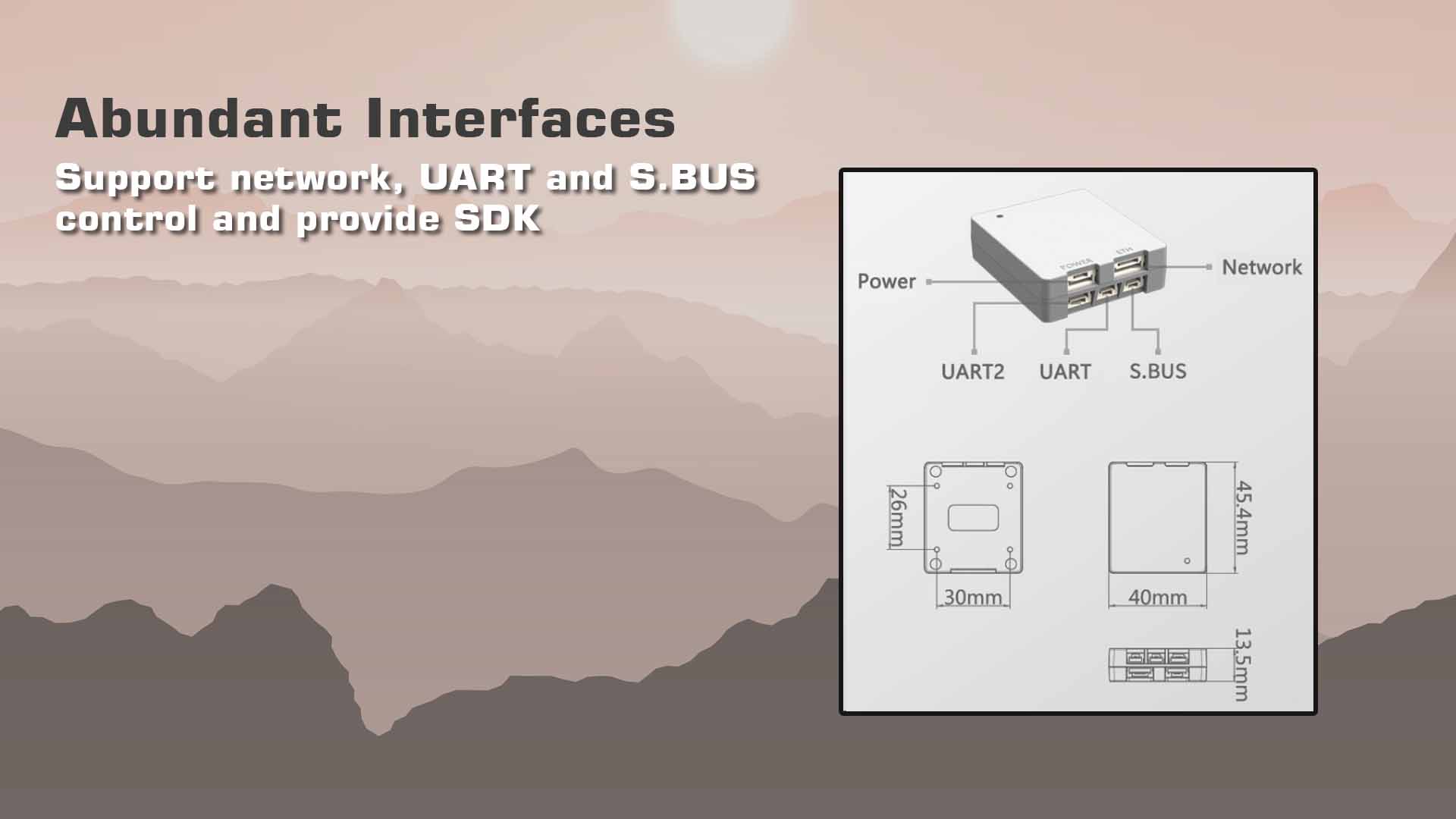

• With the GCU, the D-80Pro supports network, UART and S.BUS control. The GCU supports both private protocol and MAVLink protocol.

• Thanks to the Dual-IMU complementary algorithms with IMU temperature control and carrier AHRS fusion, the D-80Pro provides a stabilization accuracy at ±0.01°.

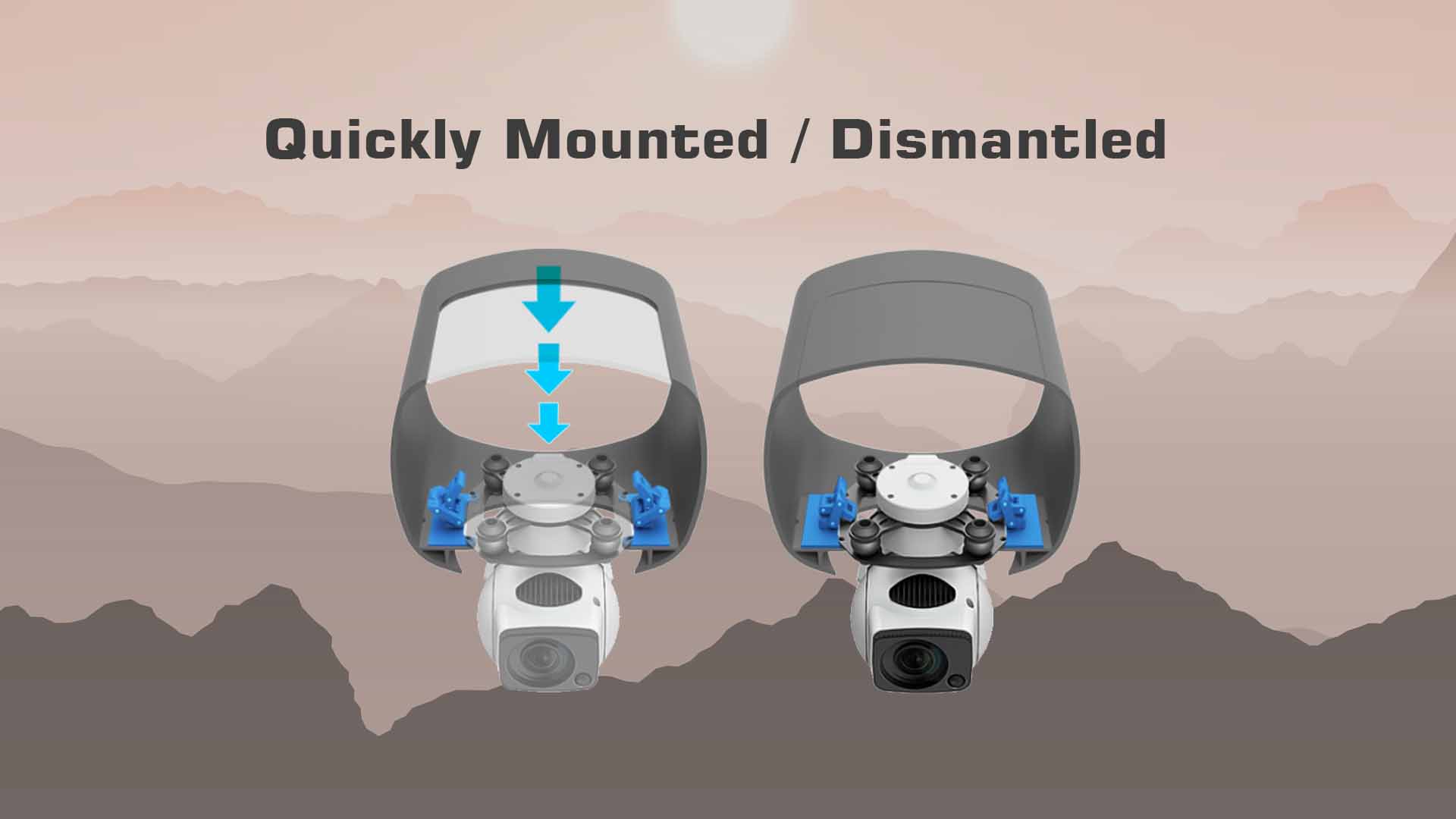

• Can be mounted onto multiple carriers, whether downward or upward.

• With the GCU and the Dragonfly software, user can watch the image and control the pod without protocol ducking.

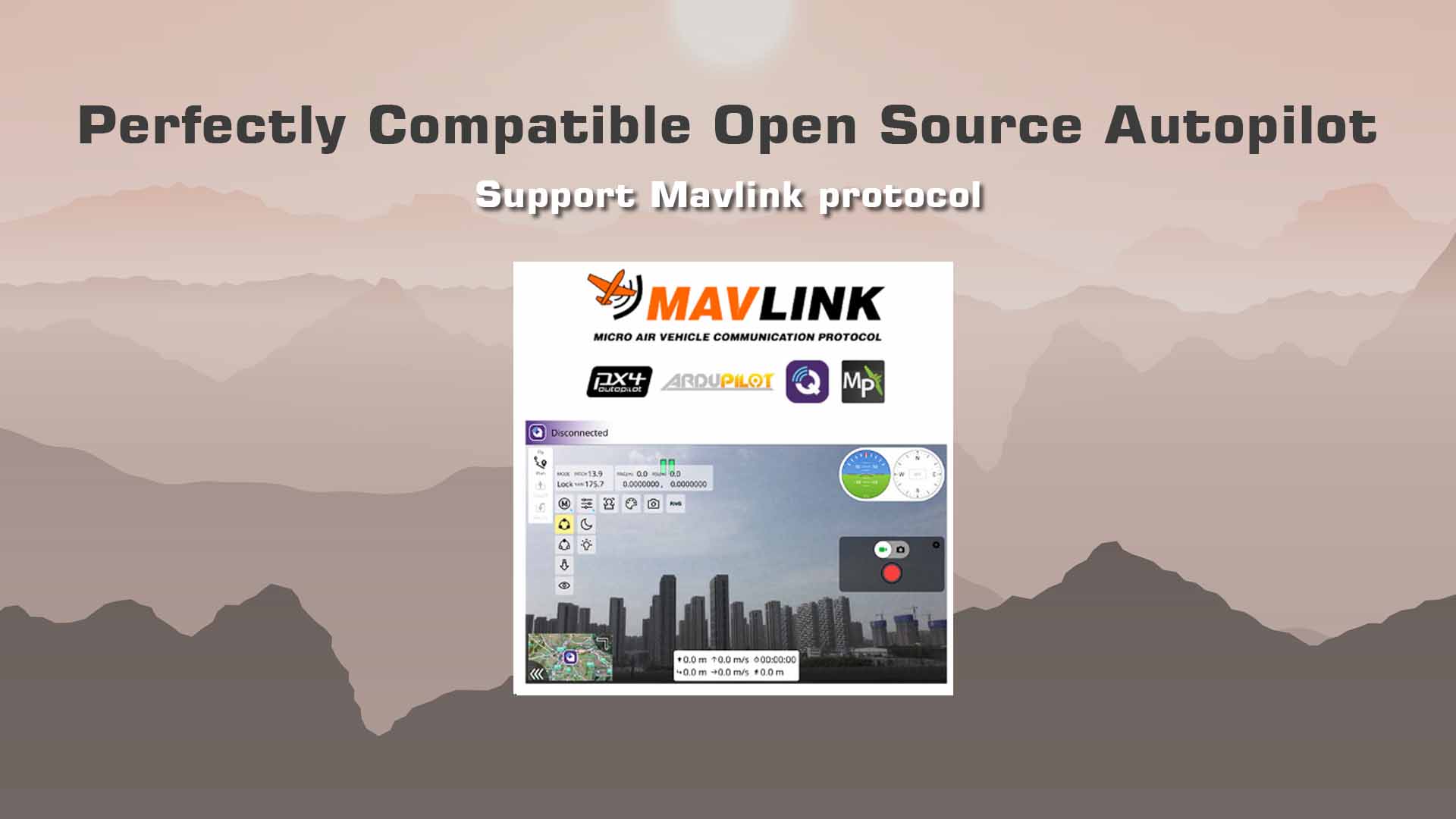

• With the customized QGC software, all the functions of the pod can be achieved in conjunction with an open source autopilot.

• Screen supports overlaying OSD information such as latitude, longitude and altitude. Image supports shooting point coordinate EXIF save.

• Supports ONVIF protocol.

• 14~53 VDC wide voltage input.

It can be assembled on various types of unmanned aerial vehicles and other aviation carriers, as well as ships and vehicle carriers, so as to meet the requirements of sea and air use, making it an ideal camera gimbal drone solution.

Gimbal Camera AI object Detection and Tracking Video

Overview of the D-80Pro 40x-4K Spherical Pod

For a comprehensive reading of related products, please visit the Motionew website.

Specifications

Specifications

General
Product Name	D-80Pro
Dimensions	Pod: 85.8 x 86 x 129.3mm
Dimensions	GCU: 45.4 x 40 x 13.5mm
Weight	Pod: 405g
Weight	GCU: 18.6g
Operating Voltage	14 ~ 53 VDC
Power	Pod: 6.7W (AVG, light off) / 55 W (Stall, light on)
Power	GCU: 1.8W
Mounting	Downward / Upward

Gimbal
Gimbal Type	3-axis Nonorthogonal Mechanical Stabilization
Angular Accuracy	±0.01°
Controllable Range	Pitch: -157°～+70°, Yaw: ±360°constantly
Max Controllable Speed	Pitch:±200°/s, Yaw: ±200°/s

Zoom Camera
Image Sensor	1/2.8”CMOS; Effective Pixels: 8.29M
Lens	Focal Length: 4.8~48mm
	Aperture: f1.7~f3.2
	HFOV: 60.2°～6.6°
	VFOV: 36.1°～3.7°
	DFOV: 67.2°～7.6°
Resolution	3840 x 2160
Pixel Pitch	1.45μm
Electronic Shutter Speed	1~1/30000 s
Optical Zoom Rate	10x
Equivalent Digital Zoom Rate	4x
Min Illumination	Night Vision off: 0.01Lux / F1.5
Min Illumination	Night Vision on: 0.001Lux / F1.5
Object Detection Distance
EN62676-4:2015	Johnson Criteria
Person[1]: 1449m Light vehicle[2]: 1904m Large vehicle[3]: 4057m	Person: 16552m Light vehicle: 50759m Large vehicle: 108138m
Object Identification Distance
EN62676-4:2015	Johnson Criteria
Person: 290m Light vehicle: 381m Large vehicle: 811m	Person: 4138m Light vehicle: 12690m Large vehicle: 27035m
Object Verification Distance
EN62676-4:2015	Johnson Criteria
Person: 145m Light vehicle: 190m Large vehicle: 406m	Person: 2069m Light vehicle: 6345m Large vehicle: 13517m

Laser Lighting Module
Wavelength	850±10nm
Laser Power	0.8W
Beam Angle	8°
Beam Diameter	14m @ 100m
Effective Illumination Distance	≤200m
Laser Safety	Class 3B（IEC 60825-1:2014）

Image & Video
Image Format	JPEG
Maximum Image Resolution	3840 x 2160
EXIF	Shooting point coordinate
Video Format	MP4
Maximum Video Resolution	4K@30fps
Stream Encode Format	H.264，H.264H，H.264B，H.265，MJPEG
Stream Network Protocol	ONVIF，GB/T28181，RTSP

Storage
Supported SD Cards	Supports a Speed Class 10 MicroSD card with a capacity of up to 256GB

Environment
Operating Temperature	-20℃～50℃
Storage Temperature	-40℃～60℃
Operating Humidity	≤85%RH (Non-condensing)
