M68 Lightweight Quadrotor Rotary-wing UAV-Multirotor drone

2488.00 $

(1 customer review)
PayPal
Visa
Master

Description

Important Notice!
Our company’s unmanned aerial vehicle (UAV) products only support domestic transactions within China. If your company intends to export UAV products from China, it is necessary to comply with Chinese regulations. Furthermore, the products cannot be used for military, terrorist, or war purposes.


Overview of M68 Lightweight Quadrotor

M68 lightweight quadrotor is a portable ultra light weight quadrotor Multirotor UAV with 680mm wheelbase. The 100min long endurance feature supports users to double the work efficiency while ensuring human safety. The use of many general-purpose components reduces product maintenance costs of this rotary-wing Multirotor drone. It’s a preferred choice where low SWAP-C (Size, Weight, Power and Cost) without compromising performance is a key requirement.

Made of carbon fiber, the airframe is high strength while weight is only 565g. Integrated design provide a beautiful appearance while ensuring the IP54 water proof performance, can implement missions in light raining days. Foldable propellers and arms helps the aircraft to be portable, ease to carry and rapid deployment in 1 minute.

Light weight but high efficient. With 6s 22000mah semisolid HED Li-ion battery as power source, M68 can carry max 2kgs payloads with stable flight performance. The flight time can reach 100 minutes without payload and 60 minutes with 1kg payload. The system is perfectly suitable for protection of sensitive industrial sites (such as oil & gas and chemical industry to monitor the oil tanks and oil refining equipment, pipelines and chemical plants), inspection and first respond. It can provide continuous monitoring while significantly reduced human intervention. Equipped with high-definition optical and thermal sensors, M68 offers very precise aerial vision, day and night, which allows customers to enhance their safety while keeping operational costs low.

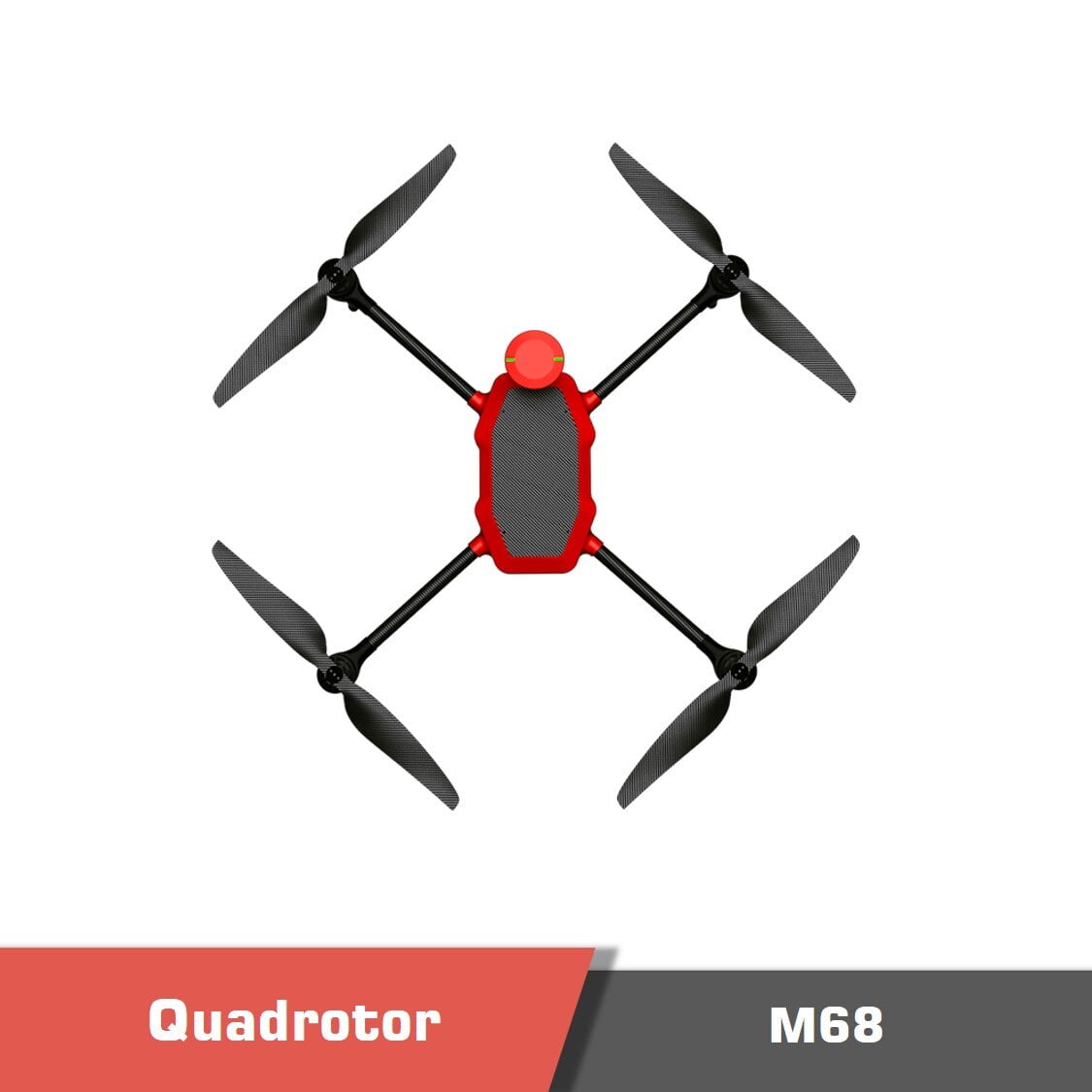

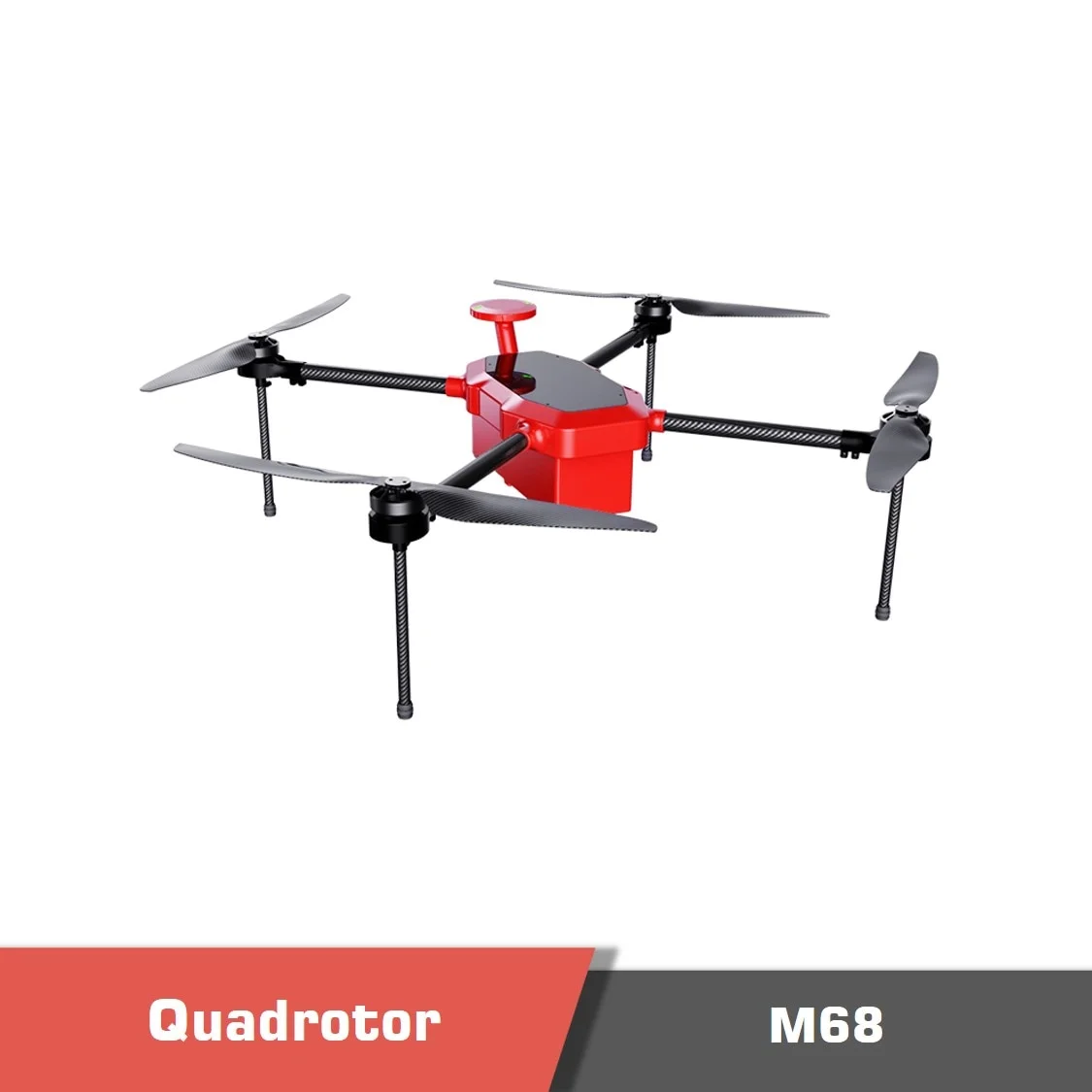

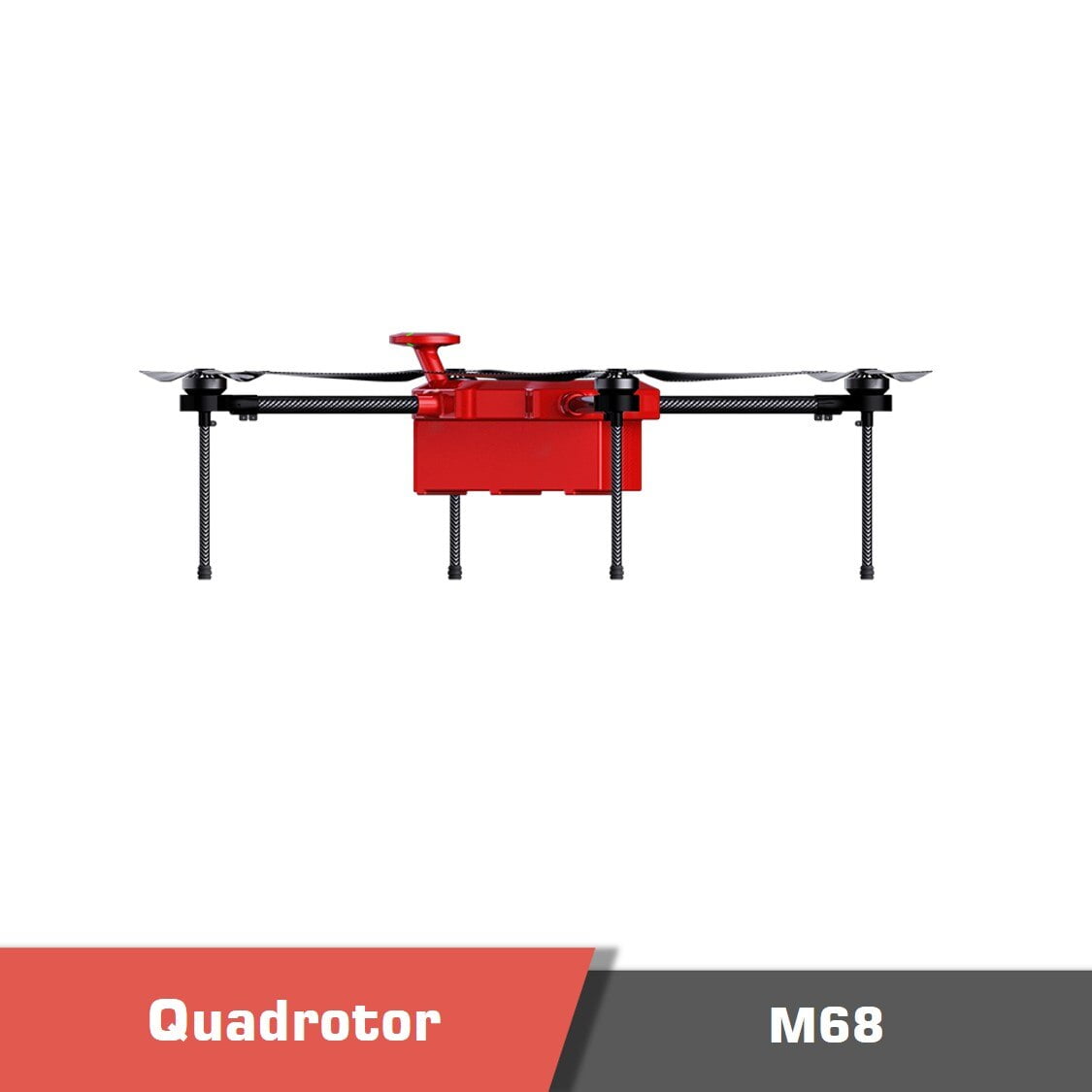

M68 lightweight quadrotor rotary-wing uav p1 motionew

M68 lightweight quadrotor rotary-wing uav p2 motionew

M68 lightweight quadrotor rotary-wing uav p3 motionew

M68 lightweight quadrotor rotary-wing uav p4 motionew

M68 lightweight quadrotor rotary-wing uav p5 motionew

M68 lightweight quadrotor rotary-wing uav p6 motionew

For a comprehensive reading of related products, please visit the Motionew website.

Product contents

Packing List for Different Versions

Version CUAV V5 RTF Cube Orange RTF CUAV X7 RTF
Flight Controller CUAV V5 Cube Orange CUAV X7
GPS NEO V2 GNSS Here 3 GNSS NEO V2 Pro GNSS
Drone Frame
VTOL Motor 4pcs 4pcs 4pcs
VTOL ESC 4pcs 4pcs 4pcs
VTOL Propeller 2Pairs 2Pairs 2Pairs
RC&Ground Station 1x FT24 14Channels RC 1x DK32SE 16Channels RC 1x DK32SE 16Channels RC
Video Transmitter / / /
Battery / / /
Battery Charger / / /
Carrying Case
Assembling, tuning and flight test service

Specifications

Model No. M68
Type Quadrotor
Color Red and black as default (Support customization)
Expanded Dimension 800mm*800mm*230mm
Wheelbase 680mm
Belly to Ground 130mm
Material Carbon fiber
Airframe Weight 565g (no load no battery)
MTOW 5kg
Max Payload 2kg
Flight Time 100min(no load), 60min(1kg load)
Maxi Pitching Angle 32°(GPS mode), 40°(AIT mode)
Max Flight Speed 20m/s
Max Ascending Speed 8m/s
Max Descending Speed 4m/s
Max Flight Altitude 2000m (<5000m height above sea level)
Max Wind Resistance >12m/s
Battery (Recommended) 6S 22000mAh
Working Temperature -20℃~60℃
IP Grade IP54
Package Chargable Size 60*60*25cm

Documents

Please contact us for more information.
