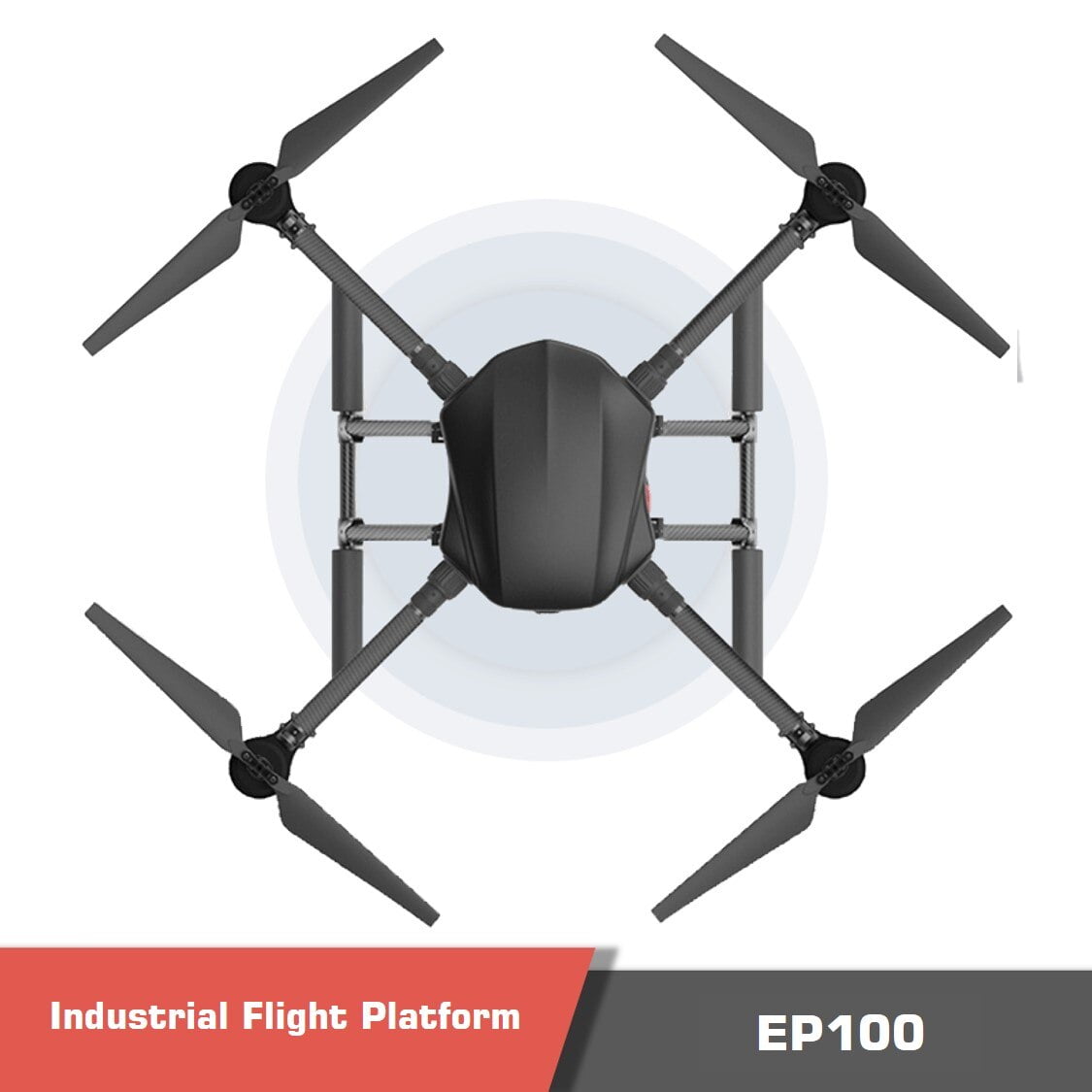

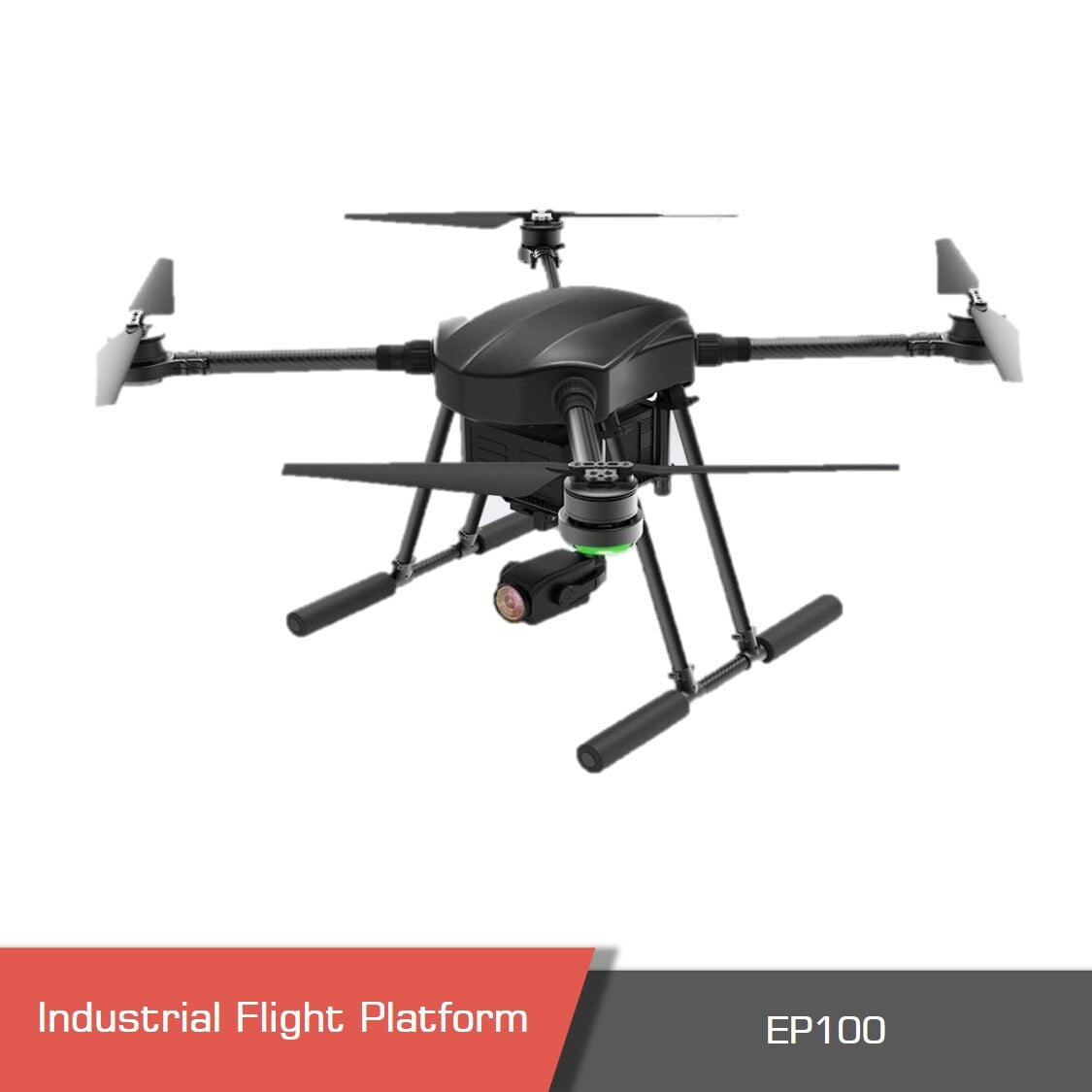

EP100 Industrial Flight Platform

EP100 is a light-load flight platform specially designed for industrial applications. It adopts a modular design concept. The main components can be quickly disassembled, flexible and multi-purpose, which is convenient for customization and expansion. The whole machine is painted in matte black, which is more professional and stable

Customized Industry UAV Solution

EP100 flight platform is a fully modular design, each component can be customized according to customer requirements to meet the requirements of different endurance and load

Specifications:
Specifications:
Item Brand: ARRIS
Item Model: ARRIS EP100
Diagotal wheelbase: 1000mm
Arm Diameter: 30mm
Motor Mount: No
Size: 800x800x500mm
Frame weight: 3.5kg
Frame+Power combo weight: 6.5kg
Maximum takeoff weight: 16kg
Effective Payload: 1-5kg

Recommended Power combo:
Motor: 6215 180kv
Propeller: 24×8.5 inch
ESC: 80A FOC
Supply voltage: 12S
Weight: 0.76kg
Single Axis Load: 4-5kg

Design Of Quick Disassembly Arm

The arm can be quickly disassembled, convenient for maintenance and replacement, and can greatly reduce the transport size

Replaceable Load Equipment

according to the application requirements of different scenarios, the mounting equipment can be quickly replaced, and the task load can also be customized according to special requirements

Replaceable Fast Dismounting And Mounting

according to the application requirements of different scenarios, the mount equipment can be replaced quickly or the task load can be  customized according to the special requirements

EP100 Product Parameters

For a comprehensive reading of related products, please visit the Motionew website.

FAQ – EP100 Industrial Flight Platform

1. What are the key specifications of the EP100 Industrial Flight Platform?
The EP100 features a 1000 mm diagonal wheelbase, 30 mm arm diameter, and weighs 3.5 kg (frame only) or 6.5 kg with power combo. It supports a maximum takeoff weight of 16 kg and an effective payload capacity of 1–5 kg.

2. What materials and power configuration does the system use?
The frame is constructed from high-strength composite materials with a matte black finish for industrial durability. The recommended setup includes 6215 180 KV motors, 24×8.5-inch propellers, 80A FOC ESCs, and a 12S power supply system.

3. What design advantages does the EP100 offer for industrial use?
It adopts a modular design with quick-release arms, allowing for easy transport, customization, and maintenance. Each module can be adapted to meet specific endurance or payload requirements, making it ideal for professional UAV developers.

4. What payment methods are supported for purchasing the EP100?
MotioNew accepts major credit cards, PayPal, and international bank transfers. Enterprise customers can also request invoice-based or contractual payment arrangements for bulk orders.

5. Can the EP100 be ordered under OEM or customized configurations?
Yes. OEM customization is available, including labeling, power system configuration, and component integration, to meet industrial and enterprise-level requirements.

6. Are documentation and warranty services provided with the EP100?
Yes. The product includes assembly diagrams, specifications, and maintenance documentation. It comes with a standard manufacturer warranty, and extended service options are available.
Note: Export of UAV systems from China must comply with Chinese regulations, and MotioNew assists buyers in export licensing procedures.
