E Series Hexacopter 10-16KG Agriculture Drone Airframe – Multirotor drone

900.00 $1100.00 $

PayPal
Visa
Master

Description

Overview of E Series Hexacopter

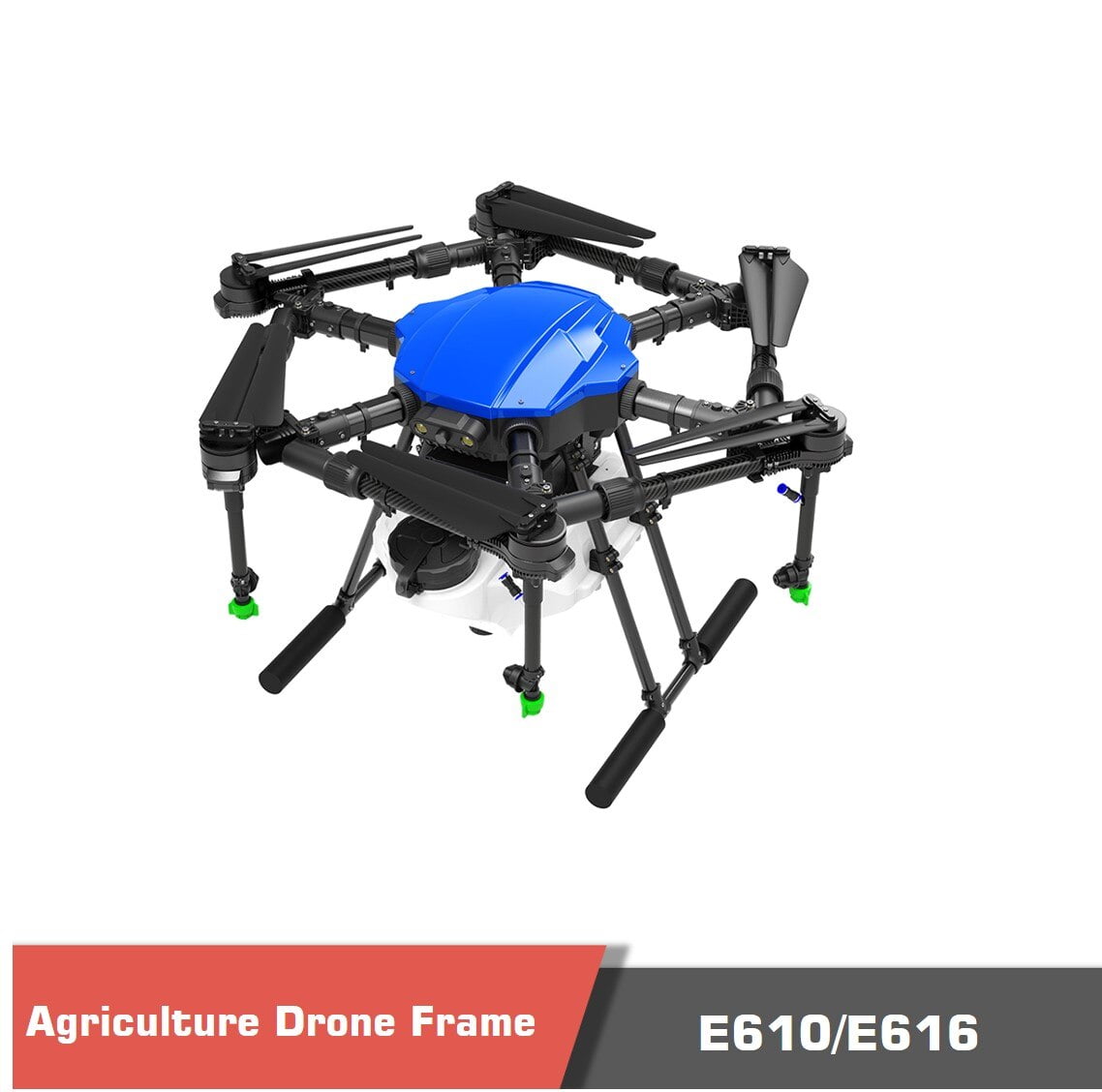

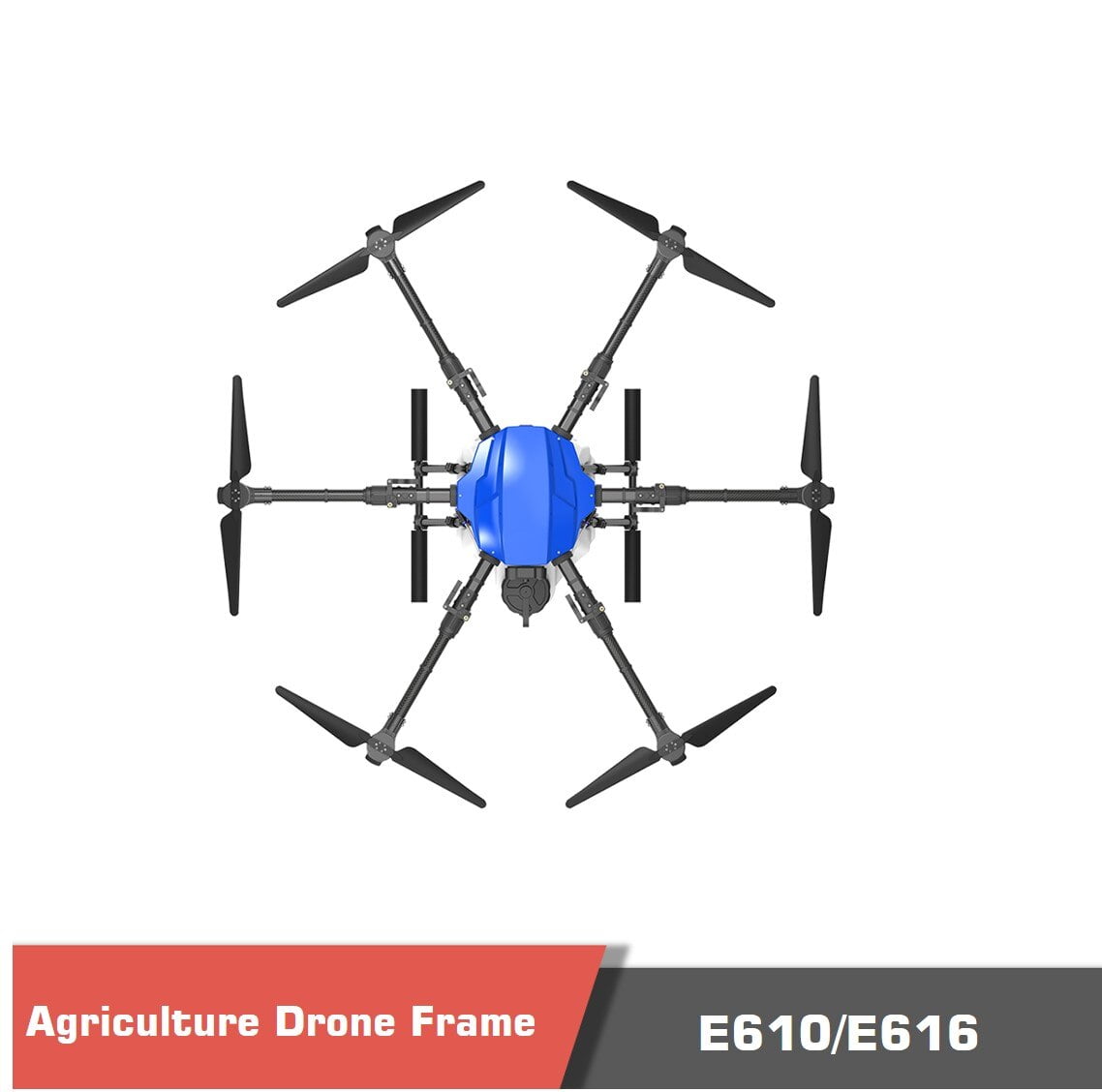

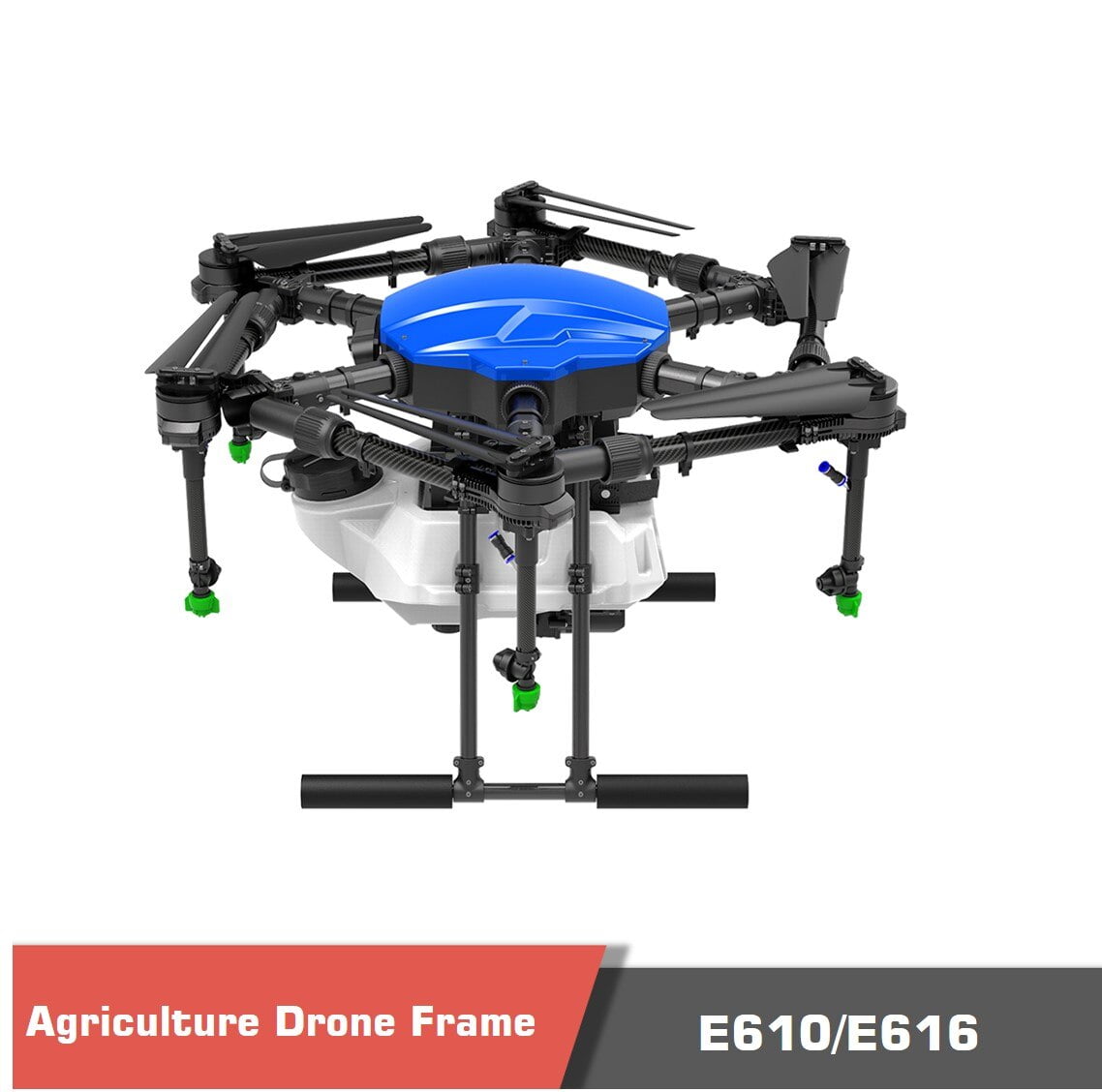

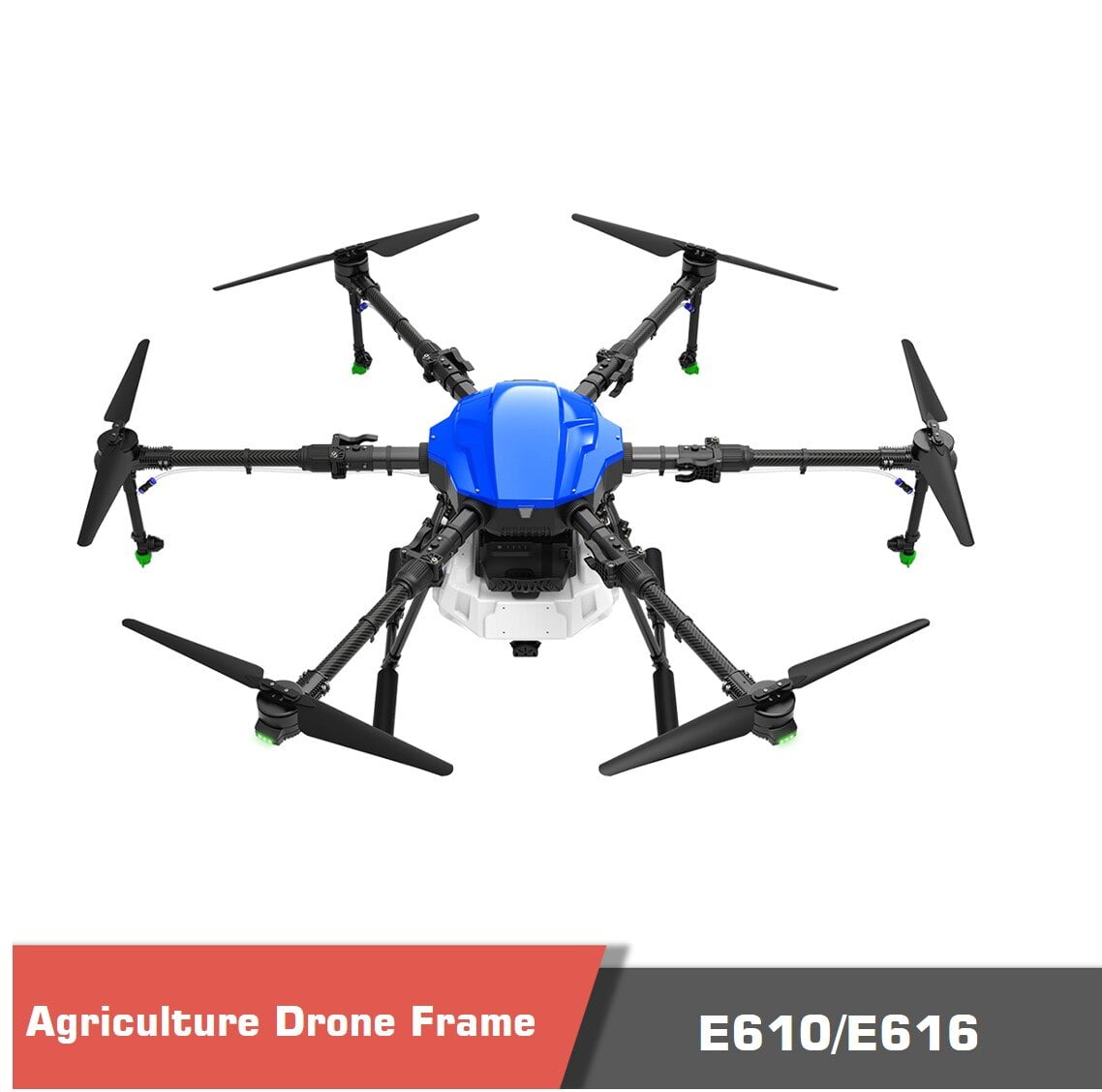

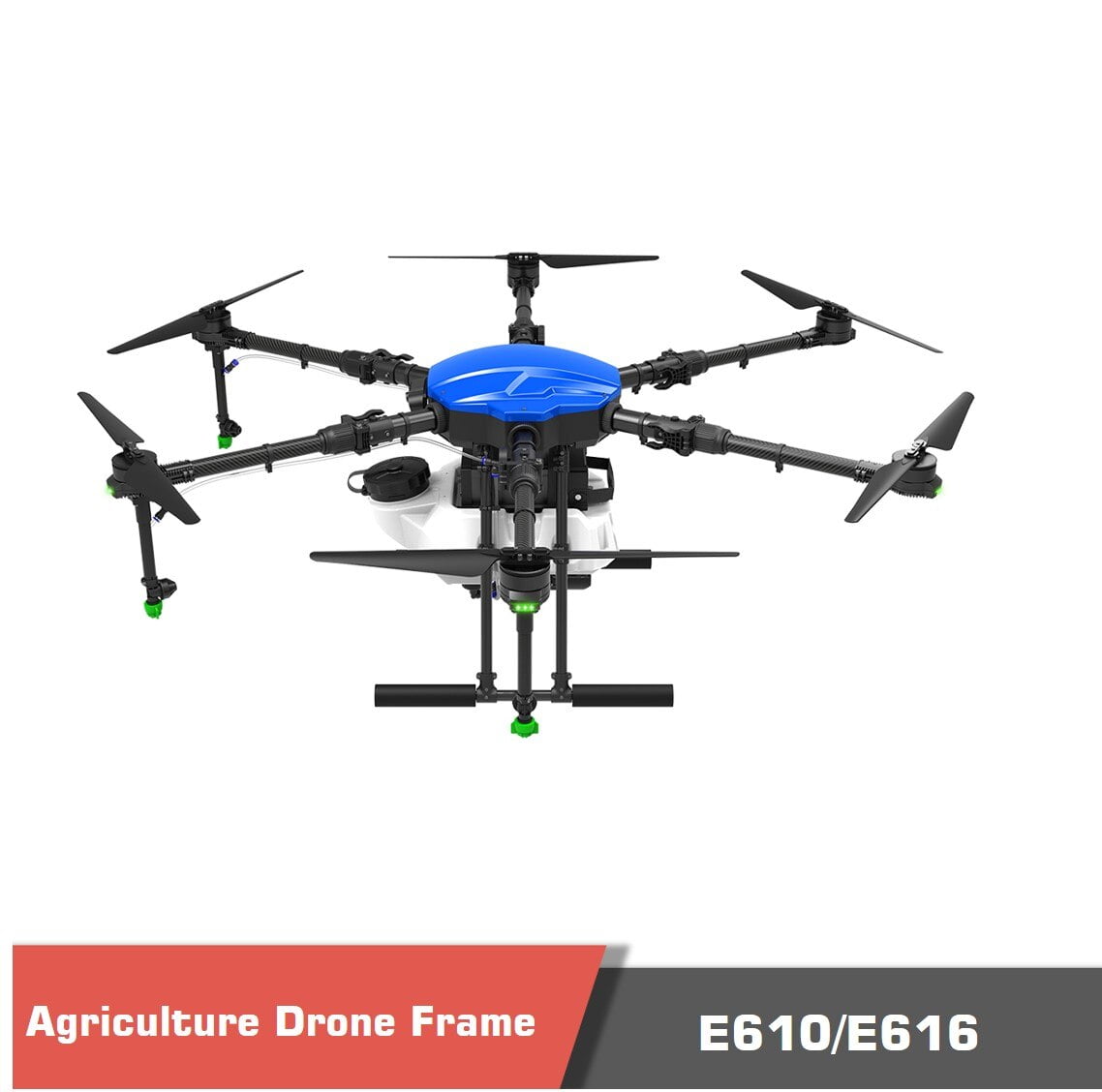

E series hexacopter Multirotor drone airframes feature a classic folding body design which is convenient for transportation and transition. Furthermore, this new E-series upgrade products adopt a new one-piece molding process to simplify the fuselage from dozens of original parts into a whole body. The body is made of high-strength, impact-resistant materials, which are strong and fall resistant.

E Series Hexacopter Features

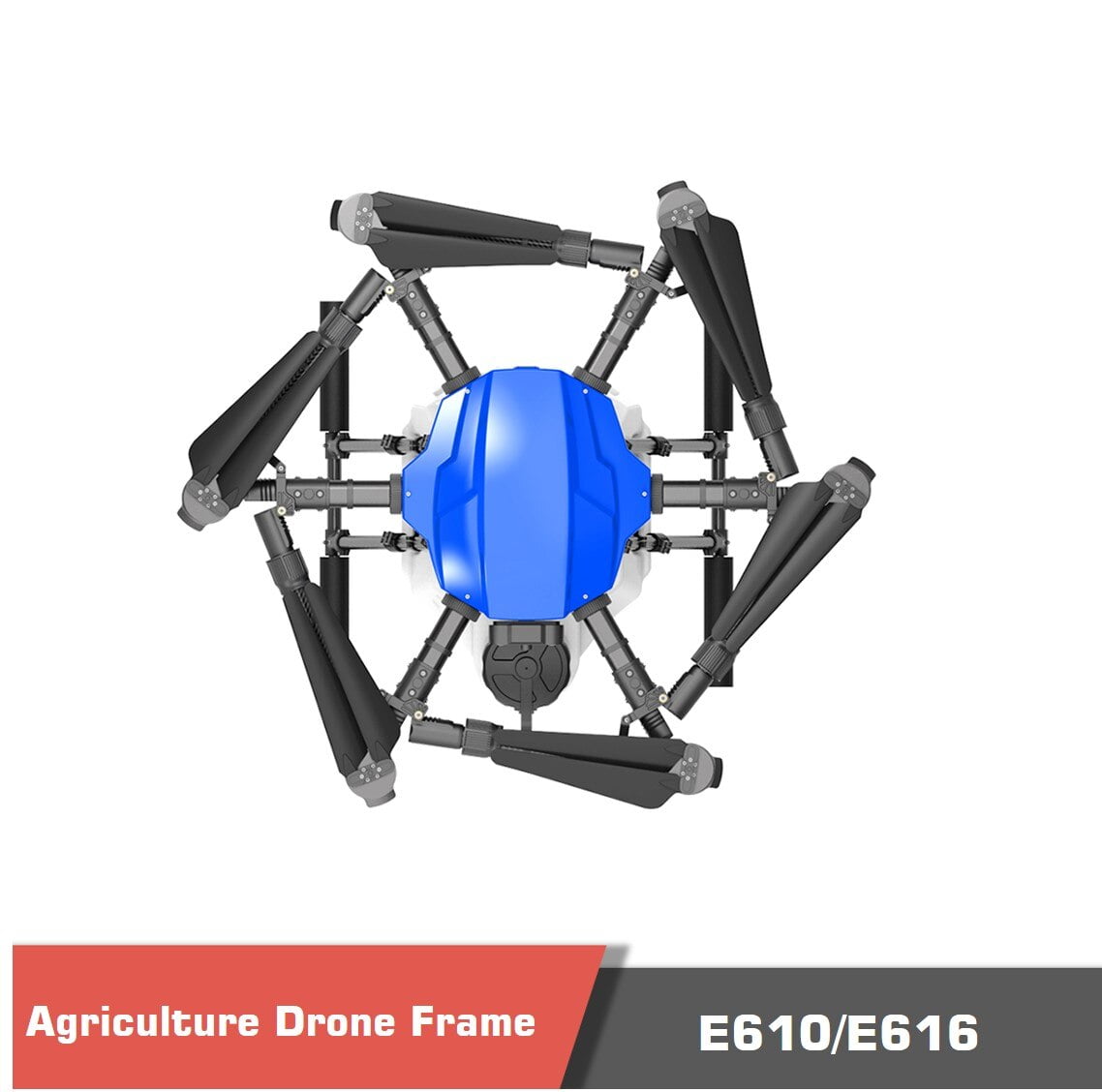

  • Classic Folding Body

This product comes with a classic folding body and continues the classic foldable body design, which is convenient for both transportation and transition.

  • One Body, Strong And Durable

The new E-series upgrade products adopt a new one-piece molding process to simplify the fuselage from dozens of original parts into a whole body. The body is made of high-strength, impact-resistant materials, which are strong and resistant fall.

E Series Hexacopter 10-16KG Agriculture Drone Airframe p1 MotioNew

Fully Waterproof Body

The body adopts an integrated waterproof design, supports washing, and the surface of the shell is painted with star blue, which is beautiful and eye-catching in appearance.

E Series Hexacopter 10-16KG Agriculture Drone Airframe p2 MotioNew

New Folding Parts

The new folding parts are made of one-piece injection molding, and the structure is more stable and durable. The unique C-shaped arm fixing clip design can effectively avoid problems such as swinging and sagging of the arm during handling.

E Series Hexacopter 10-16KG Agriculture Drone Airframe p3 MotioNew

Integrated Power Supply Wiring

This series feature an integrated power supply wiring, a centralized power supply, a separate signal, and an isolated power supply which reduces interference.

E Series Hexacopter 10-16KG Agriculture Drone Airframe p4 MotioNew

Classic Tank

It adopts the classic 10-16L tank, which is the most widely used and most stable load solution in the market.

E Series Hexacopter 10-16KG Agriculture Drone Airframe p5 MotioNew

Reinforced Power Plug

The main power cord is routed out from the side, and the battery interface is fixed on the side of the tripod, avoiding the obstruction of the plug when replacing the battery, and allowing for a safer and more stable plugging and unplugging of connectors (optional AS150/AS150U plugs).

E Series Hexacopter 10-16KG Agriculture Drone Airframe p6 MotioNew

Detachable Camera Mount

A detachable camera adapter is designed on the front of the frame, which can be installed or closed according to the needs.



E Series Hexacopter 10-16KG Agriculture Drone Airframe p7 MotioNew

E Series Hexacopter 10-16KG Agriculture Drone Airframe p8 MotioNew

E Series Hexacopter 10-16KG Agriculture Drone Airframe p9 MotioNew

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

Specifications

E616

Recommended motor Frame parameters
Motor X8、8118 Wheelbase 1628mm
Paddle 28-32 inch folding paddle Expand Size 1720*1500*556mm
ESC 80A FOC Folded size 1073*956*546mm
Supply voltage 12S Tank capacity 16L
Max take-off weight 36kg Frame body weight 7kg(Not including spraying system)

E610

Recommended motor Frame parameters
Motor X6、6215 Wheelbase 1404mm
Paddle 23-24 inch folding paddle Expand Size 1495*1308*500mm
ESC 80A FOC Folded size 945*848*500mm
Supply voltage 12S Tank capacity 10L
Max take-off weight 25kg Frame body weight 5kg(Not including spraying system





Product contents

E610
6 Axis 10L Agriculture Drone Frame x 1
Spraying system x 1

E616
6 Axis 16L Agriculture Drone Frame x 1
Spraying system x 1

Documents

Download the user manual from here.
