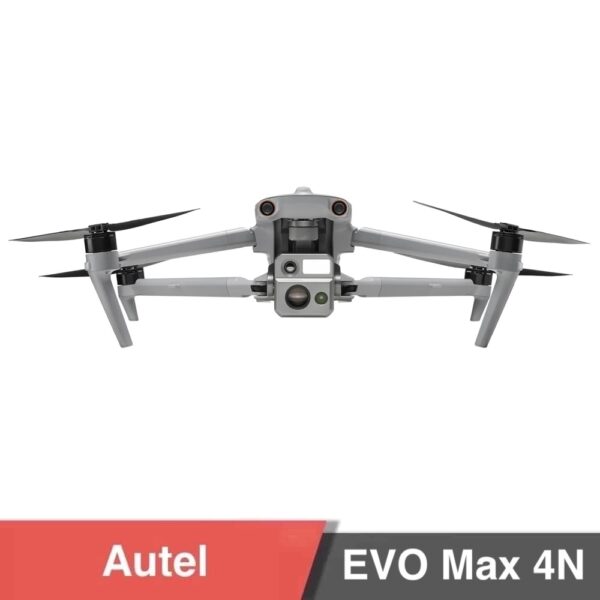

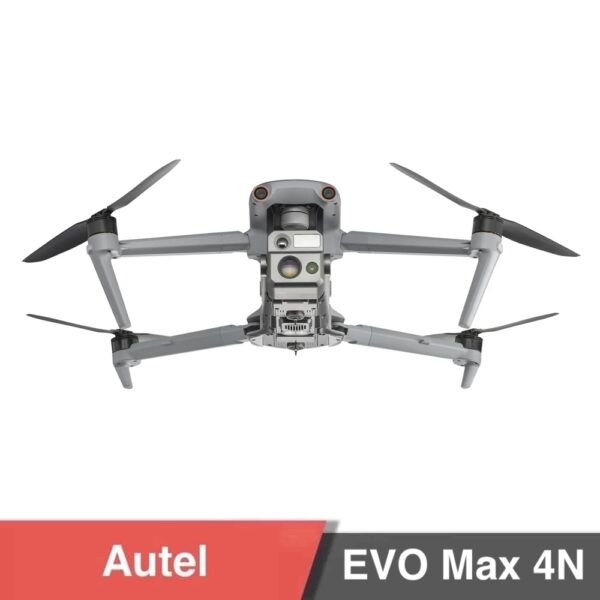

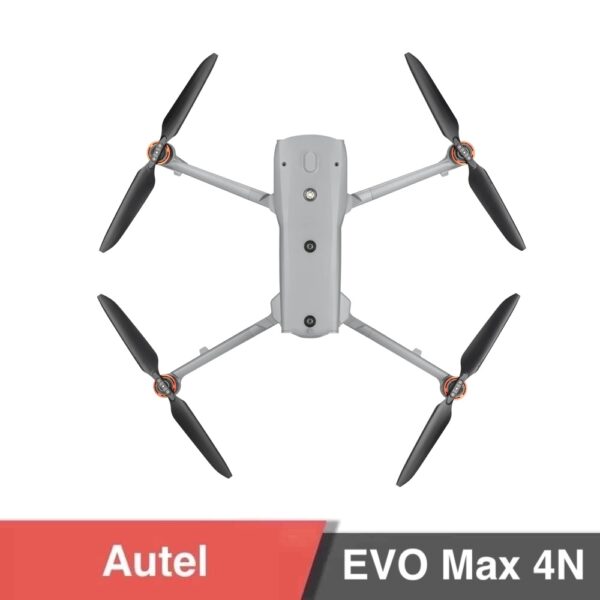

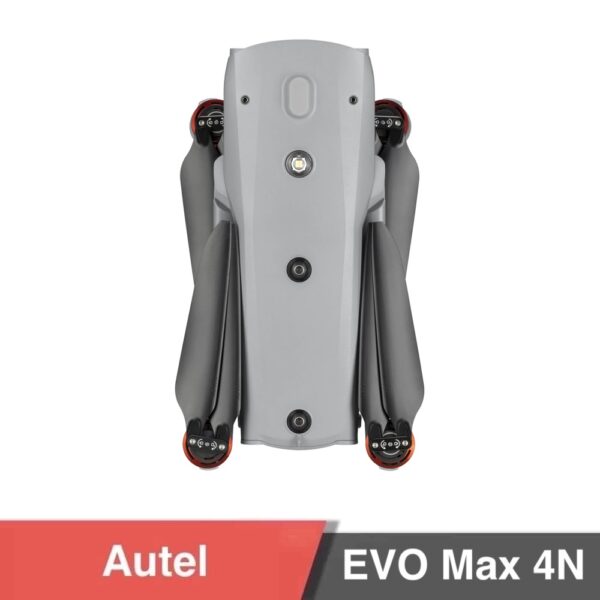

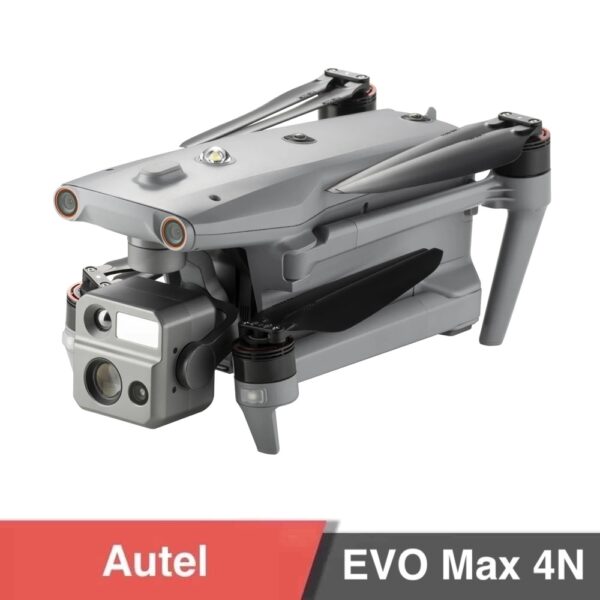

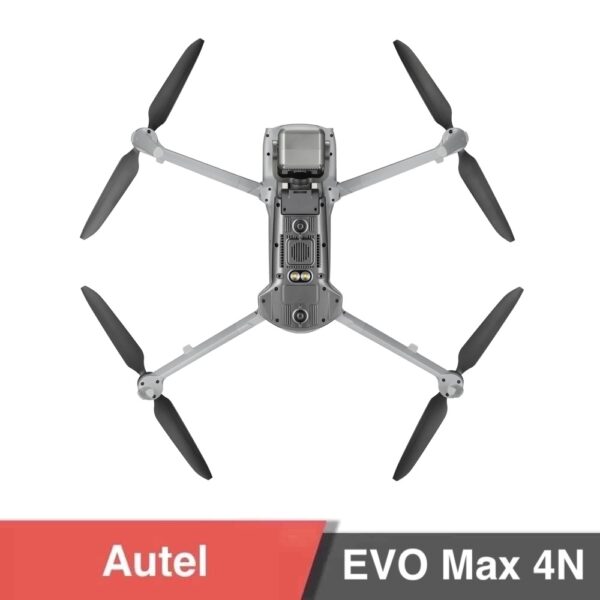

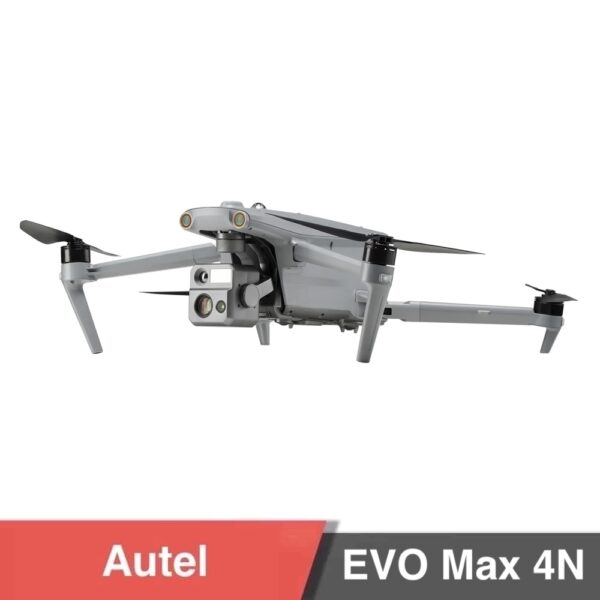

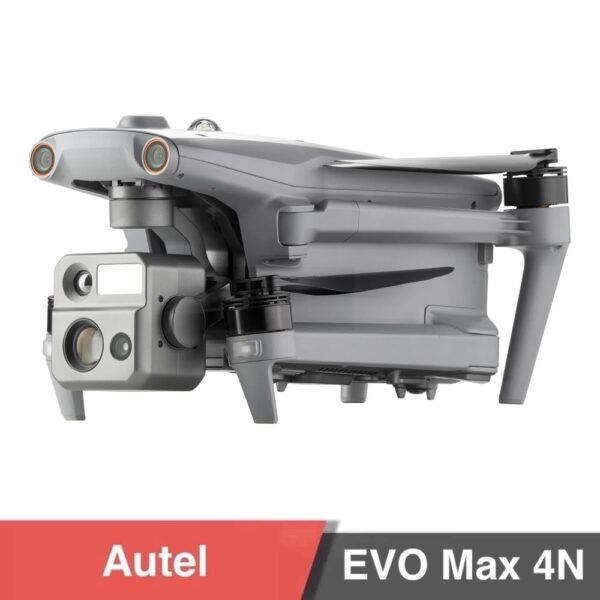

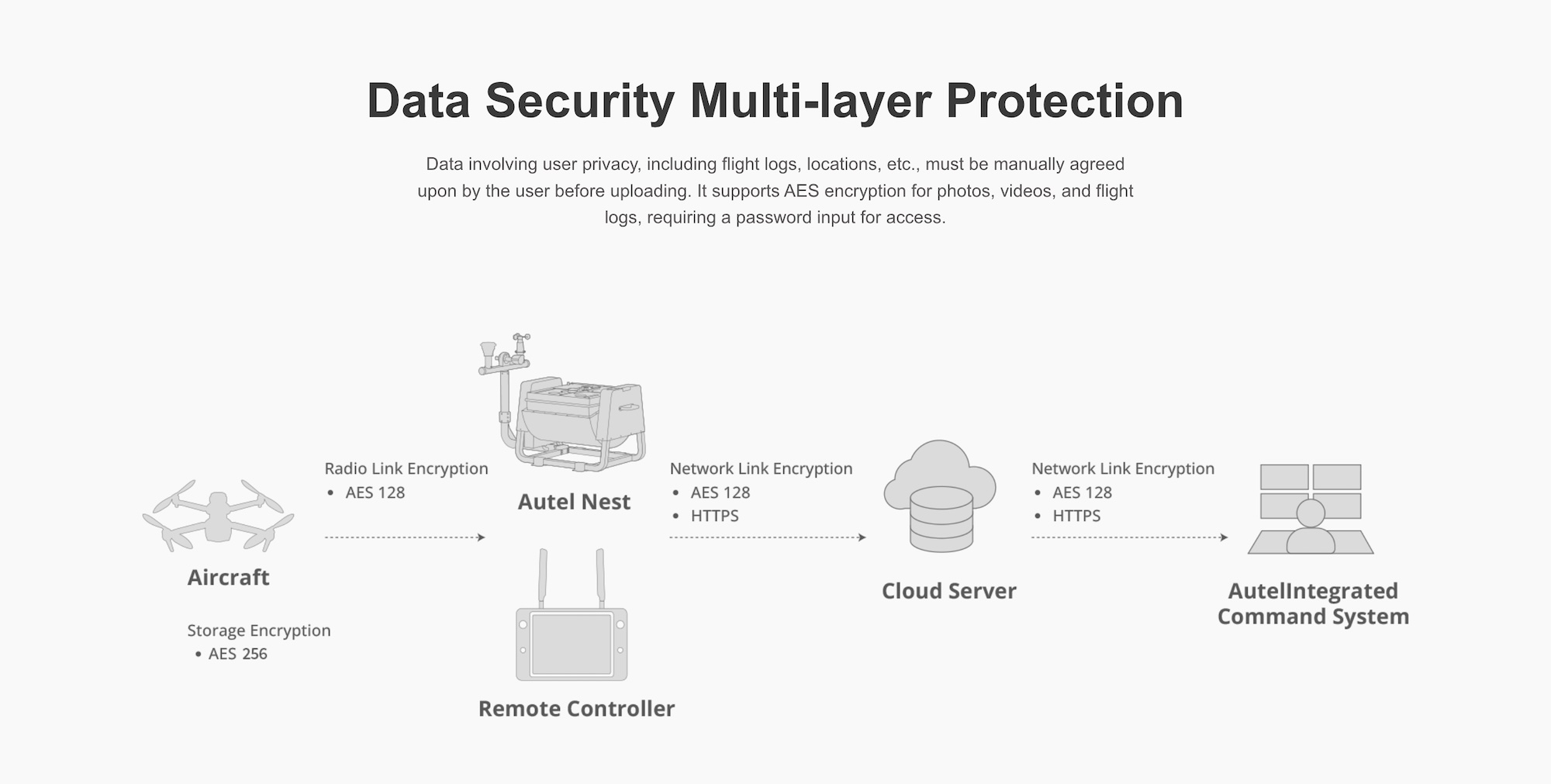

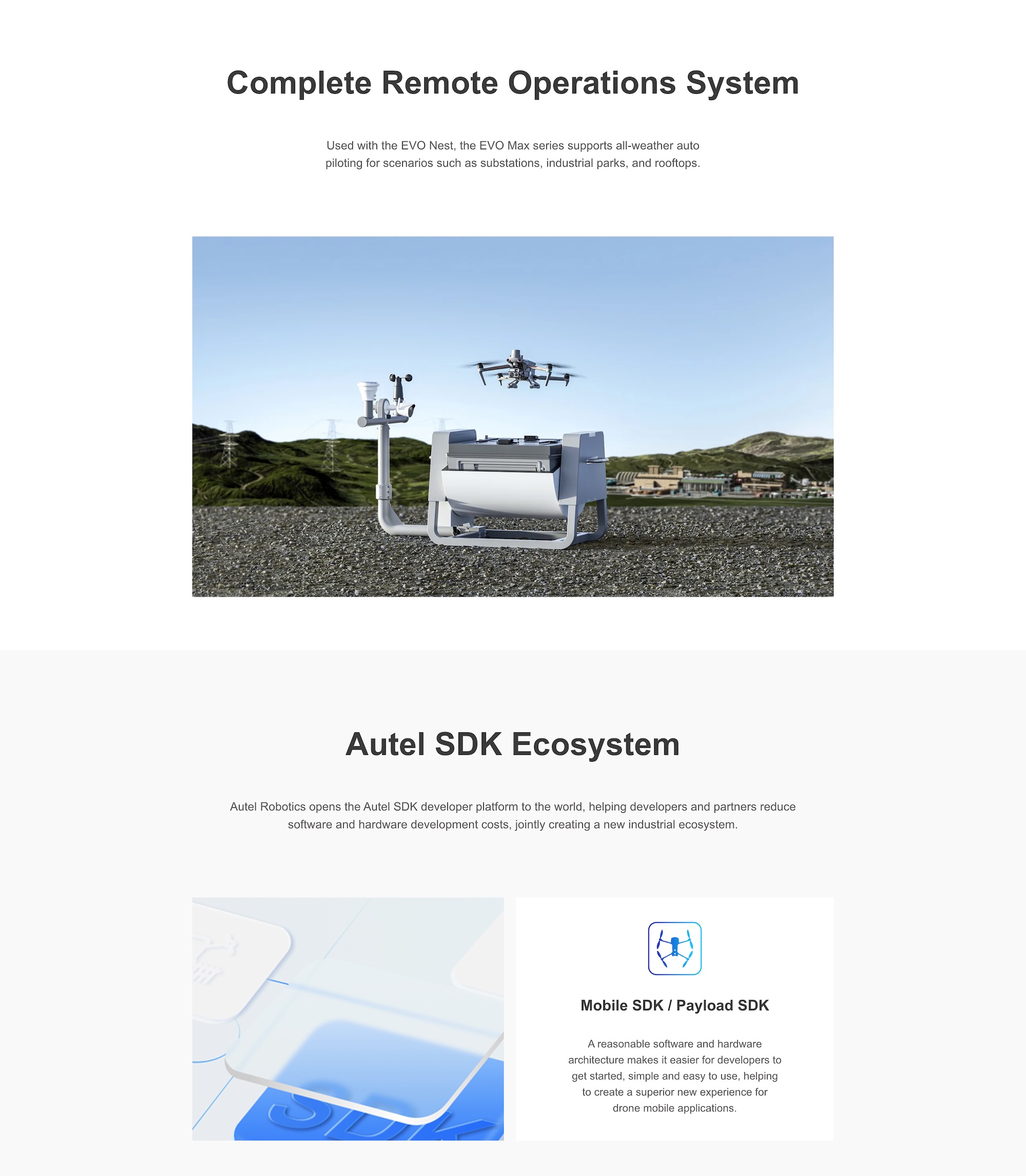

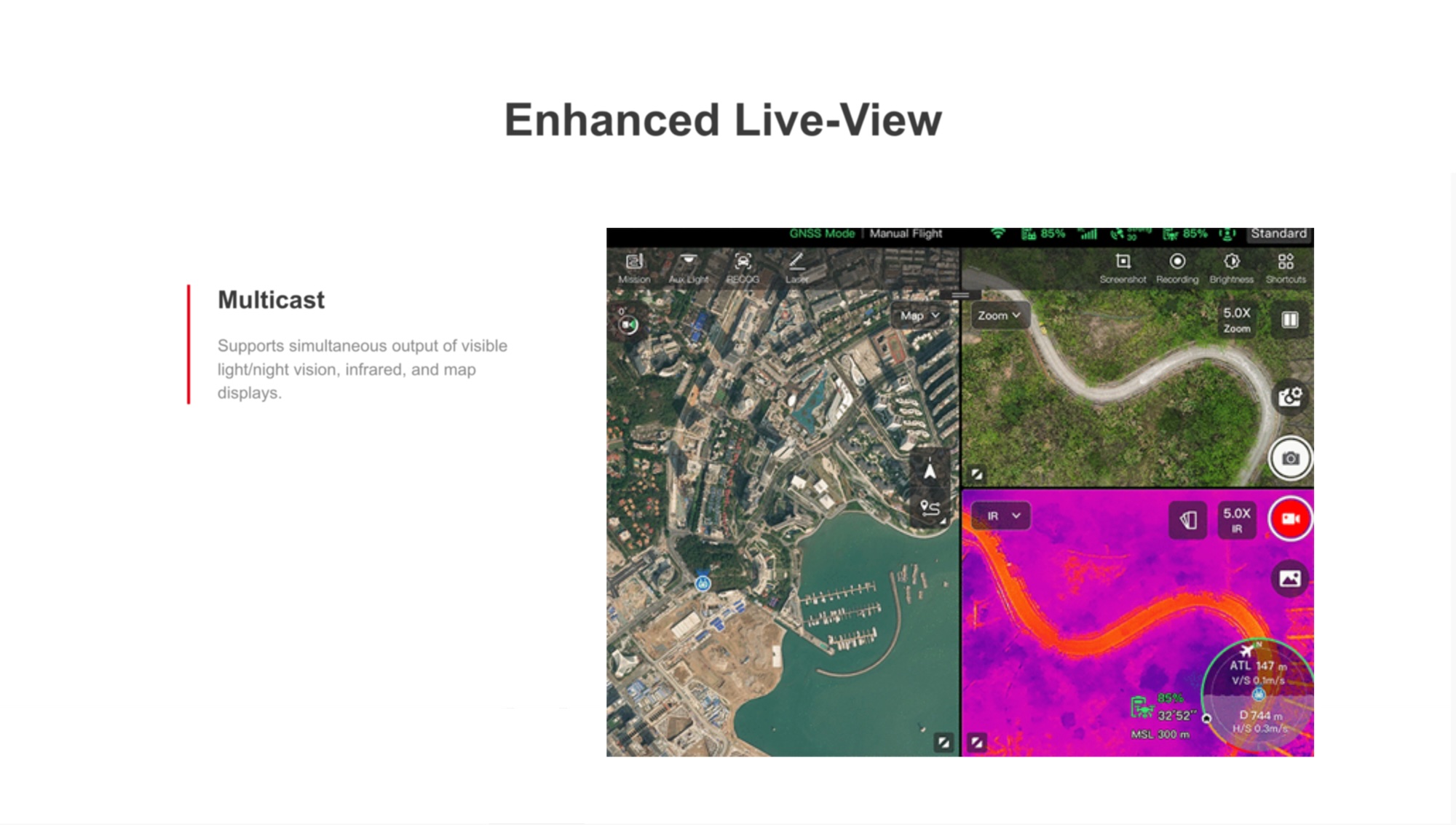

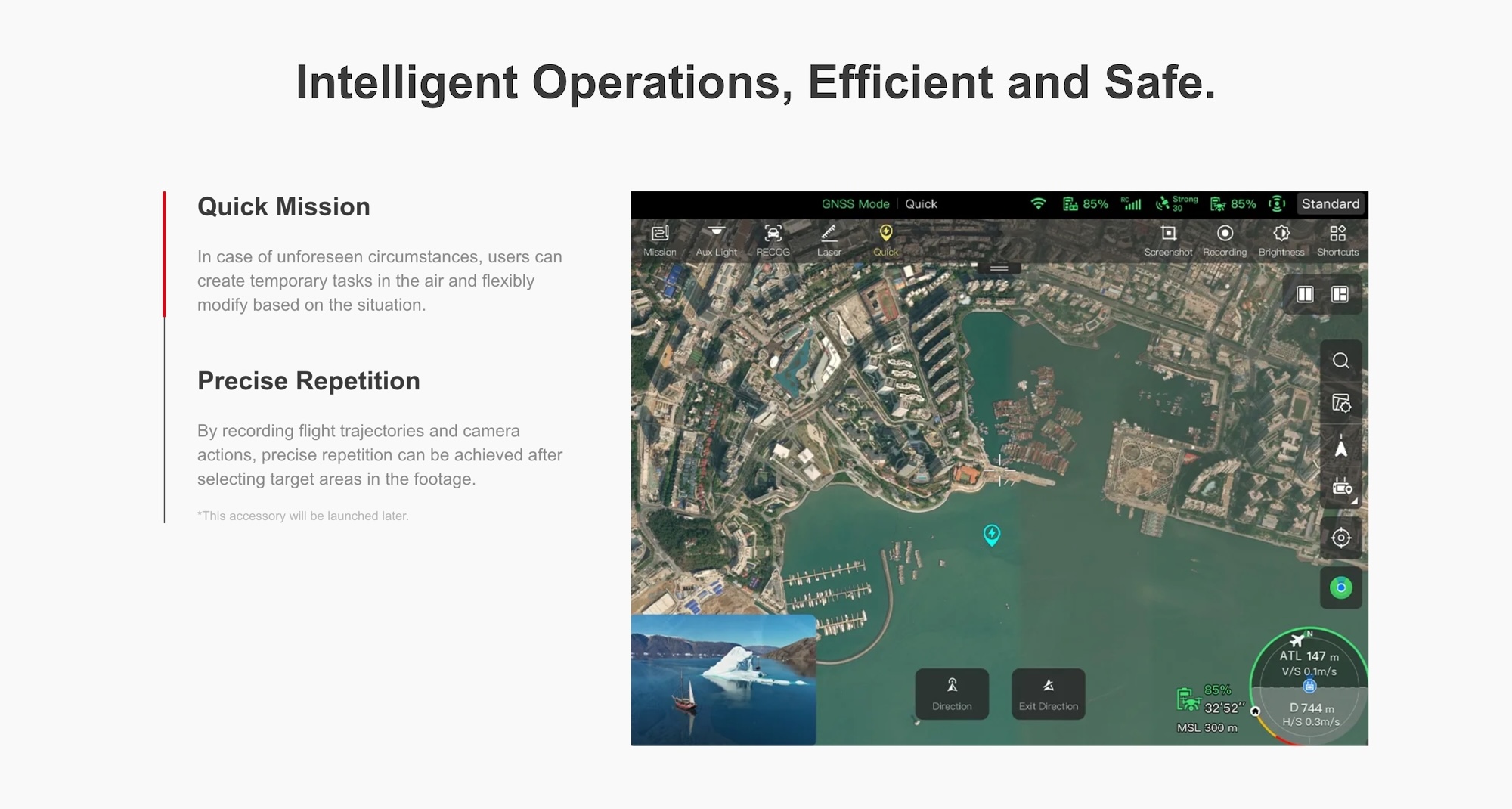

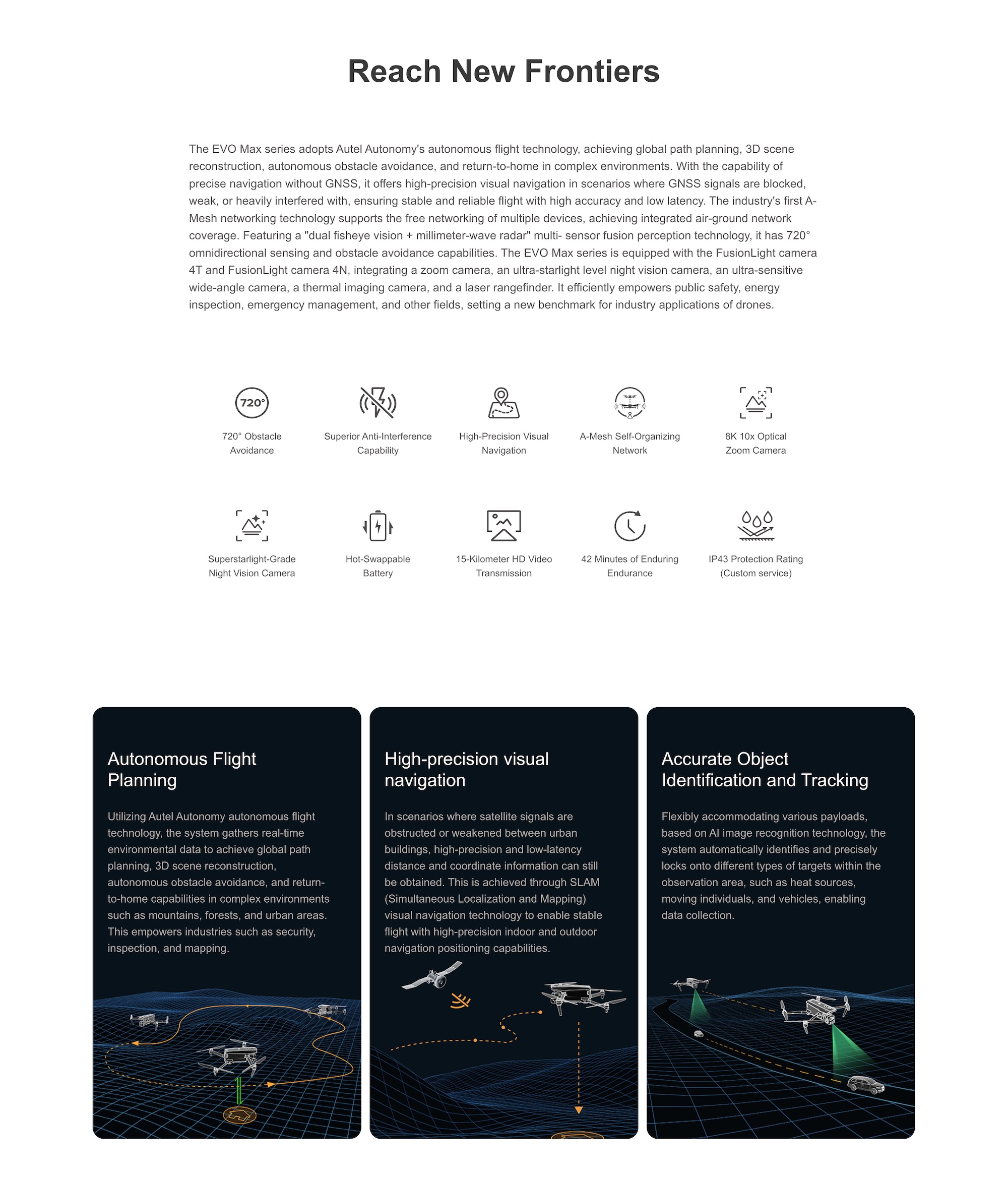

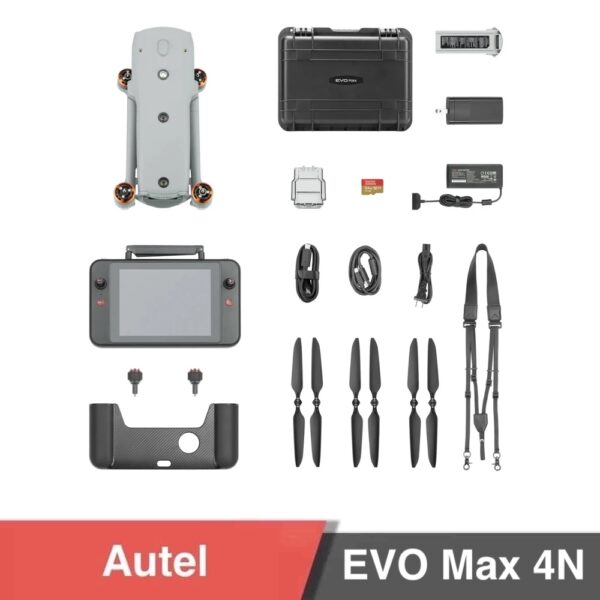

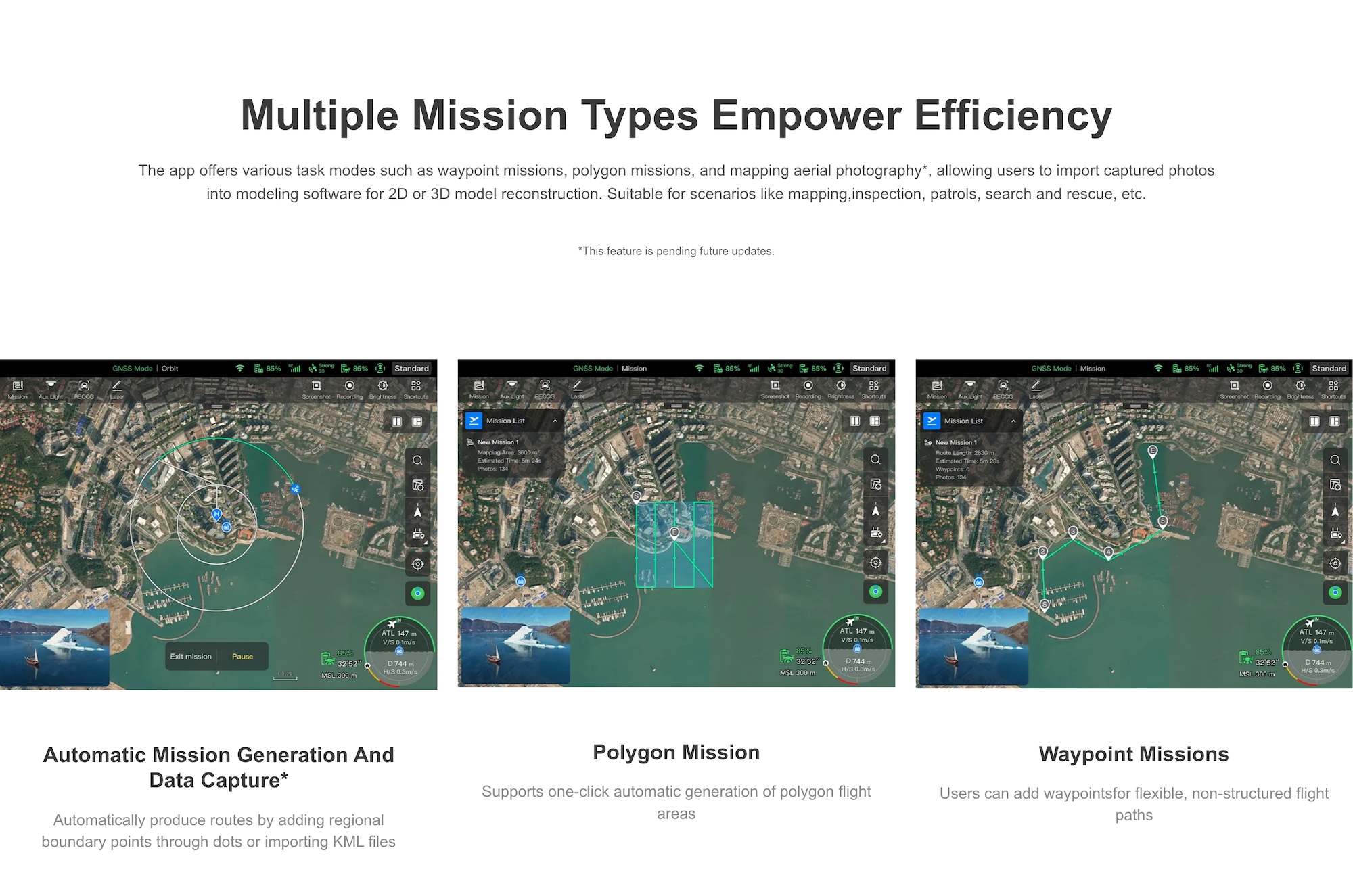

Autel Evo Max 4N

Specifications

• Aircraft

  EVO Max 4T Weight	1645g (ABX40 Smart battery, Fusion 4T Gimbal, and propellers included)
  EVO Max 4N Weight	1665g (ABX40 Smart battery, Fusion 4N Gimbal, and propellers included)

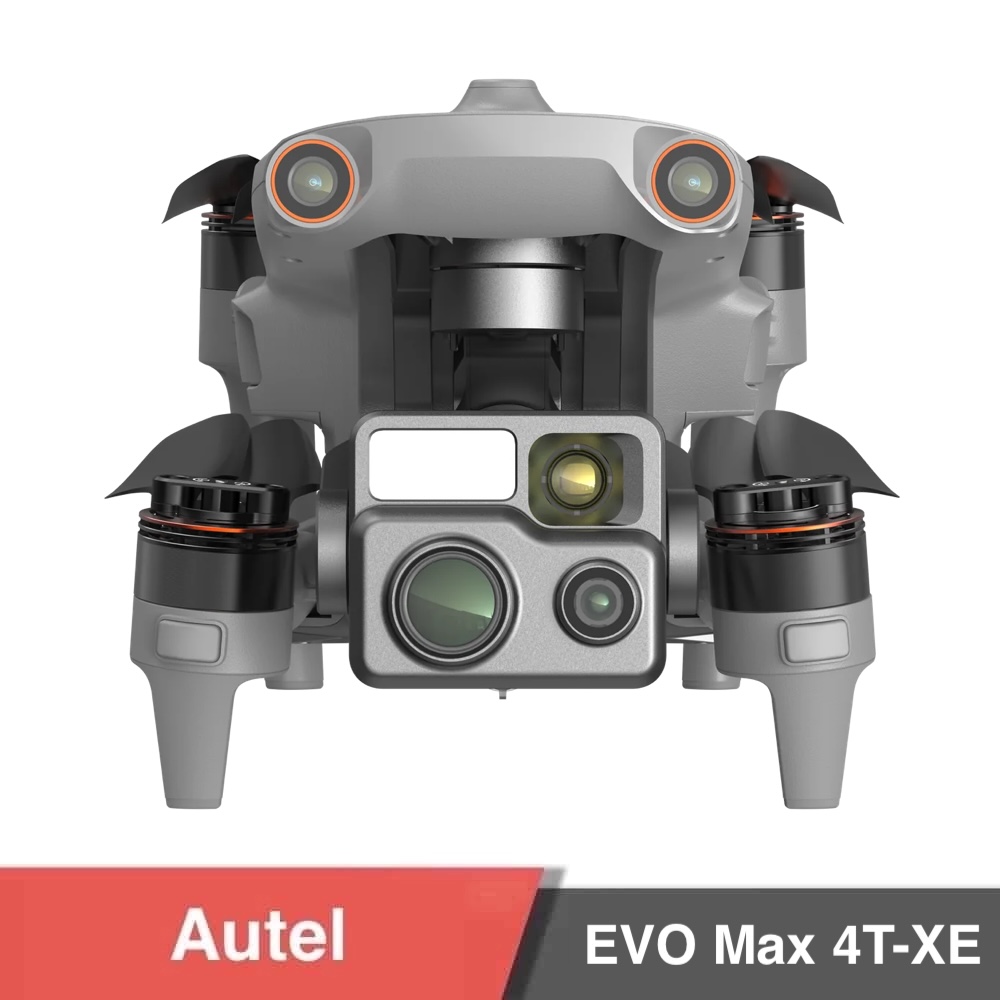

  EVO Max 4T XE	1635g (ABX40 Smart battery, Fusion 4N Gimbal, and propellers included)
  Maximum Take-off Mass	1999g (4.41 lbs)
  Maximum Take-off Mass (for C2 Certification in EU)	1890g (4.17 lbs)
  Fuselage Dimensions	562*649*150 mm (unfolded, incl. 1136 propellers) 563*650*150 mm (unfolded, incl. 1158 propellers)
  Diagonal Wheelbase	465mm (1.53 ft)
  Propeller Mode	1136 (EOD) 1158 (Replacing 1136)
  Propeller Size	11 inch
  Propeller weight	1136: 10.8 g 1158: 10.3 g
  Maximum Propeller Rotational Speed	1136: 8000 RPM 1158: 7500 RPM
  Maximum Ascent Speed	Slow: 2.5m/s Smooth: 3m/s Standard: 6m/s Ludicrous: 8m/s
  Maximum Descent Speed	Slow: 2.5m/s Smooth: 3m/s Standard: 6m/s Ludicrous: 6m/s
  Maximum Horizontal Flight Speed (Windless Near Sea Level)	Slow: 3m/s Smooth: 10m/s Standard: 15m/s (forward & backward), 10m/s (sidewards) Ludicrous: 23m/s(forward), 18m/s(backward), 20m/s(sidewards)
  Maximum Service Ceiling Above Sea Level	4000 meters (13,123ft, use ABX40 smart battery) 3000 meters (9,843ft, use ABX41 smart battery)
  Maximum Flight Altitude	Chinese Mainland or EU Laws: No more than 120 meters US Law: No more than 400 feet Note: The altitude can be set from 0 to 800 meters in the flight application Autel Enterprise. To set altitude higher than required by law, authority approval is required.
  Maximum Flight Time (windless)	42 min (Test data from lab with windless environment in the speed of 8 m/s during horizonal flight and only for reference)
  Maximum Range	25 km
  Maximum Hovering Time	38 min (Test data from lab with windless environment during hovering and only for reference)
  Maximum Wind Speed Resistance	12m/s (27mph)
  Maximum Tilt Angle	Slow: 10° Smooth: 30° Standard: 30° Ludicrous: 36°
  Maximum Angular Velocity	Pitch axis: 300°/s Heading axis: 120°/s

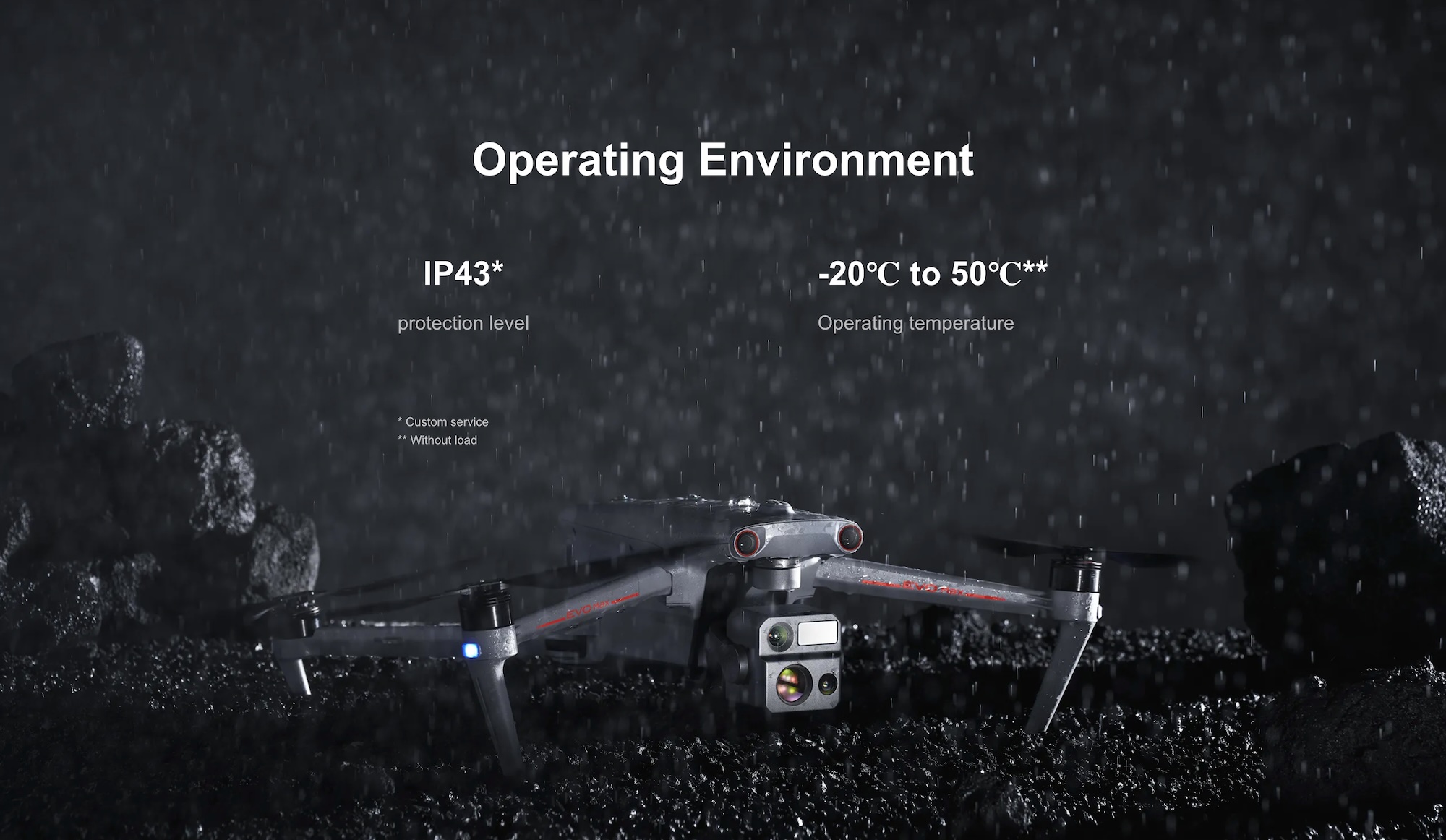

  Operating Temperature	-20°C to 50°C (without load), -20°C to 40°C (full load)
  Hot-swappable Batteries	Supported
  IP Rating	IP43*(Custom service)
  Internal Storage	128GB internal storage, with 64GB of available space* (Remaining available space will vary with different firmware versions)
  Strobe	Integrated

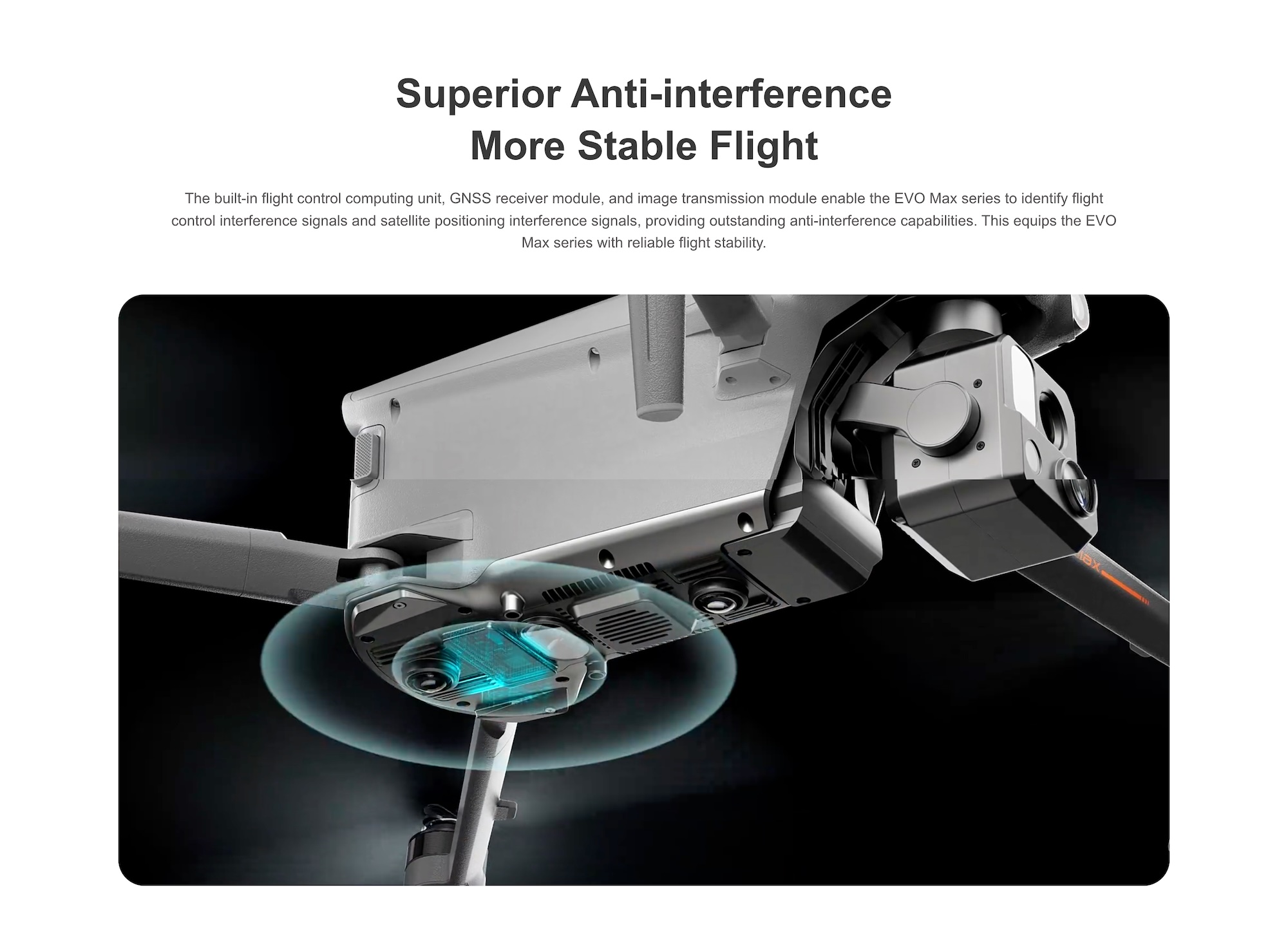

  GNSS	GPS+Galileo+BeiDou+GLONASS
  Hovering Accuracy	Vertically: ±0.1 m (when vision systems working normally) ±0.5 m (when GNSS working normally) Horizontally: ±0.3 m (when vision systems working normally) ±0.5 m (when GNSS working normally)
  Wi-Fi Protocol	802.11a/b/g/n/ac/ax
  Wi-Fi Operating Frequency	2.4G：2.400–2.476GHz*，2.400–2.4835GHz 5.2G：5.15-5.25GHz**，5.17-5.25GHz*** 5.8G：5.725-5.829GHz*，5.725-5.850GHz *Only applies to SRRC regions ** Only applies to FCC, CE (Germany excluded) and UKCA regions *** Only applies to Germany Note: Some frequencies are only applicable in some regions or only used in door. For details, please refer to local laws and regulations.
  Wi-Fi Effective Isotropic Radiated Power (EIRP)	2.4G: ≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC/UKCA) 5.2G: ≤30dBm (FCC); ≤23dBm (CE/UKCA) 5.8G： ≤30dBm (FCC/ISED/SRRC); ≤14dBm (CE/UKCA)



• Image Transmission

  Operating Frequency	900M: 902-928MHz* 2.4G: 2.400–2.476GHz**, 2.400–2.4835GHz 5.2G: 5.15-5.25GHz***, 5.17-5.25GHz**** 5.8G: 5.725-5.829GHz**, 5.725-5.850GHz * Only applicable to FCC and ISED regions. ** Only applicable to SRRC regions. *** Only applicable to FCC, CE (Germany excluded) and UKCA regions **** Only applies to Germany Note: Some frequencies are only applicable in some regions or only used in door. For details, please refer to local laws and regulations.
  Maximum Transmission Distance	FCC: 15km CE: 8km
  Effective Isotropic Radiated Power (EIRP)	900M: ≤30dBm (FCC/ISED) 2.4G: ≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC/UKCA) 5.2G: ≤30dBm (FCC); ≤23 dBm (CE/UKCA) 5.8G: ≤30dBm(FCC/ISED/SRRC); ≤14dBm(CE/UKCA)

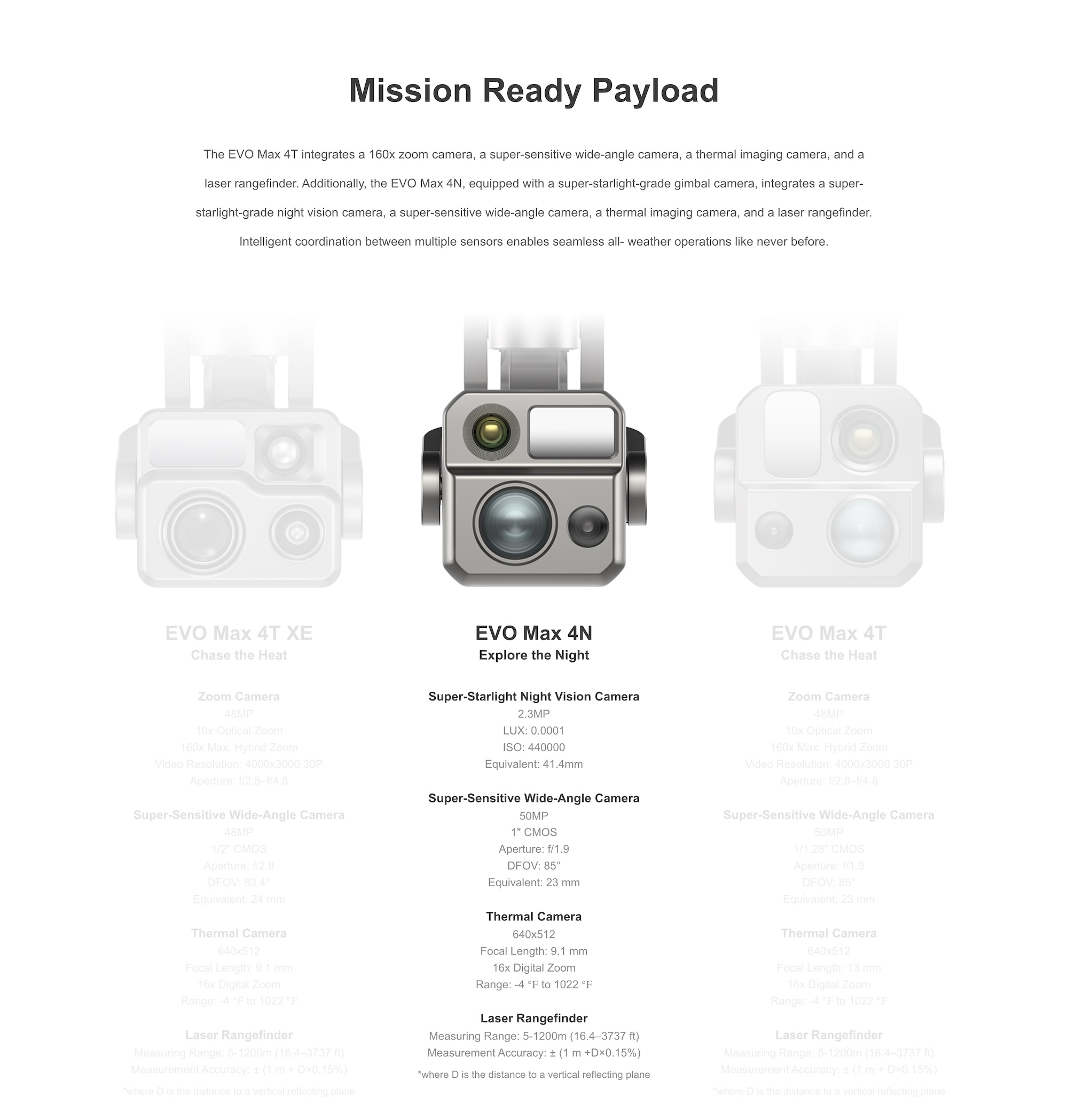

• Fusion 4N – Night Vision Camera

  Image Sensor	2.3M effective pixels
  Lens	DFOV：52°±2° Effective Focal Length: 11.2 mm Aperture: F1.4 AF Motor: FF Focus: 10 m ~ ∞
  Zoom	1 ~ 8x digital zoom. Linked zoom is supported.
  ISO Range	Auto/Manual: ISO100 – ISO440000 Night Mode: ISO100 – ISO440000 (Auto)
  Shutter Speed	Shooting: 8s ~ 1/10000s Recording: 1/30s ~ 1/10000s
  Photo Size	1920×1200
  Photo Format	JPG
  Video Resolution	1920×1200 P30
  Video Format	MP4
  Video Encoding	H.264/H.265
  Supported File Systems	exFAT/FAT32



• Fusion 4N – Wide Angle Camera

  Image Sensor	1/1.28″ CMOS. Effective pixels: 50M
  Lens	DFOV: 85° Focal Length: 7 mm Equivalent Focal Length: 23 mm Aperture: F1.9 AF Motor: FF Focus: 0.5 m ~ ∞
  ISO Range	Auto/Manual: ISO100 – ISO6400 Night Mode: ISO100 – ISO32000 (auto)
  Shutter Speed	Shooting: 8s ~ 1/10000s Recording: 1/30s ~ 1/10000s
  Photo Size	4000×3000, 8192×6144
  Photo Format	JPG
  Video Resolution	4000×3000 P30
  Video Format	MP4
  Video Encoding	H.264/H.265
  Supported File Systems	exFAT/FAT32



• Fusion 4N – Infrared Thermal Imaging Camera

  Image Sensor	Uncooled VOx Microbolometer
  Lens	FOV：61° Focal length：9.1mm Aperture: f/1.0 Focusing Distance:2.2m~∞
  Temperature Measurement Range	Center temperature measurement/Pot temperature measurement/Area temperature measurement
  Radiometric Measurement Method	-20°C to 150°C (high gain mode) 0 to 550°C (low gain mode)
  Radiometric Measurement Accuracy	±2℃ or reading ±2% (using the larger value) @ambient temperature range from -4℉ to 140℉ (-20℃~60℃)
  Accurate Temperature Measurement Distance	1~25 m
  Digital Zoom	1-16x digital zoom, and link zoom supported
  Temperature Alert	In area temperature measurement, high and low temperature alarm thresholds, reporting coordinates and temperature values are supported
  Palette	White Hot/Black Hot/Ironbow/Rainbow 1/Rainbow 2/Lava/Arctic/Ironbow/Medical/Tint
  Photo Size	640×512
  Photo Format	JPG (the images contain temperature information and are parsed by dedicated SDK and PC tools)
  Video Resolution	640×512 P30
  Video Format	MP4



• Fusion 4N – Laser Rangefinder

  Wavelength	905 nm
  Measurement Accuracy	± (1 m + D×0.15%) where D is the distance to a vertical reflecting plane
  Measuring Range	5 – 1200 m



• Fusion 4N Gimbal

  Mechanical Range	Pitch: -135° to 45° Roll: -50° to 50° Yaw: -45° to 45°
  Controllable Range	Pitch: -90° to 30°
  Stability System	3-axis mechanical gimbal (pitch, roll, yaw)
  Max Control Speed (Pitch)	100°/s
  Angular Vibration Range	<0.005°< /td>

• Millimeter-Wave Radar Sensing System

  Operating Frequency	60G: 60 – 64 GHz 24G: 24.0 – 24.25 GHz
  Effective Isotropic Radiated Power (EIRP)	60G: ≤20dBm (CE/UKCA/FCC) 24G: ≤20mW (SRRC)
  Sensing Range	60G millimeter-wave radar: Upward: 0.3 – 20 m Downward: 0.15 – 80 m Forward & Backward: 0.3 – 50 m 24G millimeter-wave radar: Downward: 0.8 – 12 m
  FOV	Horizontal (6dB): ±60°/±22° (60 GHz/24 GHz) Vertical (6dB): ±30°/±20° (60 GHz/24 GHz)
  Operating Environment	60 GHz millimeter-wave radar sensing system: Supports all-weather obstacle avoidance for glass, water, wires, buildings, and trees in 4 directions. Its obstacle avoidance distance varies with the obstacle’s ability to reflect electromagnetic waves and its surface size. 24 GHz millimeter-wave radar sensing system: Supports downward sensing, and its sensing range varies by the ground material. For example, the sensing range of cement ground is 12 meters, and the sensing range of grass with a thickness of more than 3 cm is less than 6 meters.
  Aircraft Version Limitations*	To comply with (national) regional regulations, certain aircraft versions use a 24 GHz millimeter-wave radar in the downward direction and use 60 GHz radars in the forward, backward, and upward directions. In the 24 GHz aircraft version, the 60GHz radars in the forward, backward, and upward directions are disabled in the flight software at the factory, and only the 24GHz radar in the downward direction is enabled to assist in landing. The 24 GHz aircraft version only supports visual obstacle avoidance under good lighting conditions and does not support millimeter-wave radar obstacle avoidance at night.

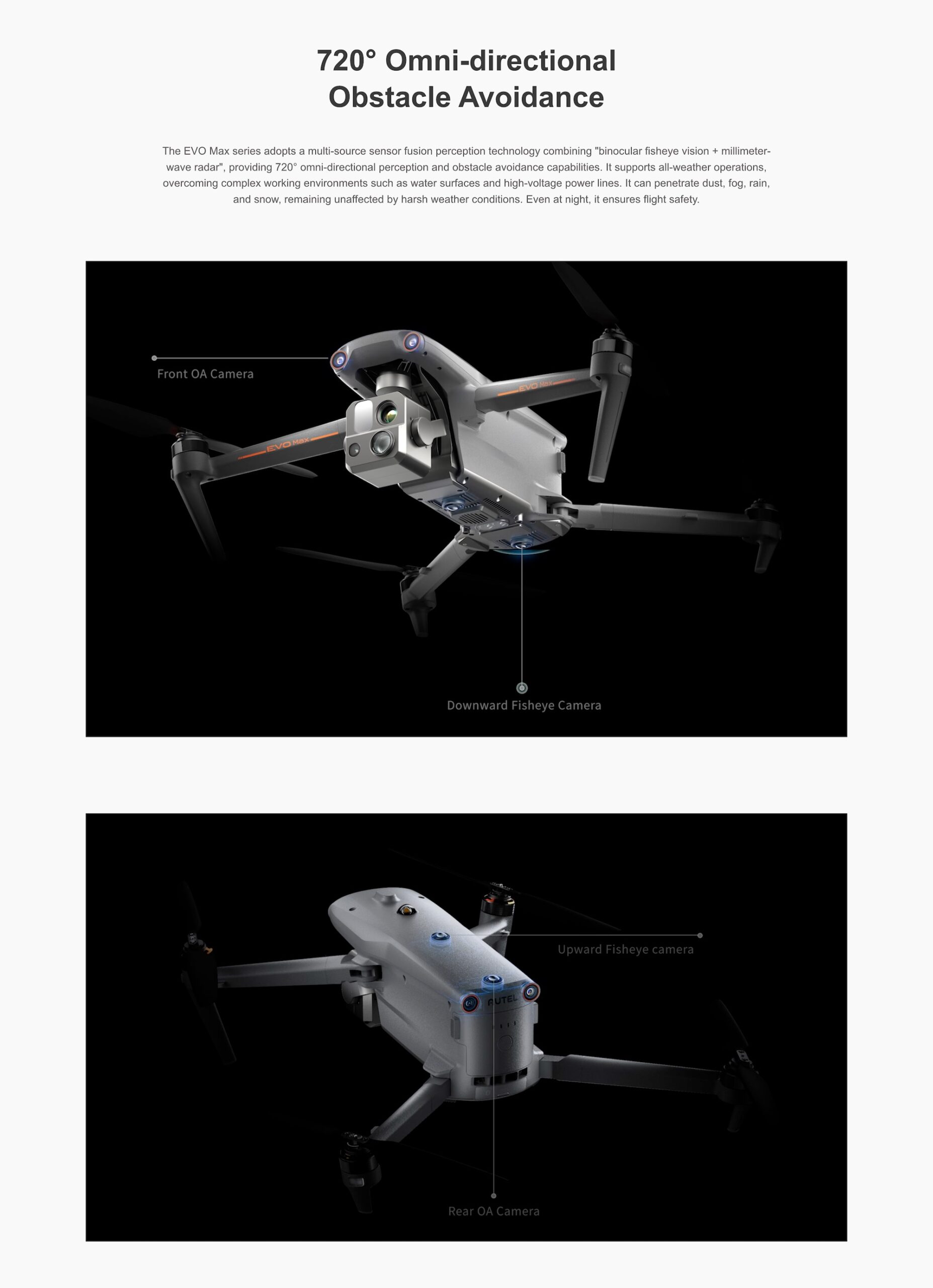

• Visual Obstacle Avoidance Sensing System

  Sensing Range	Forward: 19.7-1220.5in (0.5-31m) Backward: 19.7-984.3in (0.5-25m) Sideward: 19.7-1023.6in (0.5-26m) Upward: 0.66-85.3ft (0.2-26m) Downward: 0.98-75.5ft (0.3-23m)
  FOV	Forward/Backward Sensor: 60°(H), 80°(V) Upward/Downward Sensor: 180°(sideward), 120°(forward & backward)
  Operating Environment	Forward, backward, sideward, and upward: The surface has rich texture, under a sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment) Downward: The surface is a diffuse material with a reflectivity >20% (walls, trees, humans, etc.), under sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment)



• Radar and visual obstacle avoidance sensing systems

  Sensing Range	Forward & Backward: 0.3 – 50 m Sidewards: 0.5 – 26 m Upward: 0.2 – 26 m Downward: 0.15 – 80 m (60GHz millimeter-wave radar)
  FOV	Forward & Backward: 120°(H), 80°(V) Upward: 180° (sidewards), 120° (forward & backward) Downward: 180° (sidewards), 120° (forward & backward)
  Operating Environment	Forward, backward, upward, and downward: Supports all-weather obstacle avoidance for various conditions, including water, forests, buildings and high voltage lines. At least one of the two conditions should be met: sufficient lighting or the obstacle has a strong reflection ability to electromagnetic waves. Sidewards: The surface has rich textures, under a sufficient lighting environment (>15 lux, normal indoor fluorescent lighting environment).

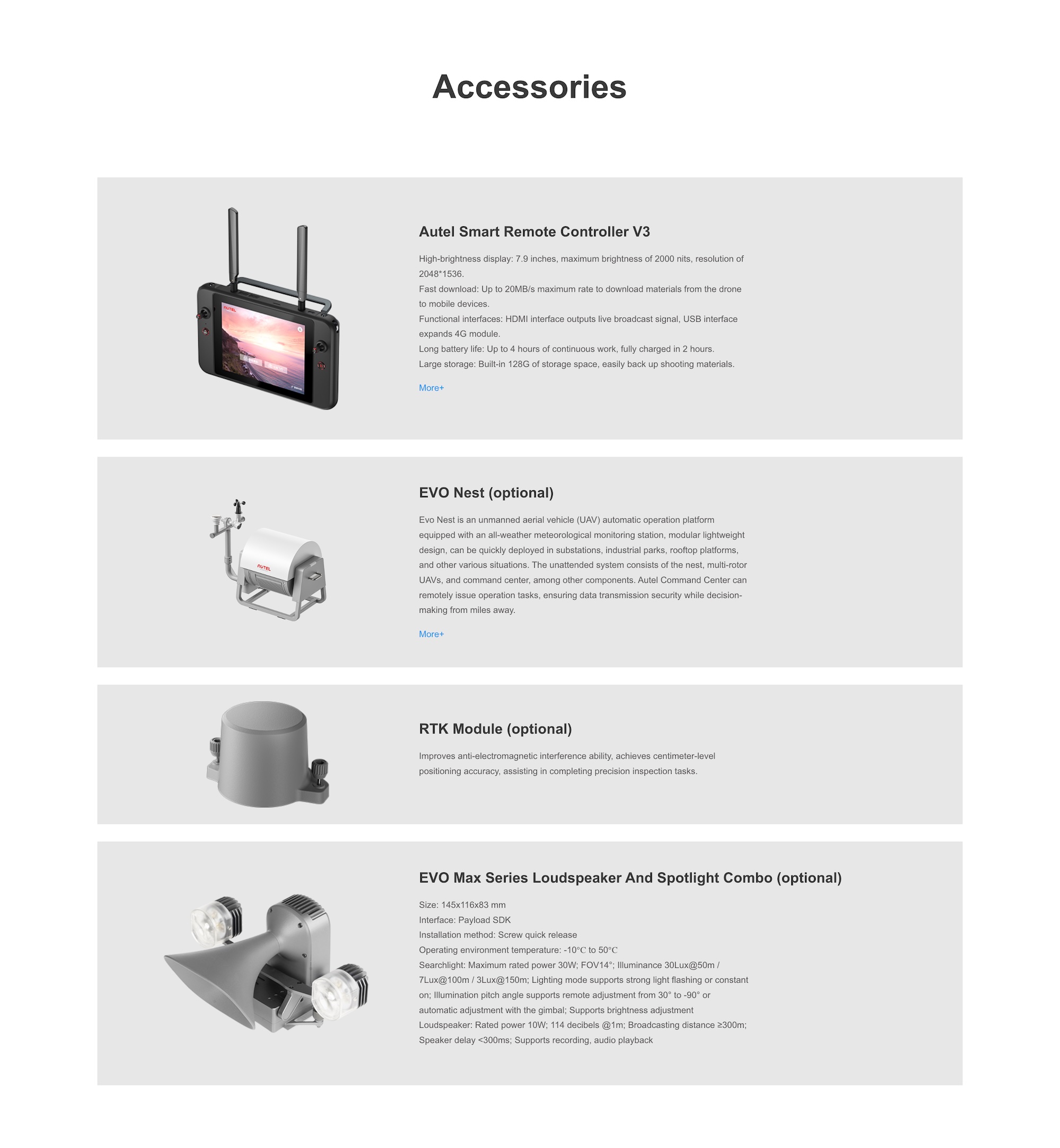

• Autel Smart Controller V3

  Dimensions	269×189×87 mm (antennas folded, sticks and bracket included) 269×189×173 mm (antennas vertical to screen, sticks and bracket included) 269×302×87 mm (antennas unfolded, sticks and bracket included)
  Weight	1194 g (protective case excluded) 1365 g (protective case included)
  Operating Temperature	-20°C to 40°C
  Protection Rating	IP43
  Display	Dimensions: 7.9 inches Maximum Brightness: 2000 nits Resolution: 2048×1536 Refresh Rate: 60Hz Touch Control: Supports 10-point touch
  Battery	Battery Type: Li-Po 3S Rated Capacity: 5800mAh Voltage: 11.55V Battery Energy: 67Wh Charing time: 120 min Battery Endurance: 2.5 hours (Max brightness), 4.0 hours (50% brightness)
  Maximum Transmission Distance (Without Interference and Blocking)	FCC: 15km (9.3 miles) CE / SRRC: 8km (4.9 miles)
  IP Rating	IP43
  Internal Storage	128G
  GNSS	GPS+GLONASS+Galileo+Beidou
  Operating Temperature	-4°F to 104°F (-20℃ to 40℃)
  Wi-Fi Protocol	802.11a/b/g/n/ac Support 2 x 2 MIMO Wi-Fi
  Wi-Fi Operating Frequency	2.4G: 2.400–2.476GHz*, 2.400–2.4835GHz 5.8G: 5.725-5.829GHz*, 5.725-5.850GHz *Only applies to SRRC region Note: Some frequencies are only applicable in some regions or only used in door. For details, please refer to local laws and regulations.
  Wi-Fi Effective Isotropic Radiated Power (EIRP)	2.4G: ≤30dBm（FCC/ISED）; ≤20dBm（CE/SRRC/UKCA） 5.8G: ≤30dBm（FCC/ISED/SRRC）; ≤14dBm（CE/UKCA）

• Smart Battery

  Battery Dimension	158.4×74.3×50.7 mm
  Operating Temperature	-4° F to 113° F (-20°C to 50°C)
  Battery Type	LiPo 4S
  Rated Capacity	ABX40: 8070mAh ABX41: 9248mAh
  Voltage	ABX40: 14.88V ABX41: 14.76V
  Battery Energy	ABX40: 120Wh ABX41: 136.5Wh
  Weight	ABX40: 1.15 lbs (520g) ABX41: 1.17 lbs (533g)
  Battery Charge Temperature	41° F to 113° F (5ºC to 45ºC) (When the battery temperature is below +5°C, the battery stops charging and activates self-heating. When the battery temperature is above +45°C, the battery stops charging.)
  Hot Swappable	Supported
