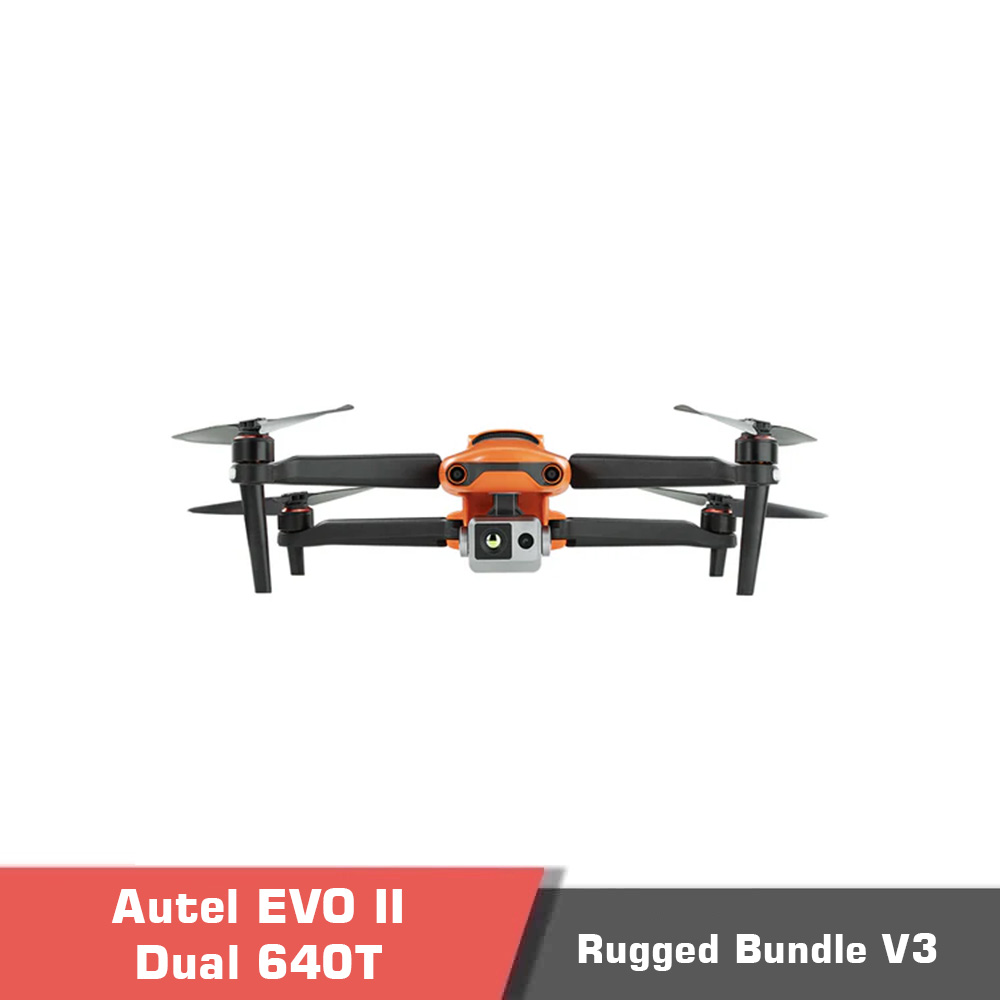

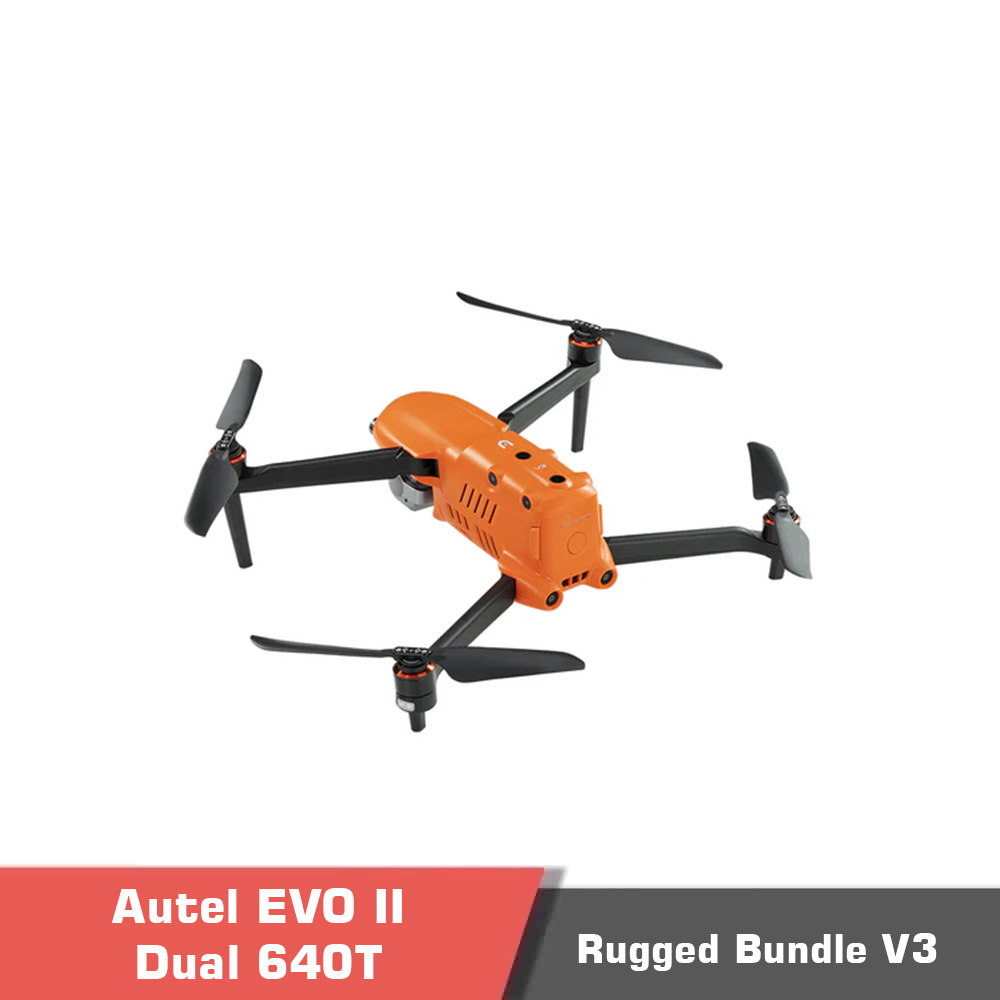

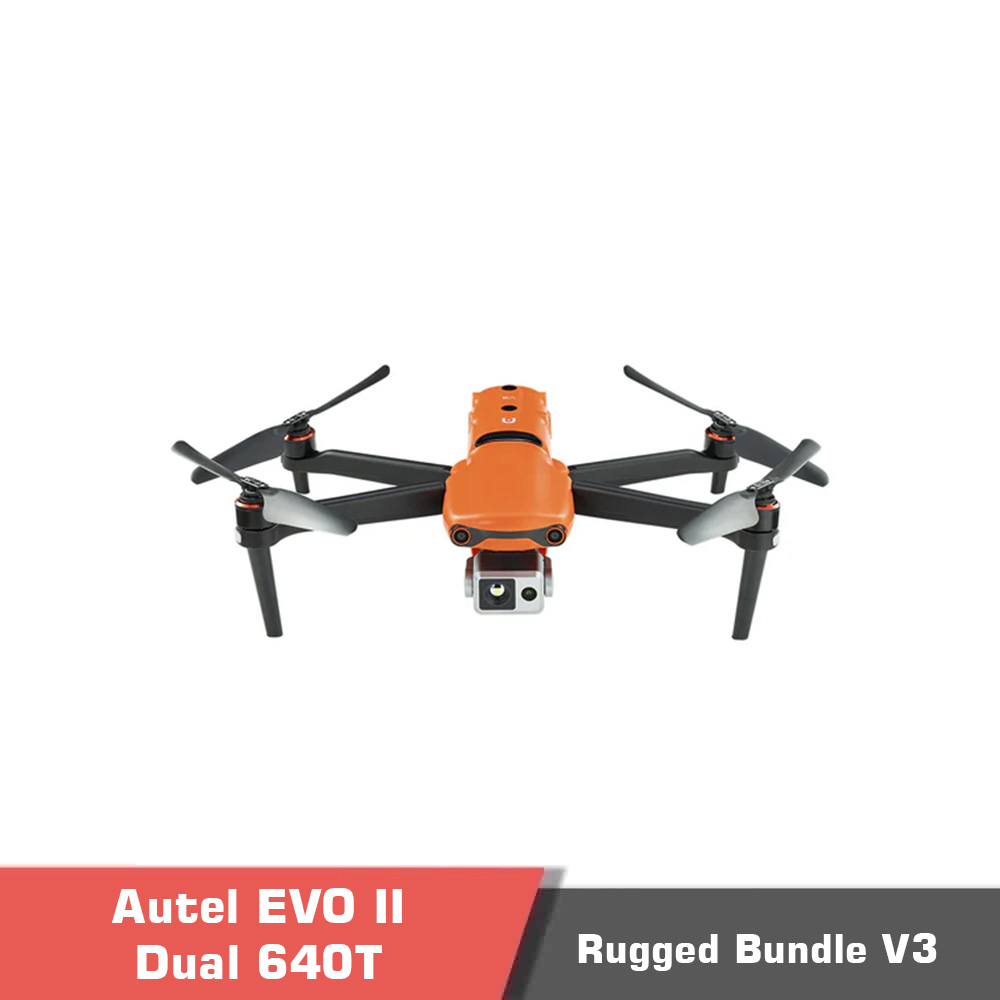

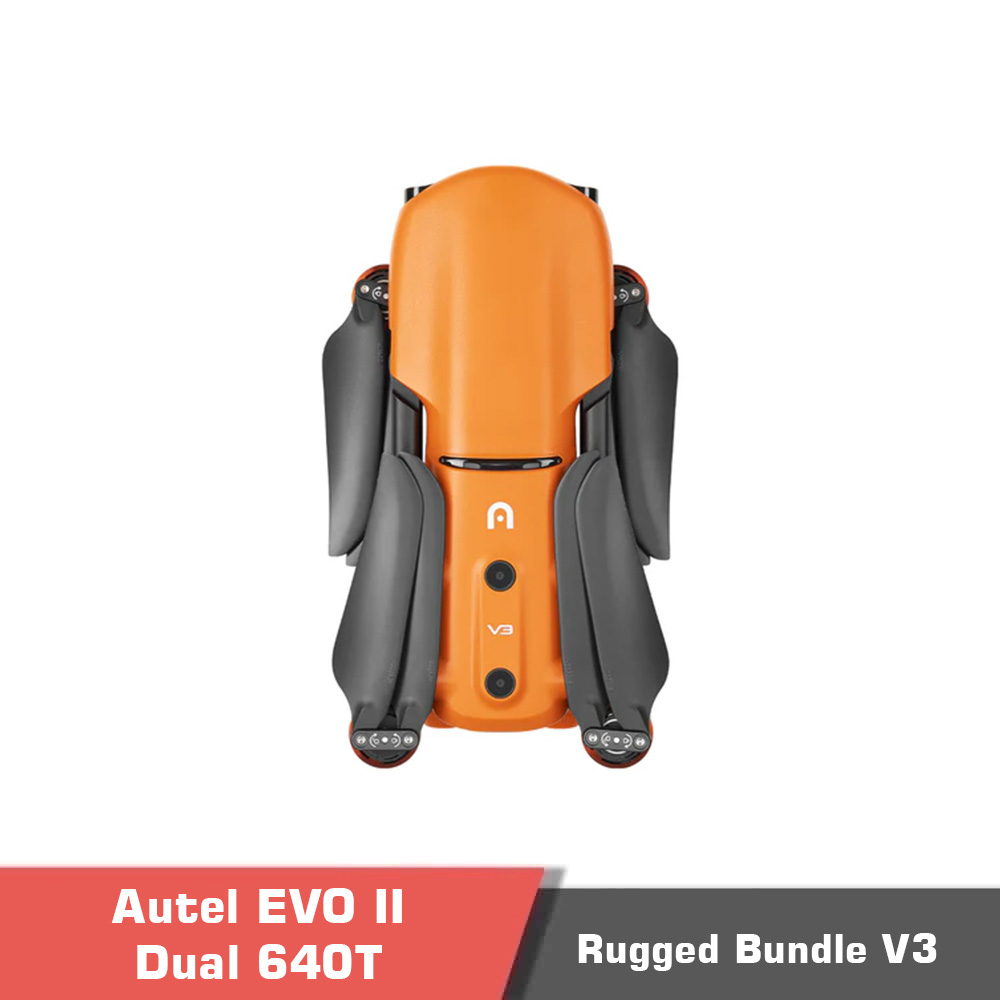

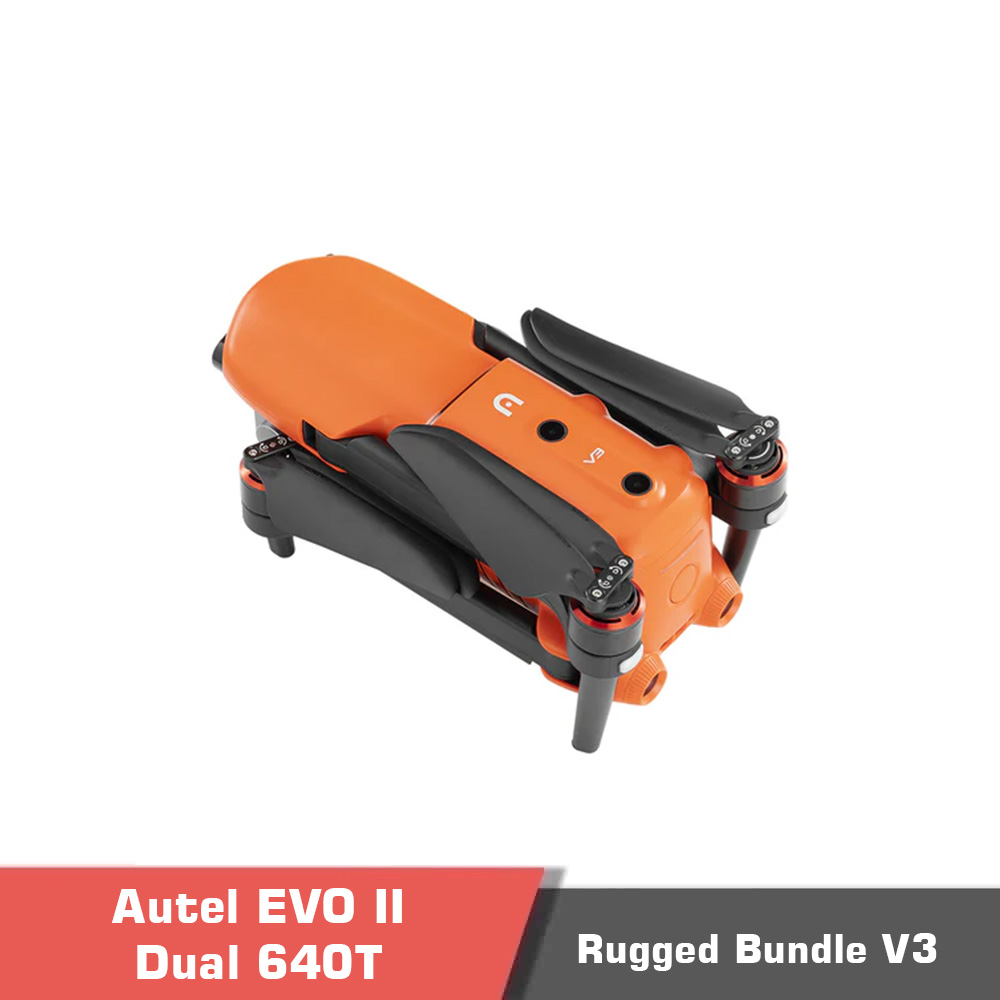

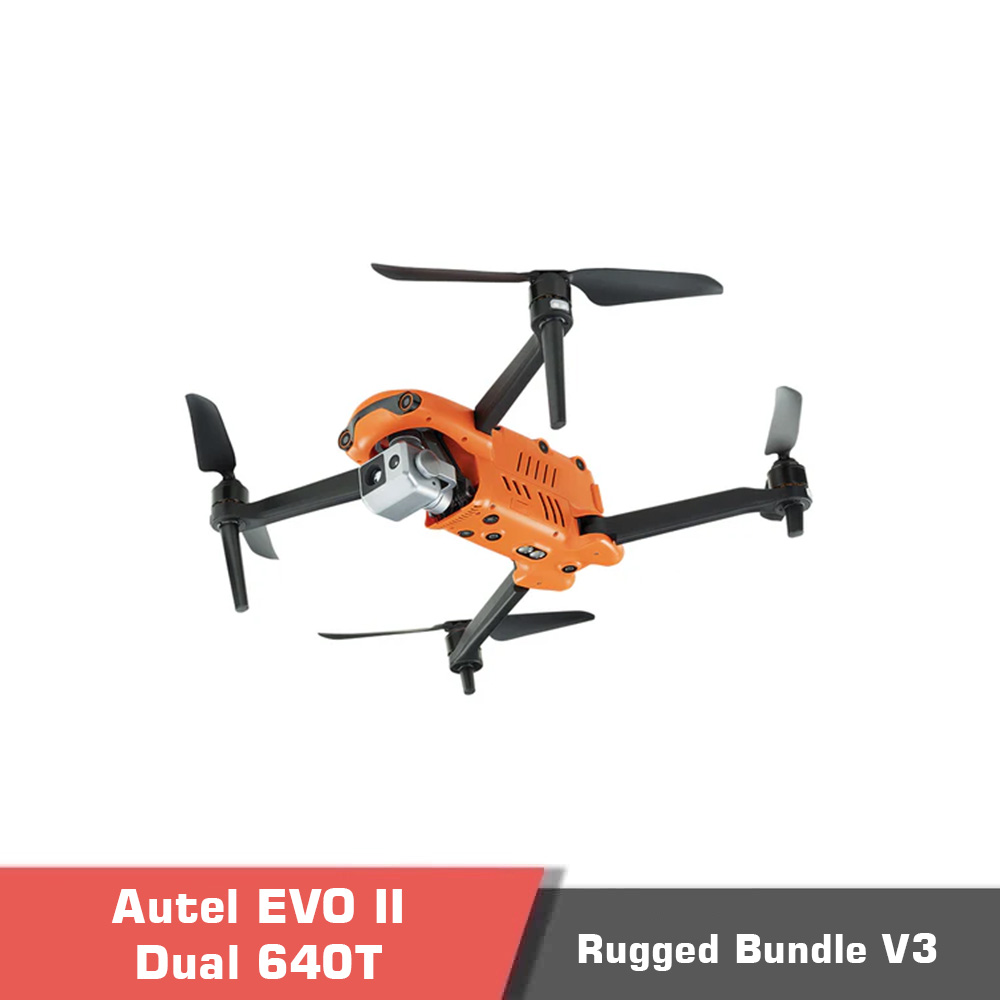

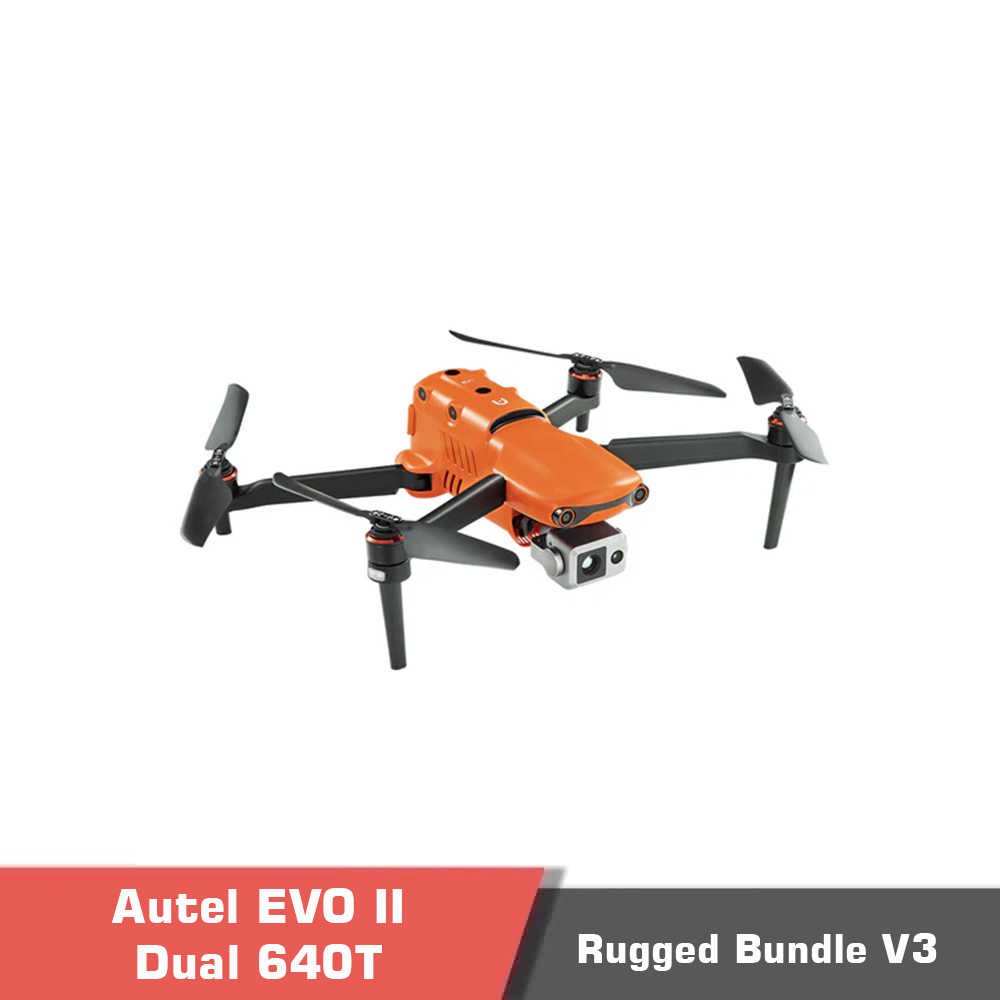

Autel EVO II Dual 640T Rugged Bundle V3 – Advanced Thermal and Visual Drone for Industrial Applications
The Autel EVO II Dual 640T Rugged Bundle V3 combines powerful imaging, advanced flight capabilities, and unmatched thermal sensing into one rugged, ready-for-the-field UAV package. Designed for industrial inspections, public safety, search and rescue, and infrastructure monitoring, this drone delivers a compact, reliable solution with both visible and thermal imaging.

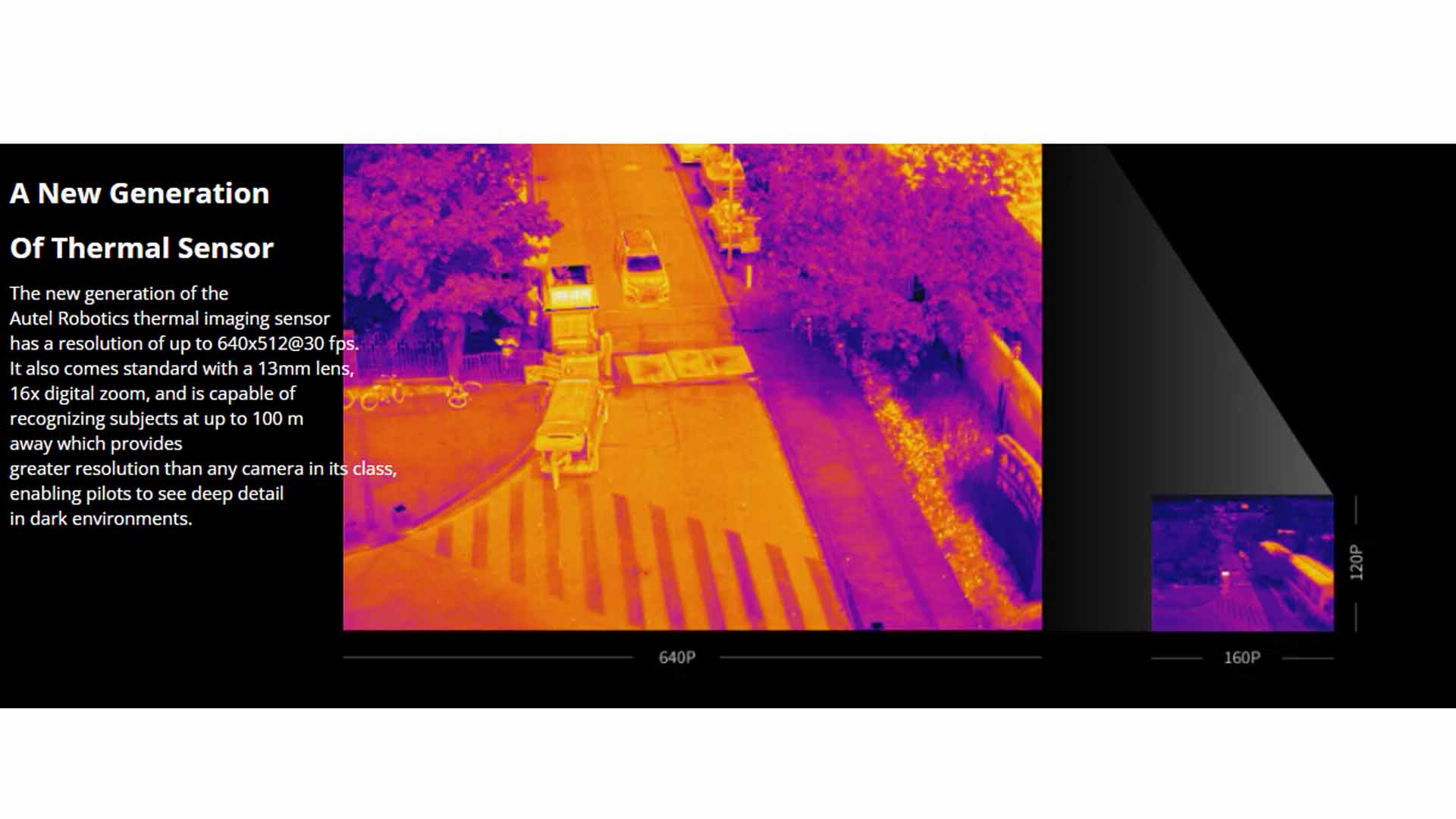

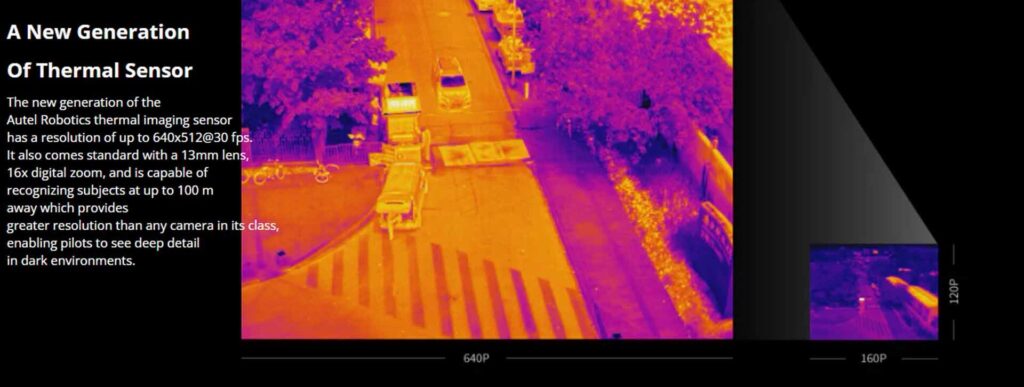

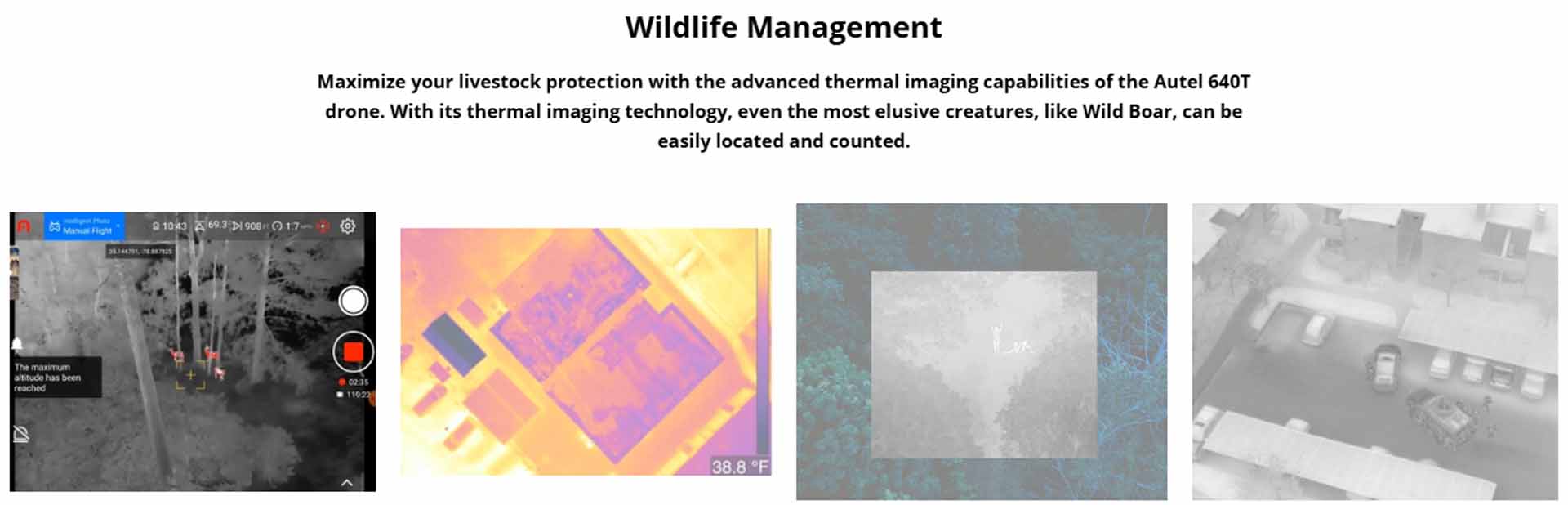

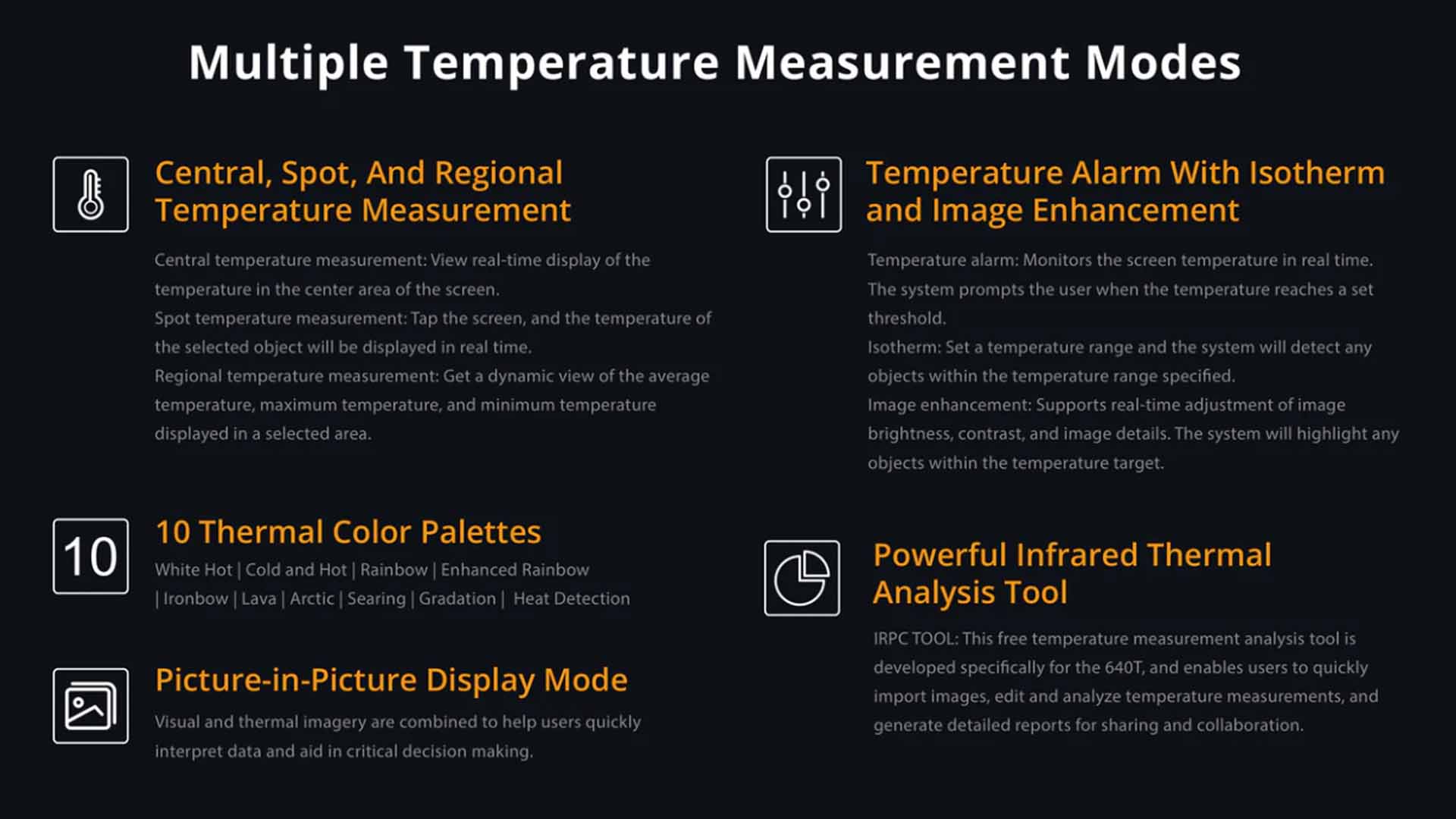

Dual-Camera Design with Radiometric Thermal Sensor
This Multirotor is equipped with a dual-camera system, the EVO II Dual 640T V3 includes a high-resolution 640×512 thermal imaging sensor that supports:
-
10 thermal color palettes
-
30Hz refresh rate
-
Picture-in-Picture (PiP) mode for simultaneous thermal and visual feedback

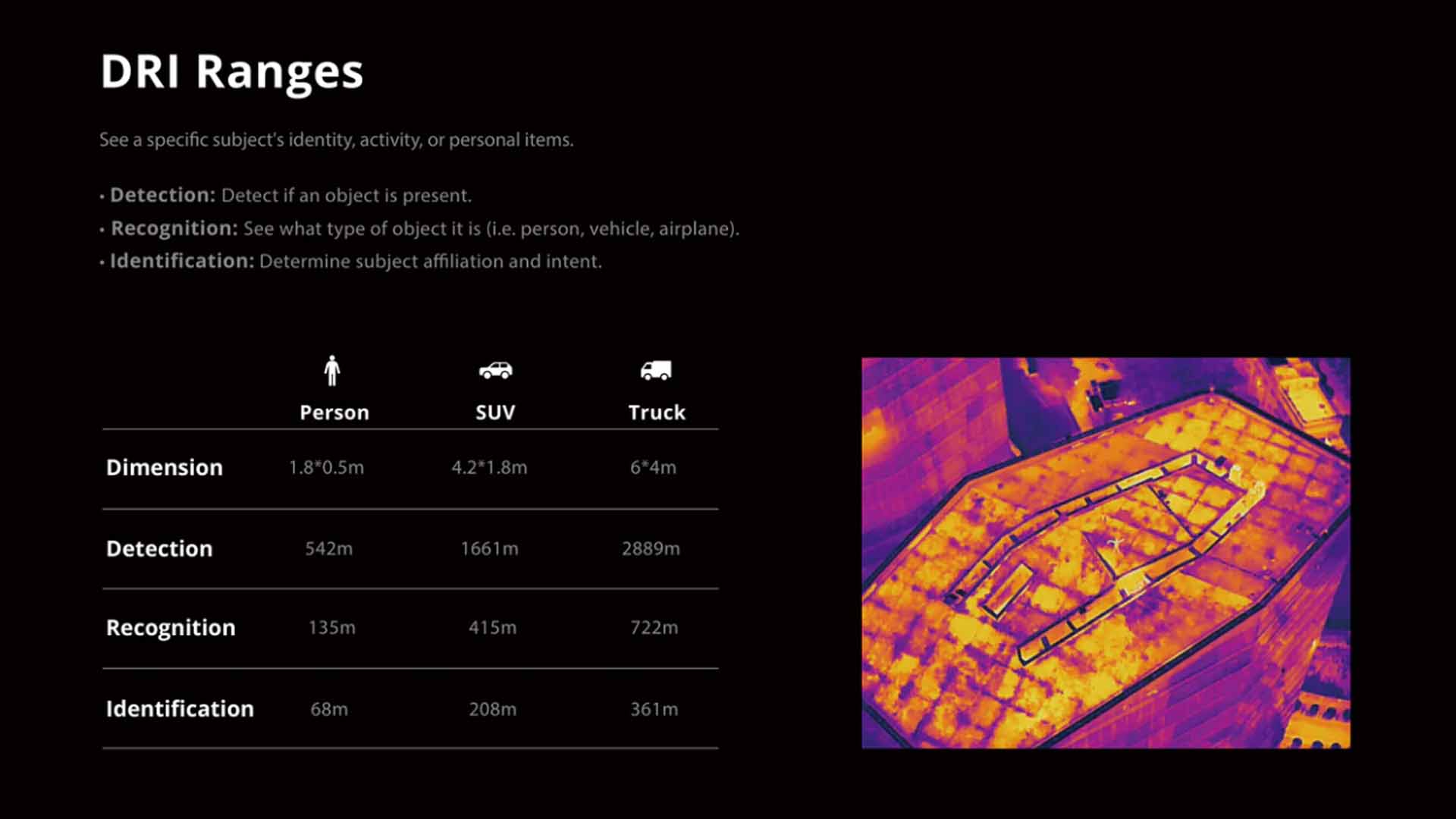

The integrated 13mm thermal lens offers 16x digital zoom, capable of detecting human or vehicle-sized heat signatures from up to 100 meters away, making it ideal for first responders and inspection professionals. Radiometric temperature detection further enables accurate surface temperature readings, making this drone invaluable for power line checks, solar farm monitoring, and firefighting.

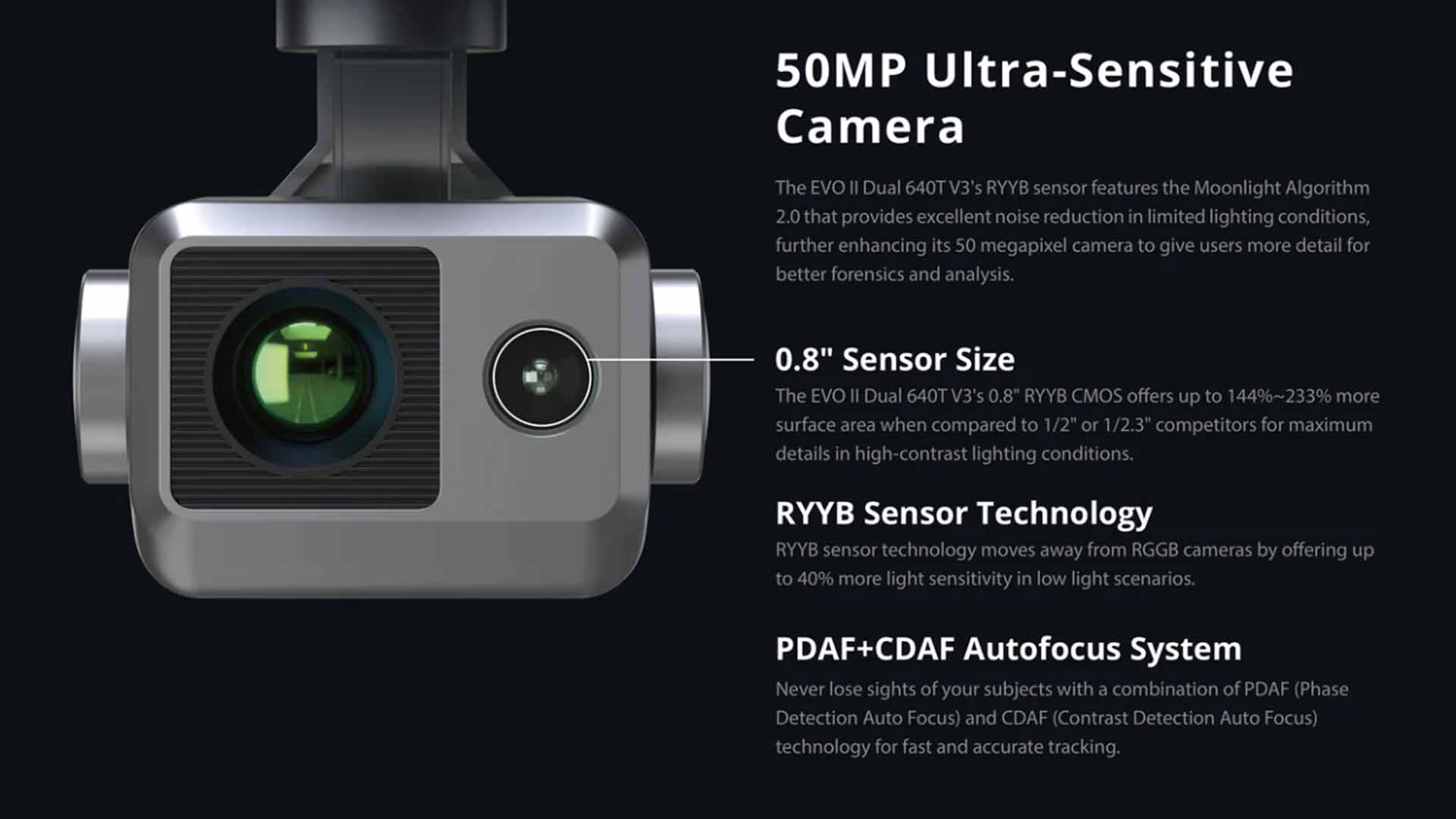

Ultra-Clear Visual Camera with High-Res Photos
For visual inspection, the drone includes a 0.8-inch CMOS sensor capable of capturing 50 MP ultra-clear still images, ensuring rich detail in every frame. Combined with intelligent exposure and focus controls, it delivers excellent results in both daylight and low-light environments.
Intelligent Flight and Obstacle Avoidance
Autel’s Dynamic Track 2.1 ensures smart subject tracking with obstacle prediction. The 360° obstacle avoidance system uses 19 sensor groups to ensure full environmental awareness, significantly reducing the risk of crashes and enabling safe autonomous flights even in complex scenarios.

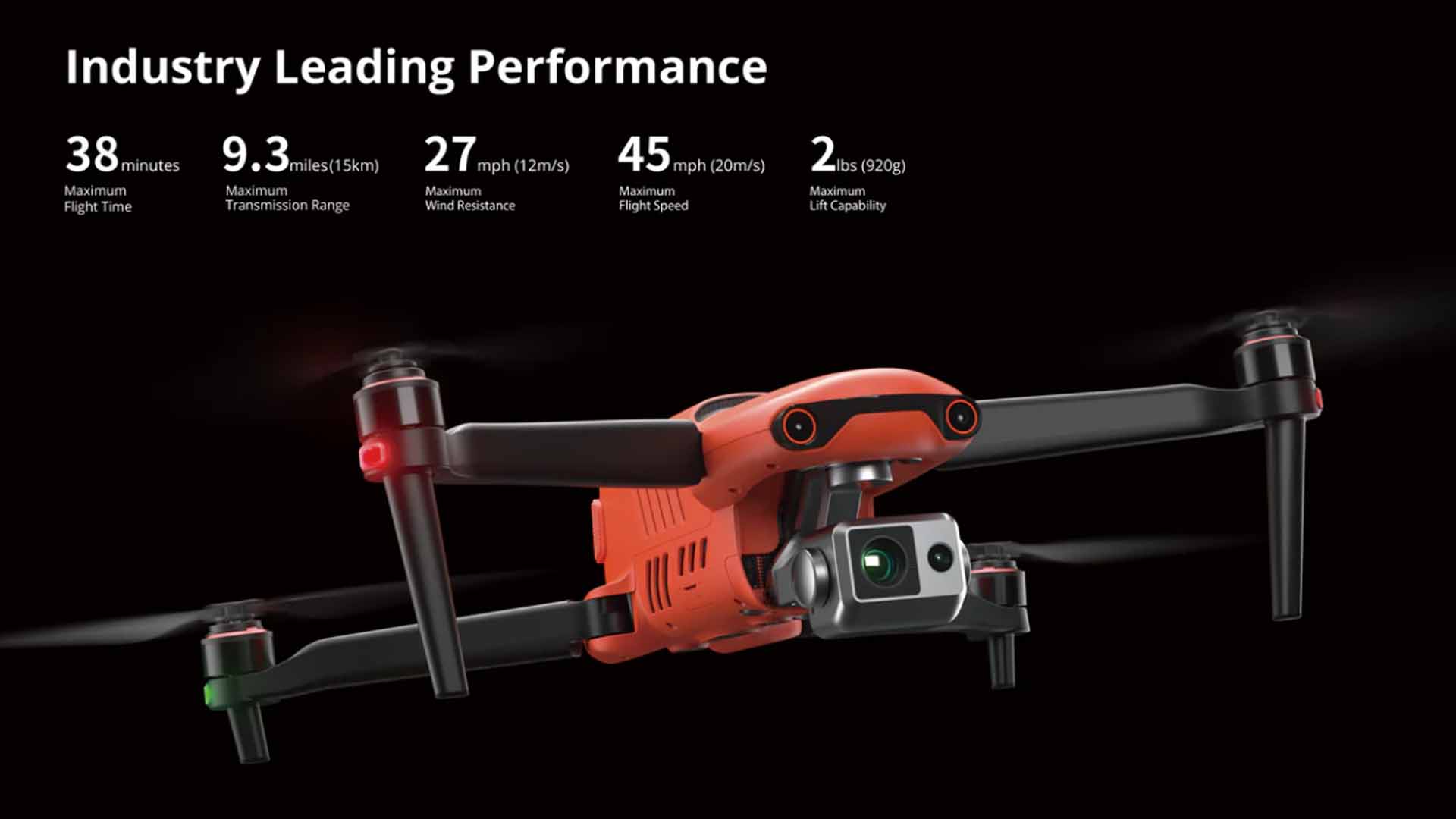

Long Range and Extended Flight Time
With up to 38 minutes of flight time, the EVO II Dual 640T V3 leads the industry in battery efficiency. A robust transmission system offers a range of up to 15km, giving you reliable real-time video and control over long-distance missions, even in areas with limited connectivity.

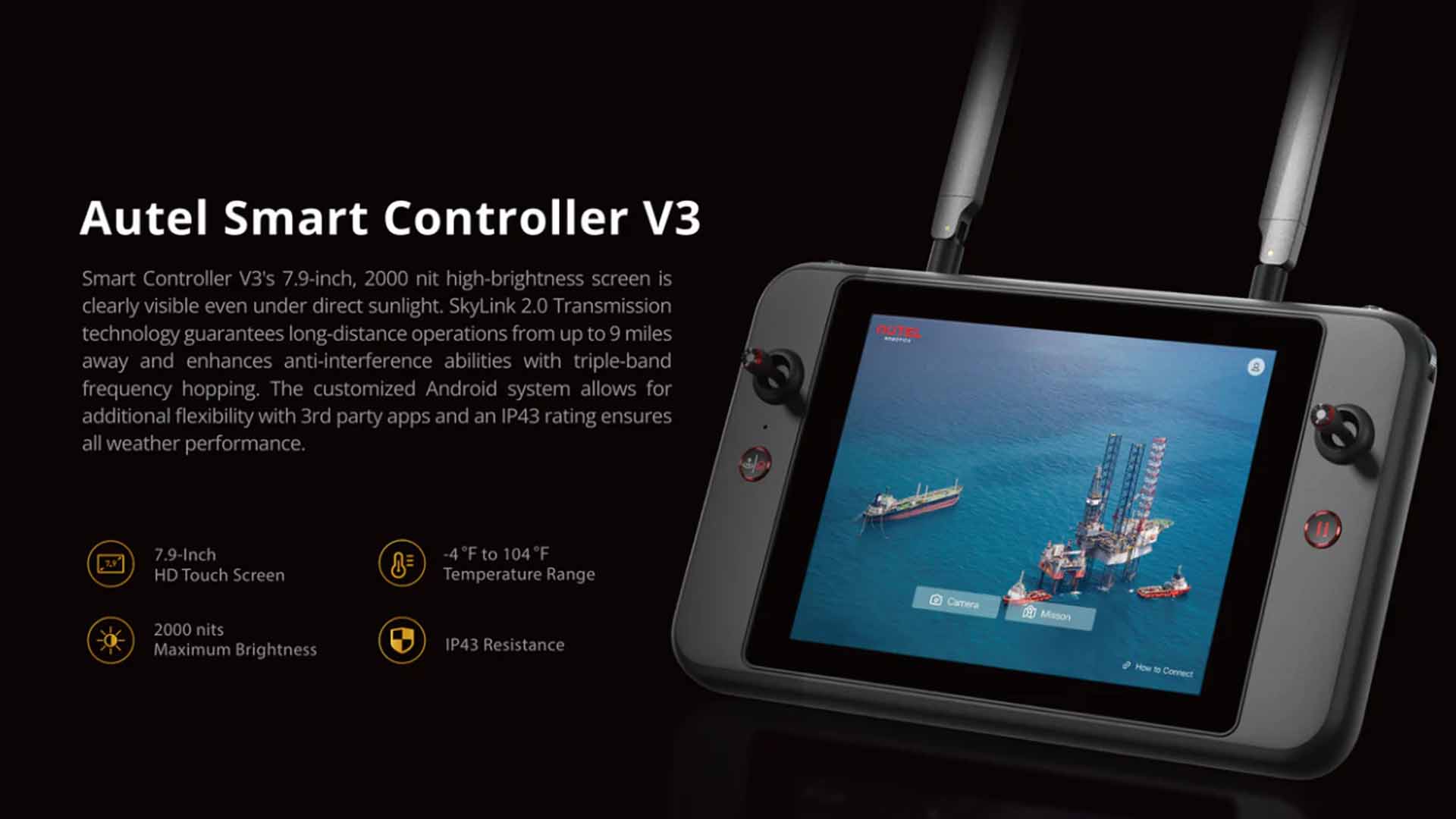

Smart Controller V3 – 7.9” Ultra-Bright Display
The included Autel Smart Controller V3 features a 7.9-inch ultra-bright display viewable in direct sunlight, Android OS, and compatibility with third-party apps. Its ergonomic design and intuitive UI make field operations smooth and fast, reducing prep time and increasing mission efficiency.
Rugged, Reliable, and Ready for Any Mission
The EVO II Dual 640T Rugged Bundle V3 is designed for professionals who demand performance, accuracy, and durability. Whether you’re conducting thermal inspections, supporting emergency services, or performing critical infrastructure assessments, this drone delivers unmatched value in a portable package.
If you have any questions regarding our products, use the Motionew Contact us to consult our engineering team.

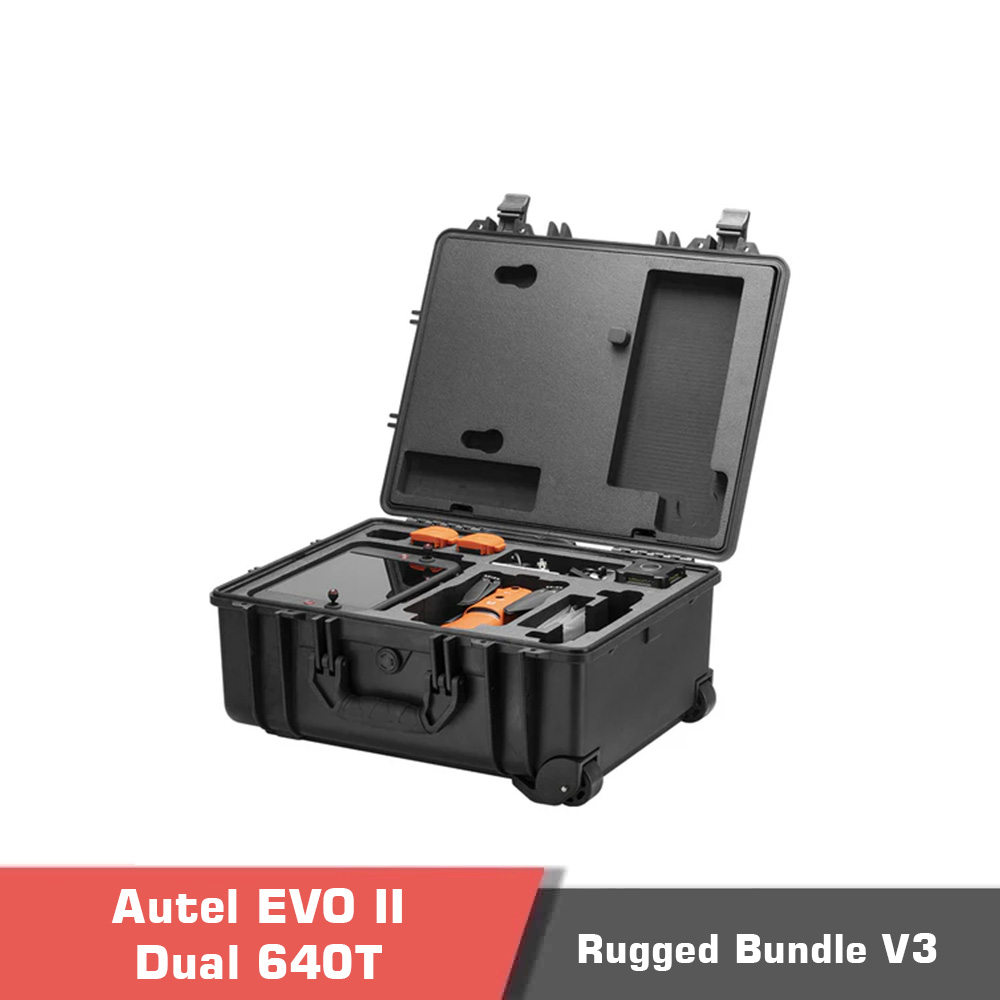

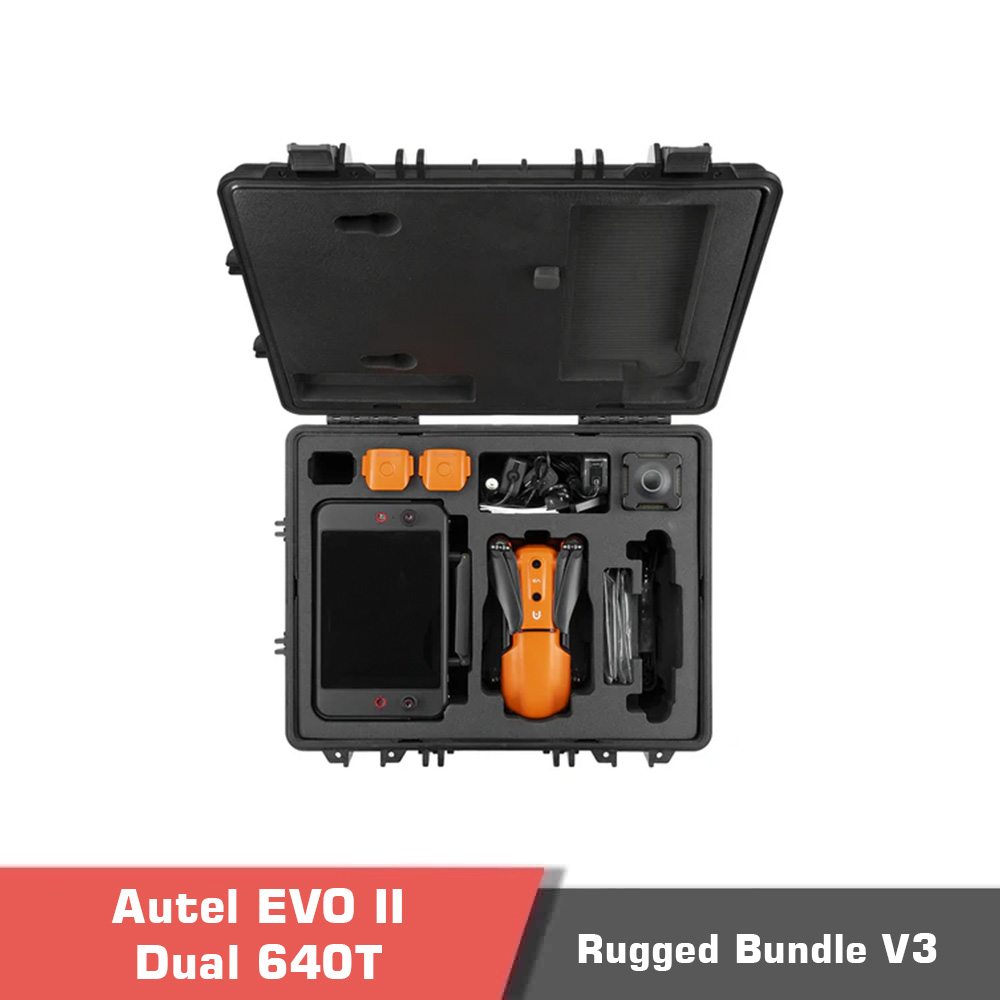

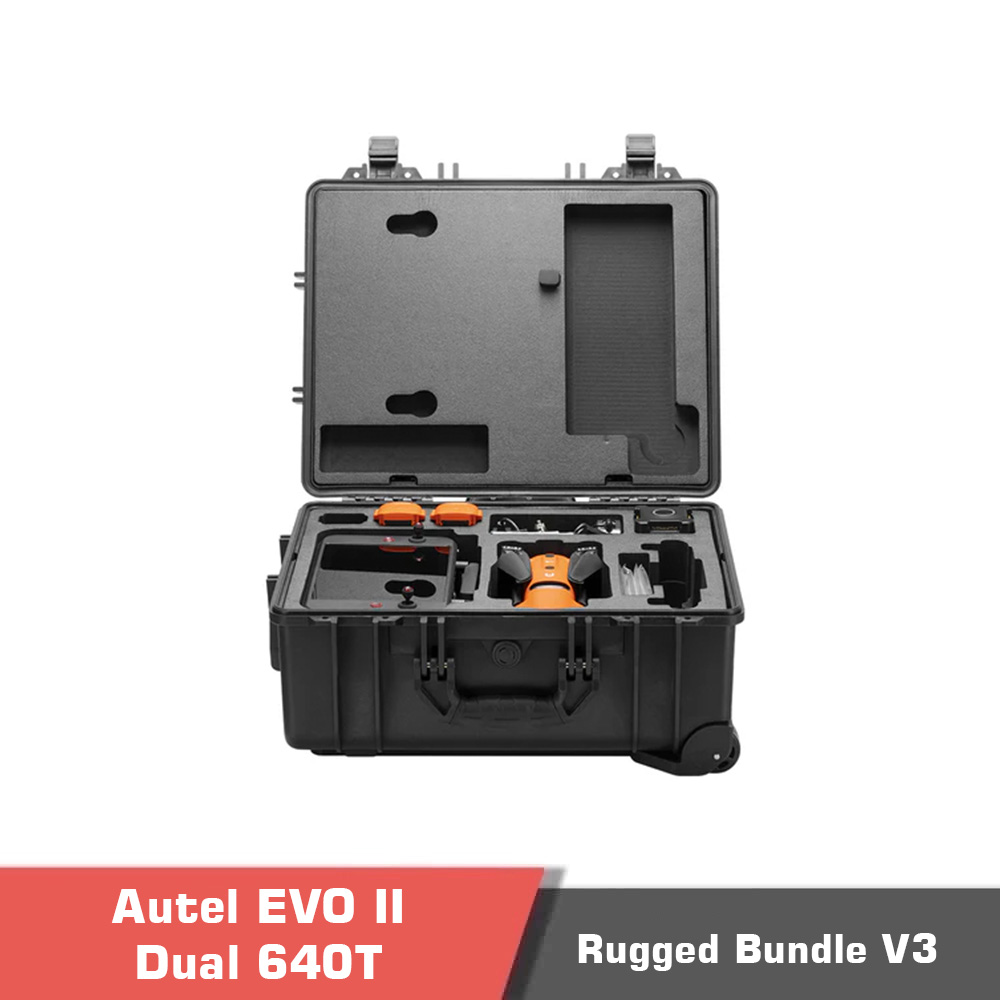

Product contents
Product contents
Specifications
Specifications
-
Aircaft

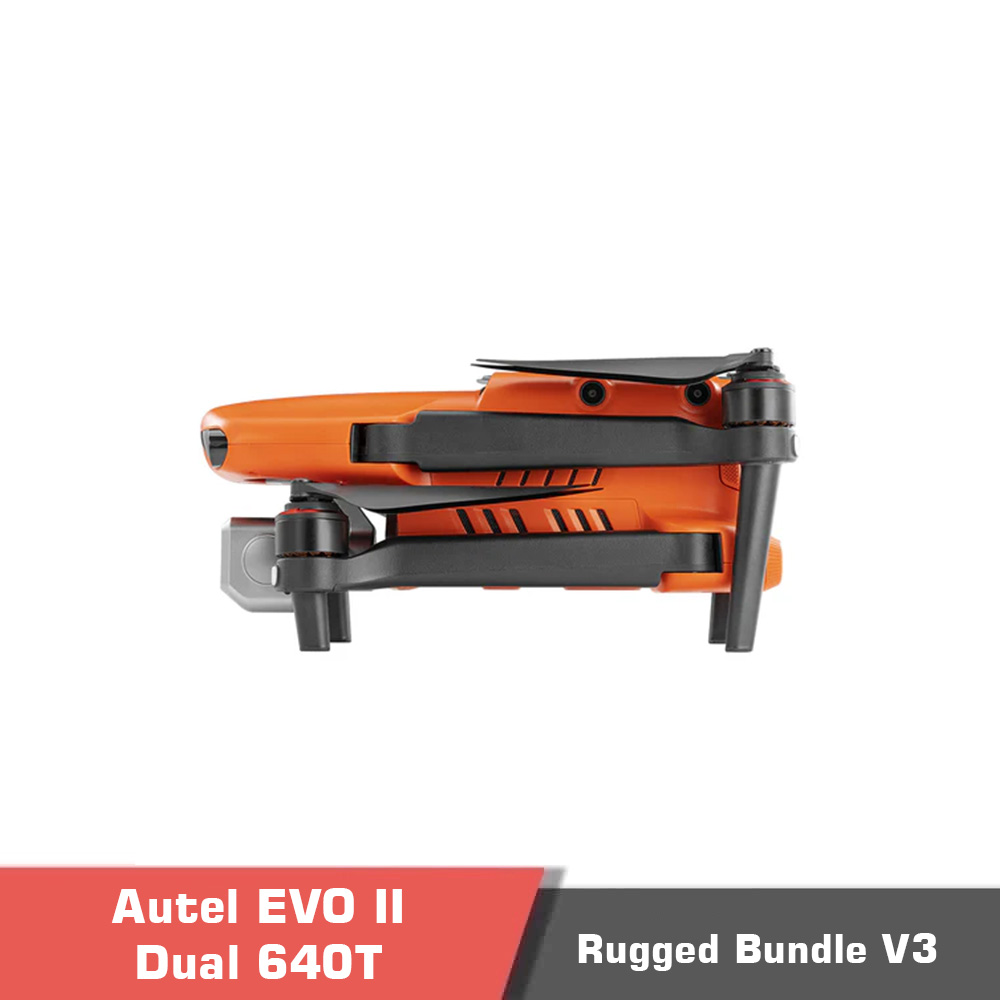

Takeoff weight 1150 g Max takeoff weight 1999 g Size(L*W*H) 230*130*108mm（folded）
457*558*108mm（unfolded）Wheelbase 397 mm Maximum service ceiling altitude 7000 m Max ascent speed 8 m/s (Ludicrous) Max descent speed 4 m/s (Ludicrous) Max horizontal flight speed 20m/s (Ludicrous) Max flight distance (no wind) 22 km Max angular velocity 120°/s Max tilt angle 33° (Ludicrous) Max flight time (no wind) 38 min Max hovering time (no wind) 33 min Operating temperature range -10℃ ~ 40℃ Maximum resistance to wind Level 8 Operating frequency 902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHz (non-Japan)
5.650-5.755GHz (Japan Only)Transmission power 900M
FCC/ ISED：≤31dBm
2.4G
FCC/ ISED：≤32dBm
SRRC/CE/MIC/RCM：≤20dBm
5.8G (non-Japan) ; 5.7G (Japan)
FCC/ISED/SRRC/MIC：≤33dBm
CE/ RCM：≤14dBmHovering accuracy Vertical: ±0.1 m (when the visual positioning is working normally);
±0.5 m (when GPS works normally)
Horizontal: ±0.3 m (when the visual positioning is working normally);
±1.5 m (when GPS works normally)GNSS GPS/Beidou/Glonass/Gallieo Internal storage 8GB SD storage max. support 256GB (UHS-3 or Class 10) - Gimbal
Gimbal 3-axis stabilization Mechanical range Tilt: -135° to +45°;
Pan: -100° to +100°Controllable rotation range Tilt: -90° to +30°;
Pan: -90° to +90°Max control speed (Tilt) 300°/s Angular Vibration Range ±0.005° - Remote Controller and Transmission
Operating frequency 902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHz (non-Japan)
5.650-5.755GHz (Japan Only)Transmission power FCC：≤33dBm
CE：≤[email protected]，≤[email protected]
SRRC：≤[email protected]，≤[email protected]/5.7GMax Transmission Distance (unobstructed, free of interference) FCC：15km
CE：8kmDisplay screen 2048×1536 60fps Battery 5800mAh Operating time ~3 hours (Max. Brightness)
~4.5 hours (50% Brightness)Charging time 120 minutes Internal Storage ROM 128GB - Sensing System
Sensing system type Omnidirectional sensing system Forward Accurate measurement range: 0.5-18 m
Effective sensing speed: <12m/s
Viewing angle: Horizontal: 60°, Vertical: 80°Backward Accurate measurement range: 0.5-16 m
Effective sensing speed: <12m/s
Viewing angle: Horizontal: 60°, Vertical: 80°Upward Accurate measurement range: 0.5-10 m
Effective sensing speed: <5m/s
Viewing angle: Horizontal: 65°, Vertical: 50°Downward Accurate measurement range: 0.5-10 m
Effective sensing speed: <5m/s
Viewing angle: horizontal: 100°, vertical: 80°Left and right Accurate measurement range: 0.5-10 m
Effective sensing speed: <5m/s
Viewing angle: horizontal: 65°, vertical: 50°Operating Environment Forward, Backward and Sides:
Surface with clear pattern and adequate lighting (lux > 15)
Upward:
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)
Downward:
Surface with clear pattern and adequate lighting (lux > 15)
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.) - Thermal Camera
Sensor Uncooled VOx Microbolometer Lens FOV H33°V26° Focal length 13mm Zoom 1 – 16x Pixel size 12μm Wavelength range 8 – 14μm Temperature range High gain mode: -20° to +150°
Low gain mode: 0° to +550°Temperature measurement accuracy ±3℃ or ±3% of reading (whichever is greater)
@Environmental temperature-20℃~60℃Accurate temperature
measurement distance2-20 meters Video resolution 640×512@30fps Video format MOV / MP4 (Support H.264/H.265) Camera resolution Infrared mode: 640*512
Picture-in-picture mode: 1920*1080, 1280*720Photo mode Single shot
Burst shooting: 3/5 frames, 3 is the default
Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60sPhoto format JPG (with irg file) - Visible light Camera
Sensor 1/1.28″(0.8″) CMOS; 50M effective pixels Lens FOV: 85°
35 mm format equivalent focal length: 23 mm
Aperture: f/1.9
Focus range: 0.5 m to infinity (with auto focus)ISO range Video: 100-64000
Photo: 100-6400Shutter speed Photo mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/frame ratesZoom 1-16x (up to 4x lossless zoom) Photo mode Single shot/Burst shooting/AEB/Time Lapse/HDR imaging Maximum photo size 8192*6144（4:3）
4096*3072（4:3）
3840×2160（16:9）Image Format JPG (default) / DNG / JPG+DNG Video format MOV / MP4 Video resolution 3840x2160P60/P50/P48/P30/P25/P24
2720x1528P60/P50/P48/P30/P25/P24
1920x1080P60/P50/P48/P30/P25/P24Max bitrate 120Mbps Supported file system FAT32/exFAT - Battery
Capacity 7100 mAh Voltage 11.55 V Battery type LiPo 3S Energy 82 Wh Weight 365 g Charging temperature range 5℃ to 45℃ Storage temperature and humidity -10~30℃，65±20%RH Recommended storage temperature 22-28℃ Max charging power 93W Charging time 90 minutes - Charger
Input 100-240 V, 50/60 Hz, 1.5A Output 13.2 V ⎓ 5 A
5V⎓3A 9V⎓2A 12V⎓1.5AVoltage 13.2±0.1V Rated power 66W - Multi Charger
Voltage 13.2 V Charging temperature range 5℃ to 45℃
Documents
Documents
Reviews
You must be logged in to post a review.
| MTOW |
2kg |
|---|---|
| Max. Payload |
0.85kg |
| Multirotor Application |
Inspection/Surveillance ,Mapping |
| Multirotor Wheelbase |
397mm |
| Number of motors |
4 |
| Number of arms |
4 |
| Foldable Airframe |
YES |
| Multirotor Type |
Electric |
