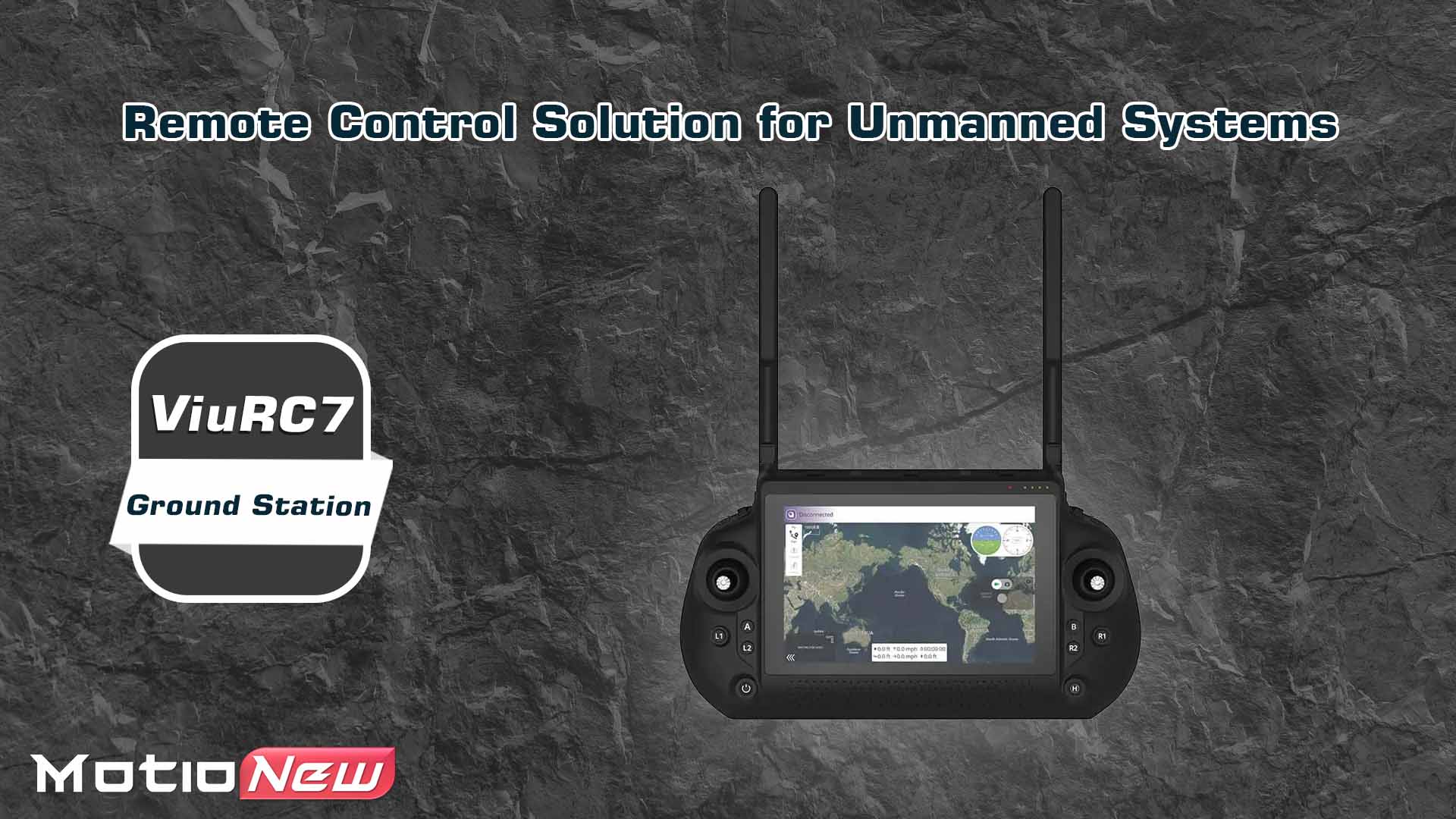

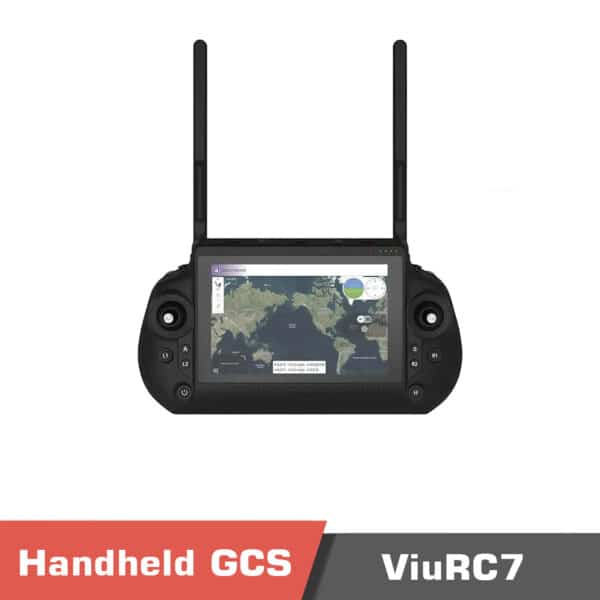

ViuRC7 Professional GCS – Advanced Ground Control Station for UAV Operations
Experience next-level UAV control and mission management with the ViuRC7 Ground Control Station (GCS) — a professional-grade handheld controller engineered for demanding drone applications. Designed to deliver robust performance, exceptional range, and intuitive multi-channel operation, the ViuRC7 is the perfect choice for commercial UAV operators, survey professionals, and industrial drone applications.
Cutting-edge connectivity and long-range performance
Can be equipped with 2.4GHz or 5GHz frequencies, achieving transmission power of [email protected] and 24dBm@5GHz. This ensures stable, interference-resistant connections even in challenging environments. With a tested range exceeding 20km, it’s ideal for BVLOS (Beyond Visual Line of Sight) operations, long-range mapping, and infrastructure inspection tasks.
Rugged design meets powerful control
Built with professional pilots in mind, the ViuRC7 features:
-
Dual joysticks, dials, rocker switches, and 12 customizable push buttons to give you precise multi-axis control over your drone and payload systems.
-
A high-visibility 7″ 1080P LCD touchscreen with 1200 nits brightness, ensuring clear visuals under direct sunlight.
-
A durable build rated for operation in temperatures from -20°C to 55°C, making it suitable for tough field conditions.
Advanced software and integrated GNSS
Running on a versatile Android 9.0/11.0 operating system, the ViuRC7 supports a wide range of mission planning and flight control apps. Integrated GPS + GLONASS + Beidou systems enhance situational awareness, enabling accurate positioning and mission tracking.
Superior battery life and quick charging
The ViuRC7 is powered by a 10400mAh Li-ion battery (7.2V) that provides up to 6 hours of continuous operation, keeping you in command through long flights. When it’s time to recharge, its USB Type-C port supports 30W fast charging, restoring full power in just 3.5 hours, so downtime stays minimal.
Expandable storage and rich interface options
With 4GB RAM and 64GB onboard storage, you can store detailed mission data, offline maps, and logs effortlessly. Multiple interfaces, including USB, micro SD, Ethernet, and HDMI, make it easy to connect external sensors, transfer data, or output live video.
Compact, portable, and engineered for field use

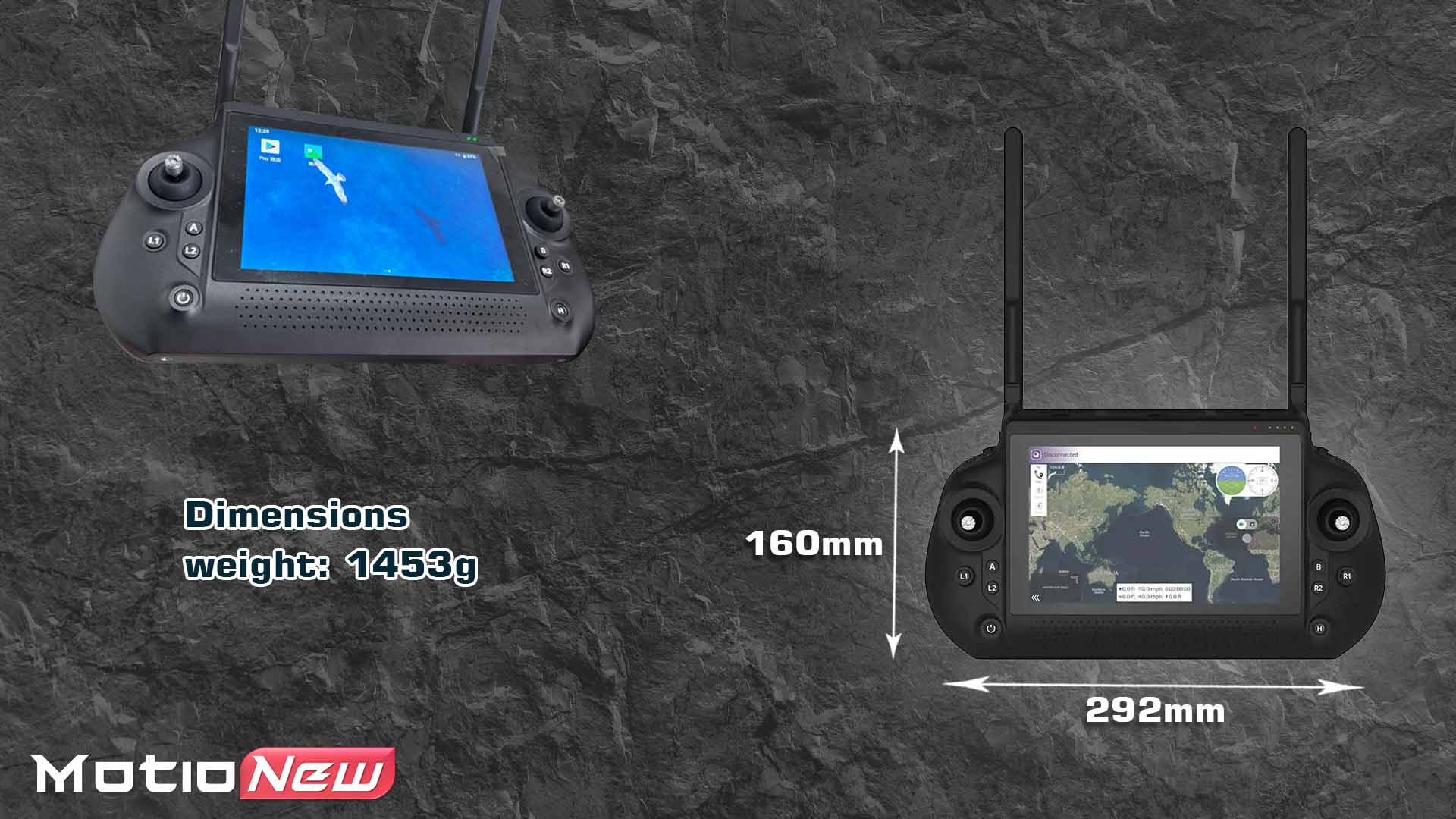

Weighing only 1453g and sized at 292 × 160 × 80 mm, the ViuRC7 is designed to be carried comfortably on-site, ensuring it’s always ready when you are. Its ergonomic design, intuitive controls, and bright display combine to give UAV operators complete command over their missions.
Optimize your UAV operations with the ViuRC7
Whether you’re flying multirotors, VTOLs, or fixed-wing UAVs, the ViuRC7 GCS provides the advanced tools and secure long-distance communication you need for professional drone operations. Enhance your productivity, improve mission safety, and experience seamless control — all in a single, powerful ground control station.
Order your ViuRC7 today and take your UAV capabilities to new heights!
For a comprehensive reading of related products, please visit the Motionew website.
Specifications

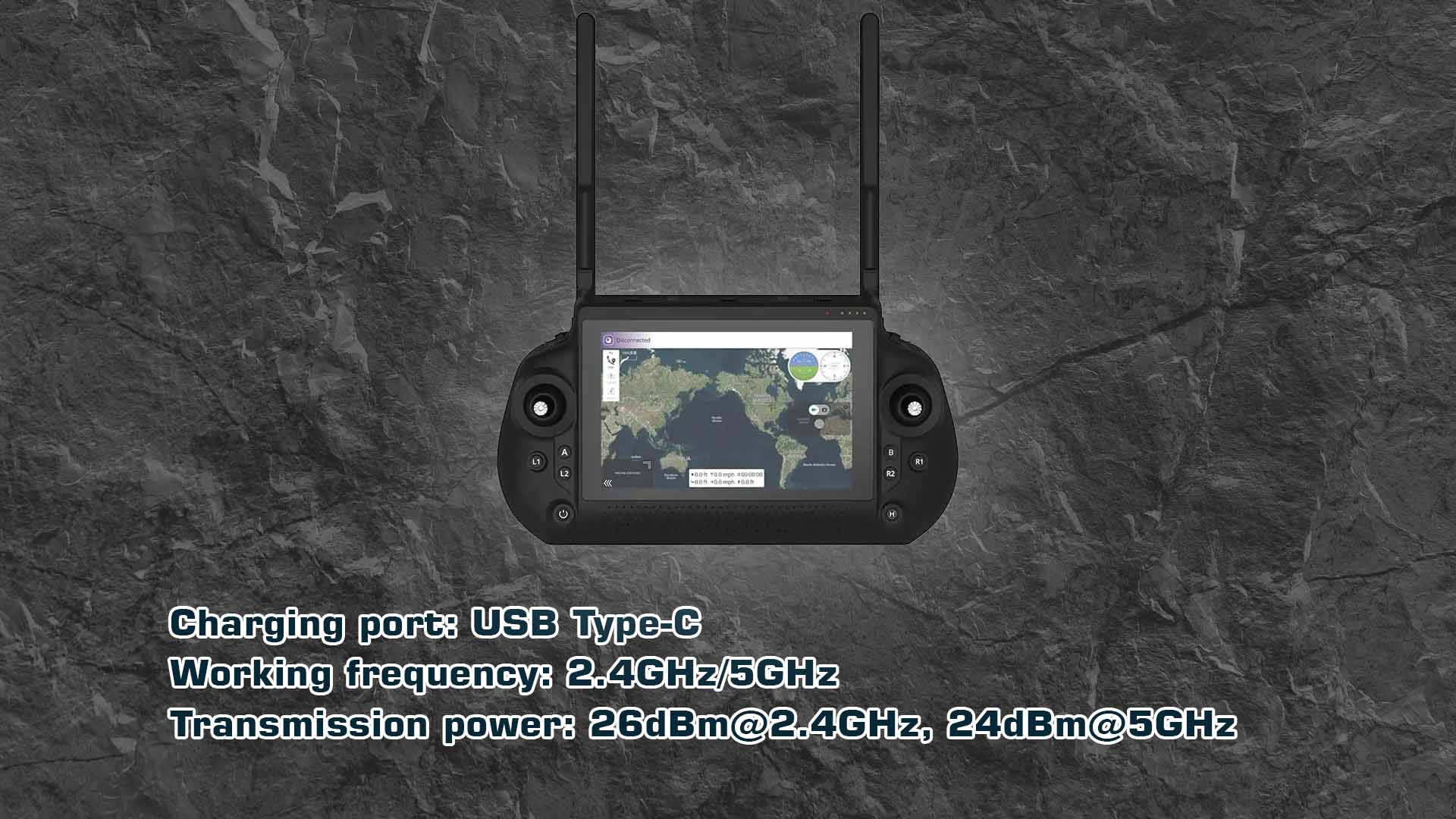

Working frequency | 2.4GHz / 5GHz |
Transmission power | 26dBm @2.4GHz, 24dBm @5GHz |

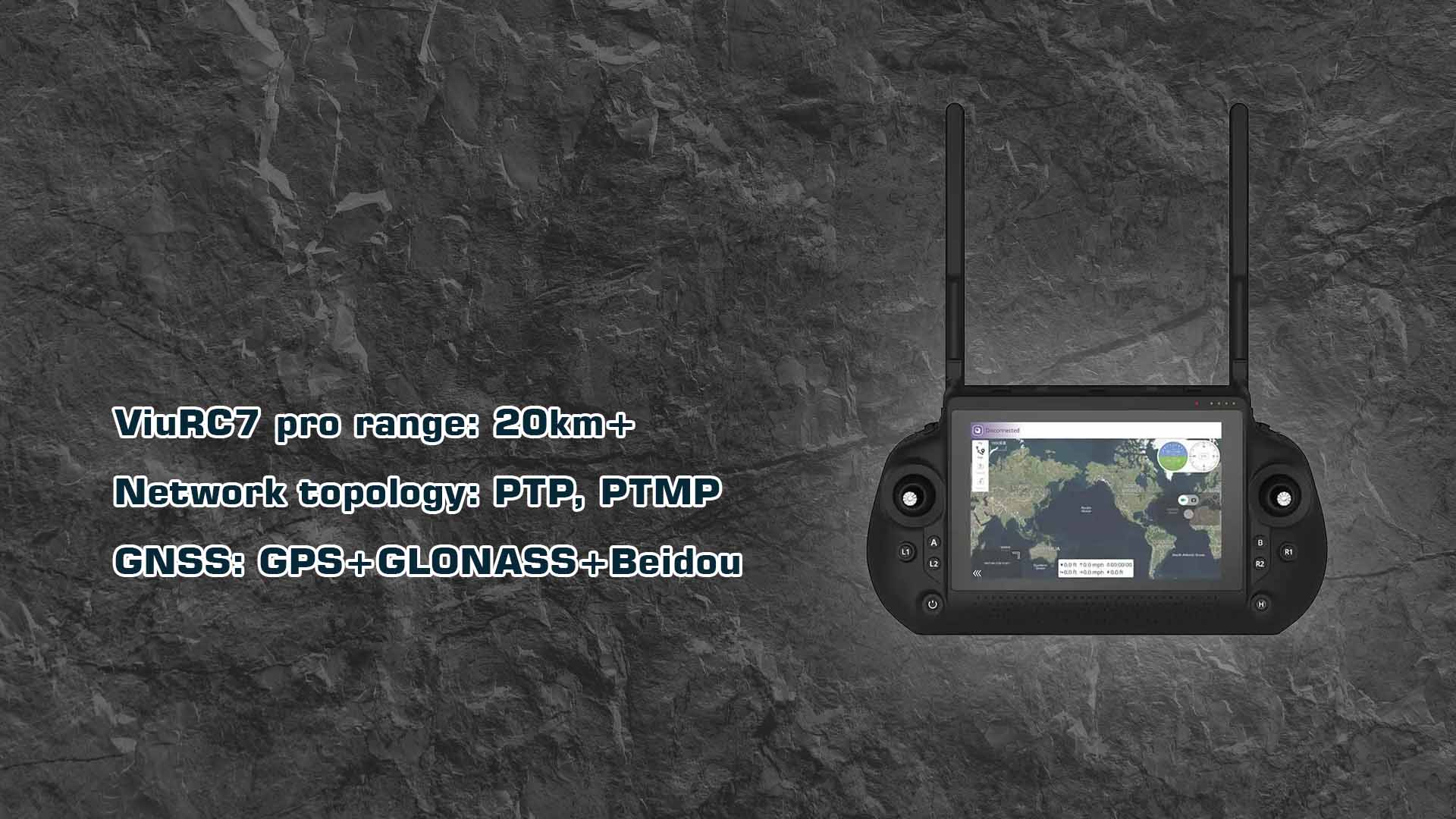

ViuRC7 pro range | 20km+ |
Operating system | Android 9.0 / 11.0 |
Power consumption | 12W |
Storage capacity | 4G + 64GB |
Charging time | 3.5 hours (30W charger) |
Operation time | 6 hours |
Operating temperature | -20°C ~ 55°C |
Storage temperature | -20°C ~ 65°C |
Charging temperature | Room temperature |
GNSS | GPS + GLONASS + Beidou |
Wi-Fi protocol | 802.11 a/b/g/n/ac |
Wi-Fi operation frequency | 2.4G / 5G |
Bluetooth protocol | BT2.1+EDR/3.0/4.1LE/4.2 BLE |
Network topology | PTP, PTMP |

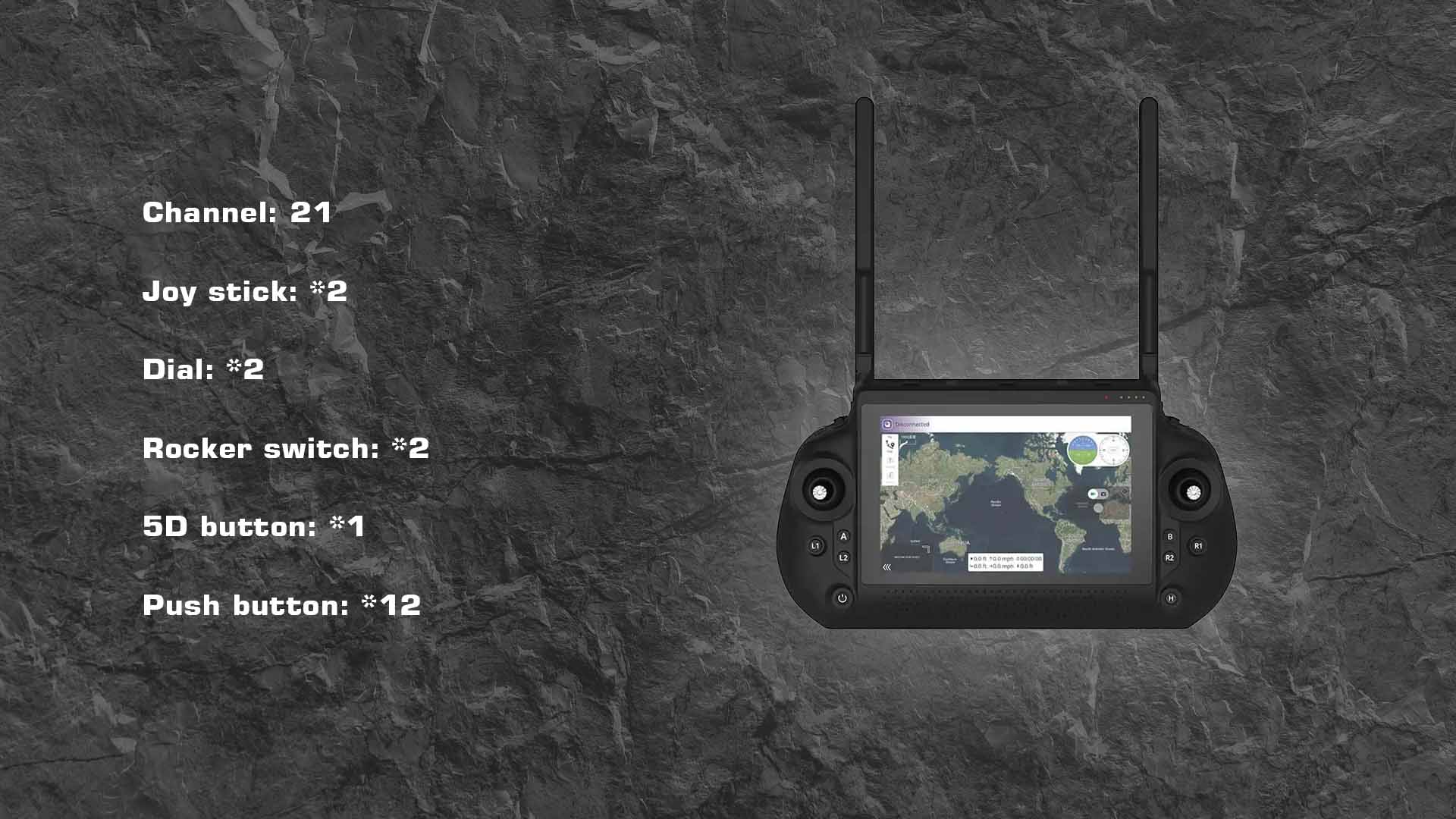

Channel | 21 |
Joy stick | ×2 |
Dial | ×2 |
Rocker switch | ×2 |
5D button | ×1 |
Push button | ×12 |

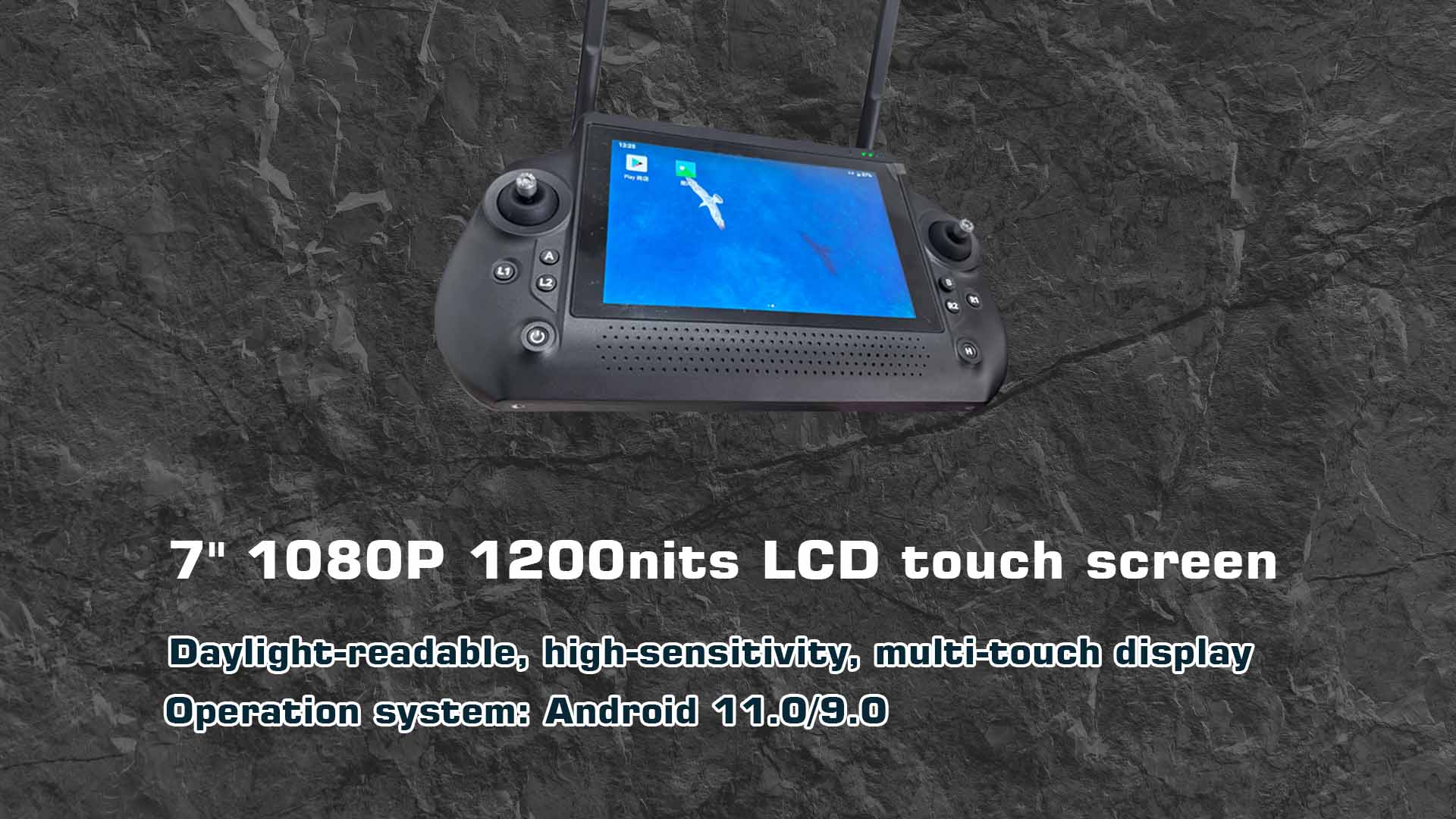

Display | 7″ 1080P 1200nits LCD touch screen |

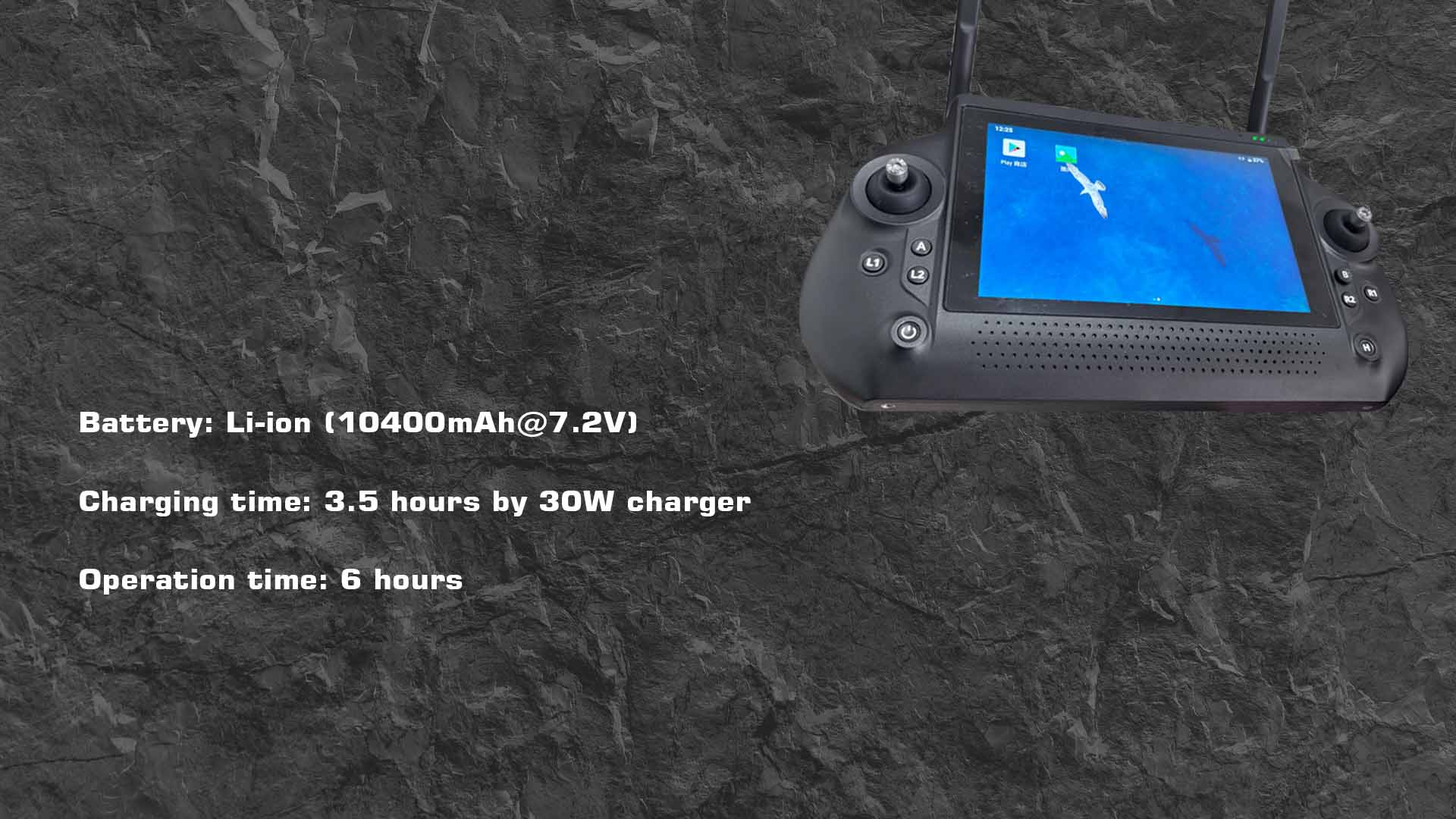

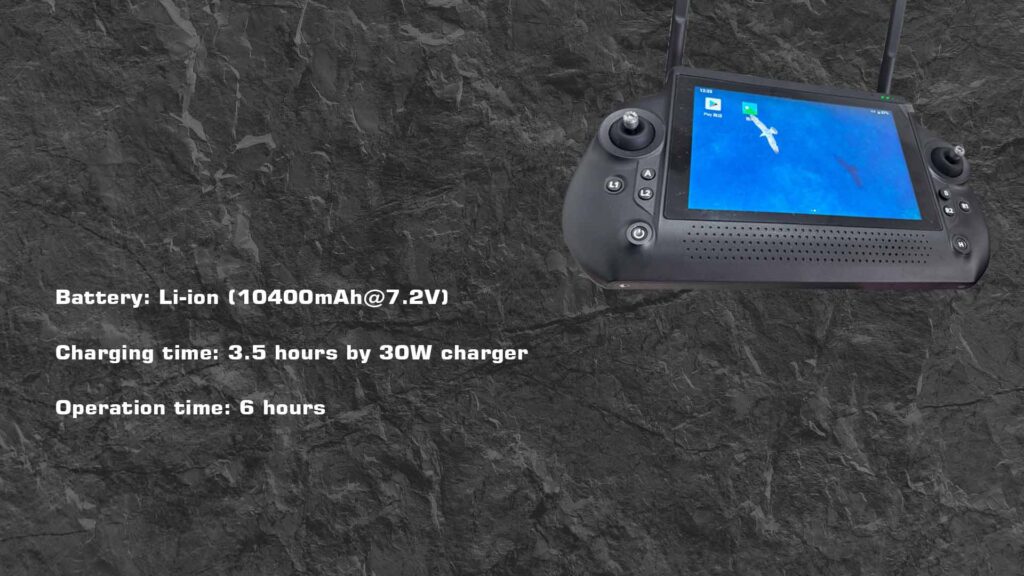

Battery | Li-ion (10400mAh @7.2V) |
Charging port | USB Type-C |
Weight | 1453g |
Dimension | 292 × 160 × 80 mm |

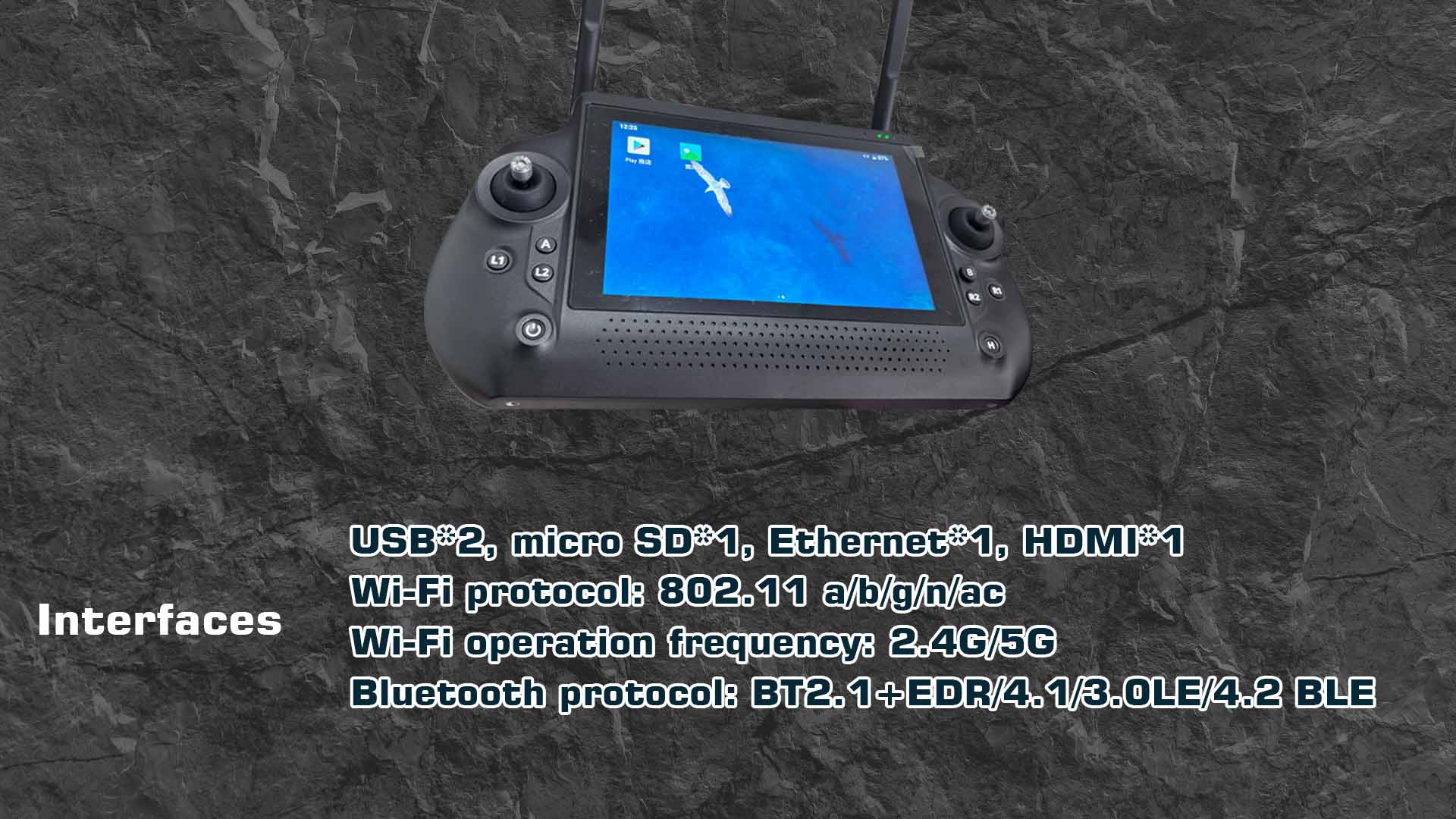

Interfaces | USB ×2, micro SD ×1, Ethernet ×1, HDMI ×1 |
Product contents
Please contact us for more information.
Documents
Please contact us for more information.
You must be logged in to post a review.
GCS Interfaces |
Bluetooth ,HDMI ,LAN ,USB ,WiFi |
---|---|
GCS Number of screens |
1 screen |
GCS Operating System Software |
Android |
GCS RAM |
4GB |
GCS Type |
Handheld |
