Description

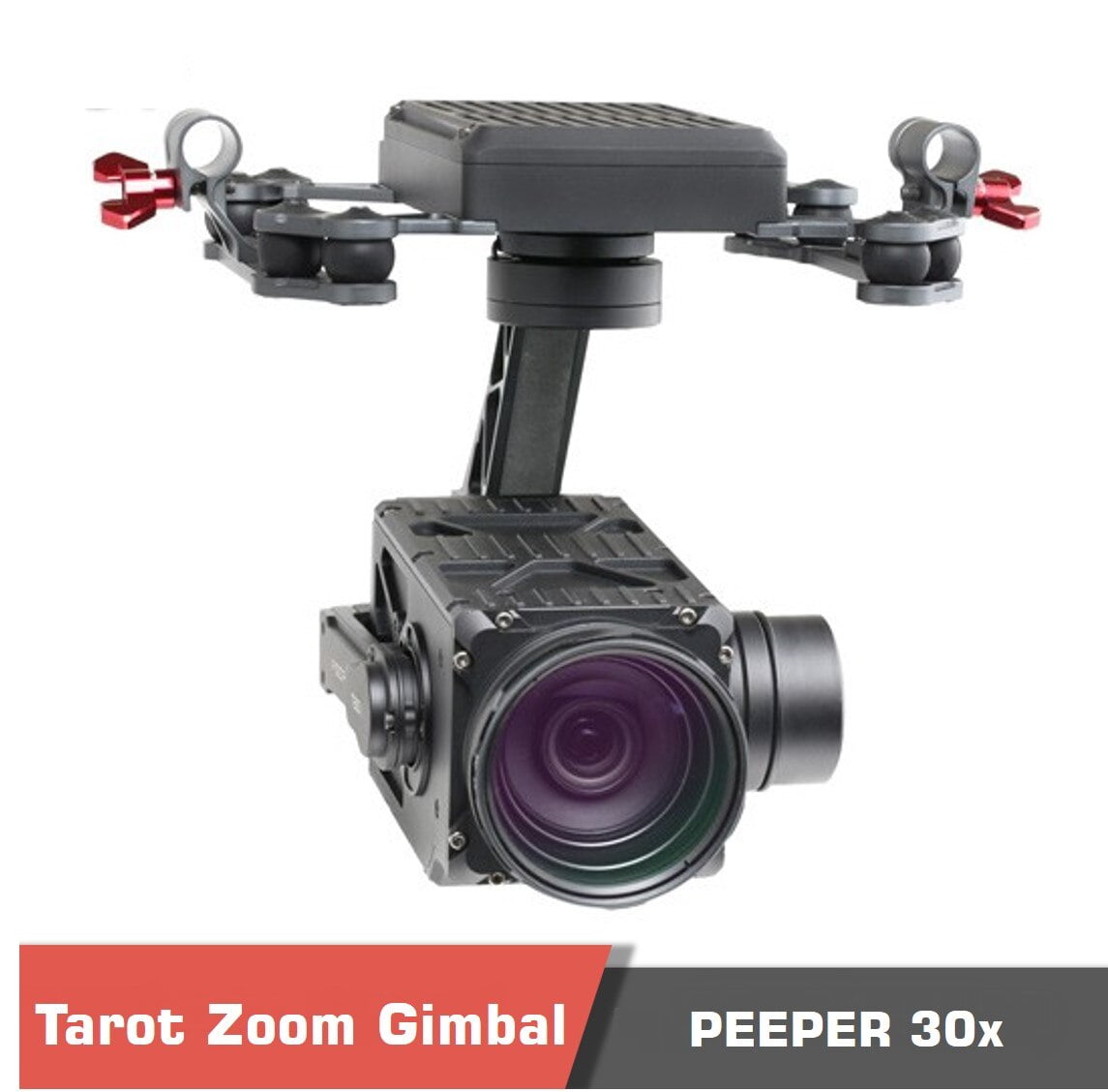

Tarot PEEPER 30x 5MP HD Zoom Gimbal for Drone
TARROT
Tarot Peeper 30X Optical Zoom Camera with 3 Axis Gimbal optical zoom lens. This Tarot T30X adopts Sony 1/2 CMOS sensor which supports approx.5million effective pixels. Tarot T30X adopts CNC aluminum alloy structure design, which features lightweight and high stability. Unique GPS can control the stability of the yaw axis, to prevent the subject from missing caused by drift. The yaw axis can be rotated 360 degrees, the waterproof level of pitch axis and roll axis is IP43, which could help to protect against light rain. With unique internal wiring design, built-in independent gimbal control module, specialized servo drive module, this peeper T30X can be widely applied to various model aircraft activities and entertainments.
Tarot Peeper 30X Optical Zoom Camera with 3 Axis Gimbal optical zoom lens. This Tarot T30X adopts Sony 1/2 CMOS sensor which supports approx.5million effective pixels. Tarot T30X adopts CNC aluminum alloy structure design, which features lightweight and high stability. Unique GPS can control the stability of the yaw axis, to prevent the subject from missing caused by drift. The yaw axis can be rotated 360 degrees, the waterproof level of pitch axis and roll axis is IP43, which could help to protect against light rain. With unique internal wiring design, built-in independent gimbal control module, specialized servo drive module, this peeper T30X can be widely applied to various model aircraft activities and entertainments.
FAQ – Tarot Peeper 30X 5MP HD Zoom Gimbal
1. What are the key technical features of the Tarot Peeper 30X?
It comes with a 5 MP HD sensor, 30× optical zoom (6 mm to 180 mm focal length), 3-axis gimbal stabilization, 360° yaw rotation, IP43 protection on pitch/roll axes, and operates at 20-52 V.
2. What video output and interfaces does it support?
The gimbal provides HDMI output (1080p) for real-time video transmission.
3. What platforms is the gimbal compatible with?
It is suitable for multirotor UAVs and drones that support PWM or serial control interfaces.
4. What payment methods are available for purchase?
Payments can be made via credit card, PayPal, or international bank transfer, with support for bulk order processing.
5. Is OEM customization available for enterprise buyers?
Yes, OEM and large-volume customization options are available for system integrators and professional clients.
6. Are manuals and technical documents provided with the product?
Yes, the package includes user manuals, wiring diagrams, and setup guides, along with technical support.
Specifications
Specifications
- Compatible Camera Style: Camcorders
- Package: Yes
- Model Number: T30X
- Weight: 1000g
- Dimension: 104x185x163mm
- Working voltage: 20-52V
- FOV: 61~2.3°
- Total pixel: 5MP
- Optical zoom: 30x, F=6~180mm
- Video Output: HDMI(HD output 1080P)
- Pitch/Tilt: -120 ~ 35°
- Roll: -48 ~ 48°
Content
Content
1x Tarot Peeper 30X Optical Zoom Camera
1x Tarot Peeper 3 Axis Gimbal
1x Gimbal assistant module
1x Gimbal external GPS module
1x SBUS receiver connection cable
1x Port connection cable
Reviews
You must be logged in to post a review.
| Number of Sensors |
1 Sensor |
|---|---|
| EO Sensor Lens |
30x Zoom |
| EO Sensor resolution |
1920×1080 |
| Gimbal Video Output |
HDMI |
| AI Object Tracking |
No |
| Gimbal Weight |
1000g |
| Gimbal Dimensions |
104x185x163mm |
