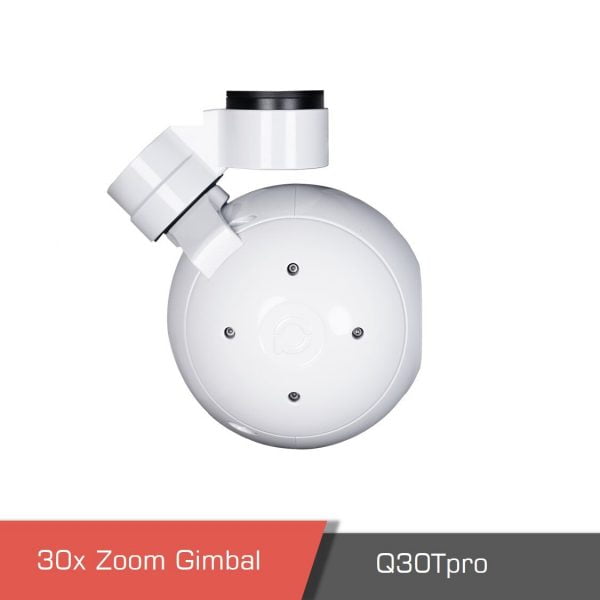

30x lens gimbal Q30T II pro optical zoom For Small Drone

Original price was: 6550.00 $.Current price is: 4830.00 $.

Out of stock

(1 customer review)
PayPal
Visa
Master

Description

Gimbal Camera AI object detection and Trackingย Video

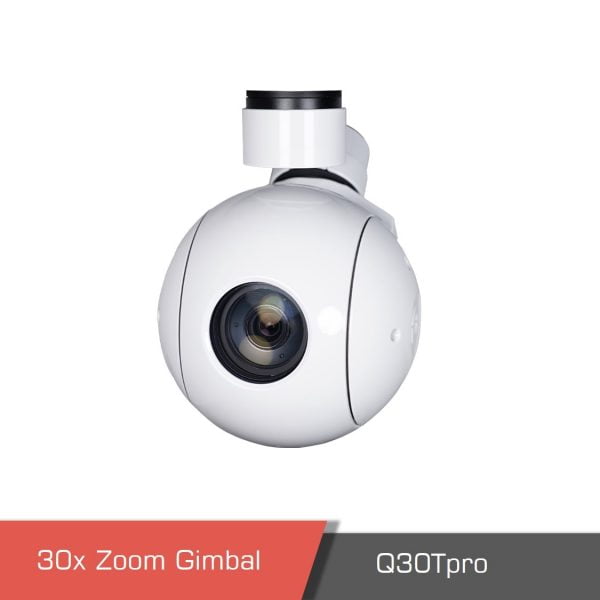

Overview of gimbal Q30T II pro

The Gimbal Q30T II pro features a 30x optical zoom lens. Itโ€™s powered by SONY 1/2.8″ “Exmor R” CMOS module, Full HD 1080p video, fast auto-focus speed, designed for UAV aerial photography. A lightweight design combined with 3-axis camera gimbal drone makes the gimbal motors ultra-reactive. FOC solution can greatly compensate the vibration of UAV. Yaw axis could realize 360ยฐ continuous rotation with default SDI output. At the same time, gimbal Q30T II pro can achieve target tracking. The image is stable even at 30 times optical zoom. All the parameters have been perfectly set, you just need to install the gimbal camera to UAV, then ready to fly.

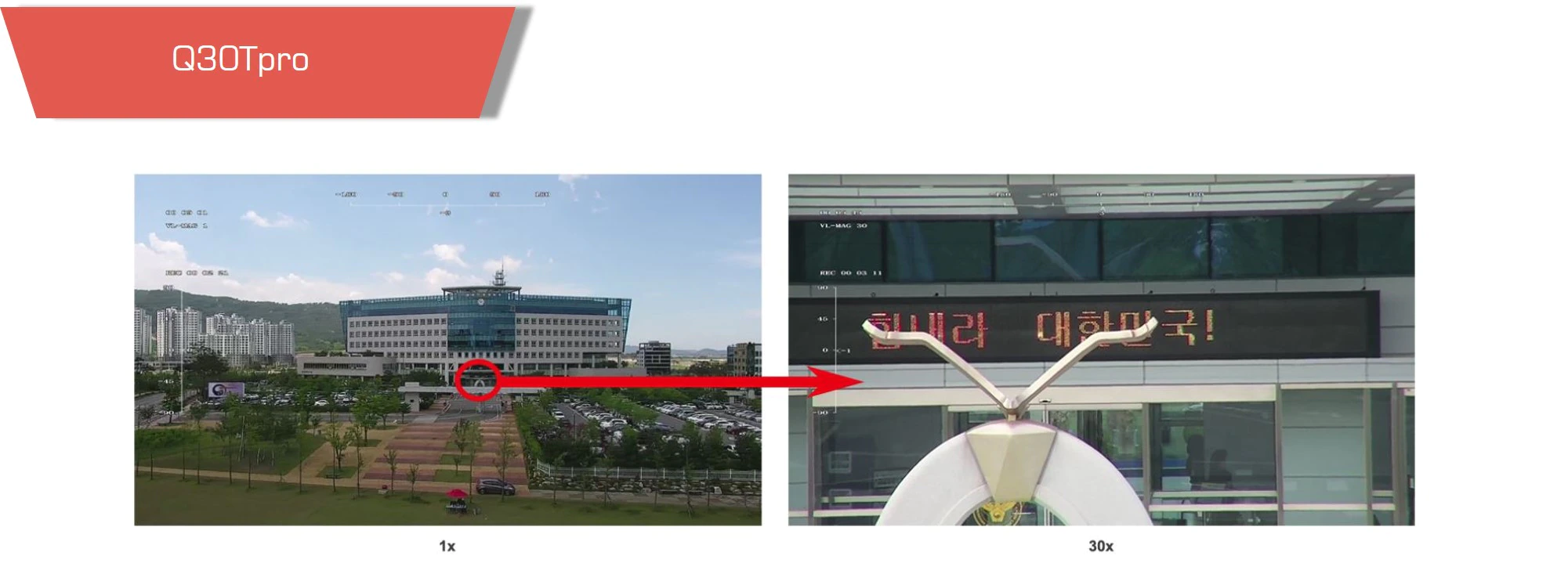

SONY 30x Optical Zoom Camera

Powered by SONY 1/2.8 Exmor R CMOS module, with [email protected] starlight level min illumination,the gimbal Q30T II proย can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains.



Gimbal q30t ii pro

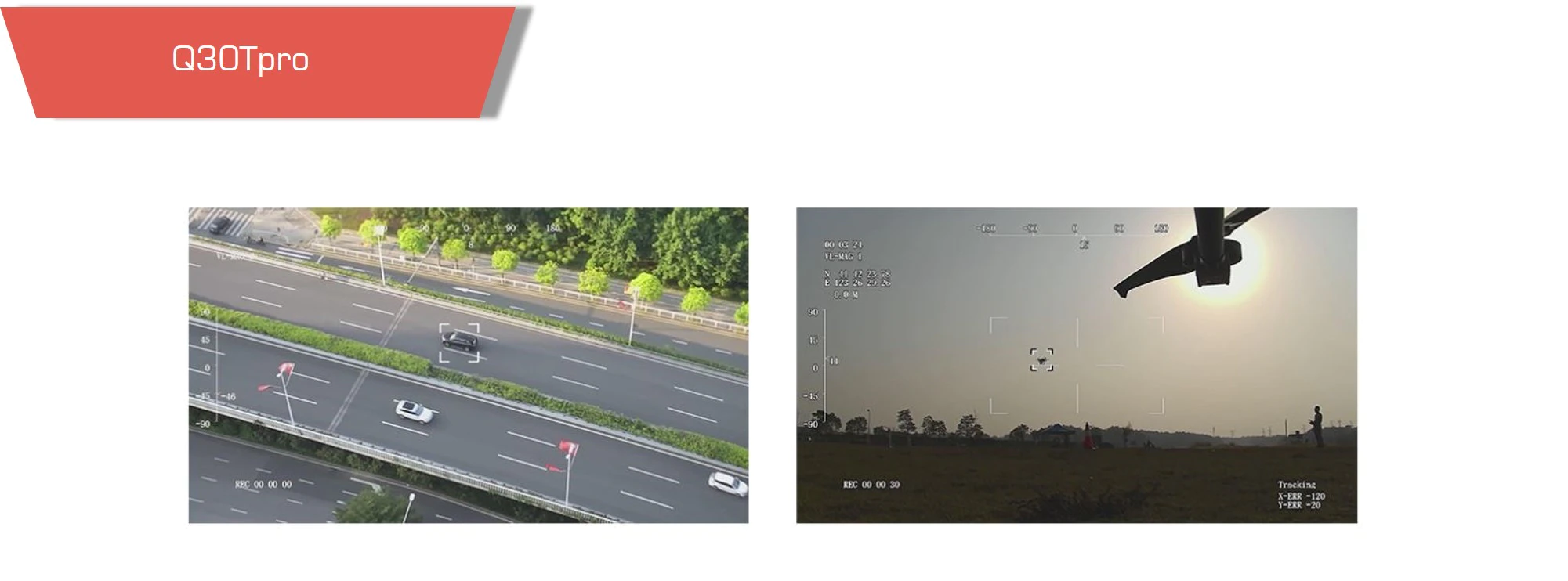

Built-in Object Tracking

Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16×16 pixel to 160×160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.

U69cd5e9badde46c7942a788c41ae8874q - gimbal q30t ii pro - motionew - 5

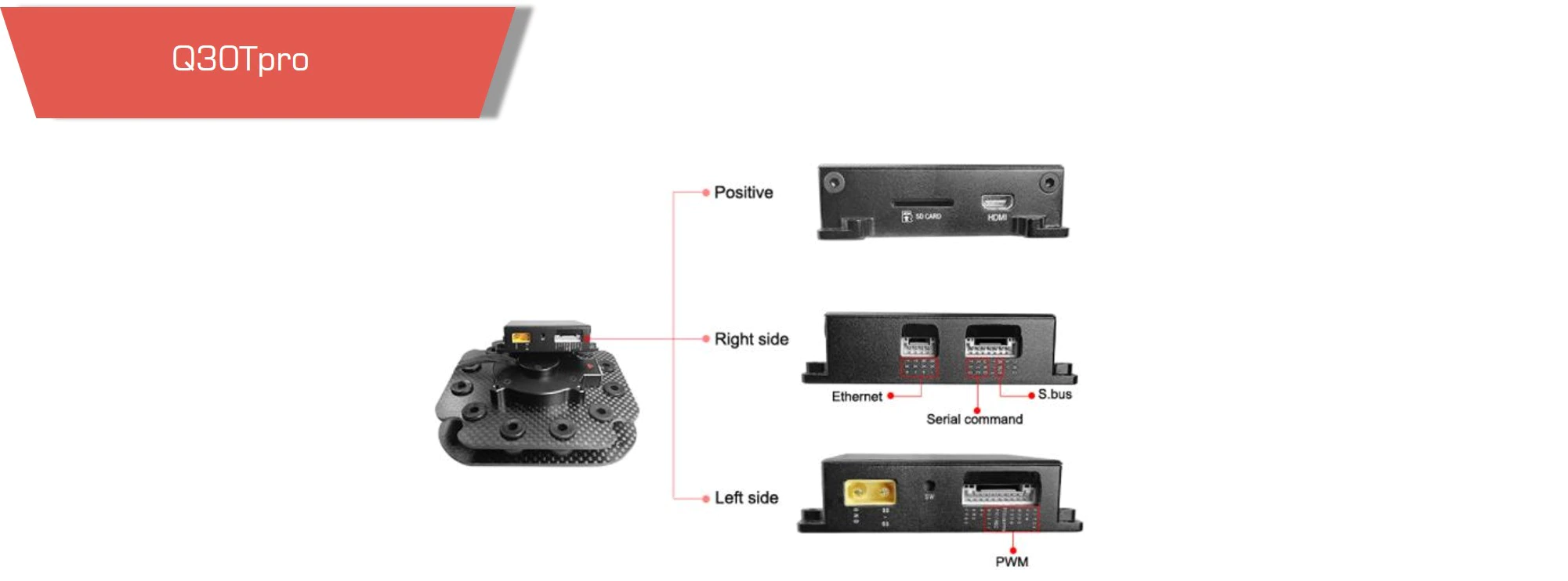

Multi Output Methods Optional

The Gimbal Q30T II pro supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.

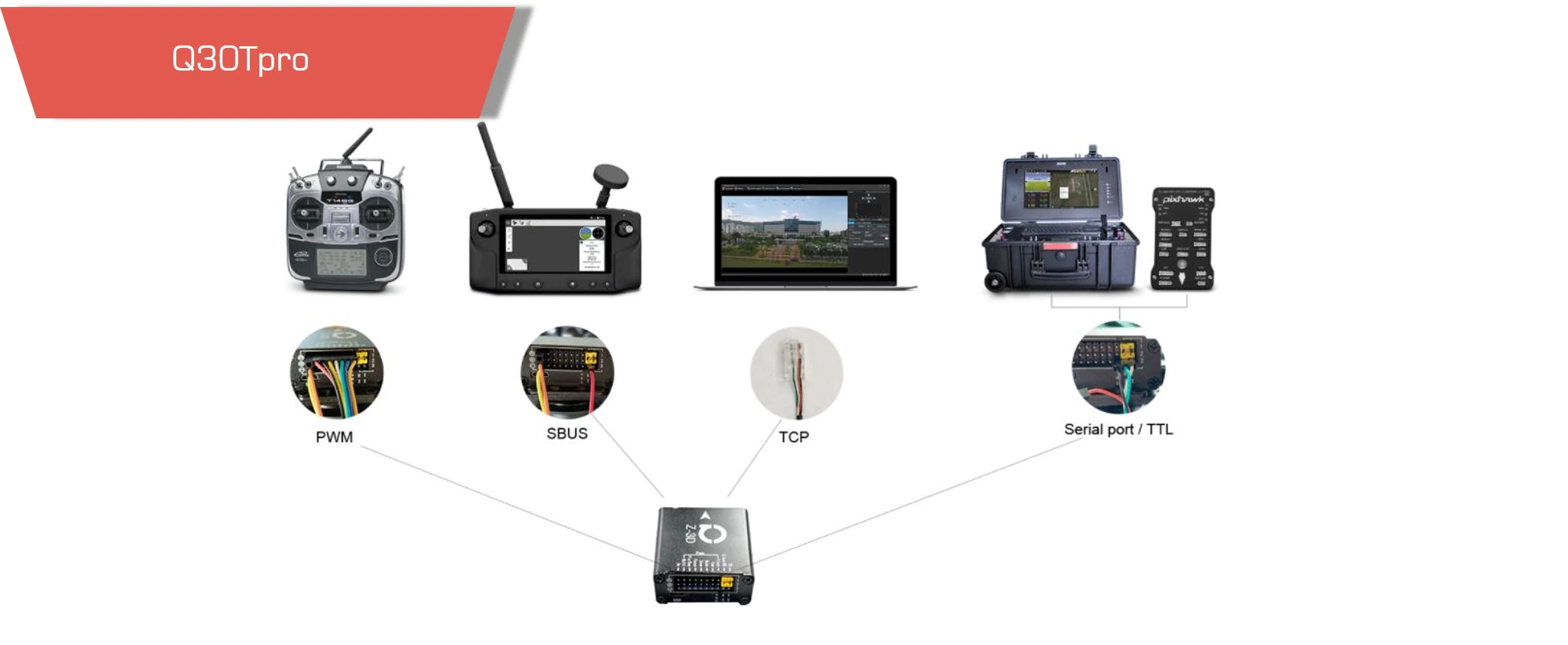

Multi Control Methods

Default PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP control.



Uccea1056f947424d8d032a7fe4dbc6cfv - gimbal q30t ii pro - motionew - 6 U80eb0fb262604623960b6583e65c4d75d - gimbal q30t ii pro - motionew - 7

Compatible with Viewport

The Gimbal Q30T II pro is compatible with Viewpro quick release connector Viewport that is suitable with Small Drone. Viewport is an option known as easy assembly, plug and play.



U562bd31c10d14d11bce4fb484a93f875j - gimbal q30t ii pro - motionew - 8 Ube79e9846962477cab66ad728805dfb3d - gimbal q30t ii pro - motionew - 9

Applications

Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties



For a comprehensive reading of related products, please visit the Motionew website.

Specifications

Hardware Parameter
Working voltage 12V
Input voltage 4S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 500mA @ 12V
Idle current 400mA @ 12V
Power consumption โ‰ค 6W
Working environment temp. -20โ„ƒย ~ +60โ„ƒ
Output SDI / IP / micro HDMI(FHD output 1080P 60fps)
Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method PWMย ย / TTL / S.BUS/TCP(IP output version)



Gimbal spec
Angle range ofย structure design Pitch/Tilt: -50ยฐ๏ฝž165ยฐ, Roll:
ยฑ27ยฐ,ย Yaw/Pan: ยฑ300ยฐ / ยฑ360ยฐ*N(IP / SDI outputย version)
Angle range ofย software design Pitch/Tilt: -45ยฐ๏ฝž90ยฐ,ย Yaw/Pan:
ยฑ290ยฐ / ยฑ360ยฐ*N (IP / SDI outputย version)
Vibration angle Pitch/Roll: ยฑ0.02ยฐ, Yaw๏ผšยฑ0.02ยฐ
One-key to center โˆš





Camera spec
Imager Sensor SONY 1/2.8″ “Exmor R” CMOS
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.13MP
Lens optical zoom 30x, F=4.3~129mm
Digital zoom 12x (360x with optical zoom)
Min object distance 10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle 1080p mode: 63.7ยฐ(wide end) ~ 2.3ยฐ(tele end)
720p mode: 63.7ยฐ(wide end) ~ 2.3ยฐ(tele end)
SD: 47.8ยฐ(wide end) ~ 1.7ยฐ(tele end)
Sync system Internal
S/N ratio more than 50dB
Min illumination Color [email protected]
Exposure control Auto, Manual, Priority mode(shutter priority & iris
priority), Bright, EV compensation, Slow AE
Gain Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15
steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
White balance Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp
(Fix/Auto/Outdoor Auto), One-push, Manual
Shutter speed 1/1s to 1/10,000s, 22 steps
Backlight compensation Yes
Aperture control 16 steps
Defog Yes
OSD Yes



Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel <10ms
Minimum object contrast 5%
SNR 4
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed ยฑ48 ~ ยฑ192 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel

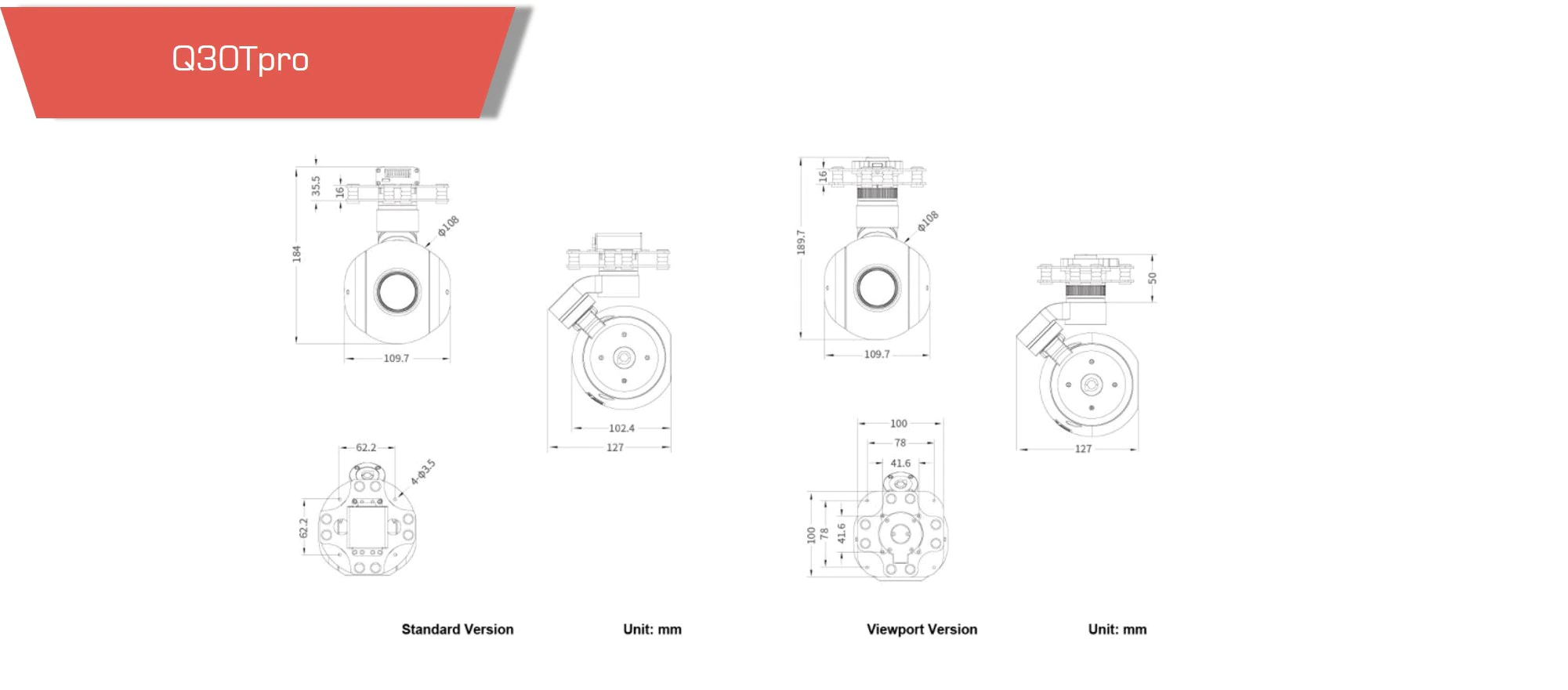

Packing Information
N.W. 847g / 885g (Viewport version)
Product meas. 109.7*127*184mm/109.7*127*189.7mm (Viewport version)
Accessories 1pc gimbal camera device / plastic box







Product contents

Product contents

Documents

Please contact us for more information.
