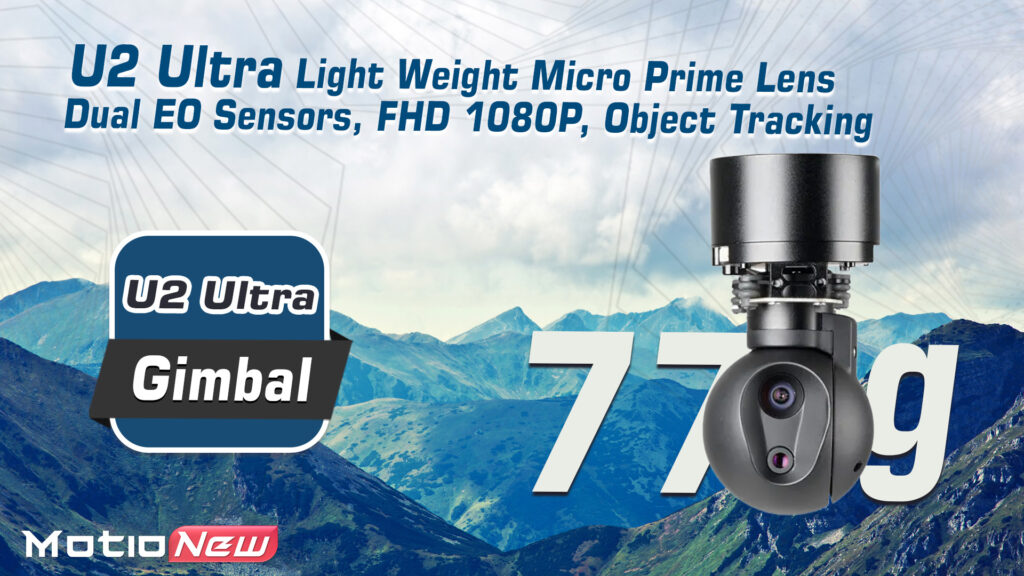

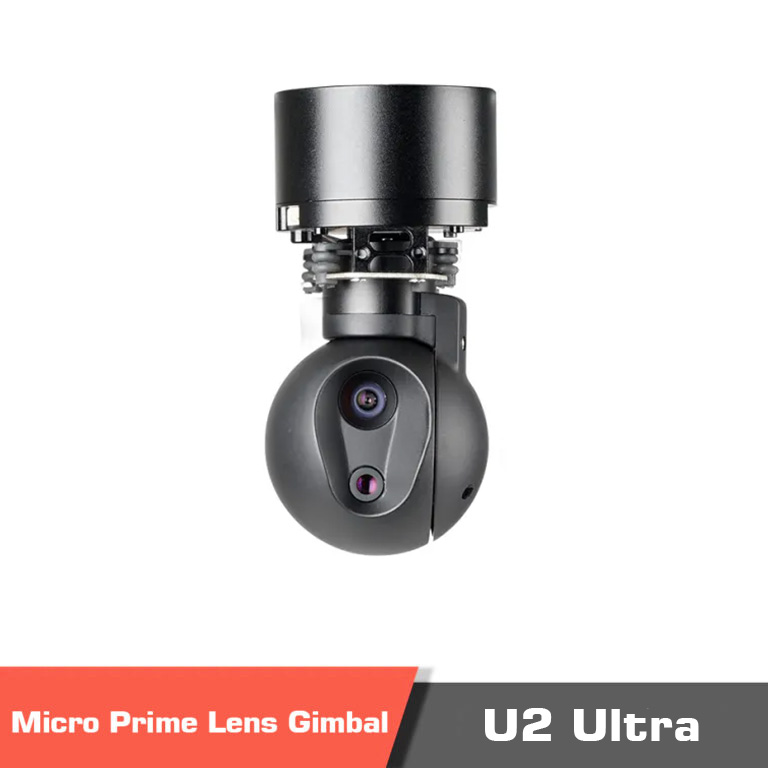

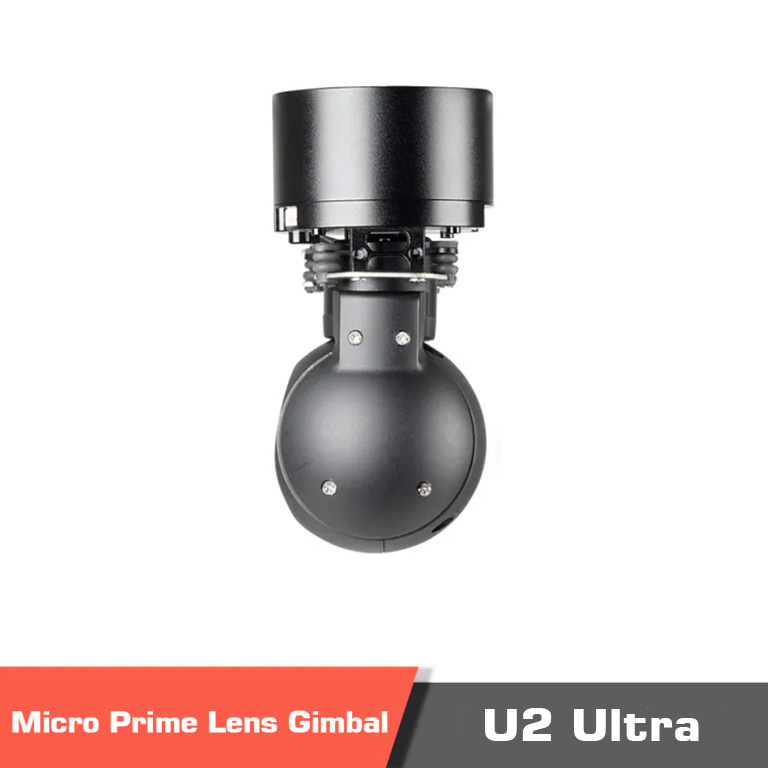

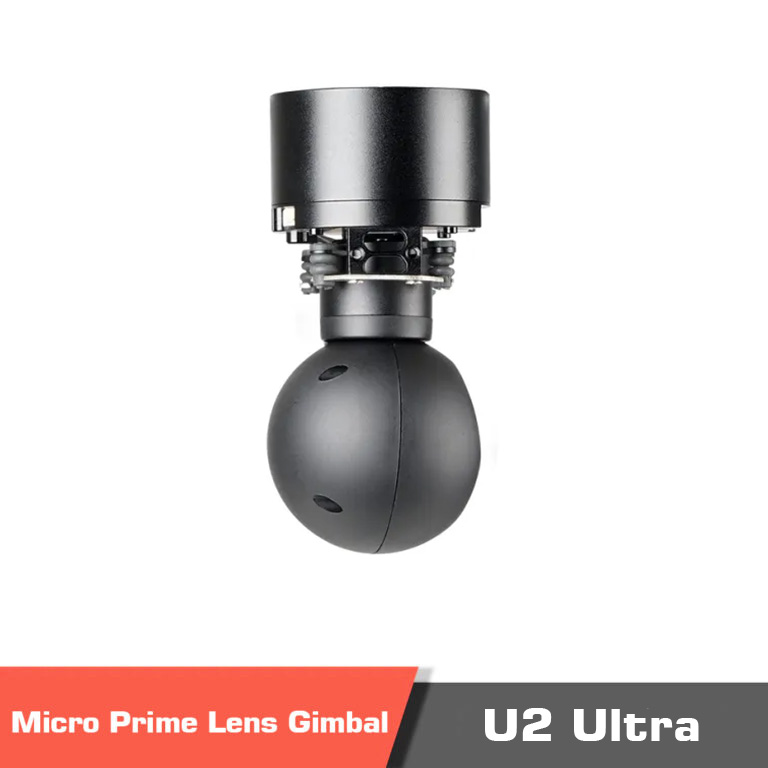

U2 Ultra Gimbal Camera Light Weight Micro Prime LensDual EO Sensors FHD 1080P Object Tracking

(1 customer review)

Compare
Add to wishlist

Payment Methods:

Payment methods - u2 ultra gimbal camera - motionew - 9
Description

U2 Ultra Gimbal Camera Overview

The U2 Ultra gimbal camera is designed with robust hardware specifications, making it suitable for various demanding environments. It operates on a voltage range of 12-16V, with a dynamic current between 200-700mA at 12V, ensuring efficient power management. The camera’s average power consumption is 2.4W, peaking at 8.4W when necessary. It performs reliably within a temperature range of -20°C to +50°C, allowing for use in diverse weather conditions.

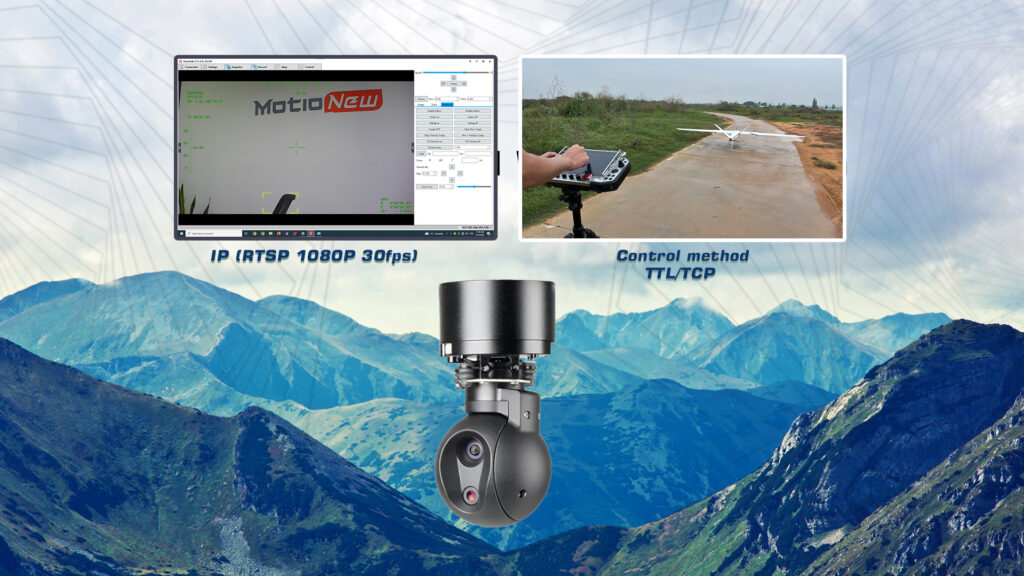

The camera outputs high-definition video at 1080p and 30fps in H264 format via an IP (RTSP) stream, and it can be controlled using TTL or TCP protocols, providing flexibility in integration and operation. It can be assembled on various types of unmanned aerial vehicles and other aviation carriers, as well as ships and vehicle carriers, so as to meet the requirements of sea and air use, making it an ideal camera gimbal drone solution.

Gimbal Camera AI object Detection and Tracking Video



Gimbal Specifications of U2 Ultra

The U2 Ultra gimbal camera features advanced stabilization and control capabilities, making it ideal for precise imaging applications. Its controllable range allows for a pitch/tilt of -30° to 115° and a yaw/pan range of ±145°, providing wide-angle coverage and flexibility in capturing footage from various angles. The gimbal boasts a high stability precision of 0.2 milliradians, ensuring smooth and accurate positioning even in dynamic conditions. Additionally, it supports a maximum angular velocity of ≥30° per second, enabling rapid adjustments to keep up with fast-moving subjects or changes in orientation.

U2 Ultra EO Camera Specifications

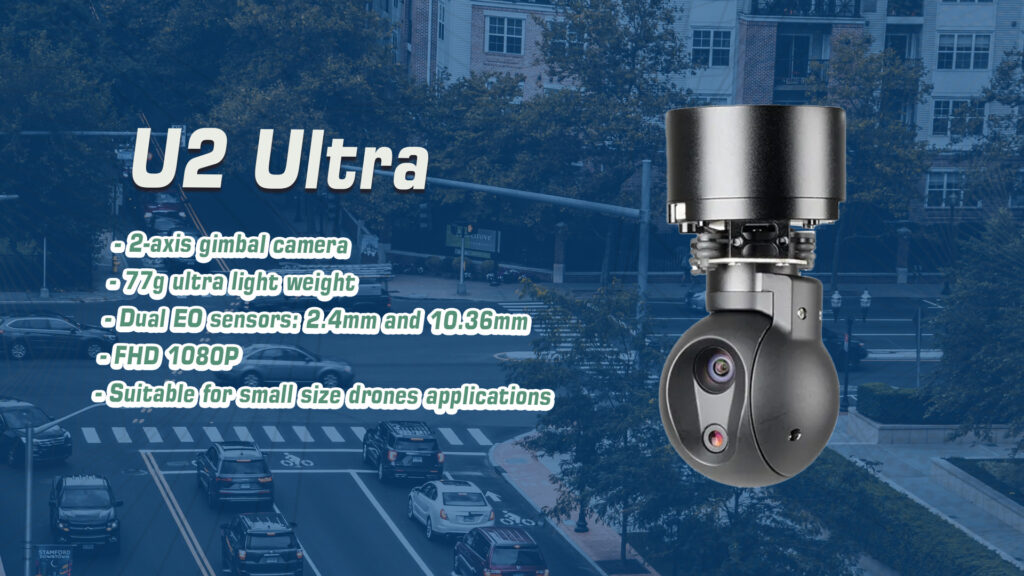

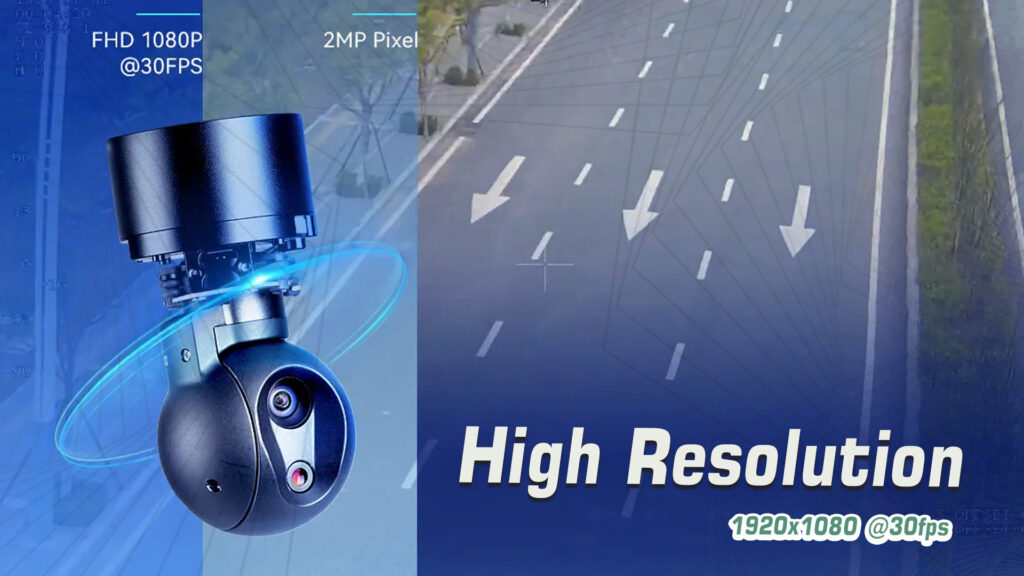

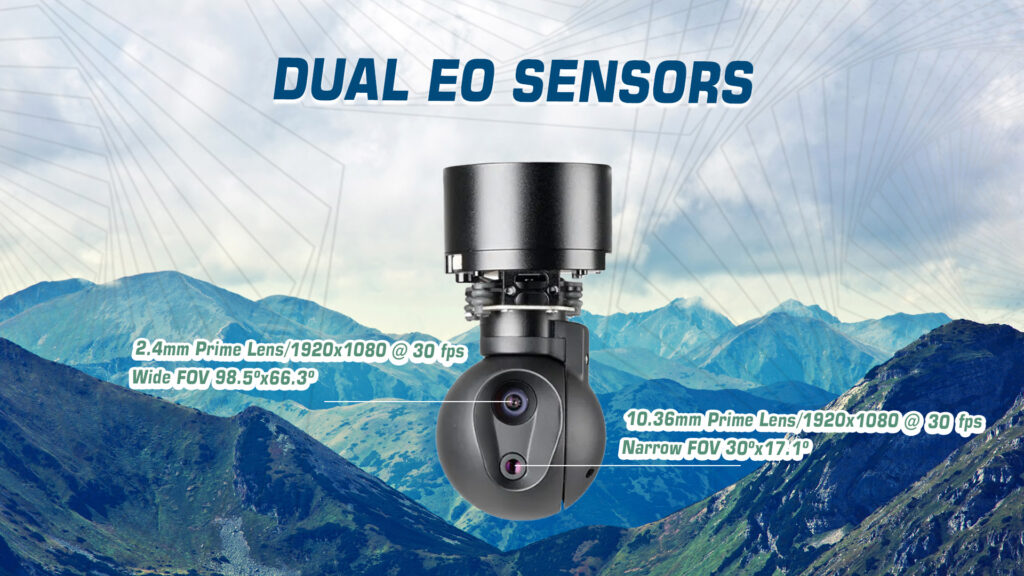

The U2 Ultra gimbal camera is equipped with a dual Electro-Optical (EO) camera that delivers high-definition imaging with a resolution of 1920×1080 at 30 frames per second, ensuring clear and detailed video capture. Considering the first sensor, its 2.4mm focal length provides a balanced perspective, making it well-suited for a variety of surveillance and observation tasks. The camera offers a wide angle of view, covering 98.5° horizontally and 66.3° vertically, enabling comprehensive scene coverage and situational awareness in a single frame. This combination of resolution, focus length, and angle of view makes the U2 Ultra gimbal camera a powerful tool for capturing expansive and precise imagery.

The U2 Ultra gimbal camera‘s second Electro-Optical (EO) camera is engineered for detailed, long-range imaging. It delivers a resolution of 1920×1080 at 30 frames per second, ensuring crisp and clear video. With a focal length of 10.36mm, this camera provides a narrower field of view, specifically 30° horizontally and 17.1° vertically, making it ideal for focused observation of distant subjects. Additionally, the camera features a powerful hybrid zoom capability of 12.5x, combining 4.2x optical zoom with 3x digital zoom. This allows for versatile imaging, whether capturing broad scenes or zooming in for close-up detail.

EO Camera Object Tracking of U2 Ultra

The U2 Ultra gimbal camera is equipped with advanced object tracking capabilities, ensuring reliable performance in various surveillance and monitoring applications. It can track objects with a minimum contrast of 5%, allowing it to maintain focus even in low-contrast environments. The camera supports tracking of objects as small as 16×16 pixels and as large as 128×128 pixels, making it versatile for different target sizes.

It handles dynamic tracking effectively, with a speed of ±32 pixels per frame for people and ±48 pixels per frame for vehicles. Additionally, the camera has an object memory time of 100 frames, allowing it to maintain tracking even if the object temporarily moves out of view or changes position rapidly.

Packing Information

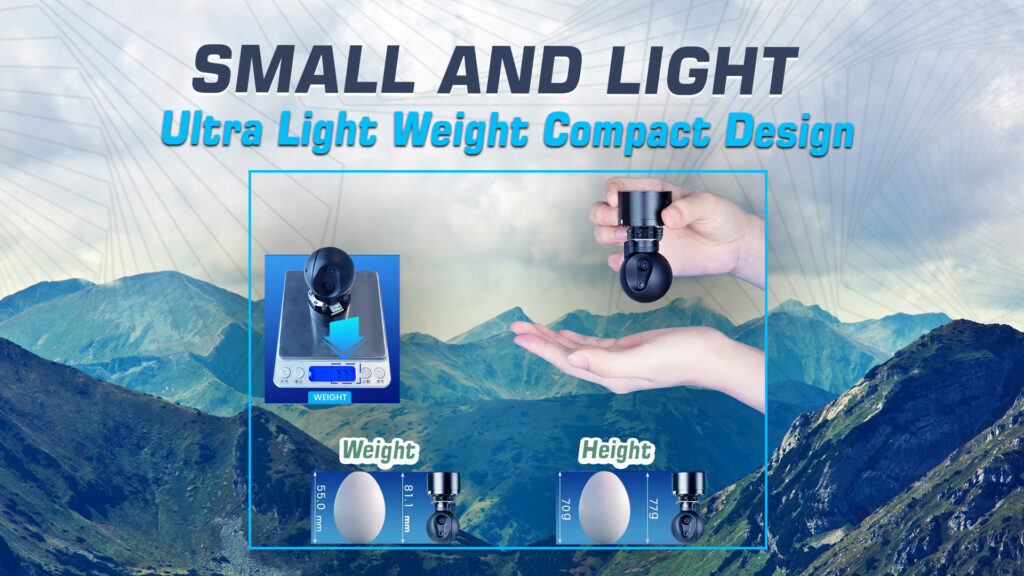

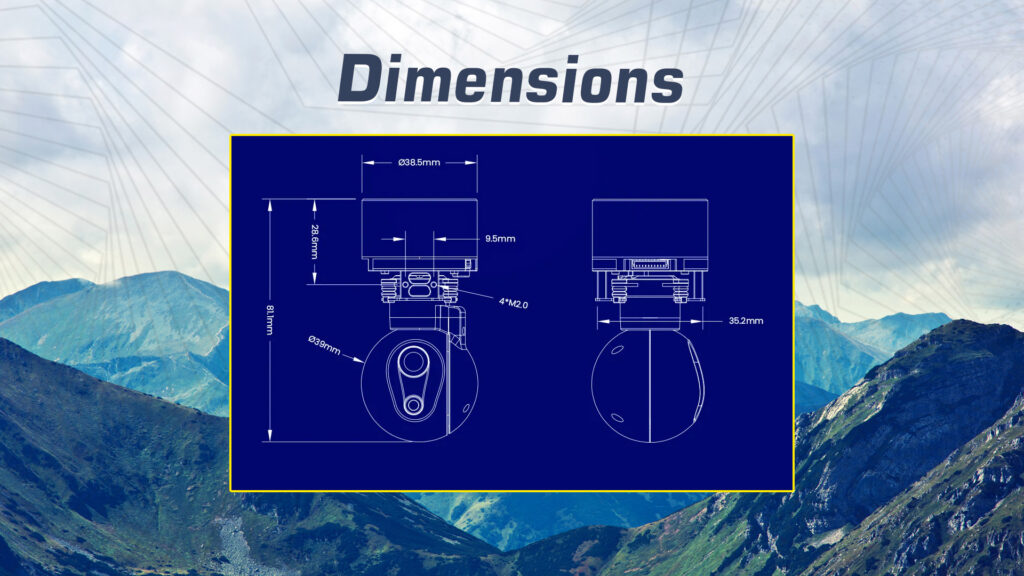

The U2 Ultra gimbal camera is compact and lightweight, with a net weight of just 80 grams and product dimensions of 39x39x81.1mm, making it easy to integrate into various setups.

U2 ultra light weight micro prime lensdual eo sensors fhd 1080p object tracking gimbal camera Specifications of u2 ultra gimbal camera U2 ultra gimbal camera specifications U2 ultra gimbal camera small and light U2 ultra gimbal camera object tracking U2 ultra gimbal camera high resolution U2 ultra gimbal camera dual eo sensors U2 ultra gimbal camera osd Communication interfaces of u2 ultra gimbal camera U2 ultra gimbal camera application (surveillance / inspection) Dimensions of u2 ultra gimbal camera

For a comprehensive reading of related products, please visit the Motionew website.

Simple FAQ (U2 Ultra – Engineers & B2B Buyers)

1. What is the U2 Ultra Gimbal Camera used for?

The U2 Ultra is a compact and lightweight UAV gimbal designed for professional surveillance, mapping, aerial inspections, and real-time monitoring. It’s suitable for applications where space, weight, and precision matter.

2. What are the key technical features of the U2 Ultra?

This gimbal offers a high-definition EO camera with 3-axis stabilization, real-time IP video output, and smooth zoom capability. It also supports object tracking, low-latency transmission, and onboard recording.

3. Which UAV platforms are compatible with the U2 Ultra?

The U2 Ultra is compatible with multirotor, VTOL, and fixed-wing drones, supporting PWM, S.BUS, and serial communication for flexible integration across UAV systems.

Business & Operational FAQs

4. Is the U2 Ultra available for OEM or volume purchasing?

Yes. Motionew offers OEM agreements and bulk pricing for drone manufacturers, system integrators, and commercial UAV operators.

5. What documentation and integration support are included?

Each U2 Ultra unit is shipped with a user manual, wiring diagrams, and access to Motionew’s remote technical support to assist with installation and system integration.

6. What are the payment and invoicing terms for B2B clients?

Motionew supports international wire transfers, provides formal business invoices, and offers flexible payment terms for qualified enterprise clients.

Specifications

Specifications



Hardware Parameters
Working voltage 12-16V
Dynamic current 200-700mA @ 12V
Power consumption  Average 2.4W, Max 8.4W
Working environment temp 20°C~+50°C
Output IP (RTSP 1080p 30fps H264)
Control method TTL/TCP



Gimbal Specificcations
Controllable Range Pitch/Tilt:-30°~115°, Yaw/Pan: ±145°
Stability precision 0.2mrad
Maximum angular velocity ≥30°/S
One-key to center √



EO Camera 1 Specifications
Resolution 1920×1080 @30fps
Focus Length 2.4mm
Angle of View 98.5°x66.3°
EO Camera 2 Specifications
Resolution 1920×1080 @30fps
Focus Length 10.36mm
Angle of View 30°x17.1°
Hybrid Zoom 12.5x (Optical zoom 4.2x, digital zoom 3x)



EO Camera Object Tracking
Minimum object contrast 5%
Minimum object size 16×16 pixel
Maximum object size 128×128 pixel
Tracking speed (Man)
 ±32 pixel/frame
Tracking speed (Car) ±48 pixel/frame
Object memory time 100 frames



Packing Information
Net Weight 80g
Product measurement 39x39x81.1mm

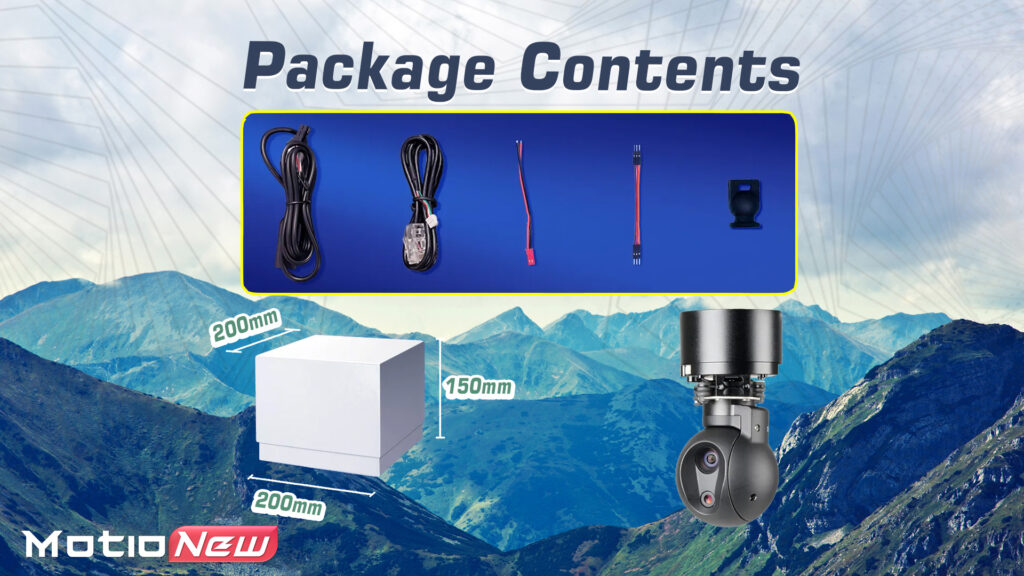

Accessories UART and power connector, Ethernet cable, USB to TTL cable / Hight quality box with foam cushion



Product contents

Product contents

U2 Ultra Gimbal Camera, screws, copper cylinders, damping balls, damping boards
Hight quality plastic box with foam cushion

Package contents of u2 ultra gimbal camera

Documents

Documents

click here to download U2 Ultra Gimbal Camera.Manual

Reviews
5
1 review
1
0
0
0
0

1 review for U2 Ultra Gimbal Camera Light Weight Micro Prime LensDual EO Sensors FHD 1080P Object Tracking

Clear filters

  1. Henry Lopez –

    Entrega rápida, buen embalaje.

    0
    0
Add a review

Specification:

Gimbal Control Method

Ethernet

,

UART
Number of Sensors

2 Sensors
EO Sensor Lens

4.2x Zoom
EO Sensor resolution

1920×1080
AI Object Tracking

Yes
Gimbal Video Output

Ethernet
Gimbal Weight

80g
Gimbal Dimensions

39x39x81.1mm
