Description

U818 Micro Prime Lens, Dual Sensor Tracking Camera for Surveillance, Hawkeye Series

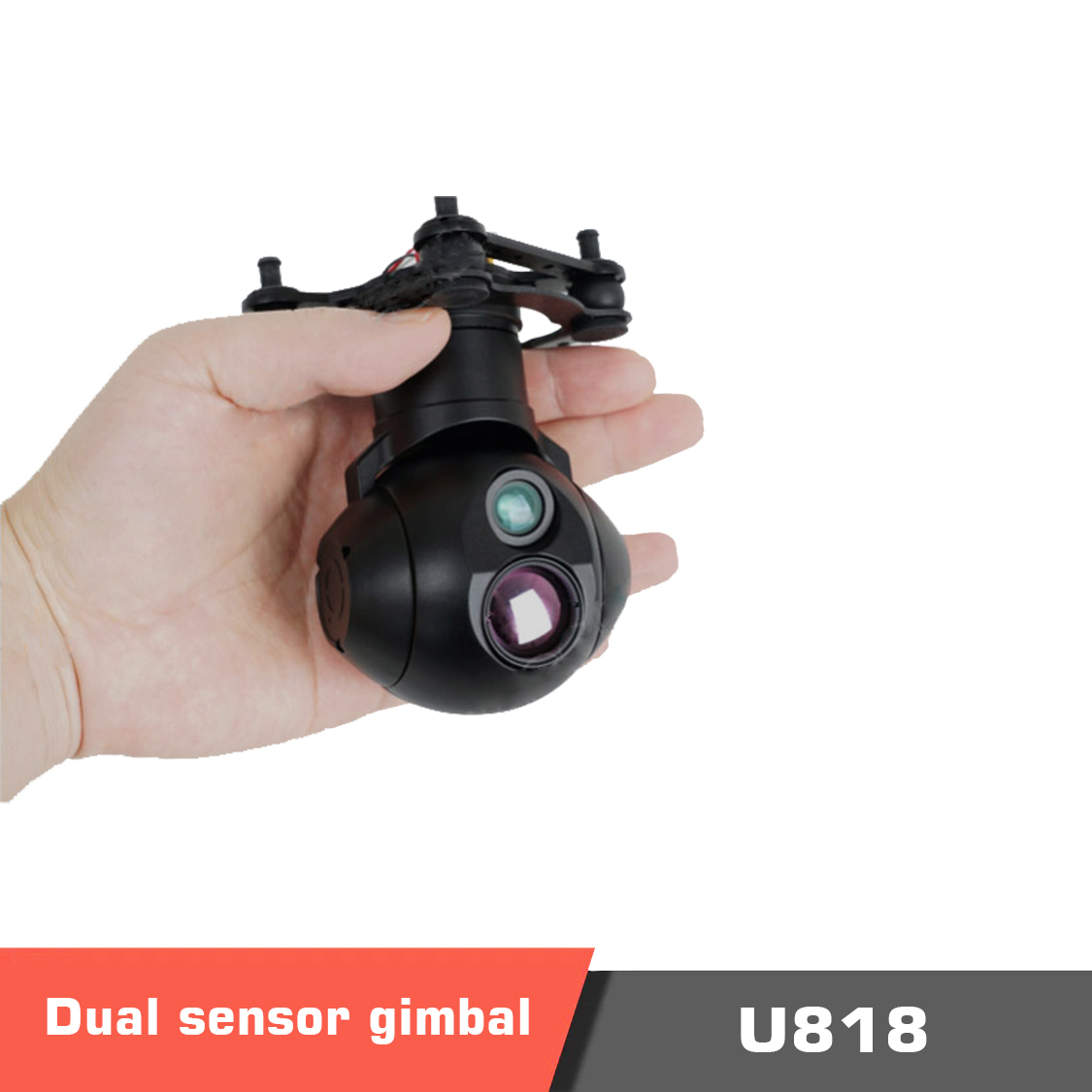

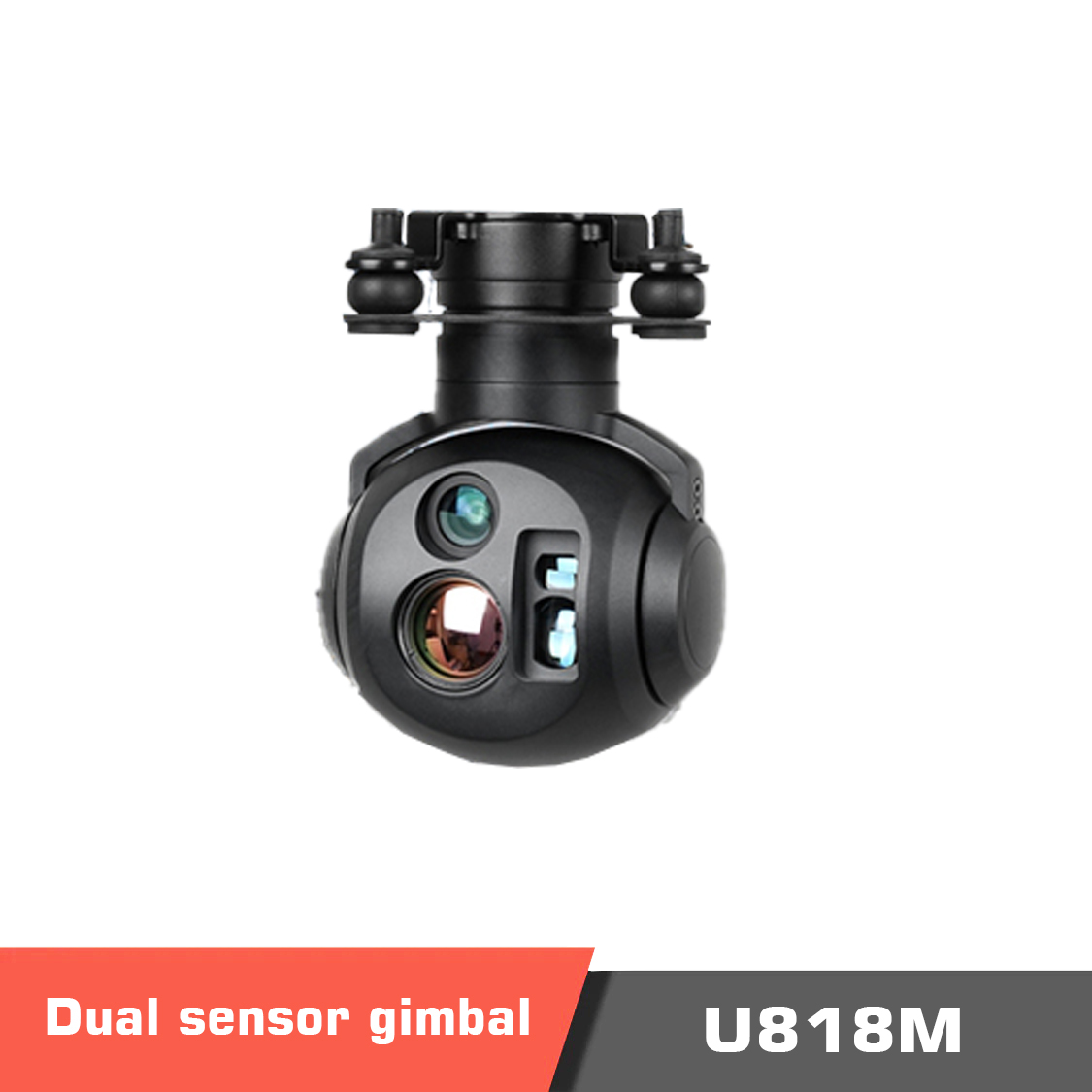

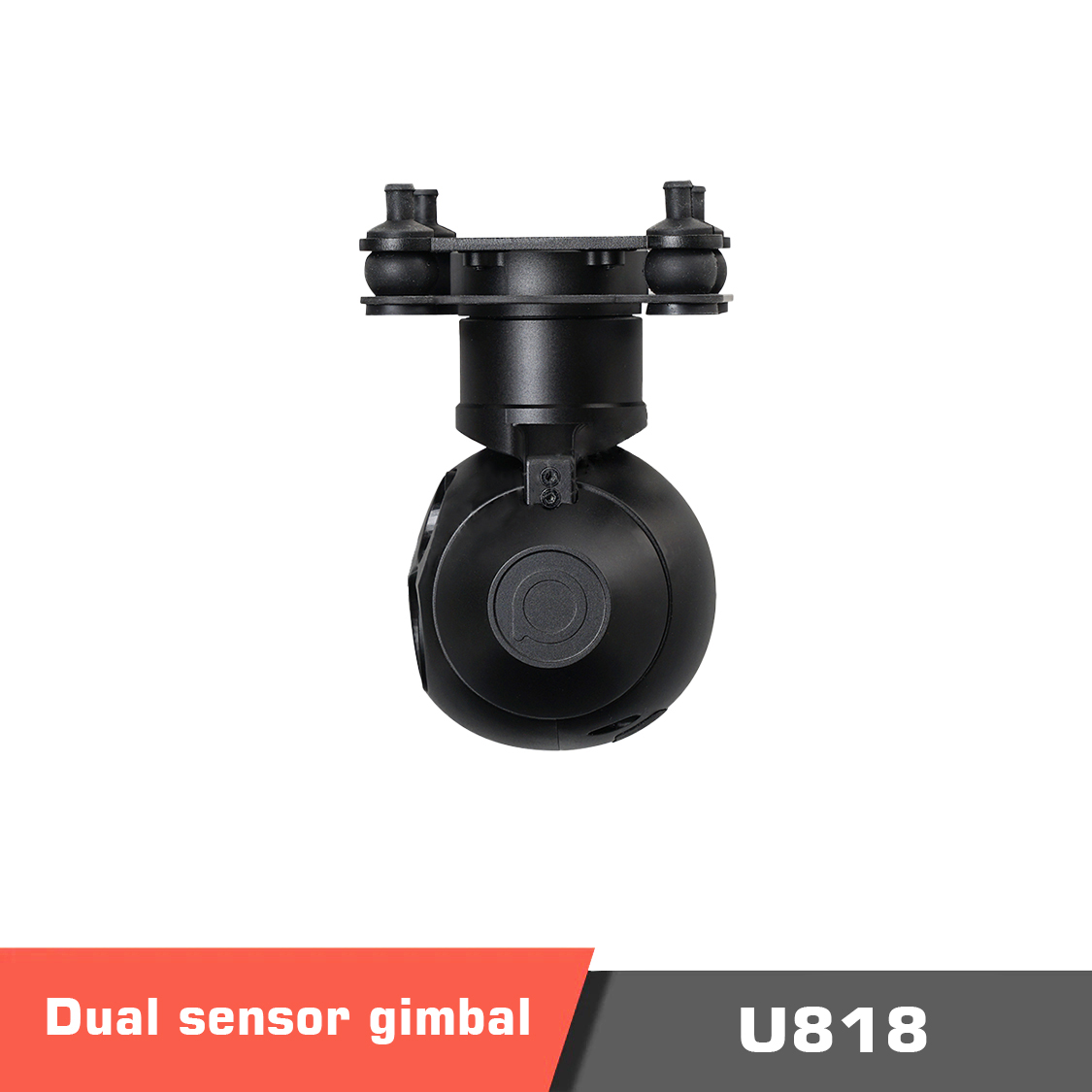

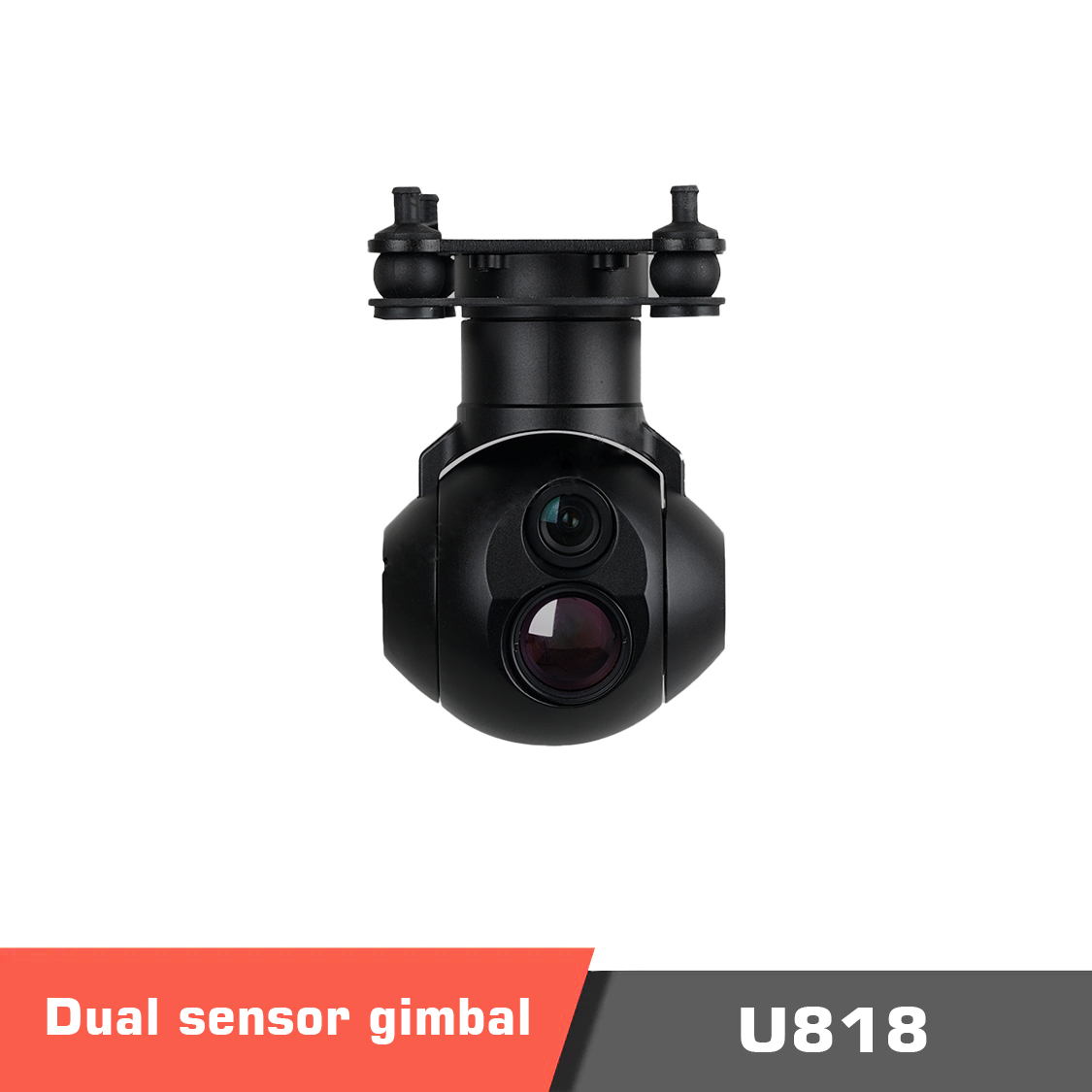

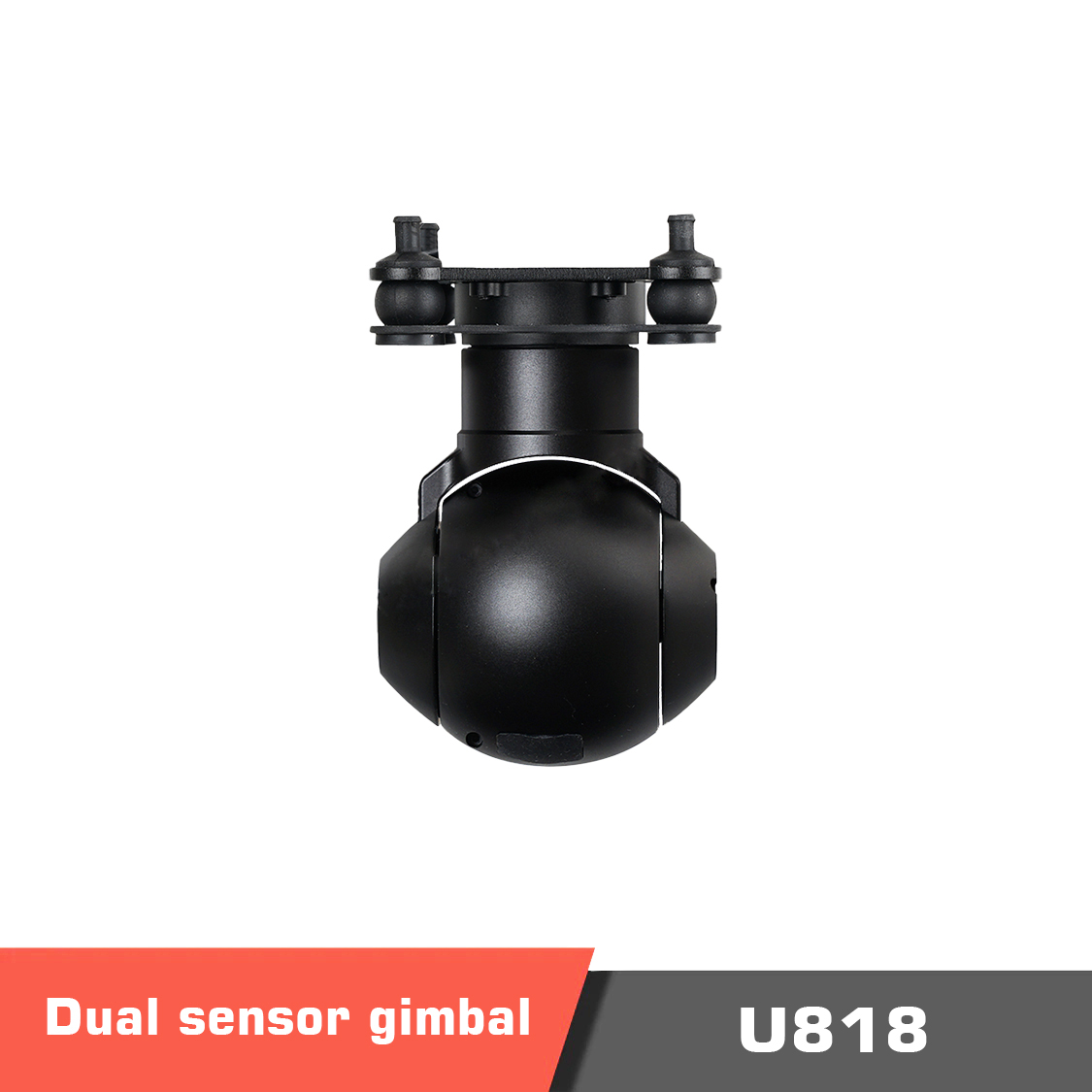

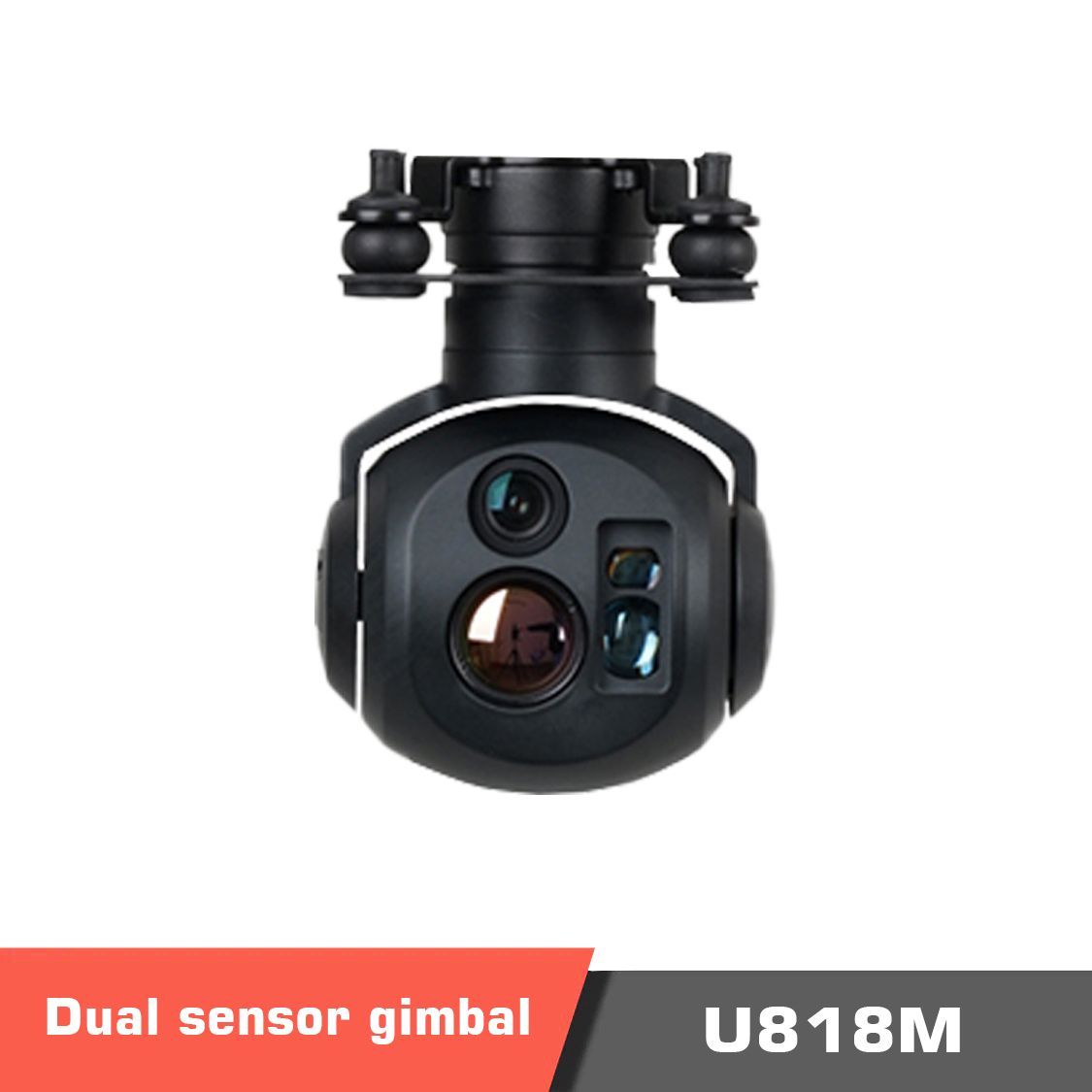

U818 micro prime lens with dual sensor gimbal camera is from the micro-series Hawkeye series, a 260g super lightweight gimbal camera with small volume and compact structure. It integrates an 8mm prime lens 3.68MP camera and an 18mm lens thermal camera with 640×512 resolution. The small size (barely the size of one hand) is suitable for drones with small structures and small payload capability. The gimbal has 2-axis stabilization to remove the vibrations coming from the body of the drone to provide a clear image.

The camera supports up to 4x digital zoom and gives a 51°x31° field of view. The thermal sensor comes with an 18mm lens, 60Hz update rate, and 12um pixel pitch. Pseudo-hot and white-hot pallet colors are supported.

The CNC-processed aluminum body has the advantages of better metal texture, anti-interference, and better heat dissipation. It is widely used in surveillance, large-area reconnaissance, and other UAV industrial applications.

Q818. Q818m. 1 - u818 micro prime lens,dual sensor,u818,gimbal camera,lightweight gimbal camera,super lightweight gimbal camera,hawkeye series,industrial applications,hawkeye gimbal,u818 micro dual sensor,u818 gimbal,u818 camera,drone camera,brushless gimbal,camera stabilizer gimbal,micro gimbal,micro dual sensor,drone tracking,surveillance gimbal,surveillance camera,large area reconnaissance,industrial use,zoom camera,optical zoom camera,10x optical zoom,gimbal zoom camera,zoom gimbal - motionew - 10 Q818. Q818m. 2 - u818 micro prime lens,dual sensor,u818,gimbal camera,lightweight gimbal camera,super lightweight gimbal camera,hawkeye series,industrial applications,hawkeye gimbal,u818 micro dual sensor,u818 gimbal,u818 camera,drone camera,brushless gimbal,camera stabilizer gimbal,micro gimbal,micro dual sensor,drone tracking,surveillance gimbal,surveillance camera,large area reconnaissance,industrial use,zoom camera,optical zoom camera,10x optical zoom,gimbal zoom camera,zoom gimbal - motionew - 11 Q818. Q818m. 3 - u818 micro prime lens,dual sensor,u818,gimbal camera,lightweight gimbal camera,super lightweight gimbal camera,hawkeye series,industrial applications,hawkeye gimbal,u818 micro dual sensor,u818 gimbal,u818 camera,drone camera,brushless gimbal,camera stabilizer gimbal,micro gimbal,micro dual sensor,drone tracking,surveillance gimbal,surveillance camera,large area reconnaissance,industrial use,zoom camera,optical zoom camera,10x optical zoom,gimbal zoom camera,zoom gimbal - motionew - 12 Q818. Q818m. 4 - u818 micro prime lens,dual sensor,u818,gimbal camera,lightweight gimbal camera,super lightweight gimbal camera,hawkeye series,industrial applications,hawkeye gimbal,u818 micro dual sensor,u818 gimbal,u818 camera,drone camera,brushless gimbal,camera stabilizer gimbal,micro gimbal,micro dual sensor,drone tracking,surveillance gimbal,surveillance camera,large area reconnaissance,industrial use,zoom camera,optical zoom camera,10x optical zoom,gimbal zoom camera,zoom gimbal - motionew - 13 Q818. Q818m. 5 - u818 micro prime lens,dual sensor,u818,gimbal camera,lightweight gimbal camera,super lightweight gimbal camera,hawkeye series,industrial applications,hawkeye gimbal,u818 micro dual sensor,u818 gimbal,u818 camera,drone camera,brushless gimbal,camera stabilizer gimbal,micro gimbal,micro dual sensor,drone tracking,surveillance gimbal,surveillance camera,large area reconnaissance,industrial use,zoom camera,optical zoom camera,10x optical zoom,gimbal zoom camera,zoom gimbal - motionew - 14 Q818. Q818m. 6. 6 - u818 micro prime lens,dual sensor,u818,gimbal camera,lightweight gimbal camera,super lightweight gimbal camera,hawkeye series,industrial applications,hawkeye gimbal,u818 micro dual sensor,u818 gimbal,u818 camera,drone camera,brushless gimbal,camera stabilizer gimbal,micro gimbal,micro dual sensor,drone tracking,surveillance gimbal,surveillance camera,large area reconnaissance,industrial use,zoom camera,optical zoom camera,10x optical zoom,gimbal zoom camera,zoom gimbal - motionew - 15 Q818. Q818m. 6 - u818 micro prime lens,dual sensor,u818,gimbal camera,lightweight gimbal camera,super lightweight gimbal camera,hawkeye series,industrial applications,hawkeye gimbal,u818 micro dual sensor,u818 gimbal,u818 camera,drone camera,brushless gimbal,camera stabilizer gimbal,micro gimbal,micro dual sensor,drone tracking,surveillance gimbal,surveillance camera,large area reconnaissance,industrial use,zoom camera,optical zoom camera,10x optical zoom,gimbal zoom camera,zoom gimbal - motionew - 16 Q818. Q818m. 7 - u818 micro prime lens,dual sensor,u818,gimbal camera,lightweight gimbal camera,super lightweight gimbal camera,hawkeye series,industrial applications,hawkeye gimbal,u818 micro dual sensor,u818 gimbal,u818 camera,drone camera,brushless gimbal,camera stabilizer gimbal,micro gimbal,micro dual sensor,drone tracking,surveillance gimbal,surveillance camera,large area reconnaissance,industrial use,zoom camera,optical zoom camera,10x optical zoom,gimbal zoom camera,zoom gimbal - motionew - 17 Q818. Q818m. 8 - u818 micro prime lens,dual sensor,u818,gimbal camera,lightweight gimbal camera,super lightweight gimbal camera,hawkeye series,industrial applications,hawkeye gimbal,u818 micro dual sensor,u818 gimbal,u818 camera,drone camera,brushless gimbal,camera stabilizer gimbal,micro gimbal,micro dual sensor,drone tracking,surveillance gimbal,surveillance camera,large area reconnaissance,industrial use,zoom camera,optical zoom camera,10x optical zoom,gimbal zoom camera,zoom gimbal - motionew - 18 Q818. Q818m. 9 - u818 micro prime lens,dual sensor,u818,gimbal camera,lightweight gimbal camera,super lightweight gimbal camera,hawkeye series,industrial applications,hawkeye gimbal,u818 micro dual sensor,u818 gimbal,u818 camera,drone camera,brushless gimbal,camera stabilizer gimbal,micro gimbal,micro dual sensor,drone tracking,surveillance gimbal,surveillance camera,large area reconnaissance,industrial use,zoom camera,optical zoom camera,10x optical zoom,gimbal zoom camera,zoom gimbal - motionew - 19 Q818. Q818m. 10 - u818 micro prime lens,dual sensor,u818,gimbal camera,lightweight gimbal camera,super lightweight gimbal camera,hawkeye series,industrial applications,hawkeye gimbal,u818 micro dual sensor,u818 gimbal,u818 camera,drone camera,brushless gimbal,camera stabilizer gimbal,micro gimbal,micro dual sensor,drone tracking,surveillance gimbal,surveillance camera,large area reconnaissance,industrial use,zoom camera,optical zoom camera,10x optical zoom,gimbal zoom camera,zoom gimbal - motionew - 20 Q818. Q818m. 11 - u818 micro prime lens,dual sensor,u818,gimbal camera,lightweight gimbal camera,super lightweight gimbal camera,hawkeye series,industrial applications,hawkeye gimbal,u818 micro dual sensor,u818 gimbal,u818 camera,drone camera,brushless gimbal,camera stabilizer gimbal,micro gimbal,micro dual sensor,drone tracking,surveillance gimbal,surveillance camera,large area reconnaissance,industrial use,zoom camera,optical zoom camera,10x optical zoom,gimbal zoom camera,zoom gimbal - motionew - 21 Q818. Q818m. 12 - u818 micro prime lens,dual sensor,u818,gimbal camera,lightweight gimbal camera,super lightweight gimbal camera,hawkeye series,industrial applications,hawkeye gimbal,u818 micro dual sensor,u818 gimbal,u818 camera,drone camera,brushless gimbal,camera stabilizer gimbal,micro gimbal,micro dual sensor,drone tracking,surveillance gimbal,surveillance camera,large area reconnaissance,industrial use,zoom camera,optical zoom camera,10x optical zoom,gimbal zoom camera,zoom gimbal - motionew - 22 Q818. Q818m. 13 - u818 micro prime lens,dual sensor,u818,gimbal camera,lightweight gimbal camera,super lightweight gimbal camera,hawkeye series,industrial applications,hawkeye gimbal,u818 micro dual sensor,u818 gimbal,u818 camera,drone camera,brushless gimbal,camera stabilizer gimbal,micro gimbal,micro dual sensor,drone tracking,surveillance gimbal,surveillance camera,large area reconnaissance,industrial use,zoom camera,optical zoom camera,10x optical zoom,gimbal zoom camera,zoom gimbal - motionew - 23

Additional information

Weight 1.5 kg
Dimensions 20 × 20 × 15 cm
version

U818, U818M

Specifications

U818 specification    U818M specification
Hardware Parameter Hardware Parameter
Working voltage 12V Working voltage 12V(3S)
Input voltage 3S ~ 6S Output voltage 5V (connect with PWM)
Output voltage 5V (connect with PWM) Dynamic current 650~1000mA @ 12V
Dynamic current 600~900mA @ 12V Idle current 650mA @ 12V
Idle current 600mA @ 12V Working environment temp. -20℃~+60℃
Working environment temp. -40℃ ~ +60℃ Output IP rtsp (1080p 30fps)
Output IP rtsp (1080p 30fps) Local-storage SD card (Up to 128G,class 10, FAT32 or ex FAT format)
Local-storage SD card (Up to 128G,class 10, FAT32 or ex FAT format) Photo storage format JPG(1920*1080)
Photo storage format JPG(1920*1080) Video storage format MP4 (1080P 25fps)
Video storage format MP4 (1080P 30fps) Control method TTL / S.BUS/ TCP
Control method TTL / S.BUS/ TCP
Gimbal Spec Gimbal Spec
Angle scope of structure design Pitch/Tilt: -90°~120°,    Yaw/Pan: ±360°*N Angle scope of structure design Pitch/Tilt: -35°~105°,    Yaw/Pan: ±360°*N
Angle scope of software design Pitch/Tilt: -45°~90°,   Yaw/Pan: ±360°*N Angle scope of software design Pitch/Tilt: -30°~90°,   Yaw/Pan: ±360°*N
Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02° Vibration angle Pitch: ±0.02°, Yaw: ±0.02°
One-key to center One-key to center
EO Camera Spec EO Camera Spec
Imager Sensor CMOS Sensor Imager Sensor CMOS Sensor
Resolution 2560H×1440V(3.68MP) @60fps Resolution 2560H×1440V(3.68MP) @60fps
Focus Length 8mm Focus Length 8mm
Pixel Pitch 3μm Pixel Pitch 3μm
Angle of View 51°*30° Angle of View 51°*30°
Recognize Distance (Car: 6.5x3m) ≥3.6km Recognize Distance (Car: 6.5x3m) ≥3.6km
Digital zoom 1x ~ 4x Digital zoom 1x ~ 4x
Defog Yes Defog Yes
IR Thermal Imager Spec IR Thermal Imager Spec
Focus Length 18mm Focus Length 18mm
Horizontal FOV 24° Horizontal FOV 24°
Vertical FOV 18° Vertical FOV 18°
Recognize Distance (Car: 6.5x3m) ≥1km Recognize Distance (Car: 6.5x3m) ≥1km
Working mode Uncooled VOx long wave (8μm~14μm) thermal imager Working mode Uncooled VOx long wave (8μm~14μm) thermal imager
Detector pixel 640*512 Detector pixel 640*512
Pixel size 12μm Pixel size 12μm
Focusing method Athermal prime lens Focusing method Athermal prime lens
NETD [email protected] @25℃ Color palette White hot, pseudo color
Color palette White hot, black hot, pseudo color Digital zoom 1x ~ 4x
Digital zoom 1x ~ 4x Sync correct time Yes
Sync correct time Yes
EO / IR Camera Object Tracking EO / IR Camera Object Tracking
Update rate of deviation pixel 60Hz Update rate of deviation pixel 60Hz
Minimum object contrast 5% Minimum object contrast 5%
Minimum object size 16*16 pixel Minimum object size 16*16 pixel
Maximum object size 128*128 pixel Maximum object size 128*128 pixel
Tracking speed >48 pixel/frame Tracking speed ±48 pixel/frame
Object memory time 100 frames Object memory time 100 frames
Packing Information Packing Information
N.W. 310g (with damping system) N.W. 345g (with damping system)
Product meas. 67.9*61.6*89.7mm Product meas. 83.7*72.5*110.6mm
Accessories 1pc gimbal camera device, screws, USB to TTL cable  / Hight quality plastic box with foam cushion Accessories 1pc gimbal camera device, screws, USB to TTL cable  / Hight quality plastic box with foam cushion
Package meas. 200*200*150mm
IR Laser Rangefinder
Range 5~1200 meters
Resolution 1m
Light Beam 905nm pulse laser
Divergent Angle ~6 mrad
Laser pulse frequency 1~4Hz
Location Resolving Latitude and longitude of target
Range finder Target distance measuring

Product contents

1pc gimbal camera U818 or U818M, screws, USB to TTL cable / High quality plastic box with foam cushion
