Q30TM gimbal camera, 30x opticla zoom, Object GPS Coordinate Resolving and LRF Gimbal Camera

11739.00 $12090.00 $

(1 customer review)
PayPal
Visa
Master

Description

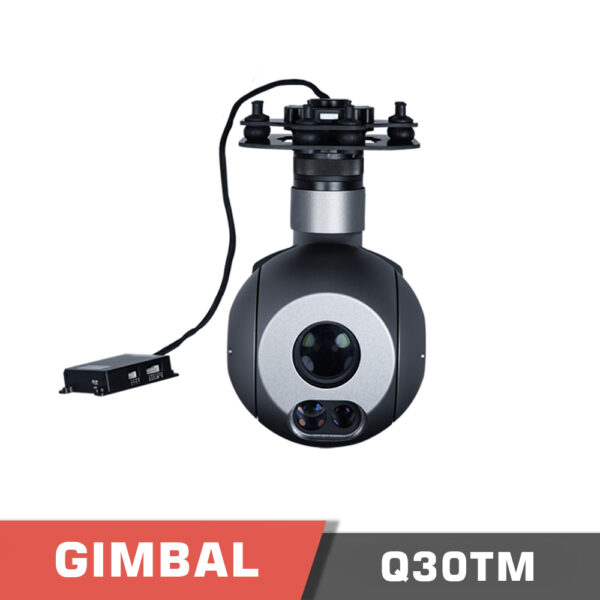

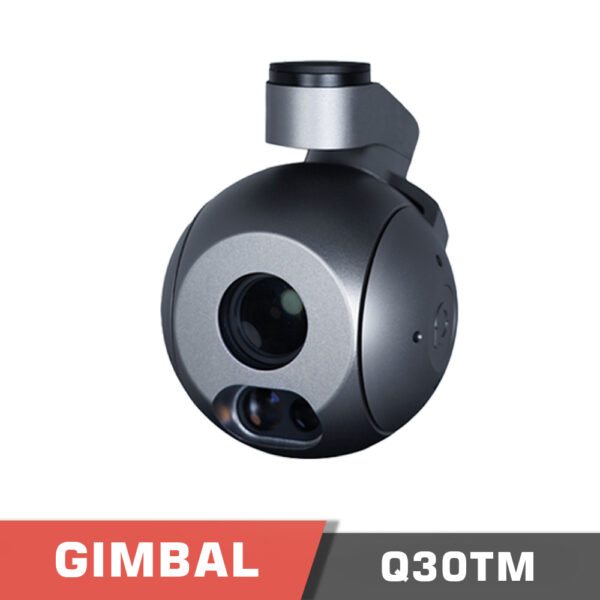

Overview of Q30TM gimbal camera

The Q30TM gimbal camera is a highly optimized 3-axis stabilized gimbal camera, making it an excellent choice for Gimbal drone operators seeking precise and stable footage. It features precise stabilizing motors with a control accuracy of ยฑ0.02ยฐ, powered by a dedicated processor.

Unique Mechanical Design for Stable Data Transmission

Instead of sing electrical slip rings, as is common with many gimbals, the Q30TM gimbal camera uses a unique mechanical design to conceal the wires, which ensures more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamlessly smooth video. Yaw rotation is an endless 360ยฐ rotation. Stable, smooth footage from the camera can be captured even when flying at a high-speed flight.

Q30TM Gimbal Camera: Advanced Tracking Algorithms for Stable Target Tracking

Built-in tracking algorithms combined with an object-missing recapture algorithm achieve a stable track of the target. The Q30TM gimbal camera supports custom user characters OSD for information display on the screen. The tracking speed is up to 32 pixels/frame, and the object size range is from 32×32 pixels to 128×128 pixels, with the minimal 4db signal-to-noise ratio (SNR), which greatly improves the accuracy and tracking effect.

Precise Location Calculation for Enhanced Surveillance

The advanced location calculating algorithm is used to calculate the distance of the objects within 3000 meters using the laser range finder, accurately analyze the longitude and latitude of the object, and display the on the screen. It has a great auxiliary role in military enforcement and police.

Flexible Video Output Options for Versatile Usage

Q30TM gimbal camera supports both HDMI and Ethernet/IP for video output. HDMI video output by default is set at 1080p, while Ethernet default video output resoltion is 720P and the record resolution is 1080p. IP output supports 360ยฐ endless pan.

Q30tm gimbal camera 30x optical zoom camera of q30tm gimbal Object tracking of q30tm gimbal camera Gps location resolving of q30tm gimbal camera Multiple output and control methods of q30tm gimbal camera Laser resolution of q30tm gimbal camera Communication interfaces of q30tm gimbal camera Applications of q30tm gimbal camera Dimensions of q30tm gimbal camera

For a comprehensive reading of related products, please visit the Motionew website.

Specifications

Hardware Parameter
Working voltage 12V
Input voltage 3S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 950~1100mA @ 12V
Idle current 950mA @ 12V
Working environment temp. -20โ„ƒ ~ +60โ„ƒ
Outputย  micro HDMI(HD output 1080P 25/30/50/60fps)
IP(1080P/720P 25/30fps)
Local-storage TF card (Up to 128G, class 10, FAT32 or ex FAT format)
Photo storage format JPG(1920*1080 / 1280*720)ย
Video storage format MP4ย  (1080P/720P 25fps/30fps)
Control method PWMย  / TTL / S.BUS / TCP(IP output) /DJI Pilot
Gimbal Spec
Mechanical Range Pitch/Tilt: -60ยฐ๏ฝž120ยฐ,Roll: ยฑ35ยฐ,ย ย
Yaw/Pan: ยฑ300ยฐ / ยฑ360ยฐ*N (IP output version)
Controllable Range Pitch/Tilt: -45ยฐ๏ฝž90ยฐ,ย ย  Yaw/Pan: ยฑ290ยฐ / ยฑ360ยฐ*N (IP output version)
Vibration angle Pitch/Roll: ยฑ0.02ยฐ, Yaw:ยฑ0.02ยฐ
One-key to center โˆš
Camera Spec
Imager Sensor SONY 1/2.8โ€ณ โ€œExmor Rโ€ CMOS
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.13MP
Lens optical zoom 30x, F=4.3~129mm
Digital zoom 12x (360x with optical zoom)
Min object distance 10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle 1080p mode: 63.7ยฐ(wide end) ~ 2.3ยฐ(tele end)
Sync system Internal
S/N ratio more than 50dB
Min illumination Color [email protected]
Exposure control Auto, Manual, Priority mode(shutter priority & iris priority),
Bright, EV compensation, Slow AE
Gain Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
White balance Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto,
Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)
Shutter speed 1/1s to 1/10,000s, 22 steps
Backlight compensation Yes
Aperture control 16 steps
Defog Yes
OSD Yes
Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel 5ms
Minimum object contrast 5%
SNR 4
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed 32 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel

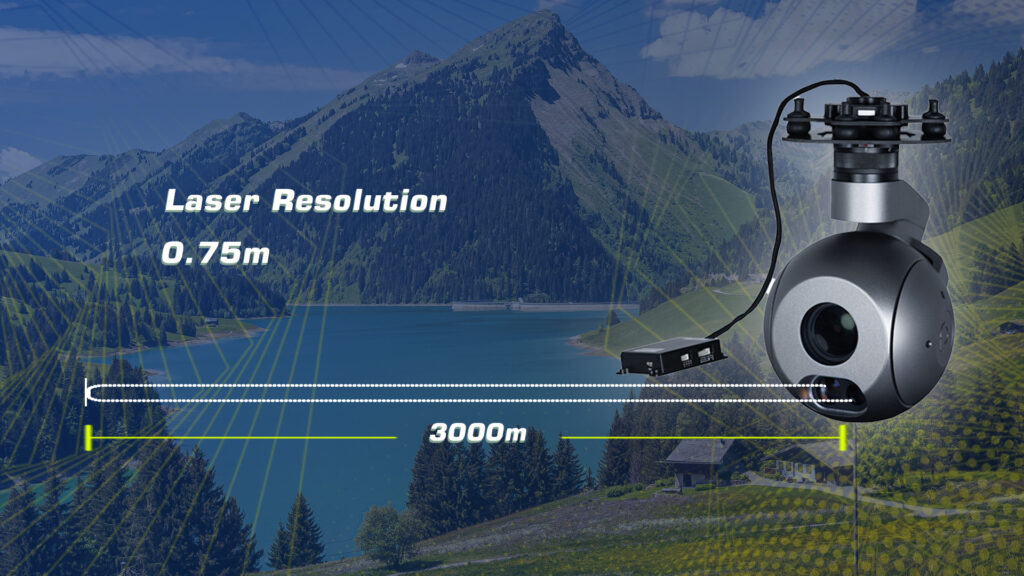

IR Laser Rangefinder
Laser Wavelengths 1550nm
Optical aperture Transmit 13mm / Receive17 mm
Resolution 0.75m
Measure ability 3000mย  (Typical value 1:
ยท Object size: the target surface is larger than the laser spot area
ยท Reflectivity: 60%
ยท Accuracy rate: 90%
ยท Visibility: 10 km
ยท Environment temperature: 20โ„ƒ
ยท Atmospheric pressure: 1013 mbar)
Vehicle target measuring 2300m (Typical value 2:
ยท Object size: 2.3*2.3 m
ยท Emissivity: 30%
ยท Others same as typcial value 1)
Eye-safe Class 1[Standard IEC 60825-1, Second Edition (2007-03)]
Laser beam angle (Typical value) 1.0 mrad
Accuracy (Typical value) ยฑ 0.75m
Accuracy (In harsh condition) ยฑ 2m
Measurement frequency 2Hz
Object resolution (Typical value) 30m
Packing Information
N.W. 888g (Quick Release Version)ย
Product meas. 112*129*203.9mm
Accessories 1pc gimbal camera device, 16pcs screws,ย  4pcs copper cylinders, 12pcs damping balls,
ย 4pcs damping boards / High quality plastic box with foam cushion

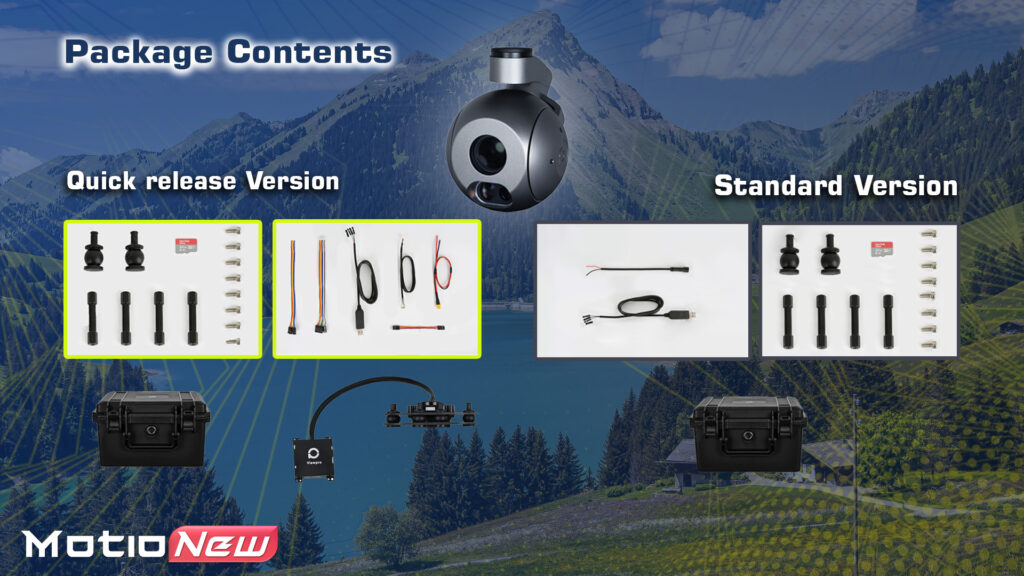

Product contents

1x gimbal camera Q30TM, 1x gimbal camera device, 16x screws,ย  4x copper cylinders, 12x damping balls, 4x damping boards / High quality plastic box with foam cushion
