A30TR-50 gimbal, with 5km Laser Rangefinder, EO/IR Camera with AI

19799.00 $ – 19999.00 $

Description

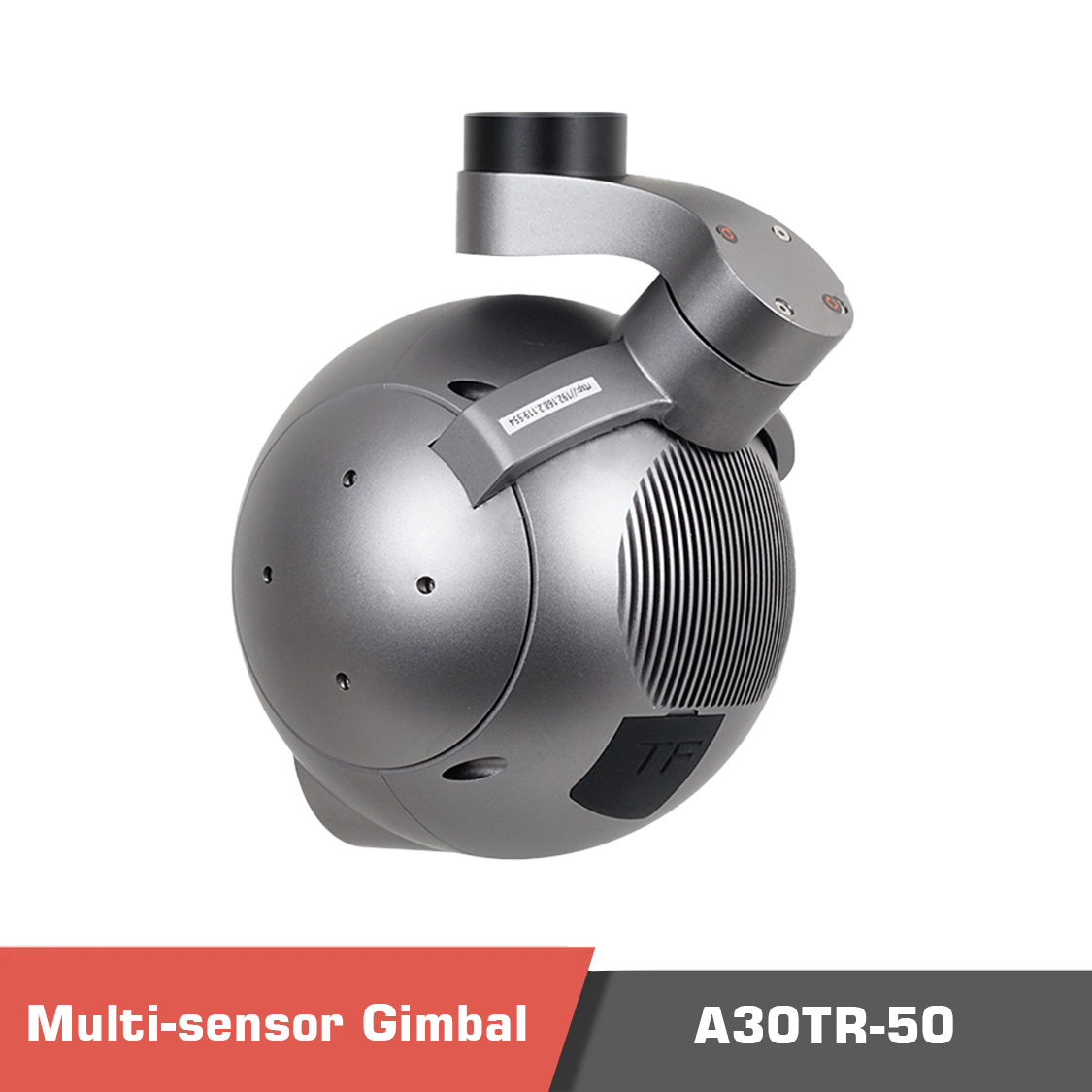

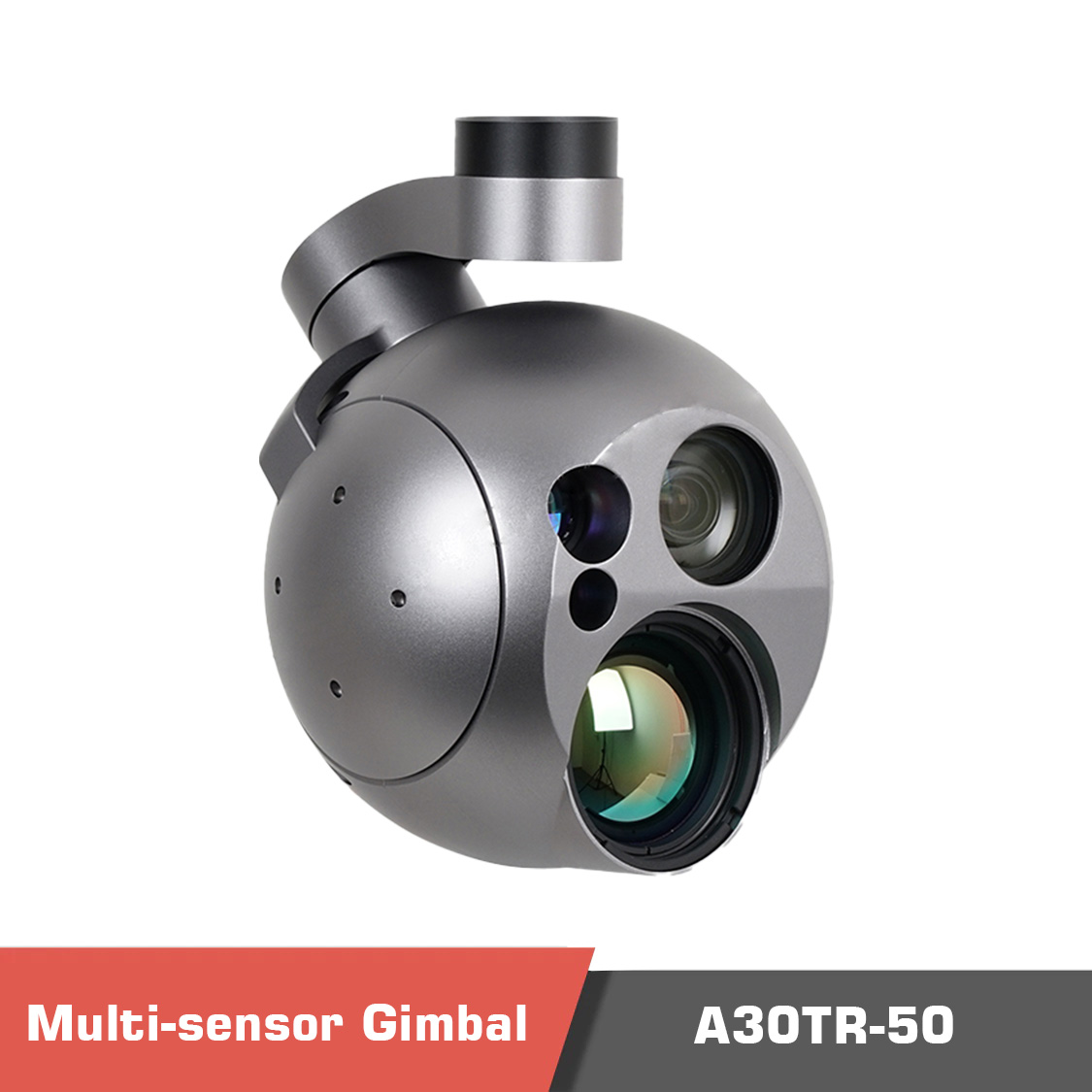

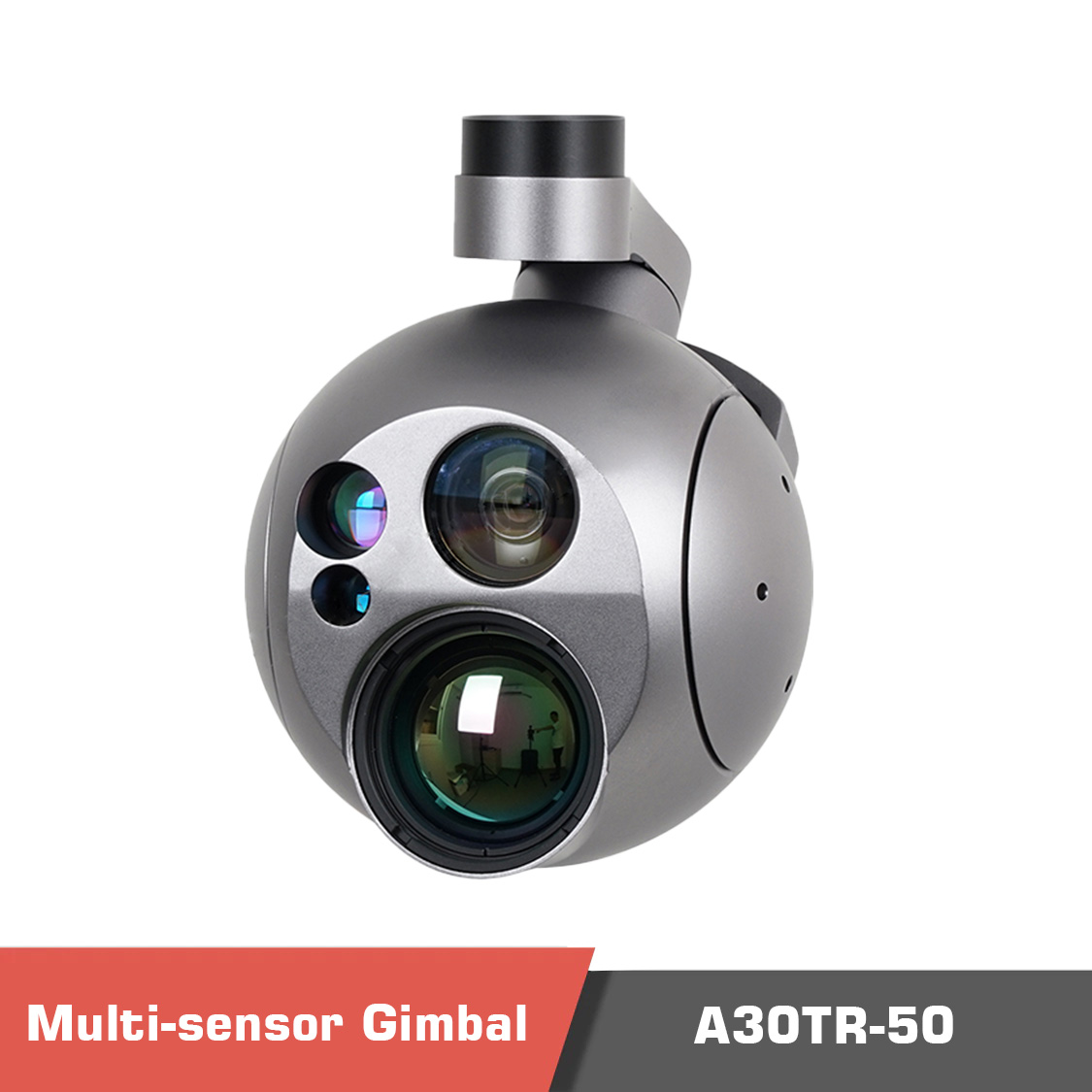

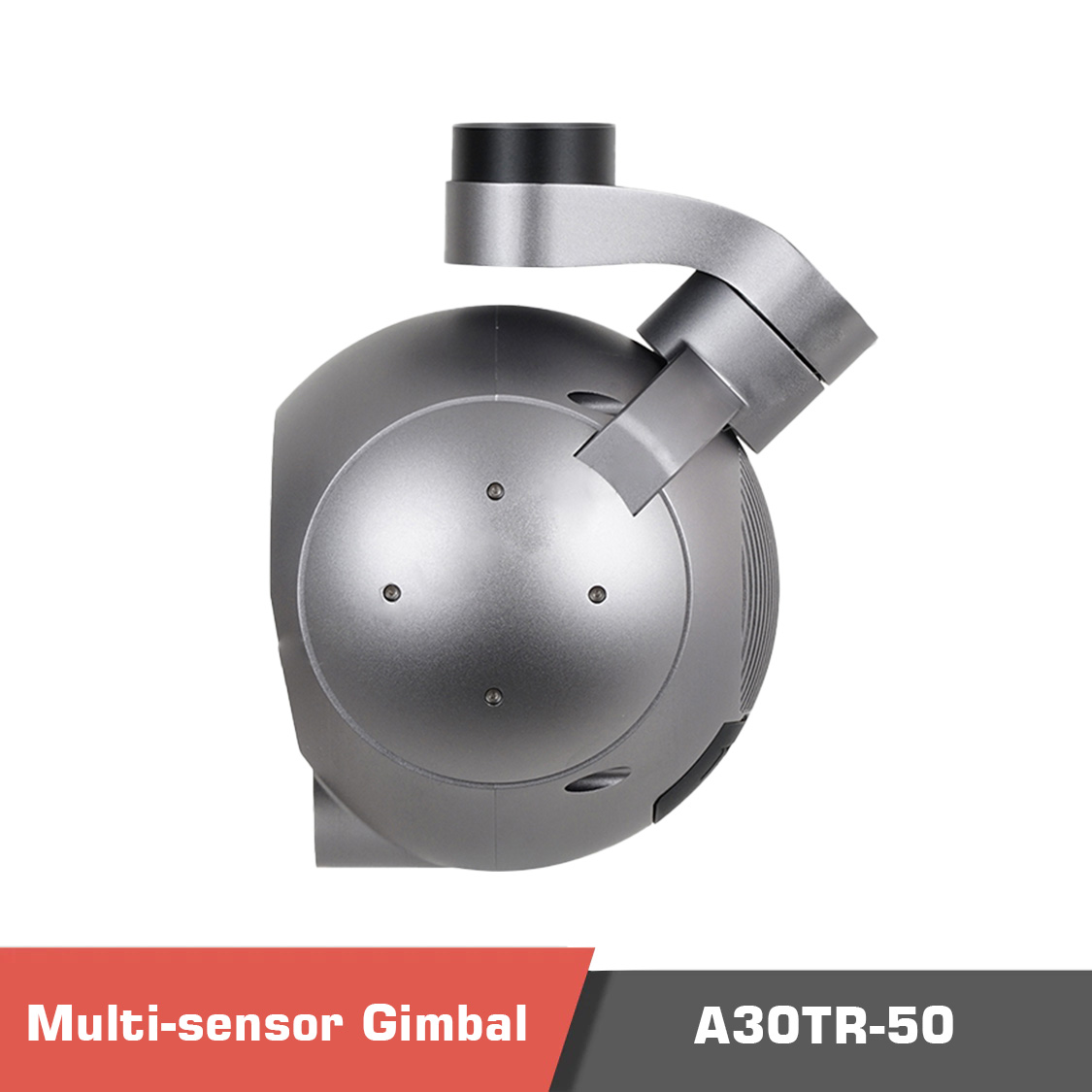

A30TR-50 gimbal camera is a multi sensor gimbal camera with both EO and IR sensors and a laser range finder. It is equipped with a SONY 1/2.8″ “EXMOR R” CMOS sensor with up to 30x optical zoom, 12x Digital Zoom,  2.13MP which can output Full HD images. With a 50mm IR Thermal which features a 640×512 sensor with 12um pixel size. The gimbal has on-board Artificial Intelligence algorithms to do Automatic Identification and Tracking of desired subjects.

Having a laser rangefinder with a maximum measurement distance of 5km (5000m) makes A30TR-50 one of the best in the market.

This gimbal has a variety of flexible output options. It supports HDMI and Ethernet/IP. HDMI and Ethernet outputs are capable of 1080p resolution, while the default Ethernet output is set to 720p with recording capabilities at 1080p. Additionally, the IP output version offers a 360-degree endless pan feature, expanding your creative possibilities.

Experience seamless control with multiple control methods. The gimbal supports PWM and Serial port TTL control by default, with the option for SBUS control. The IP output version also provides TCP control via an Ethernet cable, ensuring convenient and efficient operation.

The applications for the A30TR-50 are vast and diverse. From law enforcement and fire-fighting to power tower and pipeline inspections, search and rescue missions, and more, this gimbal camera is designed to excel in critical operations. It enables wide-ranging monitoring and searching capabilities, ensuring swift information transfer, improved response efficiency, and reduced casualties during emergencies.

A30tr-50 gimbal A30tr 50. 2. 2 - a30tr-50 gimbal,high-precise foc program,professional 3-axis high-precise foc program,hdmi,sony 1/2. 8 cmos sensor,ai smart identify tracking,30x optical zoom,lightweight gimbal camera,fpv drones,uav ugv usv rc planes,small gimbal camera,ethernet,sdi video output ports,s. Bus / uart / udp control signal input ports,s. Bus control signal output port,viewpro,ir laser rangefinder,5km laser,thermal sensor,sony 1/2. 8-inch cmos sensor,sony “exmor r” cmos,sony 1/2. 8″ “exmor r” cmos - motionew - 8 A30tr 50. 2 - a30tr-50 gimbal,high-precise foc program,professional 3-axis high-precise foc program,hdmi,sony 1/2. 8 cmos sensor,ai smart identify tracking,30x optical zoom,lightweight gimbal camera,fpv drones,uav ugv usv rc planes,small gimbal camera,ethernet,sdi video output ports,s. Bus / uart / udp control signal input ports,s. Bus control signal output port,viewpro,ir laser rangefinder,5km laser,thermal sensor,sony 1/2. 8-inch cmos sensor,sony “exmor r” cmos,sony 1/2. 8″ “exmor r” cmos - motionew - 9 A30tr 50. 3 - a30tr-50 gimbal,high-precise foc program,professional 3-axis high-precise foc program,hdmi,sony 1/2. 8 cmos sensor,ai smart identify tracking,30x optical zoom,lightweight gimbal camera,fpv drones,uav ugv usv rc planes,small gimbal camera,ethernet,sdi video output ports,s. Bus / uart / udp control signal input ports,s. Bus control signal output port,viewpro,ir laser rangefinder,5km laser,thermal sensor,sony 1/2. 8-inch cmos sensor,sony “exmor r” cmos,sony 1/2. 8″ “exmor r” cmos - motionew - 10 A30tr 50. 4 - a30tr-50 gimbal,high-precise foc program,professional 3-axis high-precise foc program,hdmi,sony 1/2. 8 cmos sensor,ai smart identify tracking,30x optical zoom,lightweight gimbal camera,fpv drones,uav ugv usv rc planes,small gimbal camera,ethernet,sdi video output ports,s. Bus / uart / udp control signal input ports,s. Bus control signal output port,viewpro,ir laser rangefinder,5km laser,thermal sensor,sony 1/2. 8-inch cmos sensor,sony “exmor r” cmos,sony 1/2. 8″ “exmor r” cmos - motionew - 11 A30tr 50. 5 - a30tr-50 gimbal,high-precise foc program,professional 3-axis high-precise foc program,hdmi,sony 1/2. 8 cmos sensor,ai smart identify tracking,30x optical zoom,lightweight gimbal camera,fpv drones,uav ugv usv rc planes,small gimbal camera,ethernet,sdi video output ports,s. Bus / uart / udp control signal input ports,s. Bus control signal output port,viewpro,ir laser rangefinder,5km laser,thermal sensor,sony 1/2. 8-inch cmos sensor,sony “exmor r” cmos,sony 1/2. 8″ “exmor r” cmos - motionew - 12 A30tr 50. 6 - a30tr-50 gimbal,high-precise foc program,professional 3-axis high-precise foc program,hdmi,sony 1/2. 8 cmos sensor,ai smart identify tracking,30x optical zoom,lightweight gimbal camera,fpv drones,uav ugv usv rc planes,small gimbal camera,ethernet,sdi video output ports,s. Bus / uart / udp control signal input ports,s. Bus control signal output port,viewpro,ir laser rangefinder,5km laser,thermal sensor,sony 1/2. 8-inch cmos sensor,sony “exmor r” cmos,sony 1/2. 8″ “exmor r” cmos - motionew - 13 A30tr 50. 7 - a30tr-50 gimbal,high-precise foc program,professional 3-axis high-precise foc program,hdmi,sony 1/2. 8 cmos sensor,ai smart identify tracking,30x optical zoom,lightweight gimbal camera,fpv drones,uav ugv usv rc planes,small gimbal camera,ethernet,sdi video output ports,s. Bus / uart / udp control signal input ports,s. Bus control signal output port,viewpro,ir laser rangefinder,5km laser,thermal sensor,sony 1/2. 8-inch cmos sensor,sony “exmor r” cmos,sony 1/2. 8″ “exmor r” cmos - motionew - 14 A30tr 50. 8 - a30tr-50 gimbal,high-precise foc program,professional 3-axis high-precise foc program,hdmi,sony 1/2. 8 cmos sensor,ai smart identify tracking,30x optical zoom,lightweight gimbal camera,fpv drones,uav ugv usv rc planes,small gimbal camera,ethernet,sdi video output ports,s. Bus / uart / udp control signal input ports,s. Bus control signal output port,viewpro,ir laser rangefinder,5km laser,thermal sensor,sony 1/2. 8-inch cmos sensor,sony “exmor r” cmos,sony 1/2. 8″ “exmor r” cmos - motionew - 15 A30tr 50. 9 - a30tr-50 gimbal,high-precise foc program,professional 3-axis high-precise foc program,hdmi,sony 1/2. 8 cmos sensor,ai smart identify tracking,30x optical zoom,lightweight gimbal camera,fpv drones,uav ugv usv rc planes,small gimbal camera,ethernet,sdi video output ports,s. Bus / uart / udp control signal input ports,s. Bus control signal output port,viewpro,ir laser rangefinder,5km laser,thermal sensor,sony 1/2. 8-inch cmos sensor,sony “exmor r” cmos,sony 1/2. 8″ “exmor r” cmos - motionew - 16 A30tr 50. 10 - a30tr-50 gimbal,high-precise foc program,professional 3-axis high-precise foc program,hdmi,sony 1/2. 8 cmos sensor,ai smart identify tracking,30x optical zoom,lightweight gimbal camera,fpv drones,uav ugv usv rc planes,small gimbal camera,ethernet,sdi video output ports,s. Bus / uart / udp control signal input ports,s. Bus control signal output port,viewpro,ir laser rangefinder,5km laser,thermal sensor,sony 1/2. 8-inch cmos sensor,sony “exmor r” cmos,sony 1/2. 8″ “exmor r” cmos - motionew - 17 A30tr 50. 11 - a30tr-50 gimbal,high-precise foc program,professional 3-axis high-precise foc program,hdmi,sony 1/2. 8 cmos sensor,ai smart identify tracking,30x optical zoom,lightweight gimbal camera,fpv drones,uav ugv usv rc planes,small gimbal camera,ethernet,sdi video output ports,s. Bus / uart / udp control signal input ports,s. Bus control signal output port,viewpro,ir laser rangefinder,5km laser,thermal sensor,sony 1/2. 8-inch cmos sensor,sony “exmor r” cmos,sony 1/2. 8″ “exmor r” cmos - motionew - 18 A30tr 50. 12 - a30tr-50 gimbal,high-precise foc program,professional 3-axis high-precise foc program,hdmi,sony 1/2. 8 cmos sensor,ai smart identify tracking,30x optical zoom,lightweight gimbal camera,fpv drones,uav ugv usv rc planes,small gimbal camera,ethernet,sdi video output ports,s. Bus / uart / udp control signal input ports,s. Bus control signal output port,viewpro,ir laser rangefinder,5km laser,thermal sensor,sony 1/2. 8-inch cmos sensor,sony “exmor r” cmos,sony 1/2. 8″ “exmor r” cmos - motionew - 19

Additional information

Weight 1 kg
Dimensions 20 × 16 × 15 cm
version

Standard, Quick release

Specifications

Hardware Parameter
Working voltage 16V
Input voltage 4S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 800~2200mA @ 16V
Working environment temp. -20℃ ~ +60℃
Output  micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps)
Local-storage TF card (Up to 128G, class 10, FAT32 or ex-FAT format)
Photo storage format JPG(1920*1080)
Video storage format MP4  (1080P 30fps)
Card reading online HTTP read pictures
Control method PWM  / TTL / S.BUS / TCP(IP output)/UDP (IP output version)
Geotagging Support, display time, and GPS coordinate in picture EXIF



Gimbal Spec
Mechanical Range Pitch/Tilt: -55°～125°, Roll: ±45°, Yaw/Pan: ±300° / ±360°*N (IP output version)
Controllable Range Pitch/Tilt: -45°～120°, Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw：±0.02°
One-key to center √



Camera spec
Image Sensor SONY 1/2.8″ “Exmor R” CMOS
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.13MP
Lens optical zoom 30x, F=4.3~129mm
Digital zoom 12x (360x with optical zoom)
Min object distance 10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle 1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
Sync system Internal
S/N ratio more than 50dB
Min illumination Color [email protected]
Exposure control Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
Gain Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 steps/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 steps/ total 12 steps)
White balance Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)
Shutter speed 1/1s to 1/10,000s, 22 steps
Backlight compensation Yes
Aperture control 16 steps
Defog Yes
OSD Yes



IR Thermal Imager Spec
Focus Length 50mm
Coating Film DLC
Horizontal FOV 8.8°
Vertical FOV 7.0°
Diagonal FOV 11.2°
Detective Distance (Man: 1.8×0.5m) 2083 meters
Recognize Distance (Man: 1.8×0.5m) 521 meters
Verified Distance (Man: 1.8×0.5m) 260 meters
Detective Distance (Car: 4.2×1.8m) 6389 meters
Recognize Distance (Car: 4.2×1.8m) 1597 meters
Verified Distance (Car: 4.2×1.8m) 799 meters
Working mode Uncooled VOx long wave (8μm~14μm) thermal imager
Detector pixel 640*512
Pixel pitch 12μm
Focusing method Athermal prime lens
NETD ≤[email protected] @25℃
Color palette White hot, black hot, pseudo-color
Digital zoom 1x ~ 8x
Sync correct time Yes



EO / IR Camera Object Tracking
Update rate of deviation pixel 30Hz
Output delay of deviation pixel <30ms
Minimum object contrast 5%
SNR 4
Minimum object size 16*16 pixel
Maximum object size 256*256 pixel
Tracking speed ±48 pixel/frame
Object memory time 100 frames



IR Laser Rangefinder
Measure ability ≥5km for big targets (eg. building)
≥3km for car（2.3m×2.3m ）
≥1.5km for people（1.75m×0.75m ）(Based on typical value:
LOS visibility: ≥8km
Diffuse reflection rate: ≥0.3
Humility: ≤80%)
Accuracy (Typical value) ≤ ±1m (RMS)
Wavelength 1535nm pulse laser
Divergent Angle ≤ 0.5mrad
Measurement frequency 1~10HZ
Min measuring range ≤20m
Resolution ≤ 50m (multiple targets)
Rangefinder Target distance measuring





EO Camera AI Performance
Targets type Car and human
Simultaneous detection quantity ≥ 10 targets
Min contrast ratio 5%
Min target size 5×5 pixel
Car detection rate ≥85%
False alarm rate ≤10%



Packing Information
Net Weight 1485g (Viewport version)
Product Measurements 145.8*138*222.1mm (Standard version) / 145.8*138*227.8mm (Viewport version)
Accessories 1pc gimbal camera device, screws, copper cylinders, damping balls,1pc USB to TTL cable / High-quality plastic box with foam cushion
Gross Weight 3632g
Package Measurements 350*300*250mm



Product contents

1x A30TR-50 gimbal camera, screws, copper cylinders, damping balls, 1x USB to TTL cable / High-quality plastic box with foam cushion
