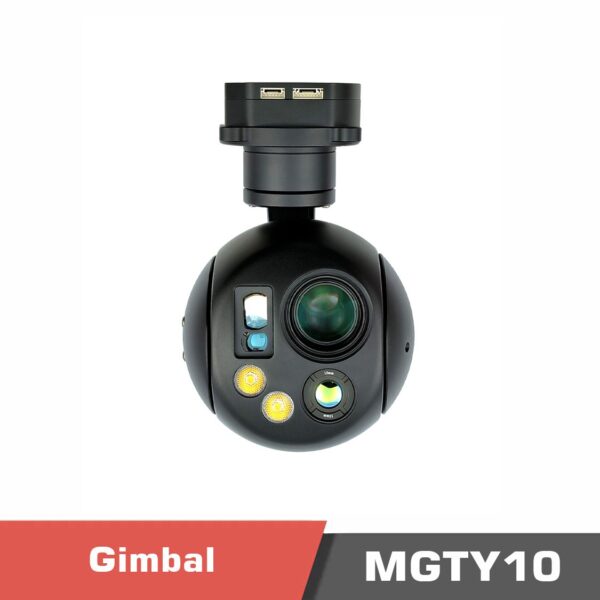

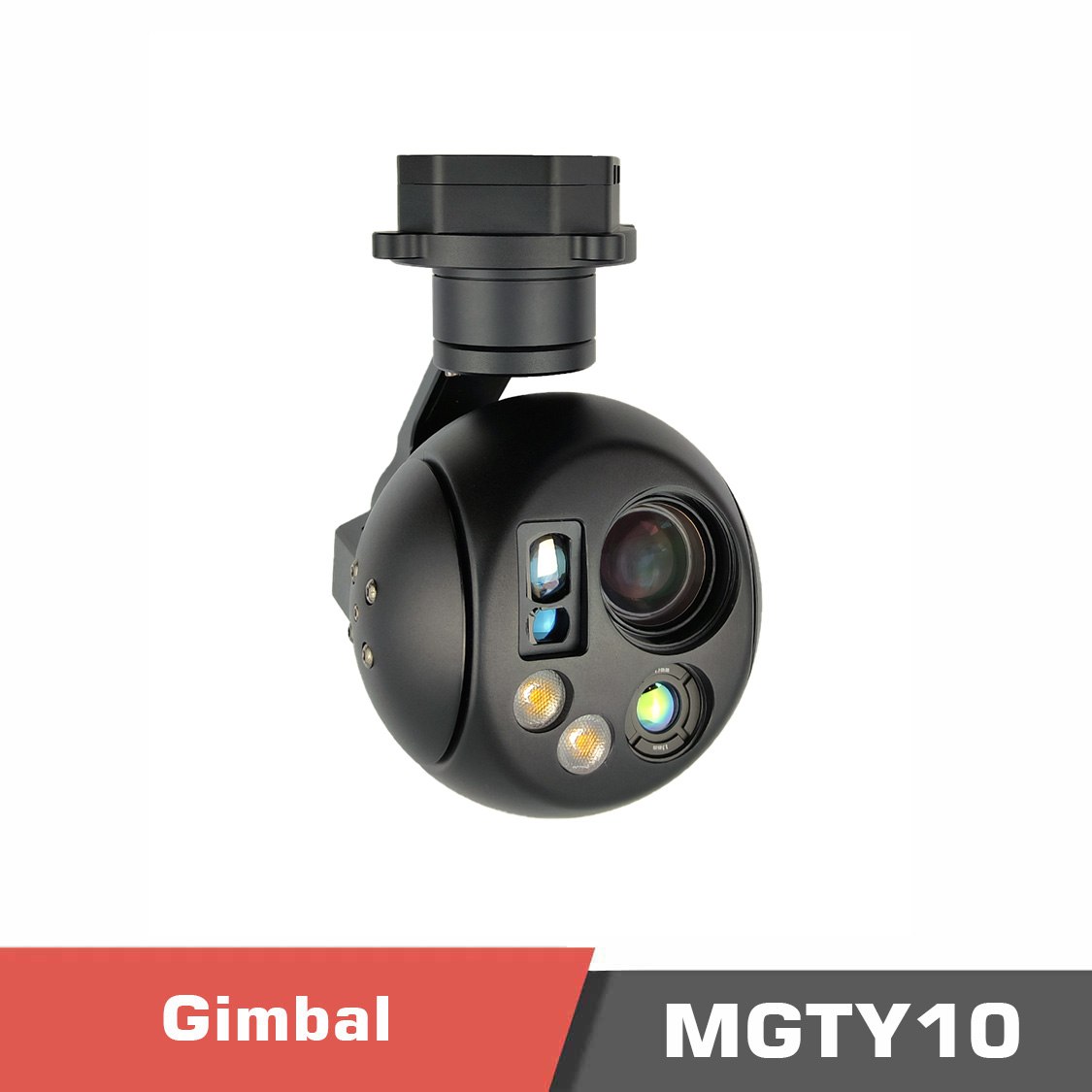

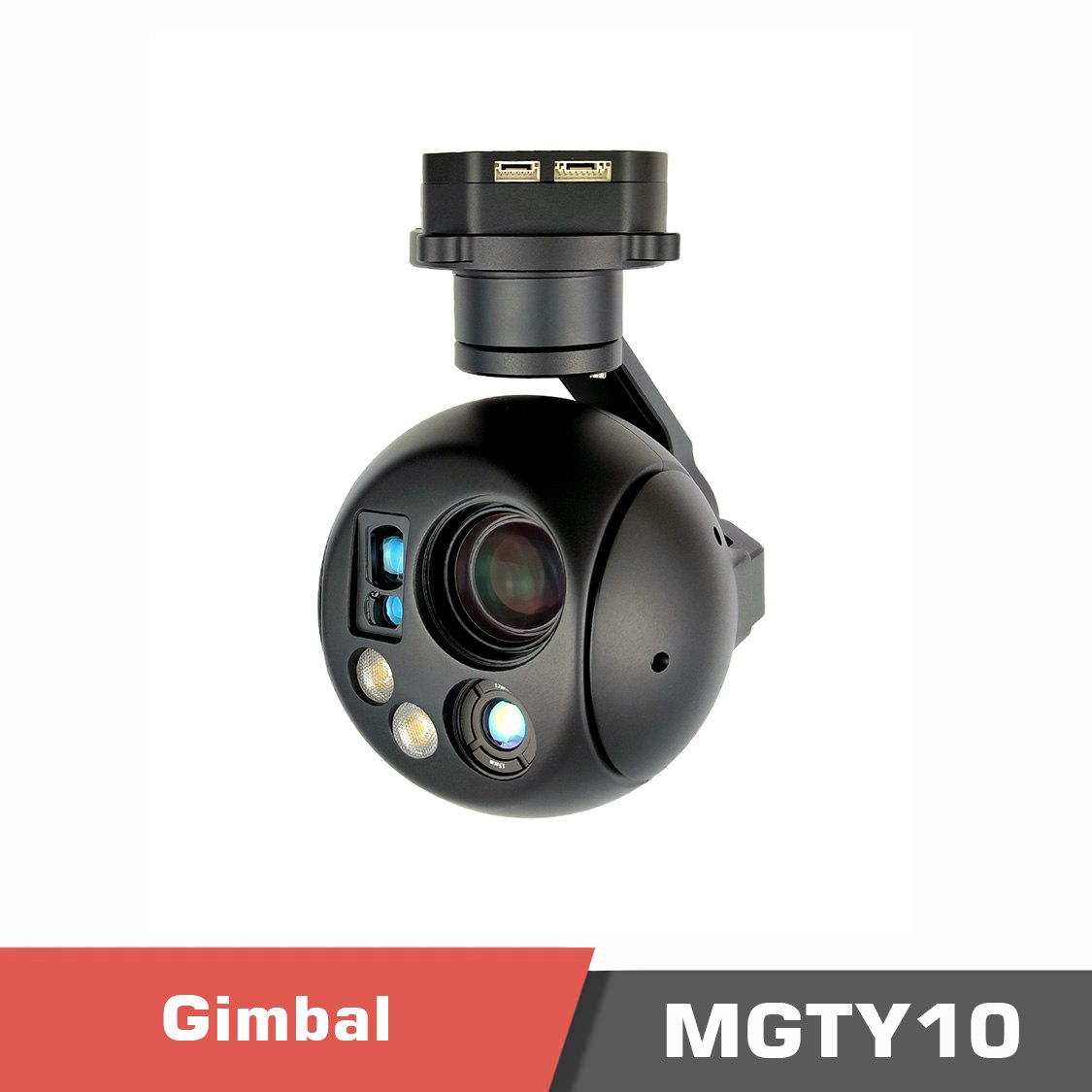

MGTY10 Four-in-one Gimbal Camera with dual output

6100.00 $

PayPal
Visa
Master

Description

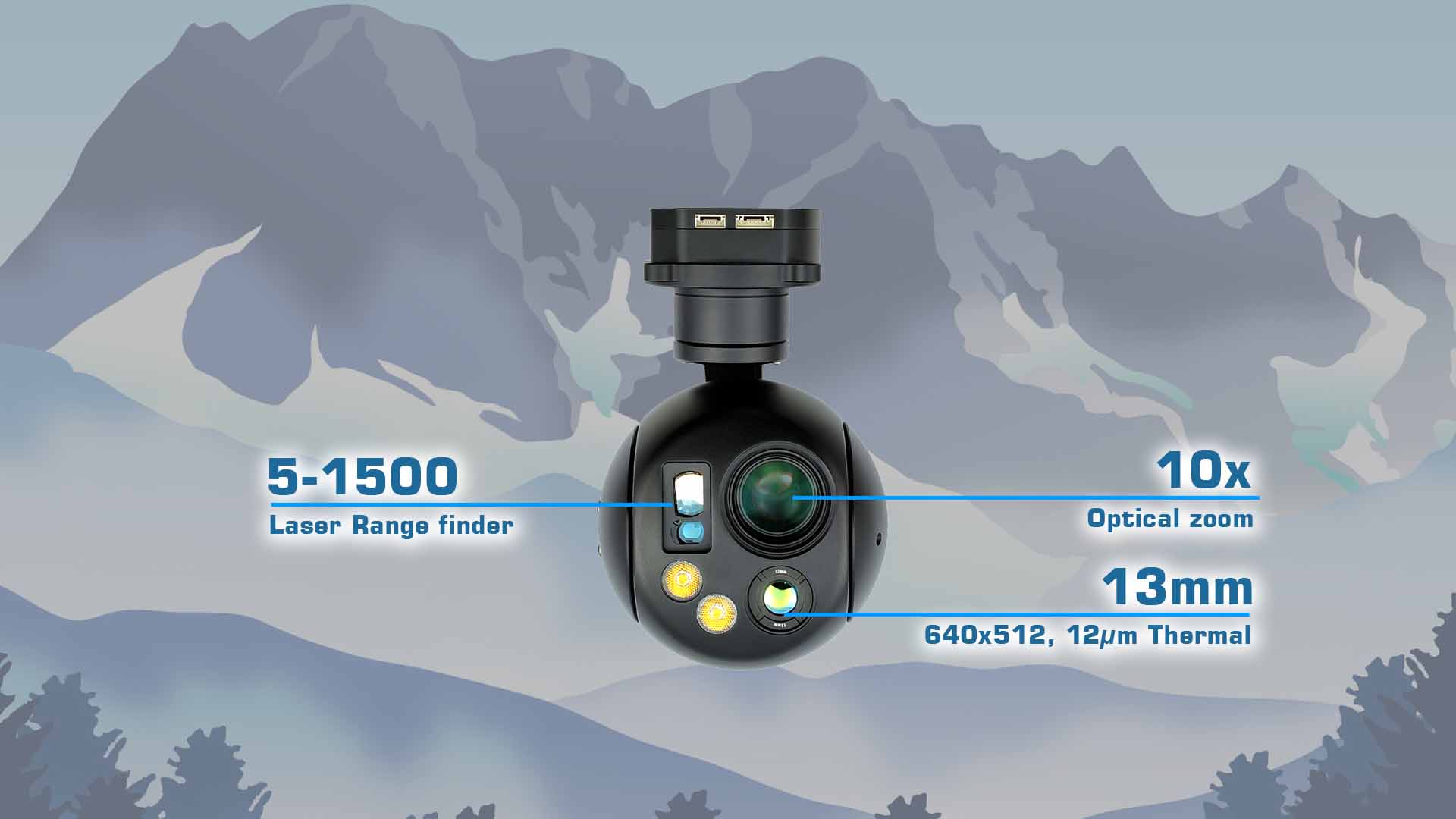

MGTY10 Compact UAV Gimbal โ€“ 10x EO Zoom + Thermal + Laser Rangefinder

The MGTY10 is a lightweight, high-performance multi-sensor gimbal payload designed for drone-based surveillance, inspection, and reconnaissance. Despite weighing only 650g, it integrates a 10x optical zoom EO camera, 640ร—512 thermal imaging, and a 905nm laser rangefinder, offering robust capabilities in a highly compact form.

Its adjustable PTZ speed, multi-protocol control, and real-time tracking make it ideal for public safety, industrial inspection, wildlife monitoring, and UAV patrol missions.


๐Ÿ”ง Hardware & Mechanical Specs

  • Input Voltage: DC 12Vโ€“26.2V

  • Power Consumption: <7.2W (Dynamic)

  • Weight: 650g ยฑ 20g

  • Dimensions: 150 ร— 154 mm

  • Operating Temp: -10ยฐC to +60ยฐC

  • Storage Temp: -20ยฐC to +80ยฐC


๐ŸŽฏ 3-Axis Gimbal (PTZ)

  • Roll Range: -45ยฐ ~ +45ยฐ

  • Pitch Range: -30ยฐ ~ +100ยฐ

  • Yaw Range: -285ยฐ ~ +285ยฐ

  • Angular Jitter (Pitch/Roll): ยฑ0.02ยฐ

  • Horizontal Jitter: ยฑ0.03ยฐ

  • Control Modes: UDP, UART, SBUS, optional PWM

  • Auto Return: One-click return to center function

  • Adaptive Speed: Rotation adapts to zoom level & speed setting


๐Ÿ” EO Camera โ€“ 10x Optical Zoom

  • Sensor: 1/3โ€ 4MP CMOS

  • Zoom: 10x optical + 9x digital (f=5.15โ€“47.38mm ยฑ5%)

  • Focus: Real-time fast focus <1s

  • Output: 1080p @30fps (Ethernet RTSP)

  • Field of View:

    • D: 69.5ยฐ (wide) ~ 7.95ยฐ (tele)

    • H: 61.5ยฐ ~ 7.0ยฐ

    • V: 35.0ยฐ ~ 3.97ยฐ


๐ŸŒก๏ธ Infrared Thermal Imaging

  • Resolution: 640 ร— 512 pixels

  • Pixel Pitch: 12ฮผm

  • Detector: Uncooled Vanadium Oxide

  • Wavelength Range: 8โ€“14ฮผm

  • NETD: โ‰ค50mK @ f/1.0 @ 25ยฐC

  • FOV: 33ยฐ ร— 26ยฐ (13mm lens)

  • Measurement: Global temp sensing + optional full-pixel recording


๐Ÿ“ Laser Range Finder

  • Wavelength: 905nm (Class I eye-safe)

  • Range: 5m โ€“ 1500m

  • Accuracy: โ‰ค ยฑ1m


๐Ÿง  Target Detection & Tracking

  • Categories: Human, Vehicle

  • Min Detection Size: 32 ร— 32 pixels

  • Max Tracking Size: 1500m

  • Memory Time: 2 seconds

  • Tracking Speed: Up to 50 pixels/frame

  • Simultaneous Tracking: Up to 100 objects


๐Ÿš Applications

  • Public safety, security & search-and-rescue

  • UAV surveillance & patrol missions

  • Precision agriculture & livestock monitoring

  • Thermal inspection of solar farms, pipelines, and buildings

  • Wildlife monitoring and anti-poaching missions


MGTY10 combines intelligent features, multi-sensor versatility, and precise gimbal control into a small, efficient packageโ€”making it a go-to solution for UAV operators who demand professional-grade imaging without the bulk.

For a comprehensive reading of related products, please visit the Motionew website.

Specifications



Hardware Parameters
Voltage DC 12~26.2V
Power Consumption 7.2W Dynamic



PTZ
Roll angle range -45~+45ยฐ
Pitch angle rangeย  -30~+100ยฐ
Yaw angle action range -285~+285ยฐ
Pitch and Roll direction angular jitter ยฑ0.02ยฐ
Amount of horizontal angular jitter ยฑ0.03ยฐ
One-click return to center function Quick return to initial position with one click
PTZ control speed is adjustable
When the gimbal rotates, it performs speed adaptation based on the current speed mode and visible light camera multiple
Control Mode UDP/UART/SBUS/(Optional PWM)







Optical Zoom EO Sensor
CMOS sensor 1/3″ CMOS Sensor 4MP
Optical zoom 10x Optical Zoom + 9x Digital Zoom; f=5.15ยฑ5% ~ 47.38ยฑ5%mm
Focus time Real-time fast focusing function, focusing time<1S
Video Output Ethernet (RTSP) ~ 1080p/30fps
Field of View (FOV) D: Wide 69.5ยฐยฑ5% Tele 7.95ยฐยฑ5%

H: Wide 61.5ยฐยฑ5% Tele 7.00ยฐยฑ5%

V: Wide 35.0ยฐยฑ5% Tele 3.97ยฐยฑ5%





IR Thermal Imaging
resolution 640*512 pixel
Pixel spacing 12ฮผm
Types Uncooled Vanadium Oxide Detector
wavelength coverage 8~14ฮผm
heat sensitivity(NETD) โ‰ค[email protected]@25ยฐC
FOV 13mm focal length, FOV: 33ยฐx26ยฐ
Measuring function Support global temperature measurement, optional full pixel temperature saving function











Laser Range Finder
Infrared Wavelength 905nm (class I Safety laser)
measuring range 5m~1500m
Accuracy/resolution Accuracy โ‰คยฑ1m



Target Recognition and Tracking
Min Tracking Target Size 905nm (class I Safety laser)
Max Tracking Target Size 5m~1500m
Target Memory Time 2s
Tracking Speed 50pixel/frame Max
Simultaneous Detection Quantity 100
Recognized Categories Car and Human
Min Detection Target Size 32×32 pixels







Other Parameters

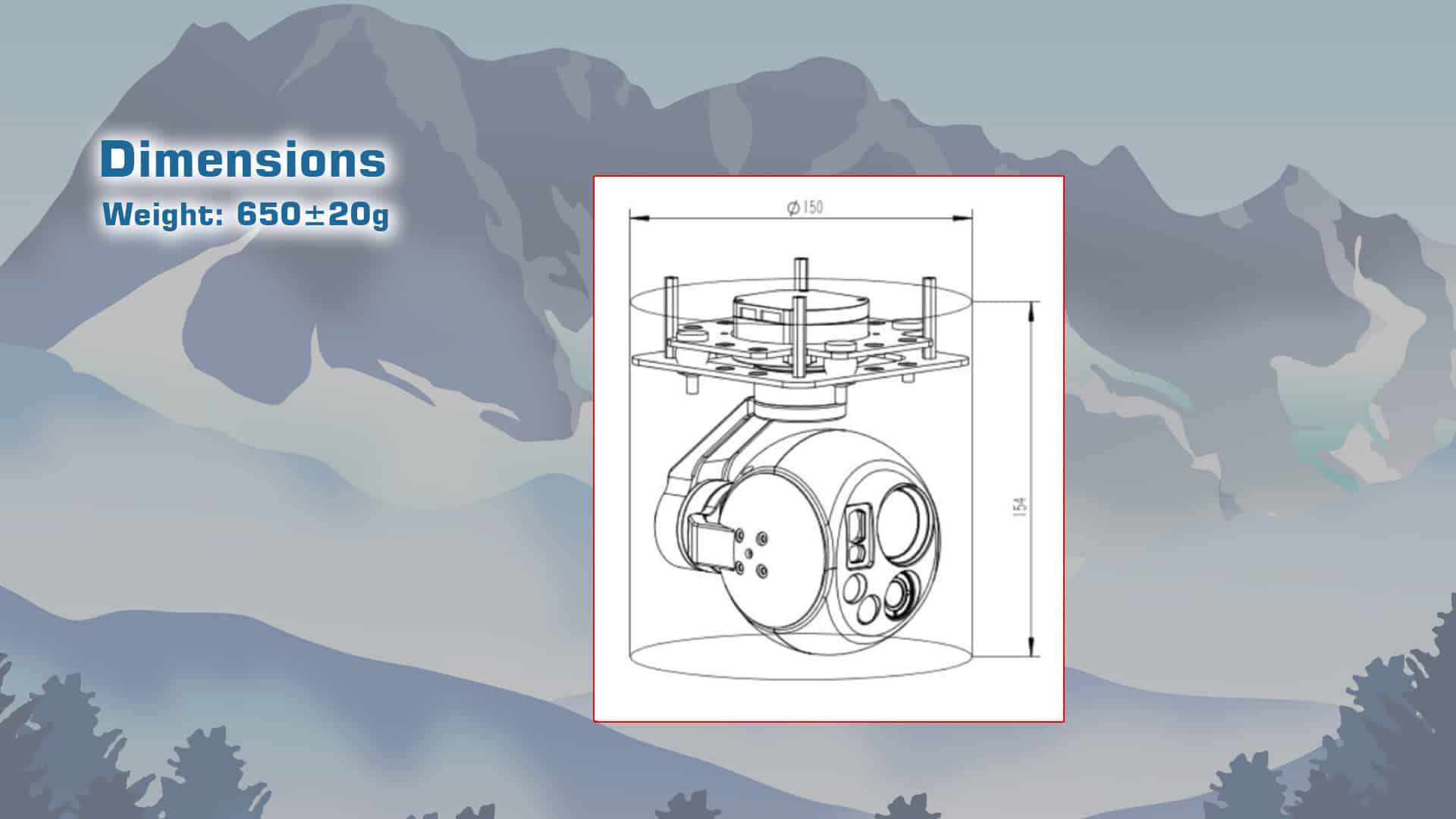

Size 150x154mm
work environment -10ยฐC to +60ยฐC / 20% to 80% RH
Storage environment -20ยฐC to +80ยฐC / 20% to 95% RH
Weight 650ยฑ20g
