MOC-24-5 3D oblique mapping camera, mapping and surveying with GEO Tagging
Description

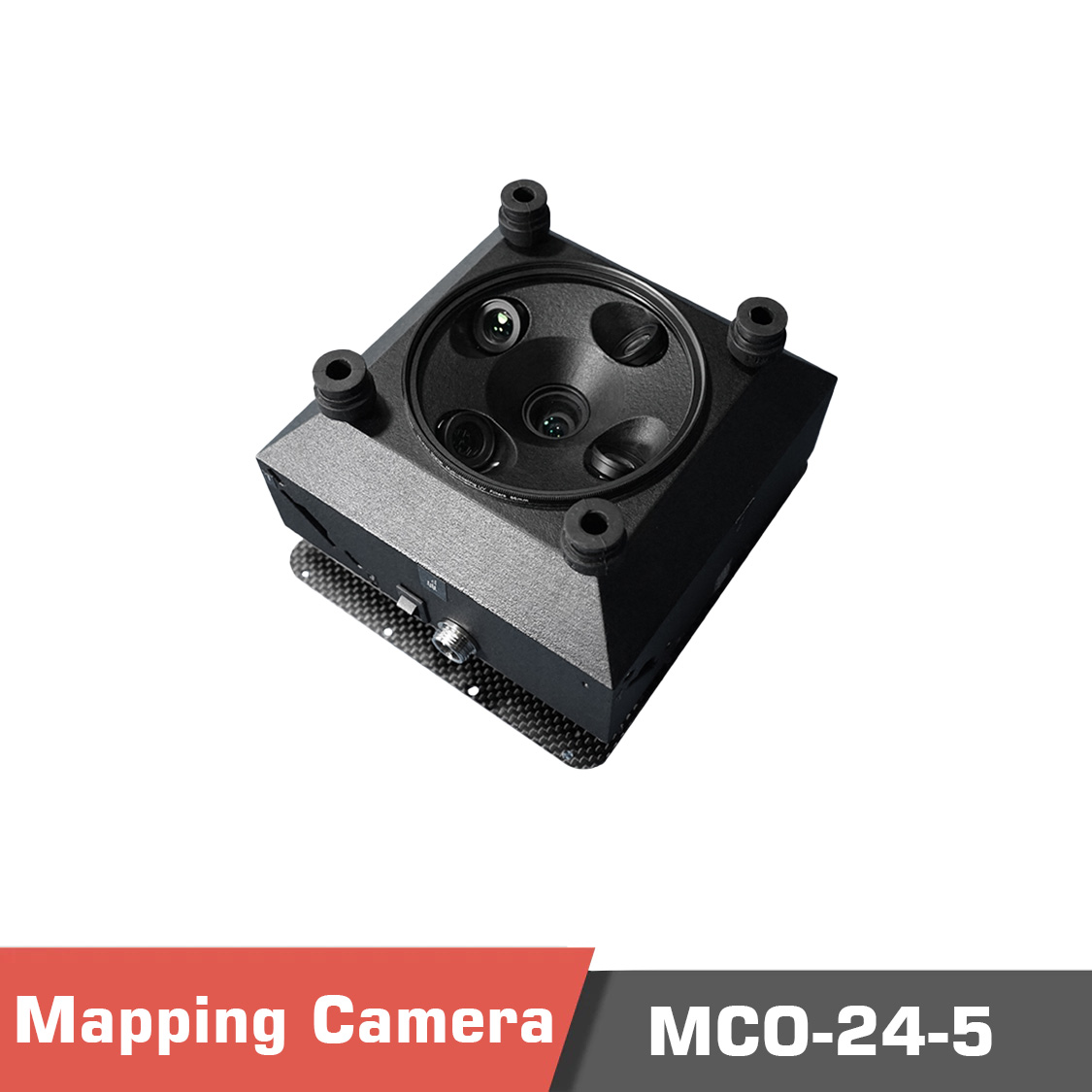

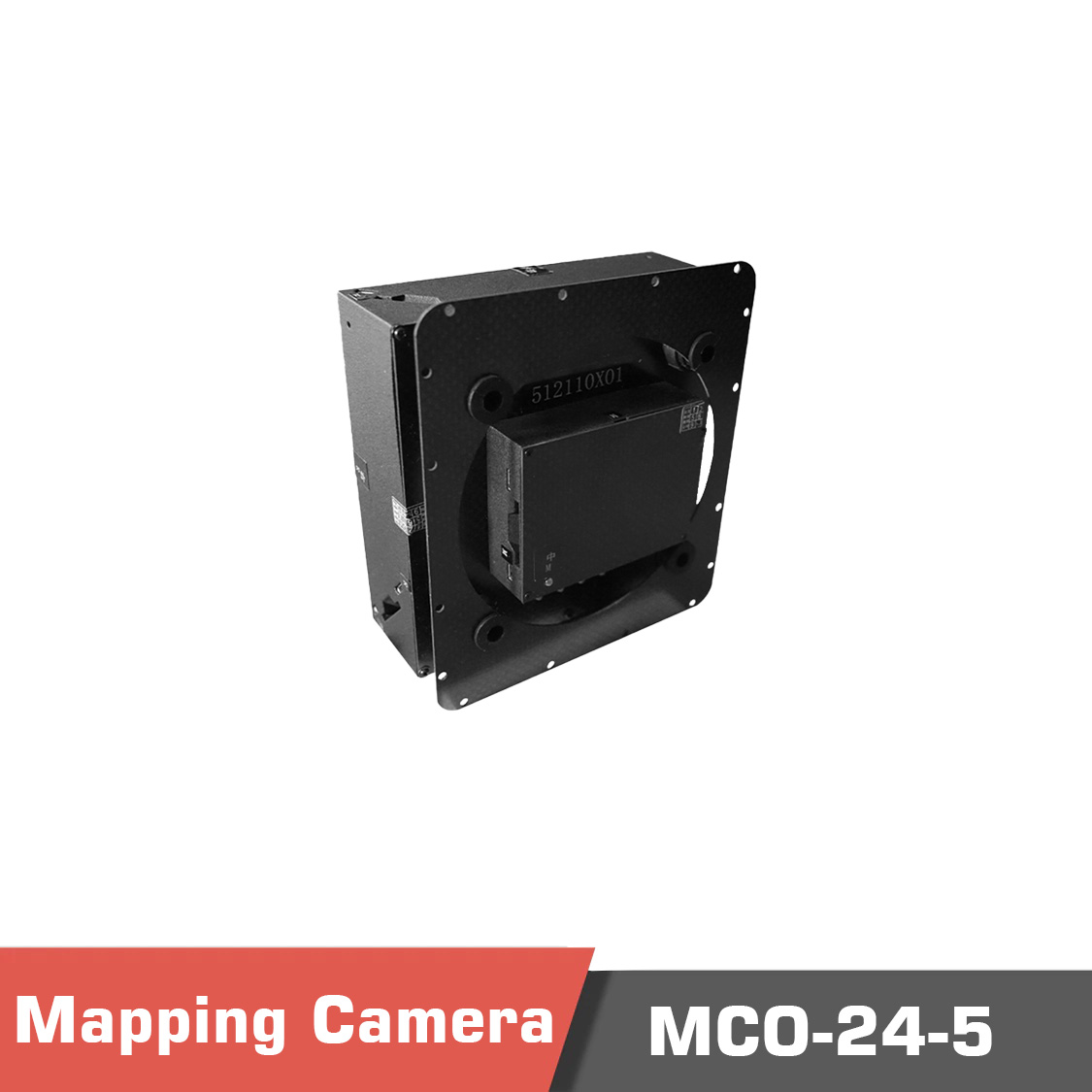

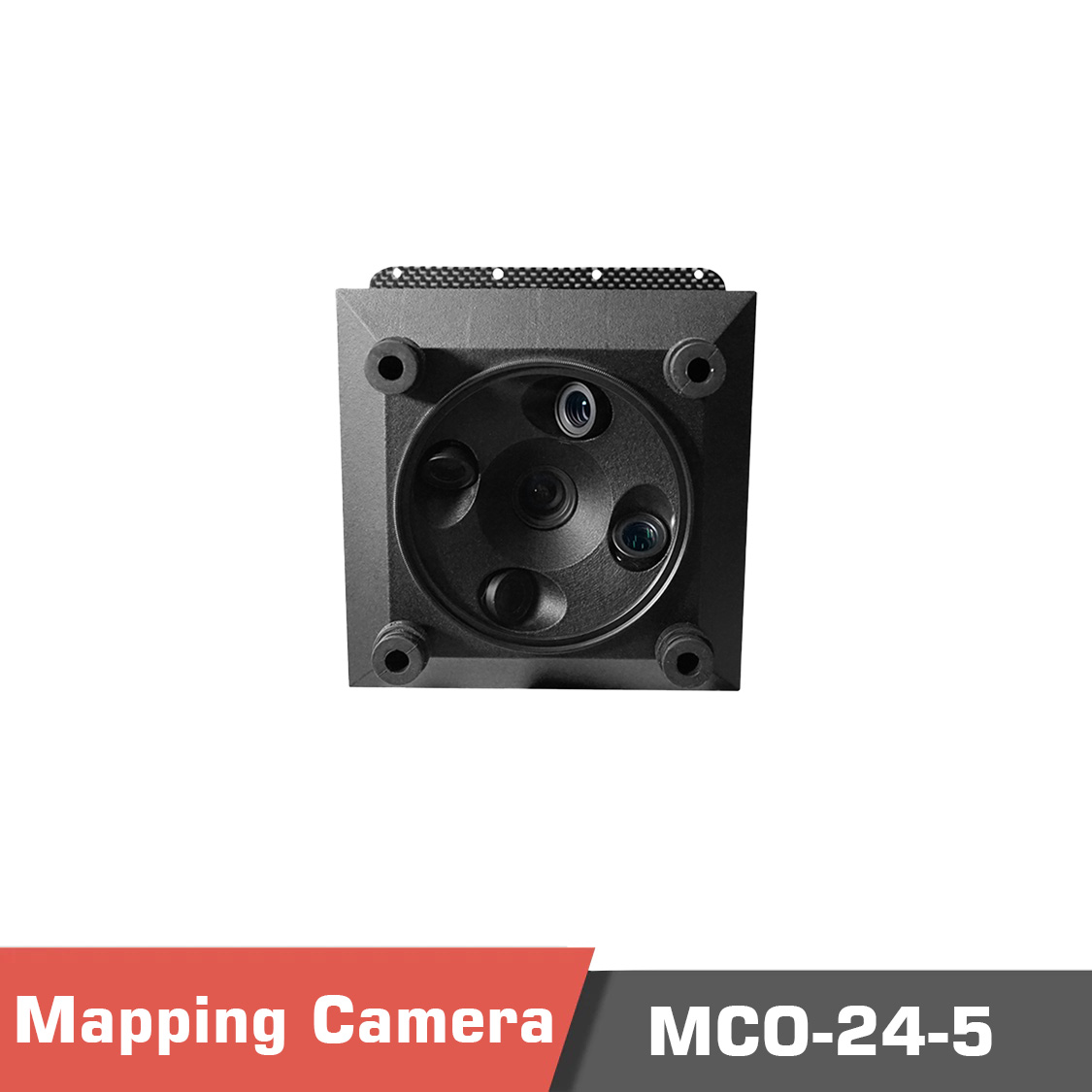

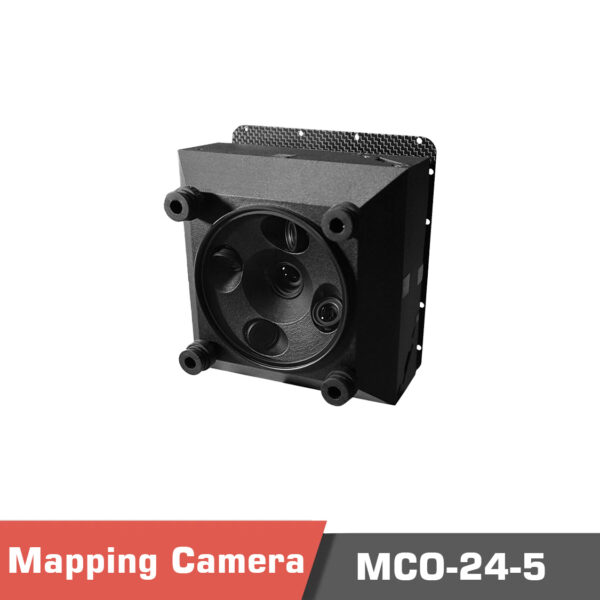

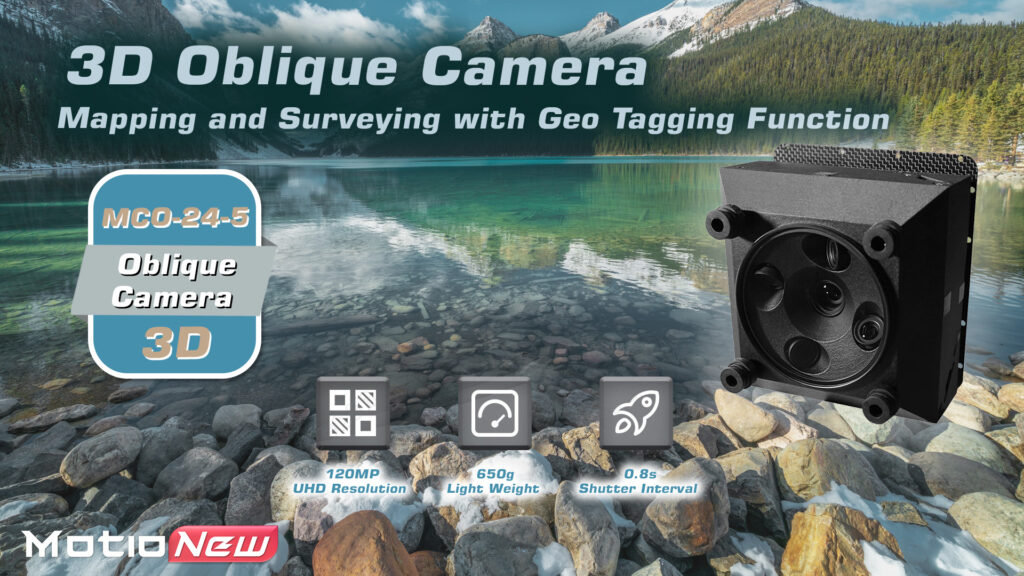

MOC-24-5 3D oblique mapping camera Overview
The MOC-24-5 3D oblique mapping camera is a high-resolution aerial mapping camera with a total of 120MP resolution. It is equipped with 5 special aerial survey lenses that have high central resolution and ultra-low dispersion aspheric lenses. These lenses reduce dispersion, compensate for aberration, and improve sharpness to produce high-quality aerial photos.
The APS-C image sensor provides the MOC-24-5 with superior image quality and ensures that data is captured accurately. The high-resolution images with geo-tagging are ideal for 3D modeling.

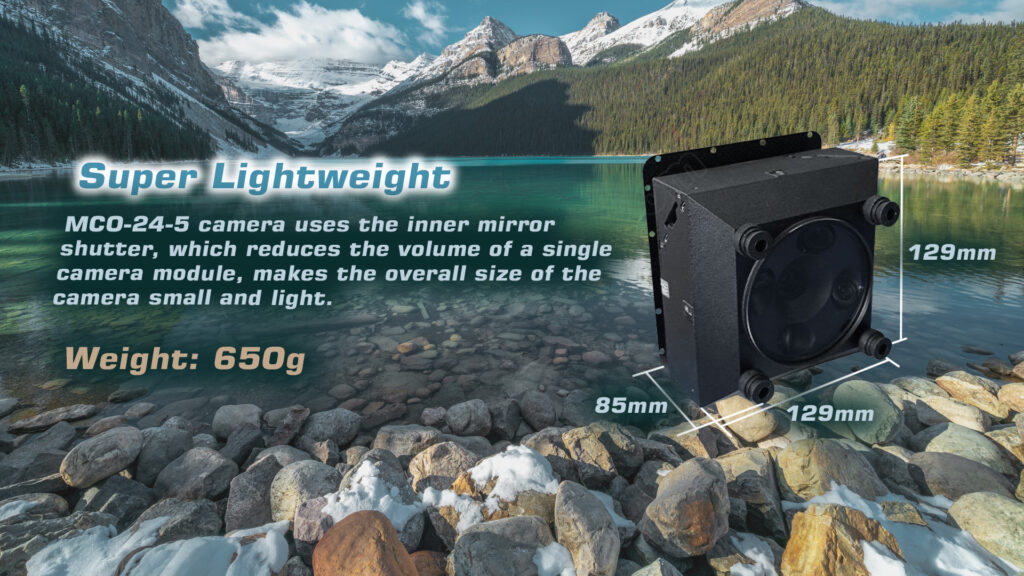

The MOC-24-5 uses internal mirror shutter technology, which reduces the size of the camera module and makes the overall camera small and lightweight (only 650g). The onboard storage of up to 640GB greatly improves the camera’s working capacity.
The MOC-24-5 also allows users to adjust camera parameters according to real-time weather conditions to obtain higher-quality original data. This camera pairs seamlessly with a Gimbal Drone.
For a comprehensive reading of related products, please visit the Motionew website.
FAQ – MOC-24-5 3D Oblique Mapping Camera
1. What is the total image resolution of the MOC-24-5 camera?
The system delivers a combined resolution of 120 megapixels using five high-quality aerial survey lenses.
2. How does the optical design improve image quality?
It uses ultra-low dispersion aspheric lenses to minimize chromatic aberration, reduce distortion, and enhance image sharpness, ensuring highly accurate 3D mapping results.
3. Does the camera support geotagging for mapping workflows?
Yes. The MOC-24-5 integrates with GNSS systems to provide precise geotagging for aerial survey and 3D reconstruction applications.
4. What payment methods are accepted for this product?
Purchases can be made using major credit cards, PayPal, and international bank transfers.
5. Is OEM customization available for enterprise or bulk orders?
Yes. OEM and project-specific customization options are available upon request for professional mapping operations.
6. Are manuals and integration documents provided?
Yes. Buyers receive datasheets, user manuals, and integration guides to support camera setup and deployment.
Specifications
Specifications
| Model | MOC-24-5 |
| Total Pixels | 24MP*5 = 120MP |
| Resolution | 6000*4000 for a single picture |
| Sensor | APS-C CMOS (23.5X15.6mm) |
| Lens Size | Orthographic 1*25.2mm + Oblique 4*35.7mm |
| Oblique Lens Angle | 45° |
| Shutter Triggering | High/low level signal (default) or PWM signal |
| Min Exposure Time | 0.8s |
| Data Read/Storage | USB or SD card (max 128G*5=640G) |

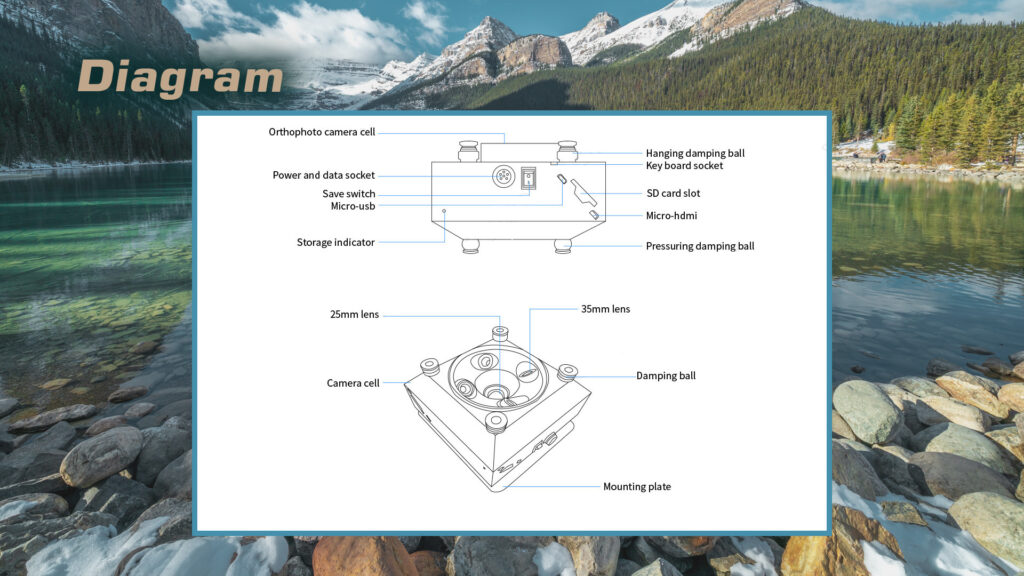

| Interfaces | SD card slot, HDMI, USB, Hot shoe, aviation plug |
| Parameter Setting Methods | USB or button |
| Working Environment | -20°C ~ 50°C |
| Camera Dimension | 129x129x85mm |
| Net Weight | 650g |
| Package Dimension | 30x25x20cm |

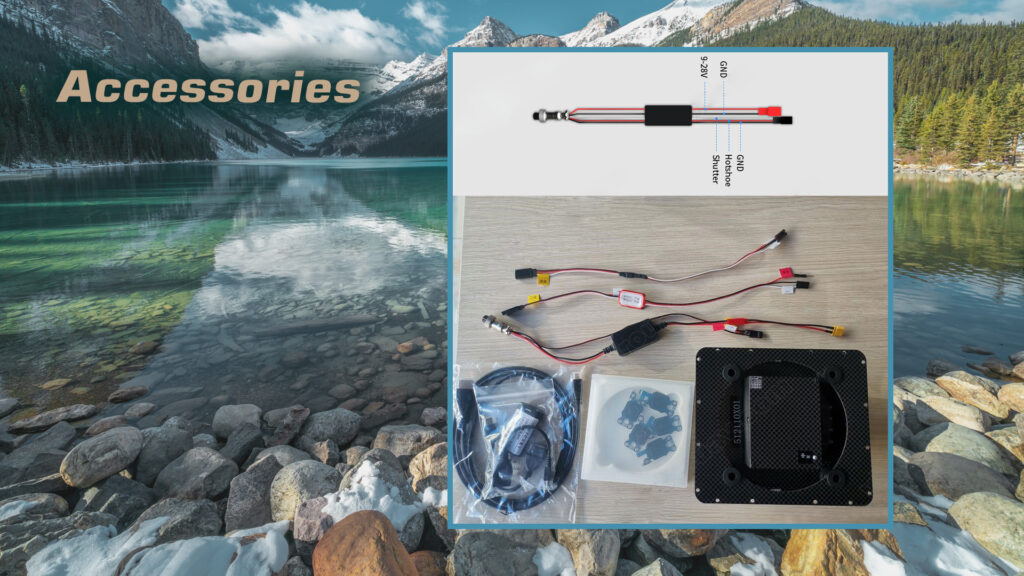

Product contents
