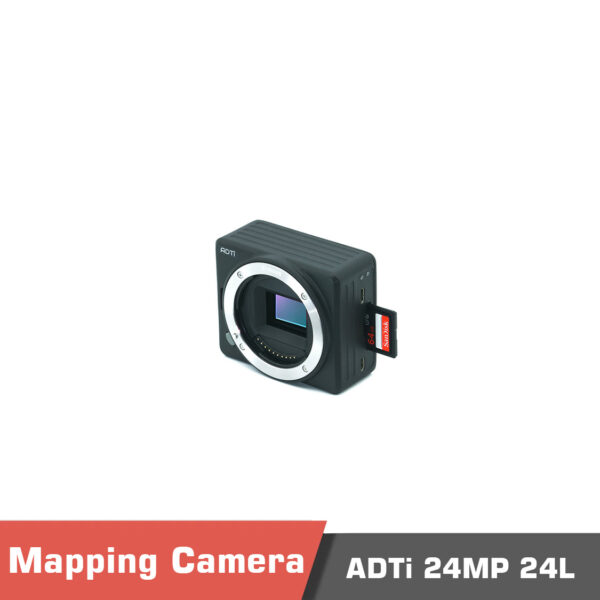

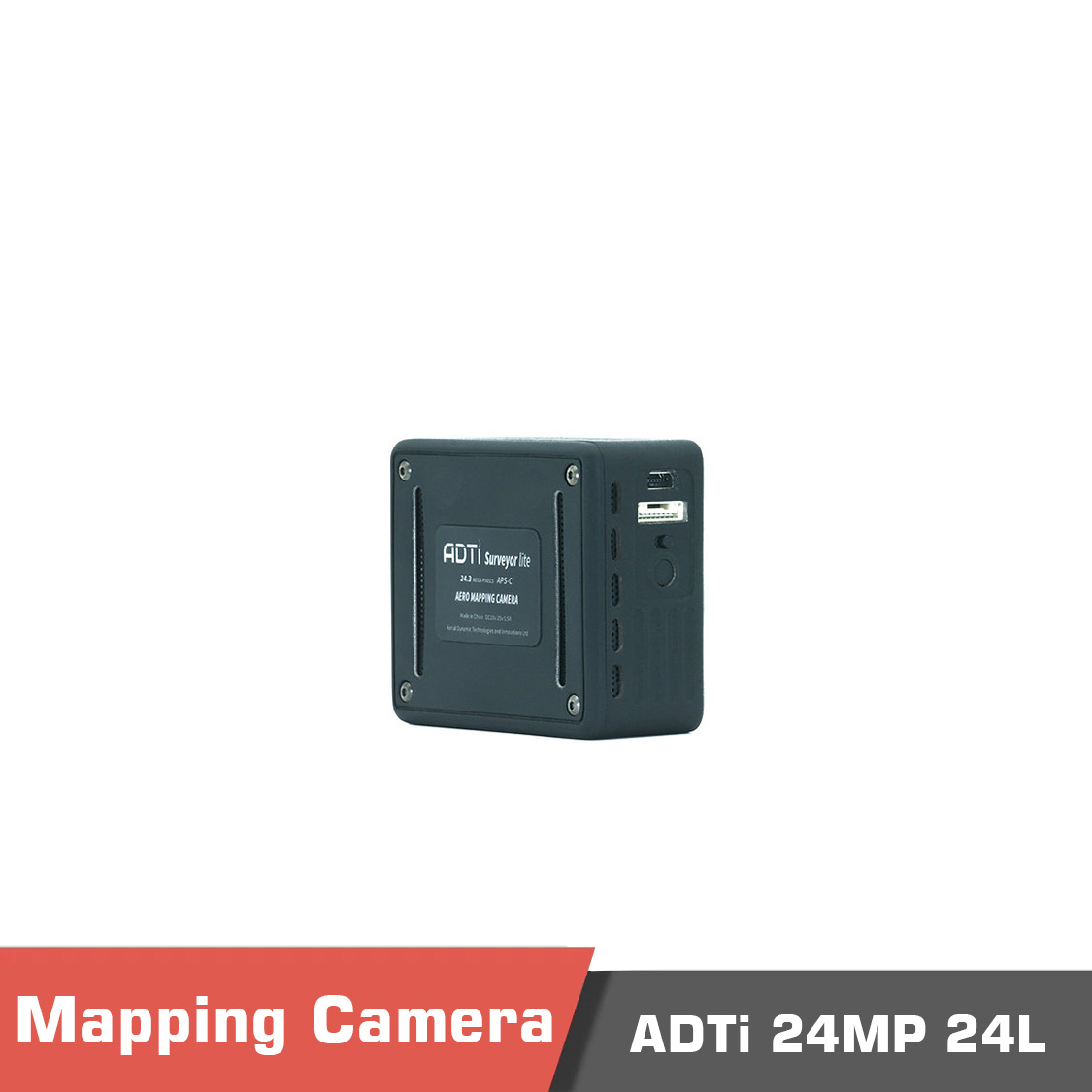

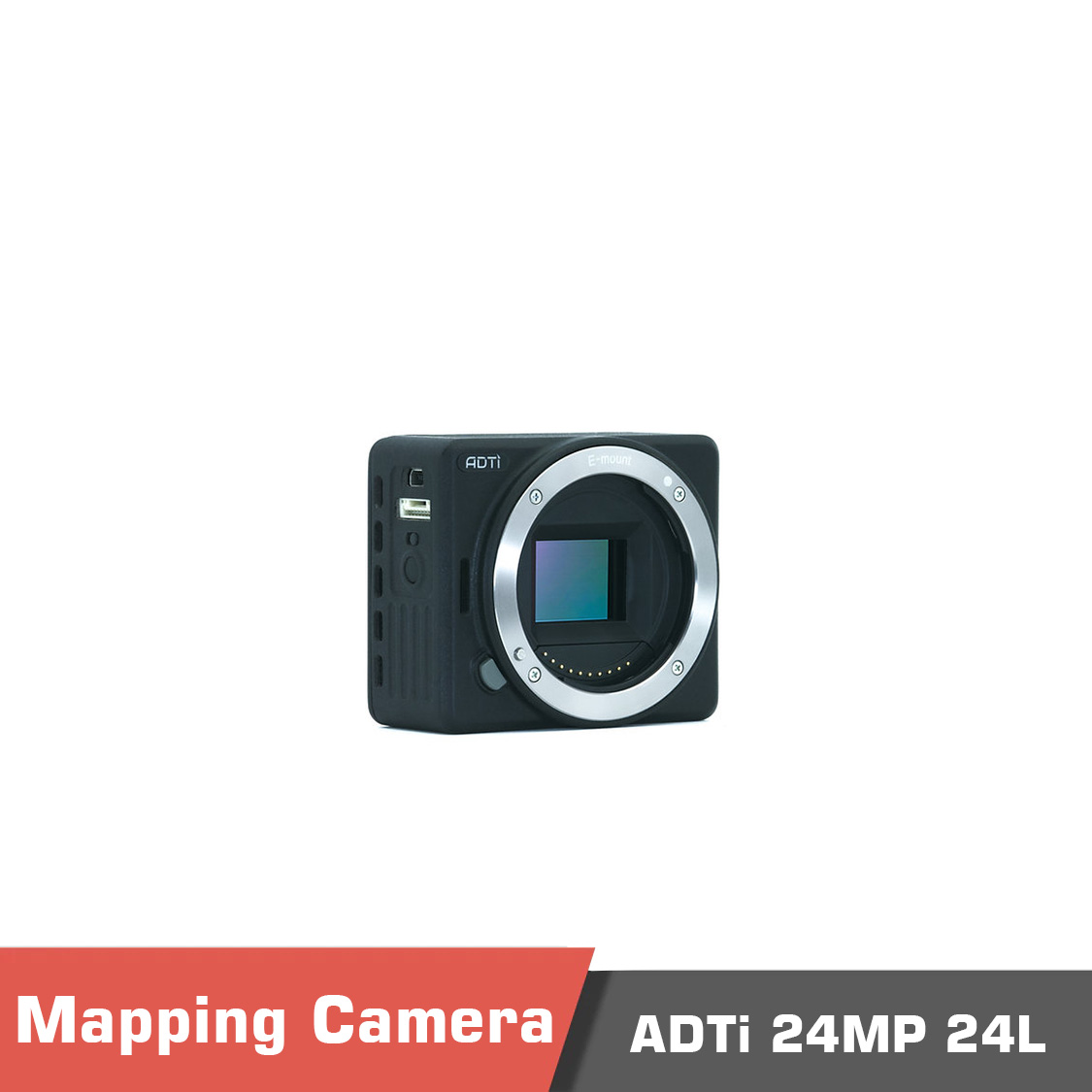

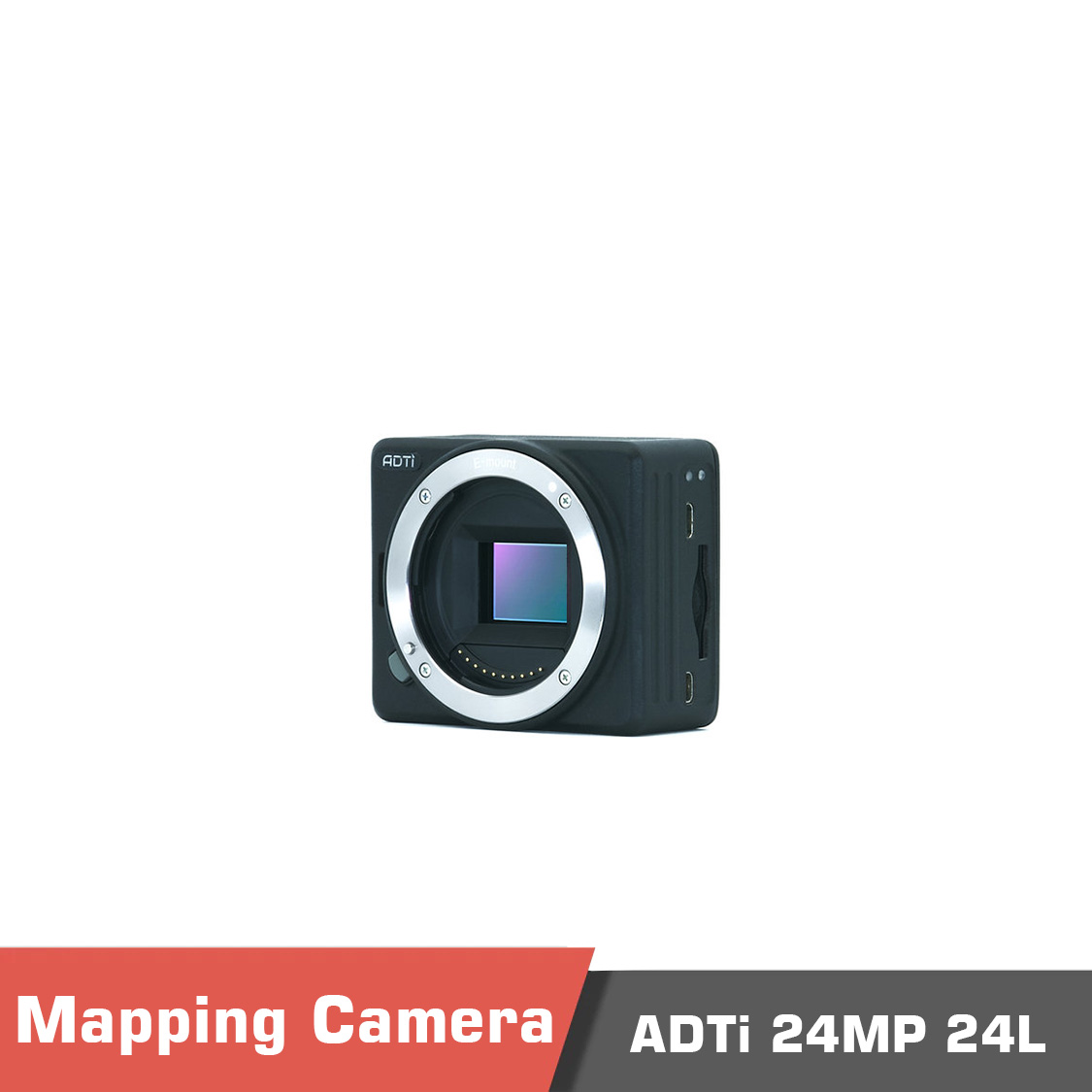

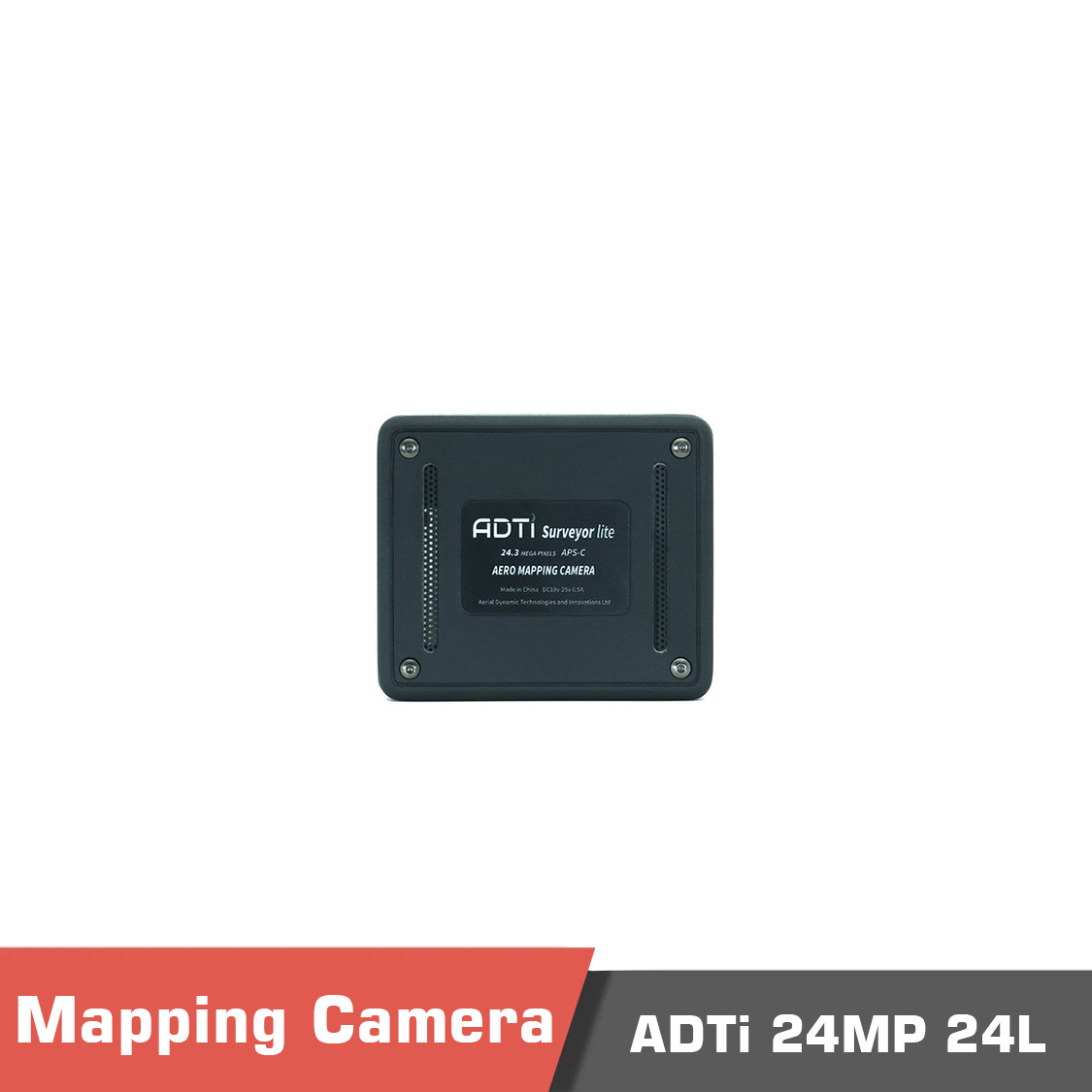

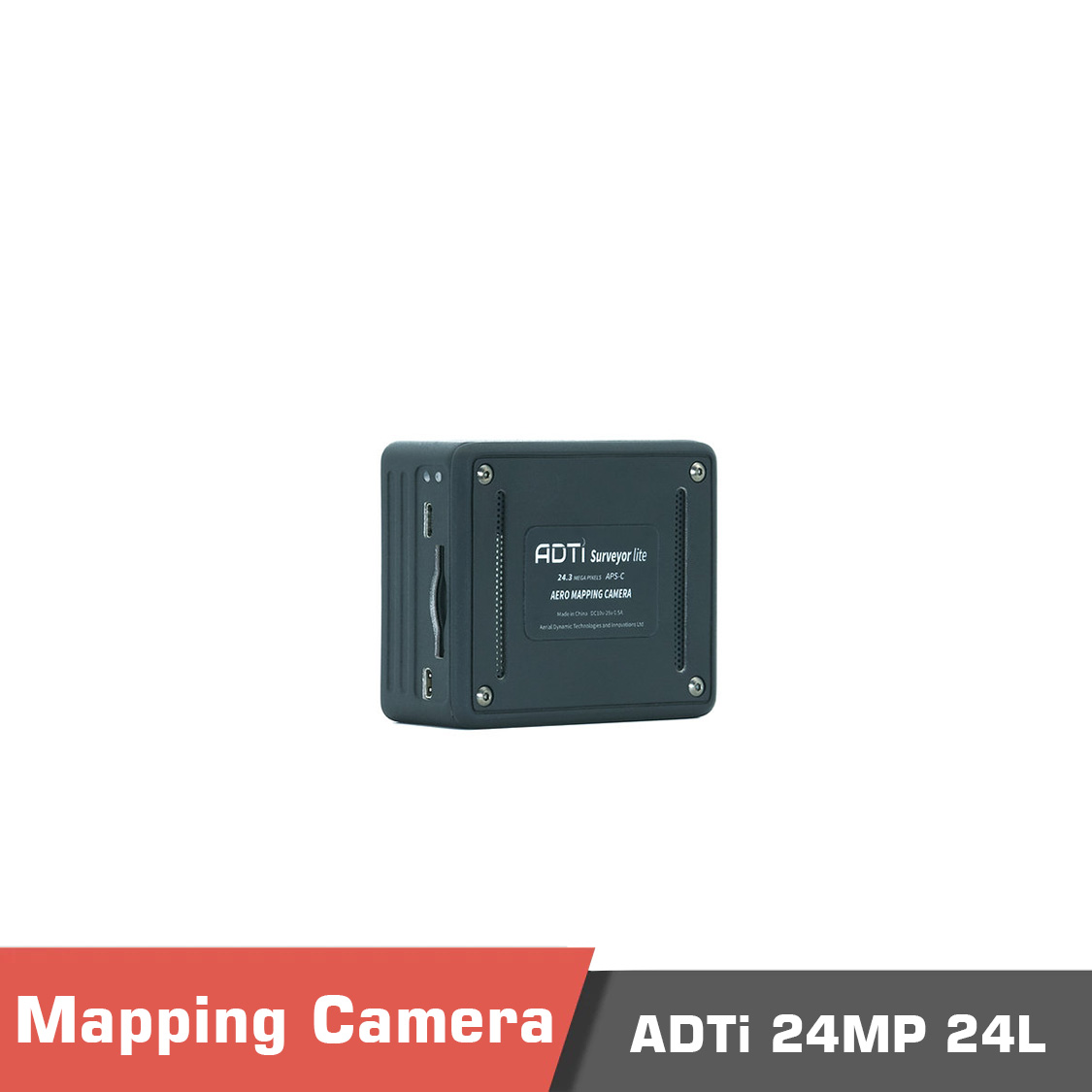

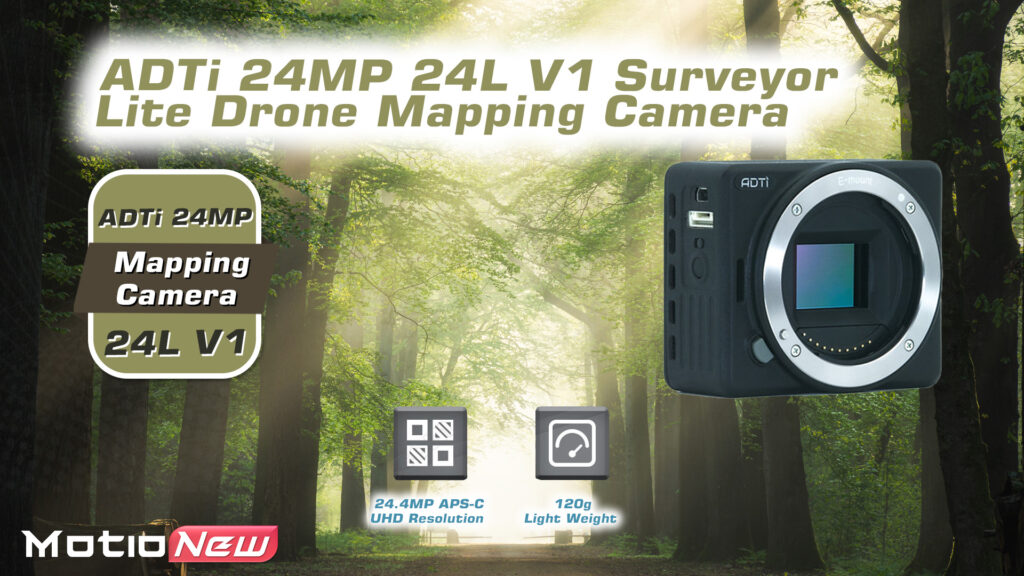

ADTi 24L V1 Surveyor Lite Mapping Camera is ADTi’s first generation of the 24MP APS-C Drone/UAV Mapping Cameras. It is easy to use (plug-and-play control panel), with an active cooling fan system. It works with most flight controllers and is compatible with PPK/RTK GNSS modules such as Emlid Reach for accurate mapping solutions. This camera is particularly effective when used in conjunction with a Gimbal Drone.
For a comprehensive reading of related products, please visit the Motionew website.
Simple FAQ (B2B & UAV Engineers)
1. What is the ADTi 24L V1 camera used for?
The ADTi 24L V1 is a 24 MP mapping camera designed for UAV-based photogrammetry and aerial surveying. It provides high-resolution image capture optimized for mapping workflows.
2. What are the key technical specifications?
It features a 24MP APS-C CMOS sensor, global shutter, built-in GNSS/IMU for PPK/RTK workflows, and supports automatic triggering during flight.
3. What UAV platforms is it compatible with?
The camera is compatible with various professional UAVs that support payload integration and trigger control via PWM or serial commands.
Business & Operational FAQs
4. Do you offer bulk purchasing or integration support for this camera?
Yes. We provide volume pricing and support for system integrators, drone manufacturers, and enterprise customers working on mapping solutions.
5. Is technical documentation and setup assistance included?
Absolutely. Motionew offers full technical documentation, including wiring diagrams, setup guides, and remote support.
6. What payment and invoicing methods are available for business clients?
We support international wire transfers, formal invoicing, and custom payment terms for eligible B2B partners.
Specifications
Sensor Type | CMOS |
Sensor Manufacturer | Sony |
Effective Megapixels | 24.3 |
Sensor Format | APS-C |
Sensor size | 366.6mm2 (23.50mm x 15.60mm) |
Approximate Pixel Pitch | 3.92 microns |
Focal Length Multiplier | 1.5x |
Aspect Ratio | 3:2 |
Color Filter Type | RGBG |
Anti Aliasing Filter | Fixed |
Color Depth (bits) | 23.8 |
Maximum Effective ISO | 1,347 |
Image Capture | |

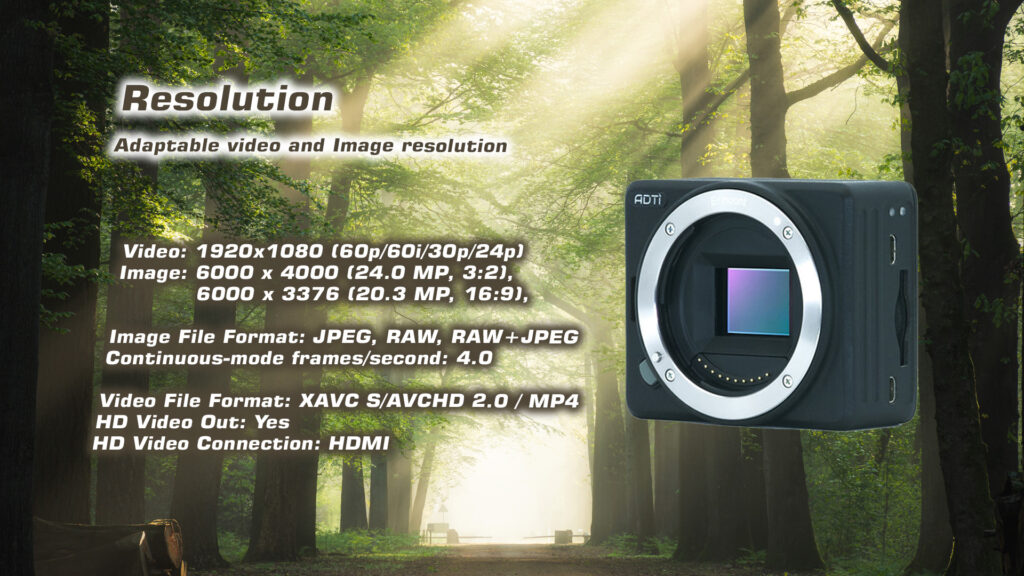

Image Resolution | 6000 x 4000 (24.0 MP, 3:2) 6000 x 3376 (20.3 MP, 16:9) 4240 x 2832 (12.0 MP, 3:2) 4240 x 2400 (10.2 MP, Other) 3008 x 2000 (6.0 MP, 3:2) 3008 x 1688 (5.1 MP, 16:9) 12416 x 1856 (23.0 MP, Other) 8192 x 1856 (15.2 MP, Other) 2160 x 5536 (12.0 MP, Other) 2160 x 3872 (8.4 MP, Other) |
Image File Format | JPEG, RAW, RAW+JPEG |
Continuous-mode frames/second | 4.0 |
Video Capture | |
Video Resolution | 1920×1080 (60p/60i/30p/24p) 1440×1080 (30p) 640×480 (30p) |
Video File Format | XAVC S/AVCHD 2.0 / MP4 |
HD Video Out | Yes |
HD Video Connection | HDMI |

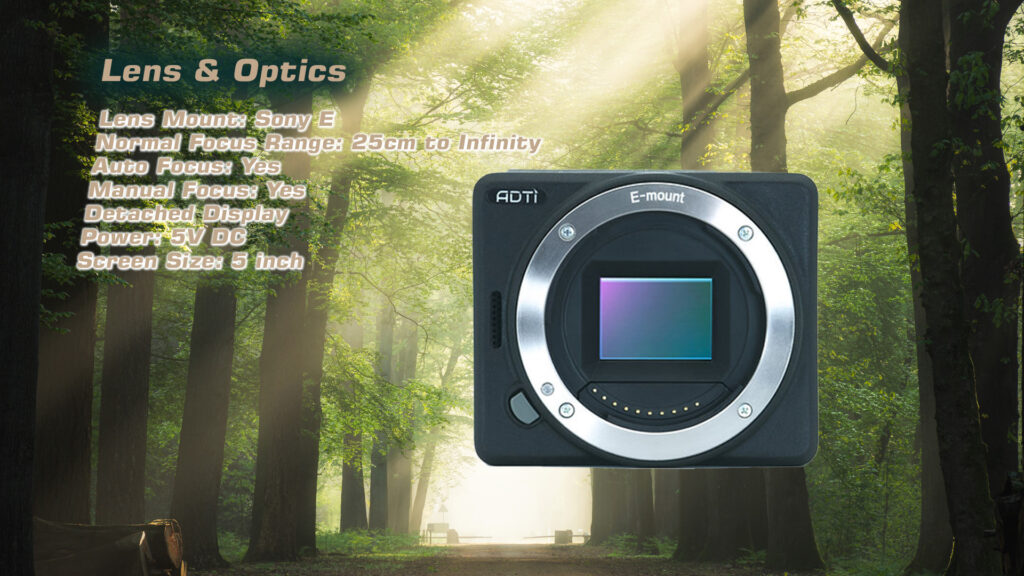

Lens & Optics | |

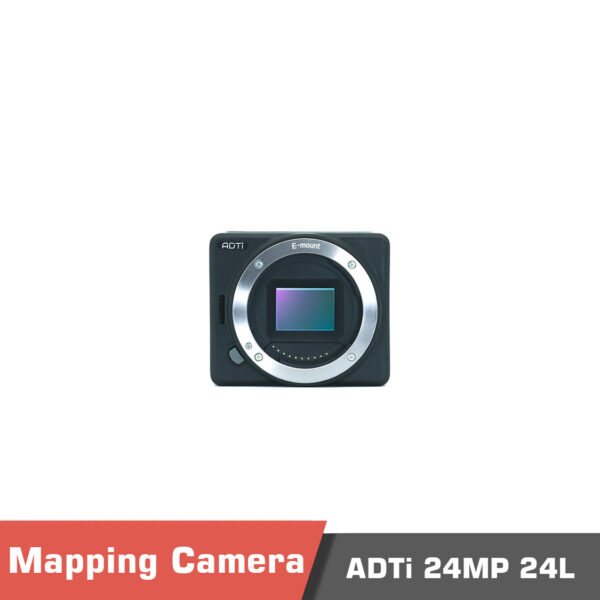

Lens Mount | Sony E |
Normal Focus Range | 25 cm to Infinity |
Auto Focus | Yes |
Manual Focus | Yes |
Display (detached) |
|
Power | 5V DC |
Buttons | Yes |
Screen Size | 5 inch |

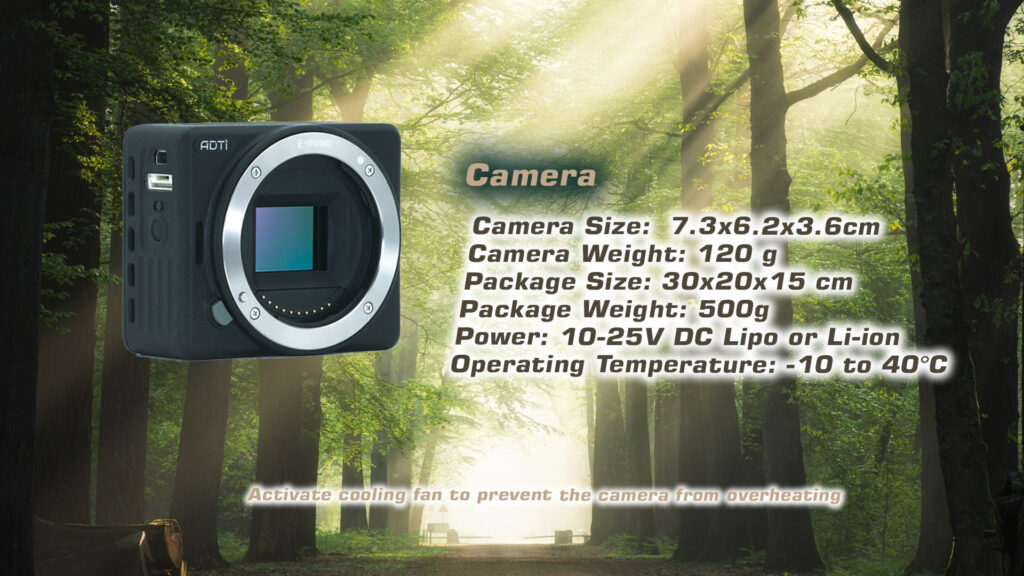

Camera |
|
Camera Size | 7.3×6.2×3.6 cm |
Camera Weight | 120 g |
Package Size | 30x20x15 cm |
Package Weight | 500 g |
Power | 10-25V DC Lipo or Liion |
Operating Temperature | -10 to 40°C |

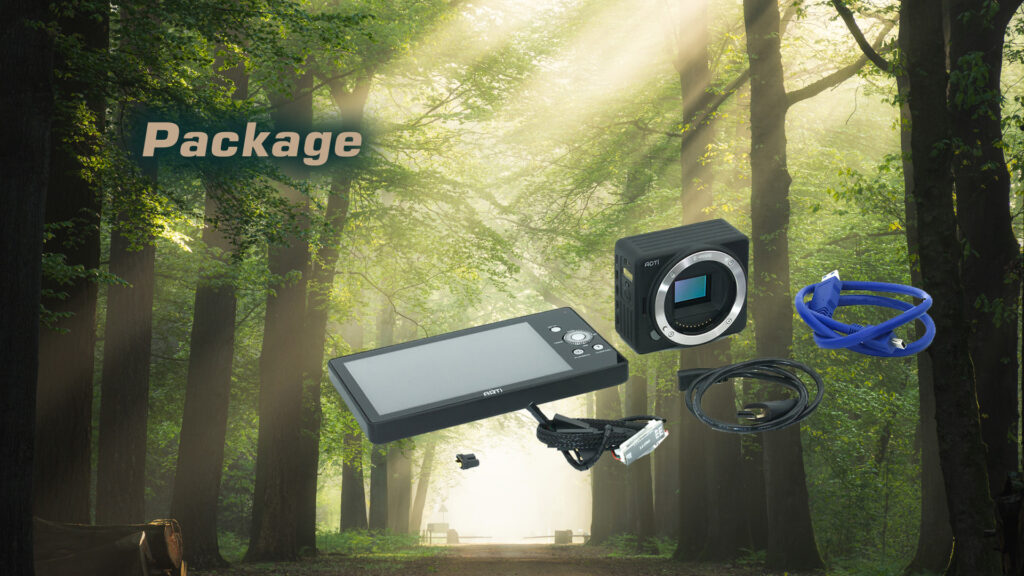

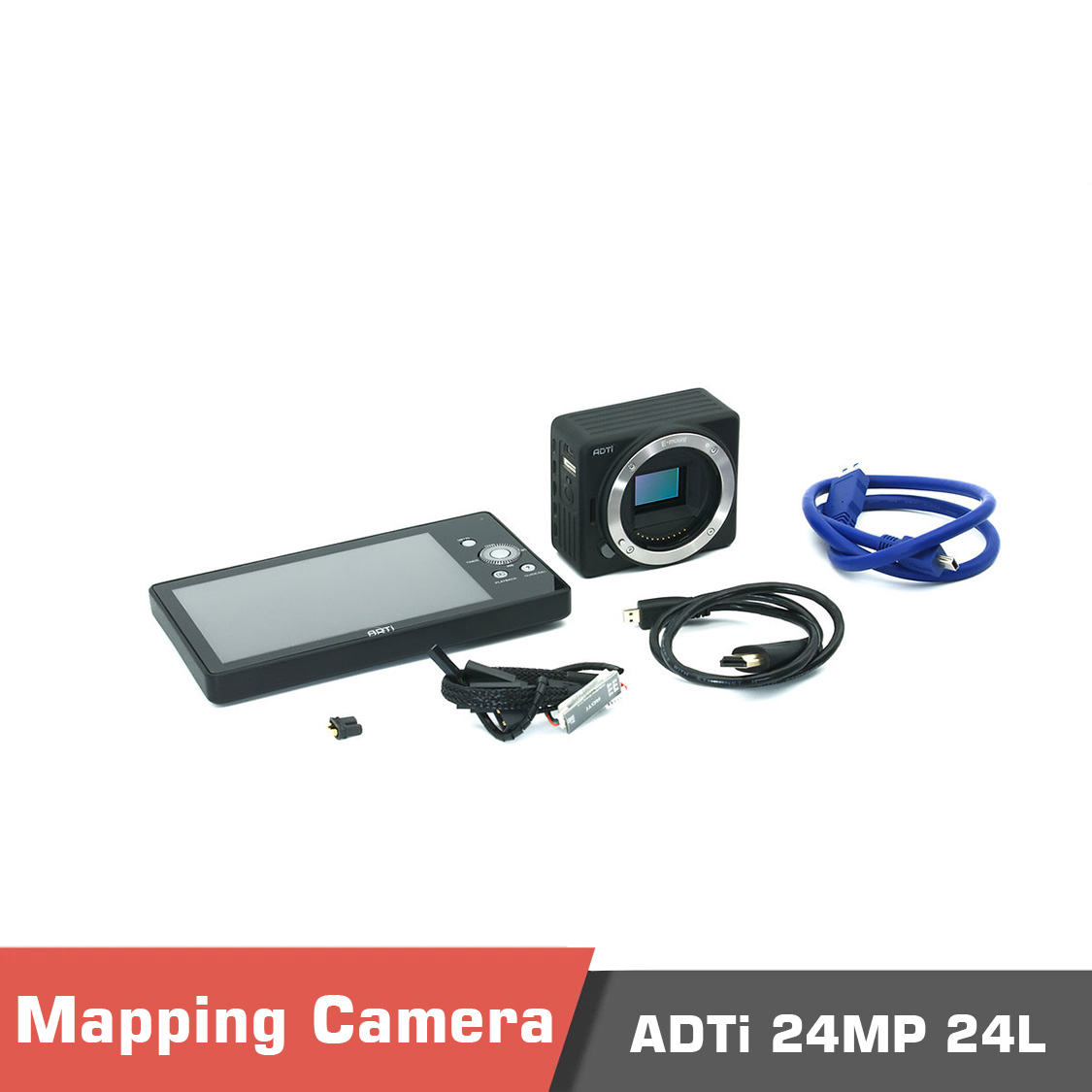

Product contents
