Gimbal Camera | Model Q818K | Dual EO 3.2mm and 16mm | 18mm Thermal

Payment Methods:

Payment methods - motionew - 8
Description

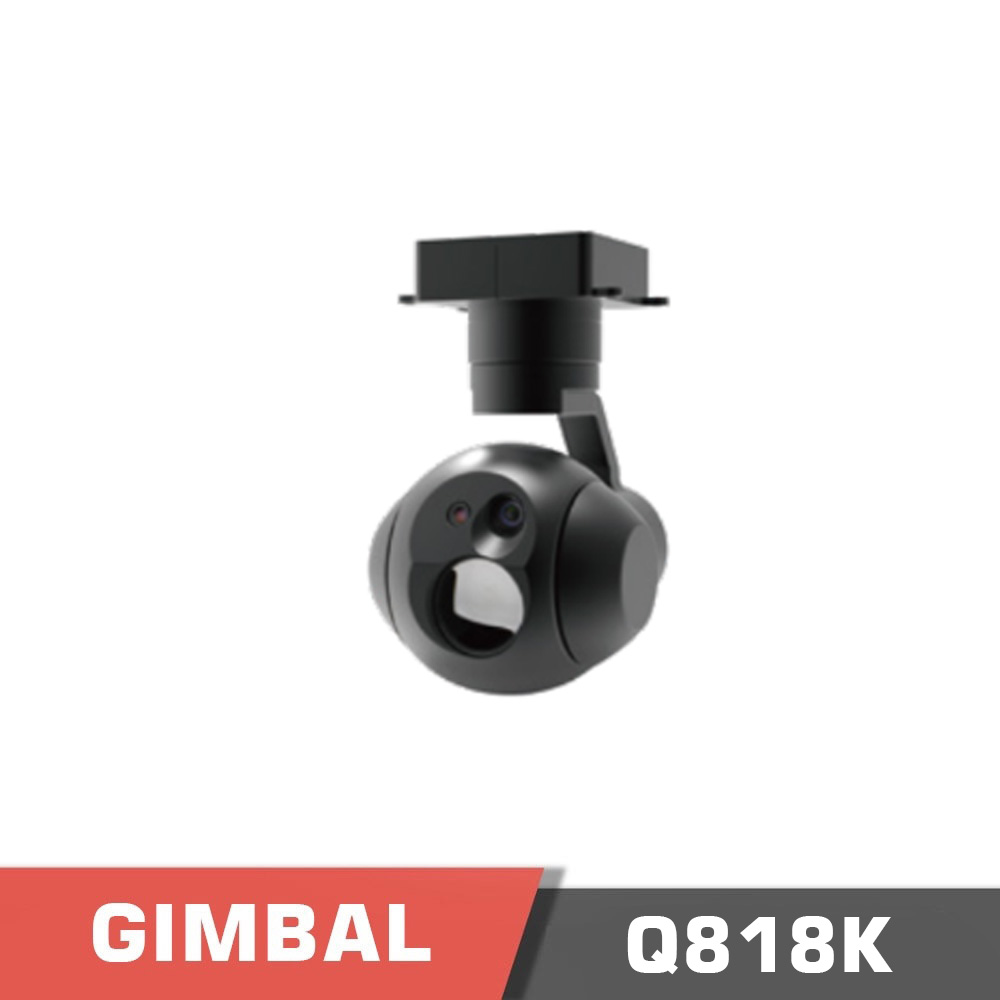

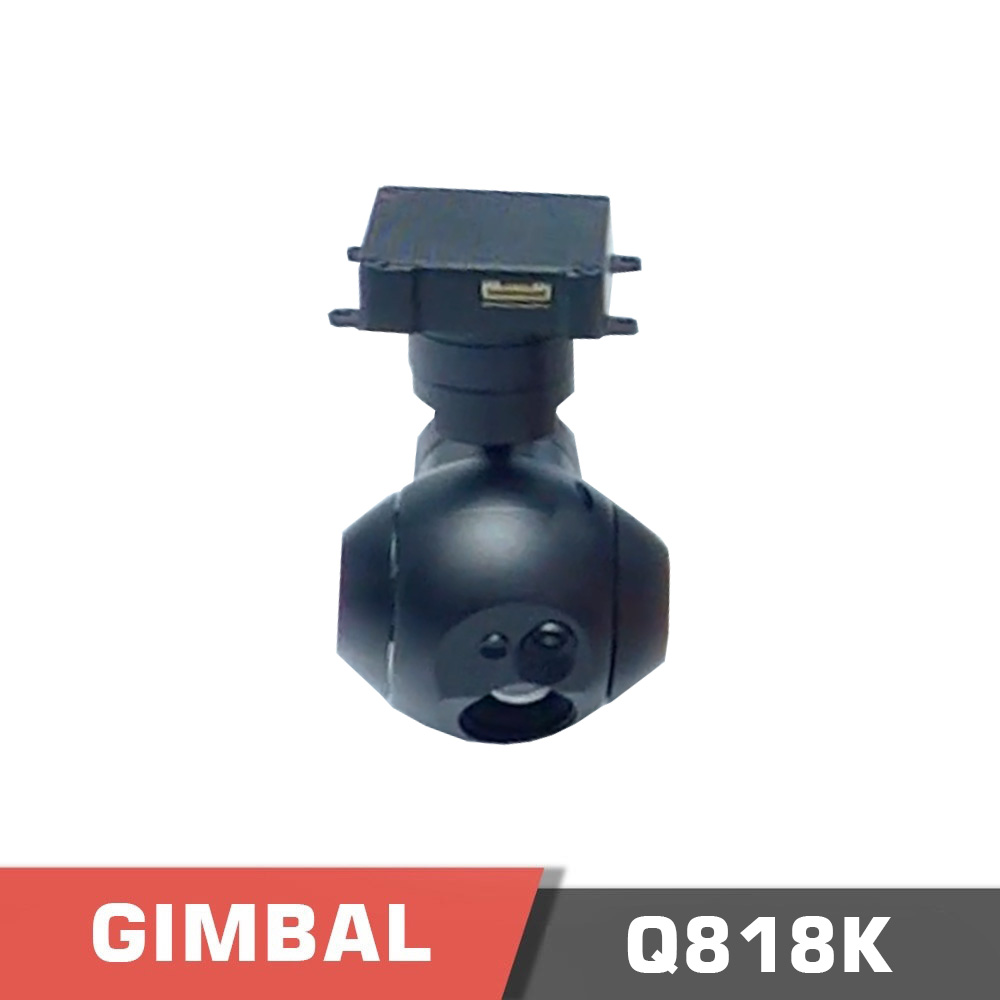

Q818K Gimbal Camera

Micro Prime Lens Dual 4K EO + IR Triple Sensor System with Object Tracking

The Q818K is a lightweight, high-performance gimbal camera system designed for compact UAV platforms requiring simultaneous 4K visible imaging, thermal detection, and object tracking. With its advanced triple-sensor integration and real-time IP output, it’s ideal for surveillance, inspection, and rescue operations in size-constrained environments.


🔍 Key Specifications

Feature Specification
EO Wide-Angle Camera 3.2mm lens, 83° × 53° FOV
EO Telephoto Camera 16mm lens, 20° × 11° FOV
Resolution 3840 × 2160 (Ultra HD 4K)
IR Thermal Imager 640 × 512 resolution, 18mm focal length, 12μm
Object Tracking Supported (✓)
Working Voltage 12–16V DC
Output IP (network stream)
Control Interface UART / TCP
Net Weight 210g
Dimensions 68.1 × 96.7 × 112.9 mm

🔧 Advanced Features

  • Triple Sensor Payload: Dual EO + IR sensors in one compact unit

  • Smart Object Tracking: Automated detection and tracking of moving subjects

  • Thermal Imaging: High-sensitivity thermal core (640×512, 12μm pixel pitch)

  • Compact & Lightweight: Ideal for micro drones and VTOLs

  • IP Output: Stream real-time video over network


🛠 Applications

  • Border patrol and reconnaissance

  • Law enforcement surveillance

  • UAV-based firefighting and rescue

  • Powerline or infrastructure inspection

  • Nighttime and low-visibility monitoring

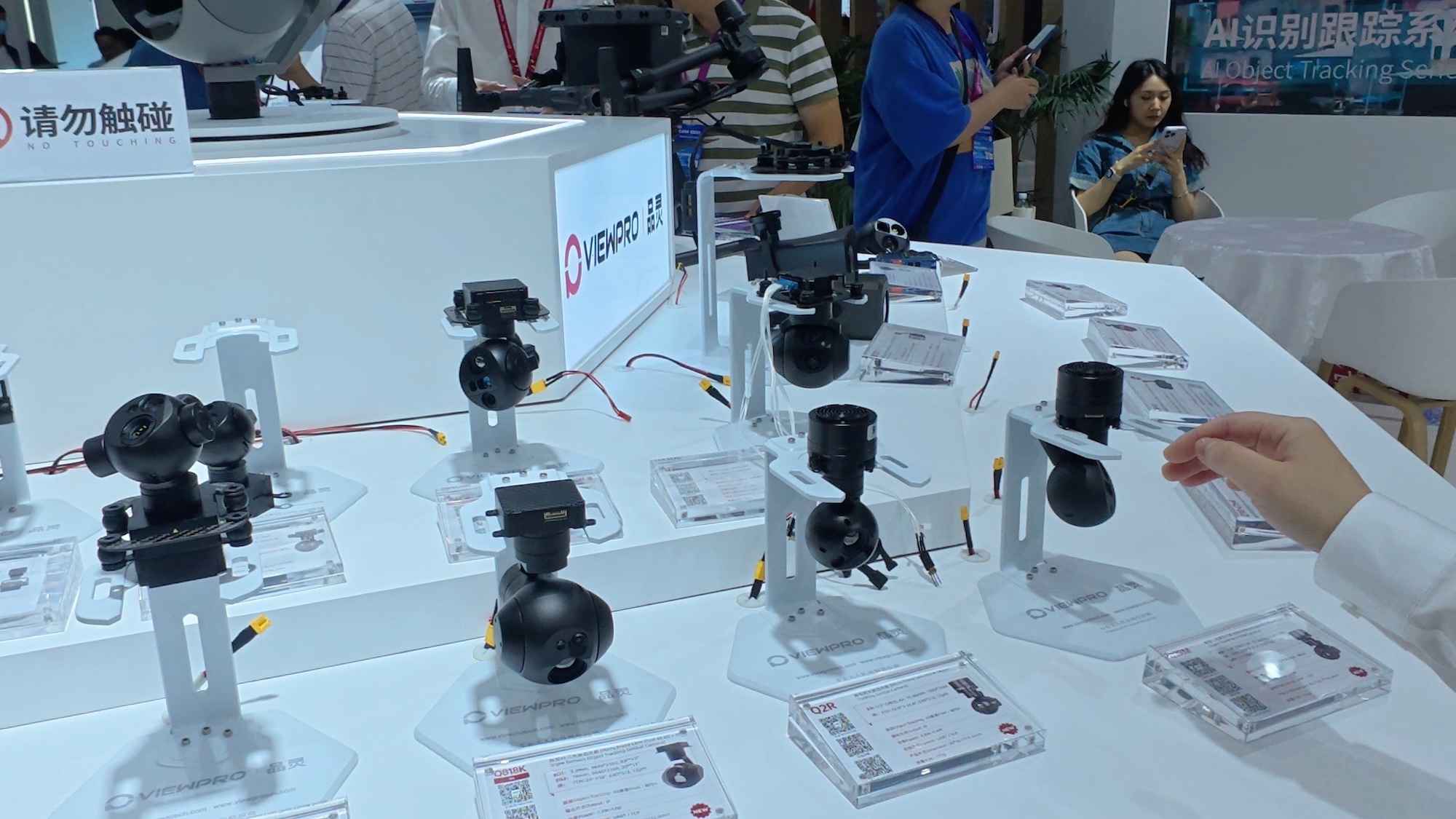

Q818k t1 - motionew - 4

For a comprehensive reading of related products, please visit the Motionew website.

Specifications

Specifications

Feature Specification
EO Wide-Angle Camera 3.2mm lens, 83° × 53° FOV
EO Telephoto Camera 16mm lens, 20° × 11° FOV
Resolution 3840 × 2160 (Ultra HD 4K)
IR Thermal Imager 640 × 512 resolution, 18mm focal length, 12μm
Object Tracking Supported (✓)
Working Voltage 12–16V DC
Output IP (network stream)
Control Interface UART / TCP
Net Weight 210g
Dimensions 68.1 × 96.7 × 112.9 mm
Product contents

Product contents

Please contact us for more information.

Documents

Documents

click here to download Model Q818K.Manual

Reviews
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “Gimbal Camera | Model Q818K | Dual EO 3.2mm and 16mm | 18mm Thermal”

Specification:

Gimbal Control Method

Ethernet

,

PWM

,

SBUS

,

UART

Number of Sensors

3 Sensors

EO Sensor resolution

3840×2160 (4k UHD)

Thermal Sensor Lens

18mm

Thermal Sensor resolution

640×512

AI Object Tracking

No

Gimbal Video Output

Ethernet

Gimbal Weight

210g

Gimbal Dimensions

68.1×96.7×112.9mm

EO Sensor Lens

16mm

,

3.2mm
