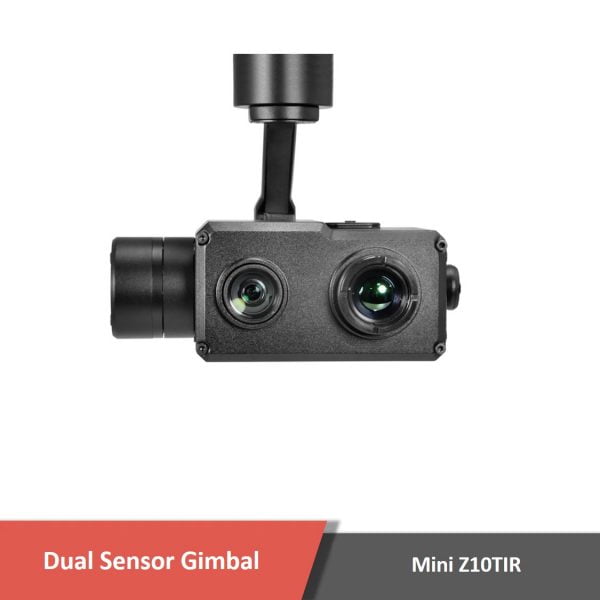

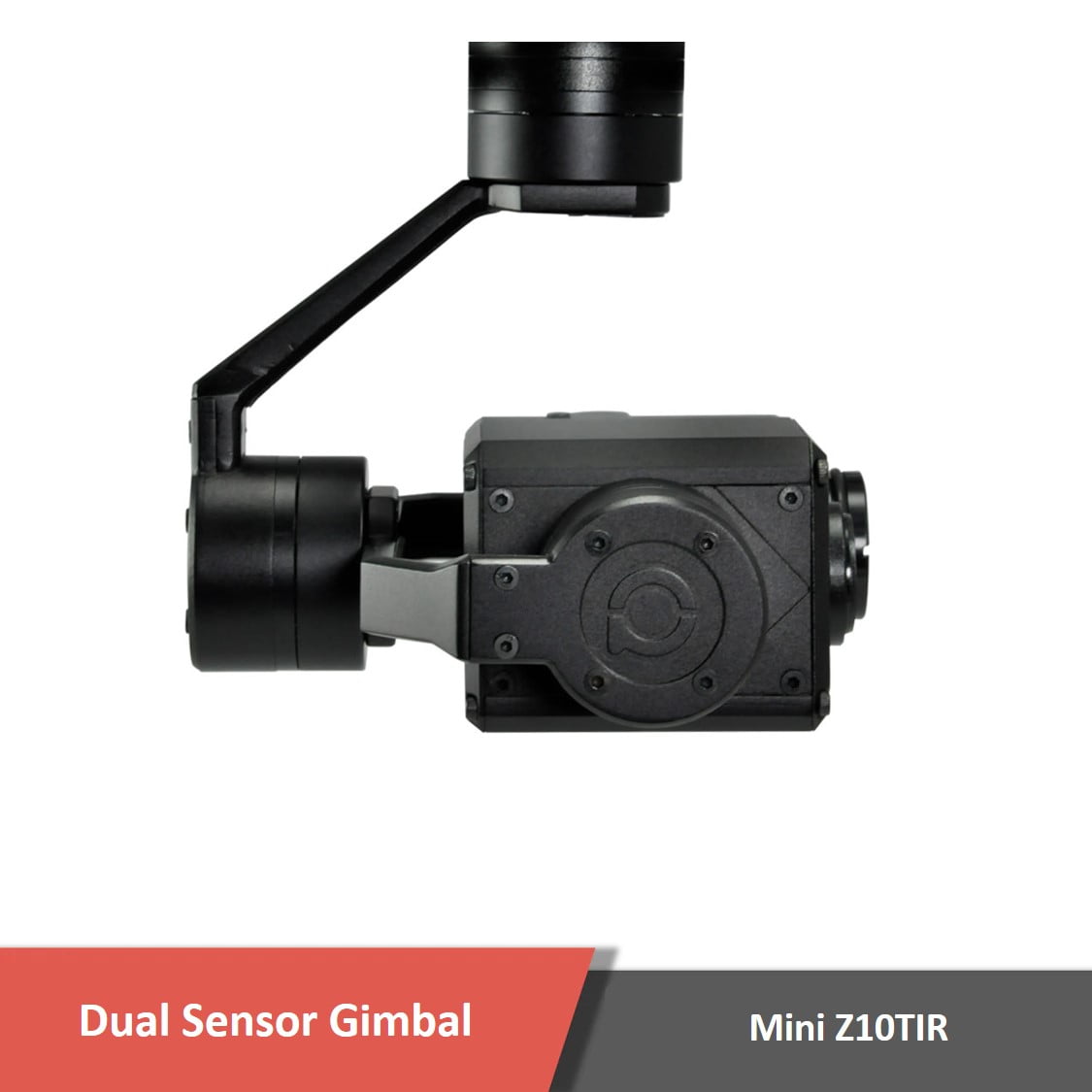

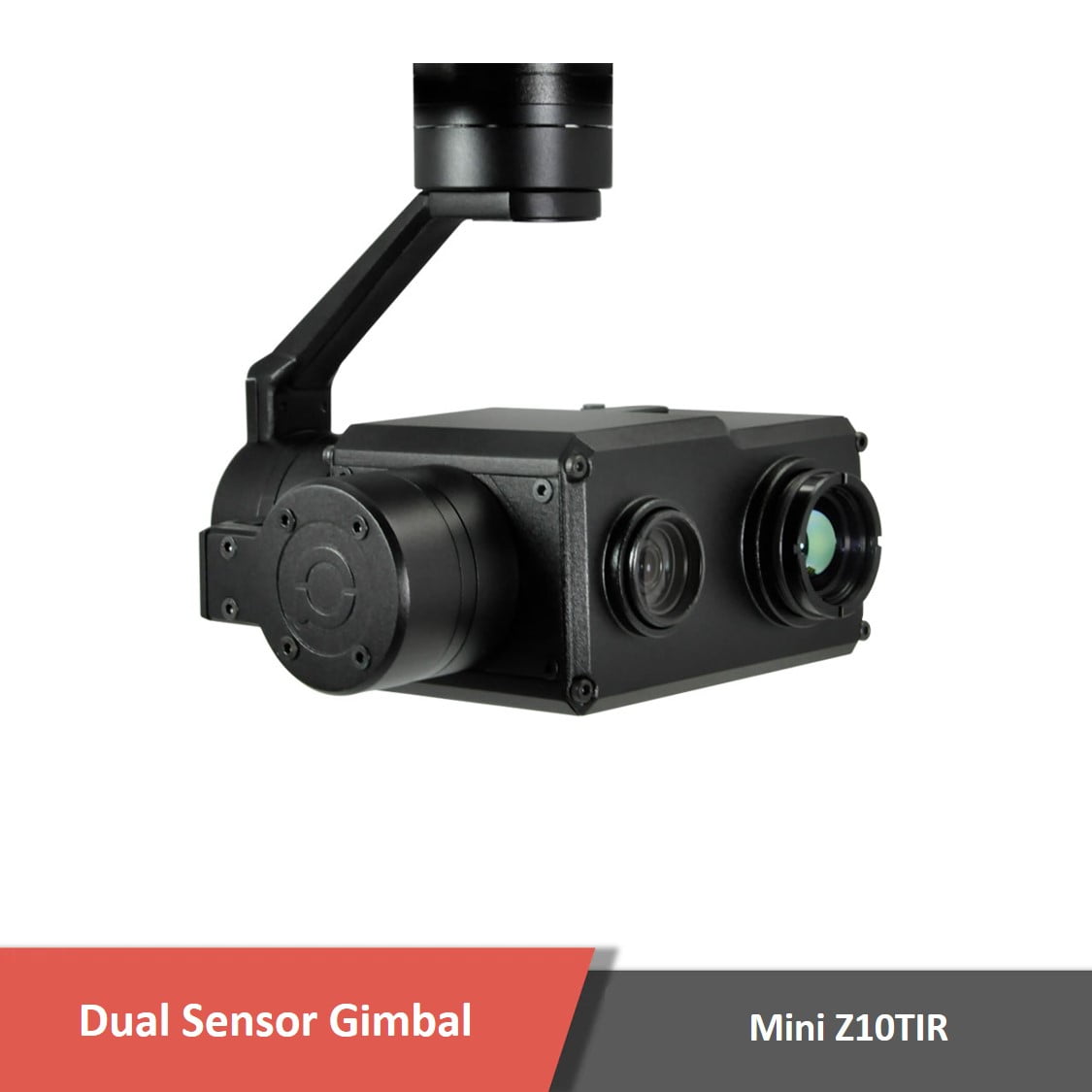

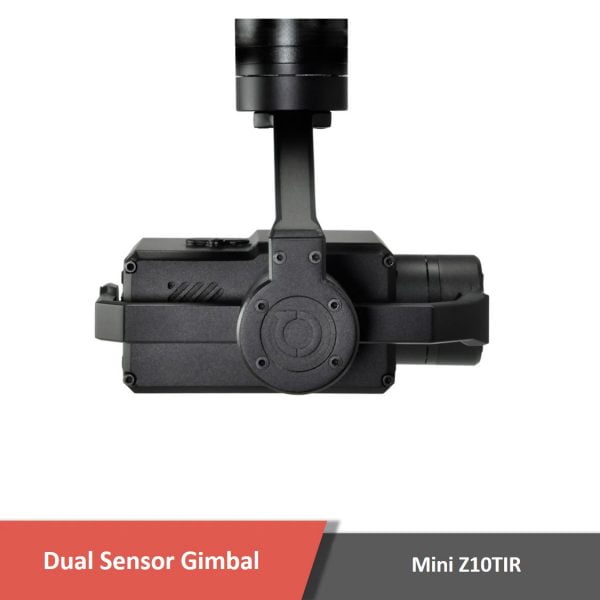

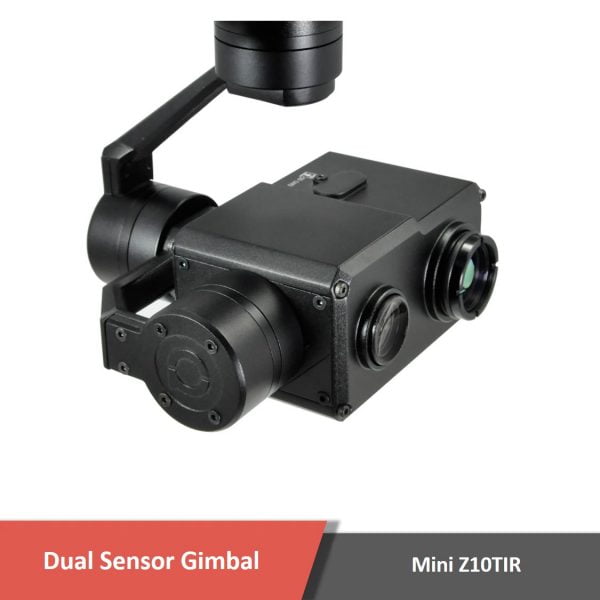

Dual Sensor Gimbal Mini Z10TIR Thermal Camera

11999.00 $

Description

Professional 3-axis High-precise FOC Program

Stabilizing the Mini Z10TIR is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.02° powered by a dedicated
processor. Rather than rely on electrical slip rings – as is common with many gimbals – the Mini Z10TIR uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamlessly smooth video. 360°rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even when flying at high speed flight.

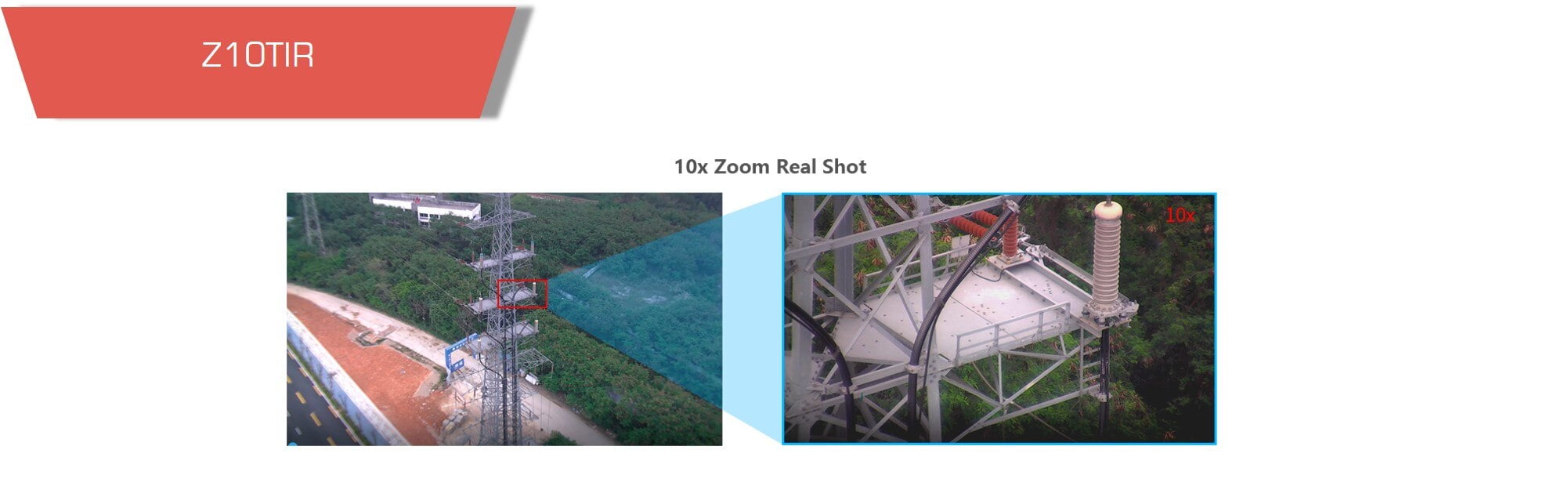

10x Zoom Camera

Powered by 1/3″ CMOS module, with color [email protected]. 2.48mega effective pixel and 1080p FHD image quality, combined with powerful optical zoom technology, fast auto-focus speed,designed for UAV aerial photography.

Dual sensor tracking thermal camera gimbal z10tir/ night vision p1 motionew



Powerful 25mm Thermal Imager

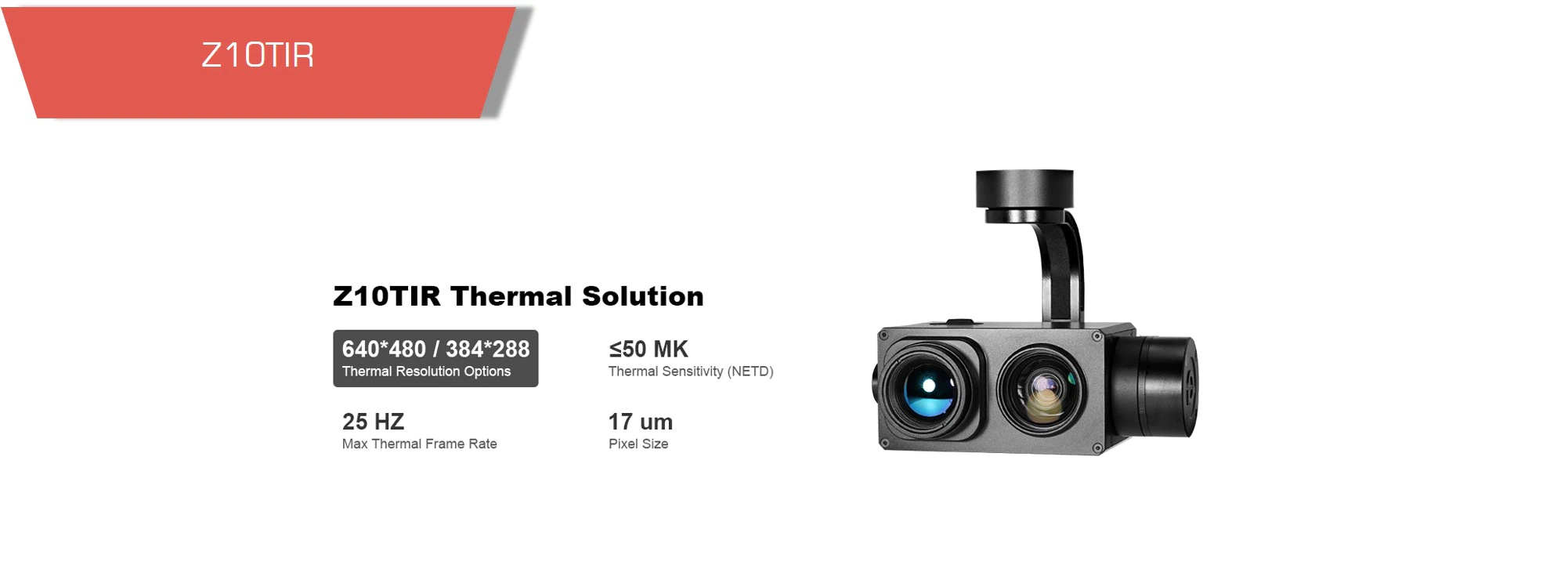

Integrated French ULIX high-precision uncooled long wave (8μm ~14μm ) with 25mm lens thermal image sensor, Z10TIR can record and transmit thermal image and
visible images at the same time. There are two different thermal resolutions for optional: 640*480 as standard version and 384*288 resolution as low configuration. See the unseen. ULIX thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal when equipment or buildings are damaged, the location of lost people and much more.

Dual sensor tracking thermal camera gimbal z10tir/ night vision p2 motionew

Visible Light and Thermal Imager Dual Sensors Object Tracking

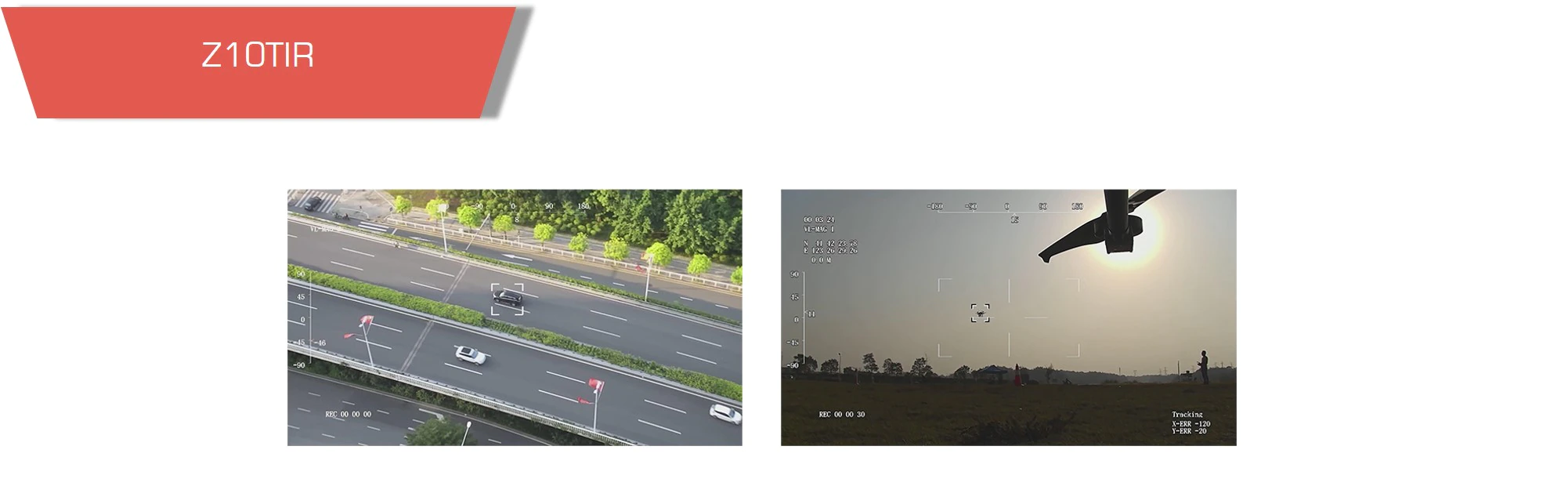

Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame,object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4dB, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.

Dual sensor tracking thermal camera gimbal z10tir/ night vision p3 motionew

Multi Output Methods Optional

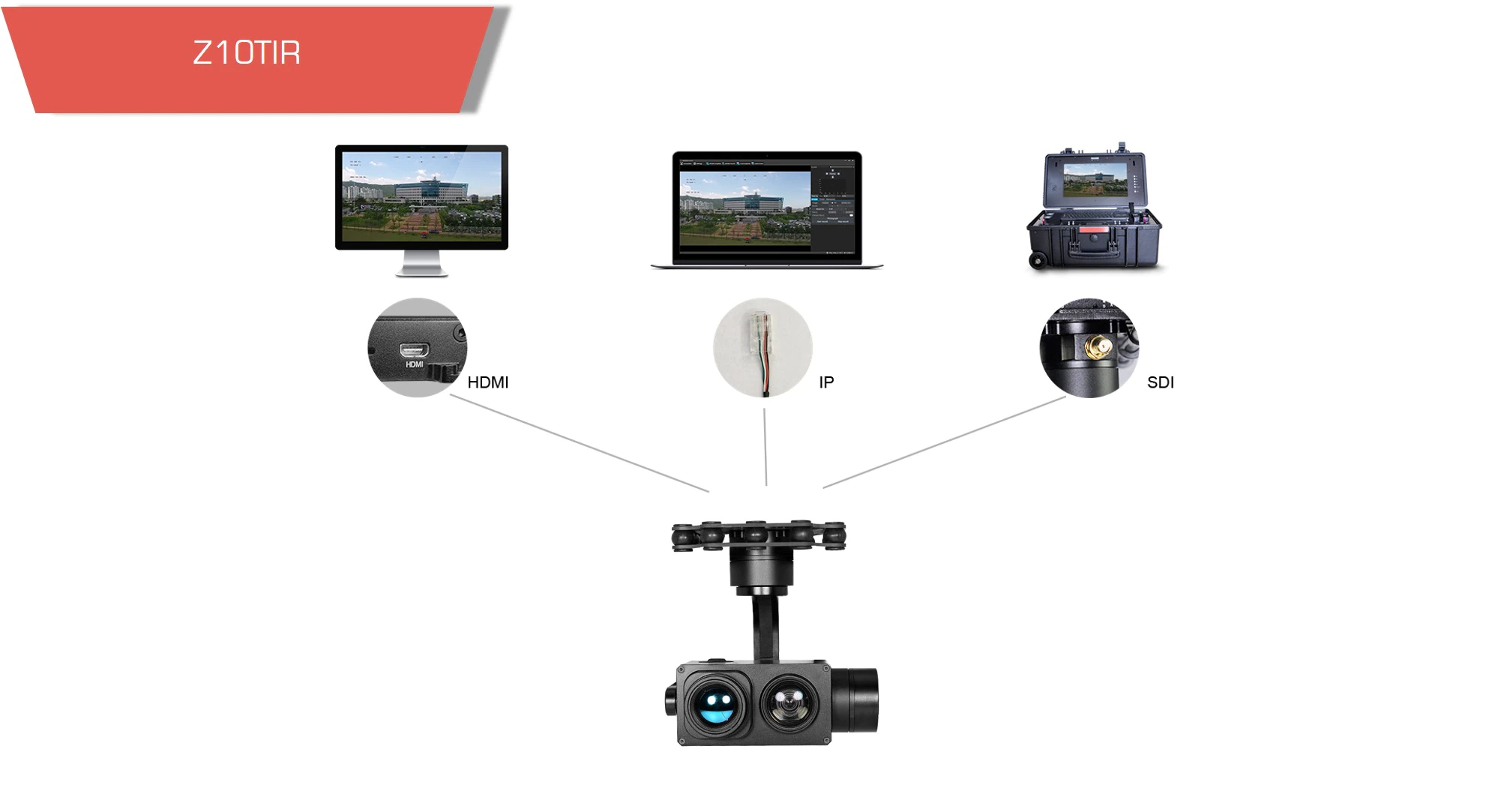

Mini Z10TIR supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.

Dual sensor tracking thermal camera gimbal z10tir/ night vision p4 motionew

Multi Control Methods

Defualt PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.

Dual sensor tracking thermal camera gimbal z10tir/ night vision p5 motionew

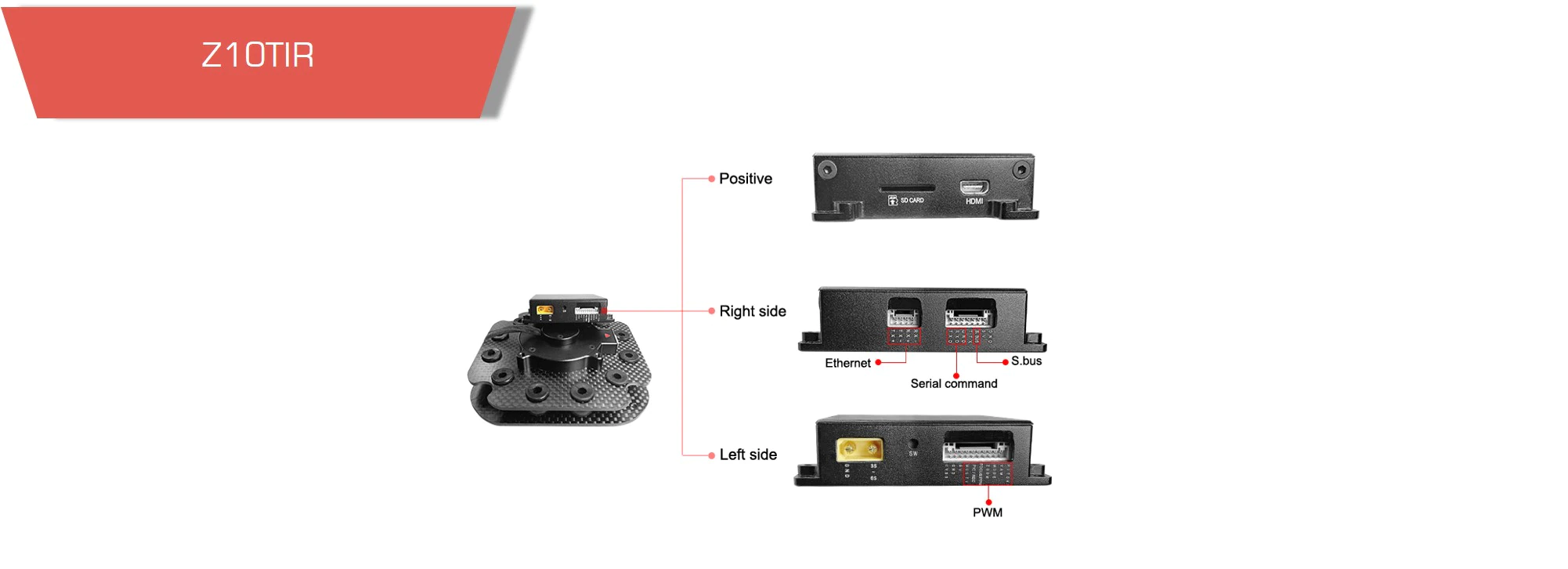

Control box signal interfaces:

Dual sensor tracking thermal camera gimbal z10tir/ night vision p6 motionew

Compatible with Viewport

Mini Z10TIR is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.

Dual sensor tracking thermal camera gimbal z10tir/ night vision p7 motionew

Application of  Mini Z10TIR

Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.

Dual sensor tracking thermal camera gimbal z10tir/ night vision p8 motionew

Dimension

Dual sensor tracking thermal camera gimbal z10tir/ night vision p9 motionew







Additional information

Weight 0.750 kg
Dimensions 14 × 14 × 15 cm

Specifications

Hardware Parameter
Working voltage 12V ~ 16V
Input voltage 3S ~ 4S
Output voltage 5V (connect with PWM)
Dynamic current 550mA @ 12V
Idle current 450mA @ 12V
Power consumption ≤ 6.6W
Working environment temp. -20℃ ~ +60℃
Output micro HDMI(HD output 1080P 60fps) / IP / Skyport (subject to actual product)
Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method PWM  / TTL / S.BUS / DJI Pilot
Gimbal Spec
Pitch/Tilt ±90°
Roll ±85°
Yaw/Pan ±360°*N
Vibration angle Pitch/Roll: ±0.01°, Yaw:±0.01°
One-key to center
Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel <10ms
Minimum object contrast 5%
SNR 4
Minimum object size 16*16 pixel
Maximum object size 160*160 pixel
Tracking speed ±32 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel
Camera Spec
Imager Sensor SONY sensor 1/3″ CMOS
Picture quality Full HD 1080 (1920*1080)
Effective pixel 4.08MP
Lens optical zoom 10x, F=3.2~33.6mm
Digital zoom None
Min object distance 10mm(wide end) to 800mm(tele end)
Horizontal viewing angle 62°(wide end) ~ 6.5°(tele end)
Sync system Internal
S/N ratio more than 52dB
Min illumination 0.5 lx (1/30s, F1.8, 50%)
Gain Auto / Manual
White balance ATW1 (Narrow), ATW2 (Wide), single touch, manual (B, R)
Shutter speed 1/1s to 1/10,000s
Backlight compensation Yes
Aperture control 16 steps
OSD Yes
Photo format JPEG
Video format MP4
Thermal imager spec
Lens size 19mm
Horizontal FOV 32°
Vertical FOV 24°
Diagonal FOV 39.4°
Detective Distance (Man: 1.8×0.5m) 559 meters
Recognize Distance (Man: 1.8×0.5m) 140 meters
Verified Distance (Man: 1.8×0.5m) 70 meters
Detective Distance (Car: 4.2×1.8m) 1714 meters
Recognize Distance (Car: 4.2×1.8m) 428 meters
Verified Distance (Car: 4.2×1.8m) 214 meters
Working mode Uncooled long wave (8μm~14μm) thermal imager
Detector pixel 640*480
Pixel size 17μm
Focusing method Athermal prime lens
Emissivity correction 0.01~1
NETD ≤50mK (@25℃)
MRTD ≤650mK (@characteristic frequency)
Image enhancement Auto adjust image brightness and contrast ratio
Color palette White, iron red, pseudo color
Auto Non-uniform correction Yes (no shutter)
Digital zoom 1x~4x
Sync correct time Yes
Thermometry type Not Support
Temperature warning 0℃~100℃
Thermal Object Tracking
Update rate of deviation pixel 25Hz
Output delay of deviation pixel <3ms
Minimum object size 16*16 pixel
Maximum object size 128*128 pixel
Tracking speed ±32 pixel/frame
Object memory time 100 frames (4s)
Packing Information
N.W. 469g
Product meas. 118*109*120mm

Product contents

Product contents

Documents
