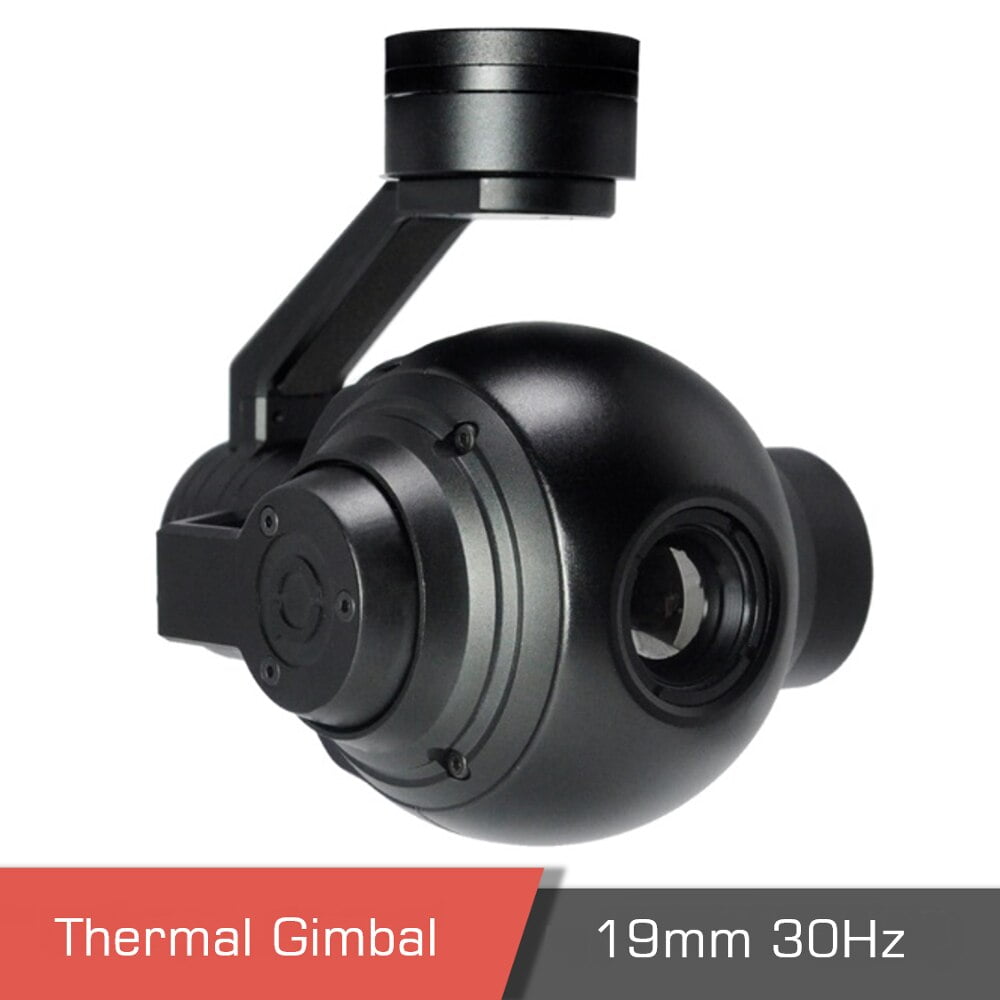

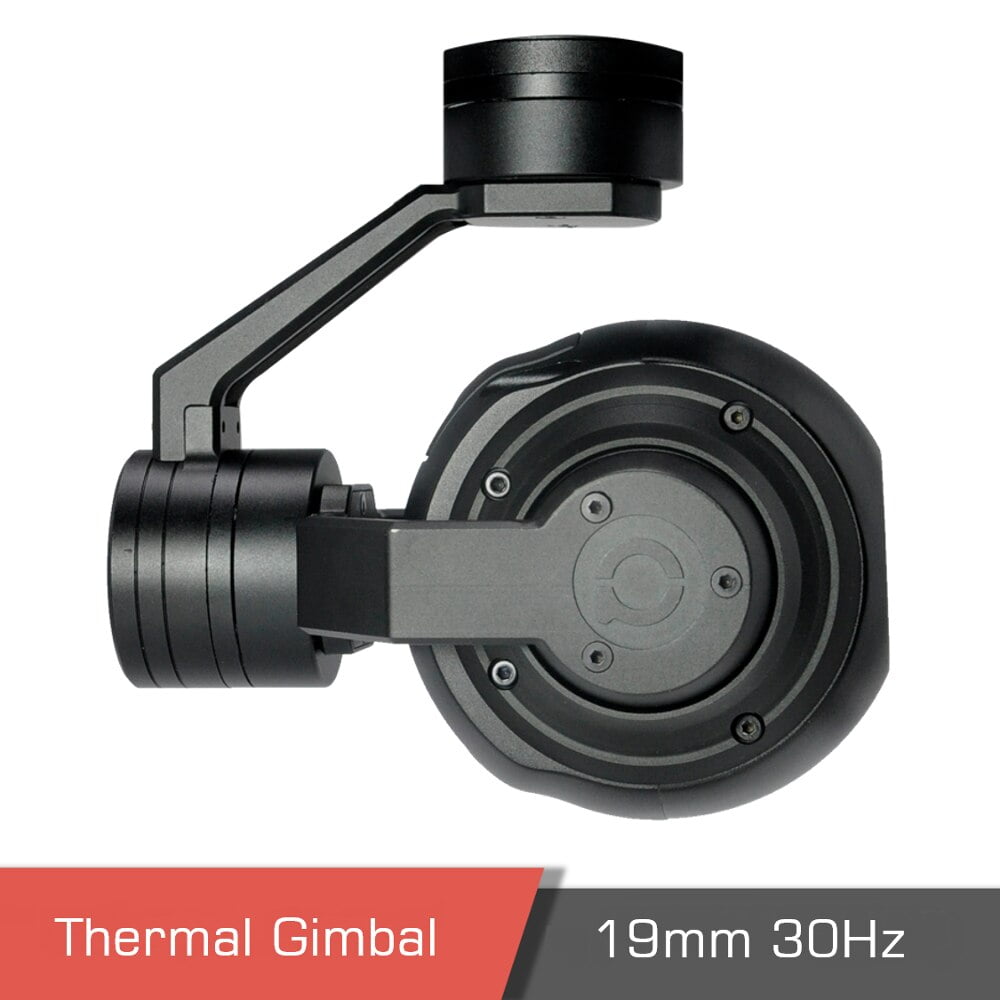

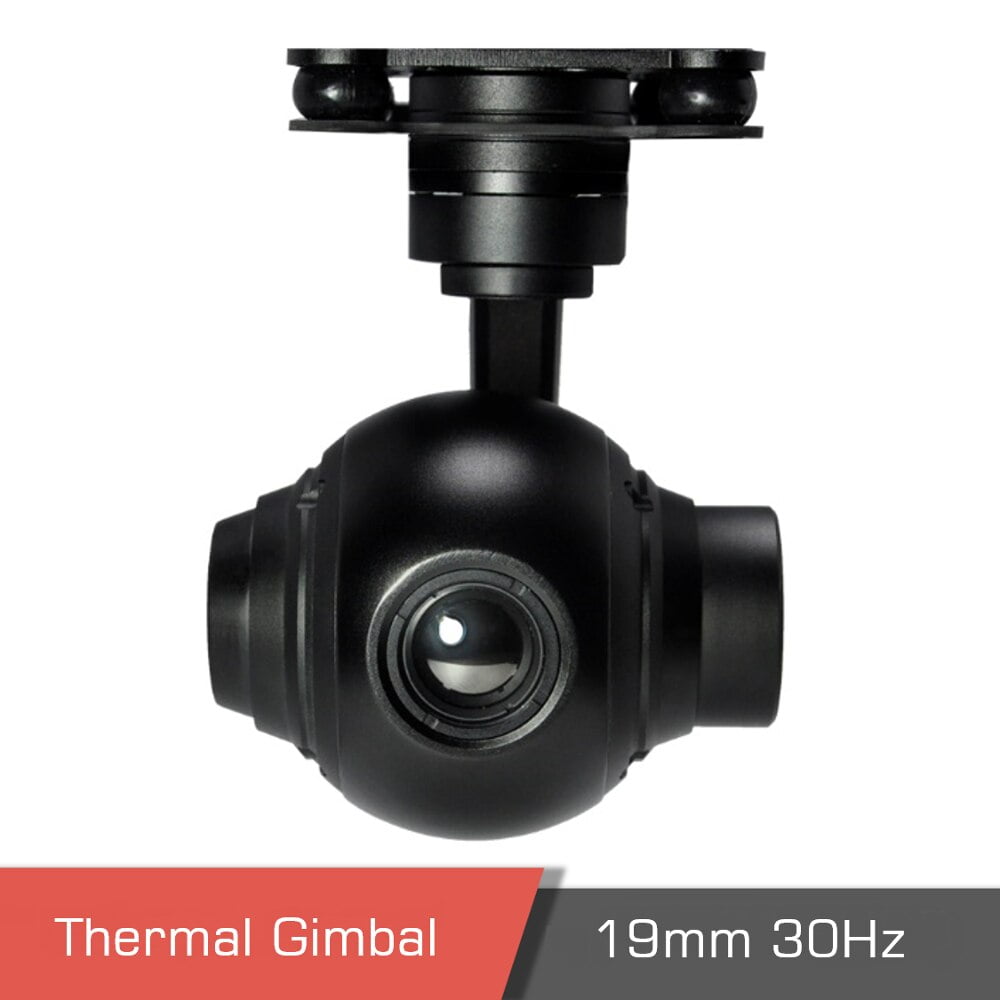

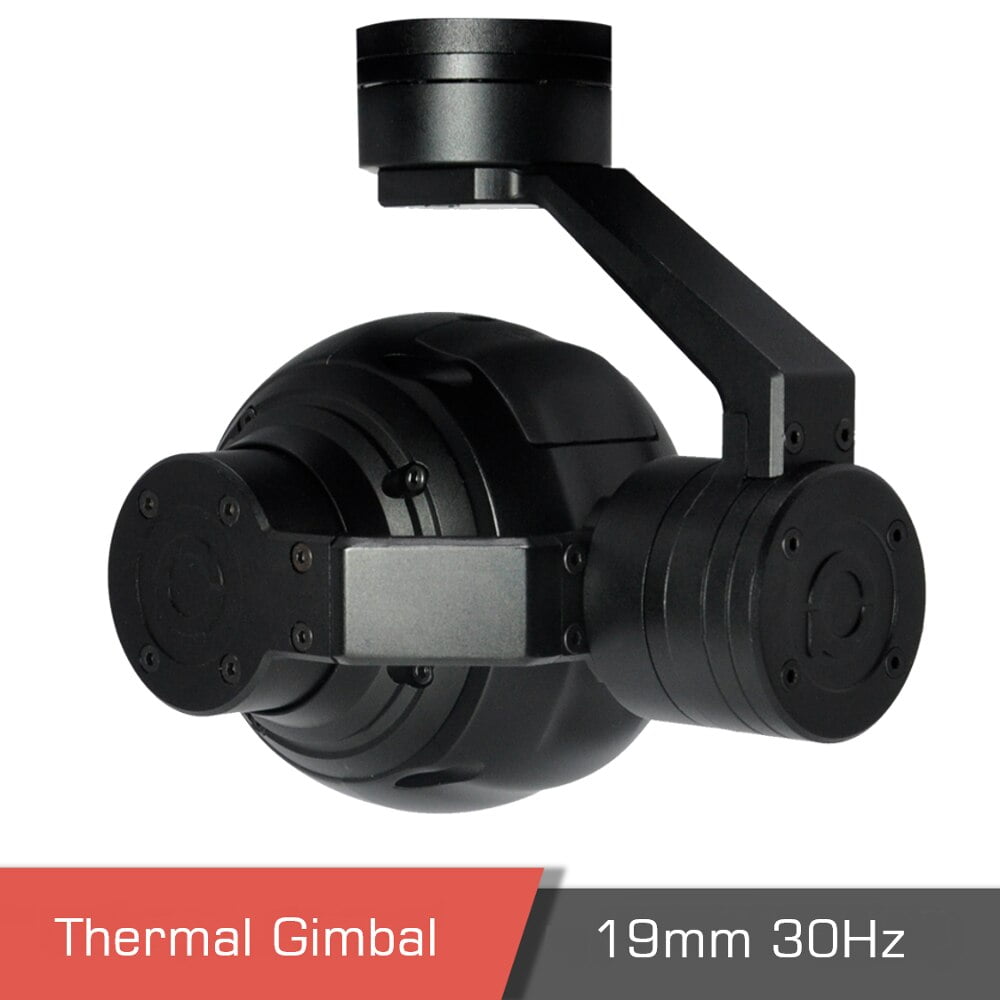

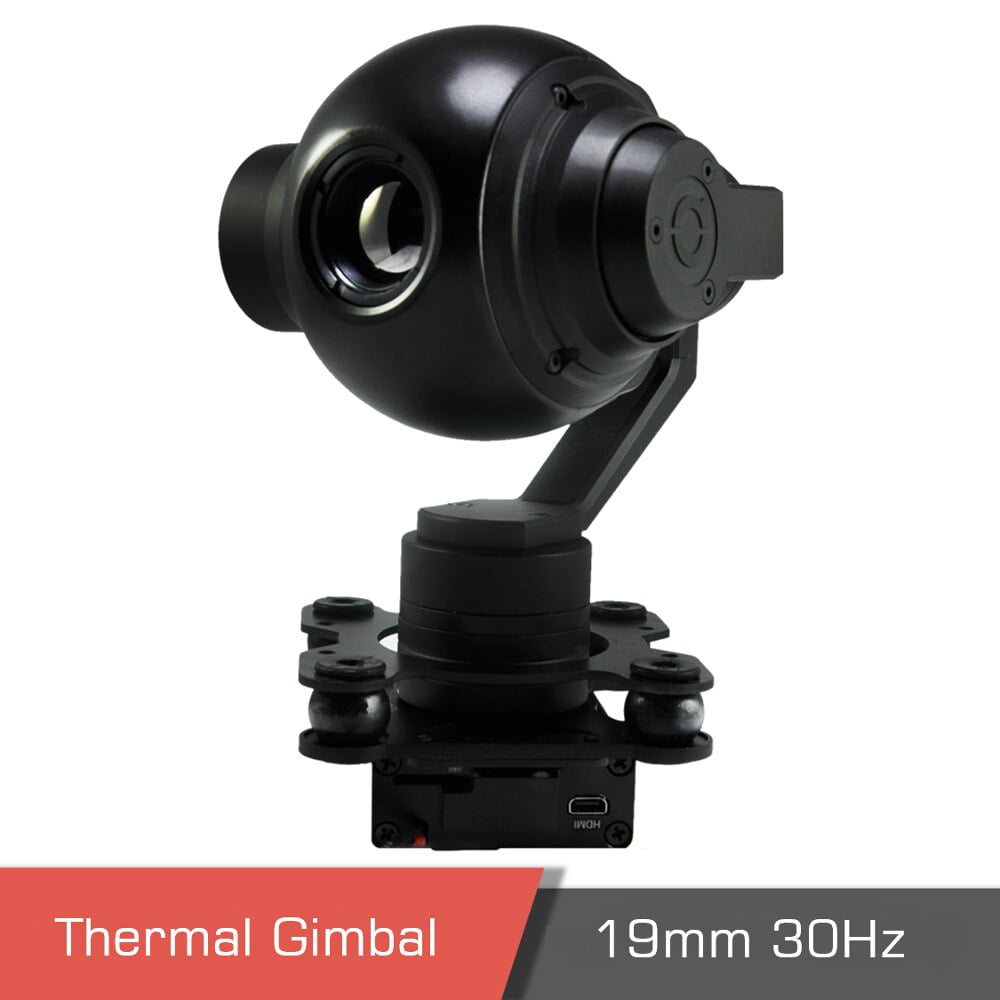

Thermal Camera Payload Gimbal QIR19

7617.17 $

Description

Professional 3-axis High-precise FOC Program in Gimbal QIR19 for Small Drones

In addition to its thermal imager, the QIR19 has a 19mm lens that supports 640×480 detector pixels and a 1x ~ 4x digital zoom. In order to greatly compensate for UAV vibration, we use the FOC solution that allows the gimbal to be controlled in three directions: YAW, ROLL, and PITCH. Having everything set up correctly, the only thing left is to install the gimbal camera onto the UAV, then it’s ready to go.

Powerful 19mm Thermal Imager

The QIR19 combines French ULIX high-precision uncooled long wave (8*m x 14*m) with a 19mm lens thermal image sensor so that it can simultaneously record and transmit thermal images as well as visible images.

See the unseen with this payload gimbal

A ULIX thermal sensor can reveal subtle temperature differences that could not be seen with the naked eye. It is possible to spot equipment or buildings that are damaged or find lost people with this enhanced view of the world.

Thermal Camera Payload Gimbal QIR19 for Small Drones

Multi Output Methods

QIR19 supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output default as 720p and record is 1080p. IP output and SDI output versions will support 360degree endless pan.

Thermal Camera Payload Gimbal QIR19 for Small Drones

Multi Control Methods for this thermal camera

Default PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.

Thermal Camera Payload Gimbal QIR19 for Small Drones

Control box signal interfaces in Gimbal QIR19

Thermal Camera Payload Gimbal QIR19 for Small Drones

Compatible with Viewport

QIR19 is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.

Thermal Camera Payload Gimbal QIR19 for Small Drones

Application Gimbal QIR19

Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.

qir196I - Gimbal QIR19,thermal camera,Small Drones,Payload Gimbal - MotioNew - 6

Dimension ​Gimbal QIR19

qir1967 - Gimbal QIR19,thermal camera,Small Drones,Payload Gimbal - MotioNew - 7

​ ​

Additional information

Weight 0.440 kg
Dimensions 11 × 10 × 10 cm

Specifications

hardware Parameter
Working voltage 12V ~ 16V
Input voltage 3S ~ 4S
Dynamic current 500mA @ 12V
Idle current 400mA @ 12V
Power consumption ≤ 3.85W
Working environment temp. -20℃ ~ +80℃
Output micro HDMI(HD output 1080P 60fps) / AV
Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method PWM  / TTL / S.BUS





Gimbal Spec
Pitch/Tilt ±90°
Roll ±45°
Yaw/Pan ±150°
Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.03°
One-key to center



Thermal Imager Spec
Lens size 19mm
Horizontal FOV 32°
Vertical FOV 24°
Diagonal FOV 39.4°
Detective Distance (Man: 1.8×0.5m) 559 meters
Recognize Distance (Man: 1.8×0.5m) 140 meters
Verified Distance (Man: 1.8×0.5m) 70 meters
Detective Distance (Car: 4.2×1.8m) 1714 meters
Recognize Distance (Car: 4.2×1.8m) 428 meters
Verified Distance (Car: 4.2×1.8m) 214 meters
Working mode Uncooled long wave (8μm~14μm) thermal imager
Detector pixel 640*480
Pixel size 17μm
Focusing method A thermal prime lens
Emissivity correction 0.01~1
NETD ≤50mK (@25℃)
MRTD ≤650mK (@characteristic frequency)
Image enhancement Auto adjust image brightness and contrast ratio
Color palette White, iron red, pseudo color
Auto Non-uniform correction Yes (no shutter)
Digital zoom 1x ~ 4x
Sync correct time Yes
Thermometry type Temperature bar (pseudo color display) max temp, min temp, FOV center temp (Optional)
Temperature warning 0℃~100℃



Packing Information
N.W. 440g
Product meas. 105*91*98mm

Product contents

Product contents

Documents

Please contact us for more information.
