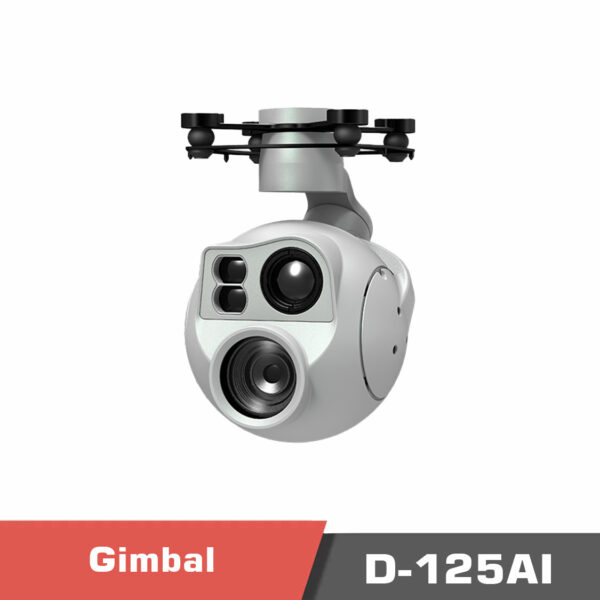

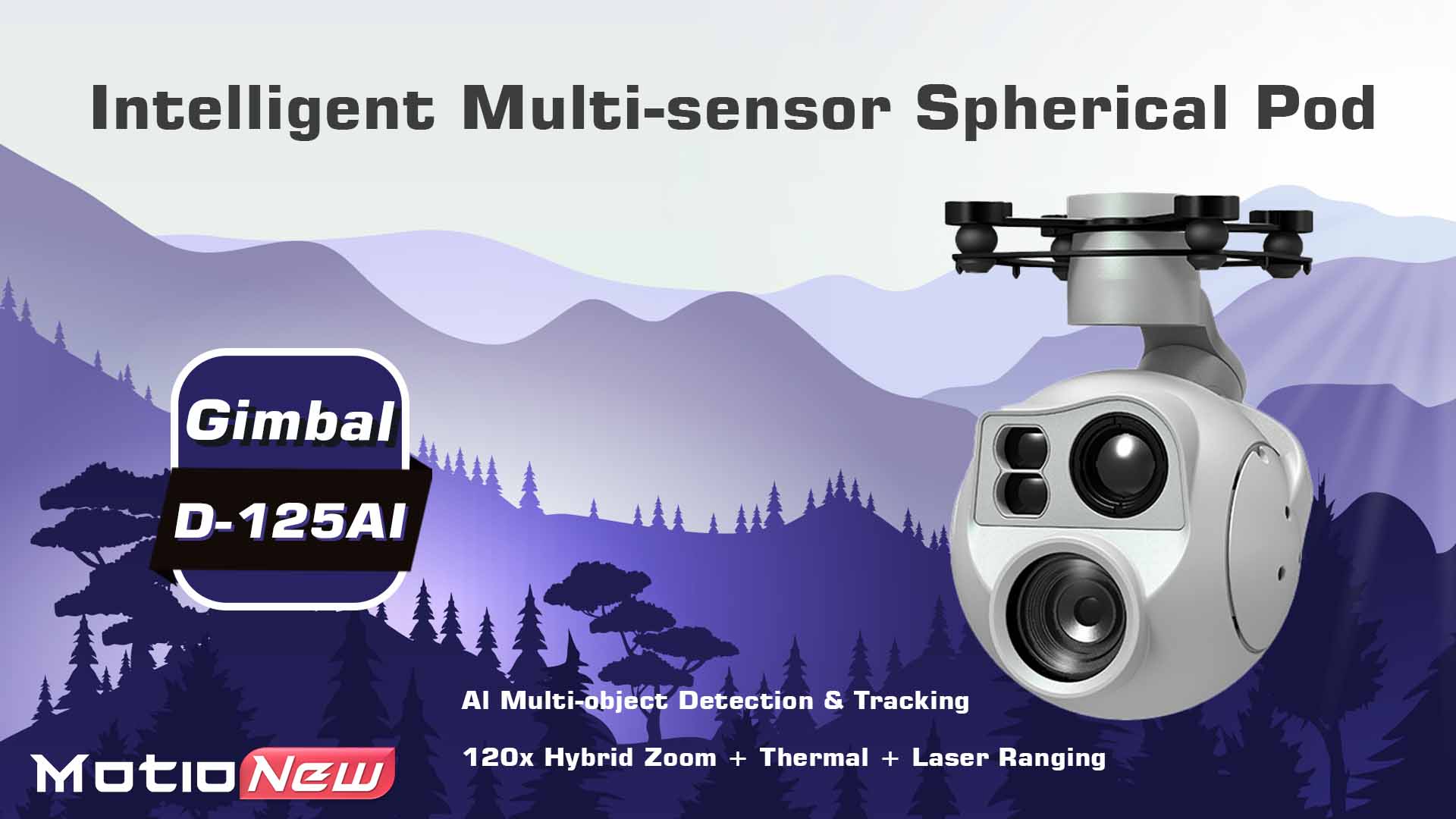

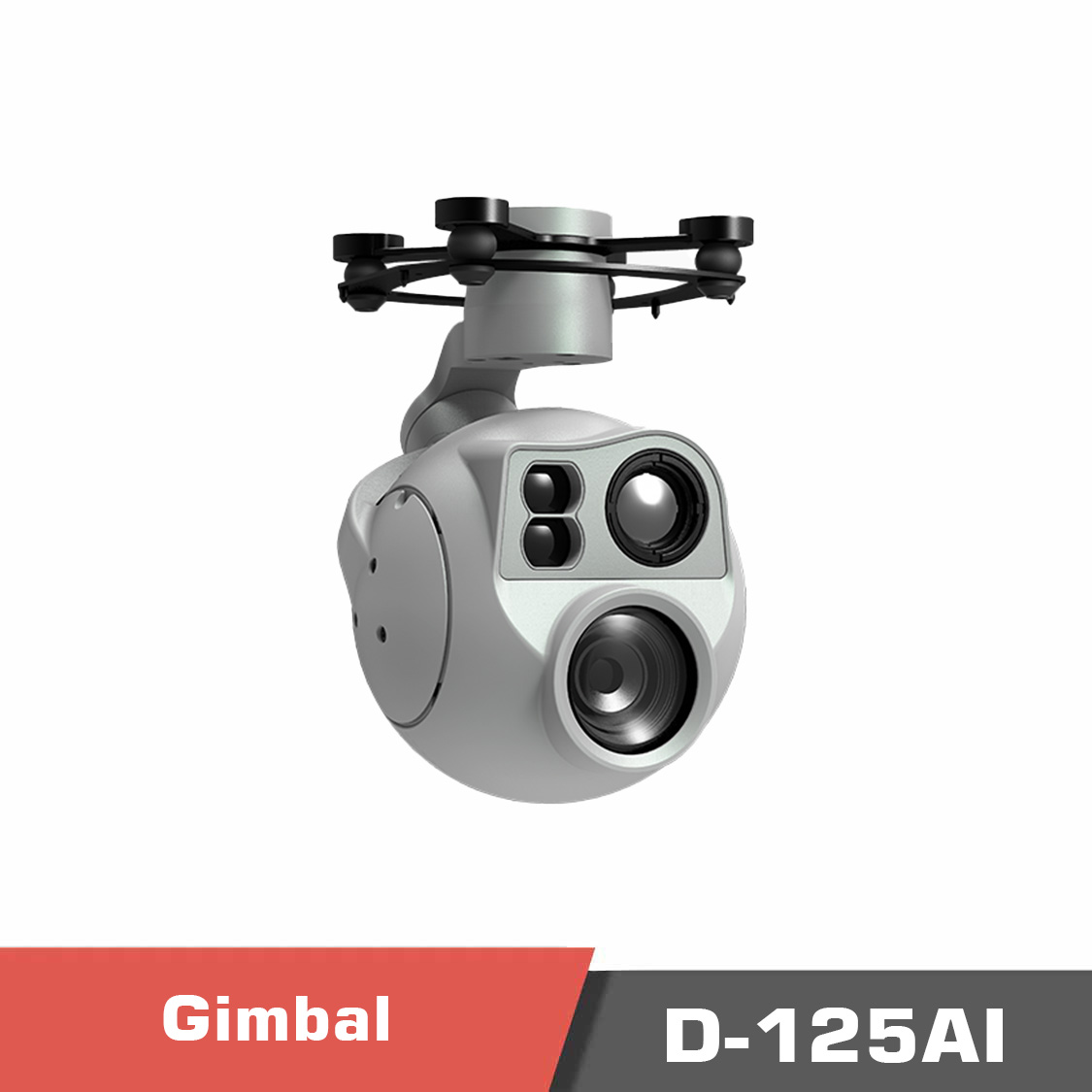

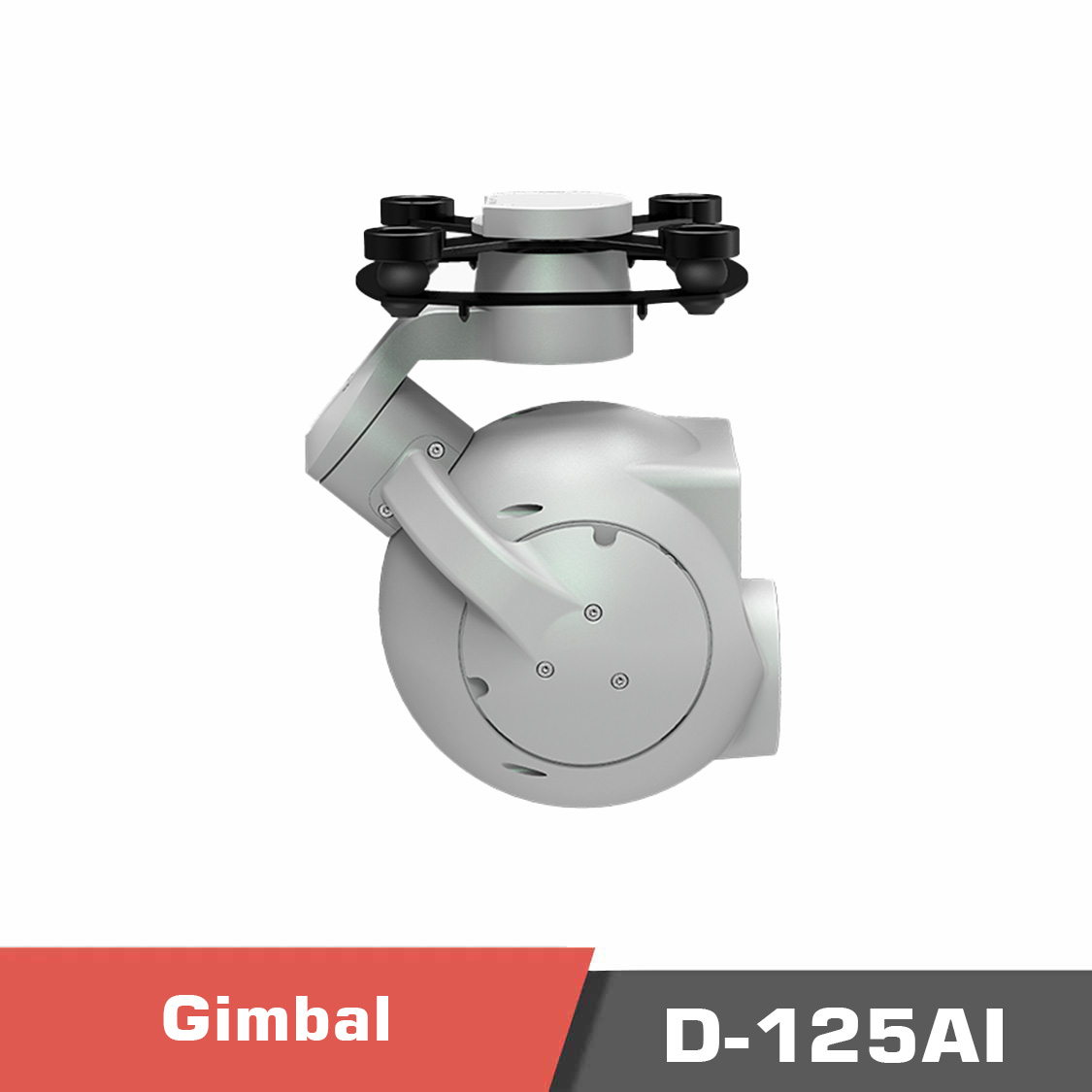

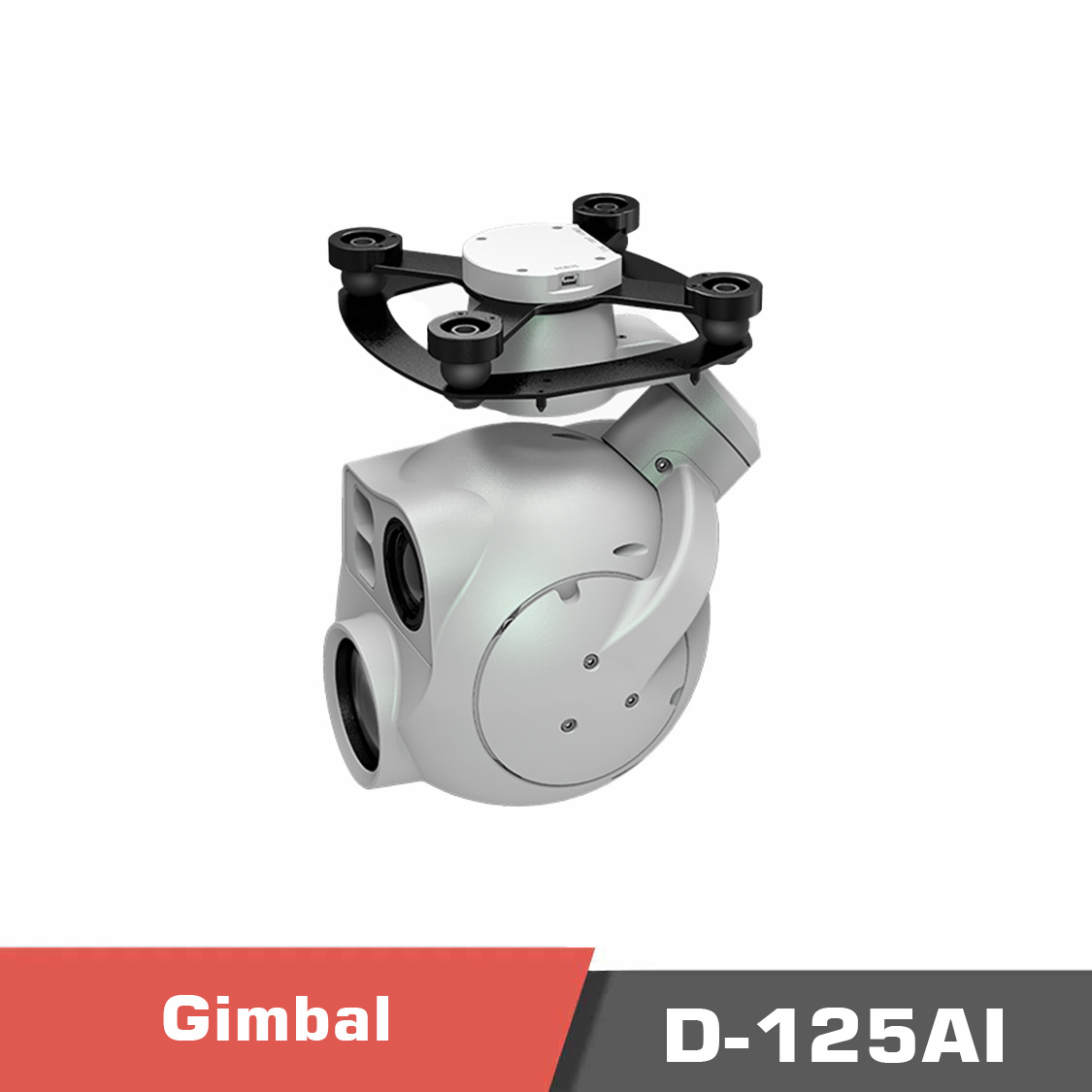

D-125AI Intelligent Multi-sensor Spherical Pod Overview
The D-125AI Intelligent Multi-sensor Spherical Pod features a high-precision 3-axis nonorthogonal stabilization system, integrating a 120x hybrid zoom camera and a long-wave thermal camera for simultaneous visual and infrared imaging. Equipped with a laser range finder, the D-125AI accurately determines target locations and distances, enhancing operational efficiency.

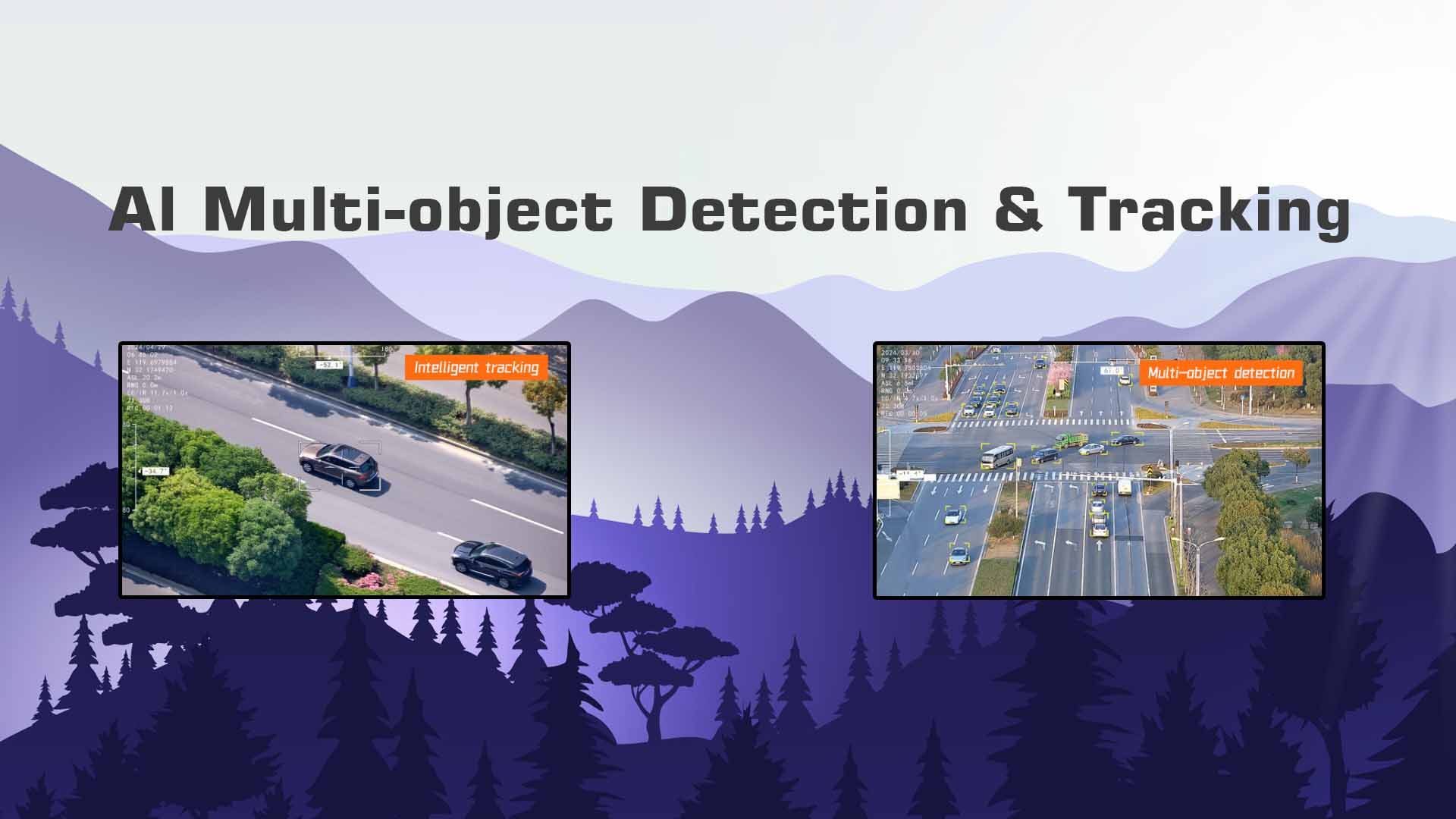

With advanced AI multi-object detection and tracking, the gimbal camera can intelligently identify persons and vehicles within the frame and continuously track a selected target. Designed for adaptability, the D-125AI supports tool-free mounting on multiple carriers in both downward and upward orientations. Through the GCU and Dragonfly software, users can view live footage and control the pod in real time from a computer.
The D-125AI Intelligent Multi-sensor Spherical Pod is equipped with AI-powered multi-object detection and tracking, enabling it to intelligently identify and continuously track persons and vehicles within the image. It integrates a 120x hybrid zoom camera, a thermal camera, and a laser range finder, providing both visual and infrared imaging with precise distance measurement.
D-125AI Intelligent Multi-sensor Spherical Pod Characteristics

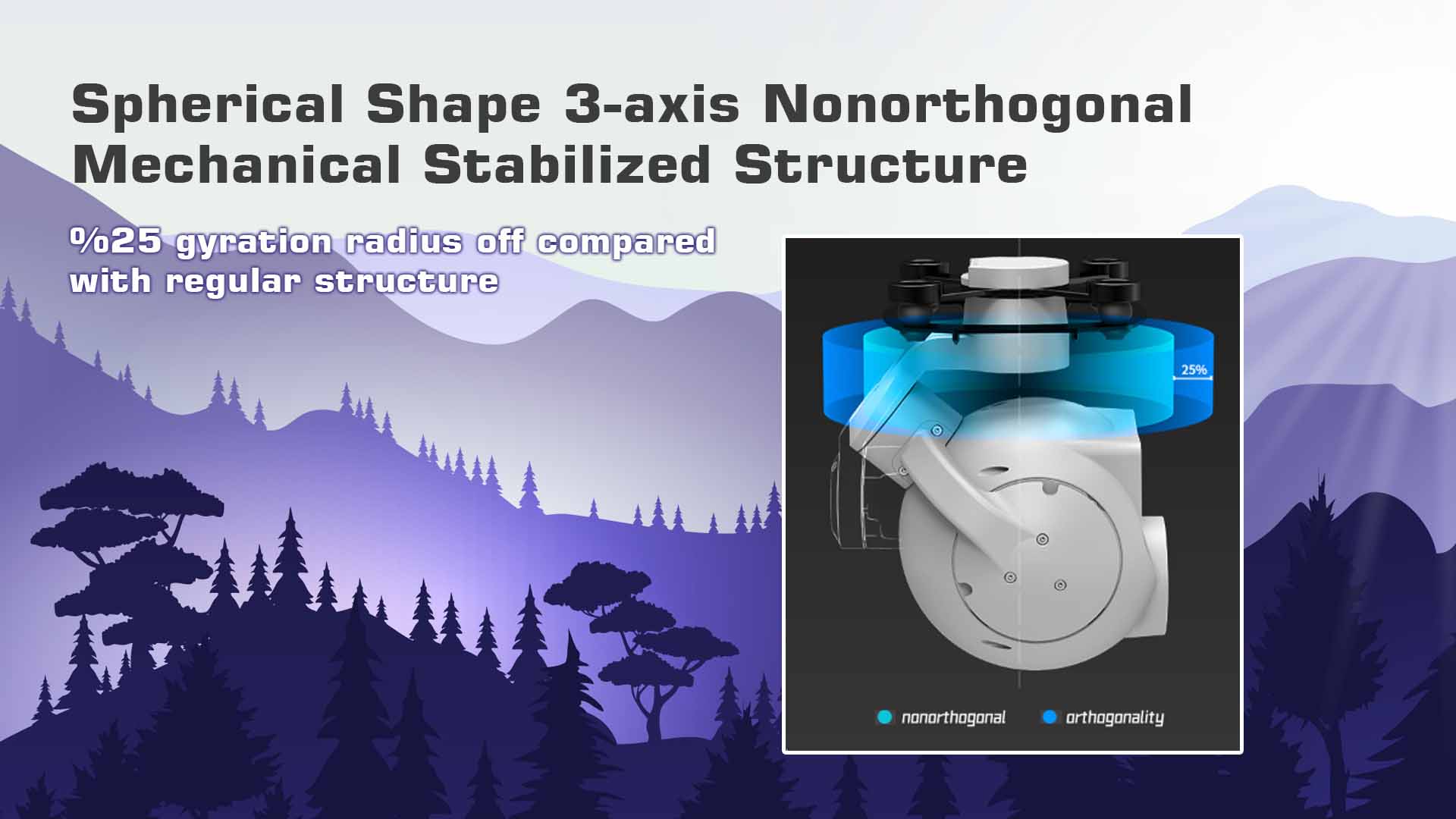

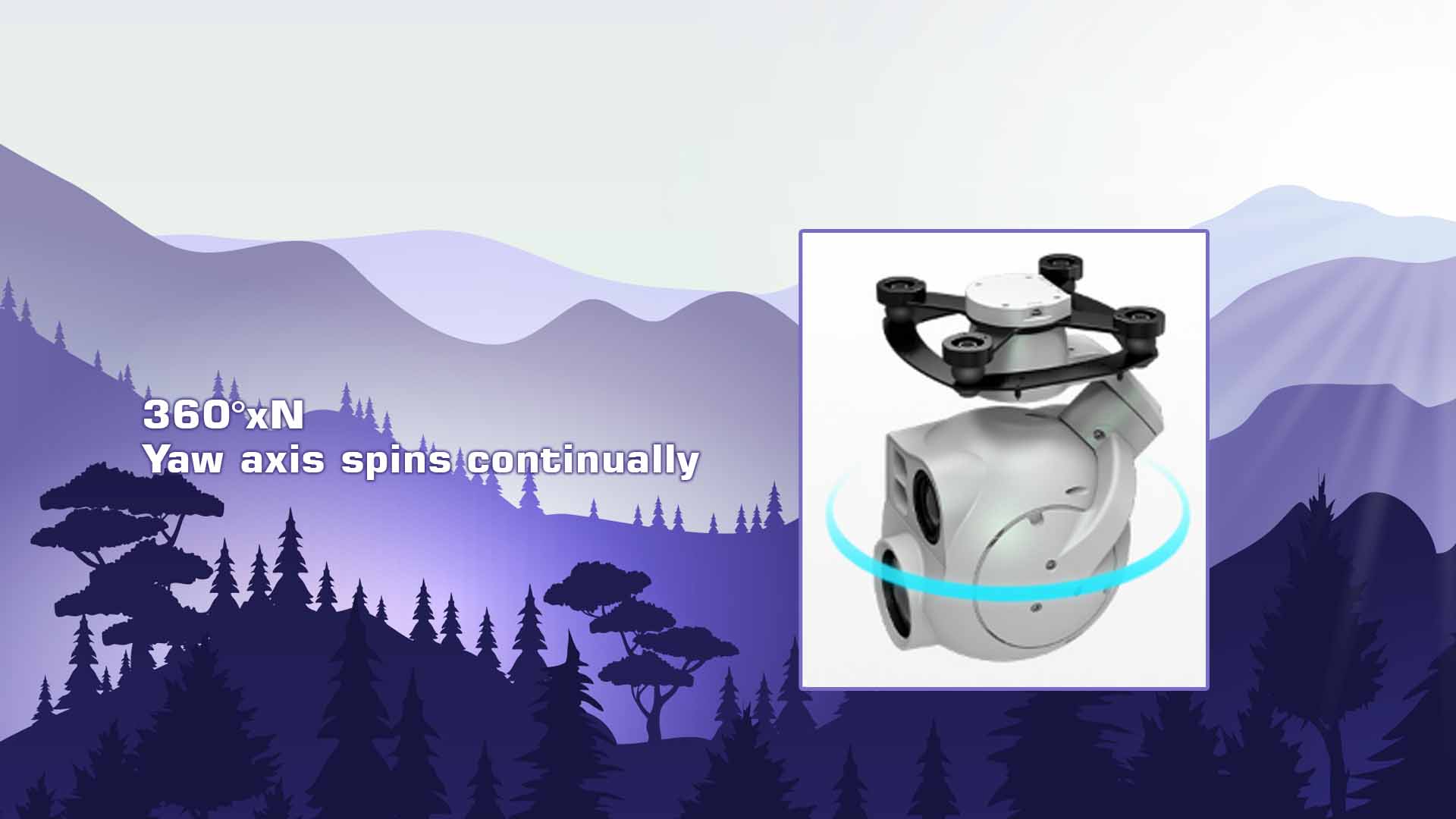

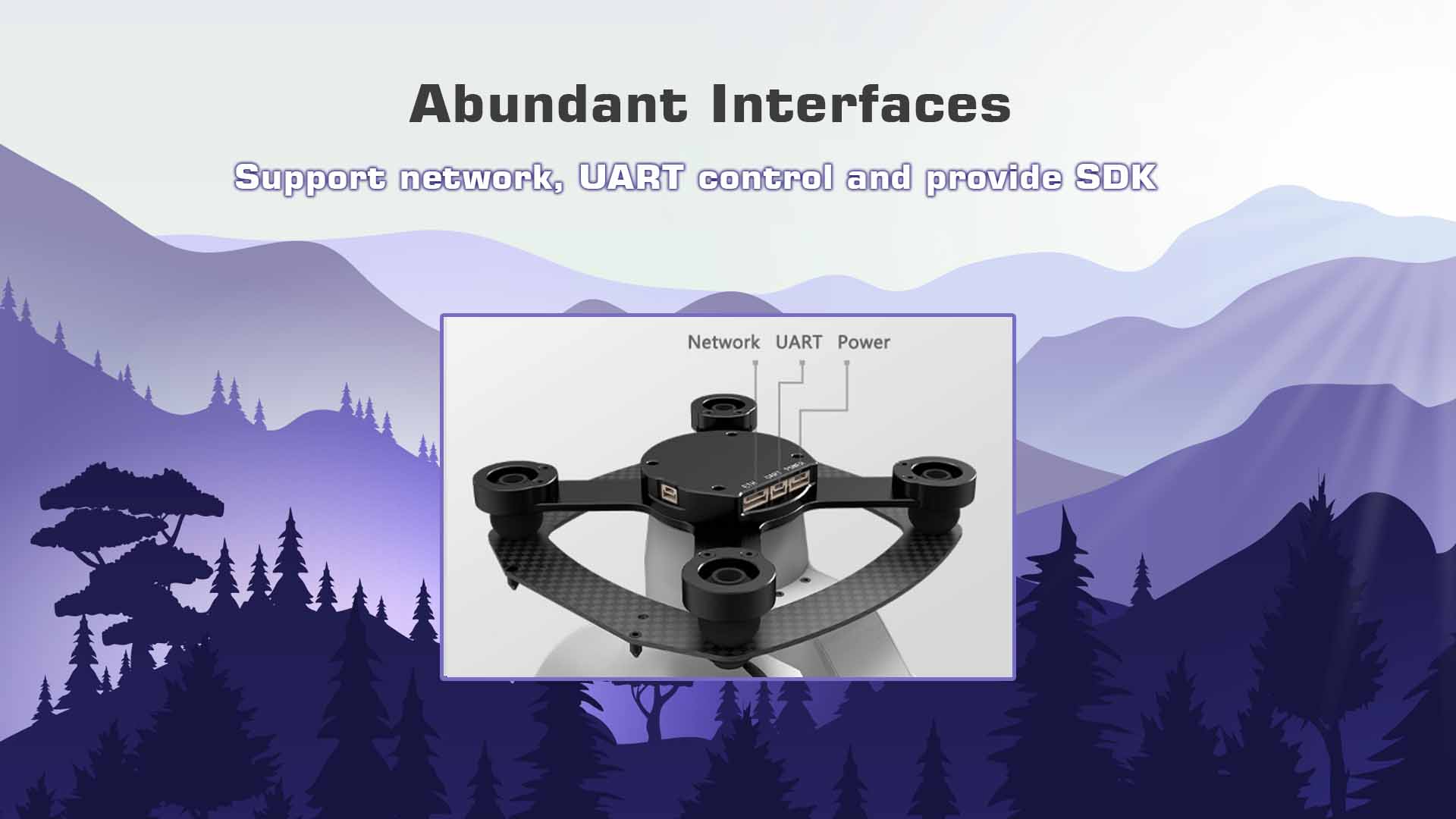

· Low-profile spherical shape and 3-axis nonorthogonal mechanical stabilized structure, minimize the gyration radius and the wind resistance of the pod. The D-125AI is able to spin continually around its yaw axis.Supports network, UART and S.BUS control.
· Supports both private protocol and MAVlink protocol.

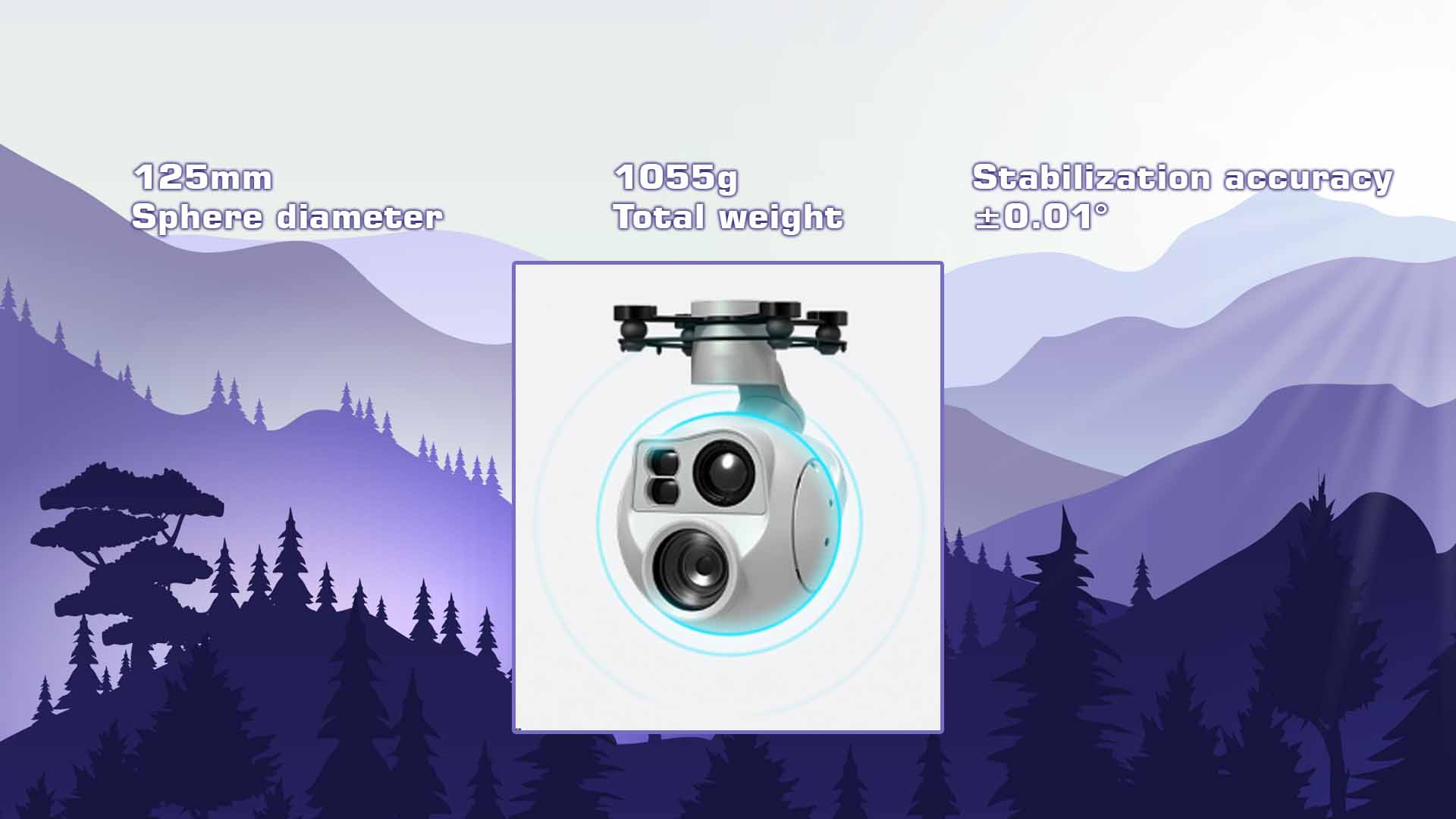

· Thanks to the Dual-IMU complementary algorithms with IMU temperature control and carrier AHRS fusion, the D-125AI provides a stabilization accuracy at ±0.01°.

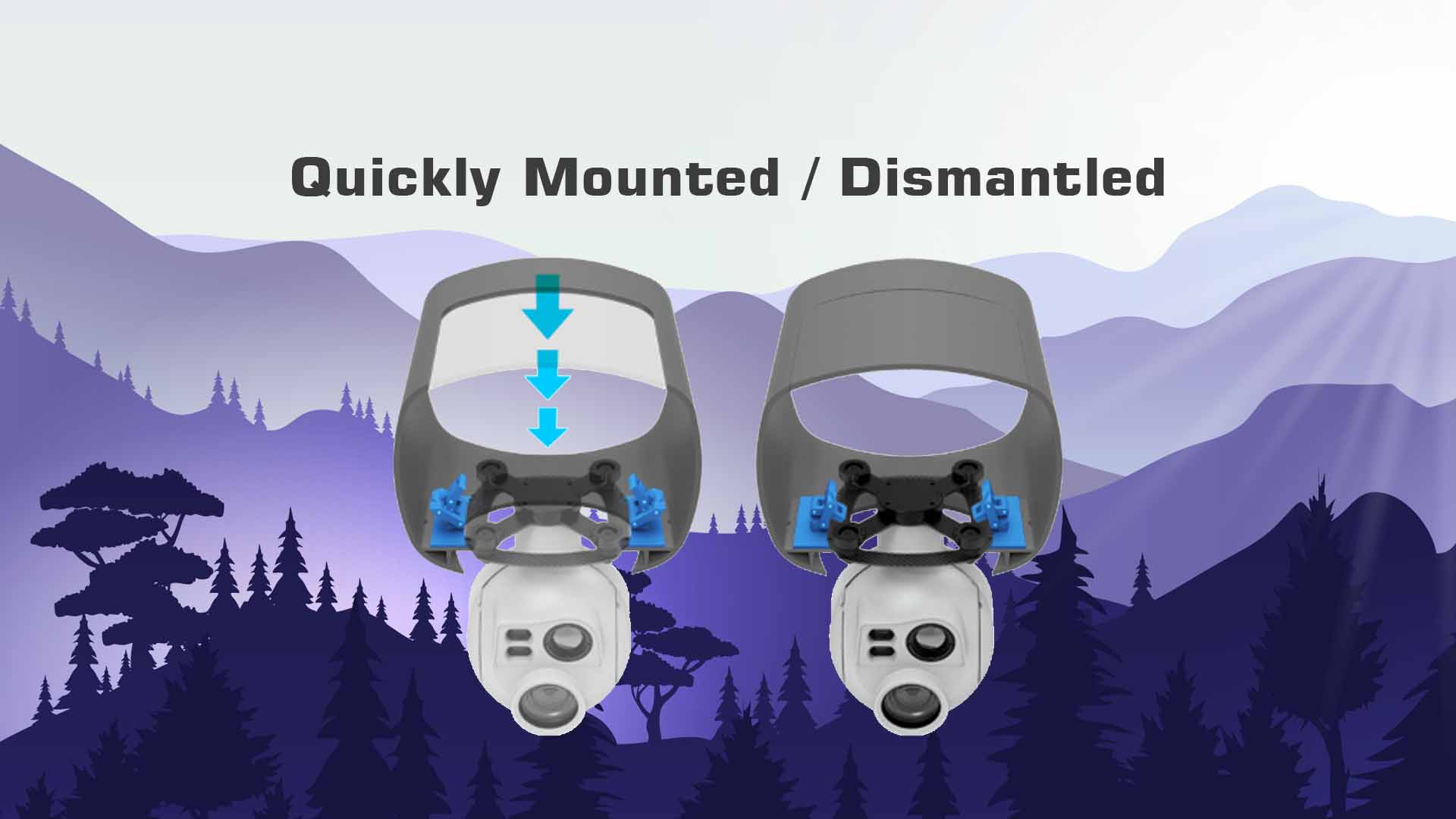

· Can be mounted onto multiple carriers, whether downward or upward.
· With the Dragonfly software, user can watch the image and control the podwithout protocol ducking.
· Photos and videos can be downloaded online through the “Gallery” function of the Dragonfly software.
· With the customized QGC software, all the functions of the pod can be achieved in conjunction with an open source autopilot.
· Screen supports overlaying OSD information such as latitude, longitude and altitude. Image supports shooting point coordinate EXIF save. Video stream supports SEI stacking.
· 20~53 VDC wide voltage input.
It can be assembled on various types of unmanned aerial vehicles and other aviation carriers, as well as ships and vehicle carriers, so as to meet the requirements of sea and air use, making it an ideal camera gimbal drone solution.
Gimbal Camera AI object Detection and Tracking Video
Overview of D-125AI Intelligent Multi-sensor Spherical Pod
For a comprehensive reading of related products, please visit the Motionew website.
Specifications
Specifications
Specifications
| General | |
| Product Name | D-125AI |
| Dimensions | 142 x 125 x 187mm |
| Weight | 1055g |
| Operating Voltage | 20 ~ 53 VDC |
| Power | 10.7W (Static, ranging off）/ 40.0W (Peak, ranging on） |
| Mounting | Downward / Upward |
| Gimbal | |
| Gimbal Type | 3-axis Nonorthogonal Mechanical Stabilization |
| Angular Accuracy | ±0.01° |
| Controllable Range | Pitch: -120°～40°, Roll: ±40°, Yaw: ±360°constantly |
| Max Controllable Speed | ±200°/s |
| Zoom Camera | |
| Image Sensor | 1/2.8-inch CMOS, Effective Pixels: 4.09M |
| Lens | Actual Focal Length: 4.7~141mm (Equivalent focal length: 27.9~837mm) |
| Aperture: f/1.5~f/4.0 | |
| HFOV: 59.5°～ 2.2° | |
| VFOV: 35.8°～ 1.2° | |
| DFOV: 66.6°～ 2.5° | |
| Resolution | 2688(H) x 1520(V) |
| Pixel Size | 2.0μm(H) x 2.0μm(V) |
| Optical Zoom Rate | 30x |
| Equivalent Digital Zoom Rate | 4x |
| Thermal Camera | ||
| Thermal Sensor | Uncooled VOx Microbolometer | |
| Lens | Focal Length: 25mm (Equivalent focal length: 93.2mm) | |
| Aperture: f/1.0 | ||
| HFOV: 17.5° | ||
| VFOV: 14.0° | ||
| DFOV: 22.3° | ||
| Resolution | 640(H) x 512(V) | |
| Pixel Pitch | 12μm(H) x 12μm(V) | |
| Equivalent Digital Zoom Rate | 8x | |
| Spectral Band | 8~14μm | |
| Sensitivity (NETD) | <[email protected]@25℃ | |
| Temperature Measurement | Optional (Temperature Measurement Type) | |
| Temperature Measurement Method | Spot Measurement, Area Measurement | |
| Temperature Measurement Range | High Gain: -20°C~150°C | |
| Low Gain: 0°C~550°C | ||
| Temperature Alert | High-temp Alert, Low-temp Alert | |
| Sun Burn Protection | Supported | |
| Palette | White Hot, Black Hot, Tint, Fulgurite, Iron Red, Hot Iron, Medical, Arctic, Rainbow 1, Rainbow 2 | |
| Laser Range Finder | |
| Wavelength | 905nm |
| Max Laser Power | 1mW |
| Beam Angle | 2.5mrad |
| Beam Diameter | 0.25m@100m |
| Laser Safety | Class 1M（IEC 60825-1:2014） |
| Measurement Accuracy | ±0.3m（≤ 300m）/ ±1.0m（>300m） |
| Measurement Range | 5-2000m (ϕ 12m vertical surface with 20% reflectivity) |
| AI Multi-object Detection & Tracking | |
| Object Identification Size | ≥ 30×20 px |
| Object Identification Rate | ≥ 85% |
| Object Identification Quantity | ≤ 50 |
| Target Tracking Size | 16×16~256×256 px |
| Tracking Deviation Refresh Rate | 30Hz |
| Tracking Deviation Output Delay | ≤ 60ms |
| Target Pixel Error | ≤ ±1 px |
| Tracking Speed | >24 px/ frame |
| Target Memory Time | >5s |
| Image & Video | |
| Image Format | JPEG |
| Maximum Image Resolution | 1920 x 1080 |
| EXIF | Shooting point coordinate |
| Video Format | MP4 |
| Maximum Video Resolution | Stream: 1920 x 1080 @25fps |
| Recording: 1920 x 1080 @30fps | |
| Stream Encode Format | H.264，H.265 |
| Stream Network Protocol | RTSP |
| Storage | |
| Supported SD Cards | Supports a U3/V30 or above MicroSD card with a capacity of up to 256GB |
| Environment |
|
| Operating Temperature | -20℃～50℃ |
| Storage Temperature | -40℃～60℃ |
| Operating Humidity | ≤85%RH (Non-condensing) |
Product contents
Product contents
Please contact us for more information.
Documents
Reviews
You must be logged in to post a review.
| Gimbal Control Method |
SBUS ,UART |
|---|---|
| Number of Sensors |
3 Sensors |
| EO Sensor Lens |
30x Zoom |
| EO Sensor resolution |
1920×1080 |
| Thermal Sensor Lens |
25mm |
| Thermal Sensor resolution |
640×512 |
| AI Object Tracking |
Yes |
| Laser Range Finder |
2000m |
| Gimbal Weight |
1055g |
| Gimbal Dimensions |
142x125x187mm |
