A30TR-1575 Gimbal Camera for Drone

Please take a look at the updated A30TR-1575 version here.

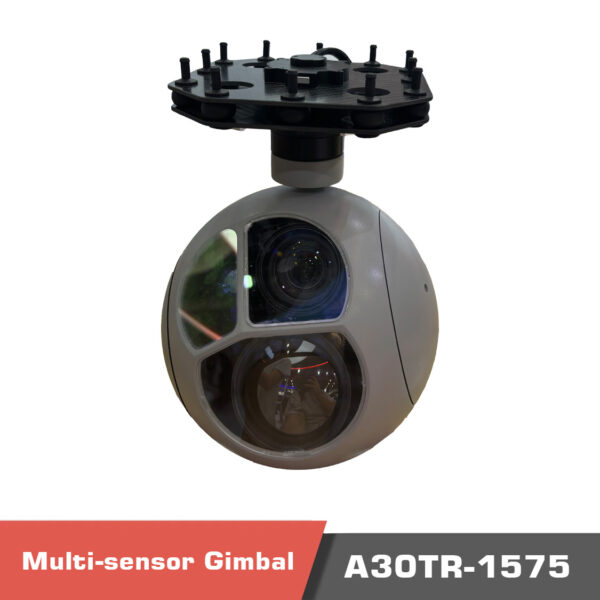

A30TR-1575 Gimbal Camera Overview

Introducing the A30TR-1575 gimbal camera, an advanced gimbal system designed to deliver superior imaging and tracking capabilities for a variety of applications. At its core, the gimbal features a 1/1.8 Type STARVIS CMOS image sensor, renowned for its high sensitivity and low-light performance, coupled with a 30x optical zoom lens ranging from 6.5mm to 162.5mm. This powerful combination allows for detailed and crisp imagery with a total pixel count of 4.17 megapixels.

thermal sensor of A30TR-1575

Enhancing its versatility, the A30TR-1575 also includes a thermal sensor with a resolution of 640×512. Most importantly, most of the available models have a fixed lens for the thermal sensor, while digital zoom is supported. The good news is that the new model addresses a highly demanded solution to solve that issue. A30TR-1575 has a variable focus length of 15mm to 75mm, and a 5x optical zoom. The thermal sensor boasts a 12-micrometer pixel size and a 25Hz refresh rate, ensuring precise thermal imaging capabilities.

Operational Applications

Equipped with advanced AI functions, the gimbal offers human and vehicle identification and tracking, making it ideal for security, surveillance, and search-and-rescue operations. The integrated laser rangefinder provides accurate distance measurements up to 5000 meters, further enhancing its operational utility.

Robust Performance

Designed for robust performance, the A30TR-1575 supports multiple control methods including PWM, TTL, S.BUS, TCP, and UDP, and outputs via IP, ensuring seamless integration with various systems. It operates within a voltage range of 4s to 6s, accommodating different power configurations. For local storage, it supports SD cards up to 256GB, providing ample space for high-quality video and data recording.

Weight

Weighing 2530 grams and measuring 150mm by 256.7mm by 190mm, the A30TR-1575 is engineered for stability and durability, making it suitable for deployment on various UAV platforms and other equipment.

Operational Capabilities

Upgrade your operational capabilities with the A30TR-1575 gimbal system, delivering high-definition visual and thermal imaging, reliable AI tracking, and precise laser rangefinding for a wide range of demanding applications.

For a comprehensive reading of related products, please visit the Motionew website.

Simple FAQ (A30TR-1575 – Engineers & B2B Buyers)

1. What is the A30TR-1575 Gimbal Camera used for?

The A30TR-1575 is a triple-sensor gimbal camera designed for advanced UAV missions such as border security, search and rescue, infrastructure inspection, and nighttime surveillance. It provides versatile imaging capabilities for demanding operations.

2. What are the technical specifications of the A30TR-1575?

This payload includes a 4K EO camera with 30x optical zoom, a 640×512 thermal sensor, and a 15.75mm IR lens, all stabilized on a 3-axis gimbal. Features include temperature measurement, AI object tracking, GPS-based targeting, and IP video output.

3. Which UAVs are compatible with the A30TR-1575?

The gimbal is compatible with medium to heavy-lift UAV platforms, including multirotor, VTOL, and fixed-wing drones, supporting PWM, S.BUS, and serial communication for seamless integration.

Business & Operational FAQs

4. Is the A30TR-1575 available for OEM or bulk supply?

Yes. Motionew offers OEM agreements and volume pricing for defense integrators, drone manufacturers, and public-sector UAV fleets.

5. What documentation and technical support are provided?

Each unit includes a user manual, integration wiring diagrams, and access to Motionew’s engineering support for remote assistance and system configuration.

6. What are the B2B invoicing and payment options?

Motionew supports international wire transfers, issues formal B2B invoices, and offers flexible payment terms for qualified enterprise clients.
