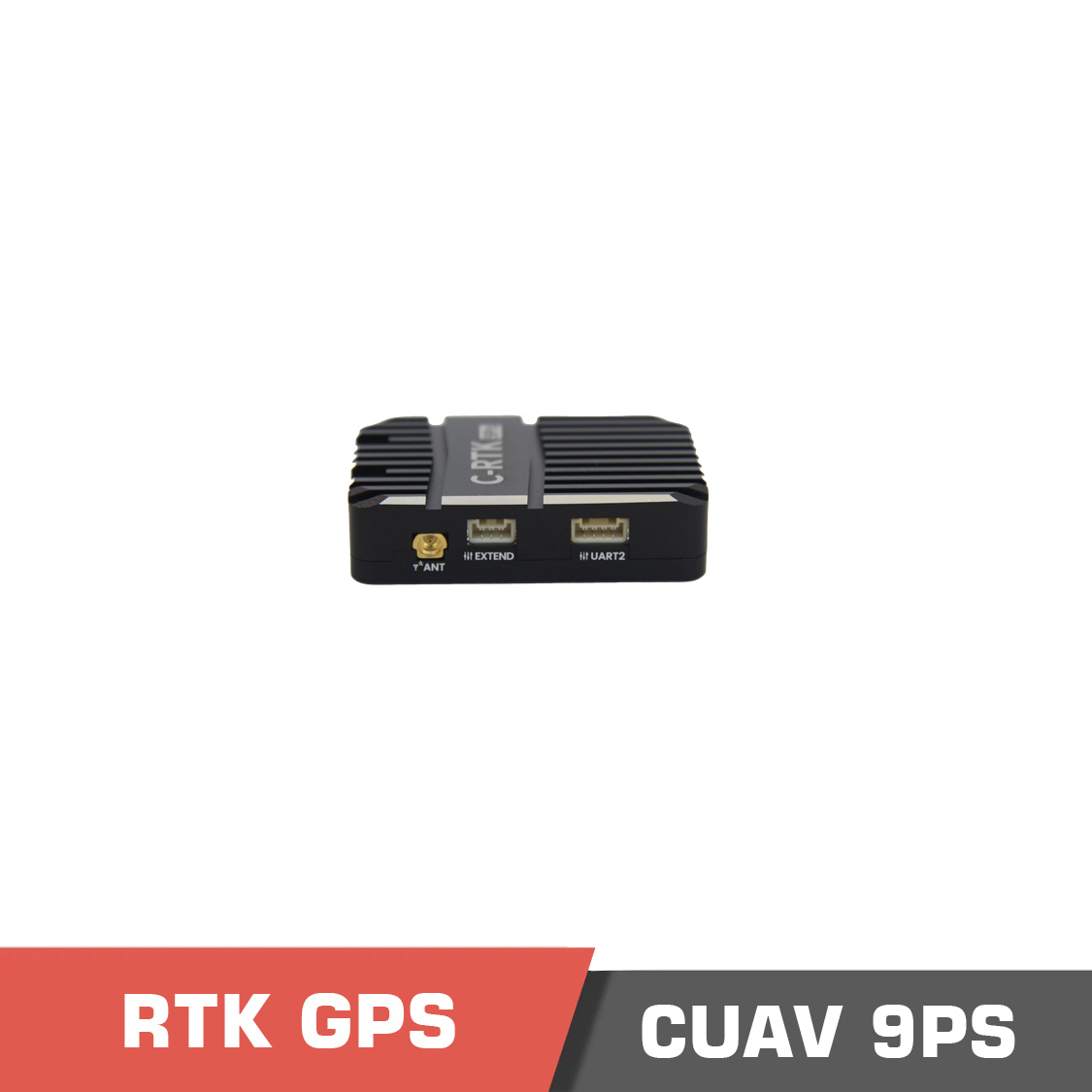

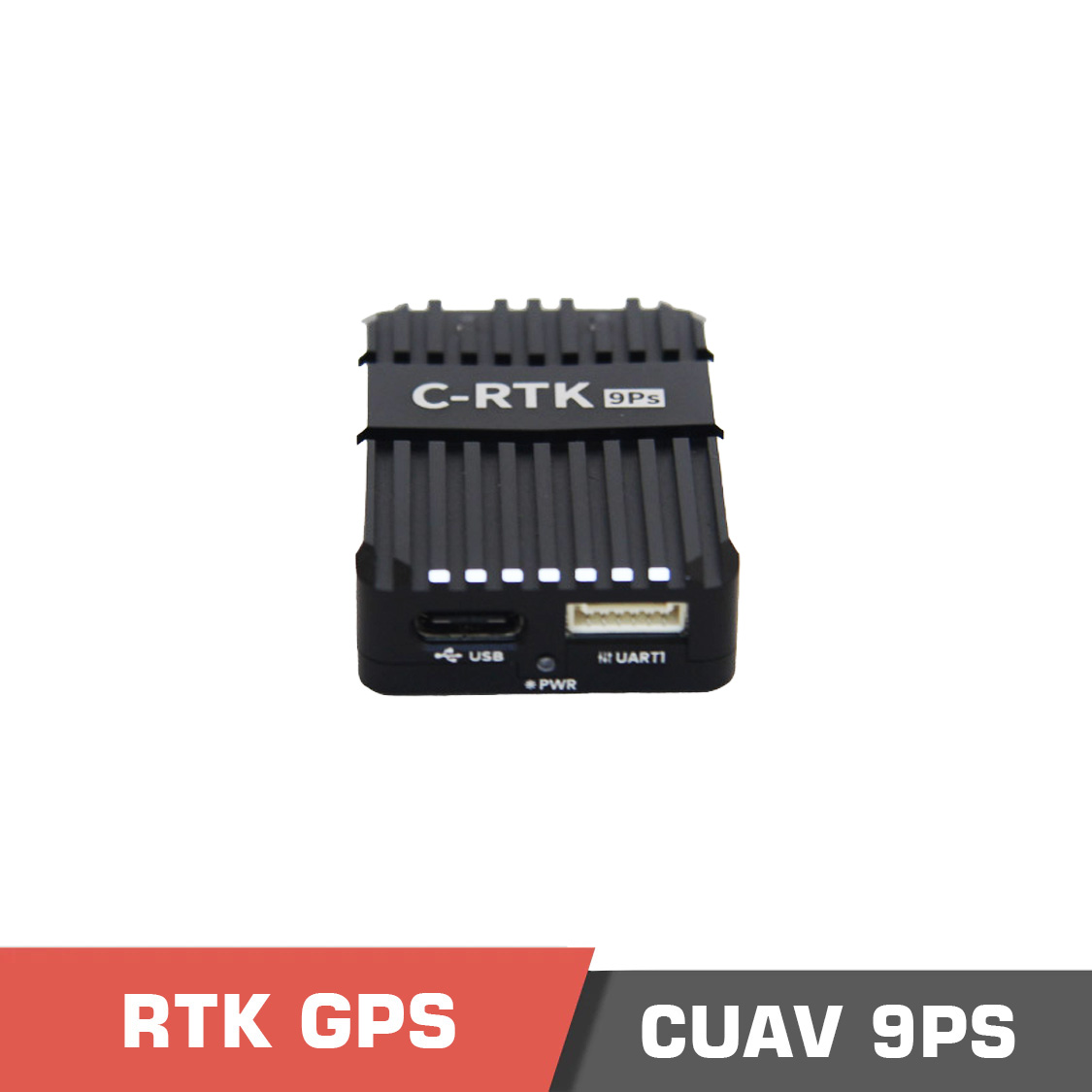

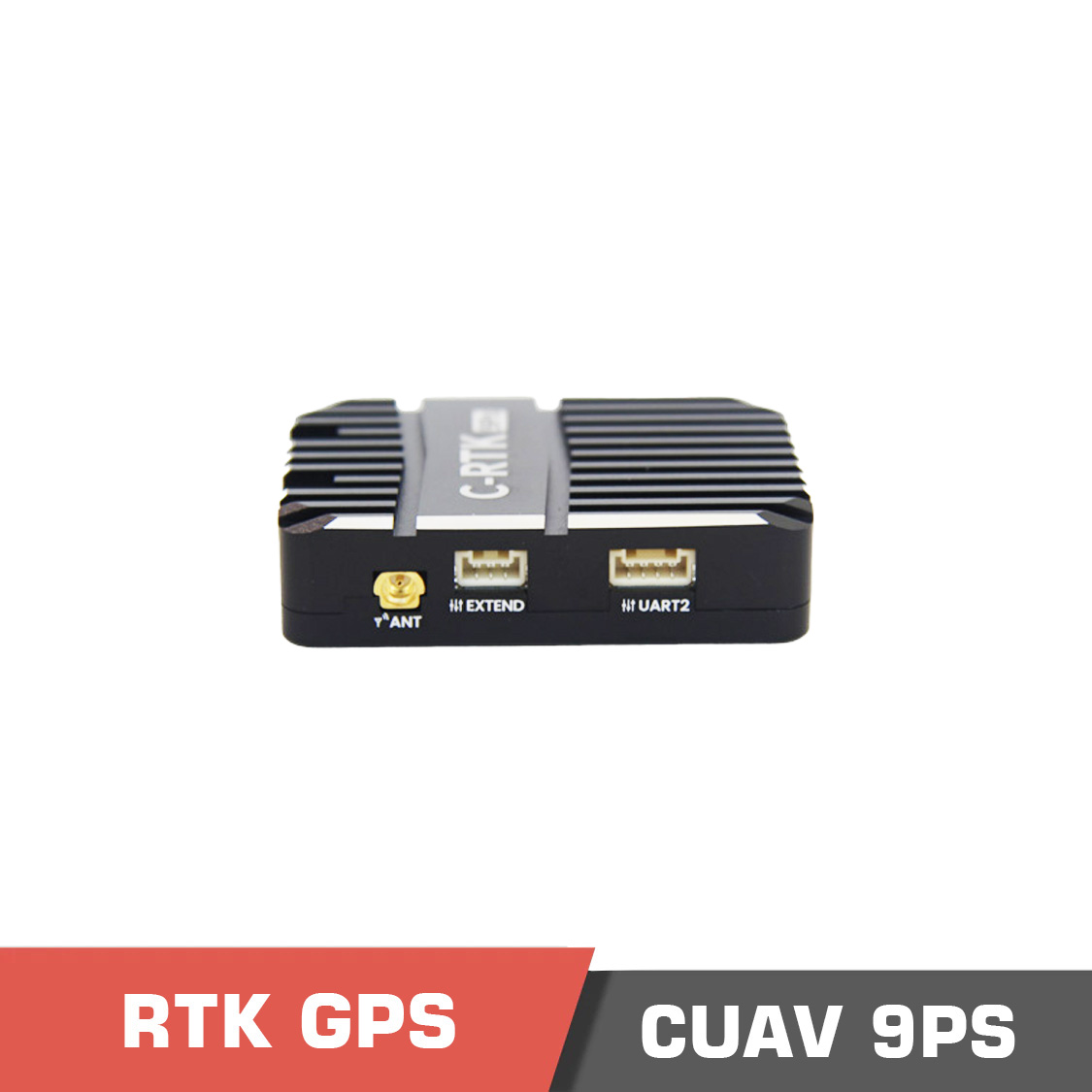

CUAV C-RTK 9Ps Positioning Module

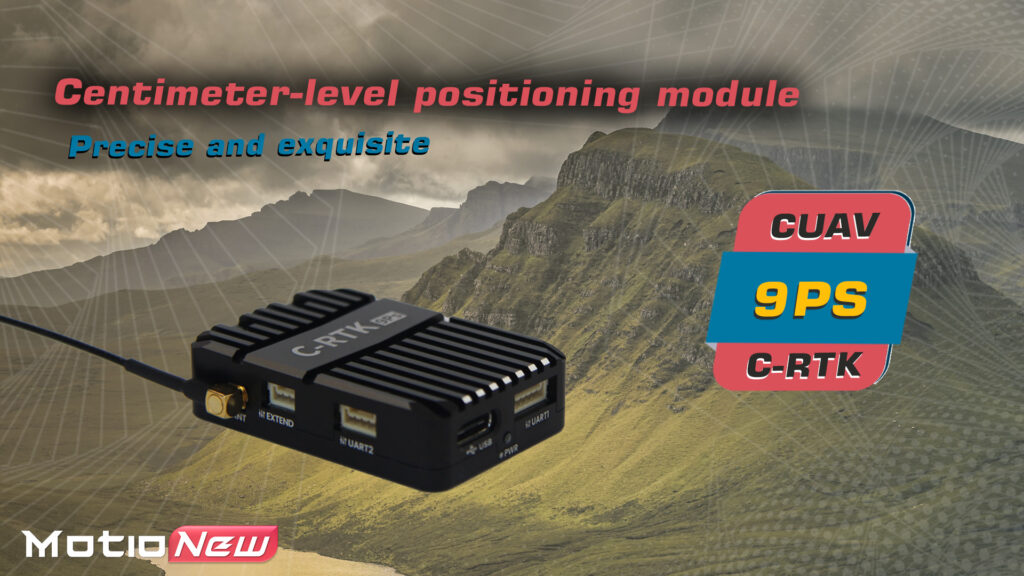

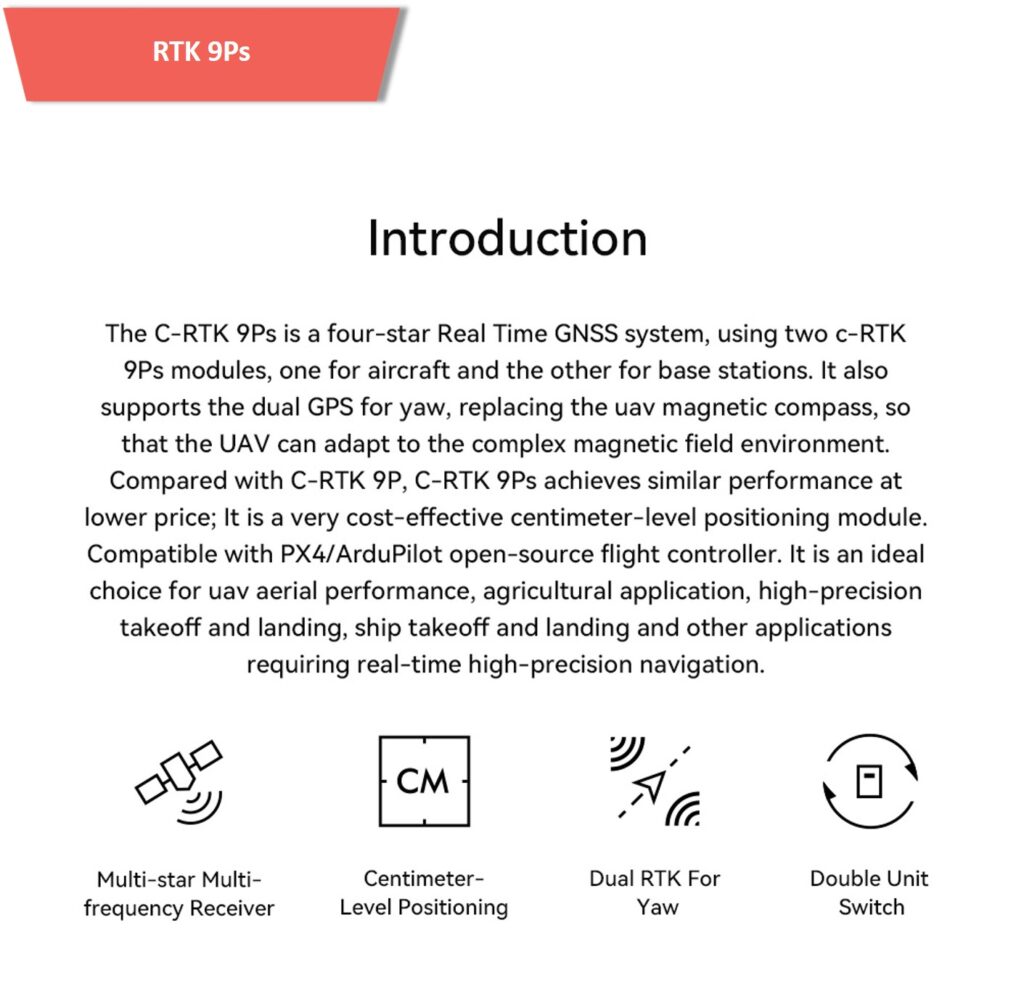

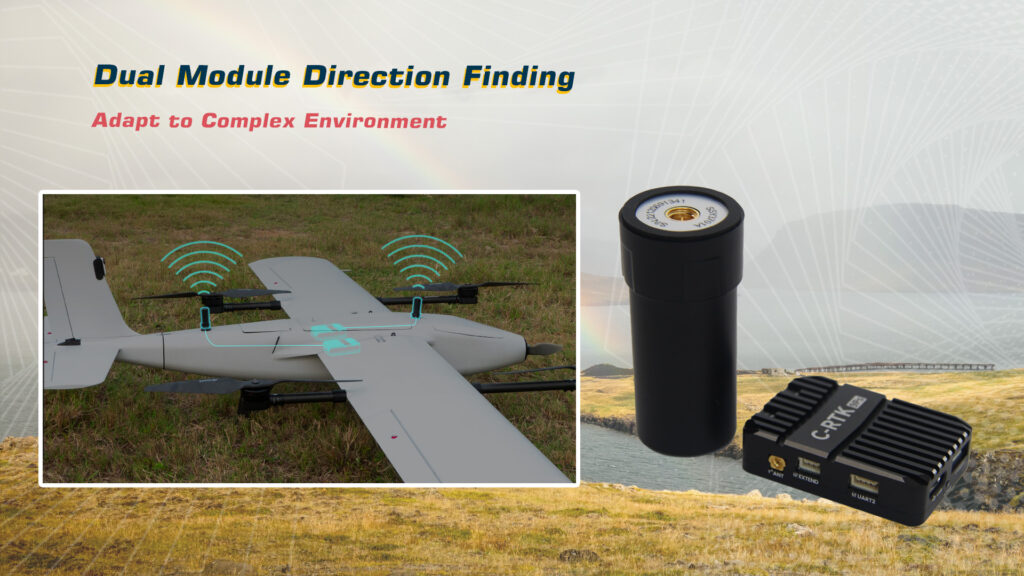

CUAV C-RTK 9Ps is a centimeter-level GNSS module. Using two c-RTK modules, one installed on the base and the other installed on the UAV, a real-time GNSS system is designed. By using dual GPS on the plane, you can replace the compass and have a dual GPS yaw. This is desirable due to the error of the compass coming from electromagnetic interferences, suitable for environments with high noise. Compatible with open-source autopilots like PX4 or Ardupilot, this RTK gps module is an ideal choice for aerial performance and agricultural applications. You can have high-precision take-off, landing, and missions.

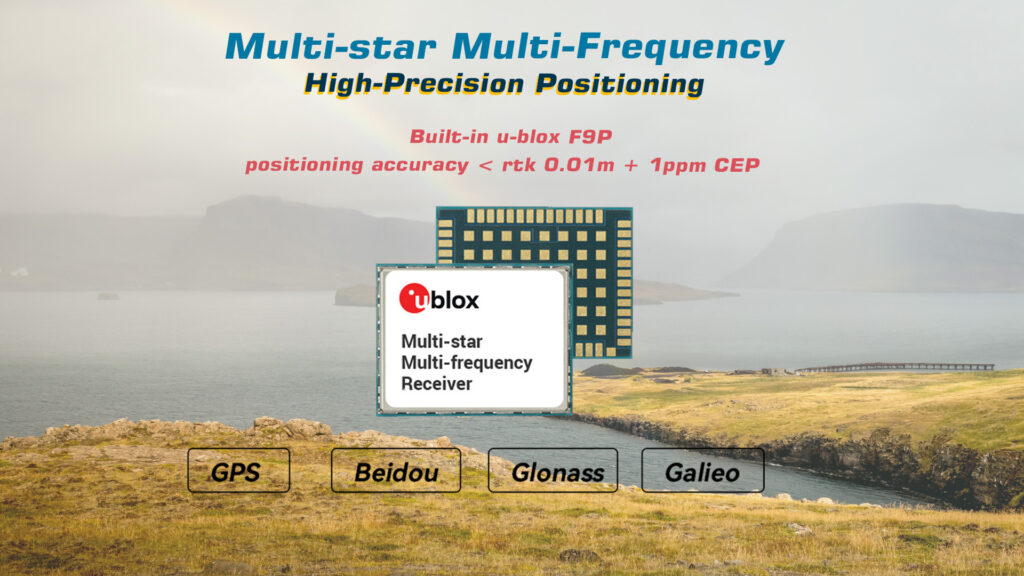

A ublox F9P module is used inside to support multiple frequencies as well as the reception from different satellite systems — GPS, Beidou, Glonass, Galileo.

Due to using multiple satellites and multiple frequencies, and with the help of advanced RTK algorithms, the position of the base station converges and provides centimeter-level differential data in less than half a minute. The update rate of the RTK algorithm is at 20Hz.

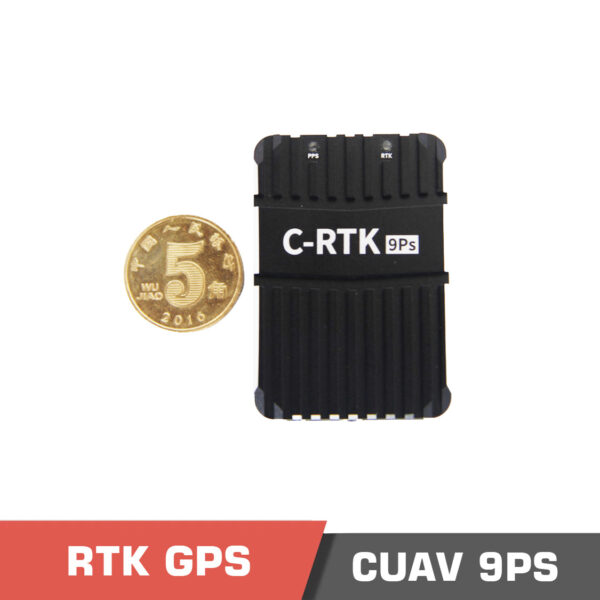

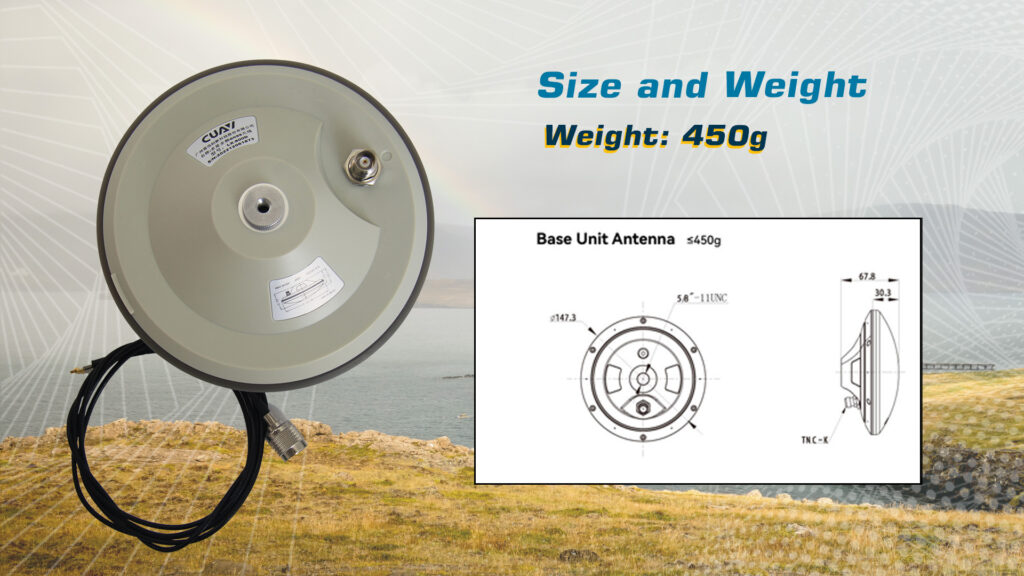

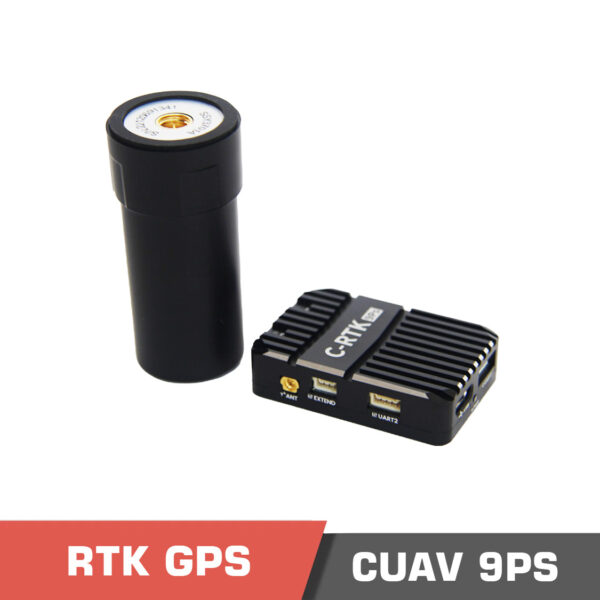

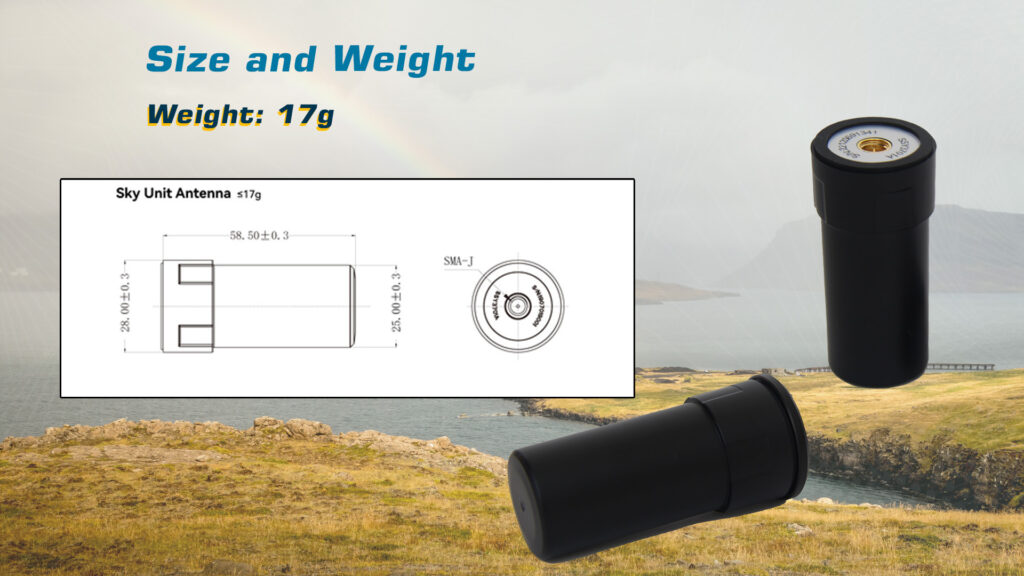

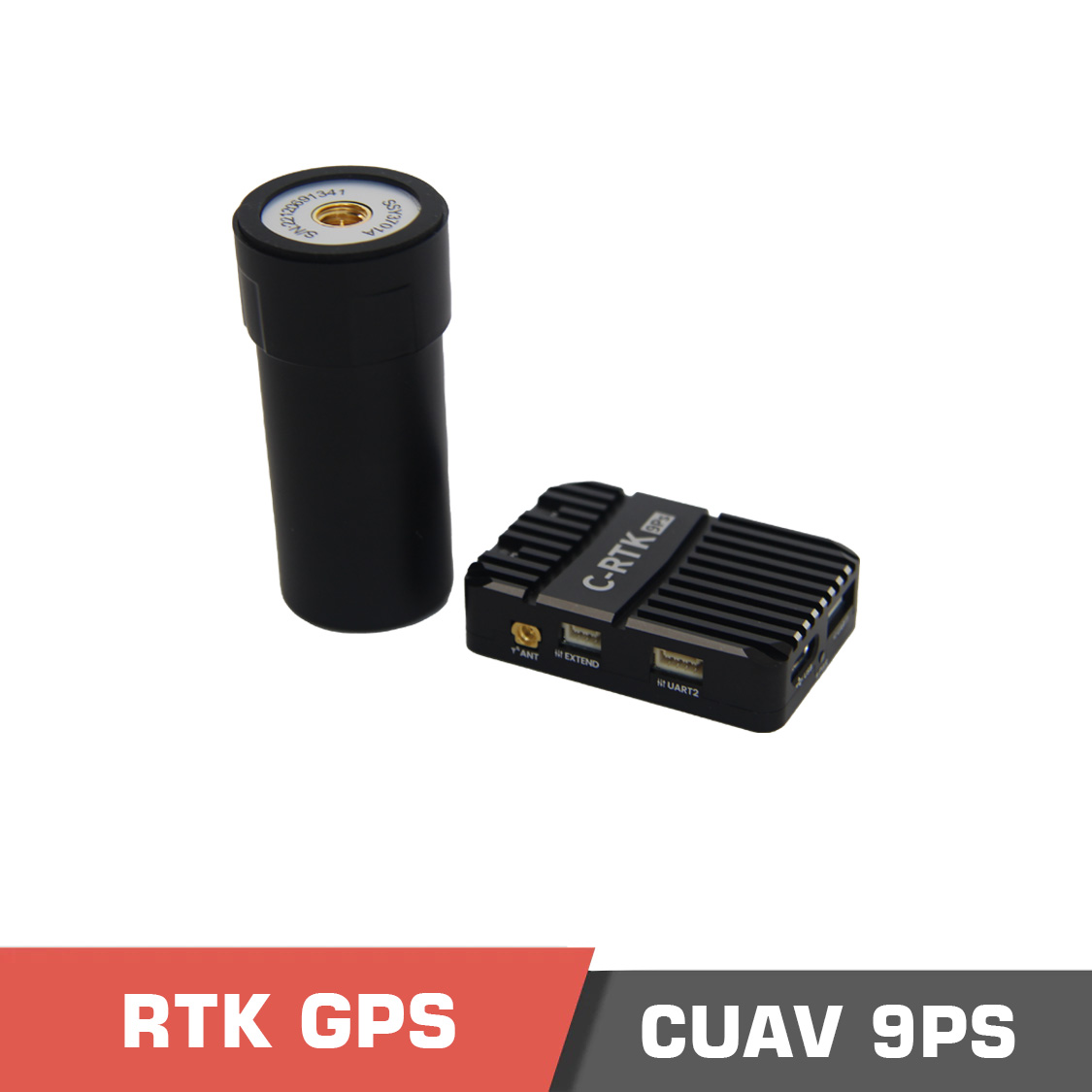

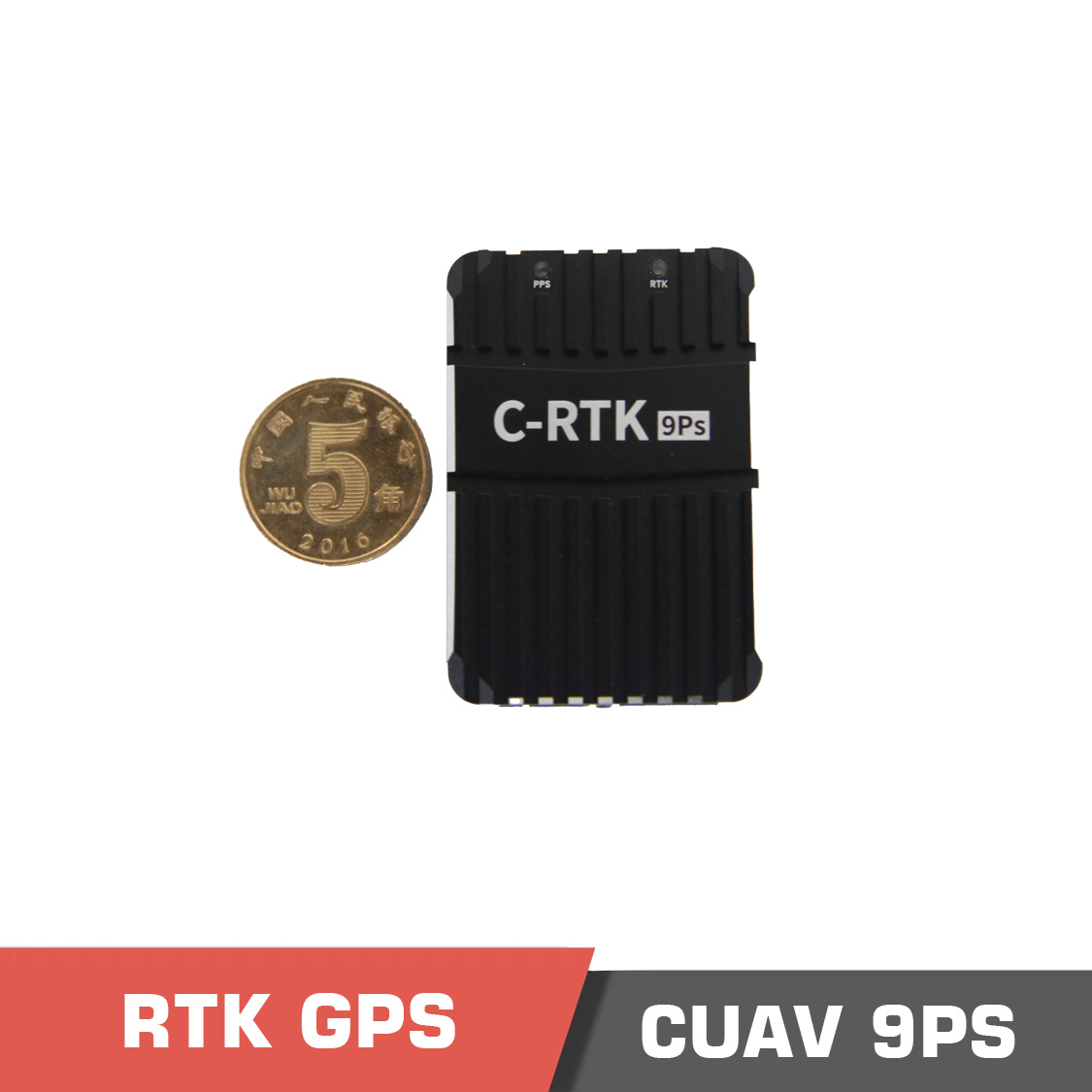

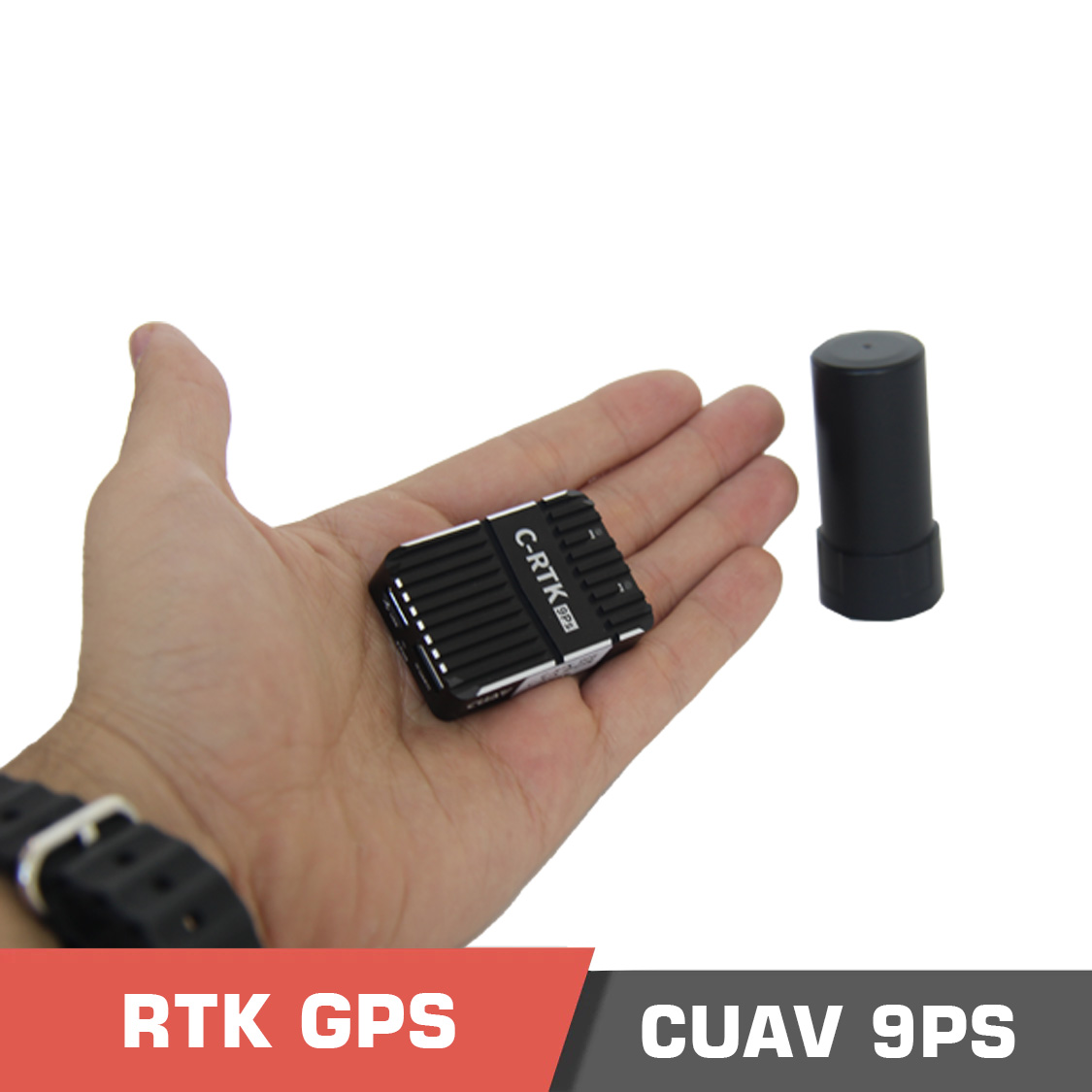

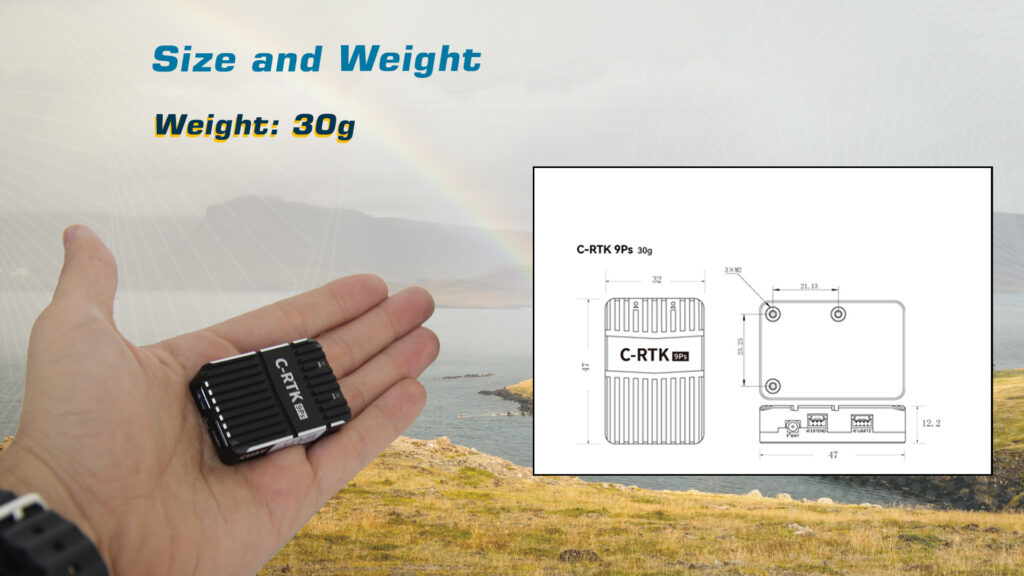

The base and rover units are the same modules with different configuration parameters and different antennas. That just makes it easy to use them in place of each other by just changing a few parameters. However, the antenna used on the rove has a 2dBi gain, while the base station uses a 5dBi gain antenna. The modules are only 30g, and can work in harsh environments and temperatures from –40°C to +85°C.

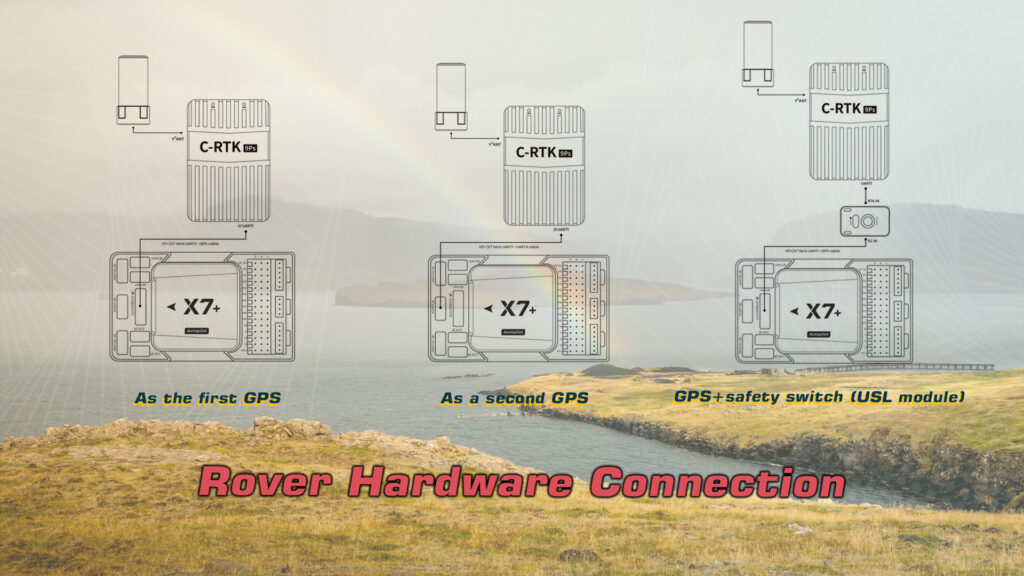

CUAV C-RTK 9Ps 9 PS.2 - CUAV C-RTK 9Ps - MotioNew - 13 9 PS.3 - CUAV C-RTK 9Ps - MotioNew - 14 9 PS.4 - CUAV C-RTK 9Ps - MotioNew - 15 9 PS.5 - CUAV C-RTK 9Ps - MotioNew - 16 9 PS.6 - CUAV C-RTK 9Ps - MotioNew - 17 9 PS.7 - CUAV C-RTK 9Ps - MotioNew - 18 9 PS.8 - CUAV C-RTK 9Ps - MotioNew - 19 9 PS.9 - CUAV C-RTK 9Ps - MotioNew - 20

If you have any questions regarding our products, use the Motionew Support team page to consult our engineering team.

Additional information

Weight 0.32 kg
Dimensions 2.5 × 2.5 × 0.4 cm

Specifications



Receiver type 184 channel ZED-F9P(ublox)
Compass IST8310
GNSS GPS, Beidou, Galileo, GLONASS
Number of concurrent GNSS 4
GNSS Bands GPS-L1C/A(1575.42MHz)
GPS – L2C(1227.6MHz)
GLONASS – L1OF(1602MHz)
GLONASS- L2OF(1246MHz);
GALILEO – E1B/C(1575.42MHz)
GALILEO- E5b(1207.14MHz);
BeiDou – B1I(1561.098MHz)
BeiDou – B2I(1204.14MHz);
QZSS – L1C/A(1575.42MHz)
QZSS – L2C(1227.6MHz)
Nav. update rate RTK 20Hz
RAW 25Hz;
PVT 25Hz
(The maximum limit is related to the concurrency setting; please refer to the subsequent navigation refresh rate chapter for details)
Position accuracy RTK:0.01m+1ppm CEP
GPS:1.5m CEP;
SBAS:1.0m CEP
RTK Surveyin-time RTK<60s
Acquisition Cold starts<24s
Hot starts<1s
Sensitivity Cold starts –148 dBm
Hot starts –157 dBm
Reacquisition –160 dBm
Anti-jamming Active CW detection and removal Onboard band pass flter
Anti-spoofng Advanced anti-spoofng algorithms
Antenna gain Rover:2dBi
Base:5dBi
PPK not support
GPS heading Support (requires two C-RTK 9Ps); heading accuracy: 0.4edg (reference value)
Base/Rover role swap Support

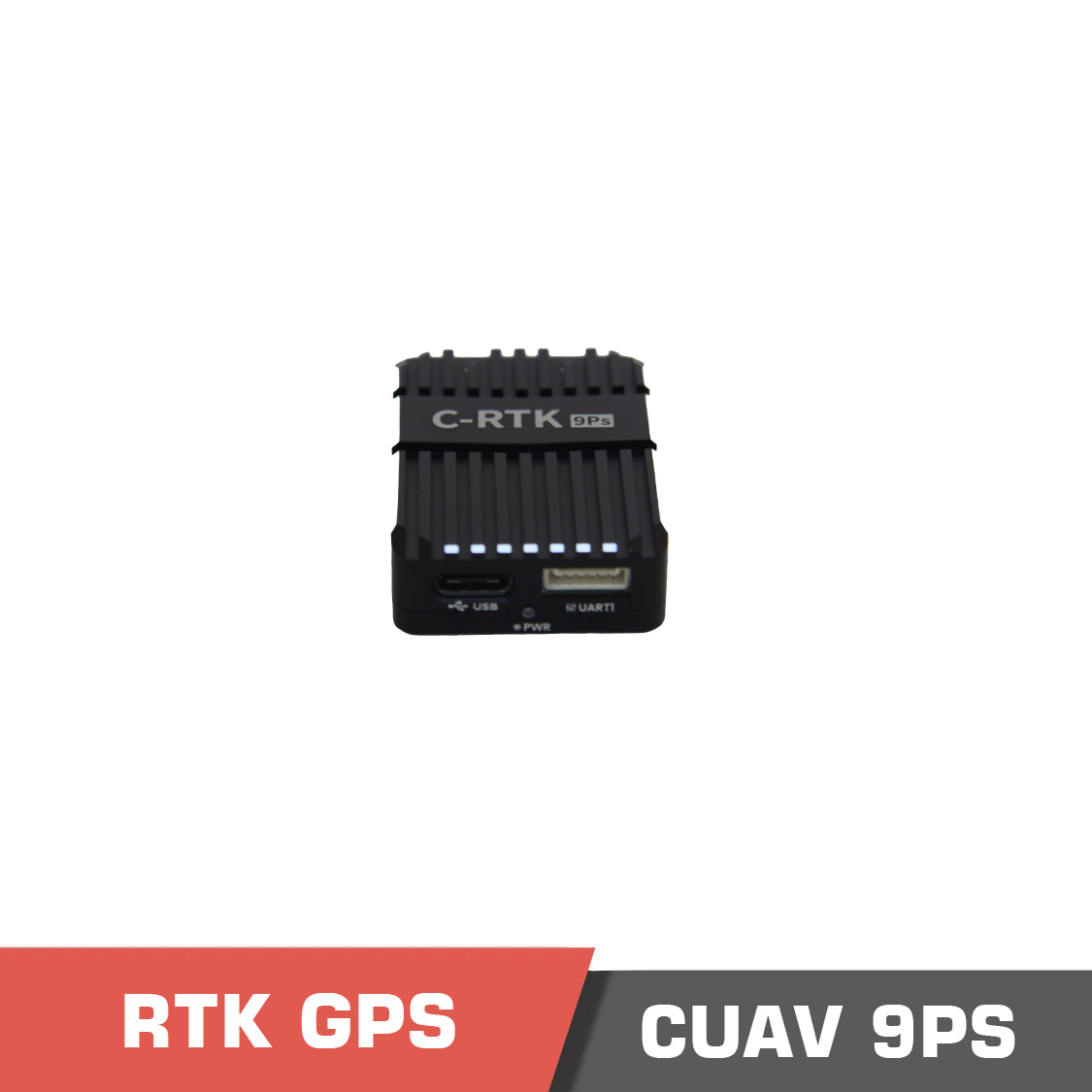

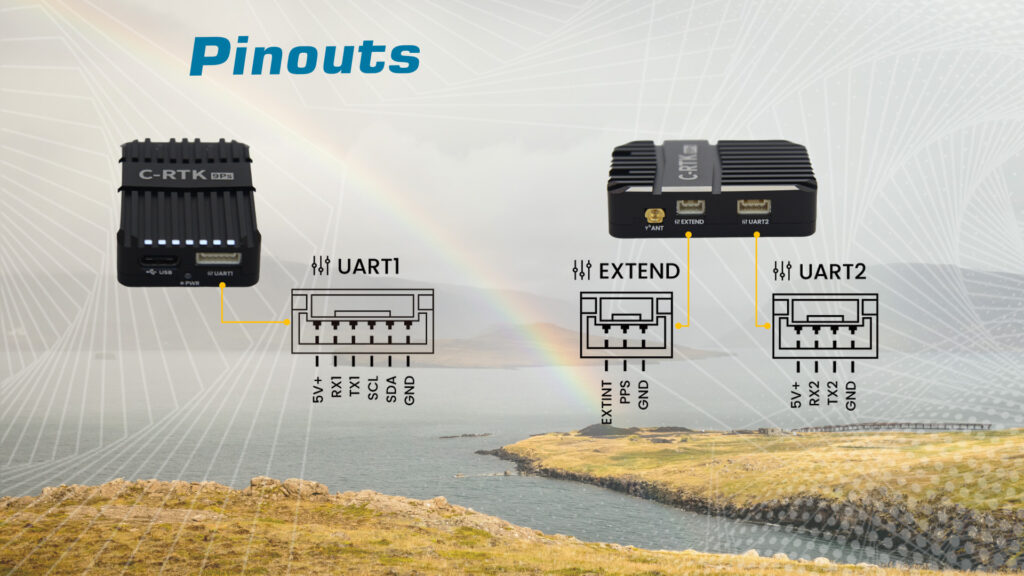

UART 2
USB 1
Protocols NMEA, UBX binary, RTCM 3.x
Operating voltage 4.5V to 6V
Operating temperature –40°C to +85°C

Documents

User Manual

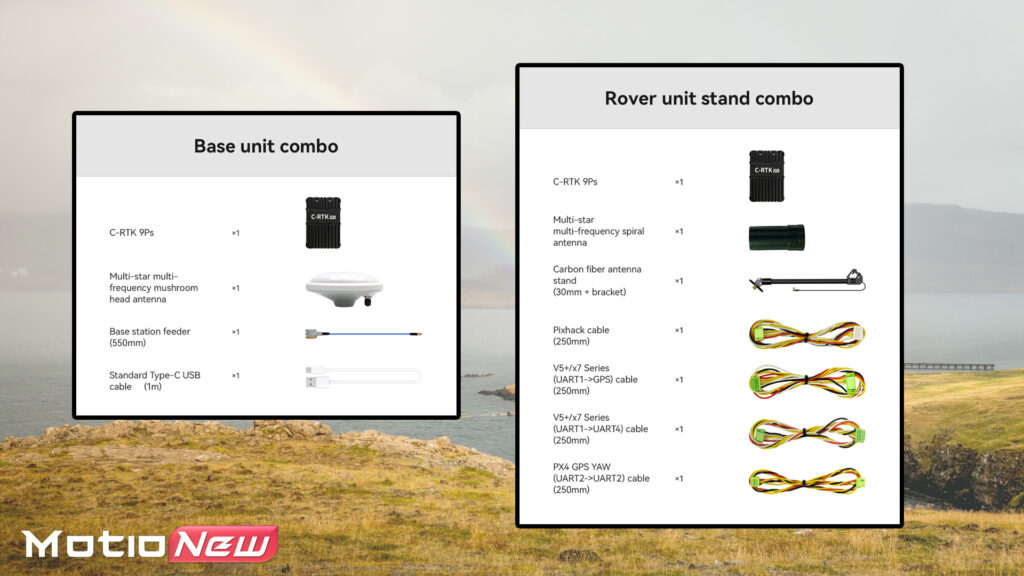

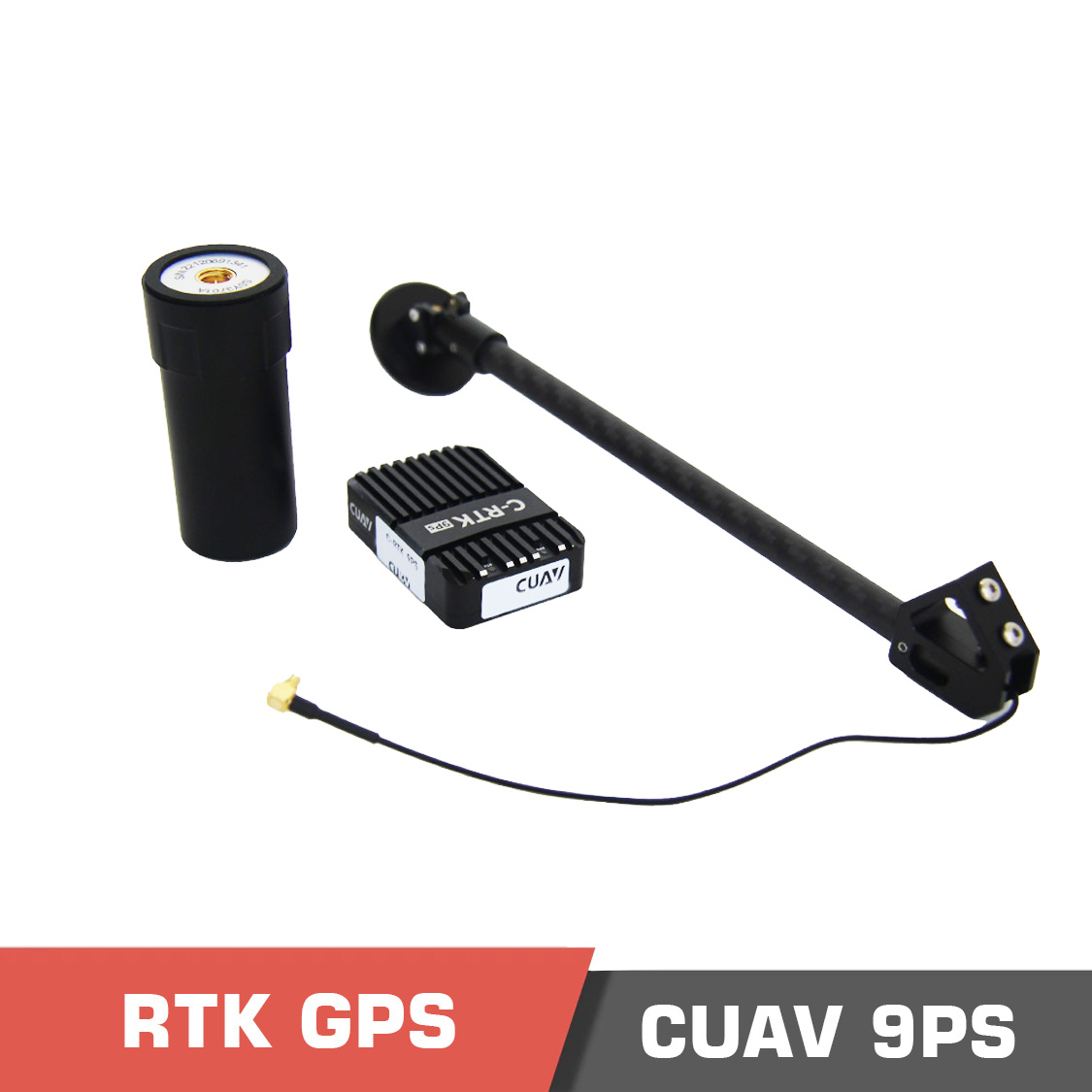

Product contents

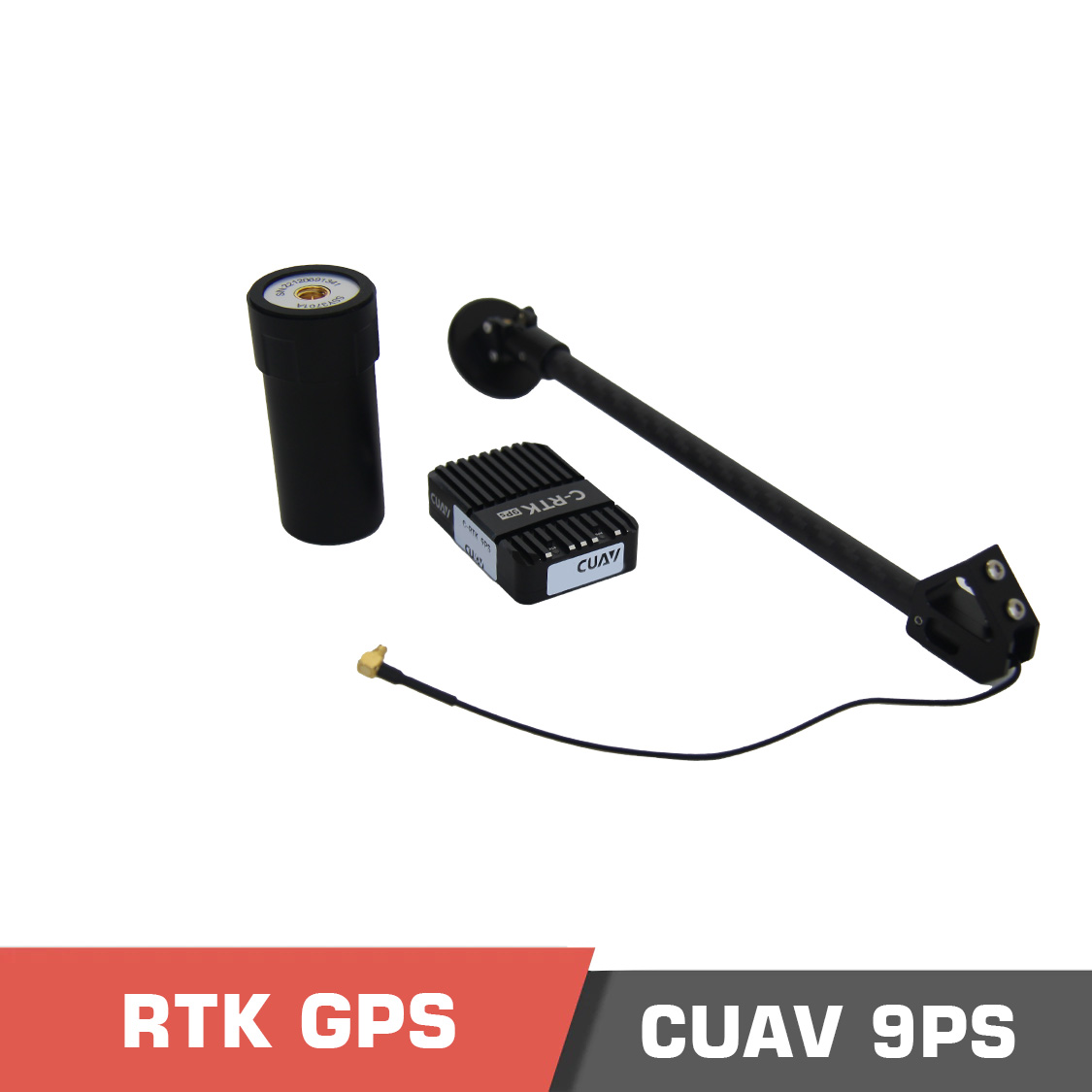

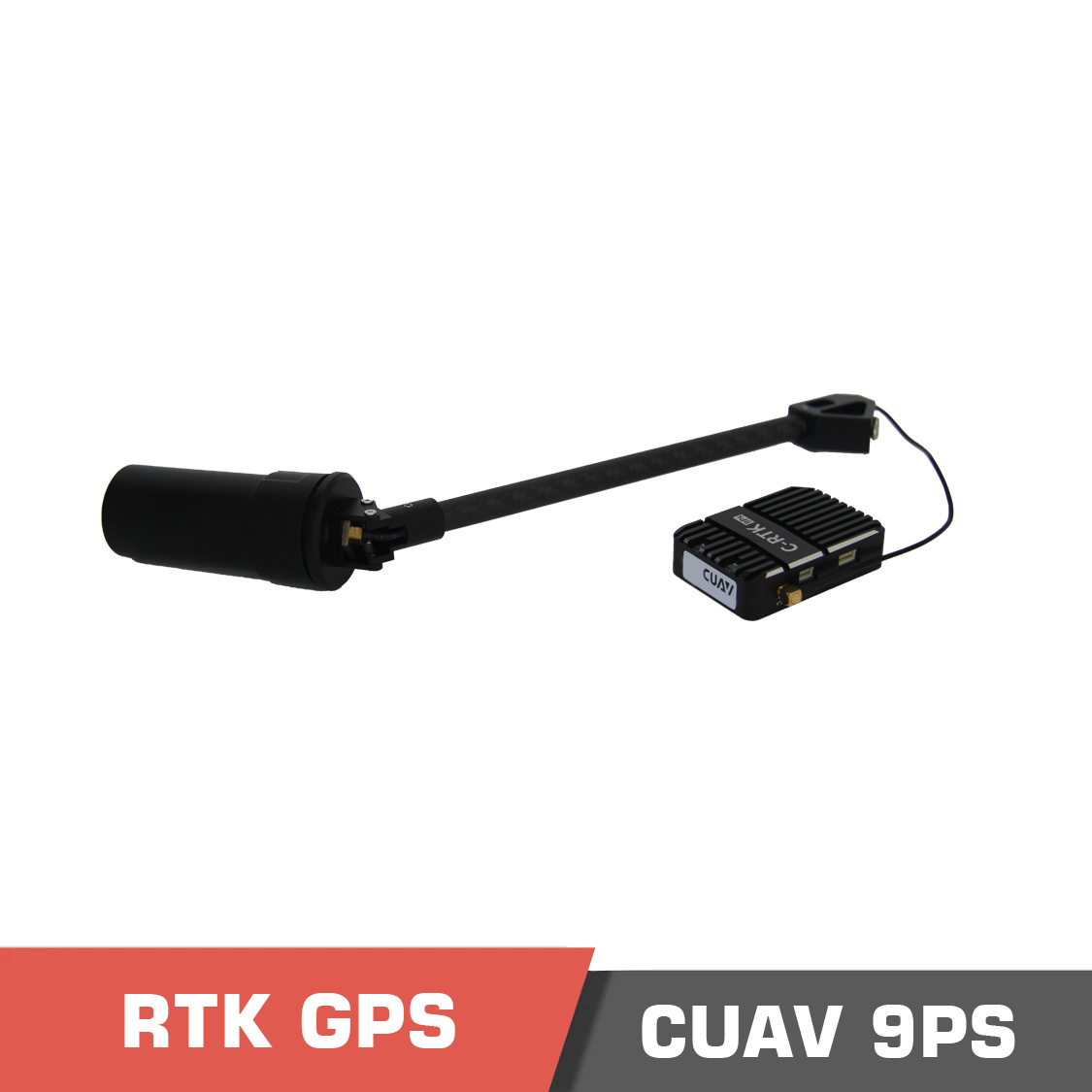

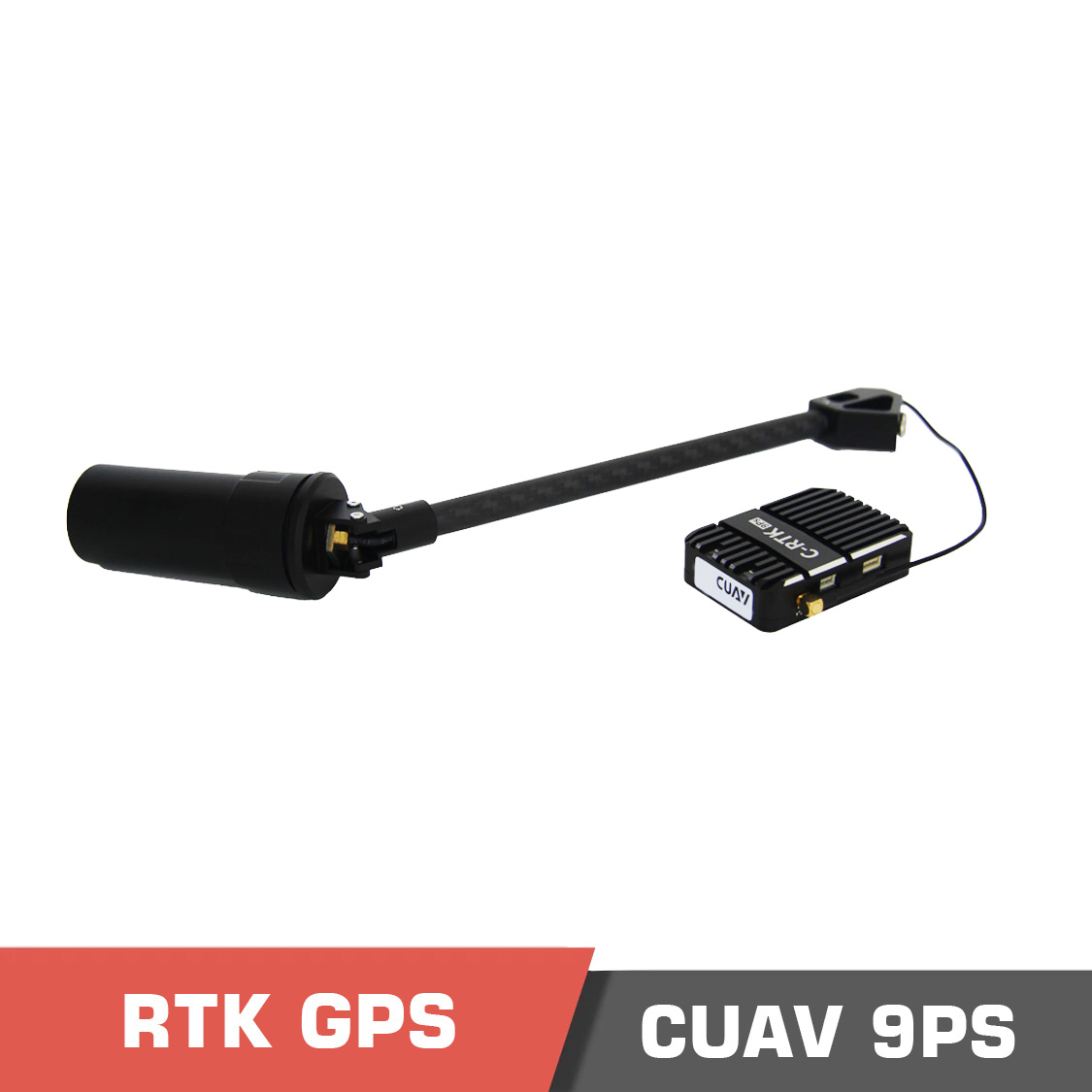

Rover bundle

1x CRTK 9Ps

1x spiral antenna

1x carbon fiber stand

1x pixhack cable

1x v5+/x7 cable

1x px4 GPS yaw cable

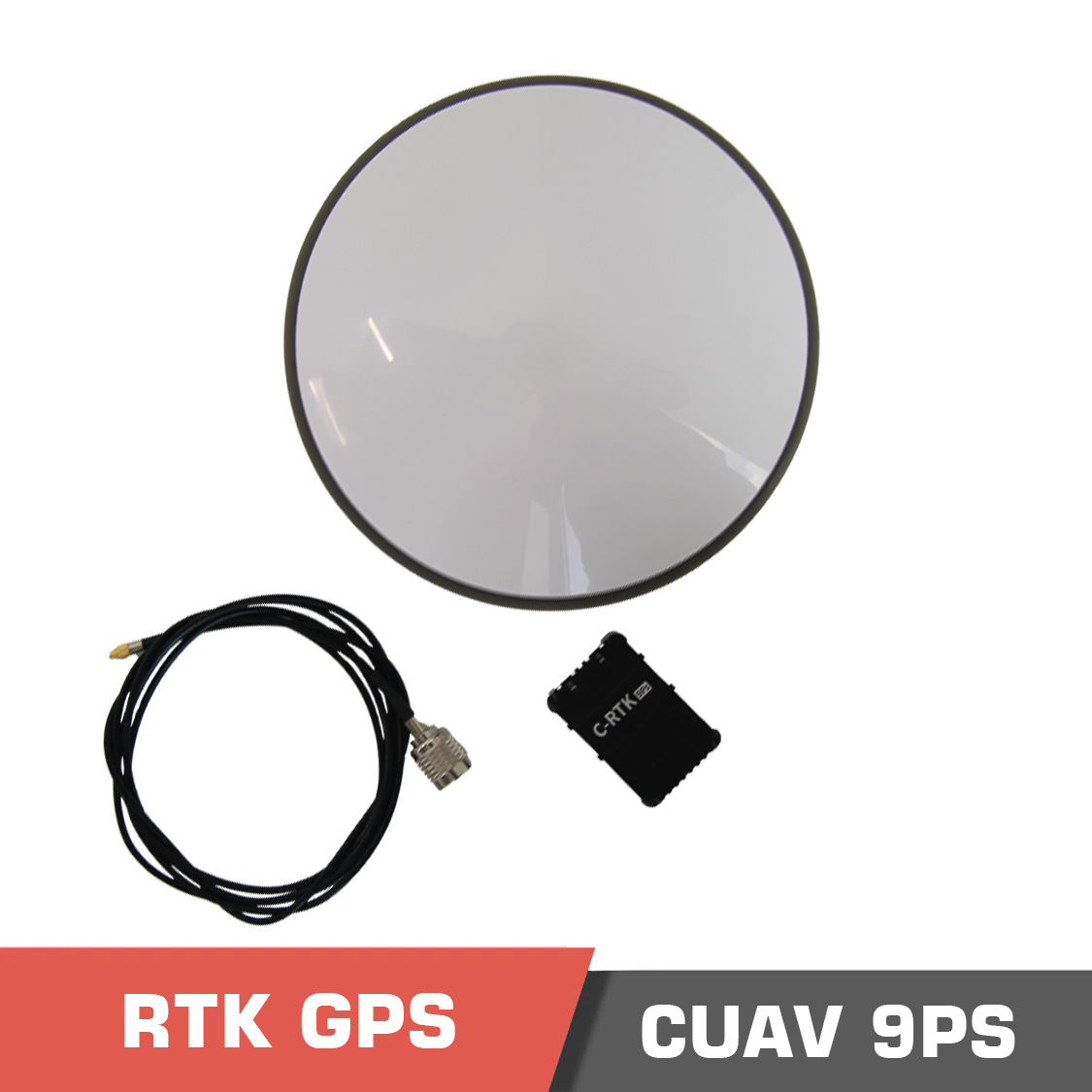

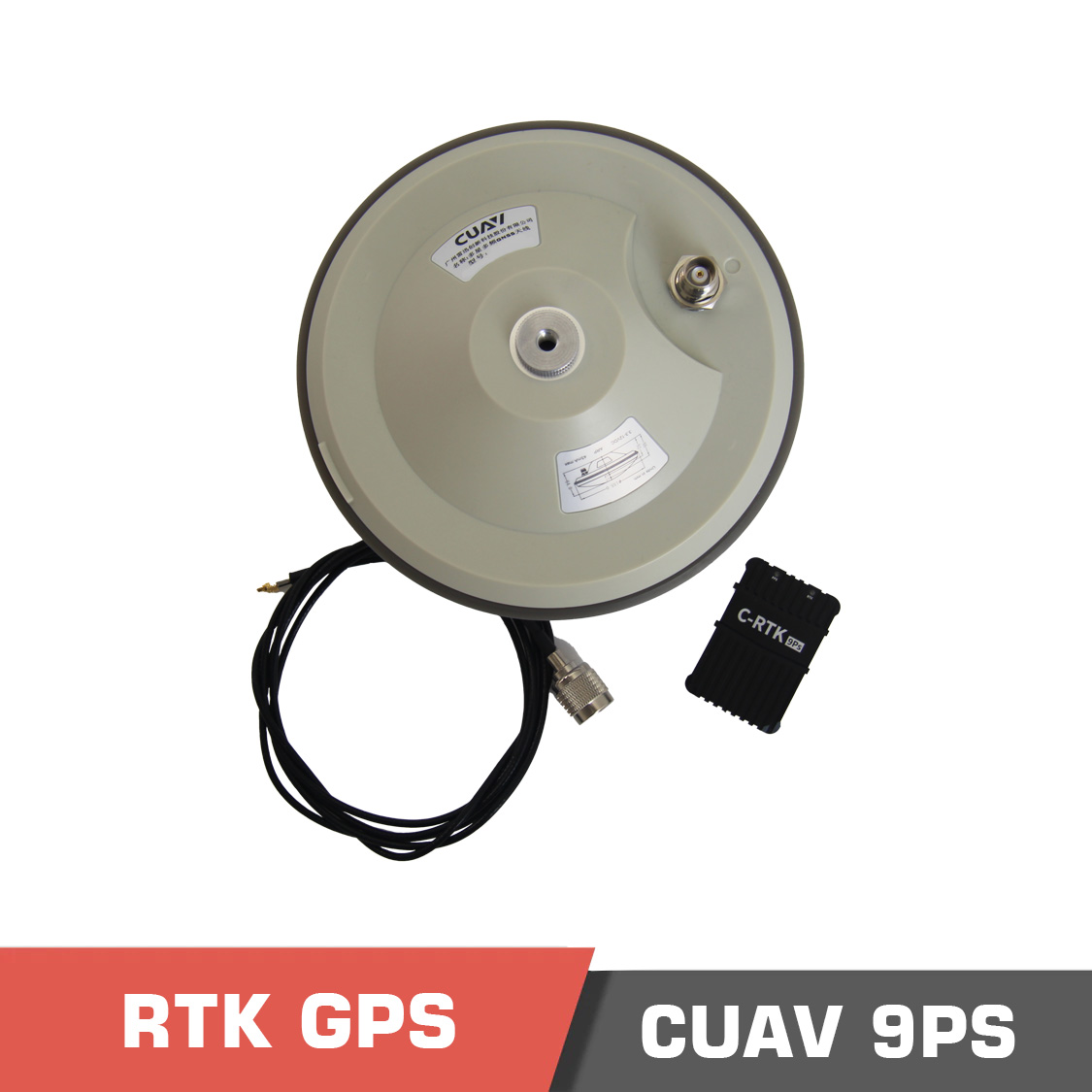

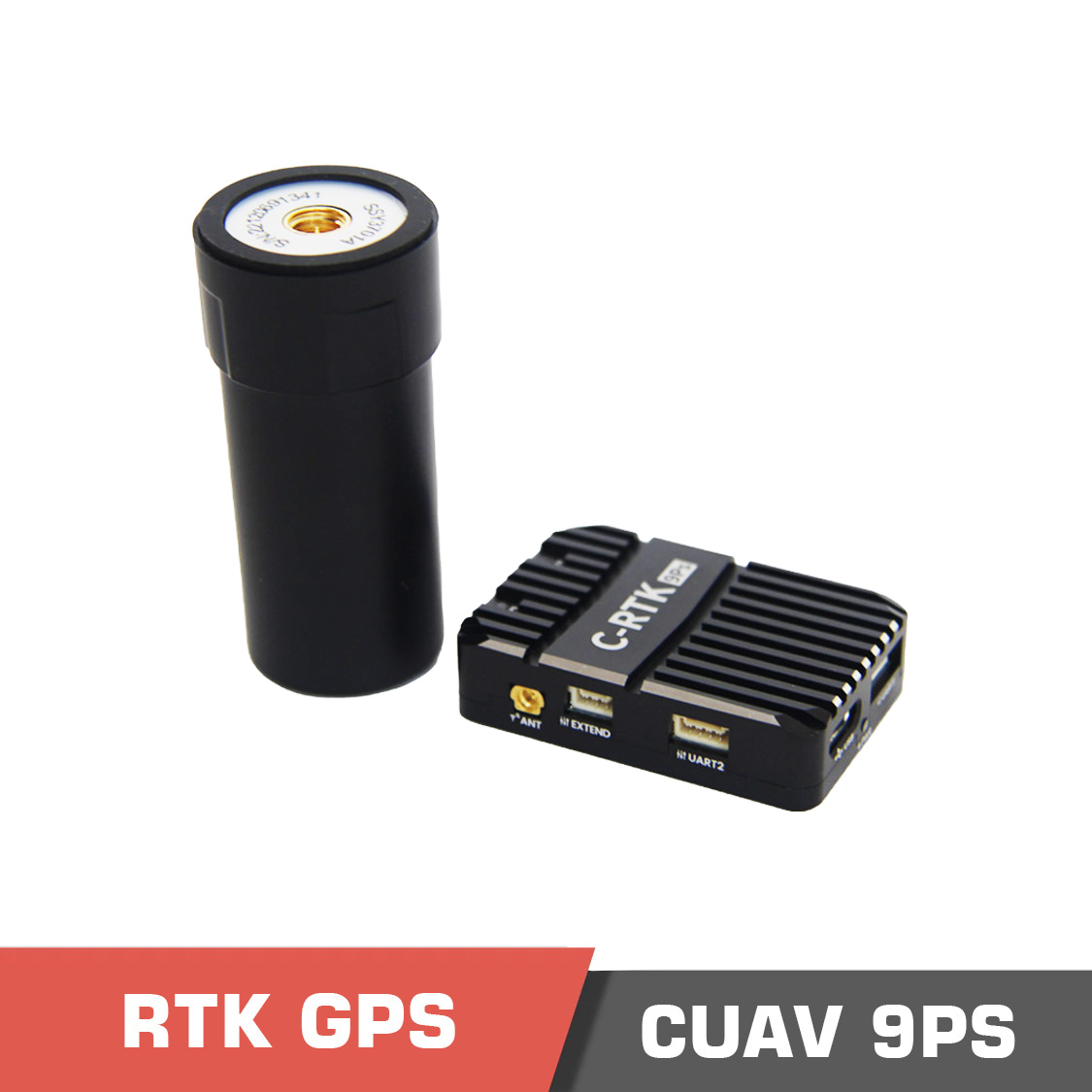

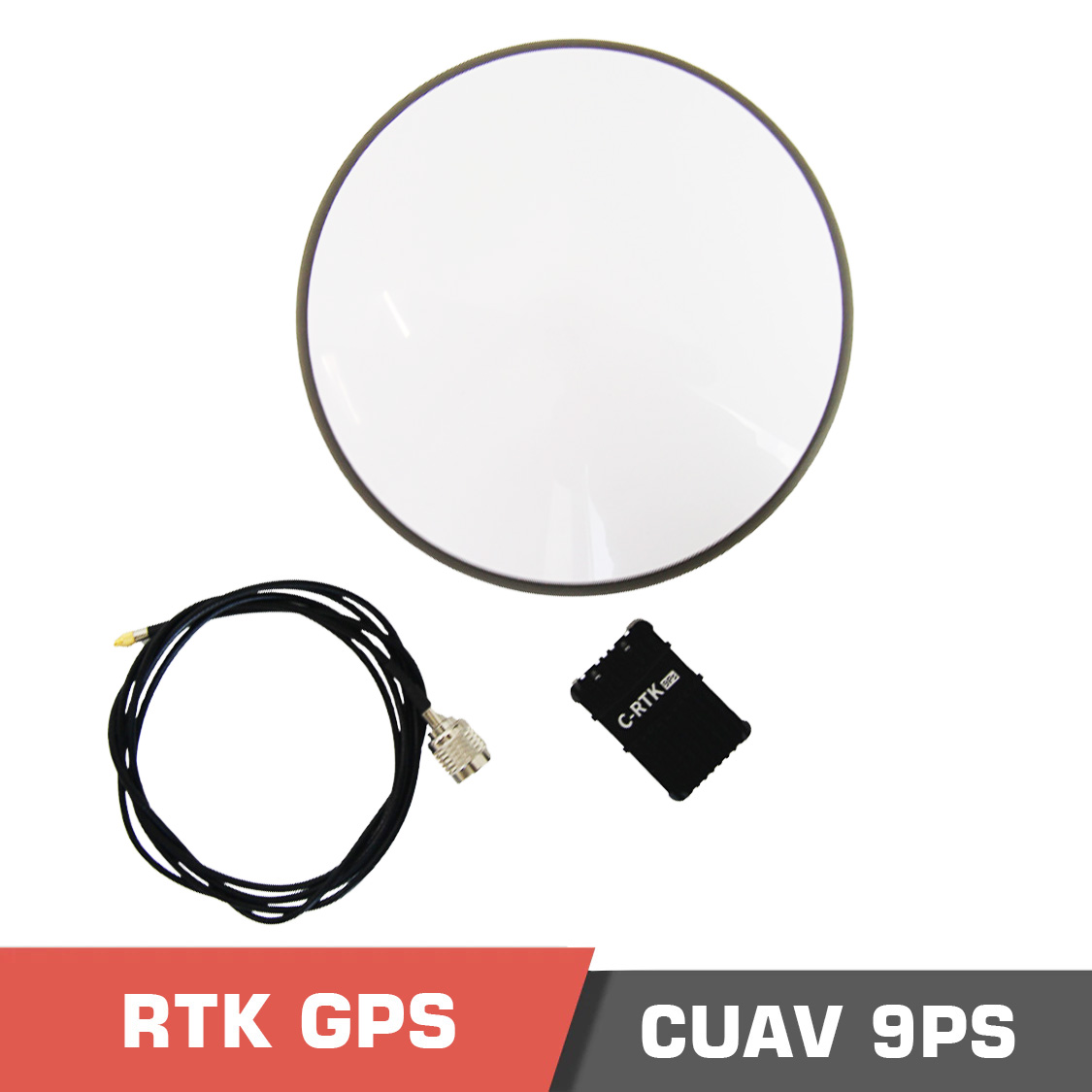

Base bundle

1x C-RTK 9Ps

1x mushroom head antenna

1x base station feeder

1x type-c USB cable
