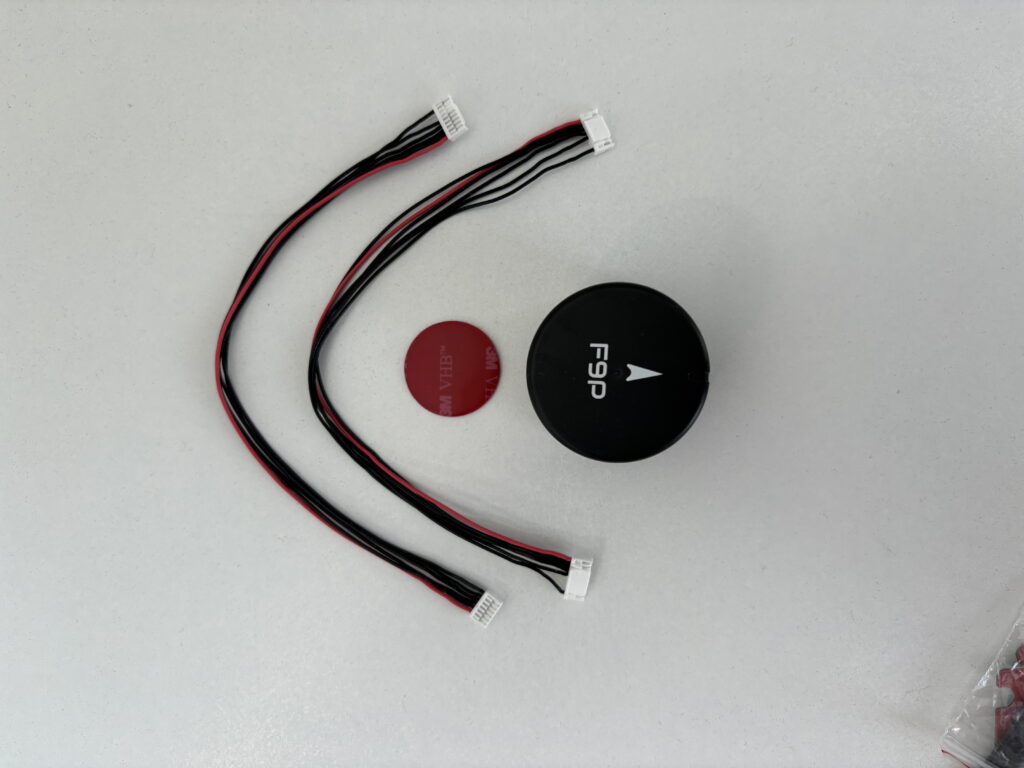

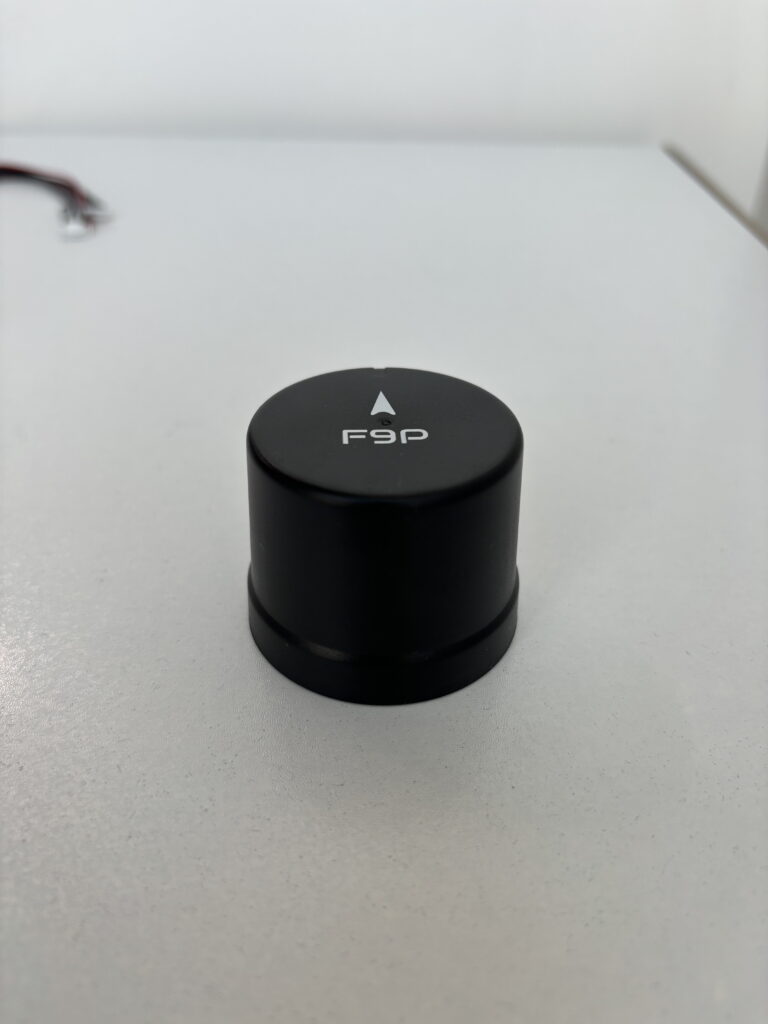

Customer Product Gallery

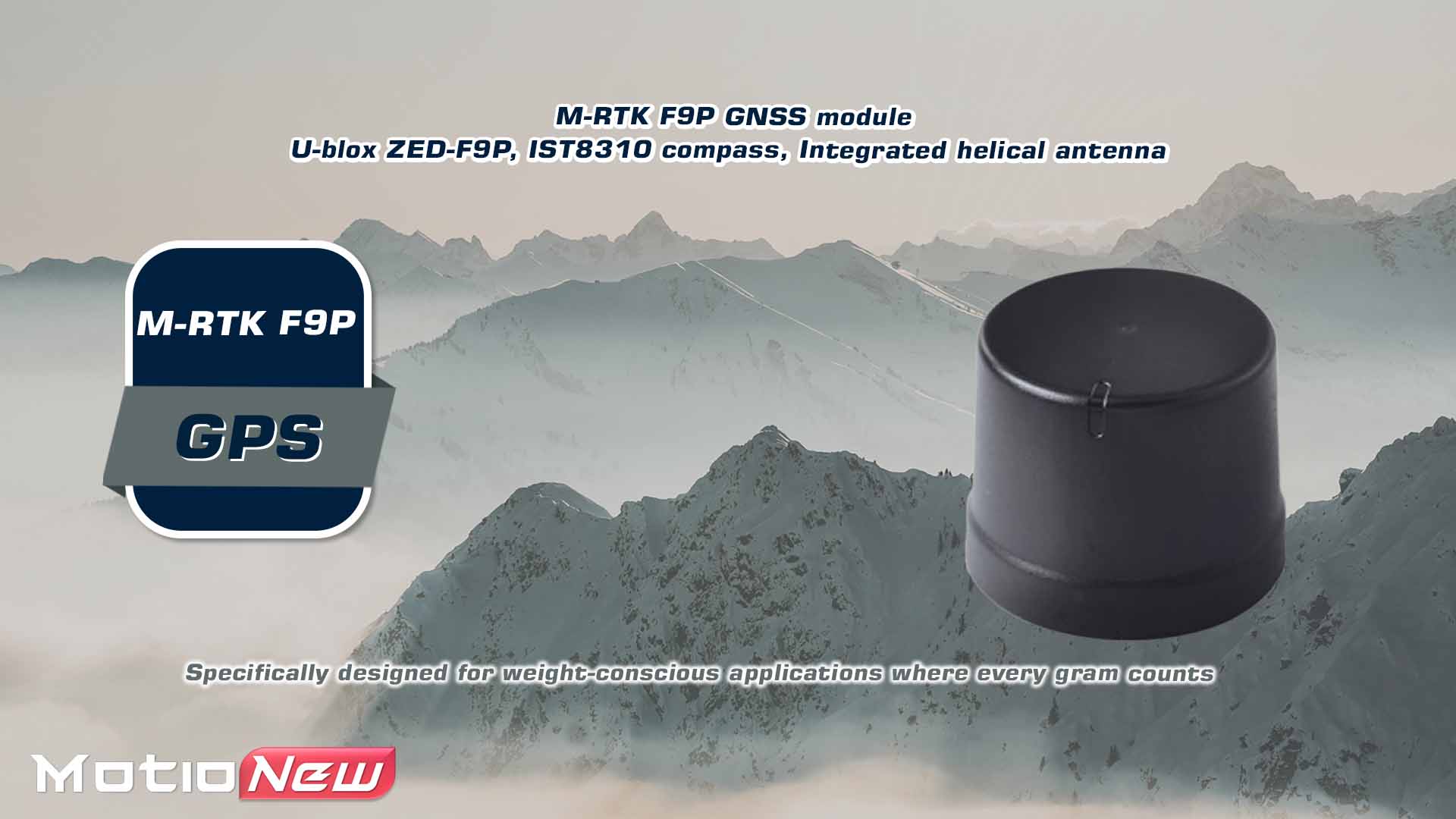

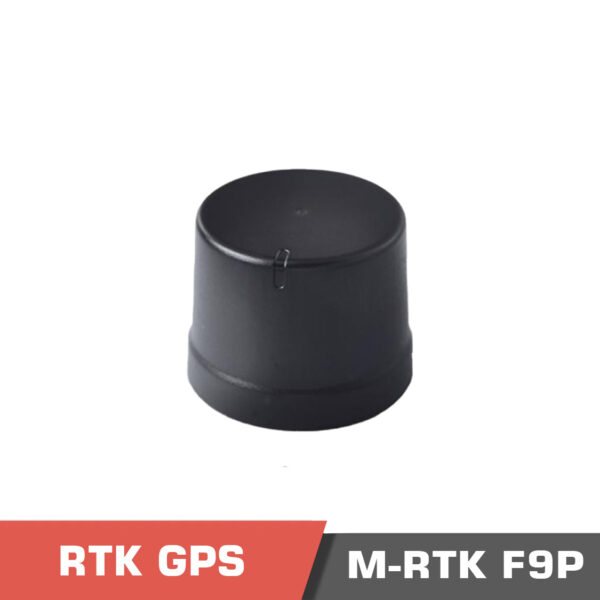

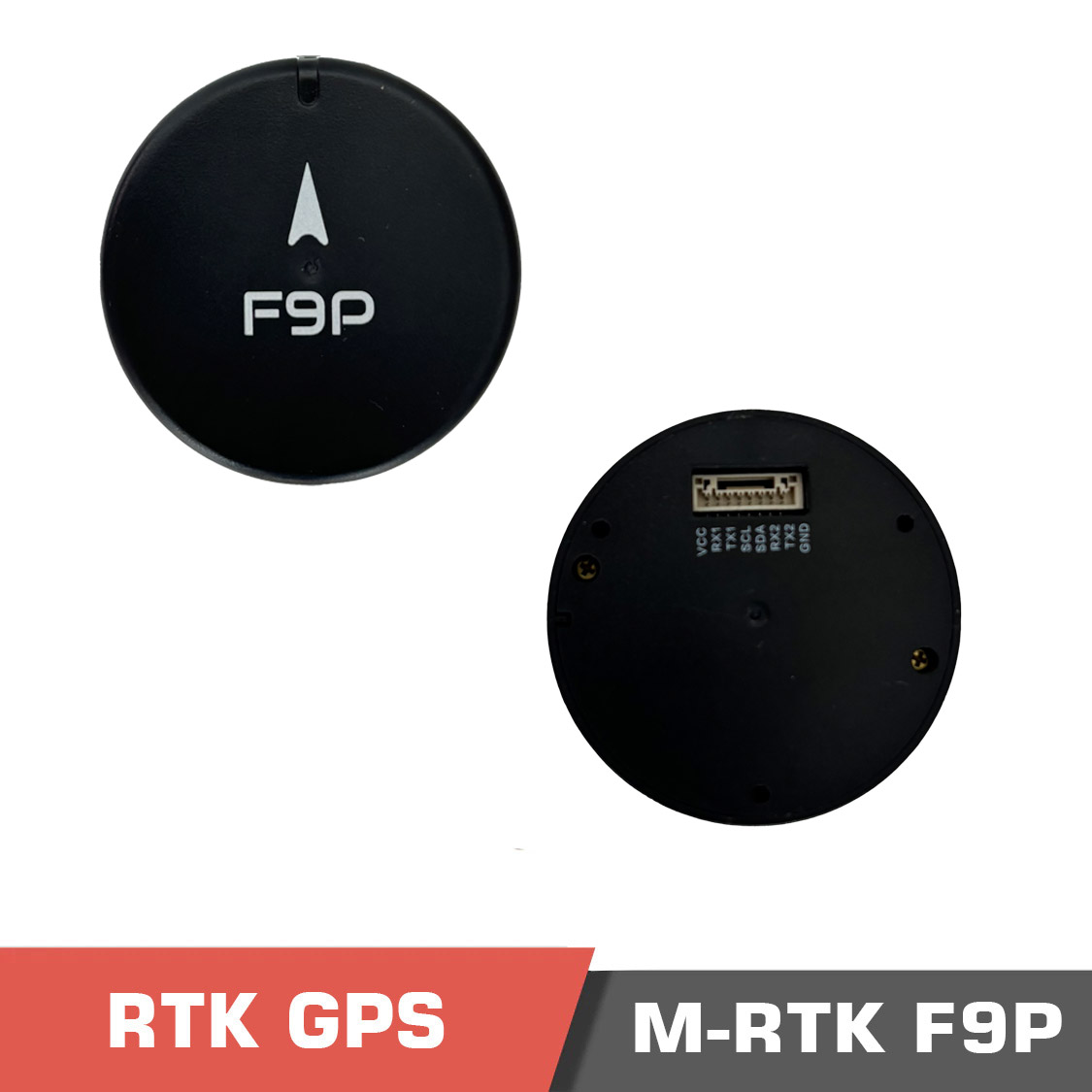

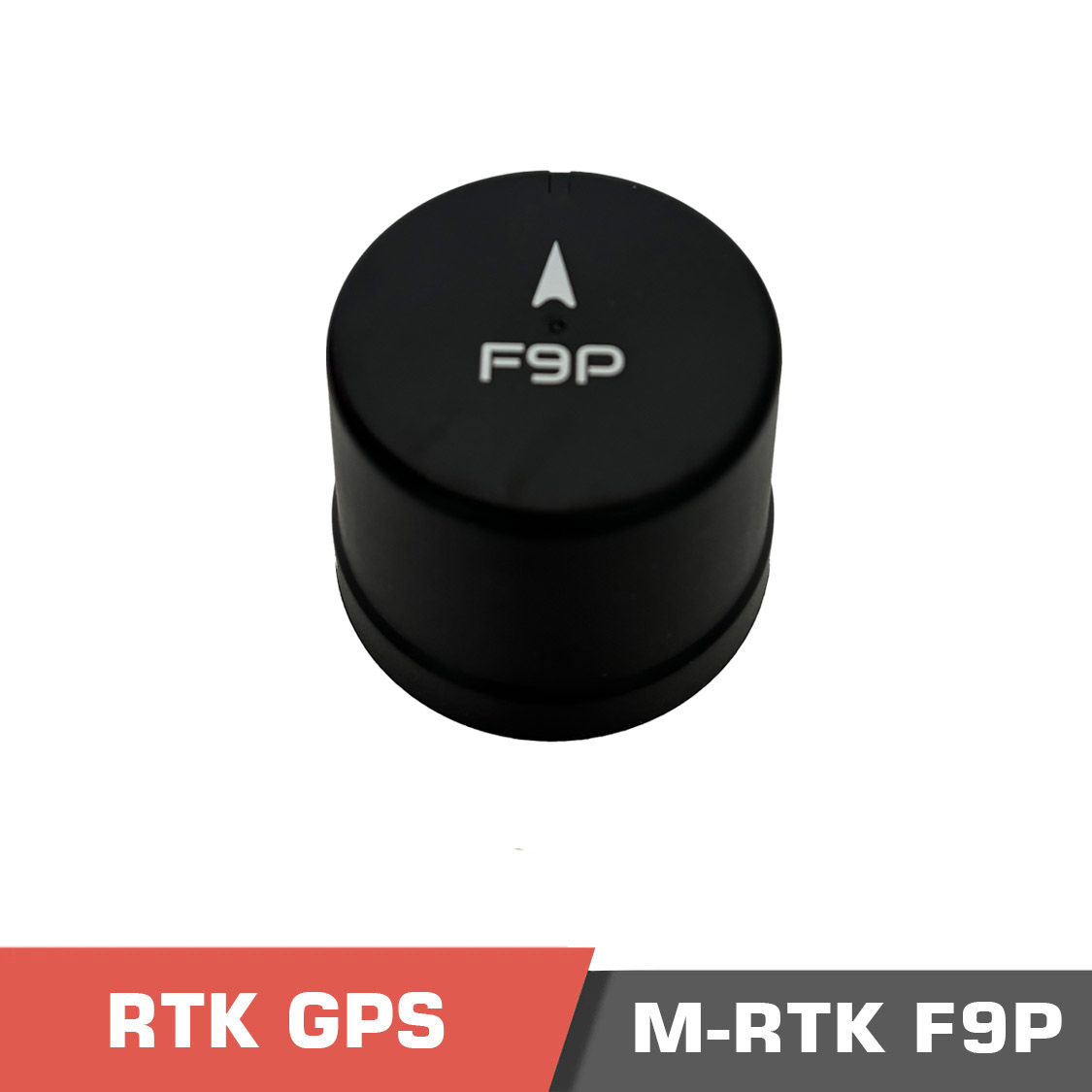

M-RTK F9P GPS, OEM u-blox ZED-F9P

Name: M-RTK F9P GPS, OEM u-blox ZED-F9P
SKU: 1005003417948278-1-2-1-2-1-1-1-2
Price: 347.00 USD
Availability: InStock
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

347.00 $

Message on WhatsApp

Add to compare

Add to wishlist

Payment Methods:

Description

M-RTK F9P GPS, OEM u-blox ZED-F9P Overview

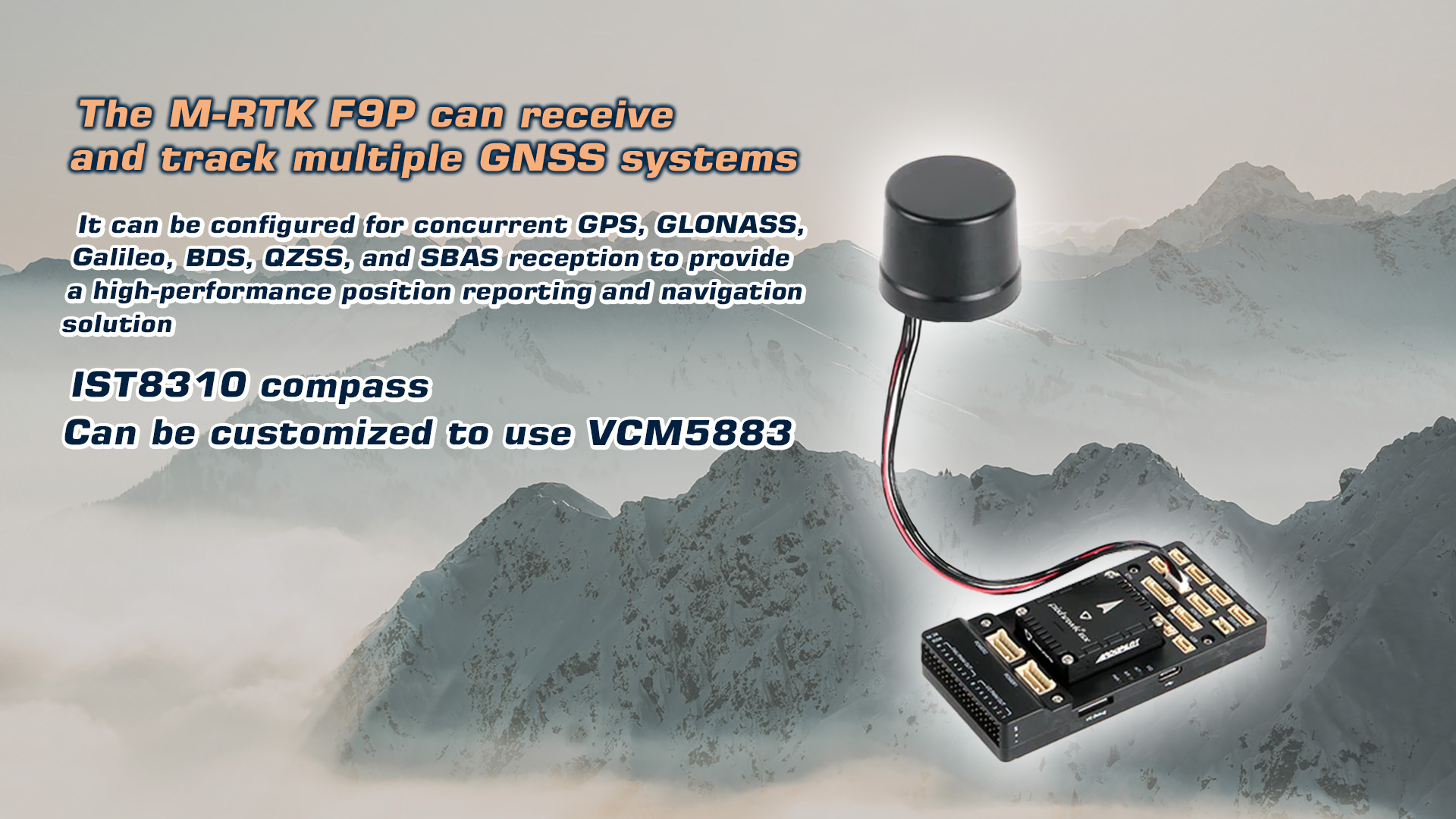

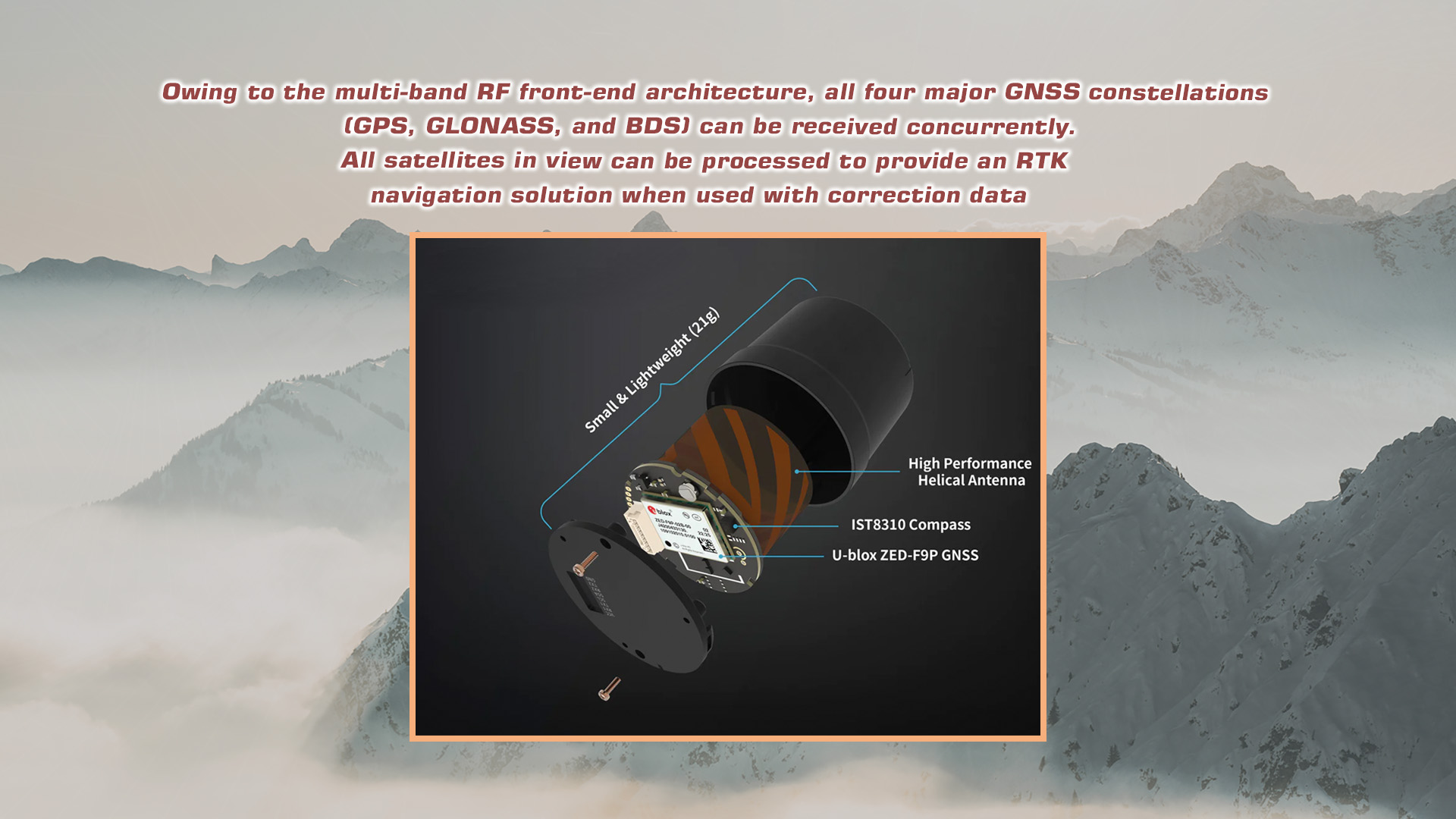

The M-RTK F9P GPS is a concurrent GNSS receiver from MotionUAV capable of receiving and tracking multiple GNSS systems simultaneously. Owing to the multi-band RF front-end architecture, it supports concurrent reception of major GNSS constellations, including GPS, GLONASS, and BDS. With the integration of correction data, the system processes all satellites in view to deliver an RTK navigation solution.

The M-RTK F9P GPS can be configured to receive GPS, GLONASS, BDS, and QZSS signals concurrently, ensuring high-performance positioning and navigation capabilities. Powered by the advanced u-blox ZED-F9P positioning engine, it offers exceptional sensitivity, fast acquisition times, and robust interference suppression, ensuring reliable operation even in challenging signal environments.

Product features of M-RTK F9P GPS

• Build on high performance GNSS M6D

• 96 search channels and 60 trace channels

• Cold start acquisition sensitivity of -147dBm and -163dBm tracking sensitivity

• Max 10 Hz navigation update rate

• Supports GPS,BDS,GLONASS and QZSS

• Support the Beidou-3 satellite

• MSM7 input is supported

• Integrated TCXO, LNA, SAW, RTC

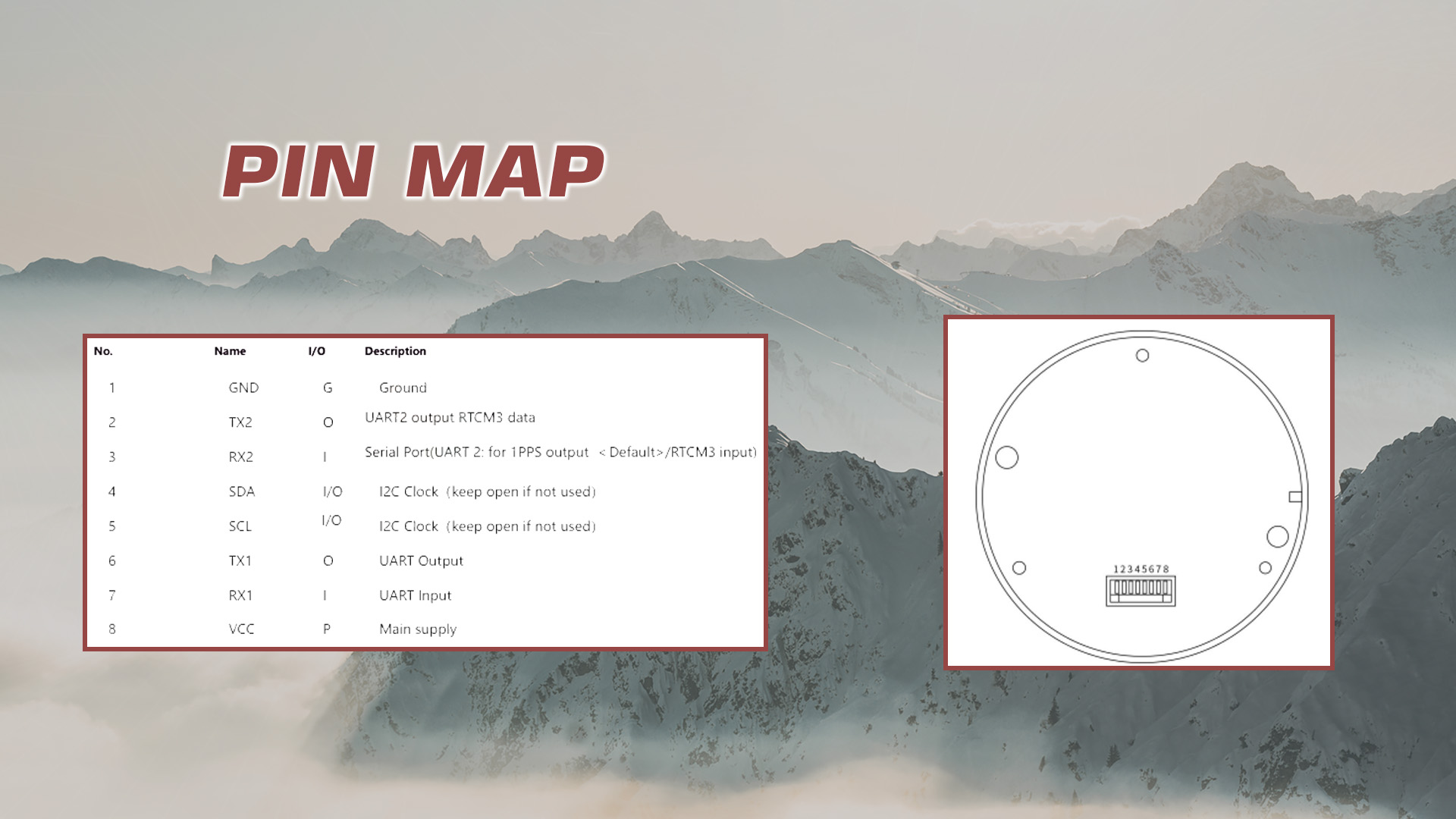

• Configurable peripheral IO pins

• Integrated high gain antenna

• Low power consumption and it has intelligent power control mechanism

• Single supply with wide voltage range

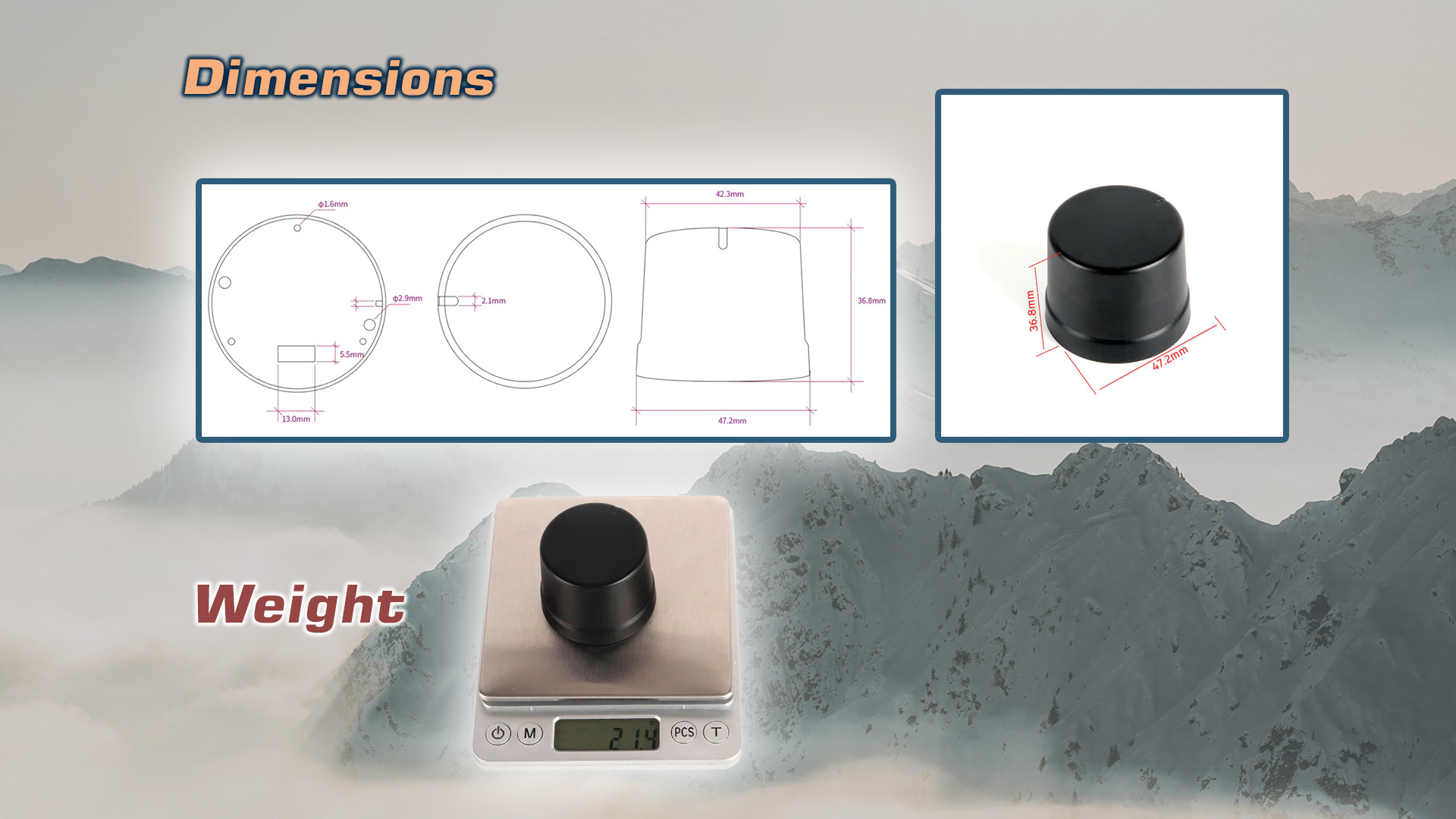

• Compact size (Bottom diameter: 47.2mm, Head diameter: 42.3mm, Height: 36.8mm ) ±0.3mm

If you have any questions regarding our products, use the Motionew Support team page to consult our engineering team.

M-RTK F9P GPS, OEM u-blox ZED-F9P – FAQ

1. What is the main function and architecture of the M-RTK F9P GPS?
The M-RTK F9P GPS is a high-precision, multi-band GNSS receiver based on the u-blox ZED-F9P chipset. It supports simultaneous reception of multiple constellations and provides centimeter-level RTK positioning accuracy for UAV and robotics applications.

2. Which satellite systems and frequencies are supported?
It supports concurrent multi-constellation tracking from GPS, GLONASS, BeiDou, Galileo, and QZSS across L1/L2 frequency bands, ensuring fast convergence and stable positioning in complex environments.

3. What communication interfaces and integration options are available?
The module supports UART, USB, and CAN interfaces, making it compatible with Pixhawk, CUAV, and other open-source flight controllers. It can operate as a standalone receiver or as part of a base-rover RTK configuration.

4. What are the purchasing and delivery options for the M-RTK F9P GPS?
The unit is available as an OEM module with optional accessories and antenna configurations. Motionew provides worldwide shipping with tracking and estimated delivery times shown during checkout.

5. Does Motionew offer OEM and bulk purchasing options for this model?
Yes. OEM and bulk purchase programs are available for UAV manufacturers and professional integrators. Buyers can request custom wiring, firmware configuration, and volume-based pricing through Motionew’s sales department.

6. What documentation and support resources are provided?
Comprehensive datasheets, setup guides, and wiring diagrams are available in the documentation section. Firmware updates, configuration tools, and technical support are provided through u-blox and Motionew’s engineering support teams.

Specifications

Specifications of M-RTK F9P GPS

GNSS module	u-blox ZED-F9P

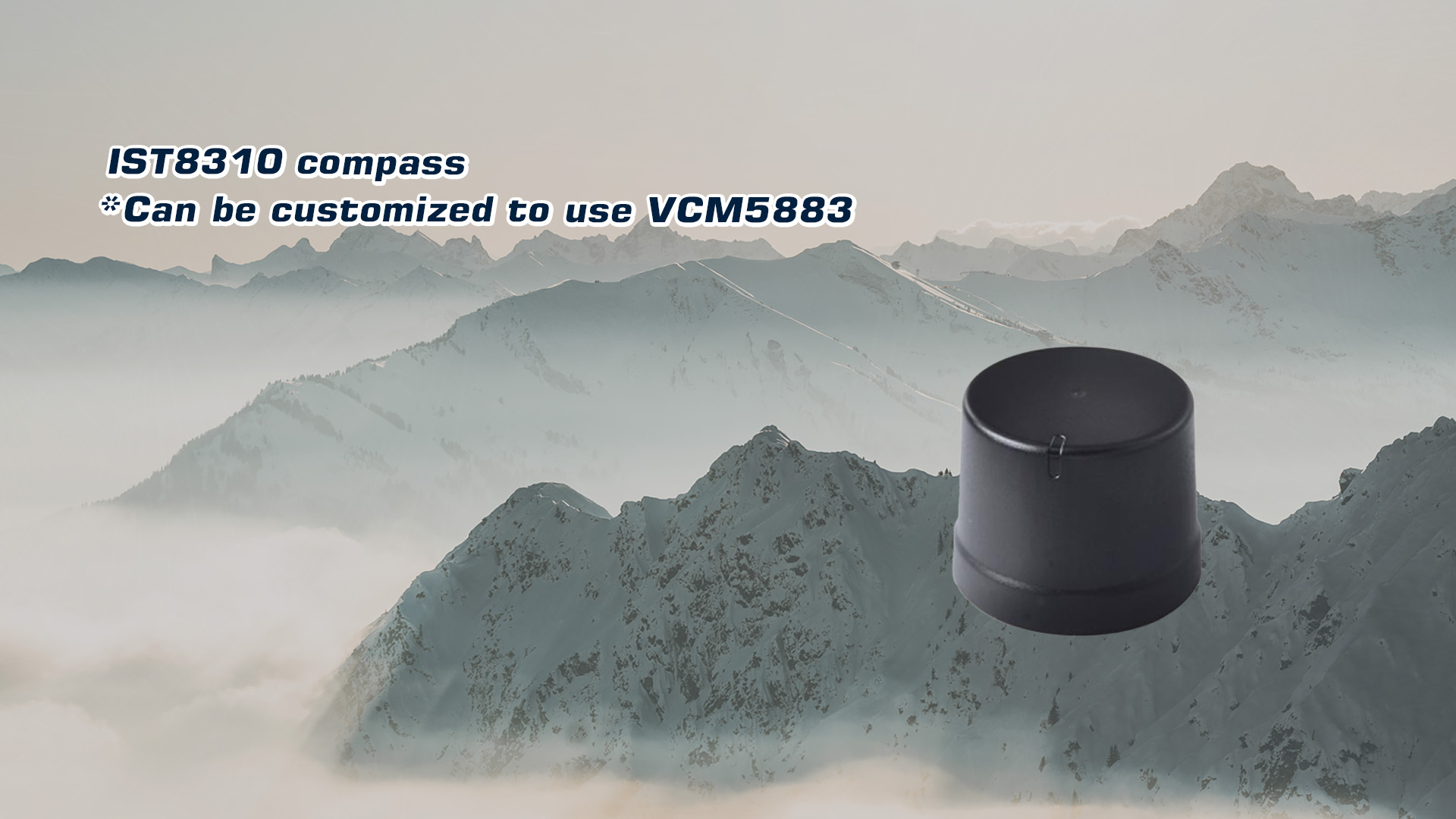

Compas	IST8310
Receiver type	GPS L1C/A L2C GLONASS G2 G1 BDS B1l B2l
Sensitivity	Tracking	-163dBm
Sensitivity	Reacquisition	-147dBm
Time-To-First-Fix¹	Cold Start	≤35 s
	Warm Start	20s
	Hot Start	1 s
Position accuracy²	Autonomous	2.0 m CEP
	DGNSS	0.5m CEP
	RTK	2cm+1ppm (Horizontal)³
Accuracy of time pulse signal	RMS	25ns
Velocity accuracy	GNSS	0.1 m/s
Velocity accuracy	D-GNSS	0.05 m/s
Operational limits⁴	Dynamics	≤ 4 g
	Altitude	18000 m
	Velocity	515 m/s
Baud Rate	115200-230400 bps（Default 38400 bps）
Max navigation update rate	10Hz (If you need a greater navigation update rate, please contact us)
1. All satellites at ≥-130dBm 2. CEP, 50%, 24 hours static, ≥-130dBm, > 8SVs 3. Based on 30km, the accuracy error increases by 1cm every 10km from the base station 4. Assuming Airborne < 4 g platform
