Holybro Micro M9N GPS

43.00 $

Version

Clear

Message on WhatsApp

Add to compare

Add to wishlist

Payment Methods:

Description

Description:

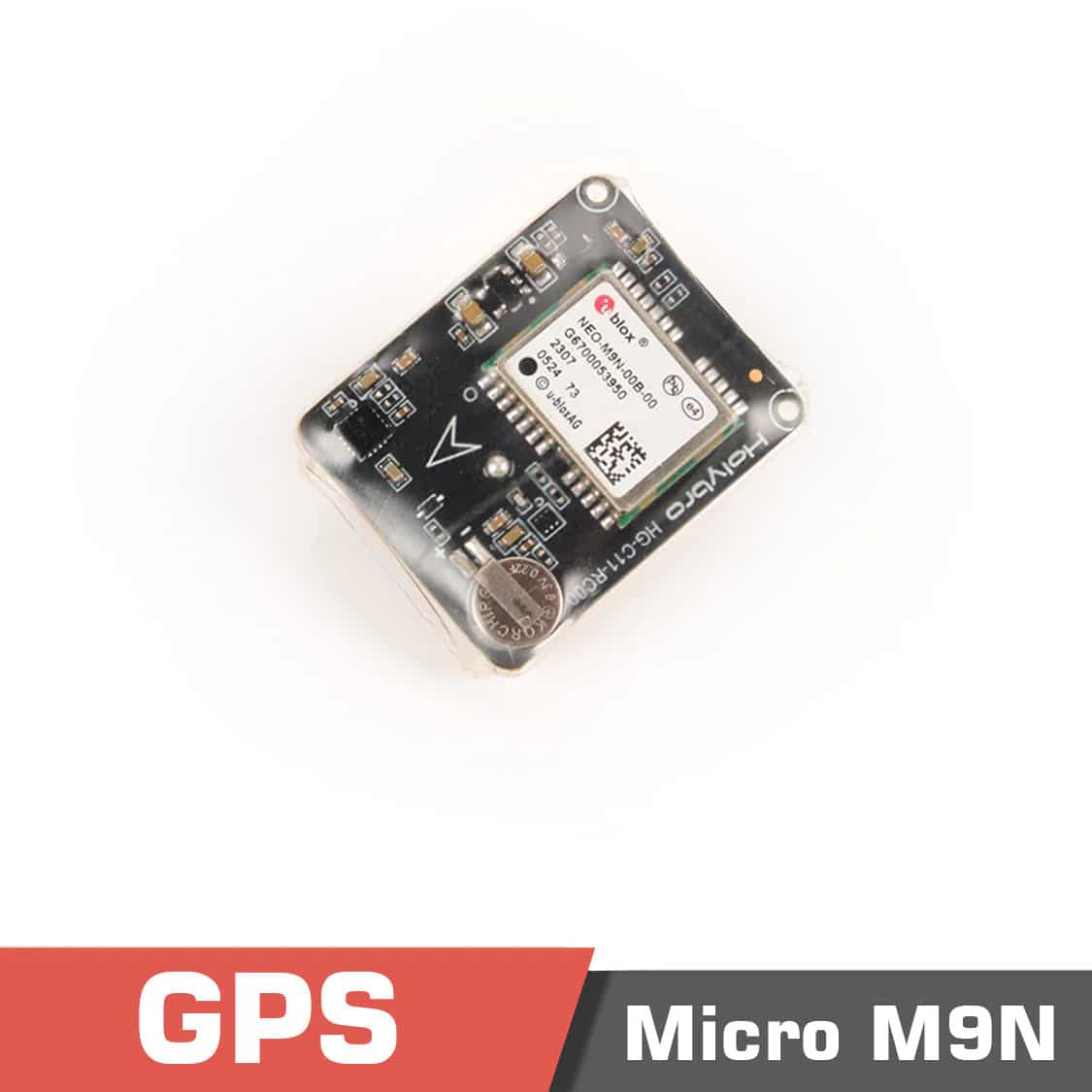

These Micro GPS uses multi-constellation GNSS powered by u-blox M10, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently. It also comes with the IST8310 compass.

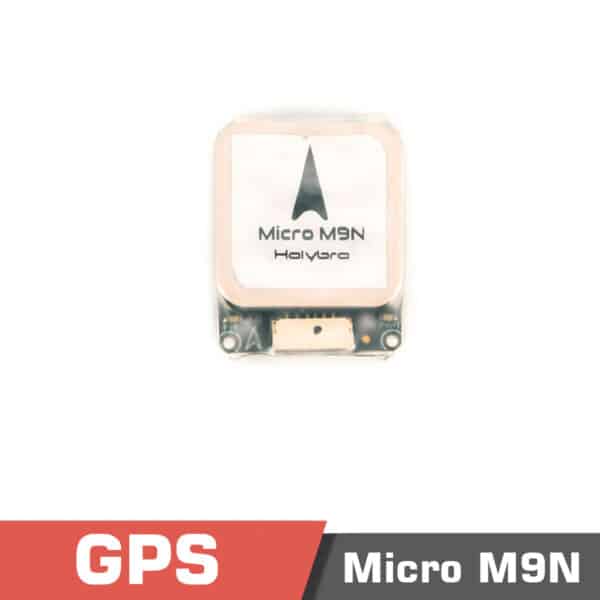

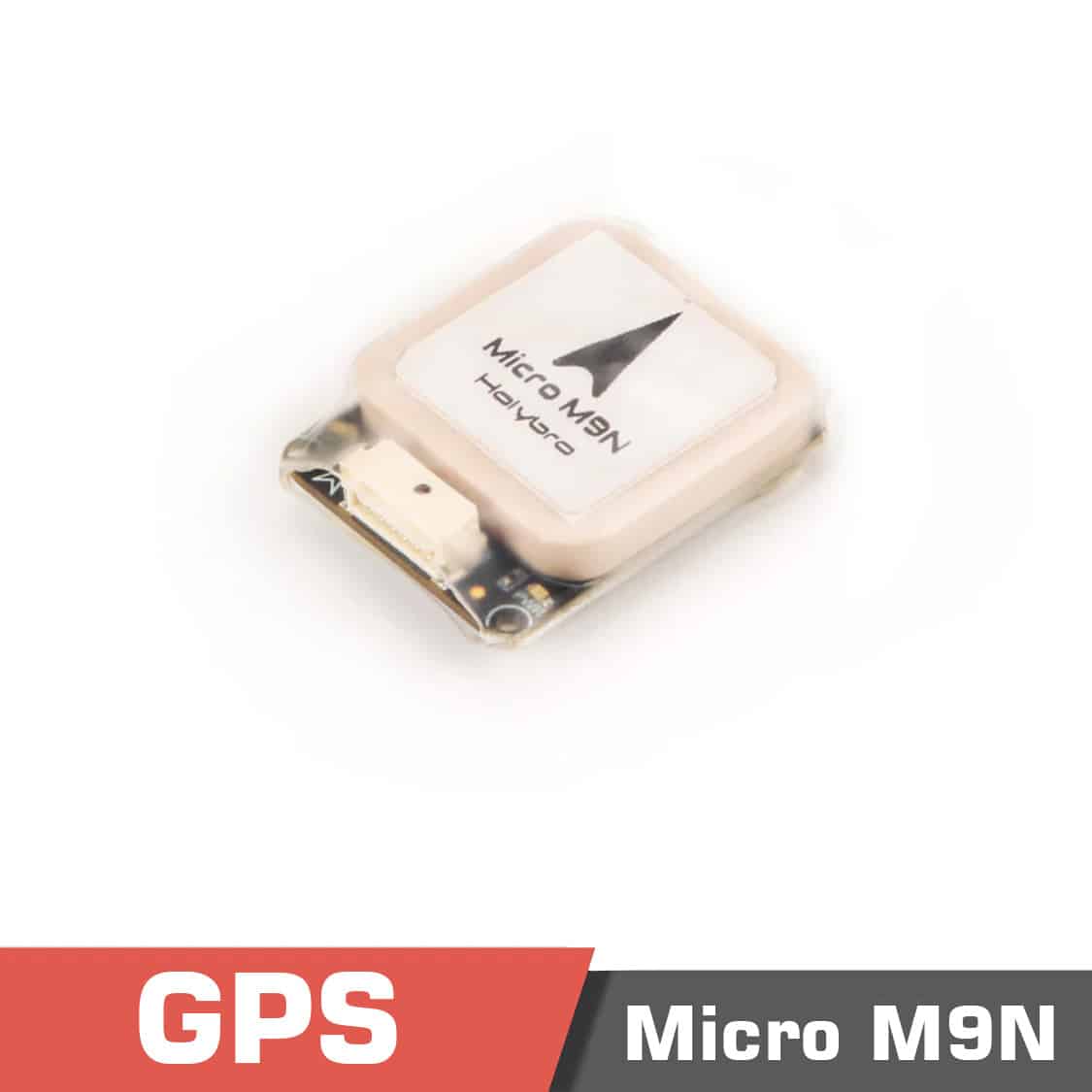

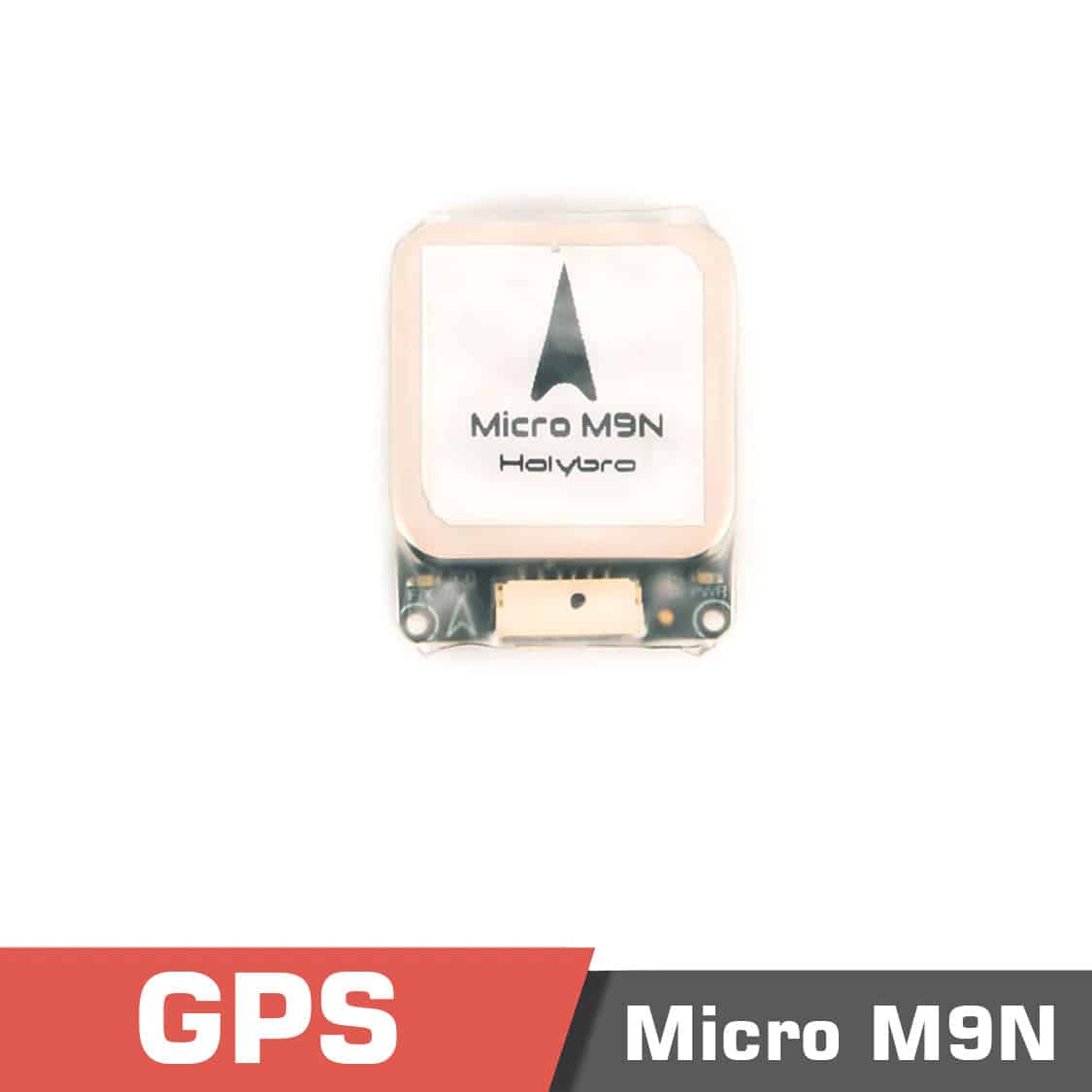

The high-gain 25 x 25 mm2 patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

High-Speed Drone GPS Comparison:

This blog post put Holybro M10, M9N, F9P and Matek M10Q was put to an ultimate test to determine which GPS units could keep pace with a high-speed drone in acro mode while ensuring precision during RTL and autonomous missions.

Features

Newest Ublox 10th Gen GNSS
Fast & Accurate Positioning
IST8310 Compass
Small Form Factor

If you have any questions regarding our products, use the Motionew Support team page to consult our engineering team.

Holybro Micro M9N GPS – FAQ

1. What is the main function and design of the Holybro Micro M9N GPS?
The Holybro Micro M9N GPS is a compact, high-precision GNSS module powered by the u-blox M9N chipset. It provides fast, accurate, and reliable positioning for lightweight UAVs and small autonomous platforms.

2. Which satellite systems and frequency bands does it support?
It supports concurrent reception of GPS, Galileo, GLONASS, and BeiDou signals, ensuring strong multi-constellation tracking and improved accuracy in environments with limited satellite visibility.

3. What integrated components and features are included?
The module features a high-gain 18×18 mm patch antenna, an IST8310 compass, a safety switch, buzzer, and RGB LED indicator. A built-in backup battery ensures faster satellite acquisition during startup.

4. What are the available purchasing and delivery options for the Micro M9N GPS?
It is sold as a standalone GPS module optimized for small UAVs. Motionew provides global shipping with tracking and estimated delivery times displayed during checkout.

5. Does Motionew offer OEM and bulk purchasing options for this model?
Yes. OEM and bulk purchase programs are available for UAV manufacturers and system integrators. Buyers can request custom wiring, firmware pre-configuration, and bulk pricing through Motionew’s sales department.

6. What documentation and support resources are provided?
Comprehensive setup manuals, wiring diagrams, and configuration guides are available in the product documentation section. Firmware updates and integration support are provided through Holybro and Motionew’s engineering support teams.

Specifications

Specifications:

	Holybro Micro M10 GPS	Holybro Micro M9N GPS
GNSS Receiver	Ublox M10	Ublox M9N
Number of Concurrent GNSS	Up to 4 GNSS – BeiDou – Galileo – GLONASS – GPS – QZSS	Up to 4 GNSS – BeiDou – Galileo – GLONASS – GPS – QZSS
Frequency Band	– GPS L1 – Galileo E1 – GLONASS L1 – BeiDou B1 – SBAS L1 – QZSS L1	– GPS L1 – Galileo E1 – GLONASS L1 – BeiDou B1 – SBAS L1 – QZSS L1
Compass	IST8310	IST8310
Output Protocol	– UBX (U-blox) – NMEA	– UBX (U-blox) – NMEA
Accuracy	2.0m CEP	1.5m CEP
Nav. Update Rate	Up to 25 Hz (single GNSS), Up to 10 Hz (4 concurrent GNSS)	Up to 25 Hz (4 concerrent GNSS)
GNSS Augmentation System	EGNOS, GAGAN, MSAS and WAAS QZSS: L1S	EGNOS, GAGAN, MSAS and WAAS QZSS: L1S
Default Baud Rate	115200	115200
Input Voltage	4.7-5.2V	4.7-5.2V

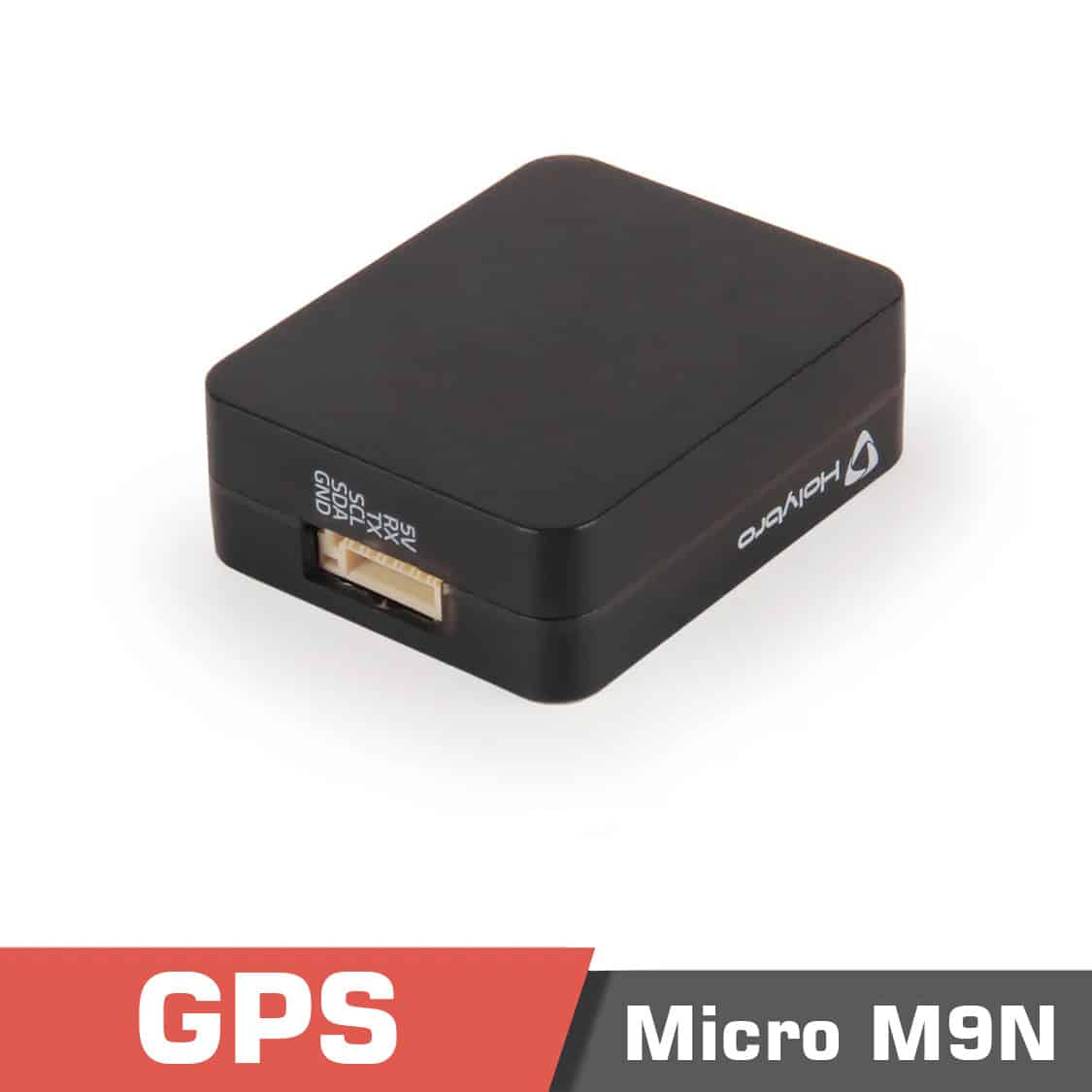

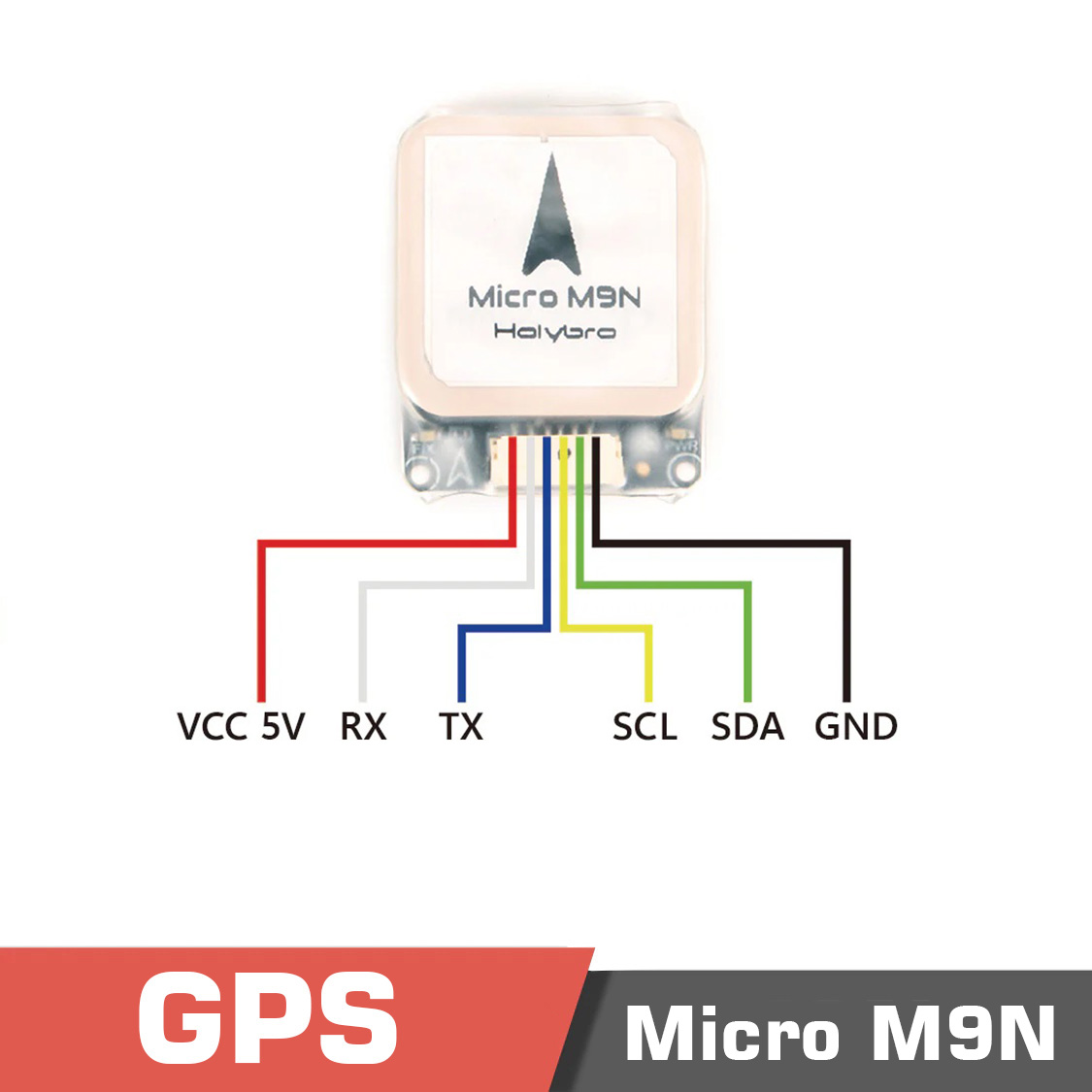

Port Type	JST-GH-6P	JST-GH-6P
Antenna	25 x 25 x 4 mm ceramic patch antenna
Antenna Gain	1.5dbi
Antenna LNA Gain	22dB
Power consumption	Less than 200mA @ 5V	Less than 200mA @ 5V
Operating Temperature	-40~80C	-40~80C

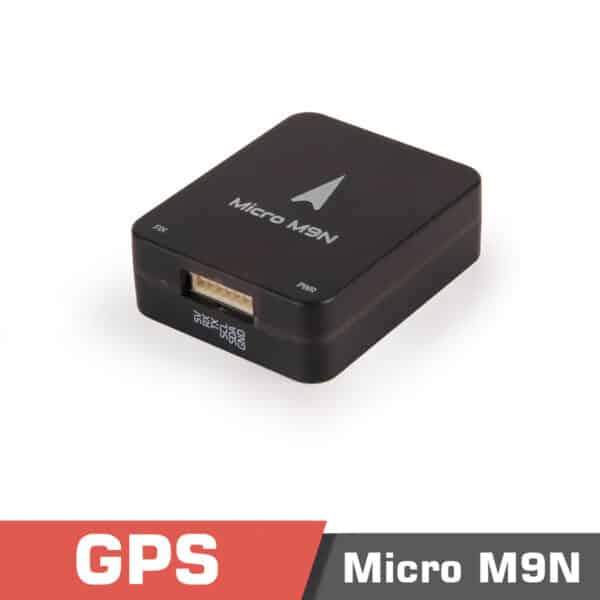

Dimension	– 32 x 26 x 9mm (w/o Case) – 34 x 28 x 11mm (With Case)	– 32 x 26 x 9mm (w/o Case) – 34 x 28 x 11mm (With Case)

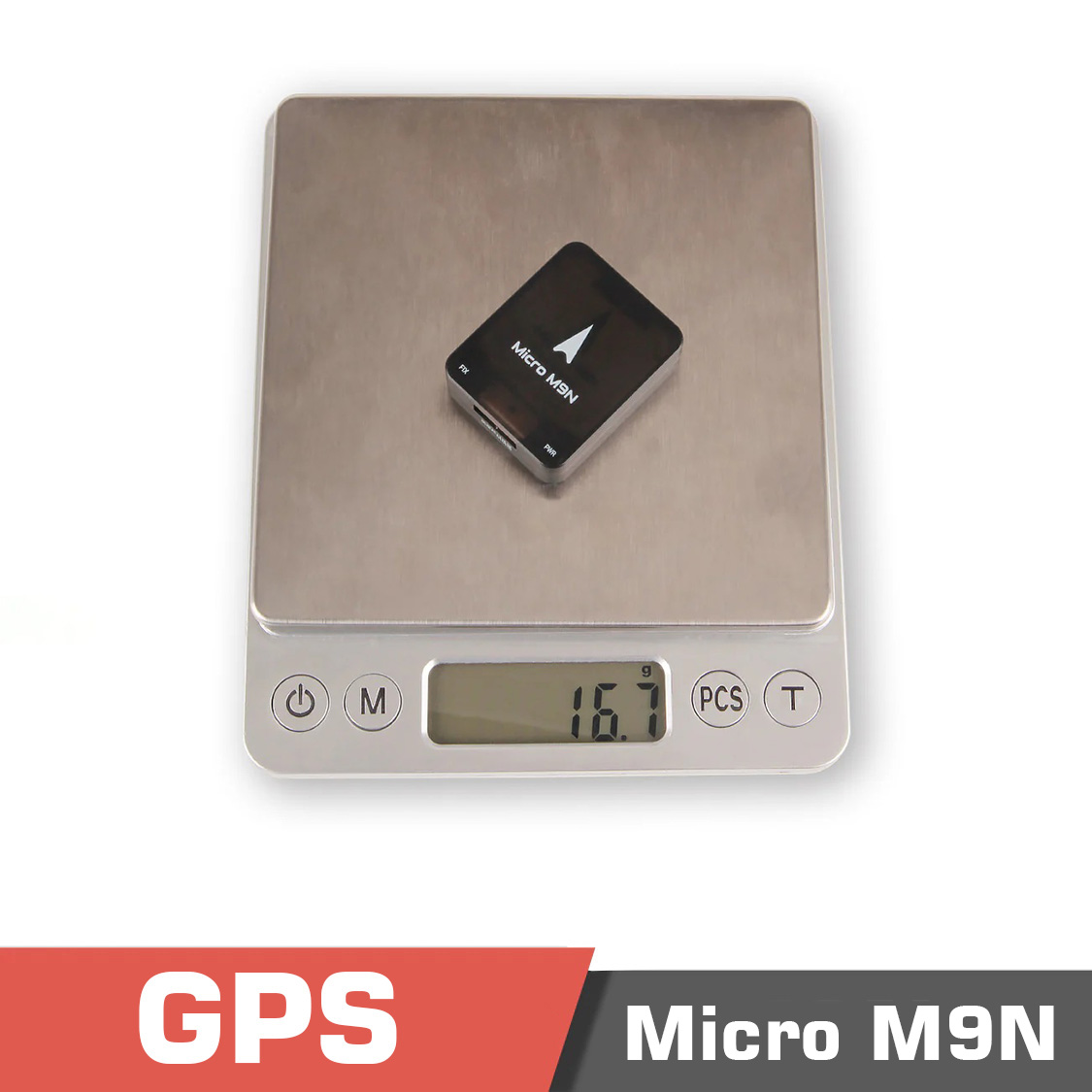

Weight	– 14g (w/o Case) – 16g (With Case)	– 14g (w/o Case) – 16g (With Case)

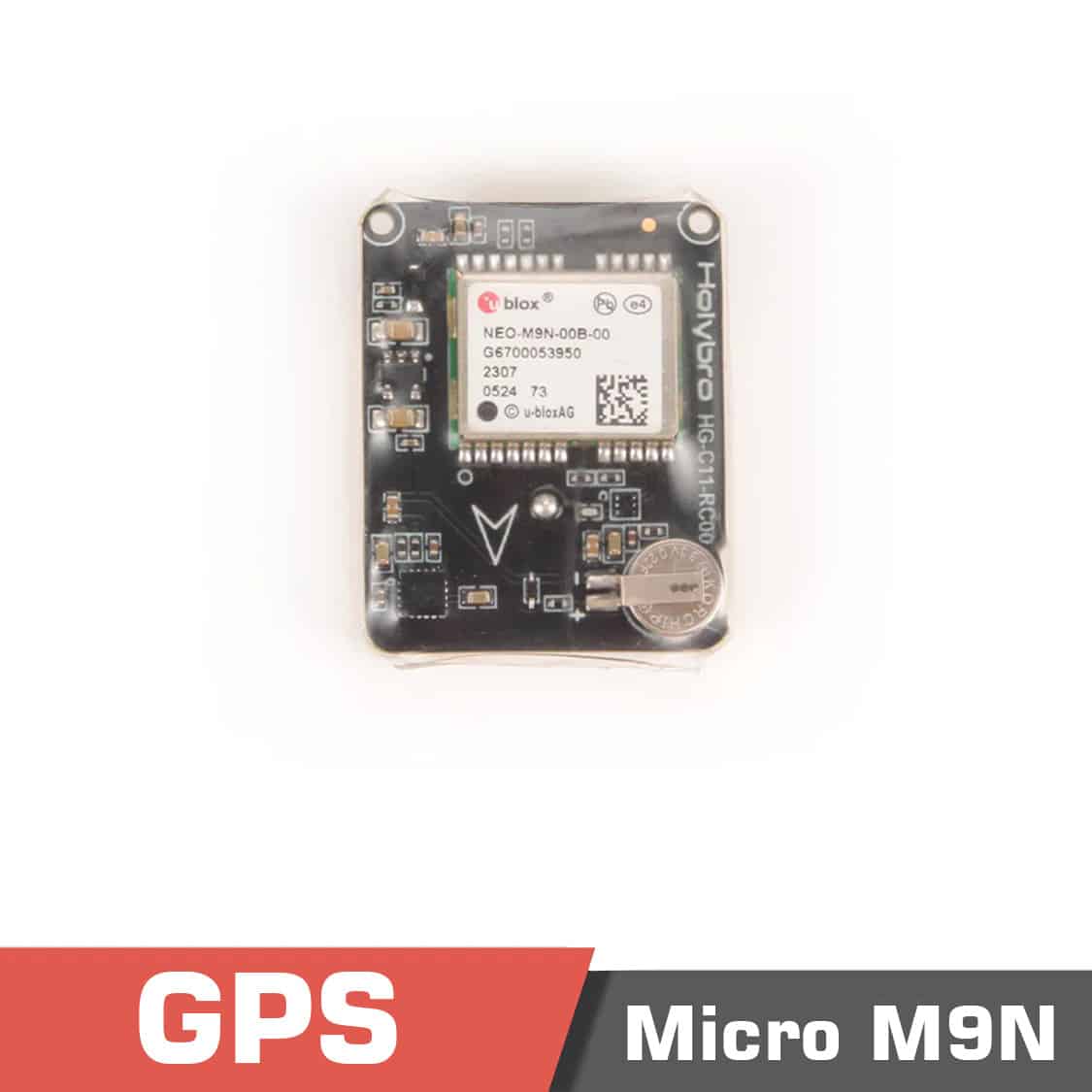

Other	– LNA MAX2659ELT+ RF Amplifier – Rechargeable Farah capacitance – Low noise 3.3V regulator	– LNA MAX2659ELT+ RF Amplifier – Rechargeable Farah capacitance – Low noise 3.3V regulator
