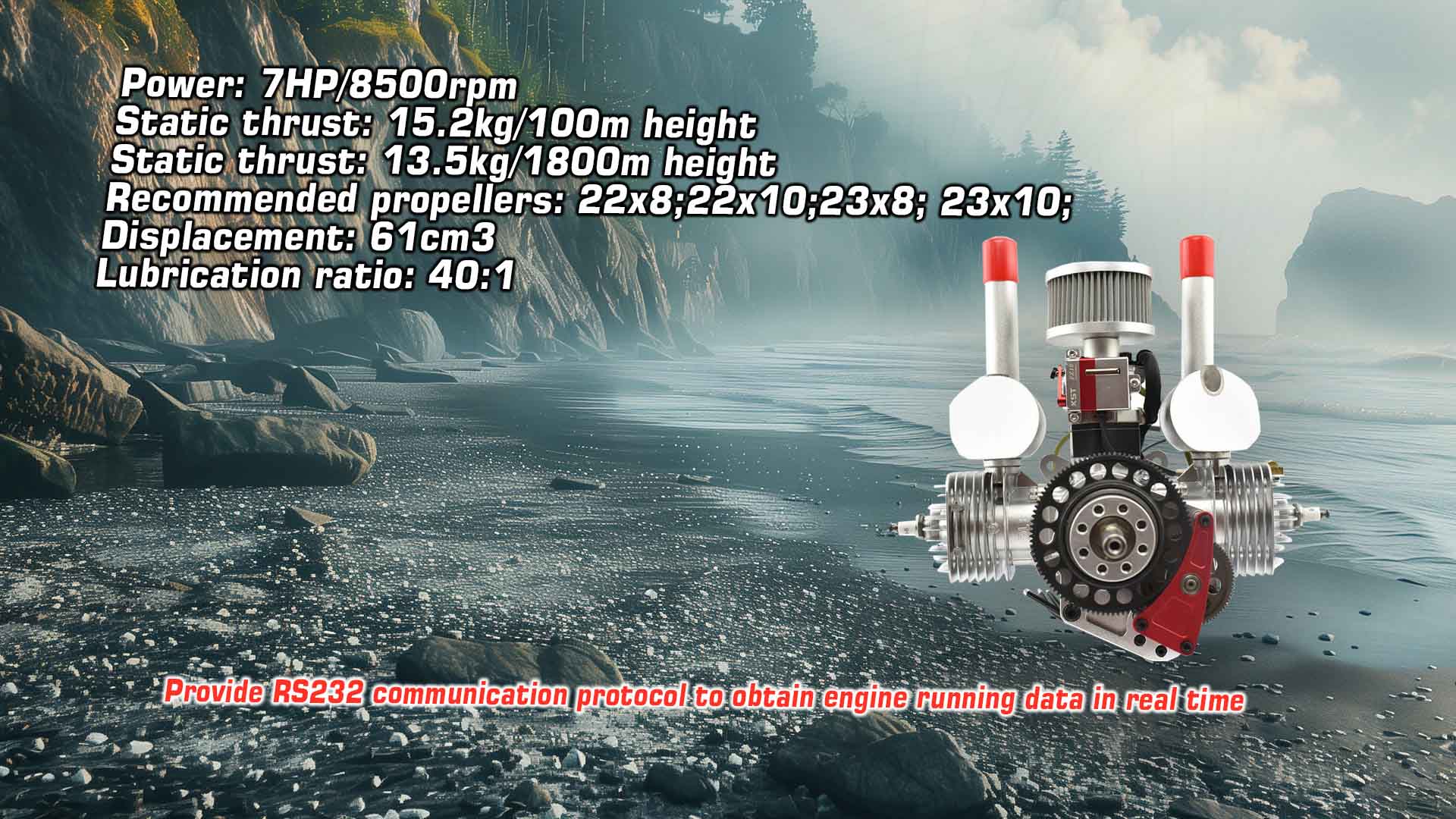

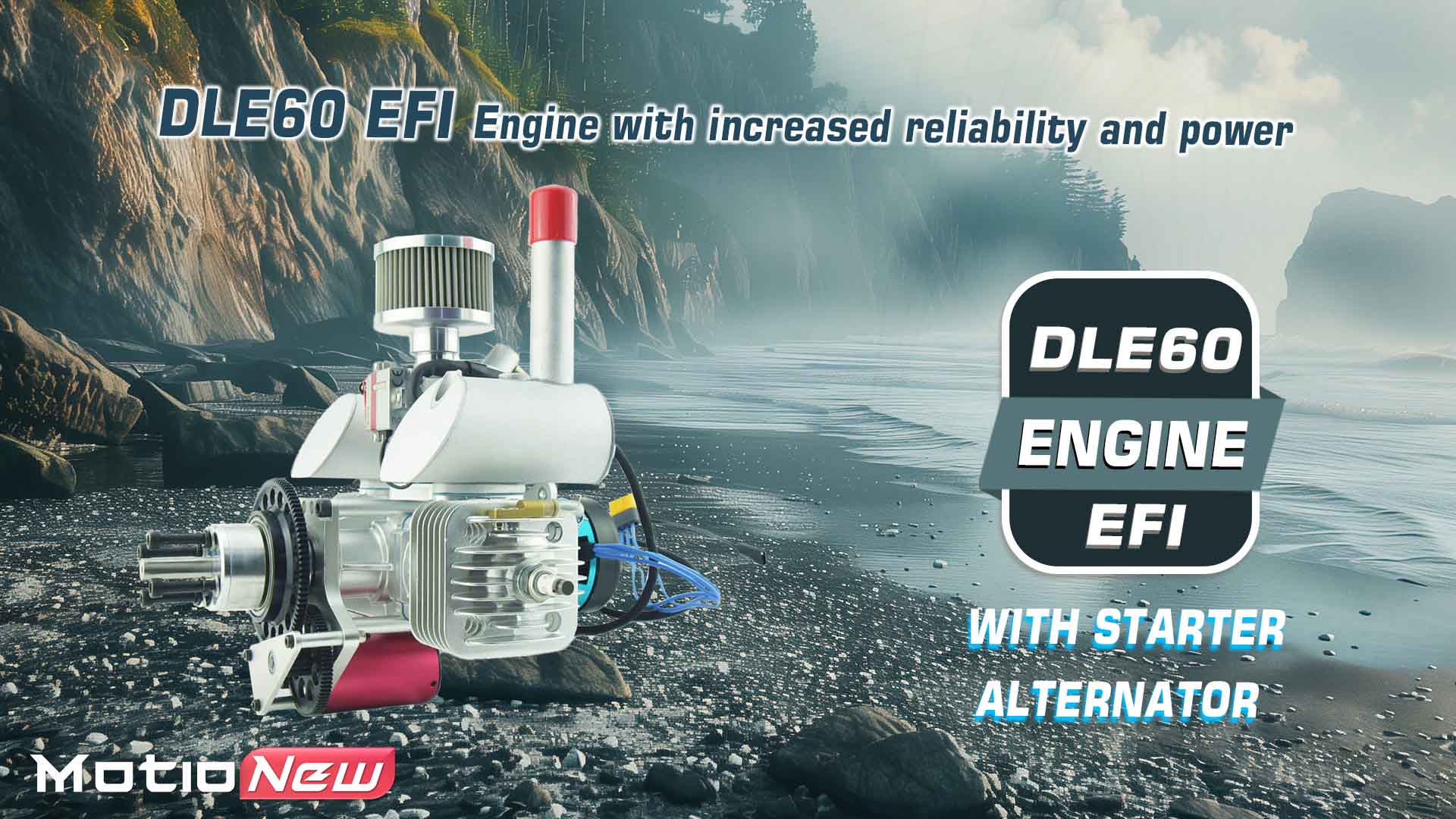

Introducing the DLE 60 EFI engine, a powerhouse designed for high-performance applications. With an impressive performance output of 7 horsepower at 8500 rpm, this engine delivers exceptional power and reliability for a variety of demanding tasks. The DLE 60 EFIEngine enhances drone performance by delivering superior reliability and power, effectively overcoming the typical issues seen in two-stroke engines. Featuring an innovative fuel pump with self-priming capability, it utilizes closed-loop pressure control to accurately manage fuel pressure without the need for a return line to the fuel tank. The DLE 60 EFI Engine supports RS232 communication protocol, enabling real-time access to engine running data.
Performance Capabilities with Starter and Alternator / Generator
The DLE60 EFI UAV Engine is a robust and powerful component designed for drone applications. It offers a static thrust of 15.2kg at an altitude of 100 meters and 13.5kg at an altitude of 1800 meters, ensuring strong performance across various elevations. The engine, including the air intake, weighs 1.85kg, while the ECU (Electronic Control Unit) and fuel pump weigh 110g and 170g, respectively. With a displacement of 61cm³, the DLE 60 EFI Engine combines power and efficiency, making it an excellent choice for high-performance drones.

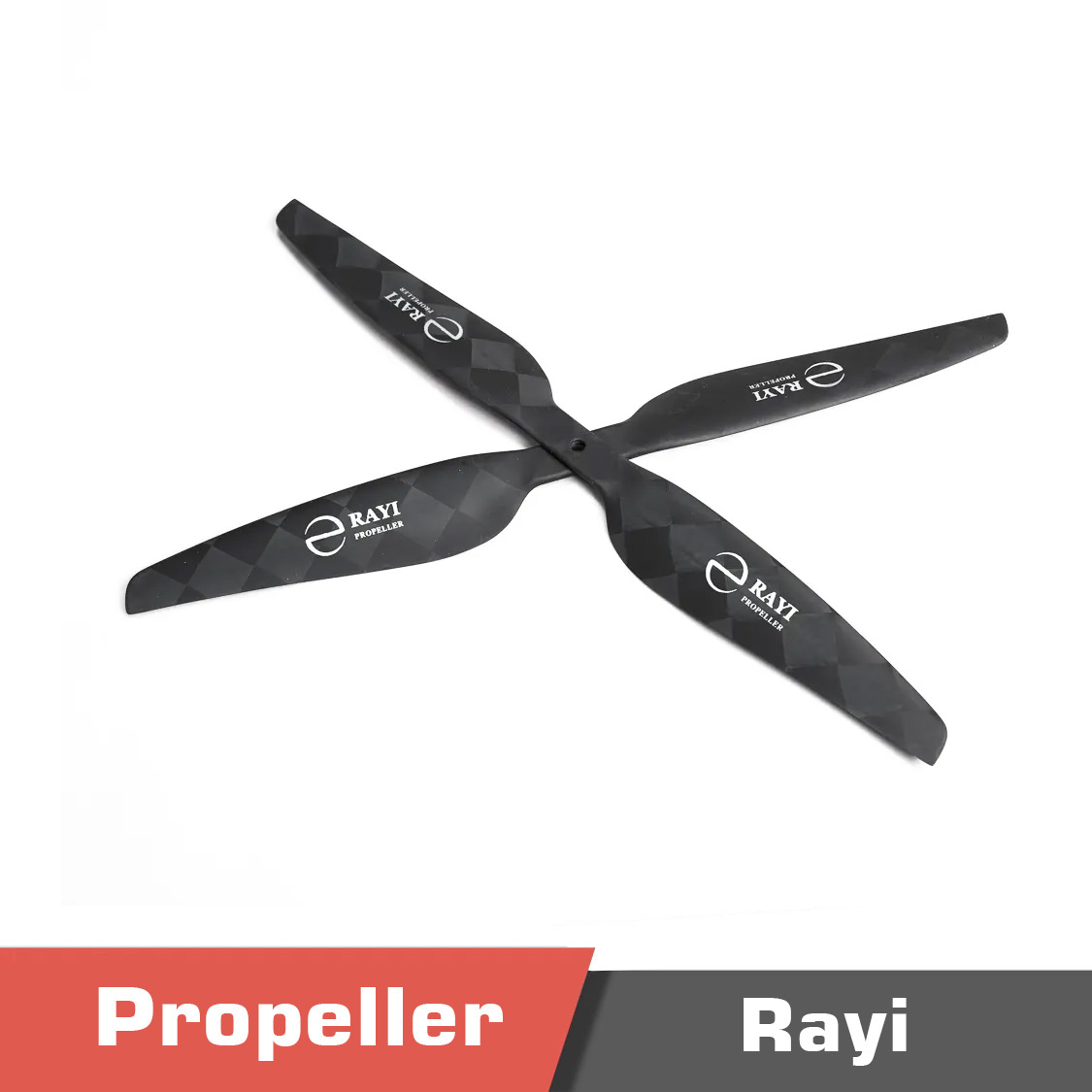

Propellers for the DLE 60 EFI Engine
Recommended propellers for the DLE 60 EFI Engine include sizes 22×8; 22×10; 23×8 and 23×10 giving users flexibility in optimizing performance based on specific needs.
The Engine Operation

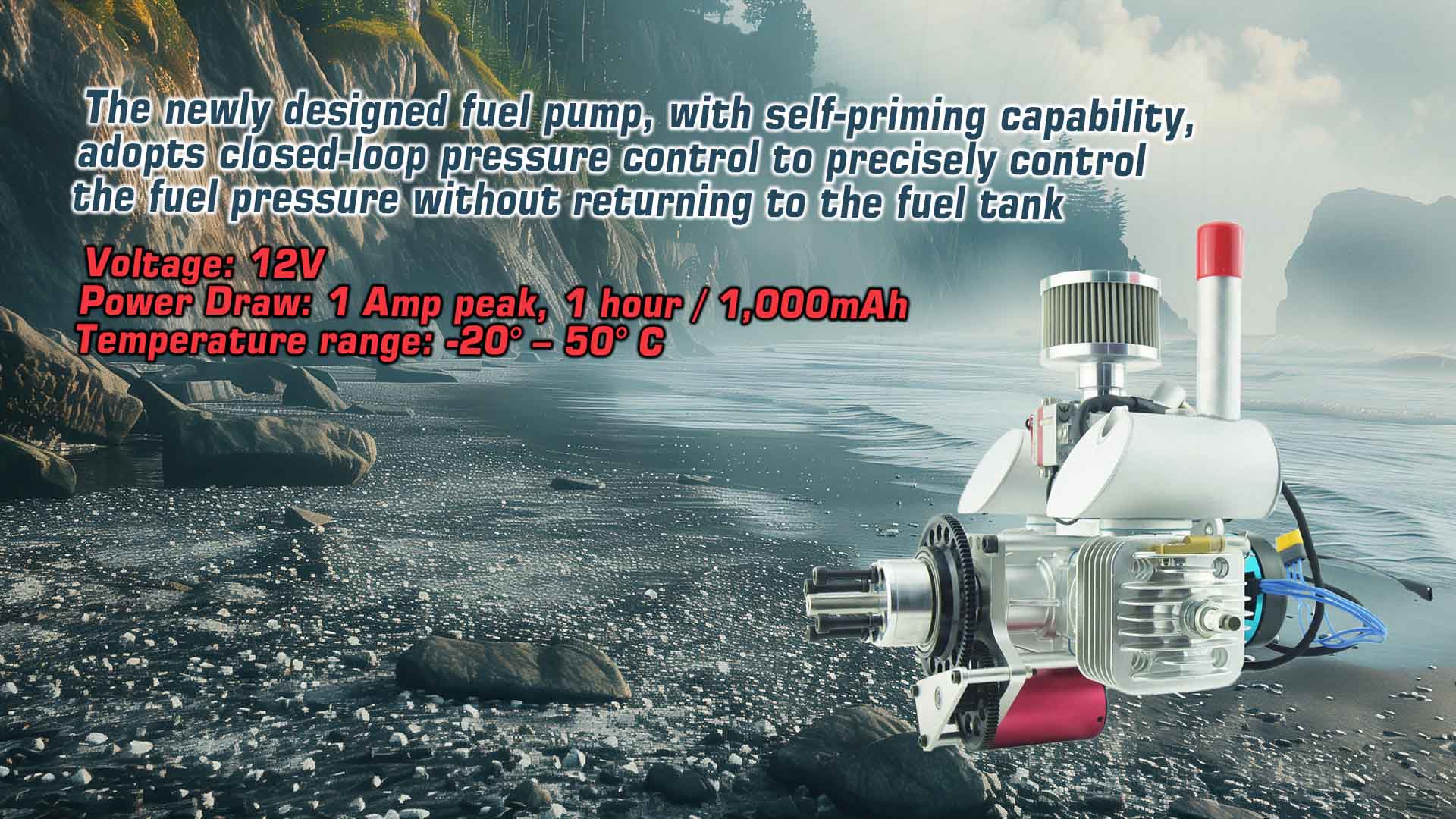

The DLE 60 EFI Engine is engineered for optimal performance and reliability in drone applications. It operates with a lubrication ratio of 40:1, ensuring smooth and efficient functioning. The engine requires a 12V power supply and has a peak power draw of 1 Amp, consuming 1,000mAh per hour. Designed to withstand a wide range of environmental conditions, the DLE60 EFI Engine can operate effectively within a temperature range of -20°C to 50°C, making it suitable for diverse and demanding operational environments.
Performance and Reliability
In summary, the DLE 60 EFI Engine is a robust and efficient solution for high-performance needs, offering impressive power output, reliable operation at various altitudes, and compatibility with multiple propeller sizes. Whether for aviation, industrial, or other demanding applications, the DLE 60 EFI is engineered to deliver exceptional performance and reliability.
FAQ – DLE 60 EFI Engine with Starter and Alternator / Generator
1. What is the power and thrust performance of the DLE 60 EFI engine? The engine delivers 7 HP at 8500 RPM, producing 15.2 kg of static thrust at 100 m altitude and 13.5 kg at 1800 m altitude, ensuring strong propulsion for UAV and fixed-wing applications.
2. What are the main technical specifications? It has a 61 cc displacement, a total engine weight of 1.85 kg (including air intake), an ECU weight of 110 g, and a fuel pump weight of 170 g. The engine integrates an alternator/generator for onboard power generation and operates with a 40:1 fuel-to-oil ratio.
3. What are the features of its EFI and control system? The DLE 60 EFI includes an Electronic Fuel Injection (EFI) system with closed-loop pressure control, which eliminates the need for a return fuel line. It supports RS232 communication, providing real-time engine monitoring, and includes both a self-priming fuel pump and electric starter for easy operation.
4. What payment methods are available for purchasing the DLE 60 EFI with starter and alternator? MotioNew supports PayPal, major credit/debit cards, and international wire transfers, offering secure and flexible global payment options.
5. Does MotioNew provide OEM and bulk order options for this engine? Yes, OEM customization and bulk purchasing options are available for industrial UAV developers, research organizations, and enterprise clients.
6. Are technical documents and installation manuals included? Yes, user manuals, installation guides, and technical specifications are available under the Documents section of the product page or upon request from MotioNew’s technical support team. For a comprehensive reading of related products, please visit the Motionew website.
