Description

X27 Long-Range Wireless Data Link and Video Link – 20km | Point to Multi Point | AES256 | Dual Serial + Ethernet

The X27 is a high-performance, dual-channel wireless data link and video link designed for UAV telemetry, Gimbal Video, command & control, and real-time data transmission over long distances. Operating in the 1350–1470 MHz frequency band with a powerful 2T2R MIMO configuration, it provides robust and encrypted communications up to 20km in line-of-sight (LOS) conditions. The defualt cersion of the module is point to point, but this module supports point to multipoint communication option.

With support for AES256 encryption, ultra-low latency (<10ms), and dual serial interfaces plus Ethernet, the X27 is ideal for UAVs, robotics, UGVs, and unmanned platforms that require reliable, high-speed, and secure data transfer.


📡 Key Features

  • Frequency Band: 1350–1470 MHz

  • RF Channels: 2T2R MIMO

  • Transmit Power: 27 dBm (0.5W)

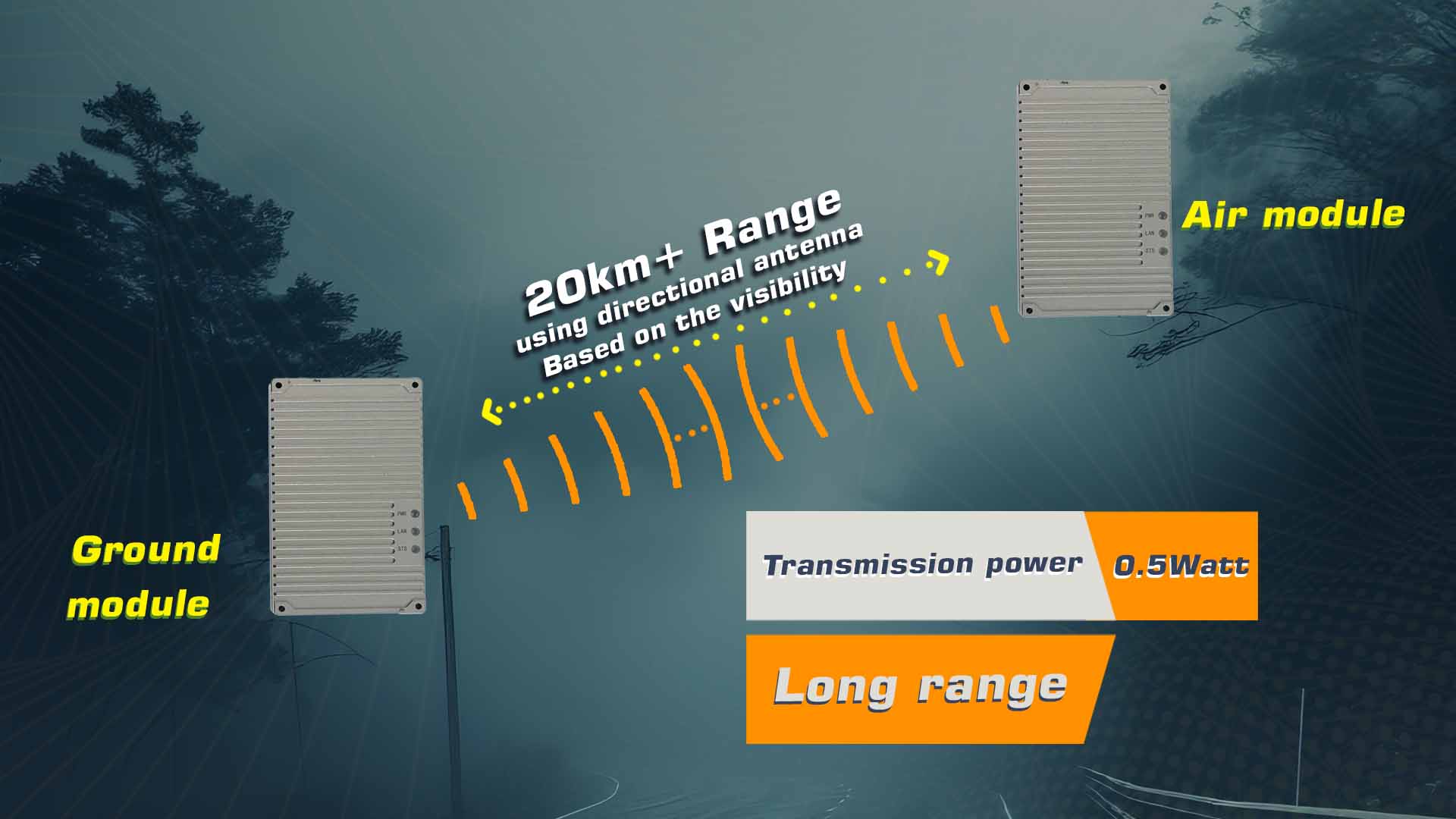

  • Transmission Range: Up to 20 km LOS (Air-to-Ground)

  • Encryption: AES256

  • Modulation: QPSK / 16QAM

  • Channel Bandwidth: 10 MHz / 20 MHz


🚀 Performance & Throughput

  • Max Rate (P2P – Point to Pint): 16.8 Mbps @10 MHz

  • Max Rate (P2MP – Point to Multi Point): 26.4 Mbps @20 MHz (optional)

  • Latency: ≤10 ms

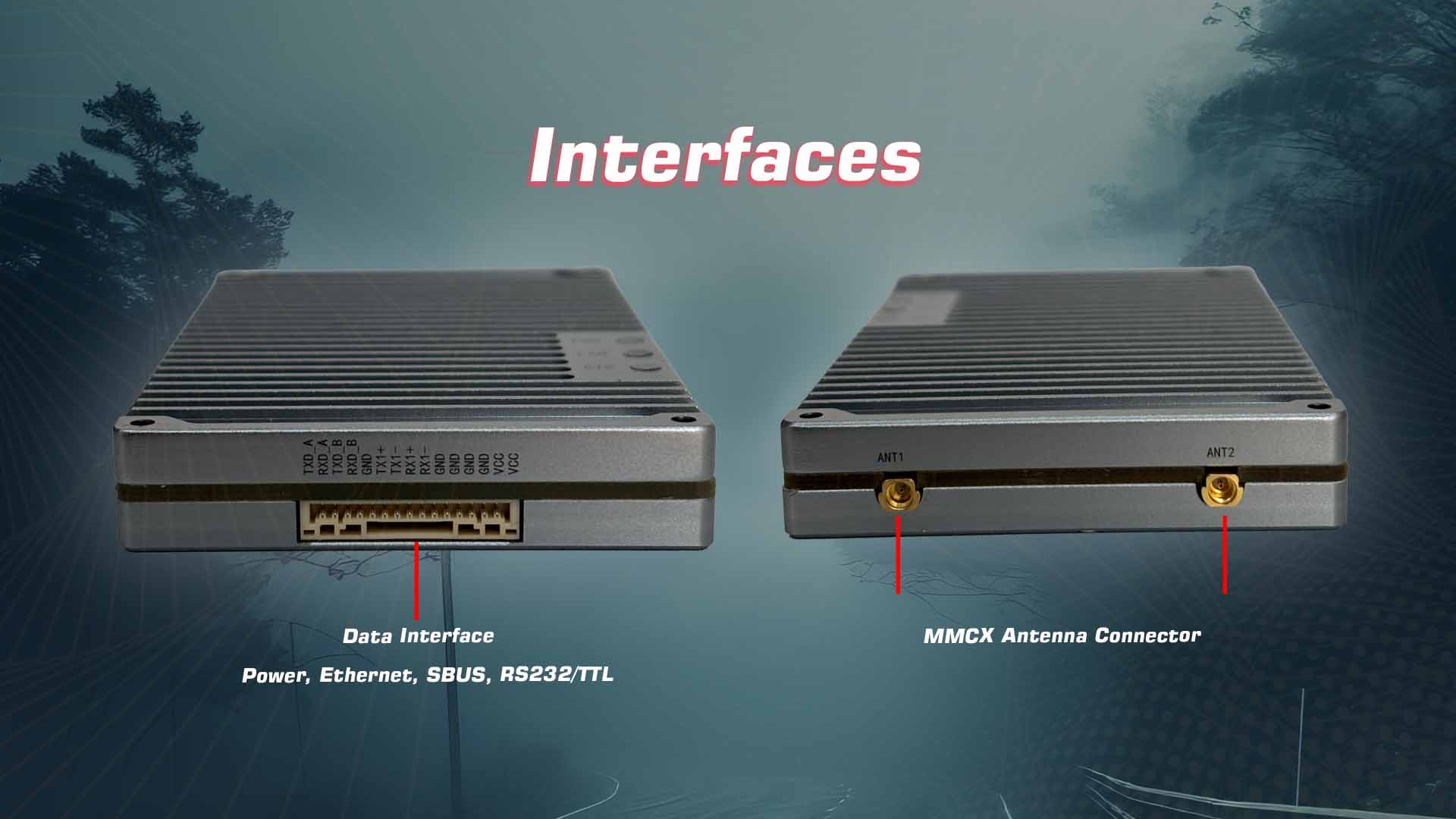

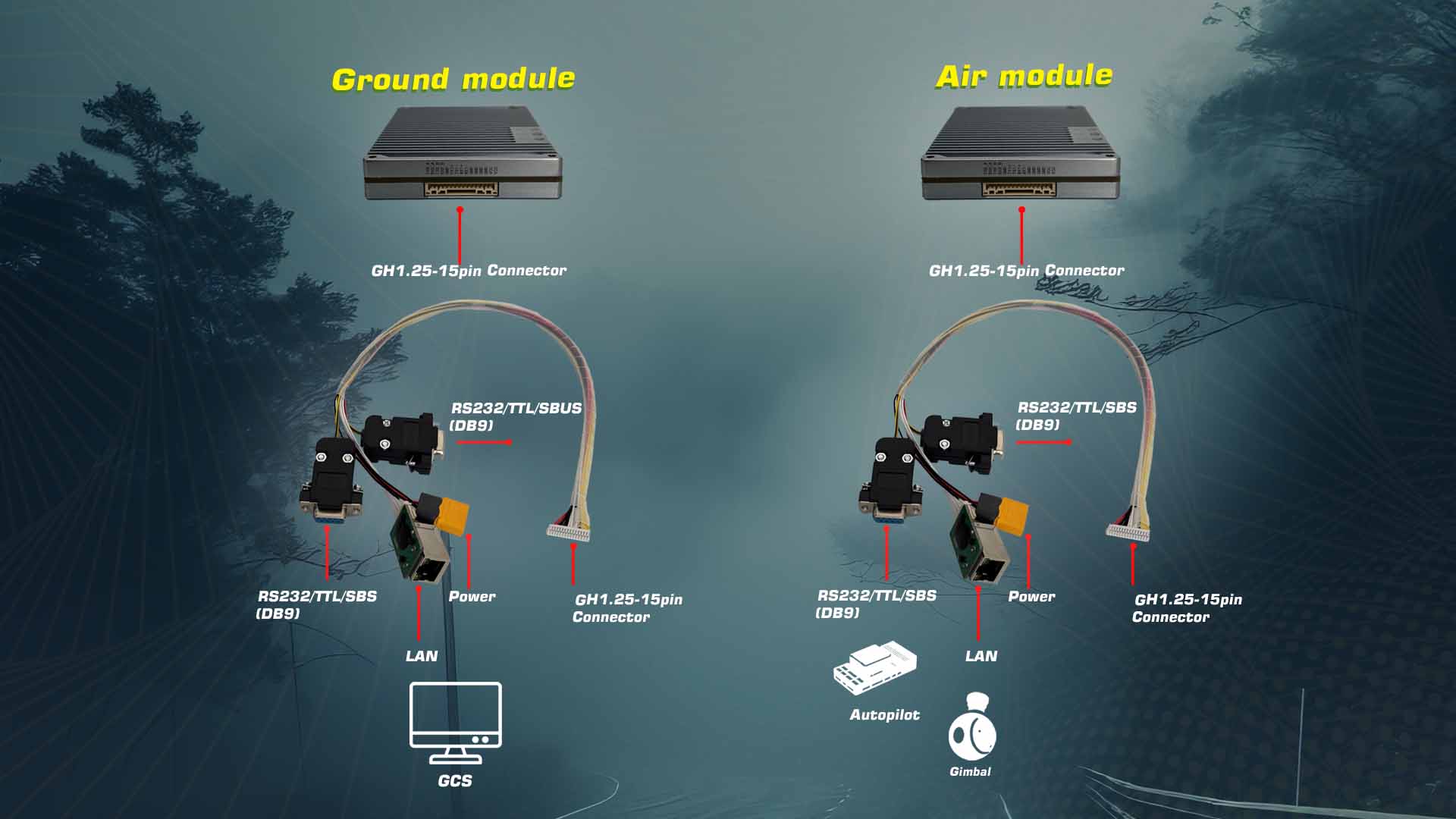

🔌 I/O Interfaces

  • RF Interface: MMCX

  • Ethernet: 1 × 100M Ethernet port

  • Serial Ports:

    • Port 1: TTL or RS232

    • Port 2: TTL / RS232 / SBUS ×2


⚙️ Power & Mechanical

  • Operating Voltage: 9–26V DC (typical +12V @1A)

  • Power Consumption: ≤10W

  • Dimensions: 93 × 60 × 13 mm

  • Weight: 110 g

  • Operating Temp: -40°C to +65°C


🎯 Ideal Applications

  • UAV data & telemetry links

  • UGV/USV control systems

  • Robotic communications

  • Industrial and tactical IoT integration

  • Beyond Visual Line of Sight (BVLOS) operations


X27 delivers secure, long-range, and low-latency communication in a compact and power-efficient form, making it an ideal choice for mission-critical unmanned applications.

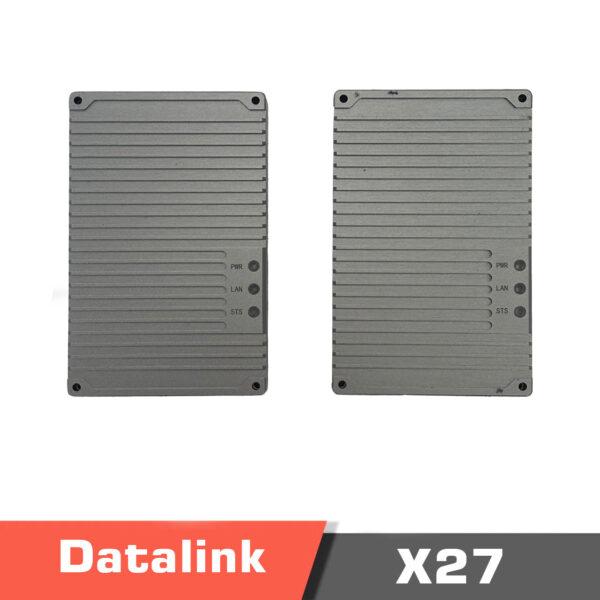

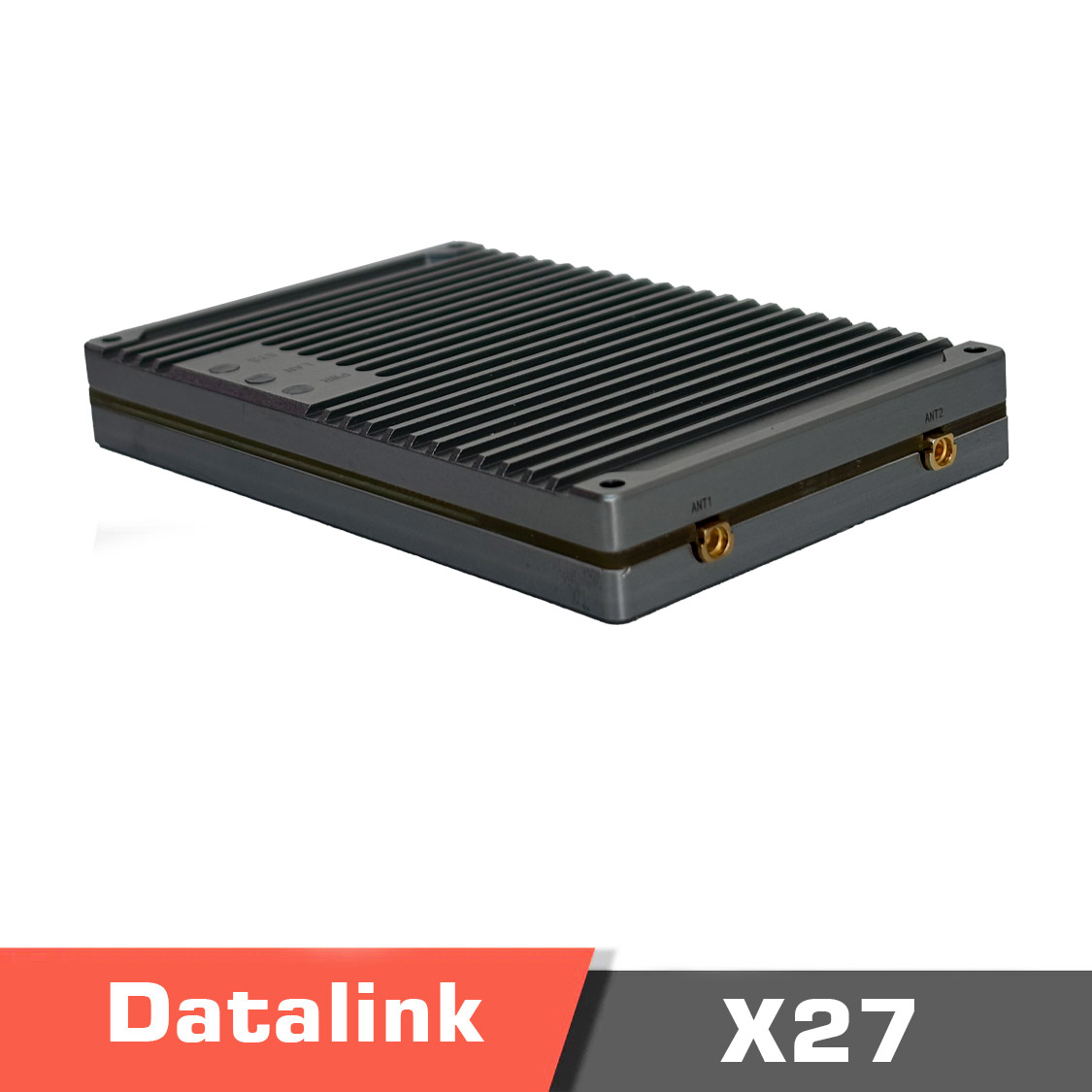

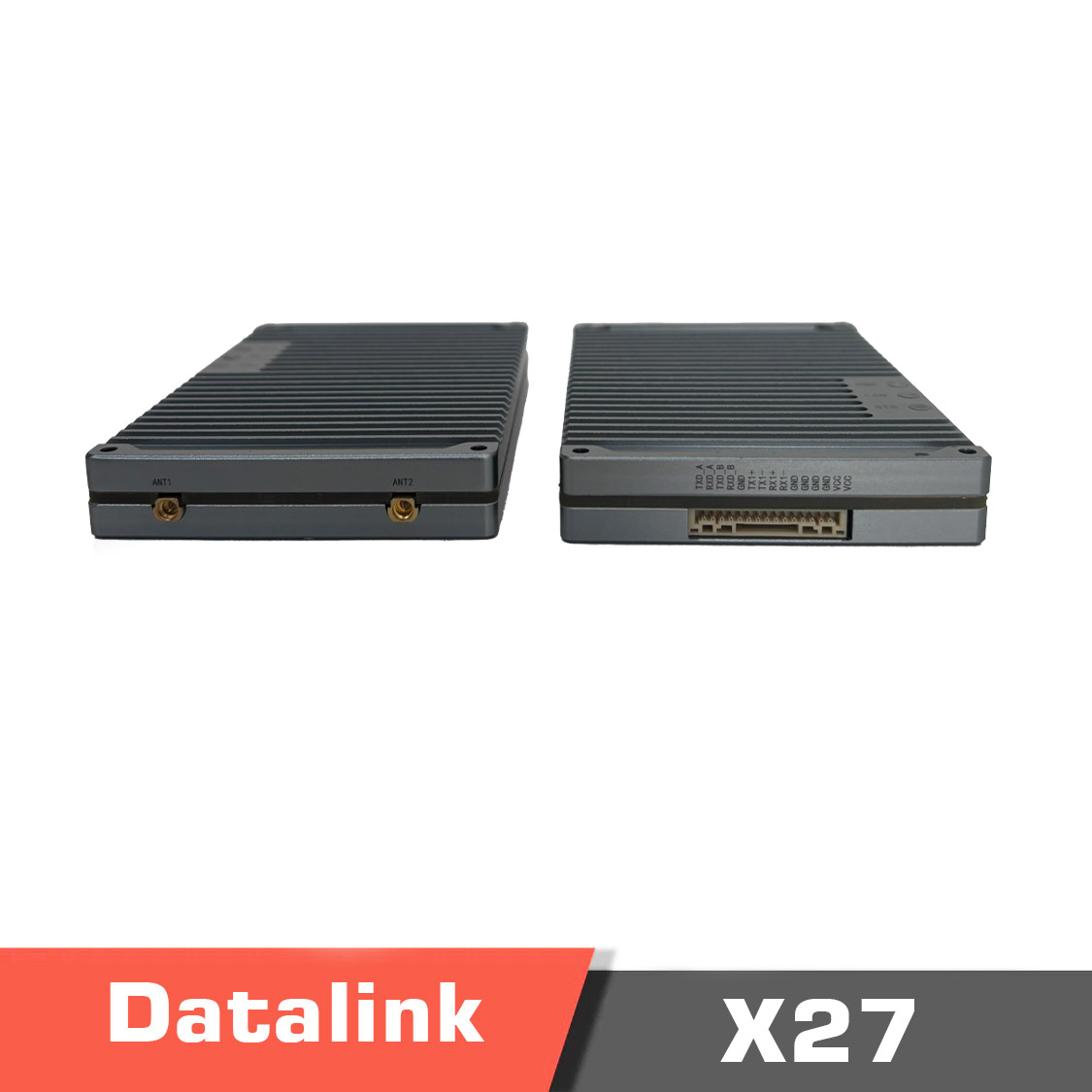

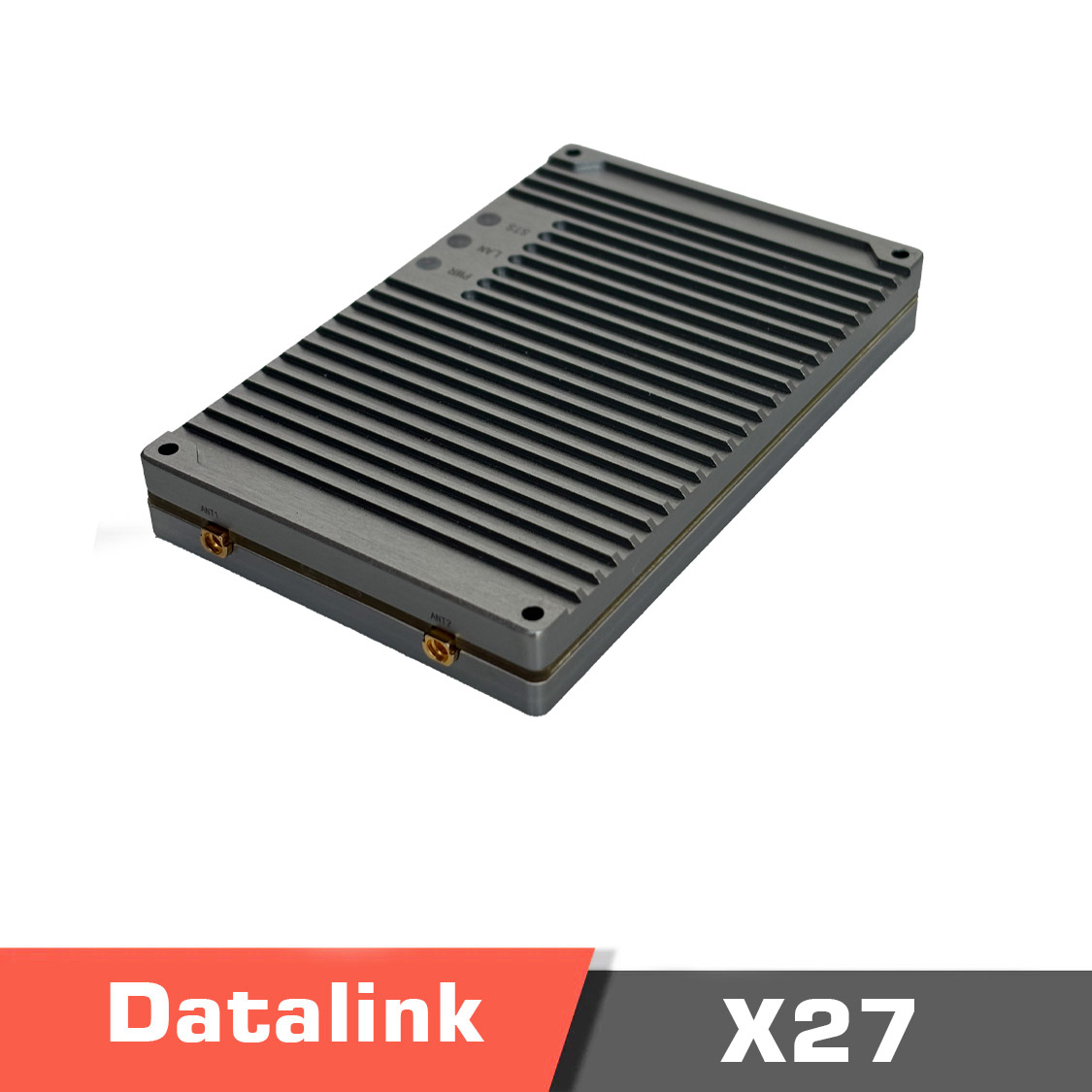

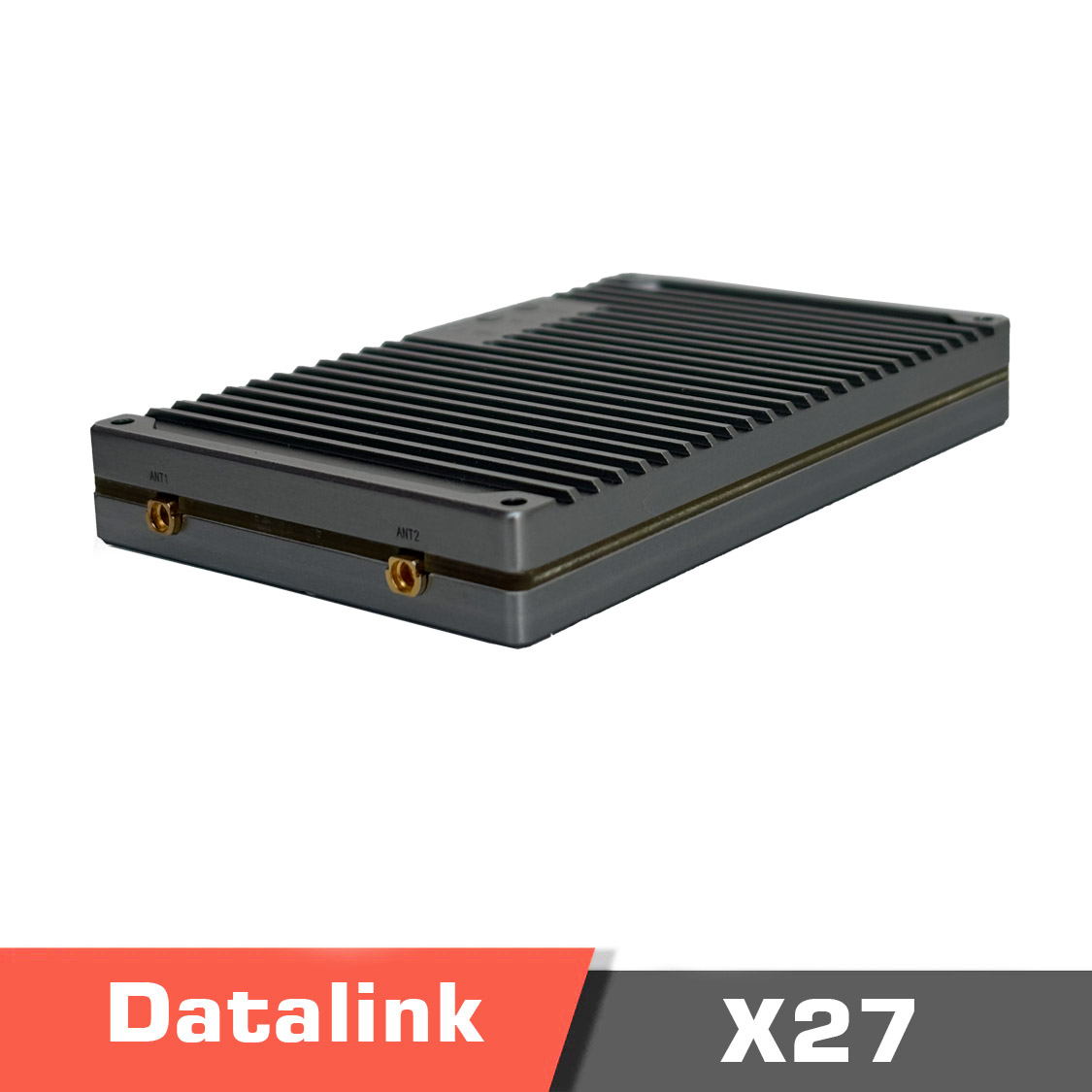

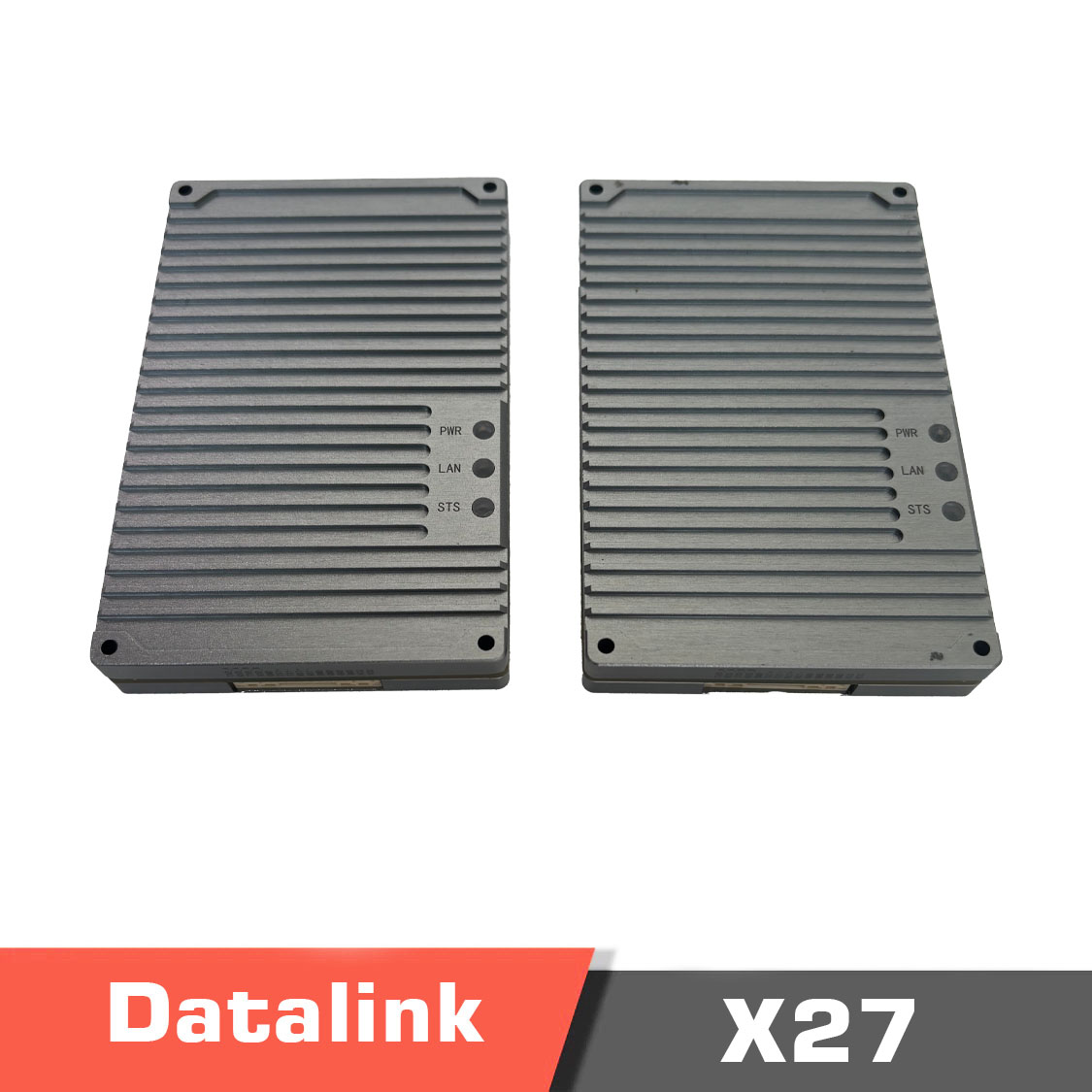

X27. 1 - motionew - 8 X27. 2 - motionew - 9 X27. 3 - motionew - 10 X27. 4 - motionew - 11 X27. 5 - motionew - 12 X27. 6 - motionew - 13 X27. 7 - motionew - 14 X27. 8 - motionew - 15  X27. 10 - motionew - 16

If you have any questions regarding our products, use the Motionew Contact us to consult our engineering team.



Specifications

Specifications



Device Model X27
Working Frequency Band 1350~1470MHz
RF Channel 2T2R
Transmit Power 27dBm (0.5W)
Transmission Distance Air to ground visual line of sight: 20km
Channel Bandwidth 10MHz/20MHz
Modulation QPSK/16QAM
Maximum Rate 16.8Mbps@10M (Point to Point Version: Default)
26.4Mbps@20M (Point to Multi Point Version: Optional)
Encryption AES256
Transmission Delay ≤10ms
RF Interface MMCX
Device Interface Ethernet port: 100M Ethernet port*1
Serial port 1: TTL*1 or RS232*1
Serial port 2: TTL*1 or RS232*1 or SBUS*2
Power Consumption ≤10W

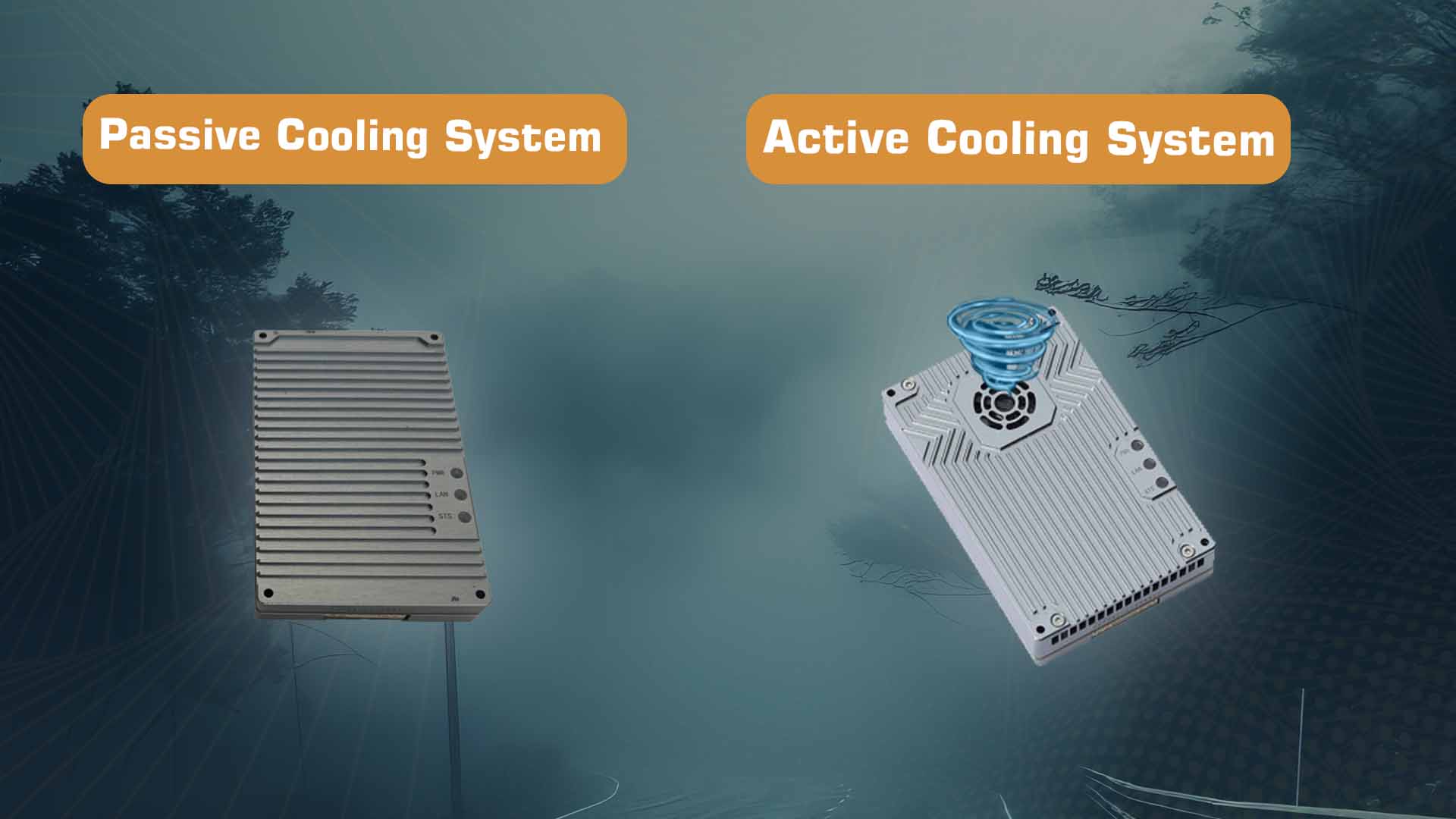

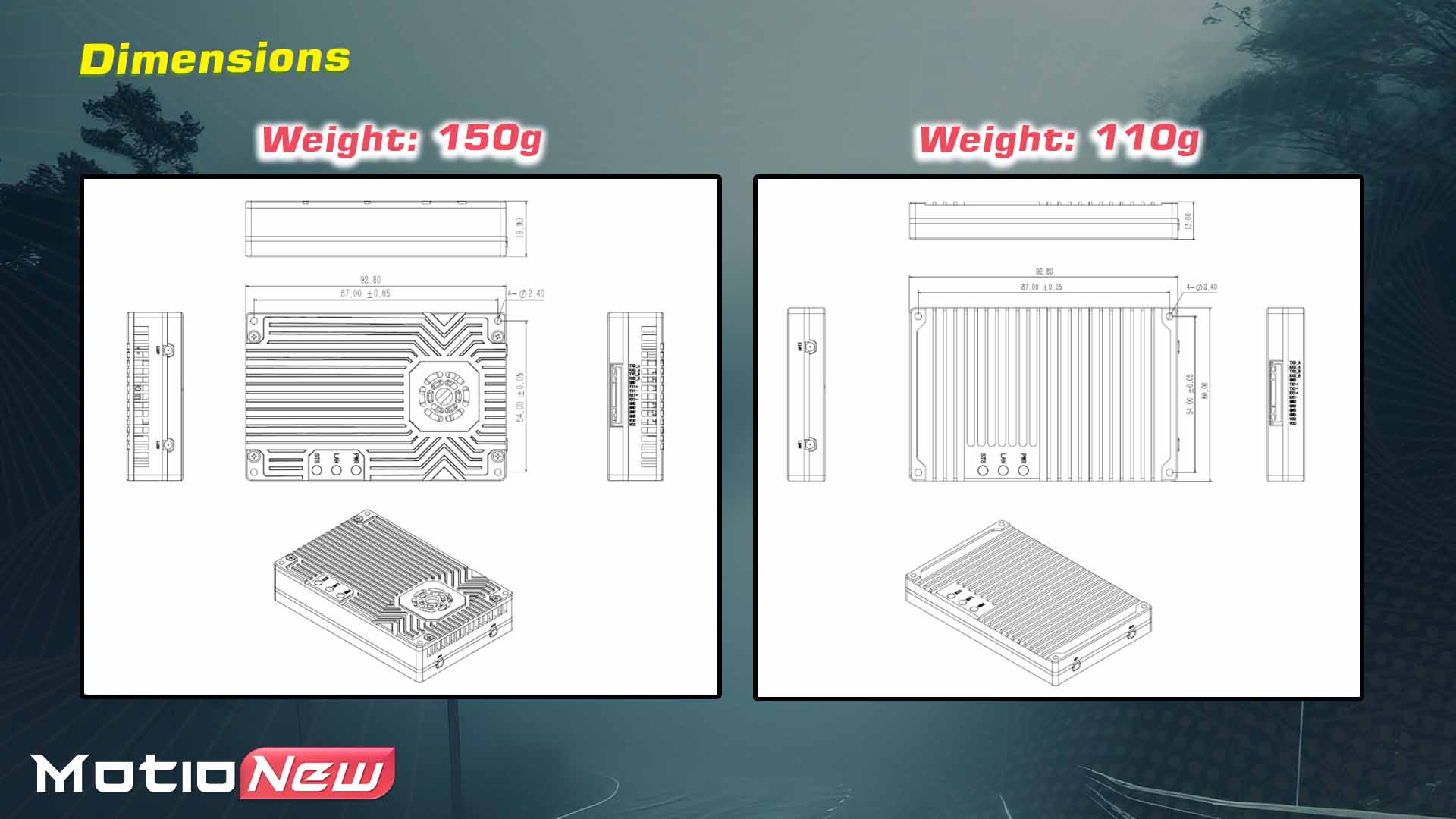

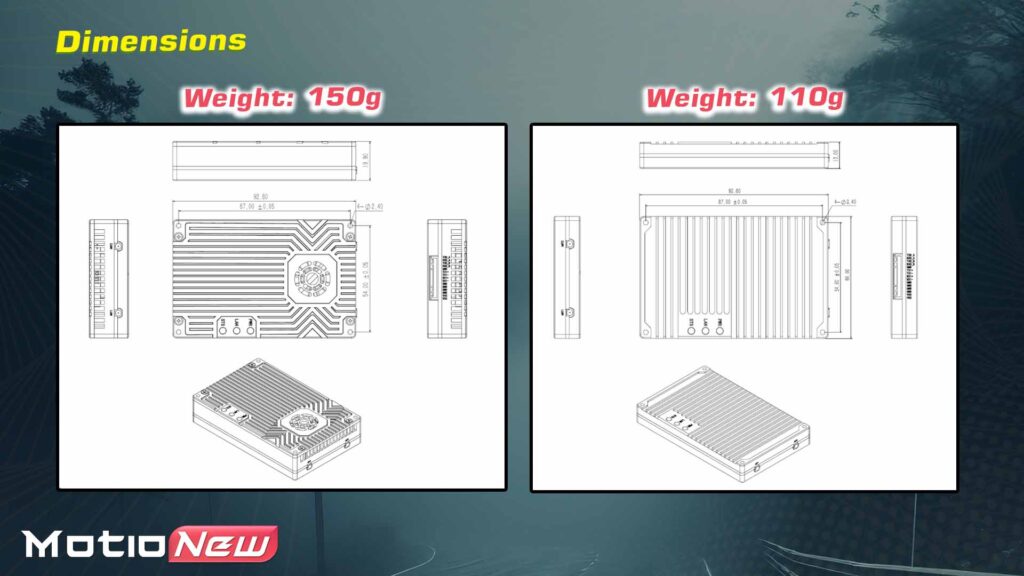

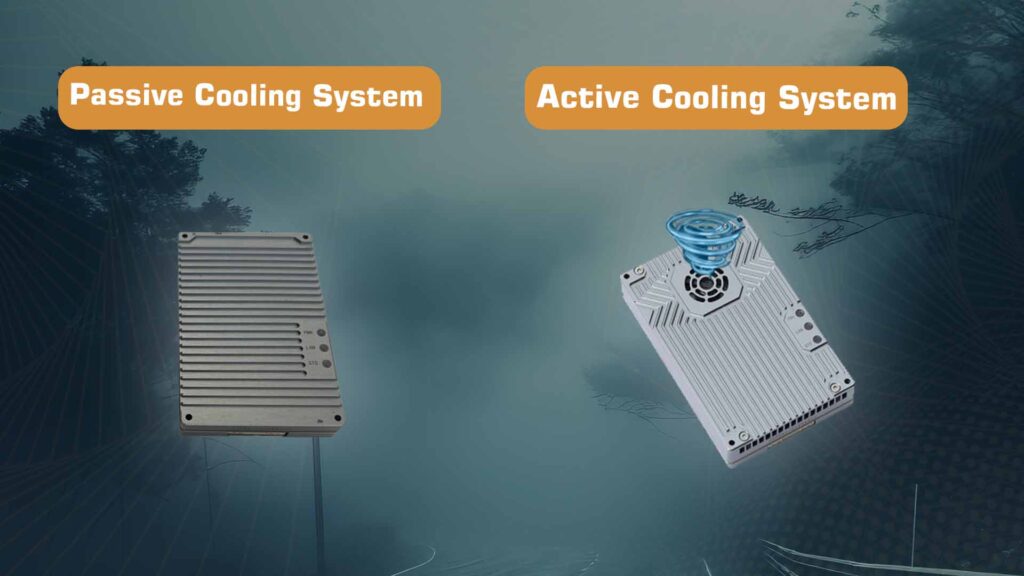

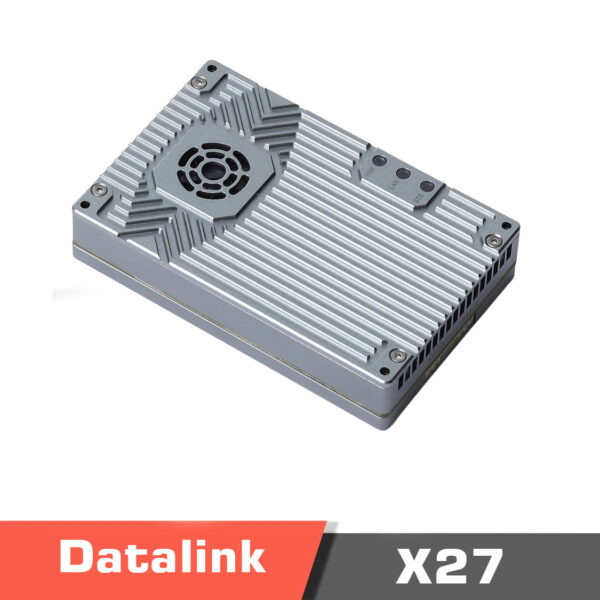

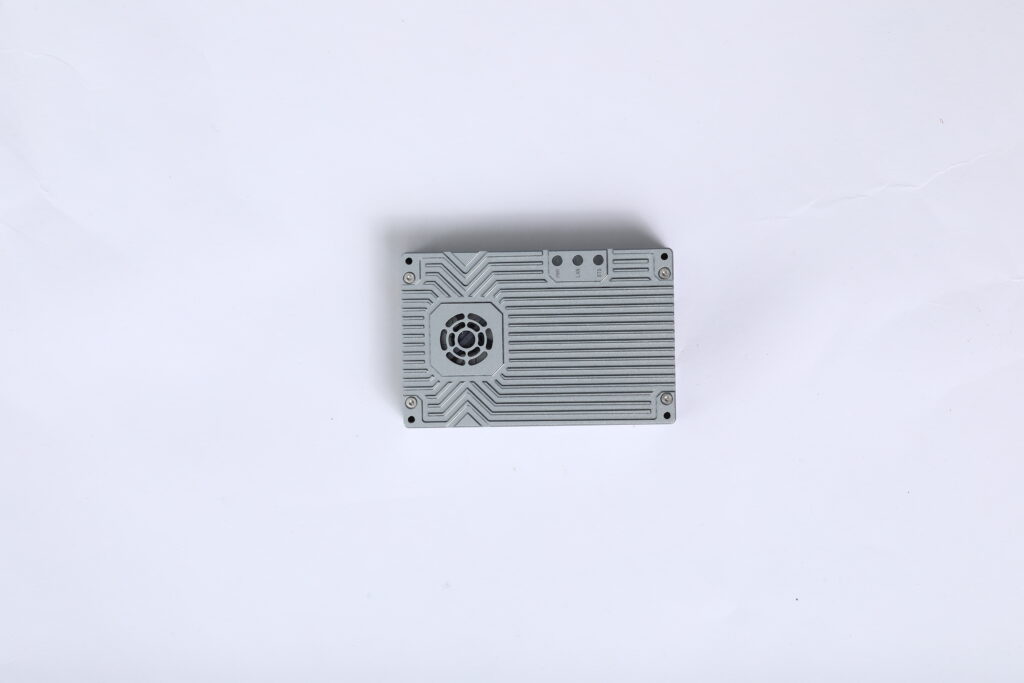

Dimensions Without Fan: 93mm*60mm*13mm
With Fan: 93mm*60mm*19mm
Weight Without Fan: 110g
With Fan: 150g
Operating Voltage DC 9~26V, typical value +12V@1A
Operating Temperature -40~+65°C
Receive sensitivity
MCS and total throughput (10/20MHz bandwidth)
# MCS 10MHz: point-to-point 20MHz: point-to-multipoint
1 BPSK1/3 Not supported 3.5
2 BPSK1/2 Not supported 5.1
3 BPSK2/3 Not supported 6.1
4 BPSK3/4 Not supported 7.3
5 QPSK1/3 4.1 7.3
6 QPSK1/2 6.0 10.6
7 QPSK2/3 7.3 12.8
8 QPSK3/4 8.4 15.0
9 16QAM1/3 8.2 13.0
10 16QAM1/2 12.0 18.7
11 16QAM2/3 14.6 22.7
12 16QAM3/4 16.8 26.4

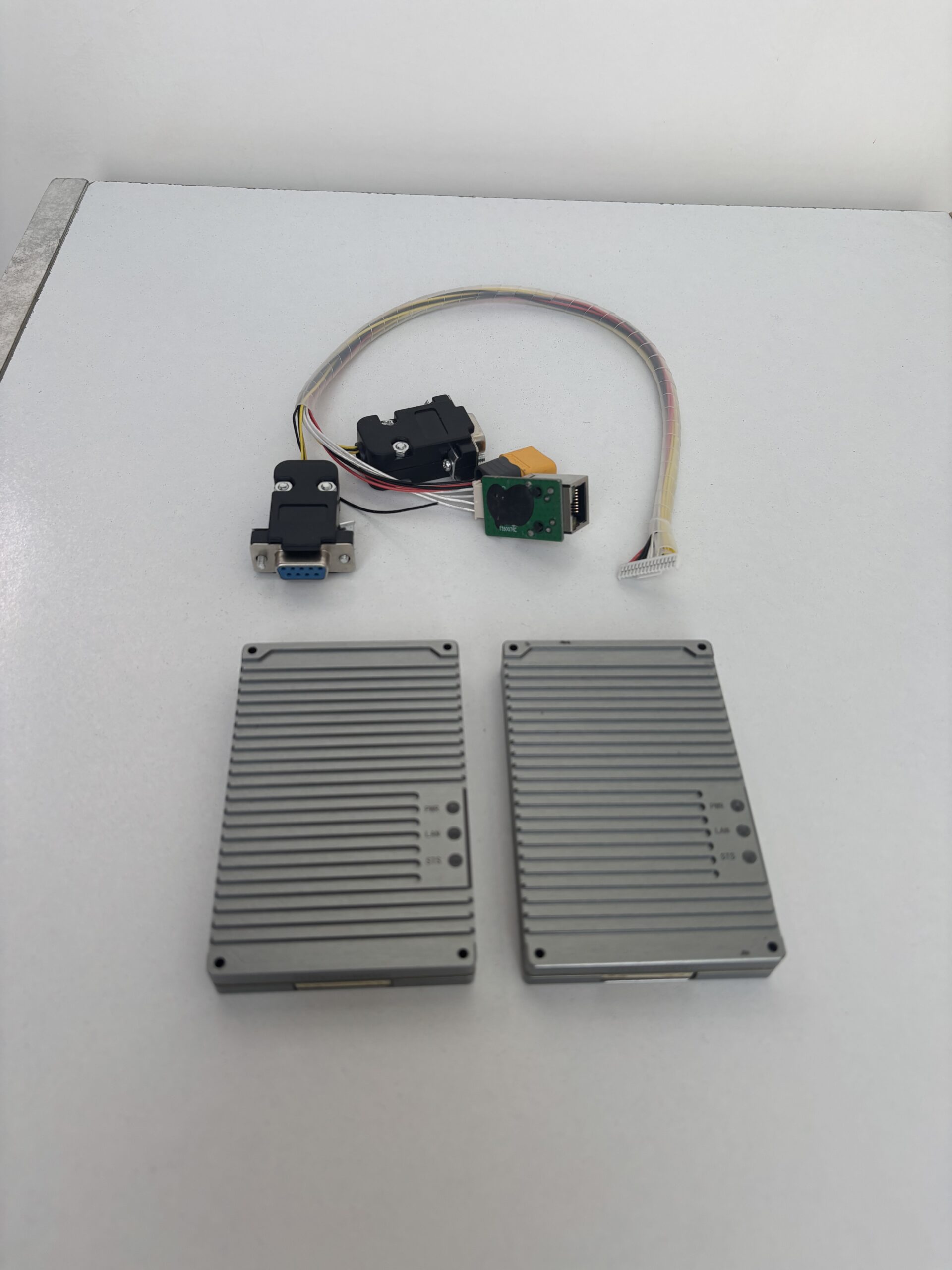

Product contents
