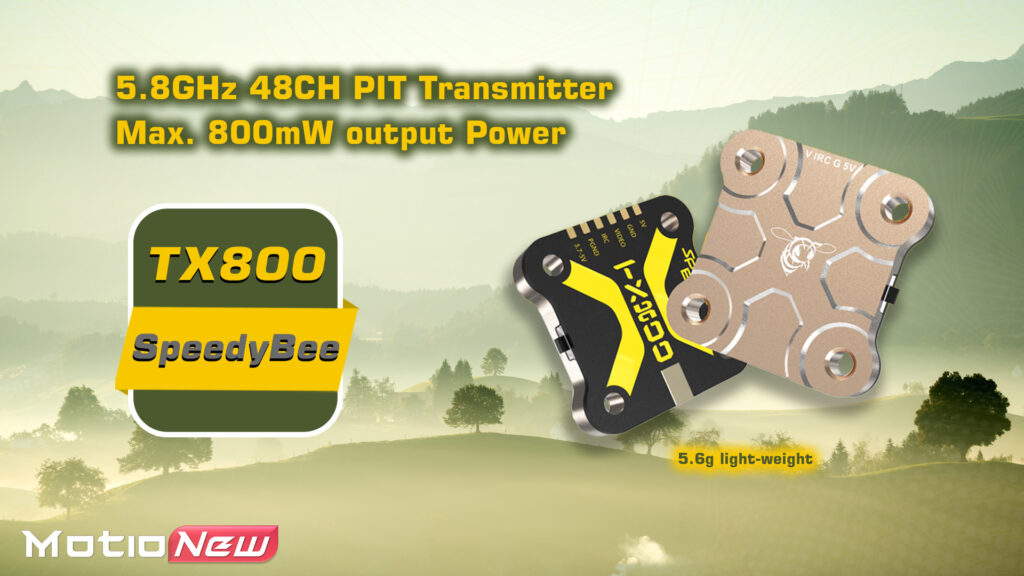

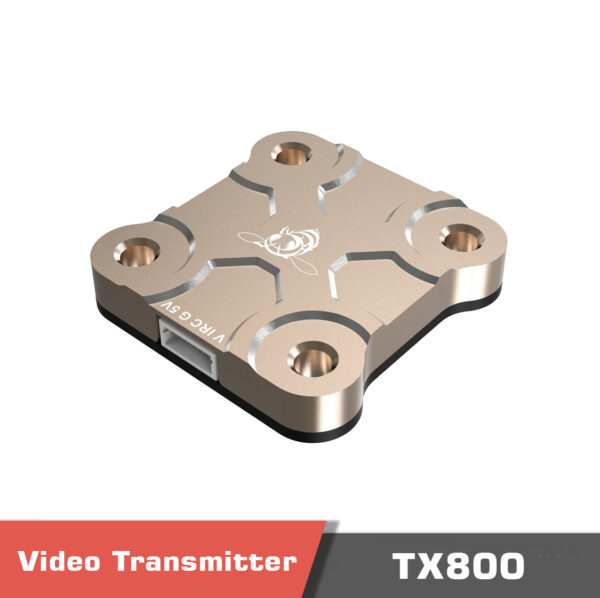

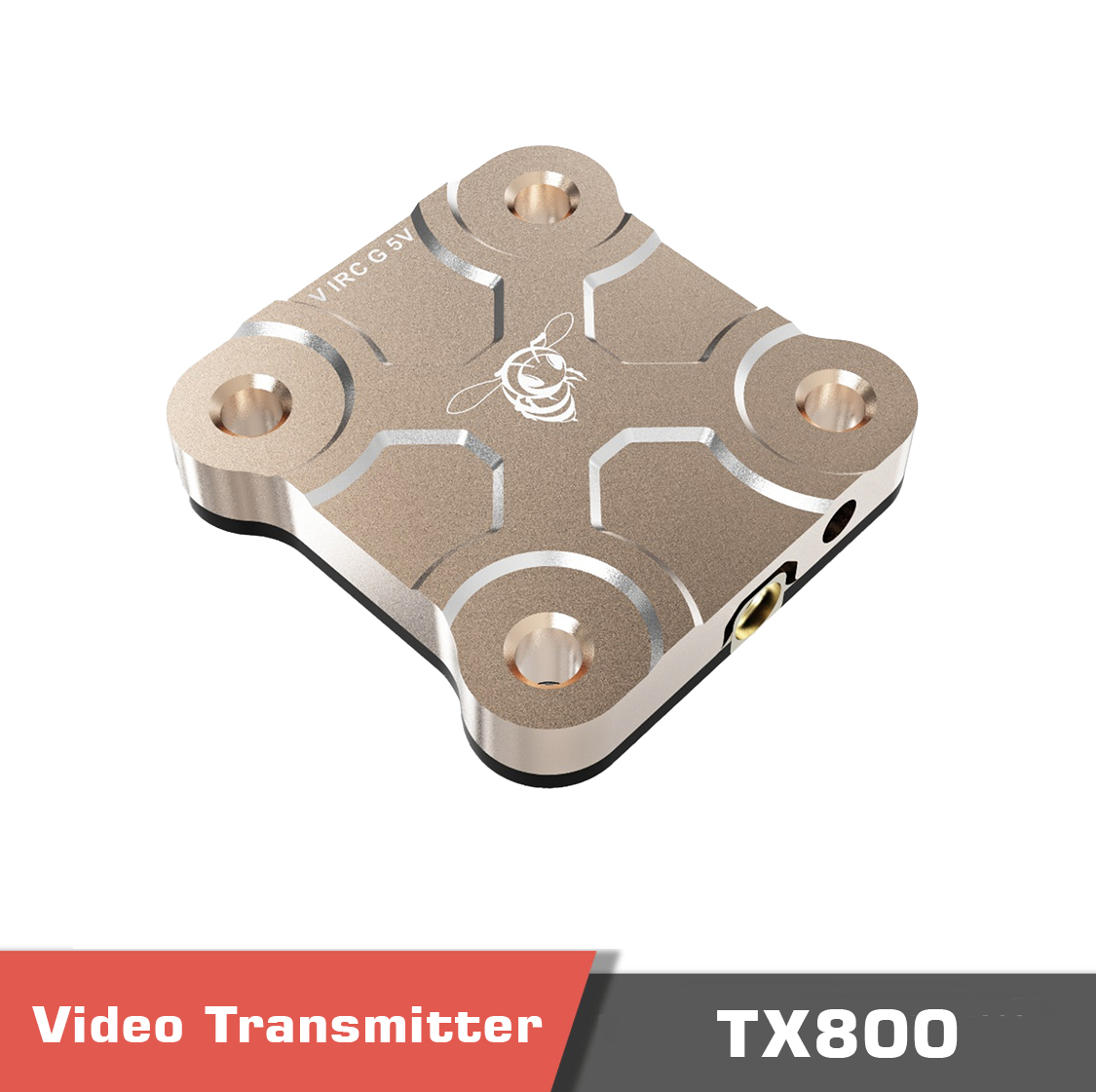

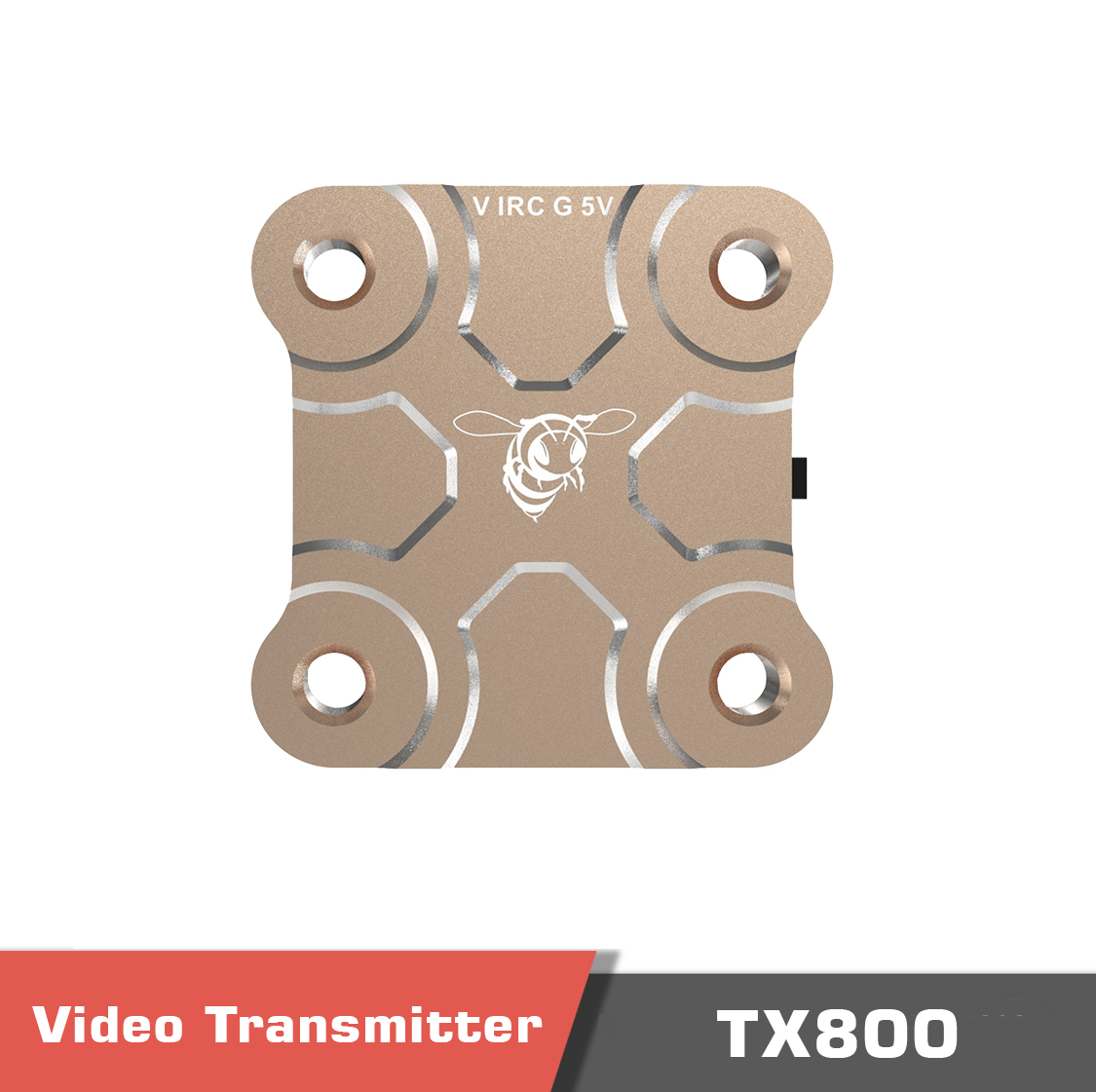

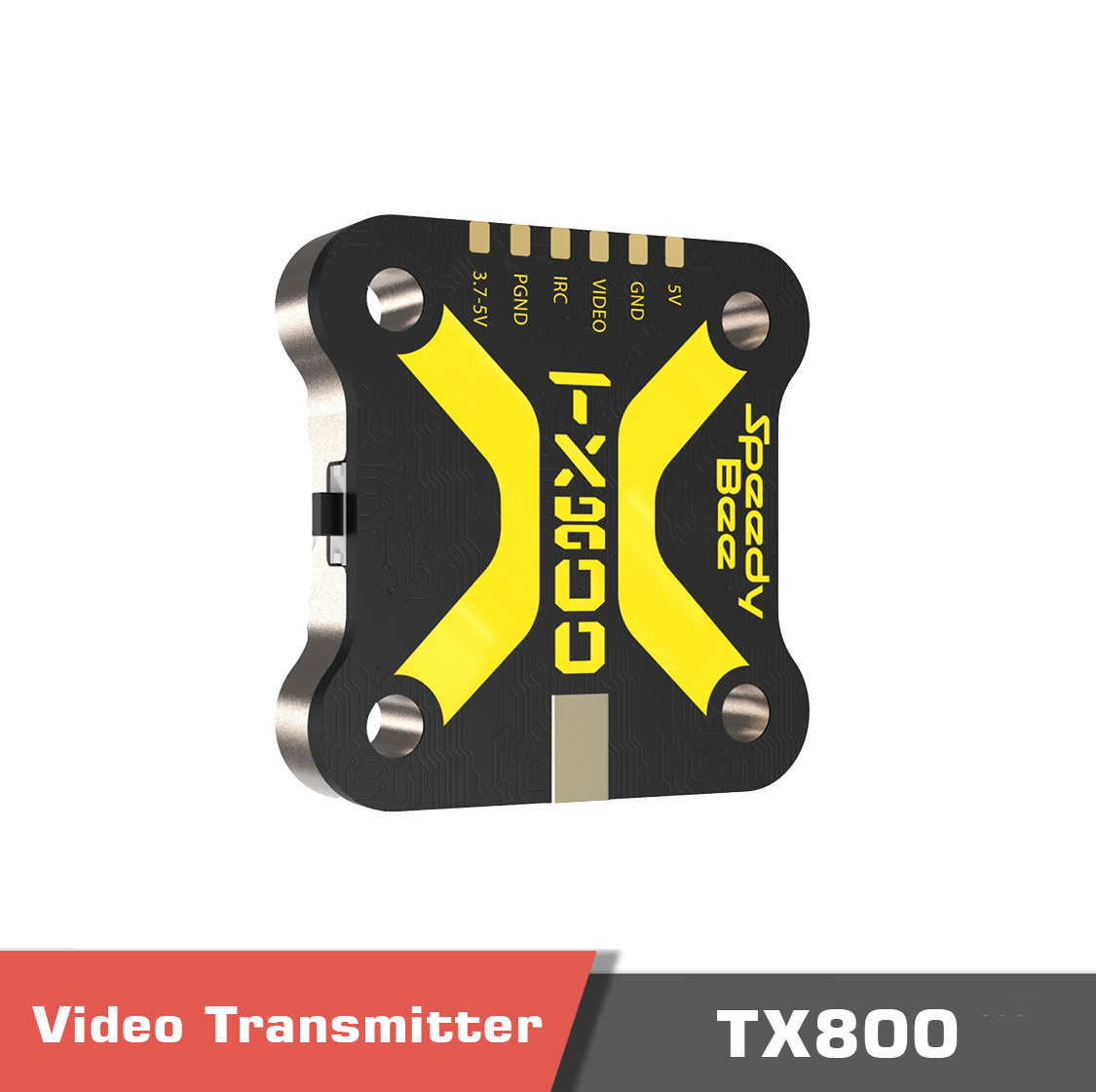

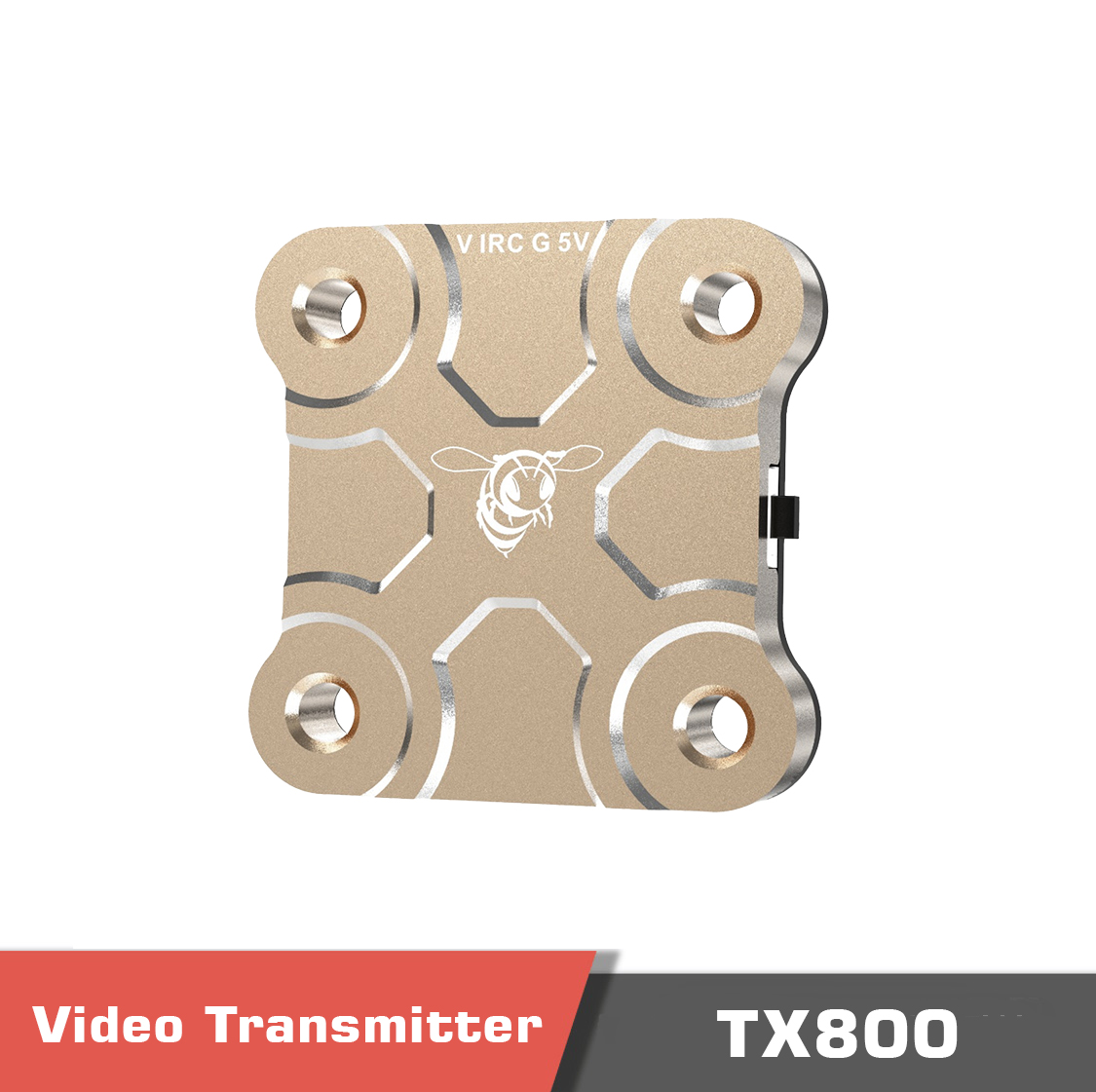

SpeedyBee TX800 VTX 5.8G 48CH PitMode Long Range Transmitter Tramp Support For RC FPV Racing Drone

(1 customer review)

29.00 $

Payment Methods:

Payment methods - speedybee tx800 - motionew - 19
Description

SpeedyBee TX800 VTX 5.8G 48CH PitMode Long Range Transmitter Tramp Support For RC FPV Racing Drone

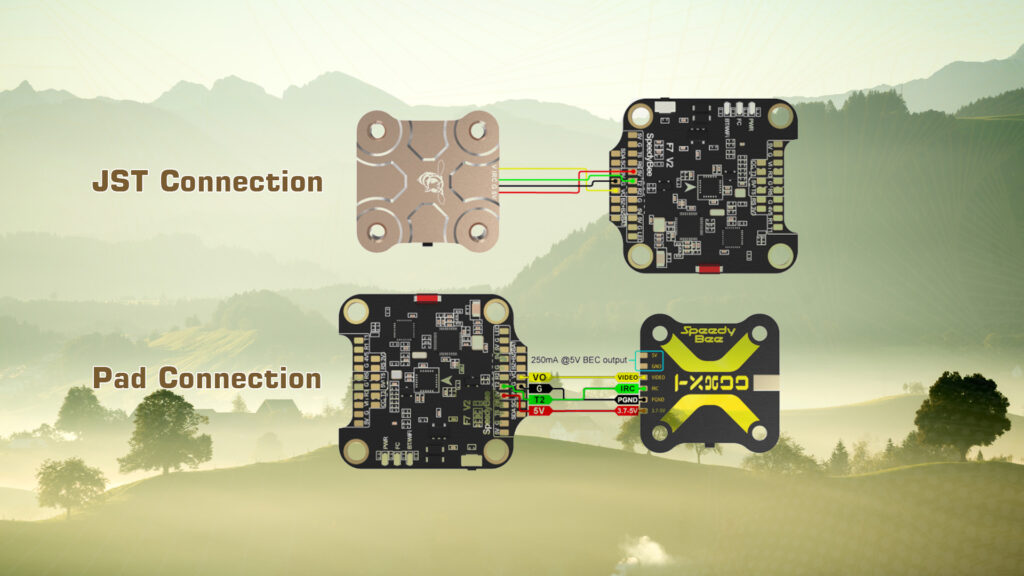

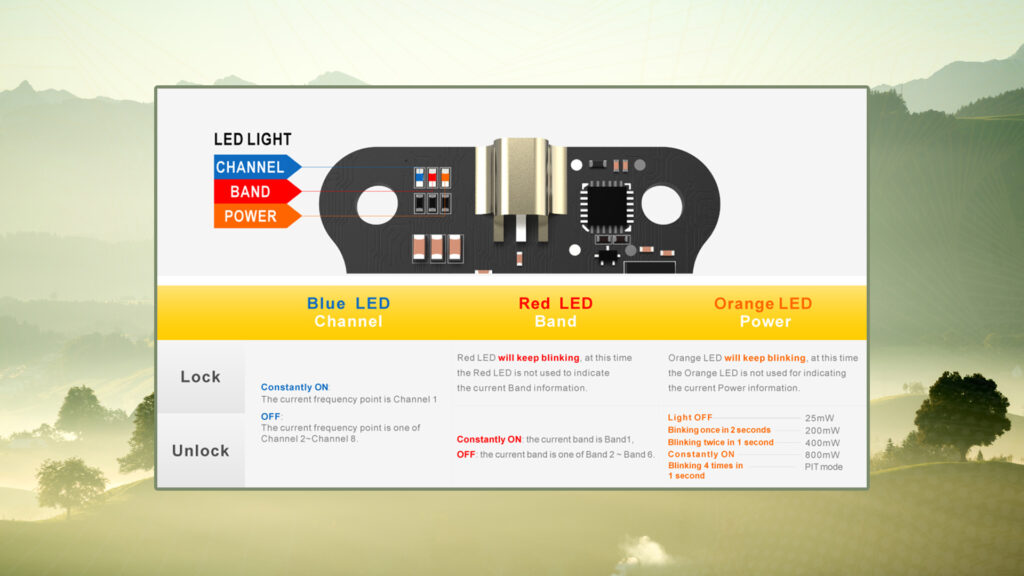

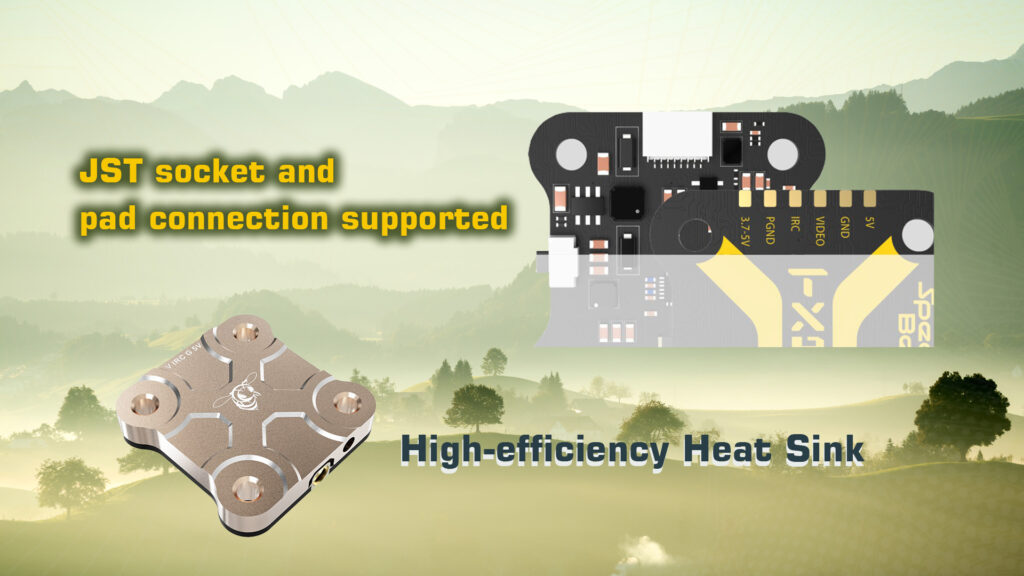

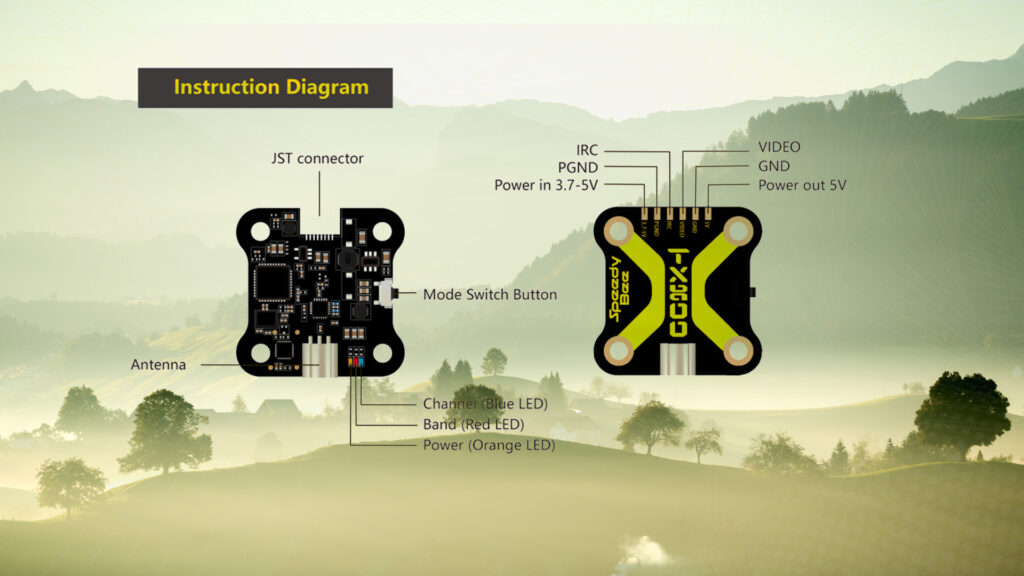

Speedybee tx800 vtx Tx800 speedy bee. 2 - speedybee tx800 - motionew - 6 Tx800 speedy bee. 3 - speedybee tx800 - motionew - 7 Tx800 speedy bee. 4 - speedybee tx800 - motionew - 8 Tx800 speedy bee. 5 - speedybee tx800 - motionew - 9 Tx800 speedy bee. 6 - speedybee tx800 - motionew - 10 Tx800 speedy bee. 7 - speedybee tx800 - motionew - 11  Tx800 speedy bee. 9 - speedybee tx800 - motionew - 12

For a comprehensive reading of related products, please visit the Motionew website.

Specifications

Specifications

Specifications
Frequency Channel 5.8GHz 48CH
Output Power PIT/25mW/200mW/400mW/800mW
Working Current 5V@250~750mA
Voltage out 5V@max 250mA
Voltage in 3.7-5V
Video input impedance 75 Ohm
Antenna Connector MMCX
Weight 5.6g (without antenna)

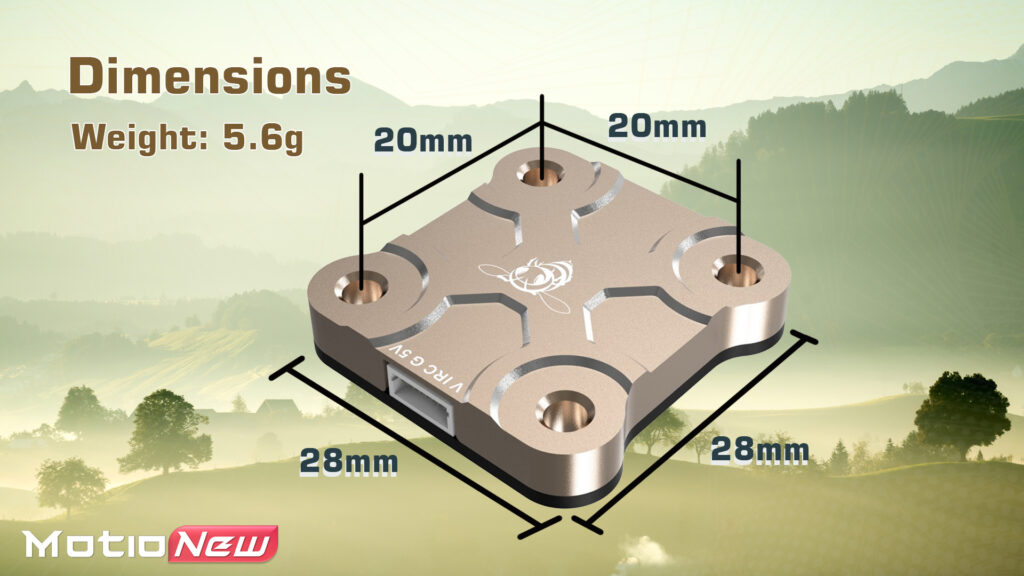

PCB Size 28mm*28mm@20*20
Mounting holes M4 holes on the PCB; M3 holes on the metal heat sink
Documents

Documents

Click here to download the user manual

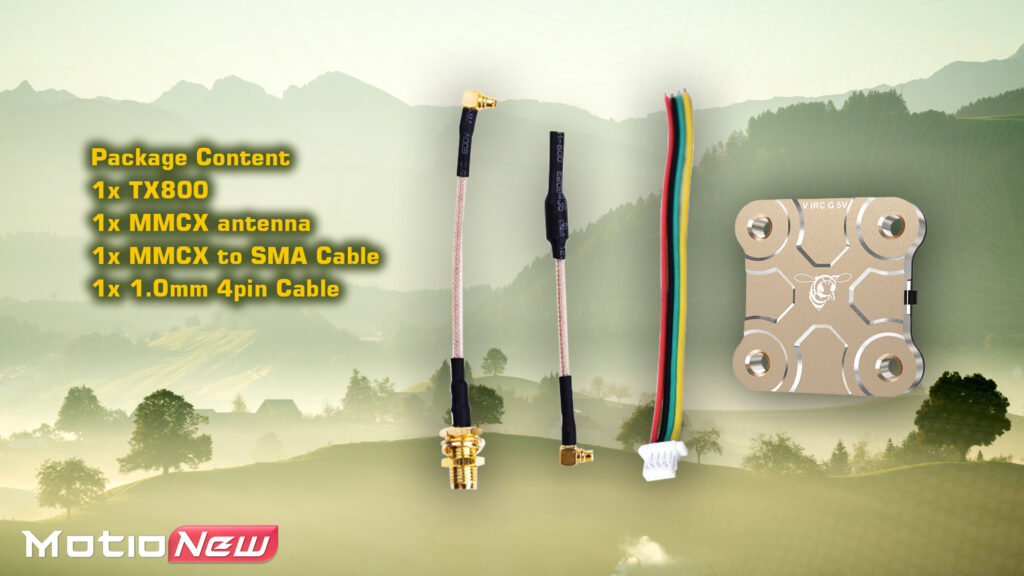

Product contents

Product contents

Tx800 speedy bee. 8 - speedybee tx800 - motionew - 13

Reviews
5
1 review
1
0
0
0
0

1 review for SpeedyBee TX800 VTX 5.8G 48CH PitMode Long Range Transmitter Tramp Support For RC FPV Racing Drone

Clear filters
  1. Thiago

    Produto excelente, recomendo!

Add a review

Specification:

Combination

TX800

,

TX800 + SpeedyBee 5.8 GHz Antenna V2 (SMA)

,

TX800 + SpeedyBee 5.8 GHz Antenna V2 (MMCX-Straight)

,

TX800 + SpeedyBee 5.8 GHz Antenna V2 (MMCX-90°)
