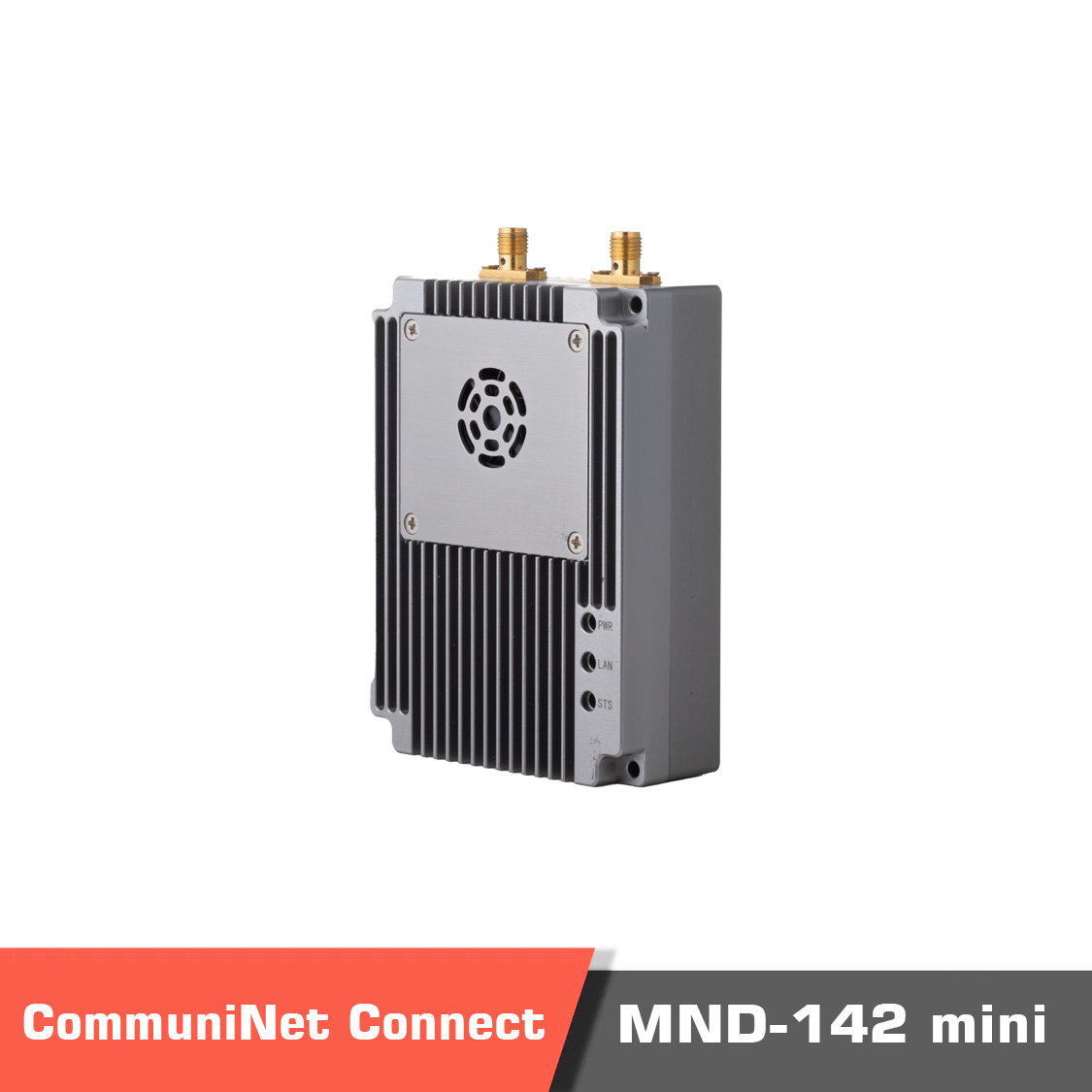

Overview of the MND-142 MINI UAV Data Link

The CommuniNet MND-142 MINI UAV Data Link is a 2 W P2P/P2MP transmission system designed for UAV fleets, robotics, and industrial IoT networks. With over 16 nodes supported, AES-256 encryption, and ≤ 10 ms latency, it provides a balance of range, security, and affordability for professional multi-node operations.

Key Features of the 2W P2MP UAV Data Link

• Frequency Band: 1350–1470 MHz

• Topology: P2P / P2MP (> 16 nodes)

• RF Chain: 2T2R MIMO

• Output Power: 2 W (33 dBm)

• Channel Bandwidths: 10 / 20 MHz

• Max Data Rate: 26.4 Mbps

• Latency: ≤ 10 ms

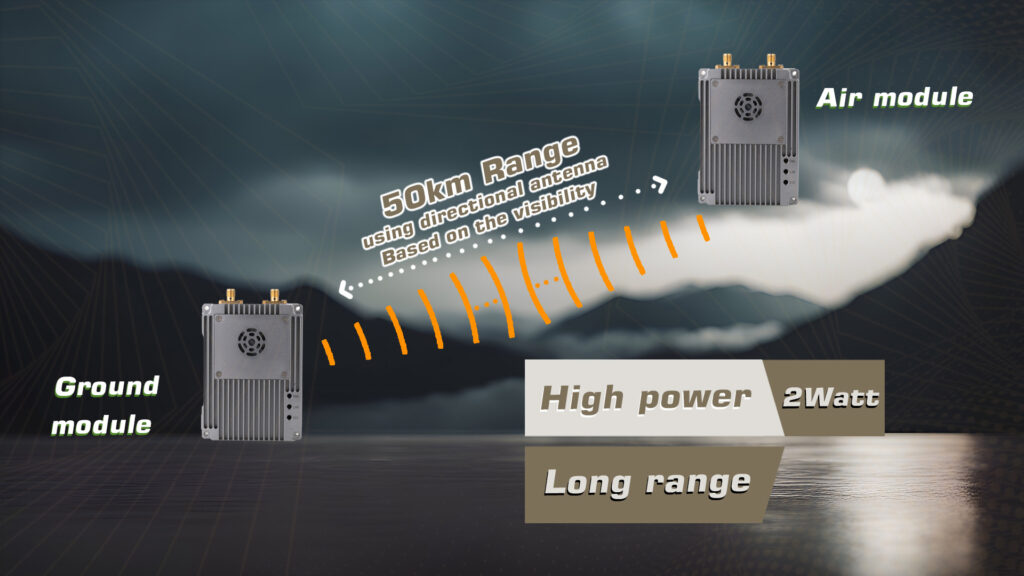

• Range: 30+ km LOS (air-to-ground)

• Security: AES-256 encryption

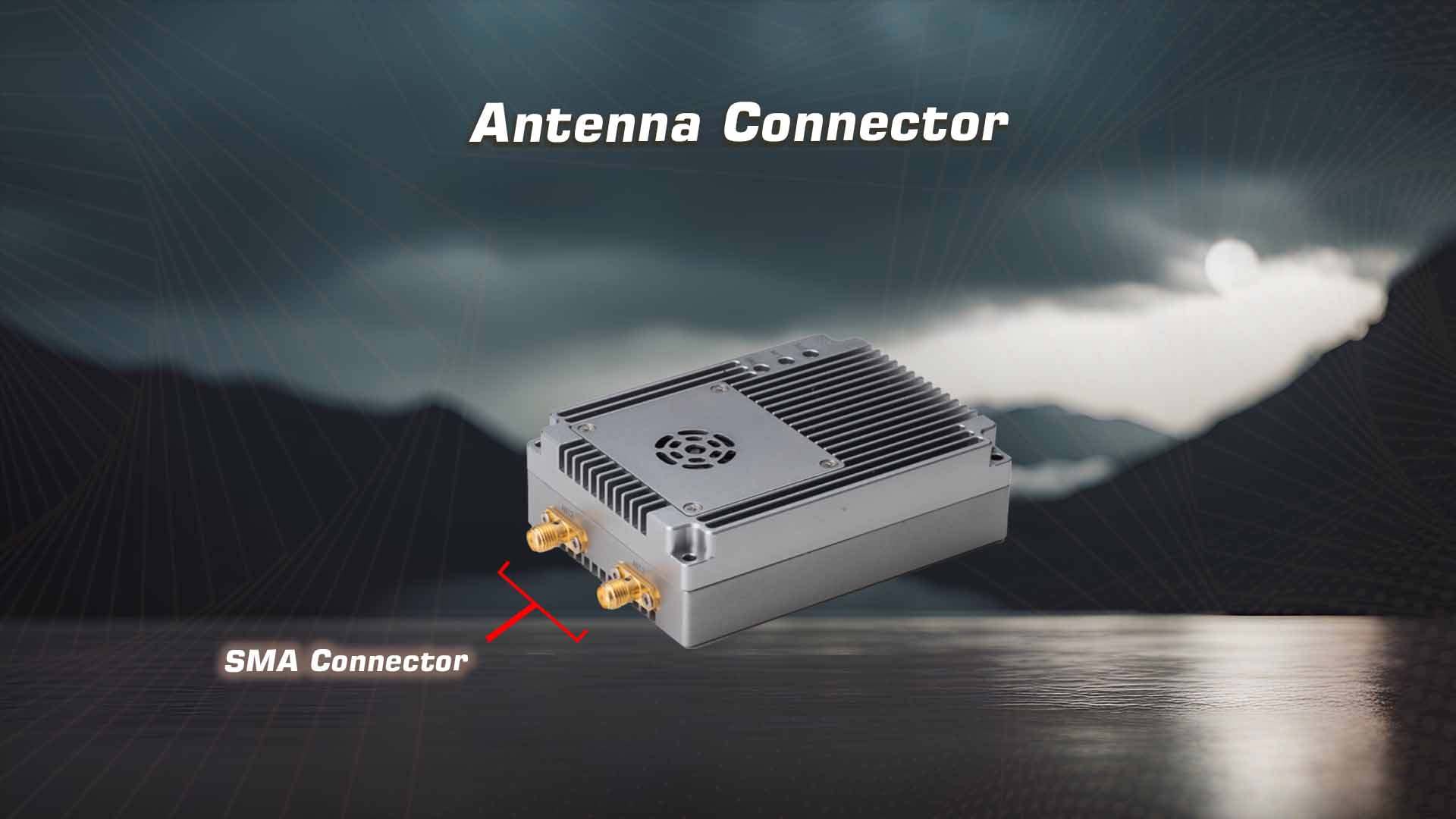

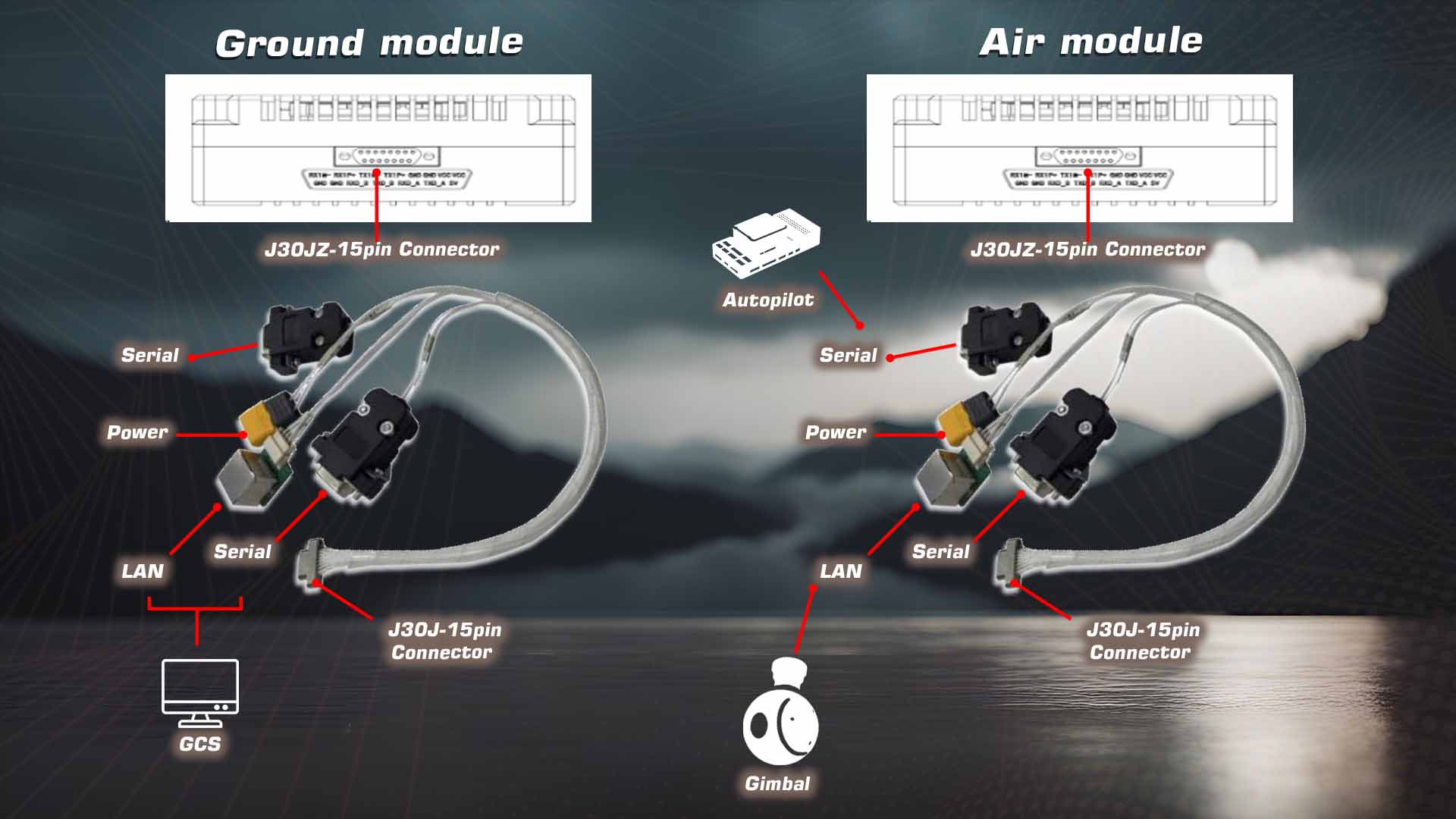

• Interfaces: SMA ×2, Ethernet ×1, TTL / RS232 / SBUS

• Power Consumption: Air ≤ 25 W @ 4 Mbps, Ground ≤ 10 W @ 1 Mbps

• Input Voltage: 9–26 V DC (typ. 12 V @ 3 A)

• Size / Weight: 98.5 × 65.5 × 27 mm, 198 g

• Operating Temp: −40 °C to +70 °C

Applications of the MND-142 MINI P2MP Link

UAV Fleet Coordination

Reliable point-to-multipoint control for multiple drones in a star network.

Robotics Communication

Cost-effective backbone for controlling distributed ground units.

Industrial Sensor Networks

Wireless connectivity for multiple sensors across large areas.

Advantages of the MND-142 MINI UAV Data Link

• Higher output power than the MND-141 Mesh

• Flexible P2P or P2MP configuration

• Excellent performance-to-cost ratio

Comparison of MND UAV Data Link Models
