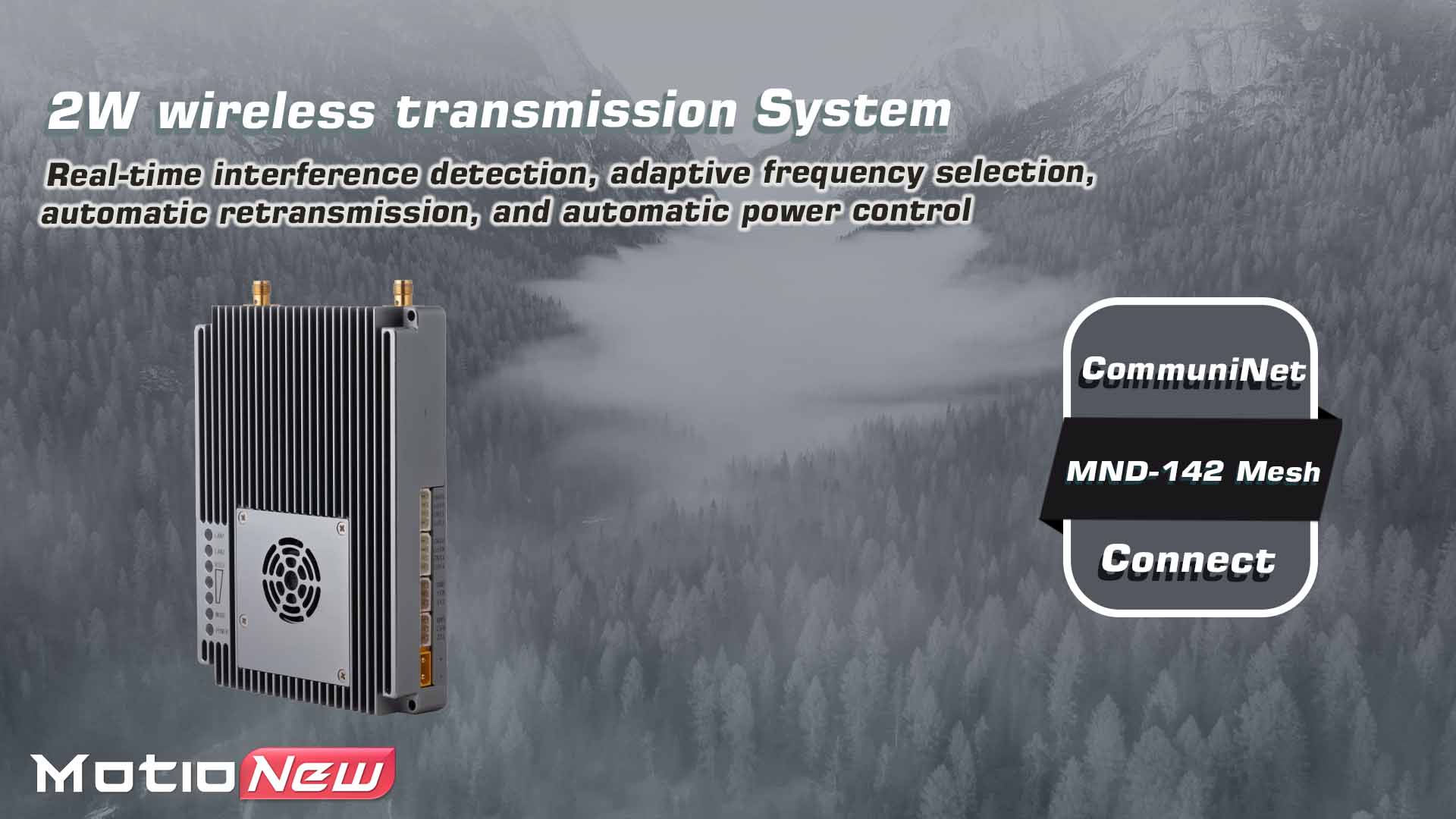

Data Link – CommuniNet MND-142 Mesh, 2W*2 output power transmission

Overview of the MND-142 Mesh Multi-Hop UAV Data Link

The CommuniNet MND-142 Mesh UAV Data Link is a multi-hop, high-capacity mesh networking system for large UAV fleets, industrial IoT, and critical infrastructure. Offering LOS ranges up to 50+ km, Carrier Aggregation up to 100 Mbps, and multi-layer encryption, it’s built for large-scale, high-data missions.

Key Features of the 100 Mbps Multi-Hop Mesh Data Link

• Frequency Band: 1420–1530 MHz

• Topology: Mesh (multi-hop) + P2MP

• RF Chain: 1T2R / 2T2R MIMO

• Channel Bandwidths: 1.4–20 MHz

• Max Data Rate: up to 100 Mbps (CA)

• Rx Sensitivity: −102 dBm

• Latency: ~15 ms

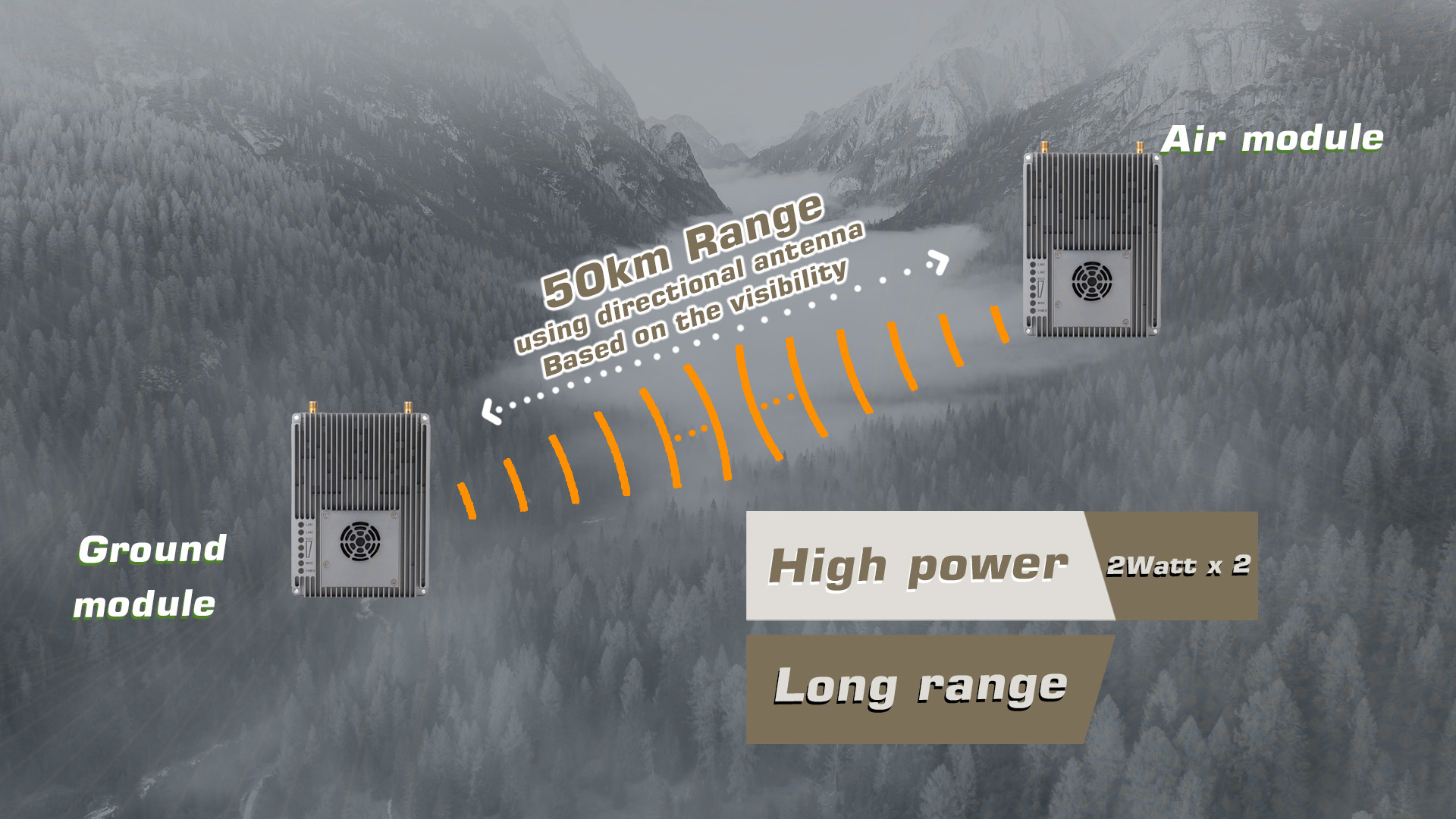

• Range: 50+ km LOS

• Security: AES-128, SNOW3G, ZUC

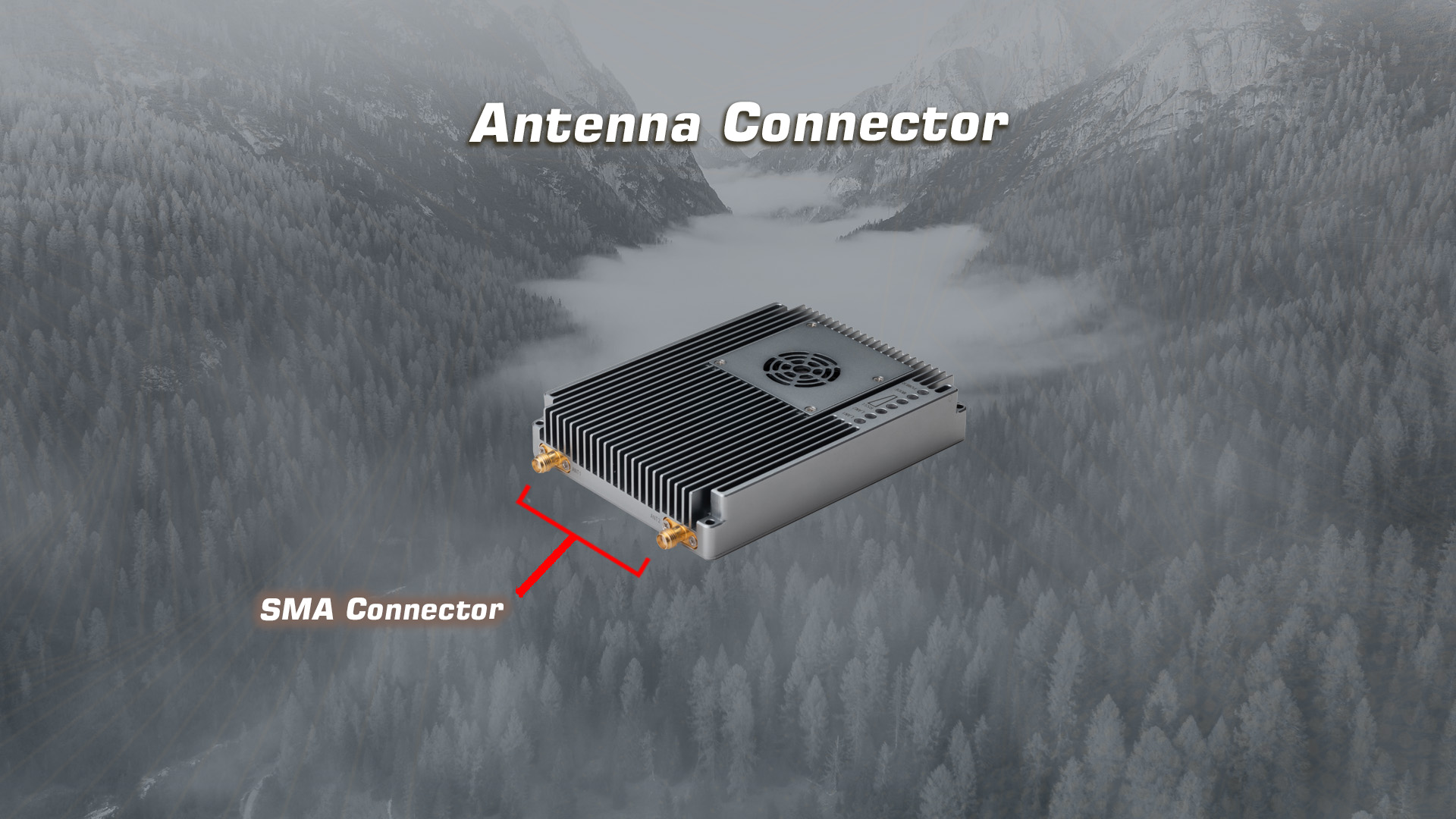

• Interfaces: SMA ×2, Ethernet 100 Mb ×2, TTL/RS232 ×2

• Power Consumption: Air ≤ 25 W @ 4 Mbps, Ground ≤ 10 W @ 1 Mbps

• Input Voltage: 9–15 V DC (typ. 12 V @ 3 A)

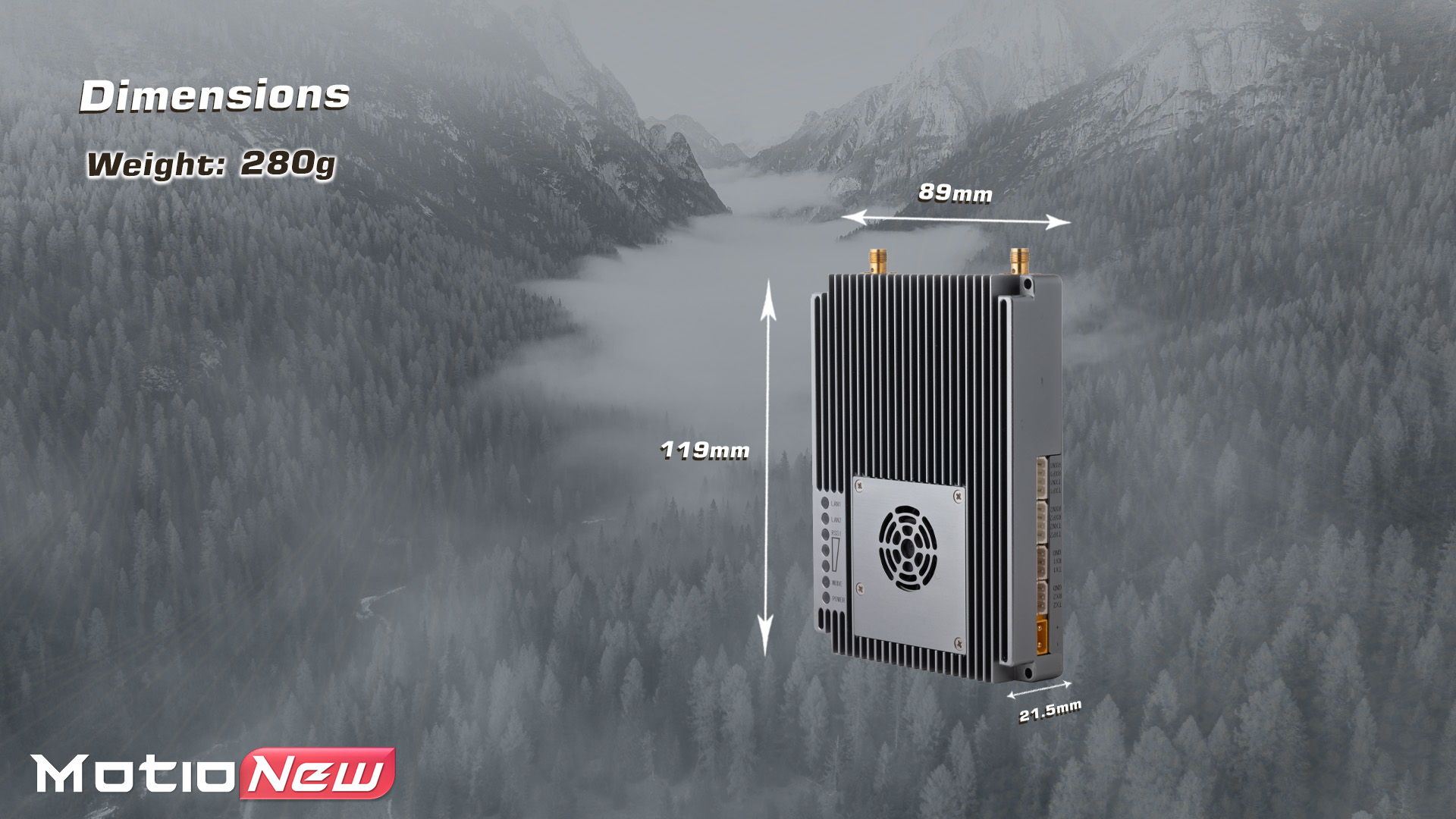

• Size / Weight: 119 × 89 × 21.5 mm, 280 g

• Operating Temp: −20 °C to +65 °C

Applications of the MND-142 Mesh UAV Link

Large-Scale UAV Mesh Networks

Multi-hop architecture for extended aerial coverage and route redundancy.

Distributed Industrial Sensor Systems

Self-healing mesh for remote asset monitoring.

High-Bandwidth UAV Missions

Supports HD video streaming and large data transfers

Advantages of the MND-142 Mesh Data Link

• Multi-hop mesh extends beyond LOS

• High throughput with Carrier Aggregation

• Multi-layer encryption for sensitive missions

H2: Comparison of MND UAV Data Link Models

If you have any questions regarding our products, use the Motionew Contact us to consult our engineering team.

FAQ – CommuniNet MND-142 Mesh 2W×2 Output Power Transmission System

1. What are the main specifications of the CommuniNet MND-142 Mesh system?
The MND-142 Mesh is a dual-channel (2×2) 2W output power wireless mesh transmission system designed for UAVs, UGVs, and tactical communication networks. It supports real-time bidirectional data and HD video transmission, combining long-range connectivity with multi-node networking capability.

2. What communication technology and frequencies does it use?
The system operates on Time Division Duplexing (TDD) with Mesh networking architecture, allowing multiple nodes to exchange data simultaneously. It supports configurable frequencies in the 1.4GHz to 2.4GHz bands, depending on mission requirements and regional RF compliance.

3. What are the range and mesh network capabilities of this system?
Each node provides up to 15 km point-to-point range, and when deployed in mesh configuration, the coverage can expand across dozens of kilometers through multi-hop communication. The mesh topology enables automatic routing, redundancy, and self-healing for reliable communication in complex environments.

4. What payment methods are available for purchasing the MND-142 Mesh system?
Motionew accepts credit/debit cards, PayPal, and bank wire transfers. For enterprise or OEM customers, proforma invoices can be issued for secure direct payment.

5. Is OEM or system customization available?
Yes. Motionew offers OEM customization services, including frequency band tuning, enclosure design, branding, power configuration, and connector adaptation. Contact the sales department for MOQ and delivery schedules.

6. Are datasheets and integration manuals available?
Yes. Motionew provides technical datasheets, wiring diagrams, and mesh configuration guides. Additional engineering support is available for UAV integration, antenna selection, and network topology design.
