MFA-4M5D 400MHz 5dBi Omnidirectional Antenna

103.00 $

Description

MFA-4M5D 400MHz 5dBi Omnidirectional Antenna

The MFA-4M5D is a high-performance omnidirectional antenna designed for the 400MHz applications. It is ideally suited for multipoint, Non-Line of Sight (NLOS), and mobile applications where high gain and wide coverage are desired. Typical applications include Wireless image and data transmission, Wireless Video Links, Internet of Things (IoT), and point-to-point or point-to-multipoint applications. Its operating frequency ranges from 410MHz to 440MHz.

You can match this antenna with modules working in the 400MHz band like MotioUAV P400 module. Installing it on the ground side, it can ensure long-range operations of up to 100km in different applications.

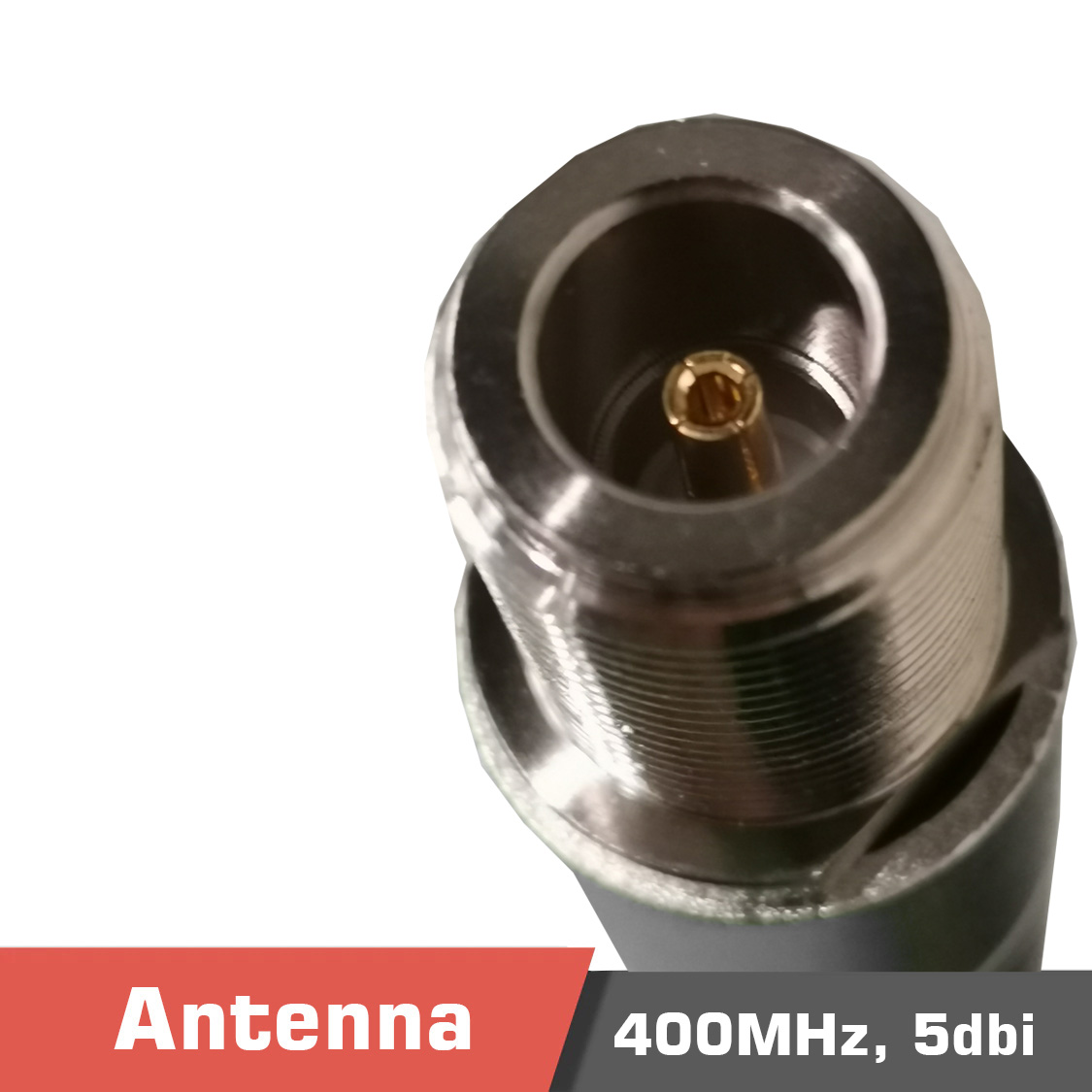

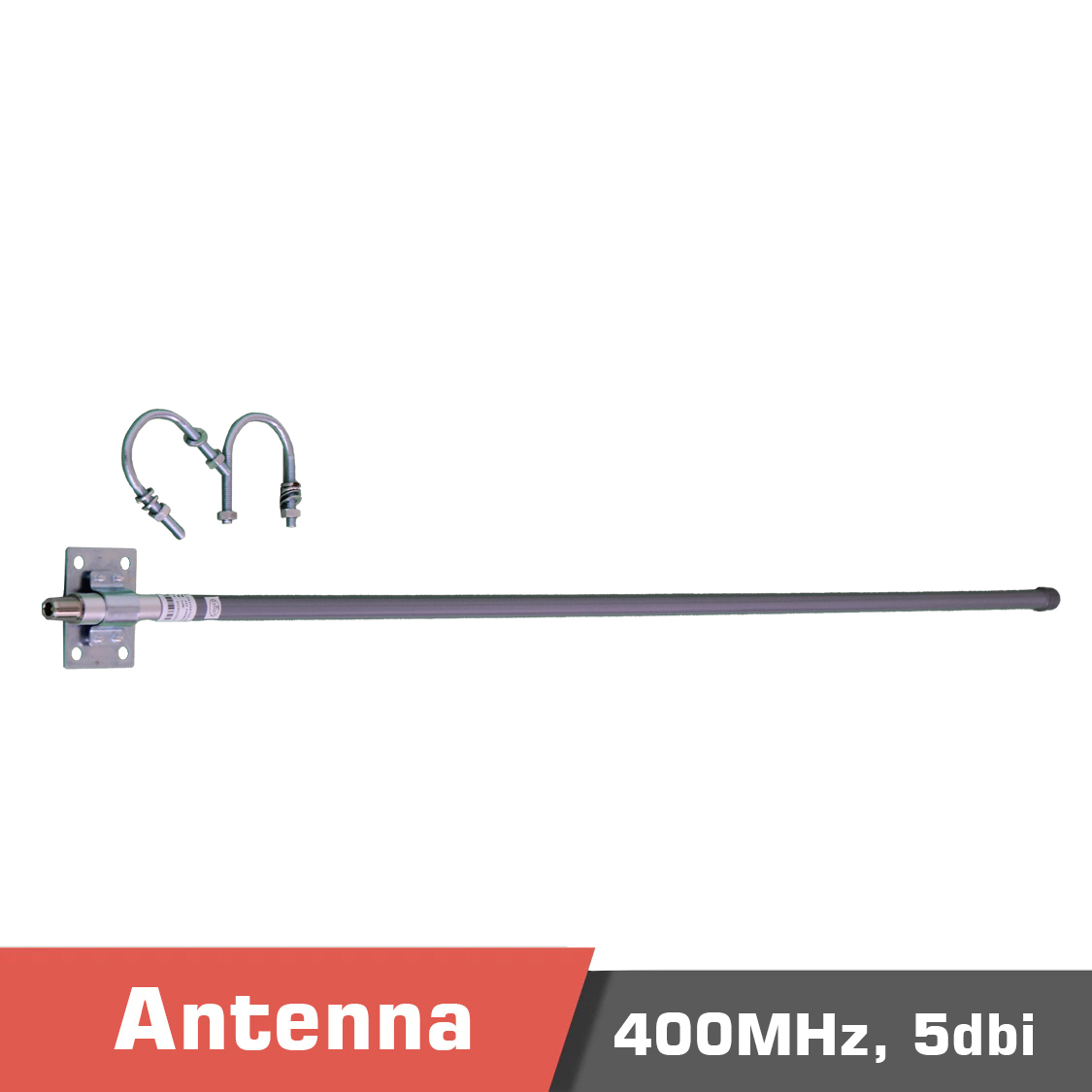

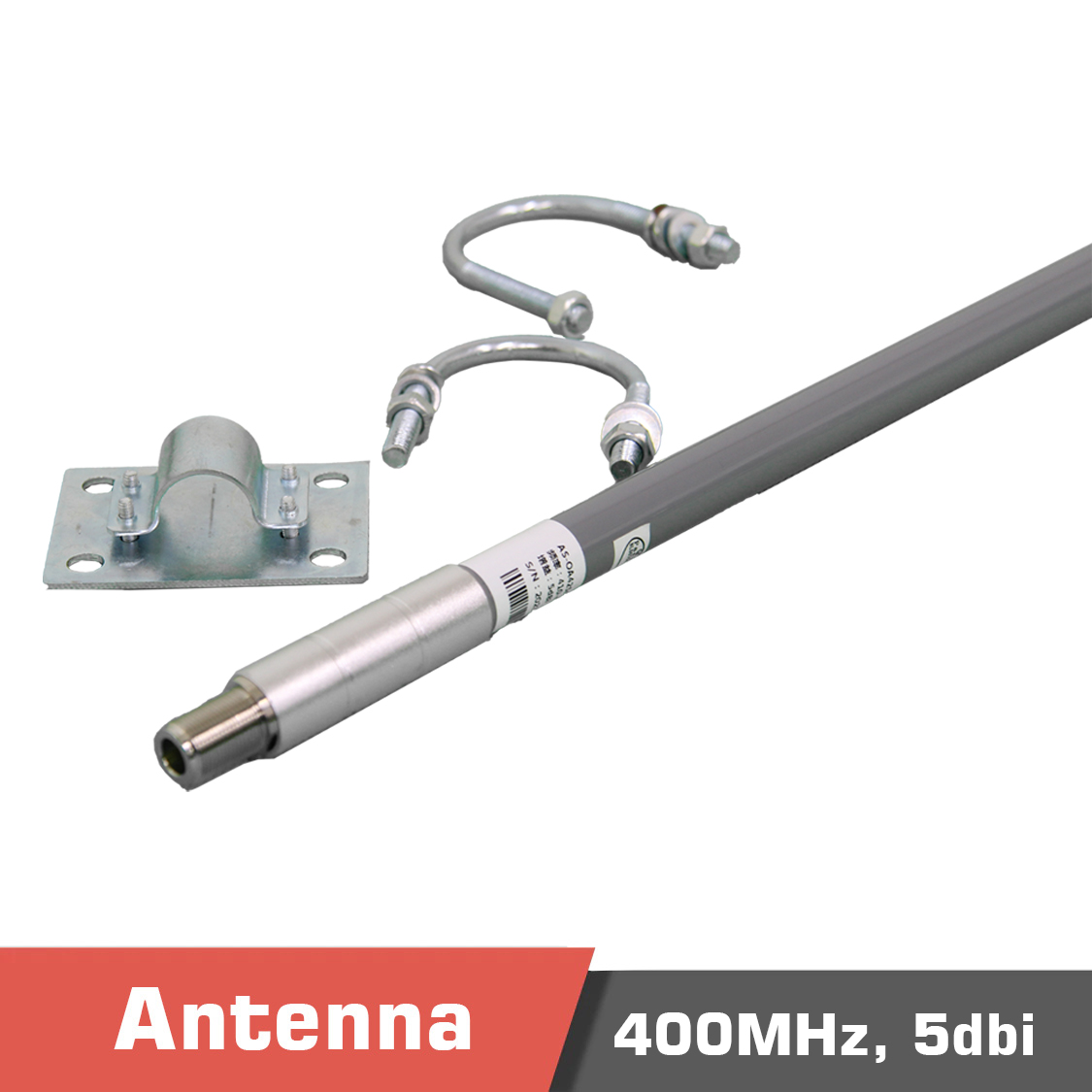

This antenna features an integral N-Female bulkhead type connector that mounts through the wall of an equipment enclosure. Included with the MFA-4M5D is a mast mounting kit consisting of a heavy-duty steel bracket and a pair of U-bolts.

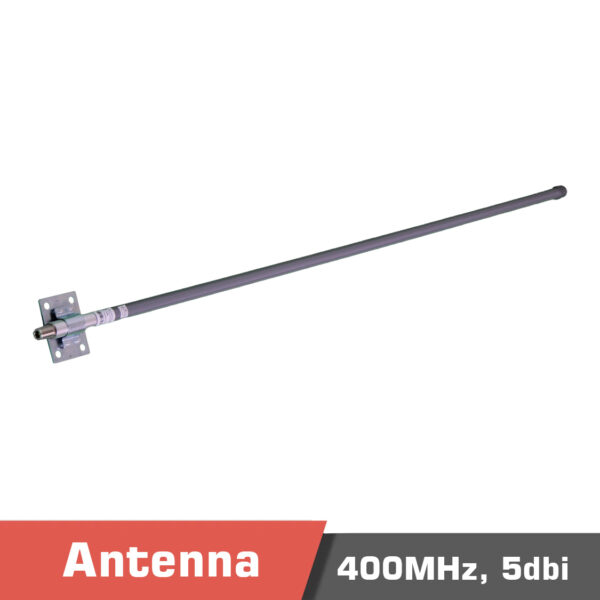

This omni antenna’s construction features a rugged 19mm diameter gray high-intensity fiberglass for durability and aesthetics. It is designed for all-weather operation.

Mfa 4m5d. 1 - mfa-4m5d, omnidirectional antenna, wireless lan, scada, lpwan/iot/m2m, wireless video links, 400mhz, 400mhz band applications, ism band, long-range data link, long-range antenna, long-range video link, telemetry, unmanned aerial vehicle, panel antenna, automatic antenna tracker, aat, fiberglass antenna mast, 5dbi omnidirectional antenna, 410mhz, 440mhz, 410 - 440mhz, lora - motionew - 6 Mfa 4m5d. 2 - mfa-4m5d, omnidirectional antenna, wireless lan, scada, lpwan/iot/m2m, wireless video links, 400mhz, 400mhz band applications, ism band, long-range data link, long-range antenna, long-range video link, telemetry, unmanned aerial vehicle, panel antenna, automatic antenna tracker, aat, fiberglass antenna mast, 5dbi omnidirectional antenna, 410mhz, 440mhz, 410 - 440mhz, lora - motionew - 7 Mfa 4m5d. 3 - mfa-4m5d, omnidirectional antenna, wireless lan, scada, lpwan/iot/m2m, wireless video links, 400mhz, 400mhz band applications, ism band, long-range data link, long-range antenna, long-range video link, telemetry, unmanned aerial vehicle, panel antenna, automatic antenna tracker, aat, fiberglass antenna mast, 5dbi omnidirectional antenna, 410mhz, 440mhz, 410 - 440mhz, lora - motionew - 8 Mfa 4m5d. 4 - mfa-4m5d, omnidirectional antenna, wireless lan, scada, lpwan/iot/m2m, wireless video links, 400mhz, 400mhz band applications, ism band, long-range data link, long-range antenna, long-range video link, telemetry, unmanned aerial vehicle, panel antenna, automatic antenna tracker, aat, fiberglass antenna mast, 5dbi omnidirectional antenna, 410mhz, 440mhz, 410 - 440mhz, lora - motionew - 9 Mfa 4m5d. 5 - mfa-4m5d, omnidirectional antenna, wireless lan, scada, lpwan/iot/m2m, wireless video links, 400mhz, 400mhz band applications, ism band, long-range data link, long-range antenna, long-range video link, telemetry, unmanned aerial vehicle, panel antenna, automatic antenna tracker, aat, fiberglass antenna mast, 5dbi omnidirectional antenna, 410mhz, 440mhz, 410 - 440mhz, lora - motionew - 10 Mfa 4m5d. 6 - mfa-4m5d, omnidirectional antenna, wireless lan, scada, lpwan/iot/m2m, wireless video links, 400mhz, 400mhz band applications, ism band, long-range data link, long-range antenna, long-range video link, telemetry, unmanned aerial vehicle, panel antenna, automatic antenna tracker, aat, fiberglass antenna mast, 5dbi omnidirectional antenna, 410mhz, 440mhz, 410 - 440mhz, lora - motionew - 11

Additional information

Weight 1.5 kg
Dimensions 60 × 5 × 5 cm

Specifications

Specifications

Frequency 410-440MHz
Gain 5dBi
Horizontal Beam Width 360 Degrees
Impedance 50 Ohm
Connector Integral N-Female
Length 1185mm
Diameter 19mm



Documents

Please contact us for more information.

Product contents

1 set of antenna

1 set of mast mounting kit including heavy-duty steel bracket and a pair of U-bolts
