VTOL Drone Adler M39
9,300.00 $ – 18,600.00 $
Payment Methods:
Description
Important Notice!
If your company intends to export UAV products from China, it is necessary to comply with Chinese regulations. MotioNew products cannot be used for military, terrorist, or war purposes. Please read our Terms of Service for more information.

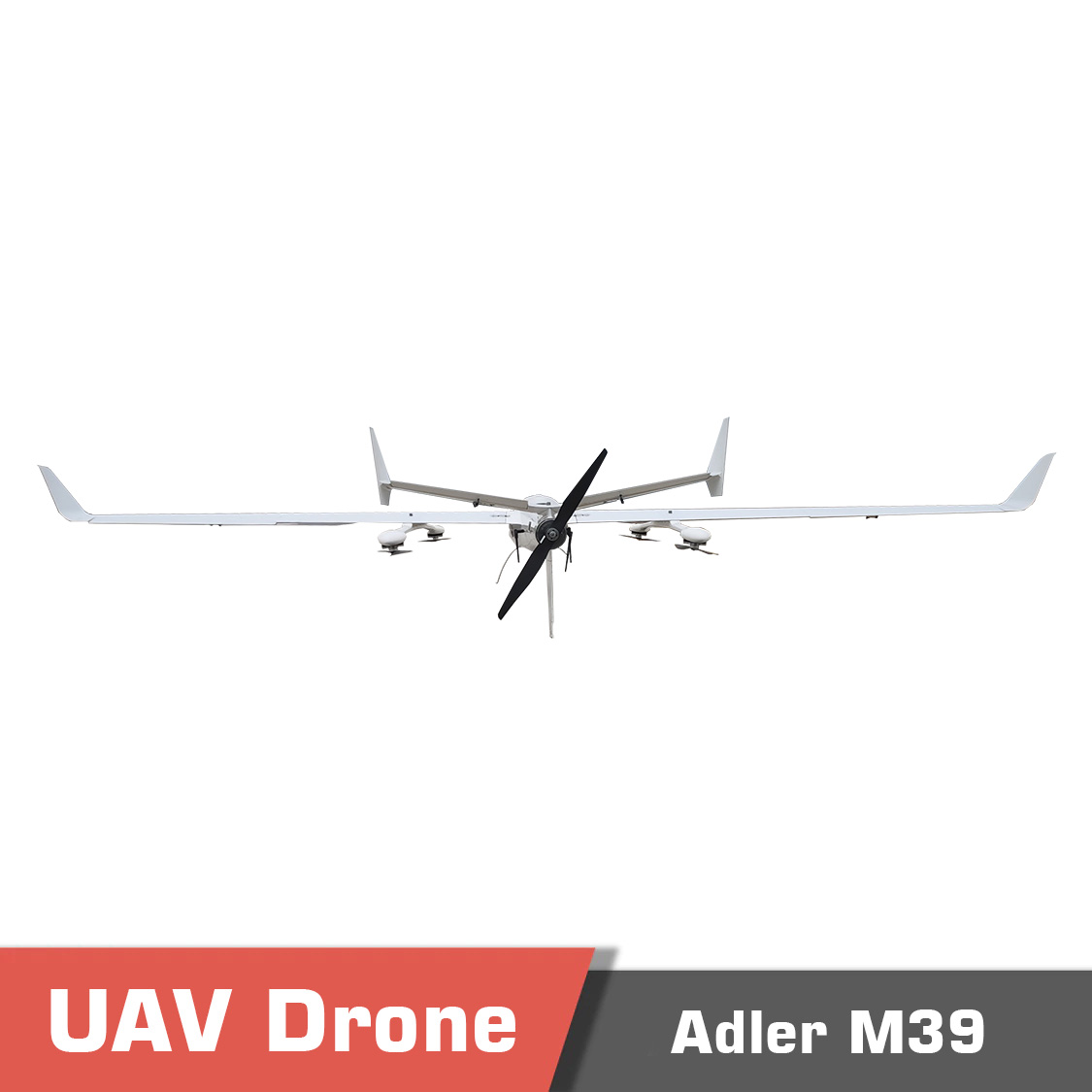

VTOL Drone Adler M39 Overview

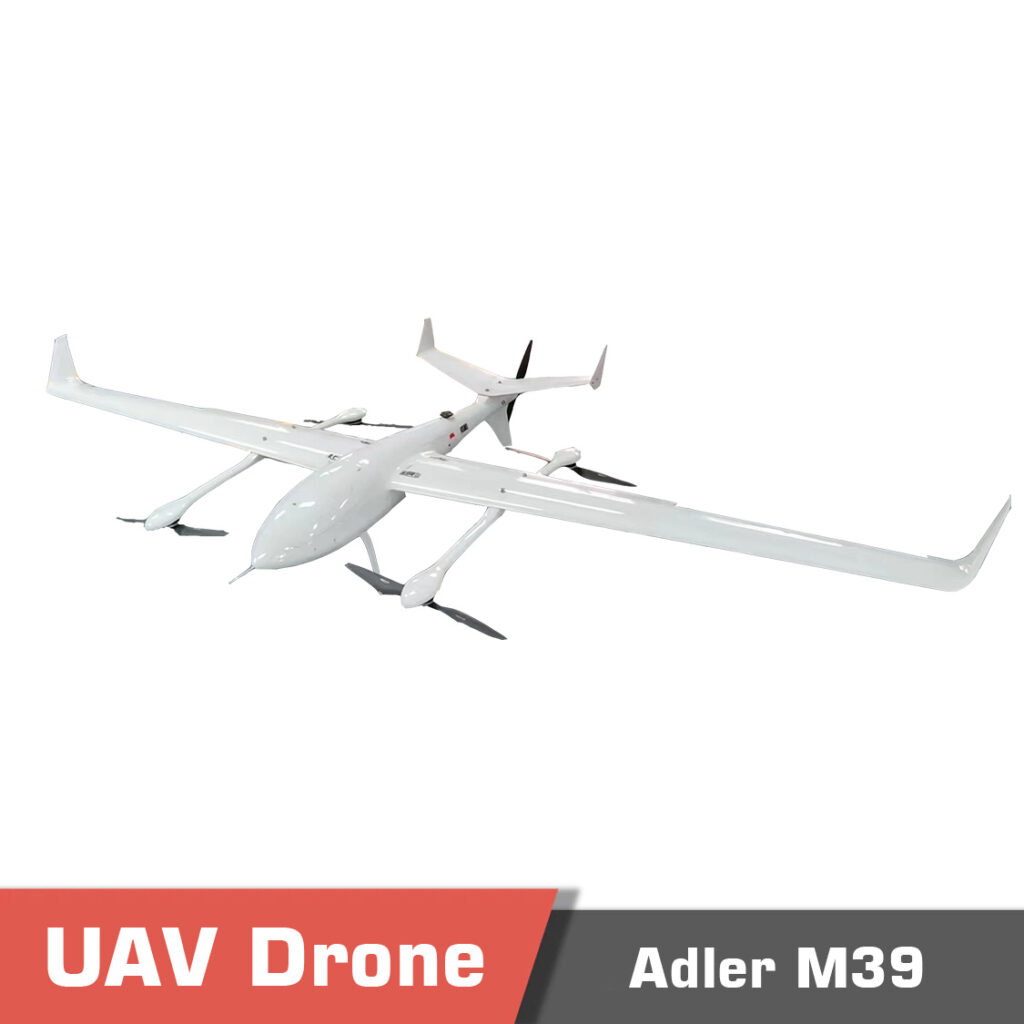

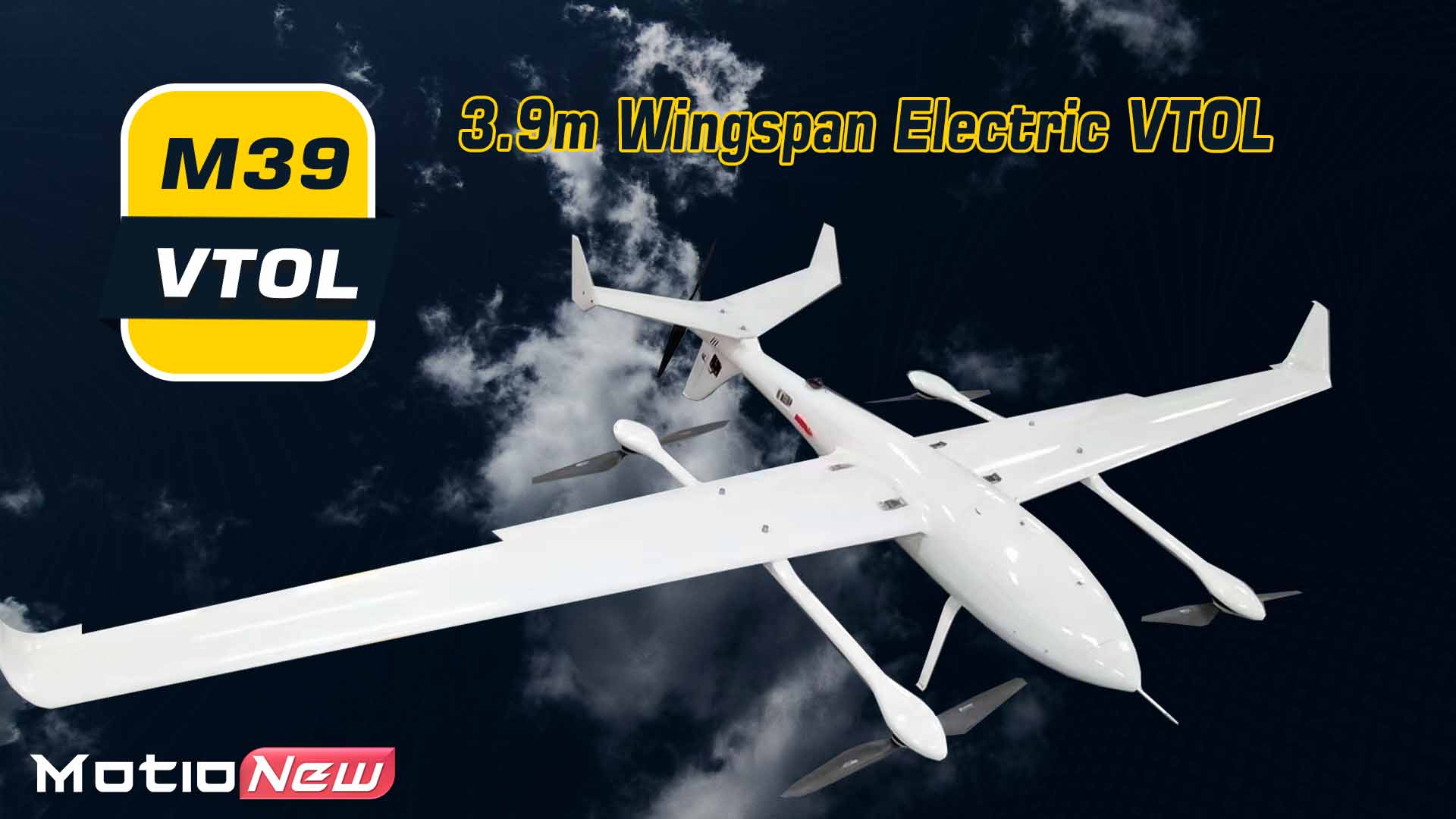

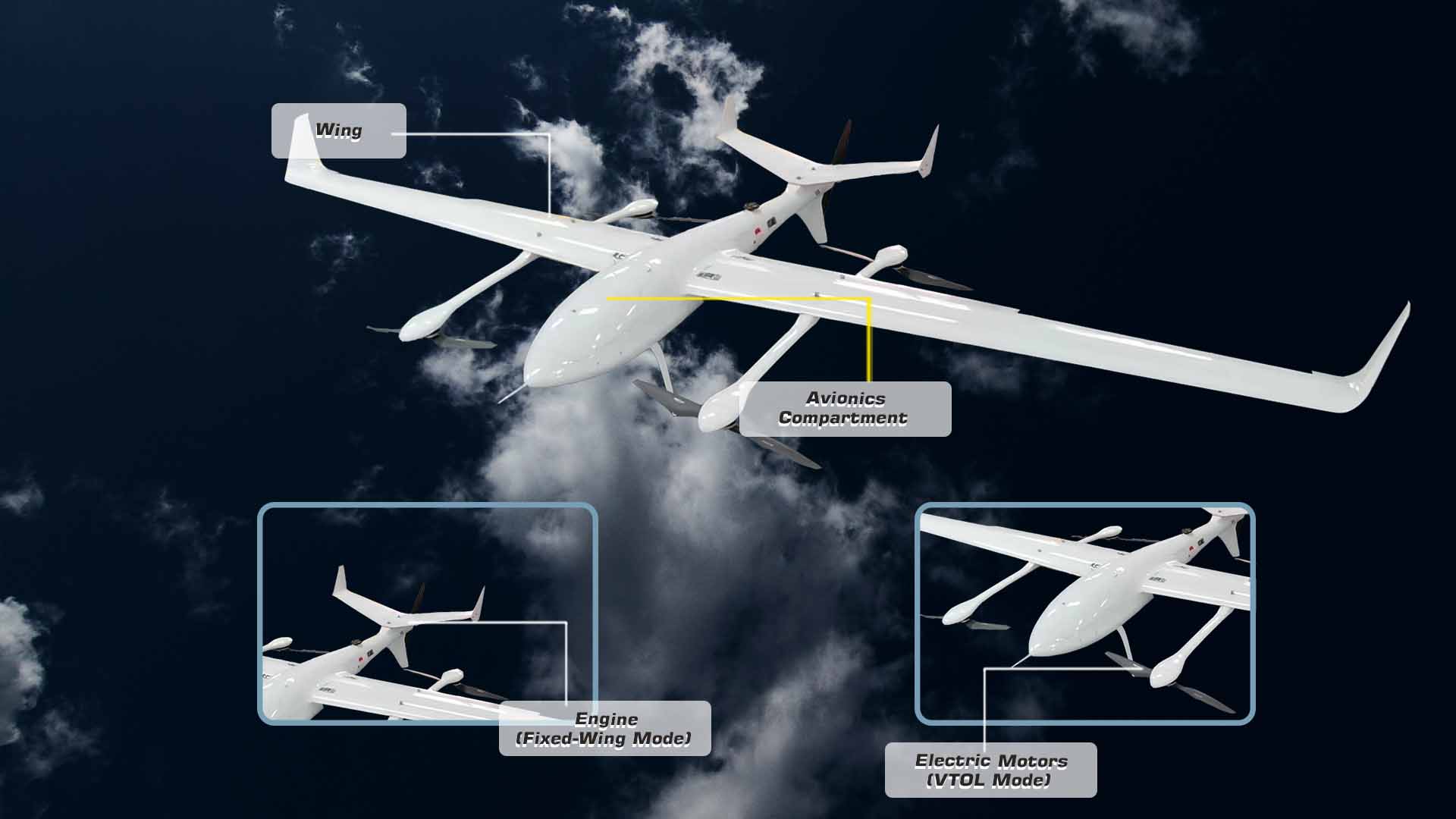

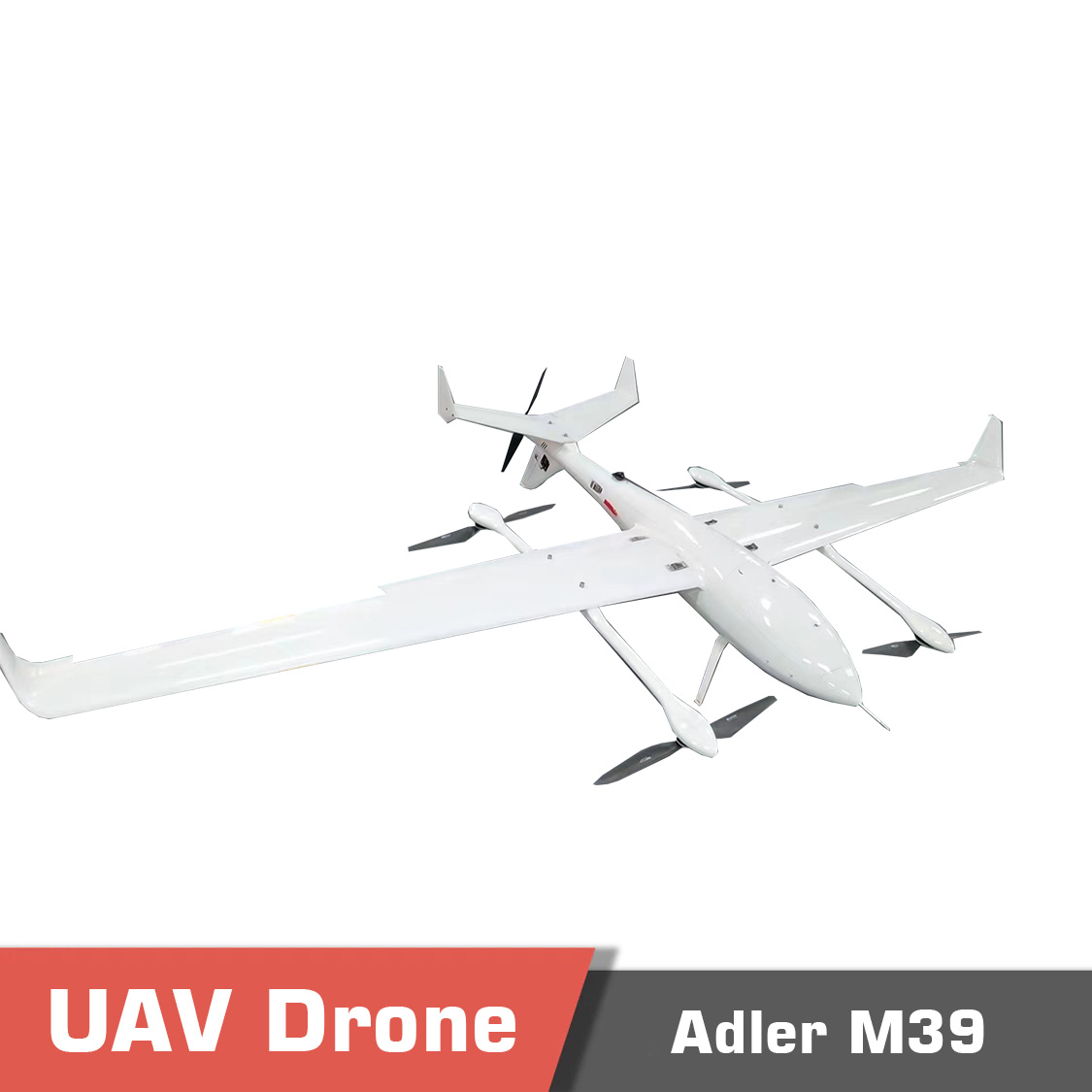

VTOL Drone Adler M39 is a pure electric vertical take-off and landing (VTOL) fixed-wing UAV that adopts a composite aerodynamic layout of quad-rotors and fixed wings. It combines the advantages of VTOL capabilities of quad-rotor models and the long-range performance of fixed-wing models. Flexible and adaptable, it can operate effectively in various complex take-off and landing conditions.
The VTOL Drone Adler M39 can be equipped with a high-precision stabilized pod system and an exclusive touch terminal for innovative pod control. This system reduces the difficulty of locking and tracking moving targets, ensuring tasks such as inspection and tracking are completed efficiently.
Overview Table of the Adler M39 Specifications
| Weights | |
| Maximum Take-off Weight | 28kg |
| Max. payload weight | 5kg |
| Dimensions | |
| Wingspan | 3900mm |
| Fuselage Length | 1830mm |
| Aviation packaging box size | 2000mm*650mm*480mm |
| Performance | |
| Max. Cruising Speed | 21m/s |
| Max. Wind Resistance | 12m/s |
| Control radius | 10km(Customizable) |
| Flight Time | 4hours |
| Max. Flight Altitude | 4200m |
| Power battery | 25000mah 6S*4pcs |
If you have any questions regarding our products, use the Motionew Support team page to consult our engineering team.
Specifications
Specifications
Performance Parameters of VTOL Drone Adler M39
| Fuselage Length | 1.83m |
| Wingspan | 3.95m |
| Max payload | 5kg |
| Maximum take-off weight | 28kg |
| Endurance | 240mins@ 3kg load |
| Cruising speed | 21m/s |
| Power battery | 25000mah 6S*4pcs |
| Maximum flight altitude | 4200m |
| Maximum wind resistance | 12m/s (Level 6) |
| Control radius | 10km(Customizable) |
| Operating temperature | -10~60℃ |
| Waterproof class | IP54 |
| Aviation packaging box size | 2000mm*650mm*480mm |
Documents
Documents
please click here to download M39 manual
Product contents
Product contents
VTOL Drone Adler M39 PNP Version
1x Adler M39 Composite Frame(Carbon fiber+glass fiber)
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (Pairs) Propeller for VTOL Mode
1x Tail Propeller
1x Motor for fixed wing mode
1x ESC for fixed wing mode
4x Rudder servo
1x Power servo
1x Packing box
VTOL Drone Adler M39 X7+ pro RTF Version
1x Adler M39 Composite Frame(Carbon fiber+glass fiber)
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (Pairs) Propeller for VTOL Mode
1x Tail Propeller
1x Motor for fixed wing mode
1x ESC for fixed wing mode
4x Rudder servo
1x Power servo
1x Packing box
1x Pixhawk X7+ pro +RTK
1x Airspeed Tube
1x Remote Controller
1x Charger
1x Battery
1x Data transmission 20KM
1x Debugging Service
VTOL Drone Adler M39 Pixhawk Cube Orange RTF Version
1x Adler M39 Composite Frame(Carbon fiber+glass fiber)
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (Pairs) Propeller for VTOL Mode
1x Tail Propeller
1x Motor for fixed wing mode
1x ESC for fixed wing mode
4x Rudder servo
1x Power servo
1x Packing box
1x Pixhawk Cube Orange +RTK
1x Airspeed Tube
1x Remote Controller
1x Charger
1x Battery
1x Data transmission 20KM
1x Debugging Service
Reviews
1 review for VTOL Drone Adler M39
Clear filtersYou must be logged in to post a review.
| MTOW |
28kg |
|---|---|
| Cruise Speed |
21m/s |
| Max. Payload |
5kg |
| Wingspan |
3900mm |
| VTOL Type |
Electric |
| Frame Type |
VTOL |
| Max Altitude |
4200m |
| Flight Time |
4h |
