VTOL Drone M25, Long Endurance Fixed-Wing
VTOL drone M25, Long Endurance Fixed-Wing

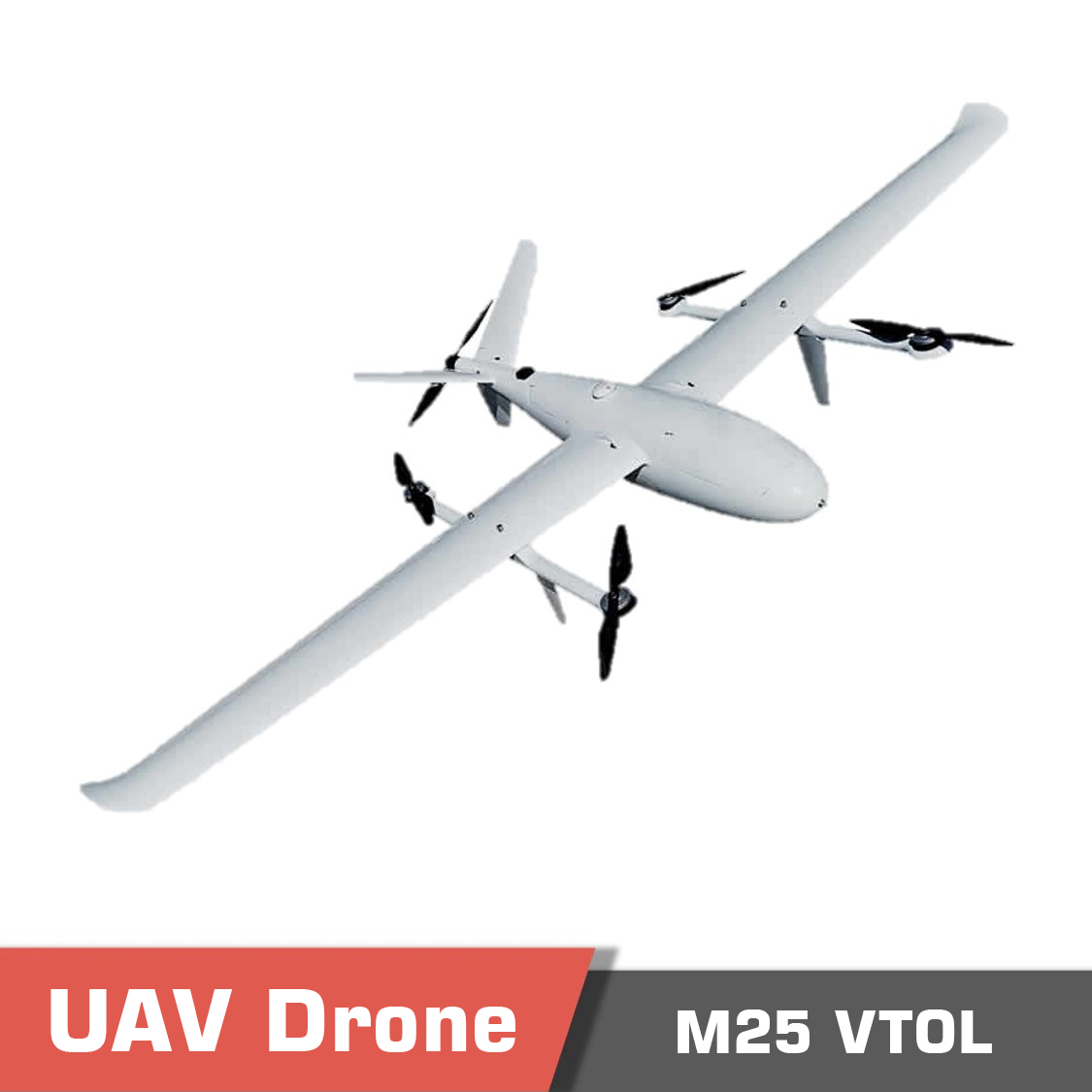

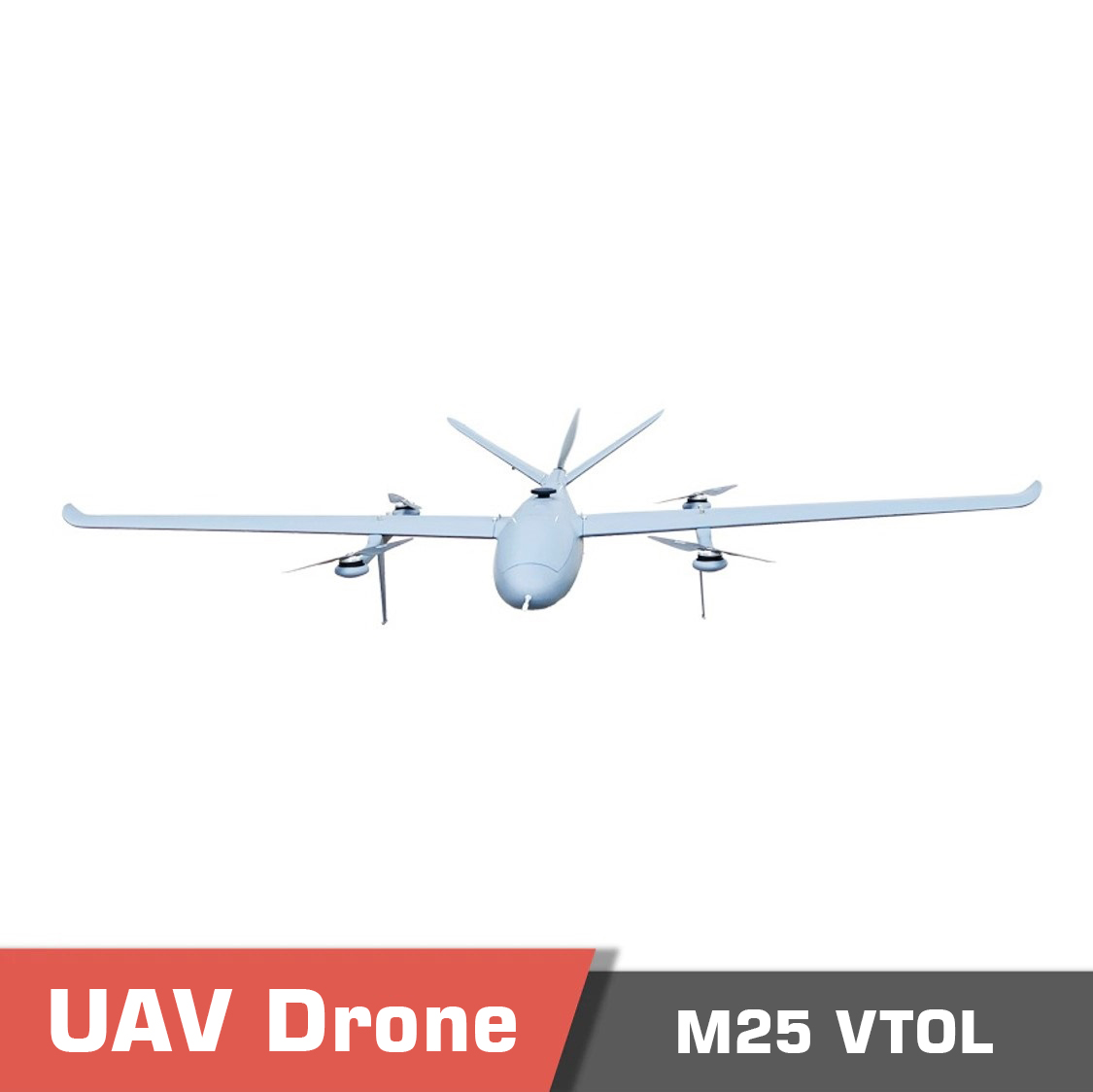

VTOL Drone M25 Fixed-Wing VTOL is a battery-powered vertical take-off and landing (VTOL) fixed-wing UAV, offering 240 min no payload endurance time (210min with 1.2kg payload) that is catered to the needs of a wide range of aerial surveying applications like terrain mapping, lightweight material transport, ground reconnaissance, and border patrol. M25 Fixed-Wing VTOL V-tail design allows for incredible aerial maneuvers. It adopts a composite aerodynamic layout of quadrotors and fixed-wings and combines the advantages of VTOL of the quadrotors and the long range of fixed0wing drones. This flexible and lightweight aircraft features a 13.5Kg take-off weight and a 3Kg maximum load. The efficiency of the power system can be optimized to meet the characteristics of various surveying and mapping scenarios. Equipped with a modular design and a 2.5m wing span, the UAV can be quickly deployed in less than 90 seconds. A detachable load compartment design allows matching the center-of-mass of the cargo with that of the plane, realizing fast switching and enabling mission-matched loads.
The cooling is provided by side air conduits direct the airflow on the internal electronics. Low-acoustic noise performance is guaranteed due to the electric power and less maintenance and life-cycle cost.
M25 can reach a maximum speed of 100km/h, and fly up to 4800 meters in height. Achieving high positioning accuracy is possible with the help of dual GPS and RTK systems.
Build from pure carbon fiber, the M25 fuselage is lightweight and flexible. It has a detachable payload compartment design, for easier replacement of different types of payloads. All parts of the system including wings, tail, and arms are designed based on a quick assemble and disassemble structure.
|Maximum Take-off Weight||13.5kg|
|Max. payload weight||3kg|
|Max. Cruise Speed||100km/h (27m/[email protected])|
|Belly to Ground||160mm|
|Material||Carbon fiber + fiberglass|
|Flight Time||4hrs without payload, 3.5hrs with 1.2kg payload|
|Stall Speed||50km/h (13.9m/s)|
|Max Flight Altitude||4800m|
|Max Wind Resistance||14m/s (fixed wing), 8m/s (VTOL)|
|Battery (Recommended)||2 * 6S 27000mAH HED Li-ion|
|Packing Chargeable Size||151*58*44cm (Tail Undetachable Version)
128*57*50cm (Tail Detachable Version)
Please contact us for more information.
