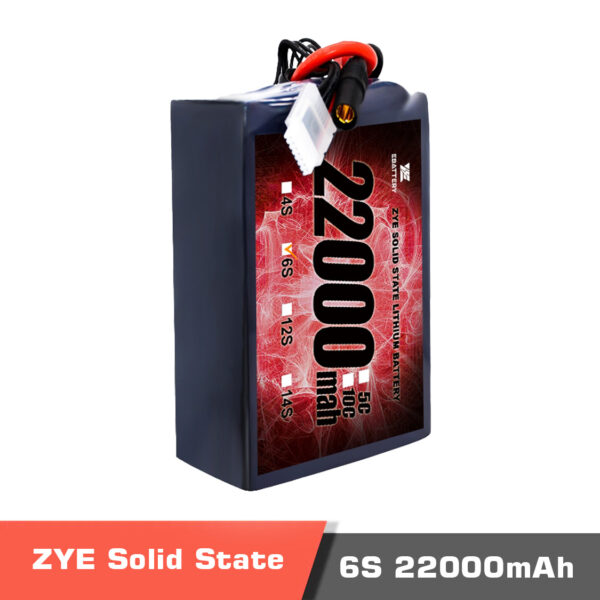

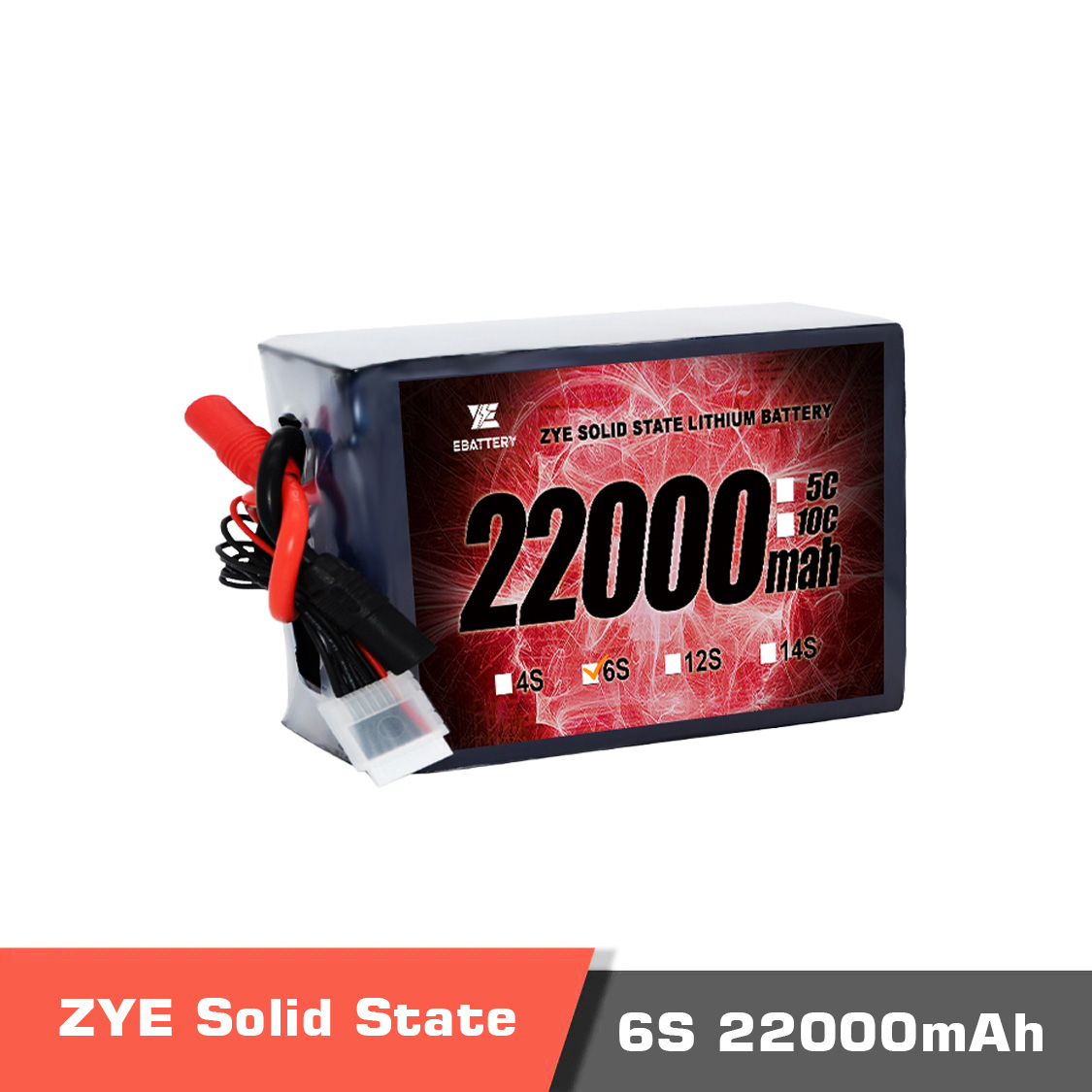

ZYE Power Ultra HV battery 6s 22000mAh-Semi Solid-State Battery

291.00 $

(1 customer review)
PayPal
Visa
Master

Description

Please inform us about the connector type that best meets your needs.
We offer a wide range of batteries in various sizes and models, though some are not yet publicly listed. Please feel free to send us a message if your required model is not listed.

Important Note: Due to the pure battery shipping limitations you need to get confirmation first. Please contact us before placing the order.

General Specifications

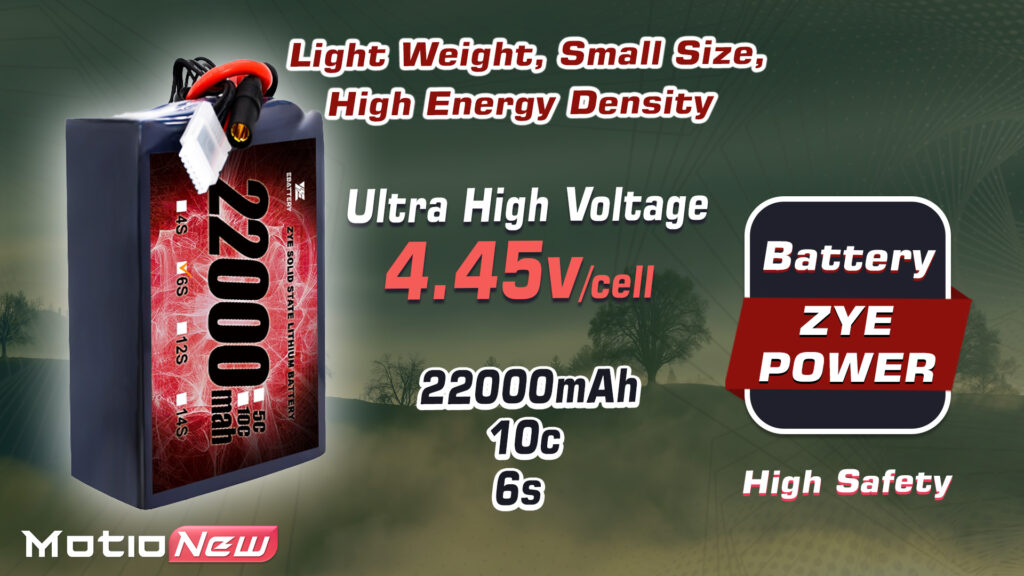

ZYE Power Ultra HV battery 6S 22000mAh Ultra HV semi solid-state battery is only 2.05kg (1.95kg), with 254Wh/kg (267Wh/kg) energy density. The continuous discharge rate is 5C (110A) and the peak discharge rate is 10C (220A).

The ZYE Power Ultra HV Semi Solid-State battery is a Semi Solid-state Li-ion battery series that has a higher discharge current and higher cell voltage compared to a normal solid-state Li-ion battery. The discharge interval of each battery cell is from 2.7v to 4.45v and the discharge rate can be up to 25C.

Advantages of battery 6s 22000mAh

Compared to traditional semi solid-state li-ion batteries, the Ultra HV Solid-state Li-ion battery has a lightweight and higher energy density. The drone endurance time will be increased by using this model of batteries. In contrast to normal Li-ion batteries, solid-state batteries do not heat during usage even when a high current is being drawn from the battery. They are more resilient to shocks and hits.

Battery 6s 22000mAh applications

Ultra HV Solid-state Li-ion battery is suitable for most UAVs or other electrical equipment that requires a long endurance time: Agriculture drones, Industrial multi-copters, VTOLs, Robots, Surface ships, etc.

  Battery 6s 22000mah specifications Battery 6s 22000mah general specifications Improved cycle life of battery 6s 22000mah

For a comprehensive reading of related products, please visit the Motionew website.

Specifications

Voltage Nominal: 23.7V, Full: 26.7V
Cell Voltage 4.45v/cell
Capacity 22000mAh
Continuous Discharge Rate 5C (110A)
Max./Peak Discharge Rate 10C 220A)
Energy 260Wh/kg-267Wh/kg
Size 220x73x68mm-205x119x38
Weight 2.05-1.95

Product contents

1x Ultra High Voltage Solid-state Battery 6s 22000mAh

Documents

Please contact us for more information.
