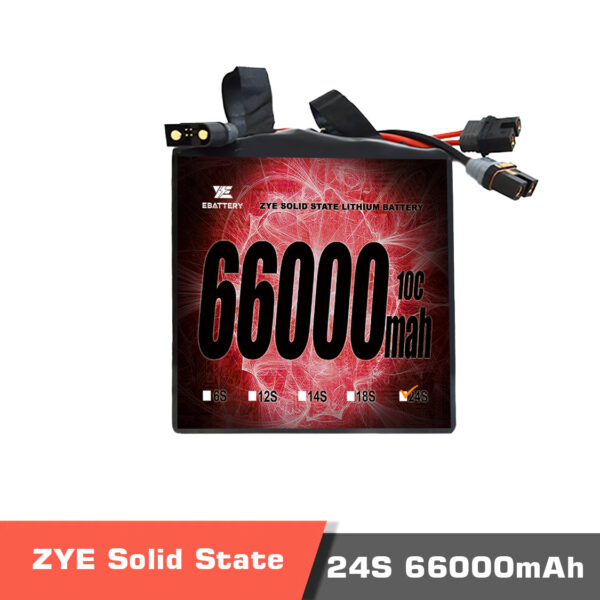

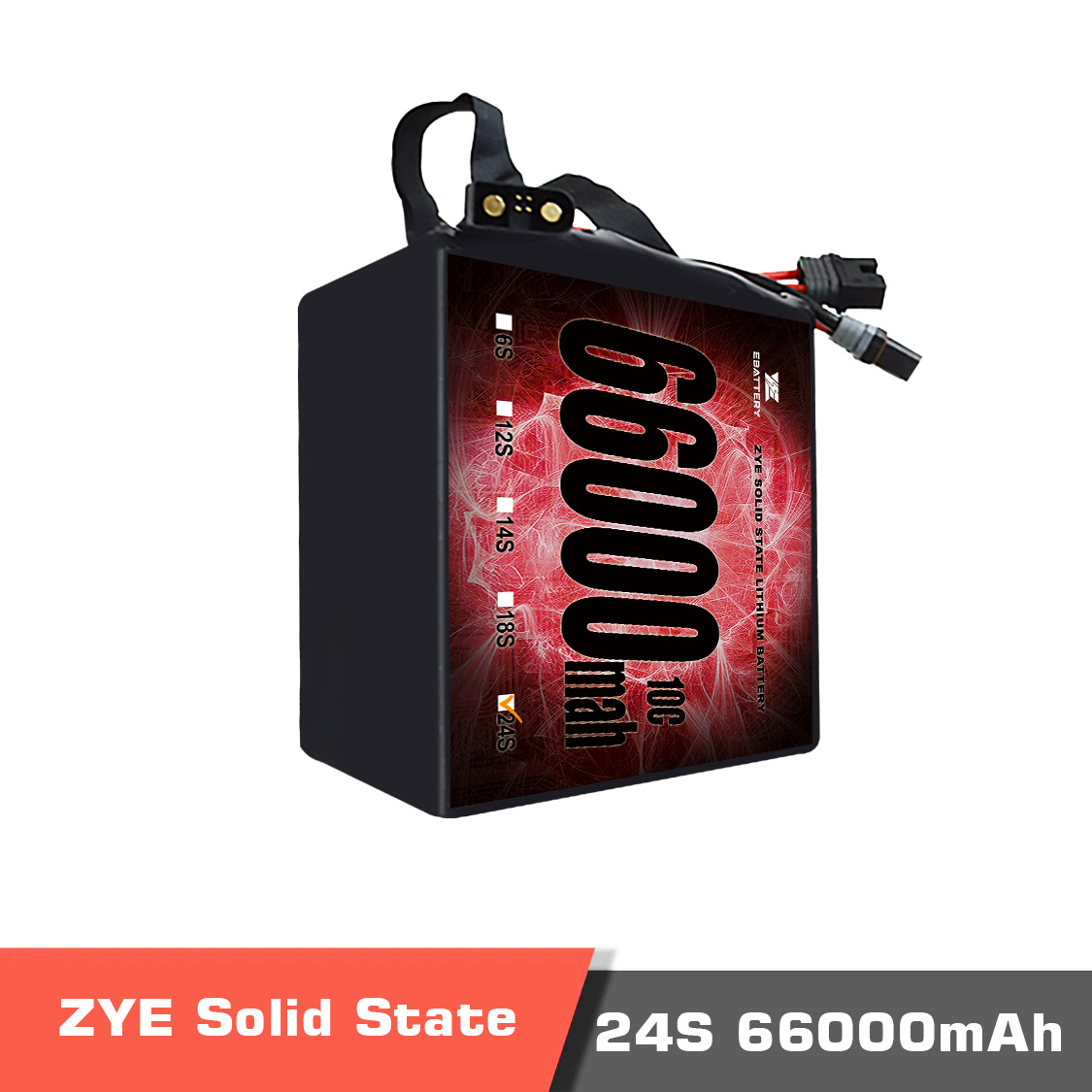

ZYE Power Ultra HV battery 24s 66000mAh-Semi Solid-State Battery

66000 24s temp. 2 - battery 24s 66000mah - motionew - 3
66000 24s temp. 1 - battery 24s 66000mah - motionew - 4

ZYE Power Ultra HV battery 24s 66000mAh-Semi Solid-State Battery

3497.00 $

(7 customer reviews)
PayPal
Visa
Master

Description

Please inform us about the connector type that best meets your needs.
We offer a wide range of batteries in various sizes and models, though some are not yet publicly listed. Please feel free to send us a message if your required model is not listed.

** All certificates and reports required for shipping and customs clearance including MSDS, UN38.3, RoHS, and DGM are available. **

General Specifications

ZYE Power Ultra HV battery 24S 66000mAh Ultra HV semi solid-state battery is only 21kg,ย withย 297Wh/kg energy density. The continuous discharge rate is 3C (198A) and the peak discharge rate is 5C (330A).

The ZYE Power Ultra HV Semi Solid-State battery is a Semi Solid-state Li-ion battery series that has a higher discharge current and higher cell voltage compared to a normal solid-state Li-ion battery. The discharge interval of each battery cell is from 2.7v to 4.45v and the discharge rate can be up to 25C.

Advantages of battery 24s 66000mAh

Compared to traditional semi solid-state li-ion batteries, the Ultra HV Solid-state Li-ion battery has a lightweight and higher energy density.ย The drone endurance time will be increased by using this model ofย batteries. In contrast to normal Li-ion batteries, solid-state batteries do not heat during usage even when a high current is being drawn from the battery. They are more resilient to shocks and hits.

Battery 24s 66000mAh applications

Ultra HV Solid-state Li-ion battery is suitable for most UAVs or other electrical equipment that requires a long endurance time: Agriculture drones, Industrial multi-copters, VTOLs, Robots, Surface ships, etc.

Looking for Other 24S Drone Batteries?
We also offer a complete range of 24S Li-ion and LiPo batteries with various capacities and discharge rates, tailored for different UAV and robotics applications.

๐Ÿ‘‰ Explore all 24S drone batteries here to find the perfect match for your project.

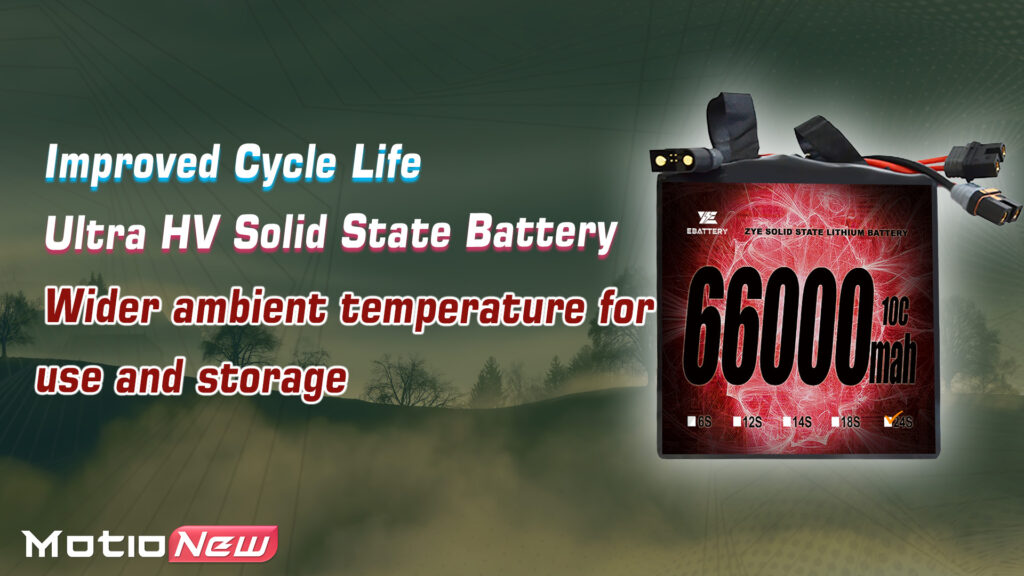

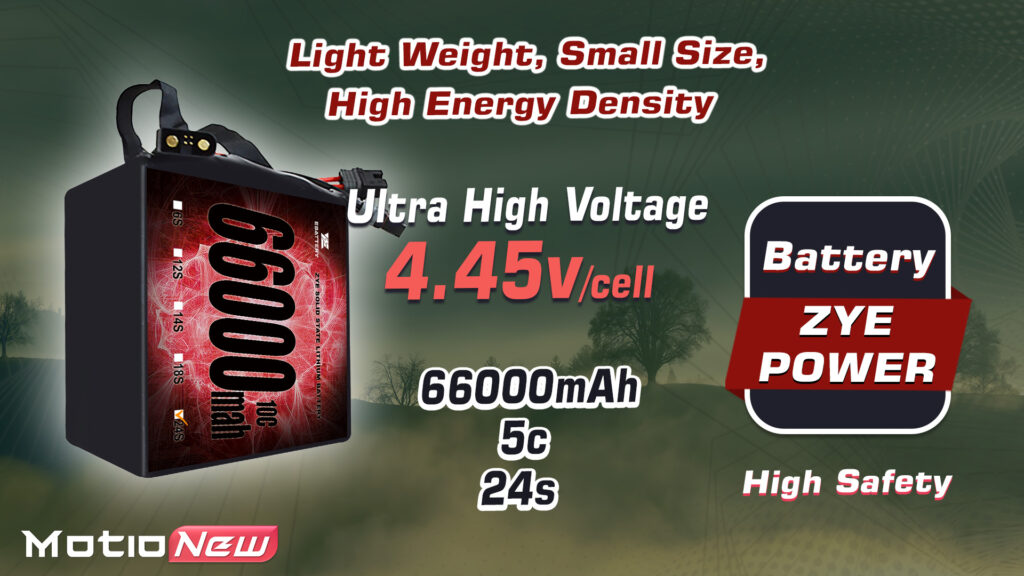

Battery 24s 66000mah specifications Battery 24s 66000mah general specifications Improved cycle life of battery 24s 66000mah

For a comprehensive reading of related products, please visit the Motionew website.

Specifications

Voltage Nominal: 94.8V, Full: 106.8V
Cell Voltage 4.45v/cell
Capacity 66000mAh
Continuous Discharge Rate 3C (198A)
Max./Peak Discharge Rate 5C (330A)
Energy 297 Wh/kg
Size 250x163x246mm
Weight 21kg

Product contents

1x Ultra Solid-state Battery 24s 66000mAhย

Documents

All certificates and reports required for shipping and customs clearance including MSDS, UN38.3, RoHS, and DGM are available.

Please contact us for more information.

7 reviews for ZYE Power Ultra HV battery 24s 66000mAh-Semi Solid-State Battery

    Noah
    March 1, 2025
    What are the exact dimensions and weight of this battery?
    Reply from Jack Lou:
    The exact weight and dimensions may vary a little from case to case due to some production line procedures, type of the output and balance connectors, size and length of wires, and more (all can be customized by our team. Please send us a message before or after placing your order to discuss it with us). But generally, Size: 250x163x246mm, Weight: 21kg
    hashem
    January 5, 2025
    Battery stays cooler under load and charges faster than standard Li-ion packs weโ€™ve used before.
    sneha
    October 23, 2024
    We used this for a heavy-lift drone project and the consistency in voltage and temperature was outstanding.
    Yasmin
    September 14, 2024
    ุฎุฏู…ุฉ ู…ู…ุชุงุฒุฉ ูˆู…ู†ุชุฌ ุฑุงุฆุน!
    antony
    July 21, 2024
    "What kind of charger do you recommend for this 24S configuration? Looking for something safe and efficient.
    Reply from Jack Lou:
    You should choose a charger model that supports both the cells (24s) and also supports ultra high voltage cells. I can recommend Ultra Power UP3000-24S
    Lucas
    April 1, 2024
    Is it safe to use this in high-humidity environments like coastal or tropical regions? We operate in very wet conditions.
    eker
    January 5, 2024
    Is this battery compatible with 24S BMS systems commonly used in agricultural drones?
    Reply from Jack Lou:
    Yes, it is compatible. If you send us your BMS model, we can check more accurately and let you know. We can also provide the battery with an BMS that has active cell balance, and discharge short circuit protection.
