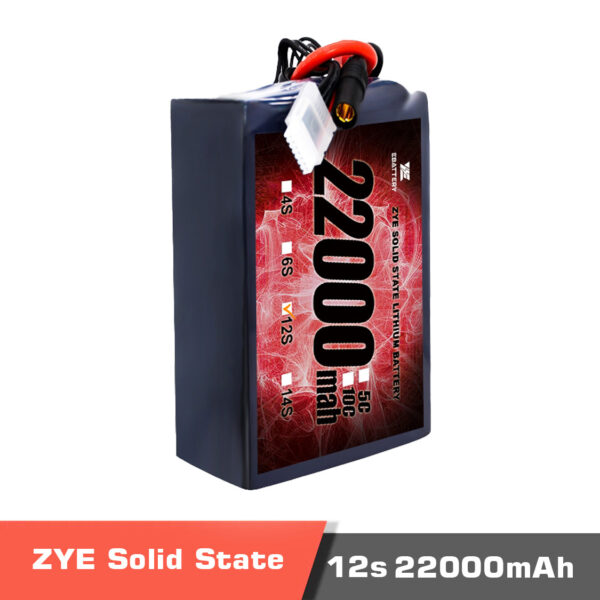

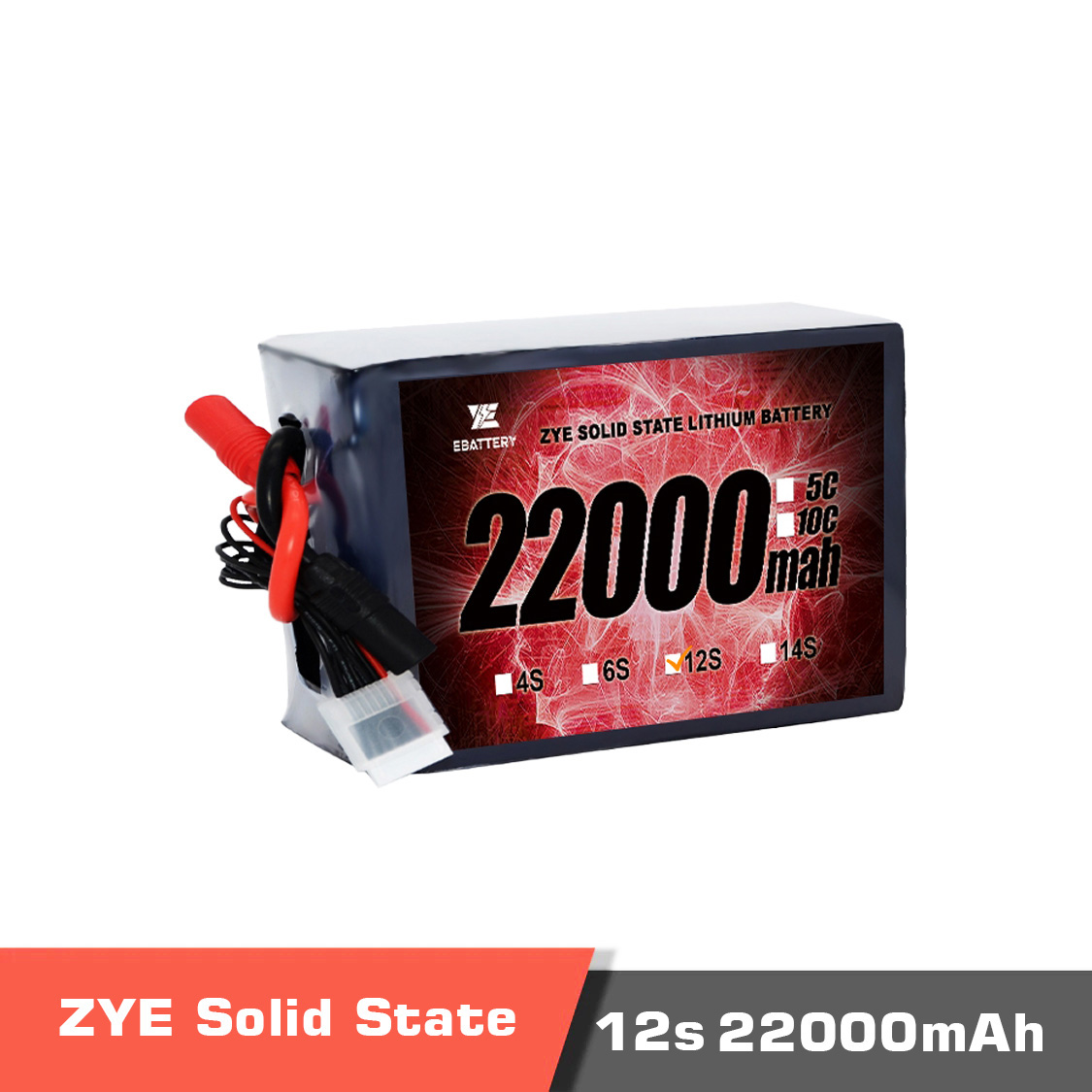

ZYE Power Ultra HV battery 12s 22000mAh-Semi Solid-State Battery

Compared to traditional semi solid-state li-ion batteries, the Ultra HV Solid-state Li-ion battery has a lightweight and higher energy density. The drone endurance time will be increased by using this model of batteries. In contrast to normal Li-ion batteries, solid-state batteries do not heat during usage even when a high current is being drawn from the battery. They are more resilient to shocks and hits.

Battery 12s 22000mAh applications

Ultra HV Solid-state Li-ion battery is suitable for most UAVs or other electrical equipment that requires a long endurance time: Agriculture drones, Industrial multi-copters, VTOLs, Robots, Surface ships, etc.

For a comprehensive reading of related products, please visit the Motionew website.

FAQ

1. What are the key specifications of this battery?
   The battery has a 22000mAh capacity, a 12S configuration, weighs 4.1kg (net 3.9kg), and offers an energy density of 254–267Wh/kg. Its continuous discharge rate is 5C (110A), with a peak of 10C (220A).

2. How does this semi solid-state battery differ from conventional Li-ion batteries?
   It offers higher discharge current, a voltage range of 2.7V–4.45V per cell, and higher energy density. Compared to standard Li-ion batteries, it is lighter, generates less heat under load, and extends drone flight endurance.

3. What certifications are available for this battery?
   The battery is supplied with MSDS, UN38.3, RoHS, and DGM certificates, ensuring compliance with international safety, transport, and customs clearance standards.

4. What payment methods are accepted?
   MotioNew supports secure international payment methods, including credit cards, PayPal, and bank transfers.

5. Can this battery be ordered with OEM customization?
   Yes, OEM customization is available, such as connector type and project-specific requirements. Customers should provide details when ordering.

6. What documentation is provided with the purchase?
   All required documents, including MSDS, UN38.3, RoHS, and DGM reports, are included. Additional technical documentation is available upon request.
