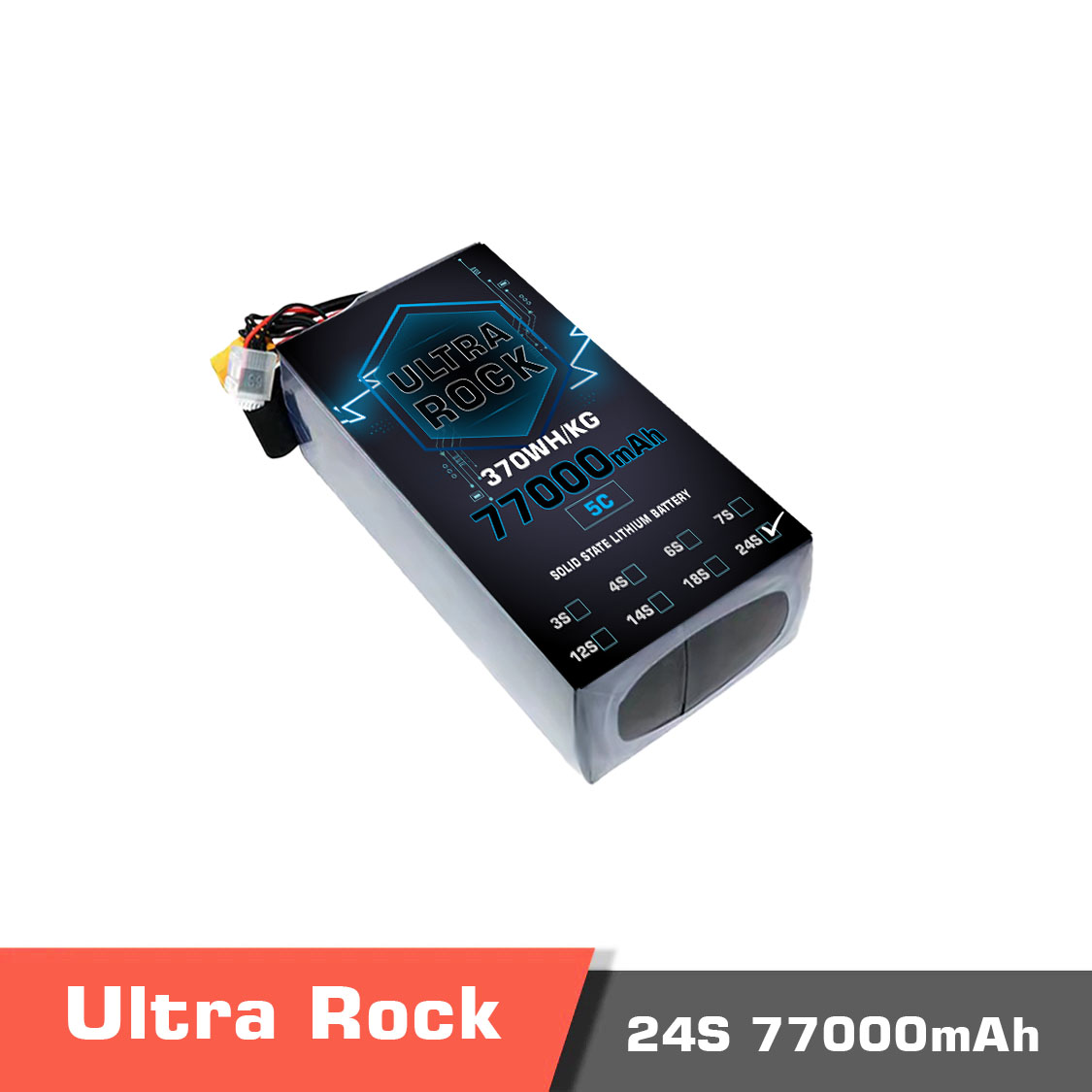

Semi Solid-State Battery | Model Ultra Rock Ultra HV battery 24s 77000mAh 370Wh/kg Energy Density 5C discharge Rate

For a comprehensive reading of related products, please visit the Motionew website.

FAQ

1. What is this battery used for?
This high-capacity semi solid-state HV battery is designed for heavy-lift UAVs, long-range VTOL drones, and industrial robotics requiring maximum flight endurance, lightweight construction, and safe high-voltage power delivery.

2. What are the main technical specifications?

• Voltage: 24S (2.7–4.45V per cell)

• Capacity: 77,000mAh

• Energy Density: 370 Wh/kg

• Weight: 19.6 kg

• Discharge Rate: 2C standard, 3C continuous, 5C peak

• Chemistry: Semi solid-state Li-ion (Ultra HV series)
  This configuration provides superior energy-to-weight ratio, stable thermal performance, and impact resistance compared to conventional Li-ion packs.

3. Which systems are compatible with this battery?
It is suitable for long-endurance UAVs, heavy VTOL platforms, large industrial drones, and autonomous systems using 24S HV packs. Connector type can be customized to meet integration requirements.

4. Is OEM or bulk purchasing available?
Yes. Motionew offers OEM branding, bulk orders, and tailored logistics for drone manufacturers, enterprise UAV operators, and research organizations.

5. What documentation and certifications are provided?
Each unit includes MSDS, UN38.3, RoHS, and DGM certificates to comply with international shipping and customs requirements. Integration guidelines and technical support are also included.

6. What are the payment and invoicing options for B2B clients?
Motionew accepts international wire transfers, issues formal commercial invoices, and provides flexible payment terms for approved enterprise customers.
