What are the key specifications of this battery?

This battery has a 120000mAh capacity, 12S configuration, weighs 18.5kg, and provides an energy density of 320Wh/kg. It supports 3C standard, 5C continuous, and 7C peak discharge rates.

How does this semi solid-state HV battery differ from conventional Li-ion batteries?

It operates in a wider voltage range (2.7V–4.45V per cell) and provides higher discharge currents and superior energy density. Compared to standard Li-ion batteries, it remains cool under heavy loads, resists shocks, and increases UAV endurance.

What certifications are available for this battery?

The battery includes MSDS, UN38.3, RoHS, and DGM certifications, ensuring compliance with international safety, transport, and customs clearance requirements.

What payment methods are accepted?

MotioNew supports secure international payments, including credit cards, PayPal, and bank transfers.

Can this battery be ordered with OEM customization?

Yes, OEM customization is available for connector type and project-specific requirements. Customers should provide details when placing orders.

What documentation is provided with the purchase?

The package includes MSDS, UN38.3, RoHS, and DGM reports. Additional technical documentation can be supplied upon request.

Click to enlarge

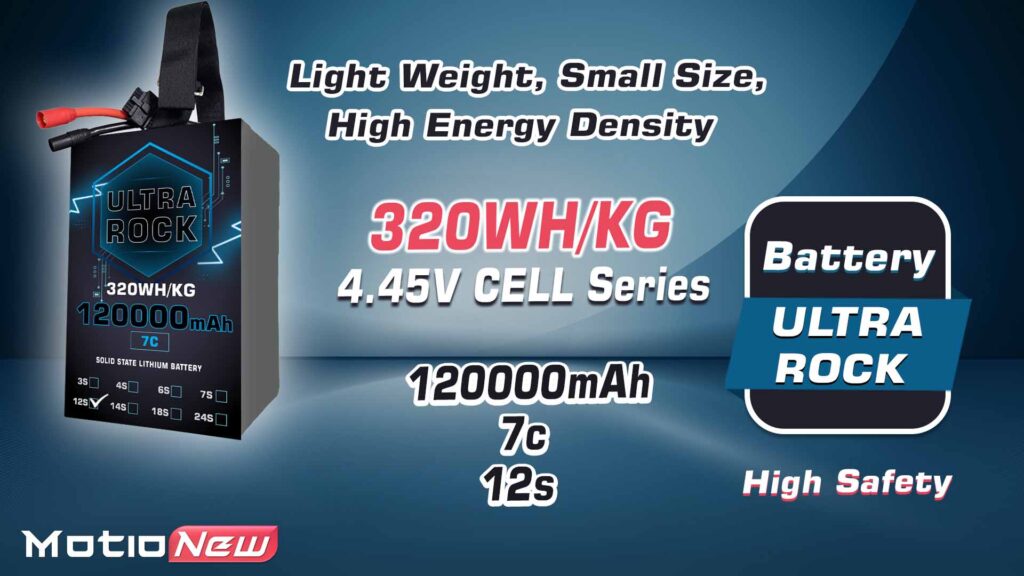

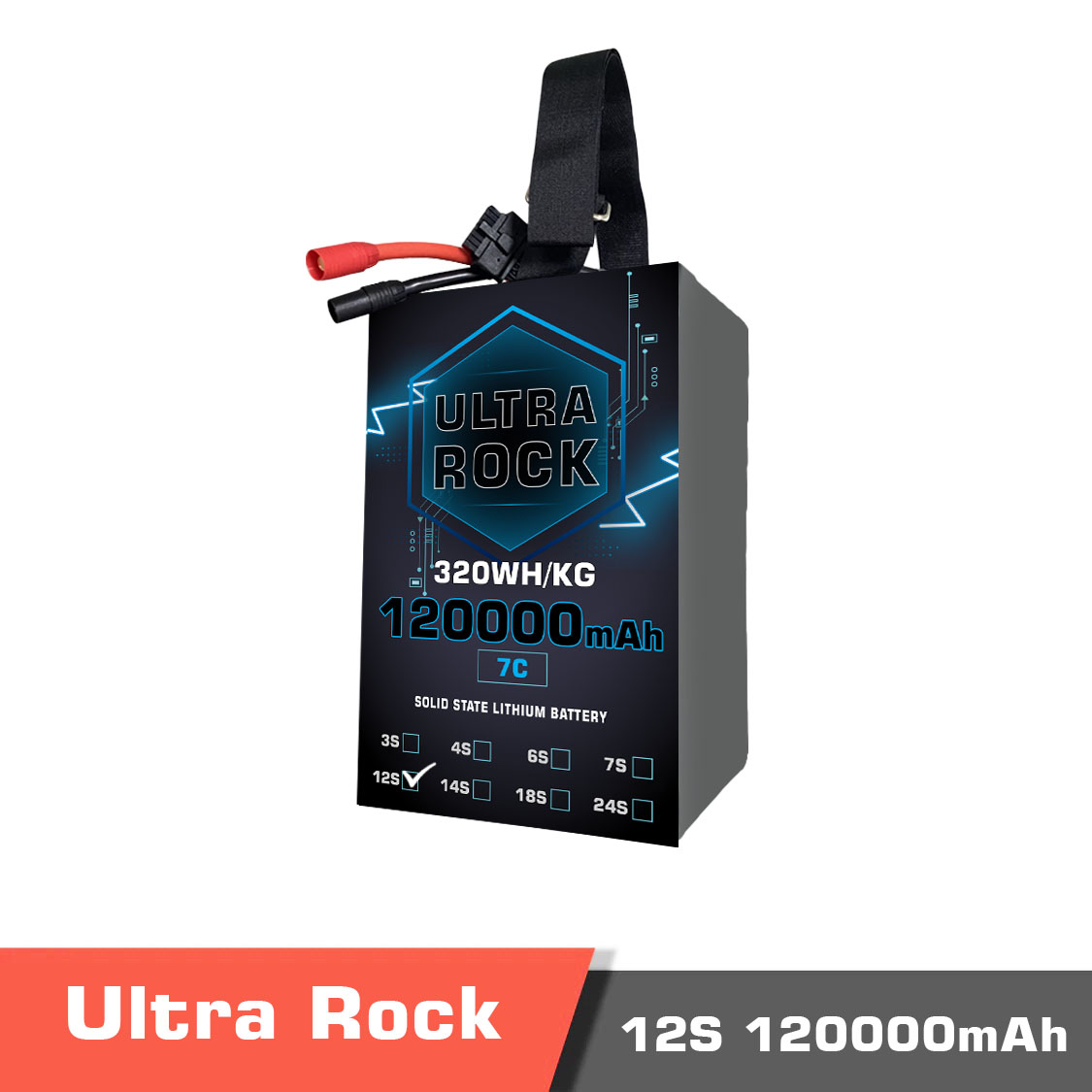

Semi Solid-State Battery | Model Ultra Rock Ultra HV battery 12s 120000mAh 320Wh/kg Energy Density 7C discharge Rate

Name: Semi Solid-State Battery | Model Ultra Rock Ultra HV battery 12s 120000mAh 320Wh/kg Energy Density 7C discharge Rate - MotioNew
SKU: 1005004235700404-2-1-1-1-1-2-1-2-1-1-1-1-1-1-1-1-1-1-1-2-1-1-1-2-1-1-1-1-1-1-1-1-1-1-1-1-2-1-2-1-1-2
Price: 2225.00 USD
Availability: InStock

2,225.00 $

Message on WhatsApp

Add to compare

Add to wishlist

Payment Methods:

Description

Please inform us about the connector type that best meets your needs.
We offer a wide range of batteries in various sizes and models, though some are not yet publicly listed. Please feel free to send us a message if your required model is not listed.

** All certificates and reports required for shipping and customs clearance including MSDS, UN38.3, RoHS, and DGM are available. **

semi-solid state battery products

General Specifications

Ultra HV battery 12S 120000mAh Ultra HV semi solid-state battery is only 18.5kg, with 320Wh/kg pack energy density, and Standard Current discharge rate is 3C, Continuous current discharge rate is 5C and Peak current discharge rate is 7C.

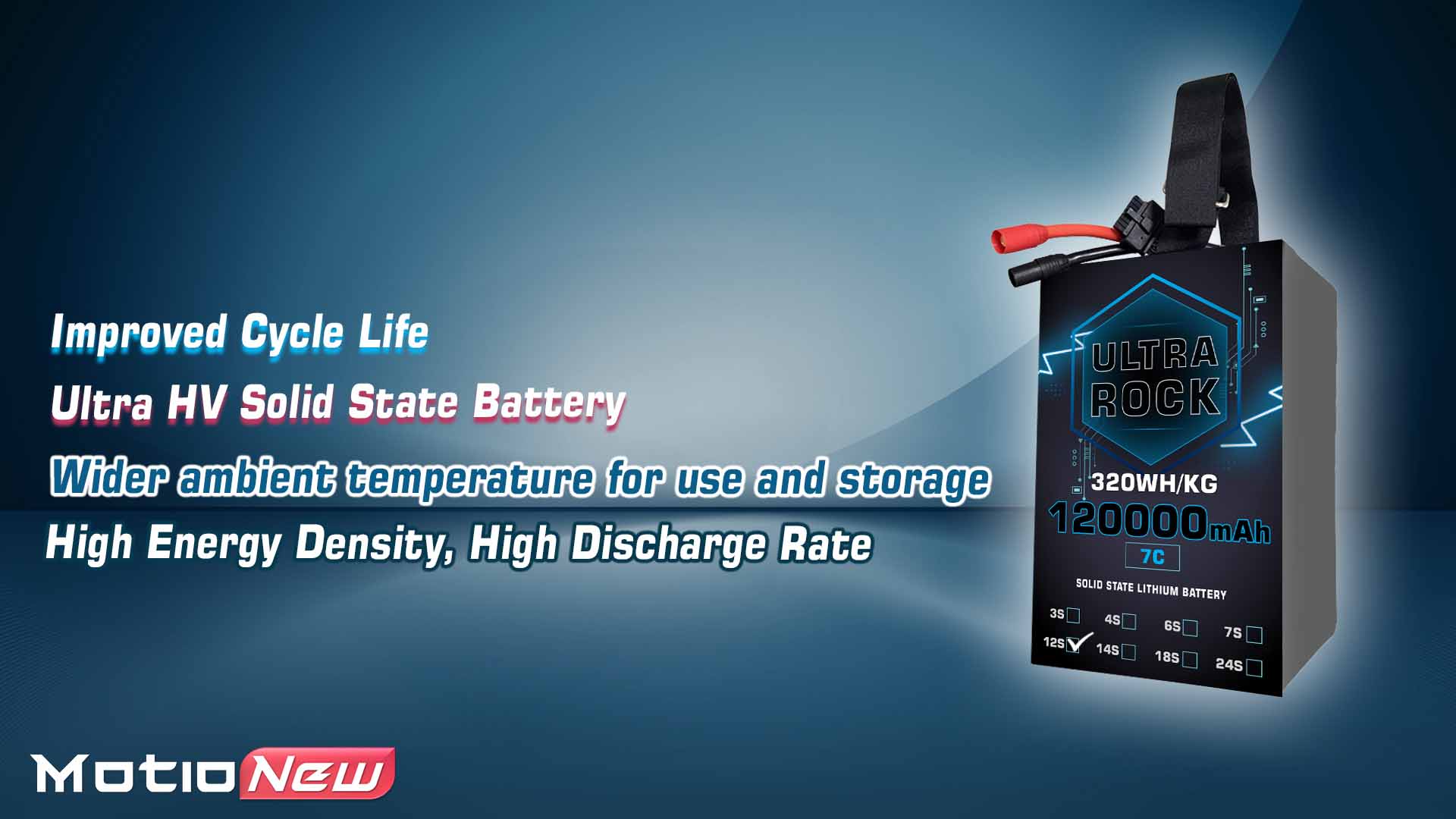

The Ultra Rock Ultra HV Semi Solid-State battery is a Semi Solid-state Li-ion battery series that has a higher discharge current and higher cell voltage compared to a normal solid-state Li-ion battery. The discharge interval of each battery cell is from 2.7v to 4.45v and the discharge rate can be up to 25C.

Advantages of battery 12s 120000mAh

Compared to traditional semi solid-state Li-ion batteries, the Ultra HV Solid-state Li-ion battery has a lightweight and higher energy density. The drone endurance time will be increased by using this model of batteries. In contrast to normal Li-ion batteries, solid-state batteries do not heat during usage even when a high current is being drawn from the battery. They are more resilient to shocks and hits.

Battery 12s 120000mAh applications

Ultra HV Solid-state Li-ion battery is suitable for most UAVs or other electrical equipment that requires a long endurance time: Agriculture drones, Industrial multi-copters, VTOLs, Robots, Surface ships, etc.

For a comprehensive reading of related products, please visit the Motionew website.

FAQ

What are the key specifications of this battery?
This battery has a 120000mAh capacity, 12S configuration, weighs 18.5kg, and provides an energy density of 320Wh/kg. It supports 3C standard, 5C continuous, and 7C peak discharge rates.
How does this semi solid-state HV battery differ from conventional Li-ion batteries?
It operates in a wider voltage range (2.7V–4.45V per cell) and provides higher discharge currents and superior energy density. Compared to standard Li-ion batteries, it remains cool under heavy loads, resists shocks, and increases UAV endurance.
What certifications are available for this battery?
The battery includes MSDS, UN38.3, RoHS, and DGM certifications, ensuring compliance with international safety, transport, and customs clearance requirements.
What payment methods are accepted?
MotioNew supports secure international payments, including credit cards, PayPal, and bank transfers.
Can this battery be ordered with OEM customization?
Yes, OEM customization is available for connector type and project-specific requirements. Customers should provide details when placing orders.
What documentation is provided with the purchase?
The package includes MSDS, UN38.3, RoHS, and DGM reports. Additional technical documentation can be supplied upon request.

Specifications

Voltage	Nominal: 47.4V, Full: 53.4V
Cell Voltage	4.45v/cell
Capacity	120000mAh
Standard Discharge Rate	3C
Continuous Discharge Rate	5C
Max./Peak Discharge Rate	7C
Energy	320Wh/kg
Size	345105271mm
Weight	18.5kg

Product contents

1x Ultra High Voltage Solid-state Battery 12s 120000mAh

Documents

All certificates and reports required for shipping and customs clearance including MSDS, UN38.3, RoHS, and DGM are available.

Please contact us for more information.

Reviews

Rated 0 out of 5

0 reviews

Rated 5 out of 5

Rated 4 out of 5

Rated 3 out of 5

Rated 2 out of 5

Rated 1 out of 5

Reviews

Clear filters

There are no reviews yet.

Be the first to review “Semi Solid-State Battery | Model Ultra Rock Ultra HV battery 12s 120000mAh 320Wh/kg Energy Density 7C discharge Rate”

You must be logged in to post a review.

Specification:

Battery cells	12S
Battery Capacity	120000mAh
Battery Energy Density	320 Wh/kg
Battery Dimensions	345105271
Battery Continuous C rate	3C
Battery Max Peak C rate	7C
Battery Type	ULiHV
Battery Weight	18500g
Battery Nominal Voltage	3.95
Battery Full Voltage	4.45v
