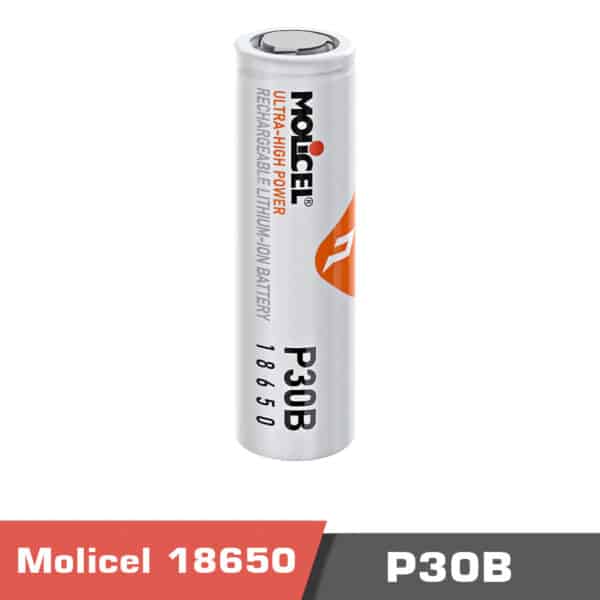

Molicel INR 18650 P30B

Molicel INR18650-P30B – Ultra-High Power 3.0Ah 18650 Lithium-Ion Cell

The Ultimate 18650 Cell for High Discharge Demands

The INR18650-P30B sets a new benchmark for ultra-high power cells in the 18650 format. Designed with cutting-edge low impedance engineering, this next-generation power cell delivers exceptional output, fast charge capability, and extended cycle life—making it the go-to choice for motorsports, e-skateboards, heavy-lift drones, and premium cordless devices.

Building on the success of the INR21700-P45B, the P30B introduces a 60% reduction in DCR compared to its predecessor, the P28A, resulting in higher efficiency, lower heat generation, and a 20% boost in power output—now rated at 100W continuous discharge.

 Technical Specifications

• Form Factor: 18650

• Nominal Voltage: 3.6V

• Typical Capacity: 3.0Ah (10.8Wh)

• Max Continuous Discharge: 36A

• Energy Density: 631 Wh/L | 234 Wh/kg

• Fast Charge Capability: 9A (3C rate)

• Internal Resistance (DCIR): Only 15.39 mΩ

• Cycle Life: 500 cycles @ 100W discharge with 75% capacity retention

• Thermal Regulation: Optimized internal distribution with only 2 °C variance

 Advanced Features

•  100W Continuous Output: Maintains high power with minimal drop-off

•  Durable Lifespan: Retains 75% runtime after 500 high-power cycles

•  3C Fast Charging: Accelerated recharge with high safety and thermal control

•  Ultra-Low Impedance Growth: Maintains performance over extended use

•  Thermal Efficiency: Controlled heat generation ensures system safety under high loads

•  Optimized Chemistry: Low impedance materials enhance current handling and longevity

 Application-Ready for Premium Performance

Perfectly suited for applications where compact size, high discharge, and fast recharge are essential:

•  Sports & Off-Road E-Bikes

•  Micro-Mobility (e-Skateboards, e-Surfboards)

•  Heavy-Lift & Racing Drones

•  High-End Power & Garden Tools

•  Cordless Vacuum Cleaners & Home Appliances

 A New Standard in the 18650 Class

With its exceptional power-to-energy ratio, low resistance, and robust discharge performance, the Molicel P30B is the ultimate 18650 cell for those who demand the most from their batteries.

For a comprehensive reading of related products, please visit the Motionew website.

FAQ

1. What are the key specifications of this cell?
   The P30B is an 18650 lithium-ion cell with 3.6V nominal voltage, 3000mAh capacity (10.8Wh), and an energy density of 234 Wh/kg (631 Wh/L). It supports 36A max continuous discharge, 9A fast charge (3C), and has 15.39 mΩ DCIR.

2. How does this cell differ from conventional 18650 batteries?
   It delivers 100W continuous output, a 60% lower DCR than the P28A, and supports fast charging with minimal heat buildup. It retains 75% of its capacity after 500 high-power cycles, making it ideal for high-drain applications like drones, e-bikes, and motorsports.

3. What certifications are available for this cell?
   The P30B can be provided with MSDS, UN38.3, and RoHS certifications, ensuring compliance with safety, shipping, and customs standards.

4. What payment methods are accepted?
   MotioNew supports secure international transactions, including credit cards, PayPal, and bank transfers.

5. Can this cell be ordered with OEM customization?
   Yes, OEM customization is available for battery pack integration, connectors, and configurations. Customers should provide their project requirements during ordering.

6. What documentation is provided with the purchase?
   The package includes MSDS, UN38.3, RoHS, and technical datasheets. Additional files are available on request.
