TATTU HV Battery 6S 25000mAh, 22.8v 10C

519.00 $

Description

Important Note: Due to the pure battery shipping limitations you need to get confirmation first, Please contact us before placing the order.

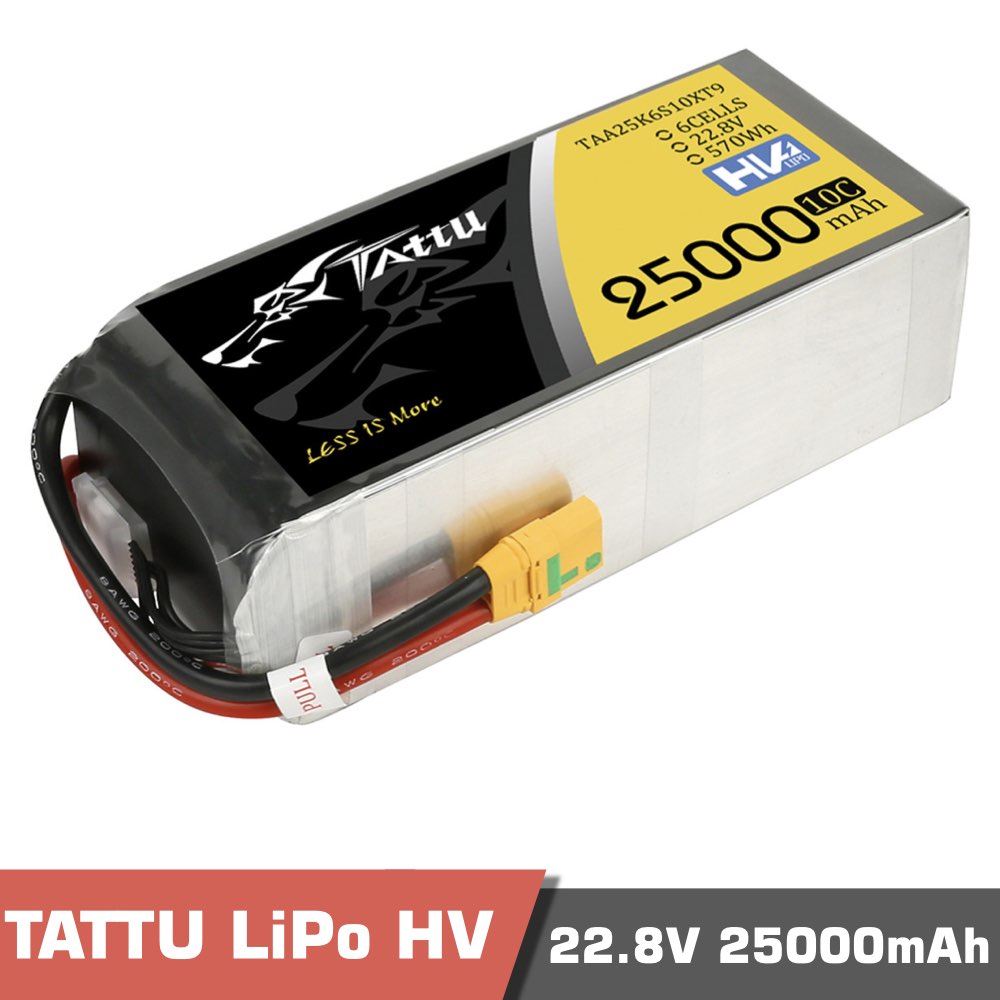

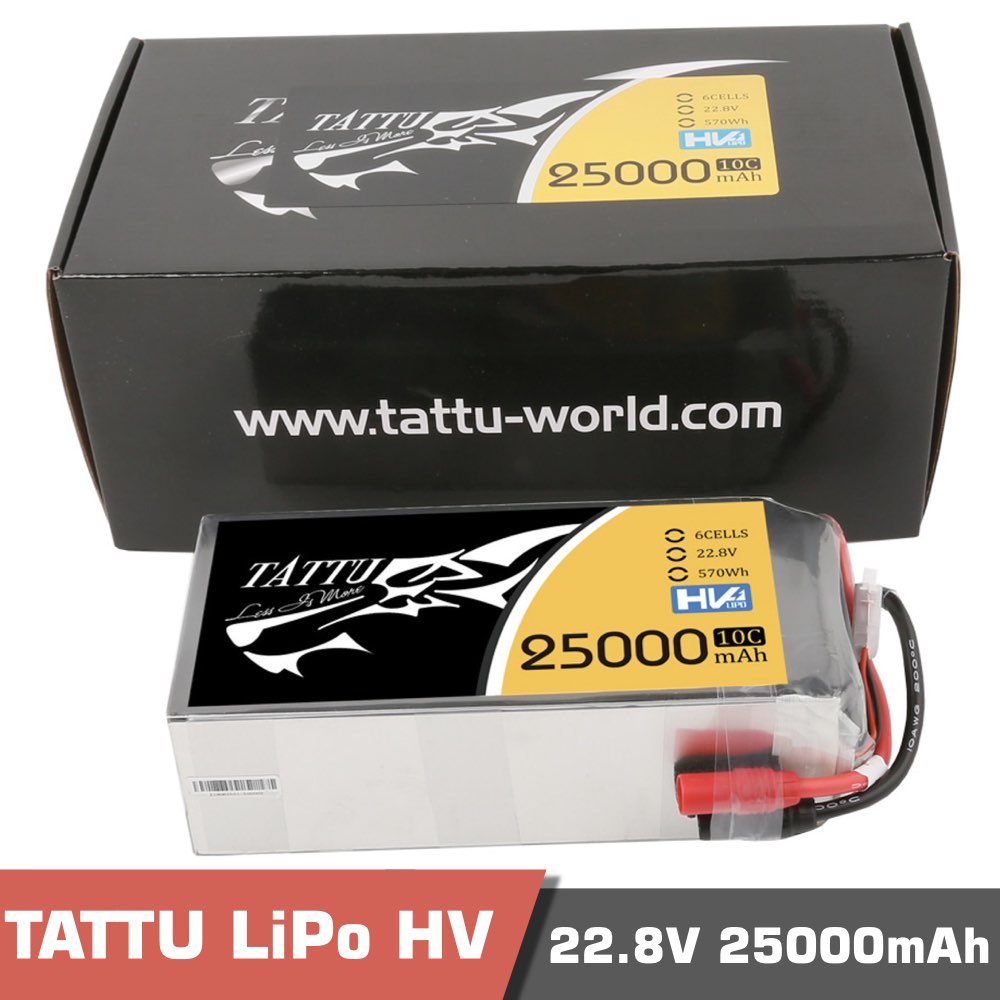

TATTU HV Battery 6S 10C 22.8V Li-Po pack is one of the first batteries specially made for UAV, with big capacity and high discharge rate of 10C. This high voltage 6S battery has 25000mAh capacity and supports up to 250A current discharge and has only 2568g weight.

High Voltage Li-Po battery (HV Li-Po Battery) stores a higher voltage charge per cell, which results in more energy density power for your UAV. Each cell can be safely charged to 4.35v as opposed to standard 4.2v per cell in normal Li-Po batteries. UAV endurance can be greatly improved up to 25%.

The battery is able to hold and provide the power all big UAVs need. It is stable enough to provide a safe flight for expensive aerial equipment, and secures a long flight time.

Tattu high voltage batteries are suitable for all types of industry drones in different applications including VTOL, cargo transport, mapping, filming and more.

Features:

  • High discharge capacity, high energy density.
  • Japanese and Korean Lithium Polymer raw materials.
  • High quality and reliable reliable solutions



Tattu hv battery



Consult MotioNew Online Shop to see the full range of our products.

If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.

Additional information

Weight 5 kg
Dimensions 195 × 75 × 50 cm
Bundle

16000mAh, 22000mAh, 27000mAh, 30000mAh

Specifications

Balancer Connector Type JST-XHR-7P
Brand Tattu
Capacity(mAh) 25000
Balancer Wire Length(mm) 65
Configuration 6S1P
Connector Type AS150+XT150
Discharge Rate (C) 10C

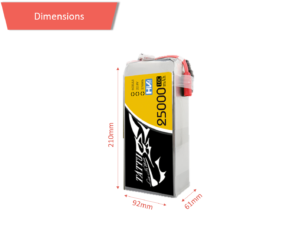

Height 61mm
Length 210mm
Width 92mm
Discharge Current (A) 250A
Net Weight(±20g) 2568g
Voltage (V) 22.8
Wire Gauge 10#
Discharge Wire Length(mm) 150
Capacity Range (mAh) 10000-49999

Documents

Manual

Product contents

1x TATTU HV Battery 16000mAh
