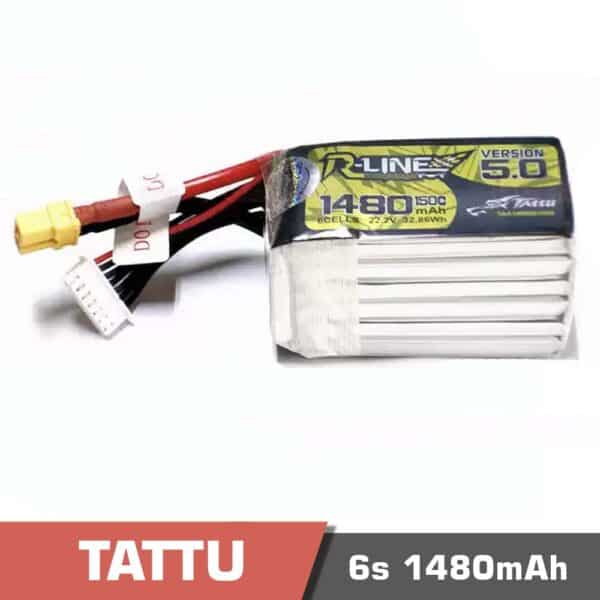

Battery Lipo 6s 1480mAh 150C Tattu – R-LINE 5.0 Specifications
| Capacity | 1480mAh |
| Voltage | 22.2v |
| Max Continuous Discharge | 150C |
| Weight | 237g |
| Dimensions | 43*39*77mm |
| Balance Plug | JST-XHR |
| Discharge Plug | XT30 |
FAQ
-
What are the key specifications of this battery?
The battery has a 1480mAh capacity, a 6S configuration, a nominal voltage of 22.2V (25.2V full charge), weighs 237g, and measures 43×39×77mm. It supports a continuous discharge rate of 150C, comes with a JST-XHR balance plug, and an XT30 discharge connector. -
How does this LiPo battery differ from conventional UAV batteries?
It is optimized for FPV racing and freestyle drones, delivering ultra-high discharge performance (150C). Compared to standard LiPos, it offers stronger burst power, lower internal resistance, reduced voltage sag, and better response during high-current demands. -
What certifications are available for this battery?
The battery is provided with MSDS and UN38.3 certifications, ensuring compliance with international shipping, safety, and customs regulations. -
What payment methods are accepted?
MotioNew supports secure international payment methods, including credit cards, PayPal, and bank transfers. -
Can this battery be ordered with OEM customization?
Yes, OEM customization is available, particularly for connector type and other specifications. Customers should provide requirements when placing their orders. -
What documentation is provided with the purchase?
The purchase includes MSDS and UN38.3 reports. Additional technical documentation can be requested if needed.
Documents
Product contents
You must be logged in to post a review.
| Battery cells |
6S |
|---|---|
| Battery Capacity |
1480mAh |
| Battery Energy Density |
138Wh/kg |
| Battery Dimensions |
43*39*77mm |
| Battery Continuous C rate |
150C |
| Battery Type |
LiPo |
| Battery Weight |
237g |
| Battery Nominal Voltage |
3.7v |
| Battery Full Voltage |
4.2v |
