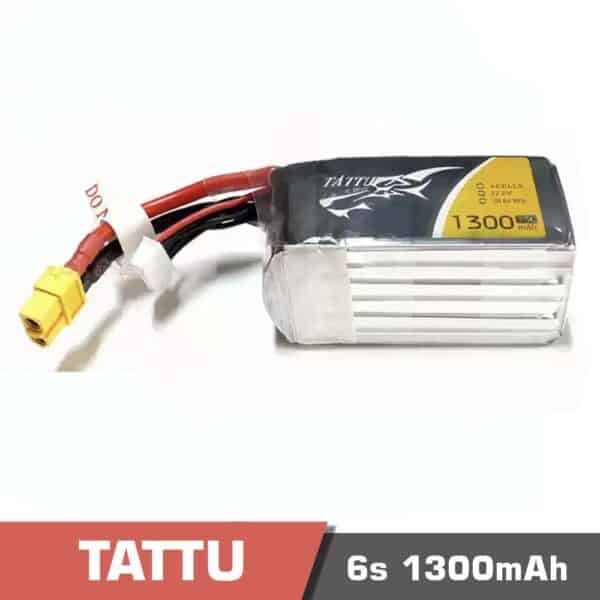

Battery Lipo 6s 1300mAh 75C Tattu for FPV Drone Specifications
| Capacity | 1300mAh |
| Voltage | 22.2v |
| Max Continuous Discharge | 75C |
| Weight | 215g |
| Dimensions | 44*36*74mm |
| Balance Plug | JST-XHR |
| Discharge Plug | XT60 |
FAQ
-
What are the key specifications of this battery?
The battery has a 1300mAh capacity, a 6S configuration, a nominal voltage of 22.2V (25.2V full charge), weighs about 210–220g, and measures approximately 75×35×43mm. It supports a continuous discharge rate of 75C and is equipped with an XT60 discharge connector and JST-XHR balance plug. -
How does this LiPo battery differ from conventional UAV batteries?
It is designed for FPV racing and freestyle drones, providing a high 75C discharge rate for reliable power output. Compared to standard LiPos, it offers lower internal resistance, reduced voltage sag, and better performance in demanding maneuvers. -
What certifications are available for this battery?
The battery is shipped with MSDS and UN38.3 certifications, ensuring compliance with international safety and shipping standards. -
What payment methods are accepted?
MotioNew supports secure international payment methods, including credit cards, PayPal, and bank transfers. -
Can this battery be ordered with OEM customization?
Yes, OEM customization is available, particularly for connector type and other project-specific requirements. Customers may specify their preferences when placing orders. -
What documentation is provided with the purchase?
The purchase includes MSDS and UN38.3 reports. Additional technical documentation can be provided upon request.
Documents
Product contents
You must be logged in to post a review.
| Battery cells |
6S |
|---|---|
| Battery Capacity |
1300mAh |
| Battery Energy Density |
134Wh/kg |
| Battery Dimensions |
44*36*74mm |
| Battery Continuous C rate |
75c |
| Battery Type |
LiPo |
| Battery Weight |
215g |
| Battery Nominal Voltage |
3.7v |
| Battery Full Voltage |
4.2v |
