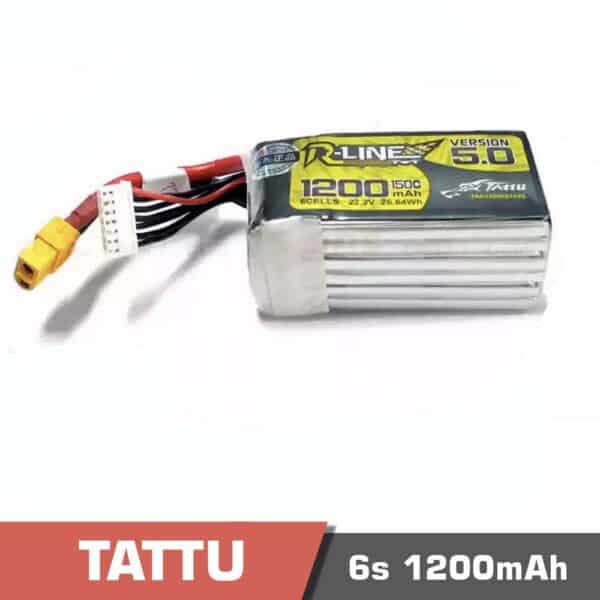

Battery Lipo 6s 1200mAh 150C Tattu – R-LINE 5.0 Specifications
| Capacity | 1200mAh |
| Voltage | 22.2v |
| Max Continuous Discharge | 150C |
| Weight | 205g |
| Dimensions | 37.5*41*81mm |
| Balance Plug | JST-XHR |
| Discharge Plug | XT60 |
FAQ
-
What are the key specifications of this battery?
The battery has a 1200mAh capacity, a 6S configuration, a nominal voltage of 22.2V, weighs about 200g, and supports a continuous discharge rate of 150C with a burst rate of up to 260C. -
How does this LiPo battery differ from conventional UAV batteries?
It is specifically designed for FPV racing and freestyle drones, providing ultra-high discharge rates for explosive power delivery. Compared to standard LiPos, it has lower internal resistance, less voltage sag, and higher burst performance. -
What certifications are available for this battery?
The battery can be supplied with MSDS and UN38.3 certifications to ensure compliance with international safety and shipping standards. -
What payment methods are accepted?
MotioNew accepts secure international payment methods, including credit cards, PayPal, and bank transfers. -
Can this battery be ordered with OEM customization?
Yes, OEM customization is available, such as connector type (XT60, XT30, etc.) and other requirements. Customers should provide specifications when ordering. -
What documentation is provided with the purchase?
All required shipping and safety documents, including MSDS and UN38.3 reports, are provided. Additional technical documentation can be supplied on request.
Documents
Product contents
You must be logged in to post a review.
| Battery cells |
6S |
|---|---|
| Battery Capacity |
1200mAh |
| Battery Energy Density |
129Wh/kg |
| Battery Dimensions |
37.5*41*81mm |
| Battery Continuous C rate |
150C |
| Battery Type |
LiPo |
| Battery Weight |
205g |
| Battery Nominal Voltage |
3.7v |
| Battery Full Voltage |
4.2v |
