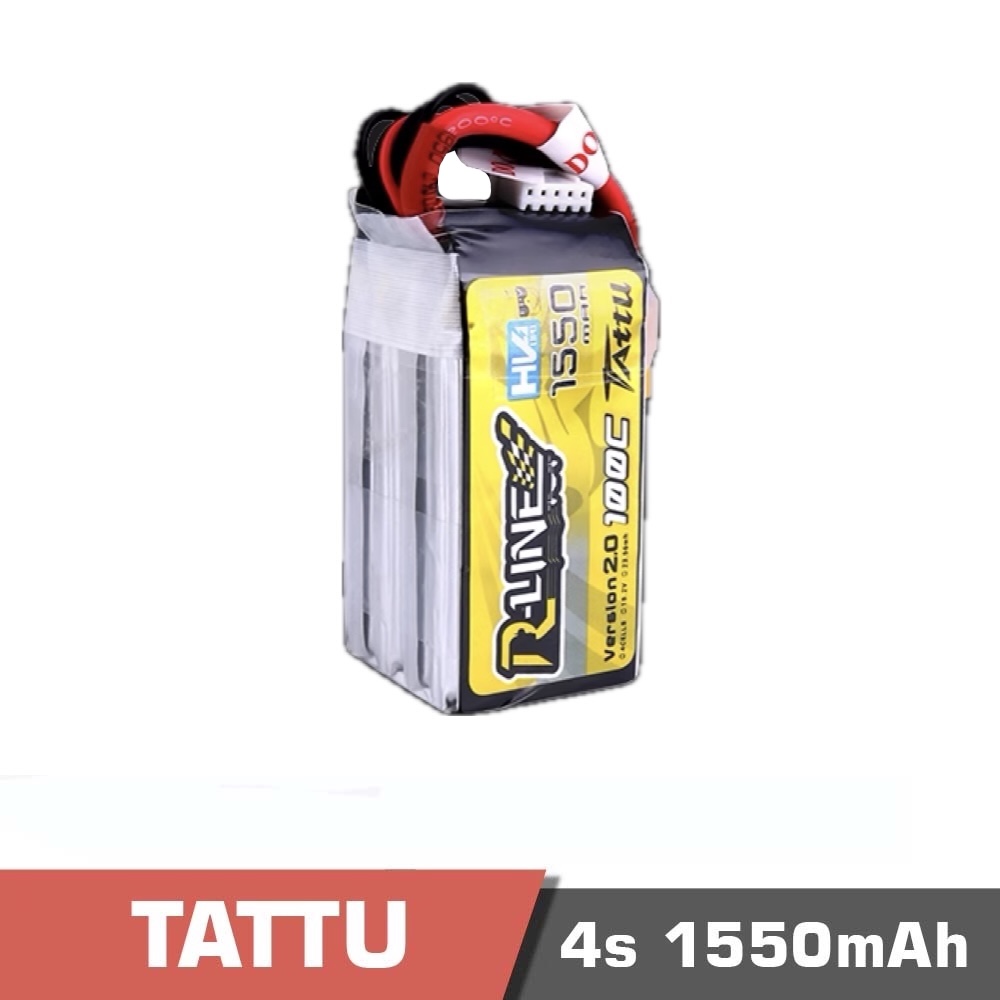

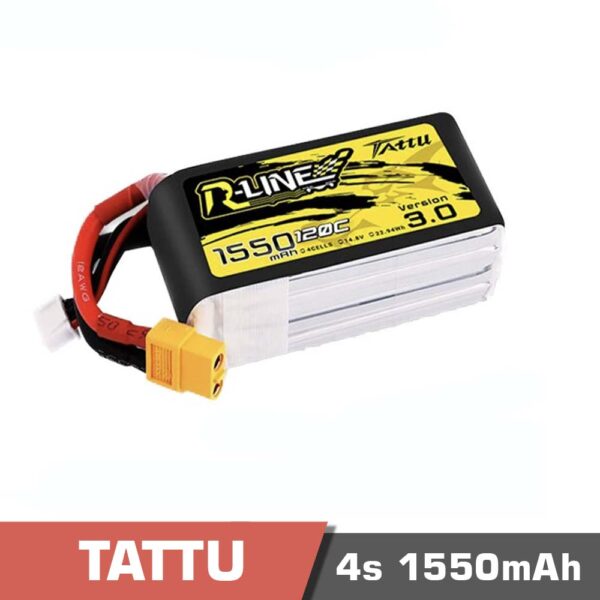

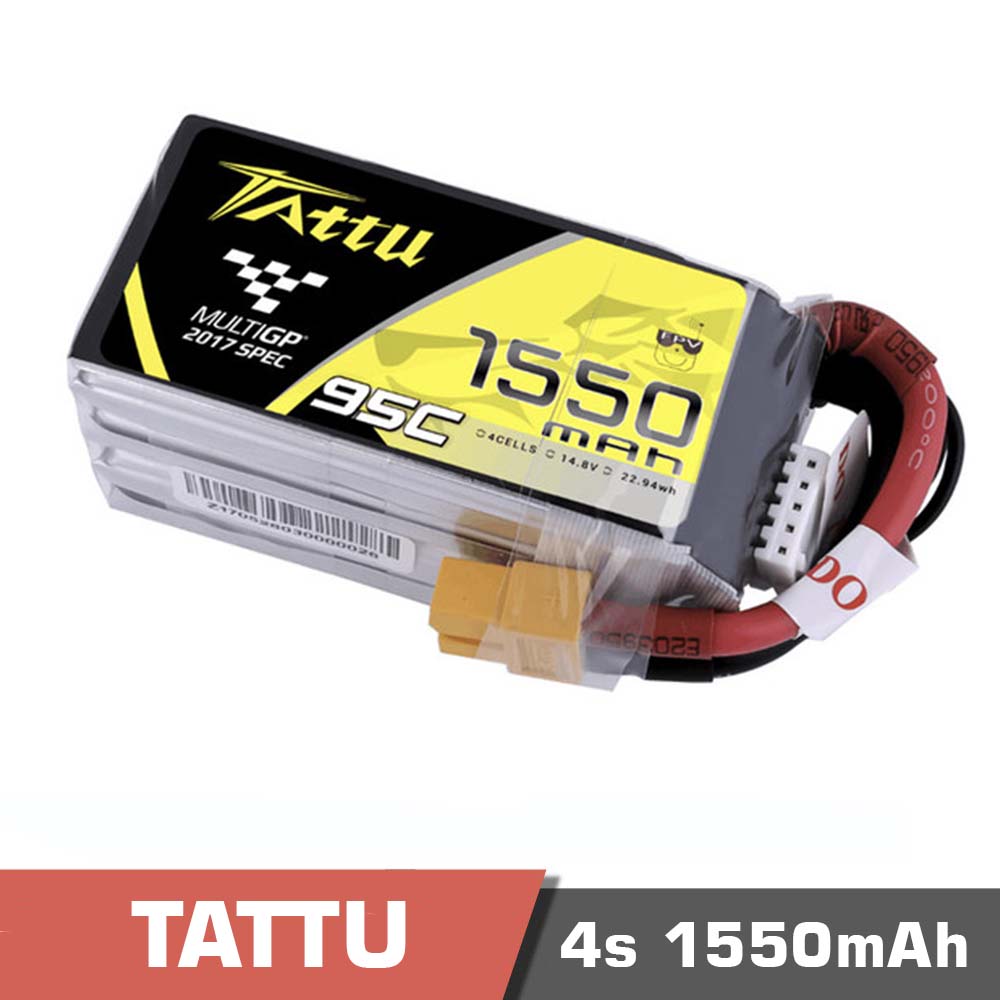

Battery Lipo 4s 1550mAh 95C / 120C Tattu R-Line Specifications
Capacity | 1550mAh |
Voltage | 14.8V |
Max Continuous Discharge | 95C / 120C |
Weight | 192.6g / 181g |
Dimensions | 36*35*72 mm / 77*38.5*32.5mm |
Balance Plug | JST-XHR |
Discharge Plug | XT60 |
FAQ – Tattu R-Line 4S 1550mAh 95C / 120C LiPo Battery
-
What are the key specifications of the Tattu R-Line 4S 1550mAh 95C / 120C LiPo battery?
This battery has a 1550mAh capacity, 14.8V nominal voltage, continuous discharge rates of either 95C (147A) or 120C (186A), and dimensions of 36×35×72mm (181g) or 77×38.5×32.5mm (192.6g), depending on the version. It comes with a JST-XHR balance plug and an XT60 discharge connector. -
For which applications is this battery most suitable?
It is specifically designed for FPV racing drones, providing extremely high discharge capabilities and stable voltage output for aggressive flying and competitive racing. -
How do the 95C and 120C versions differ in performance?
The 95C version offers high power with stable performance, while the 120C version provides even greater current handling capacity, ensuring minimal voltage sag and maximum responsiveness during extreme maneuvers. -
What payment methods can I use?
MotioNew accepts PayPal, Visa, MasterCard, and other secure online payment methods. -
Does MotioNew offer OEM or wholesale purchasing?
Yes. OEM customization and bulk purchasing options are available. Customers can contact the MotioNew sales team for tailored solutions and discounts. -
Are datasheets and technical documents provided?
Yes. Technical datasheets and other supporting documents are available in the Documents section of the product page.
Documents
Product contents
You must be logged in to post a review.
Discharge Rate |
95C ,120C |
---|---|
Battery cells |
4S |
Battery Dimensions |
36*35*72 mm ,77*38.5*32.5mm |
Battery Weight |
181g ,192.6 |
Battery Nominal Voltage |
3.7v |
Battery capacity |
1550mAh |
