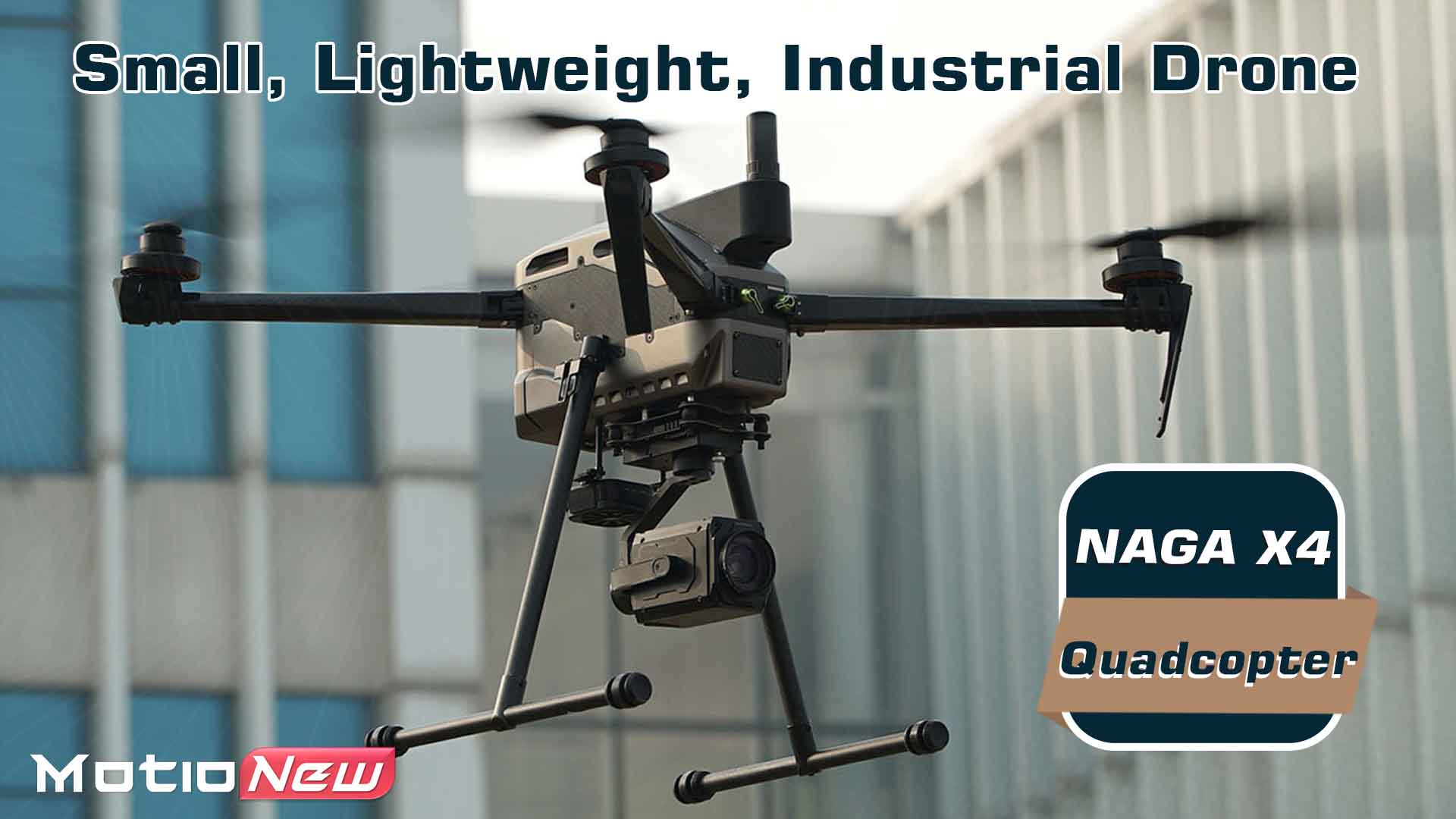

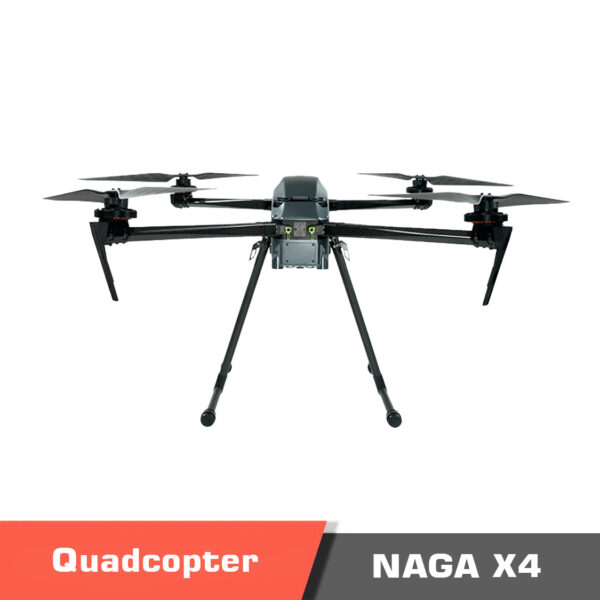

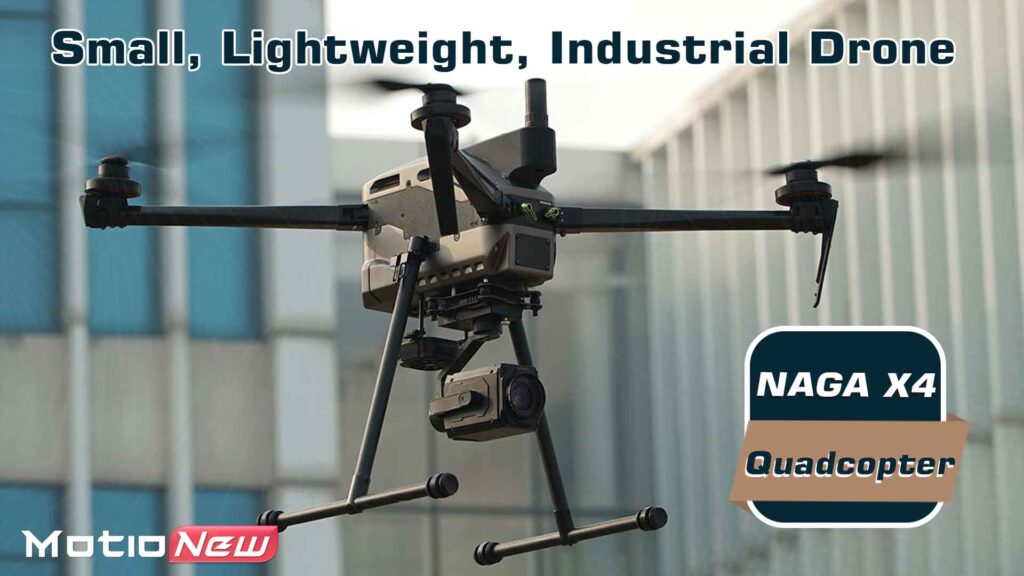

Naga X4 small quadcopter Overview

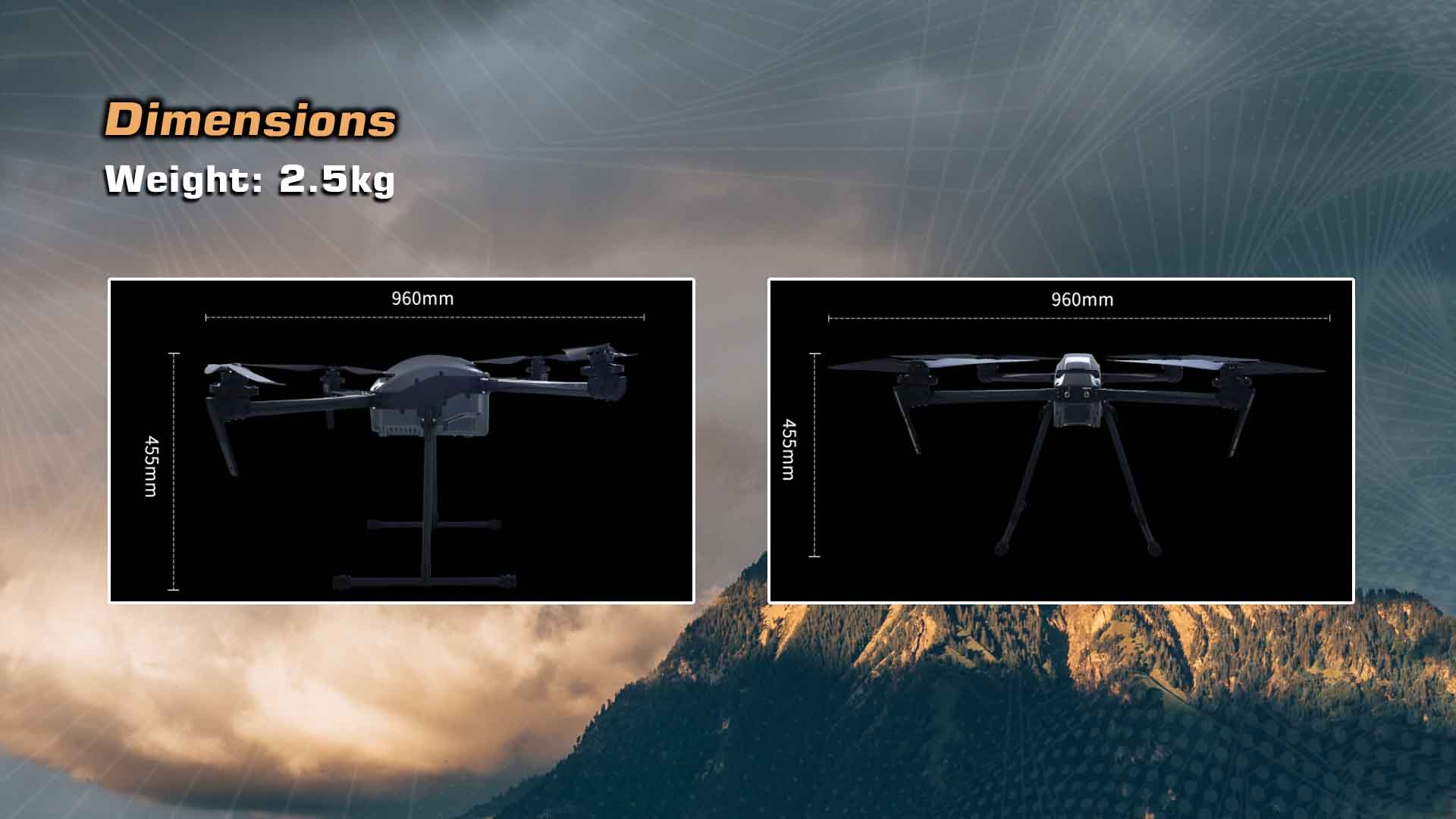

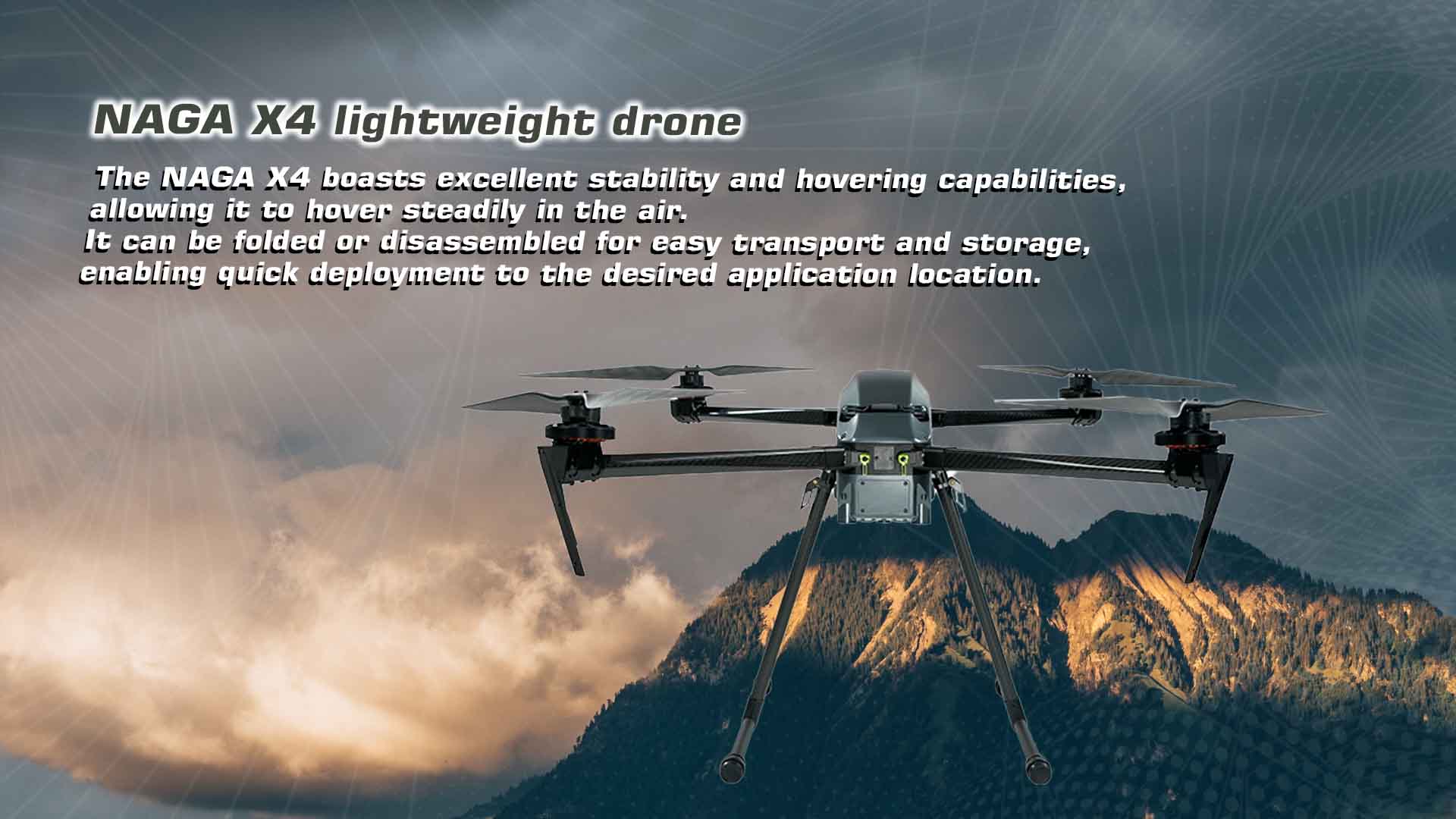

The NAGA X4 Small Quadcopter is a high-performance drone designed for demanding professional applications. With a symmetric wheelbase of 815mm, it features a robust construction using carbon fiber composite and aircraft aluminum, ensuring durability and lightweight efficiency. The drone measures approximately 960x960x455mm when the arms and landing gear are unfolded and props removed, and 440x210x200mm when the arms are folded, props disassembled, and landing gear unfolded. It weighs approximately 2.5kg without the battery and 5.3kg with battery installed.
Specifications of Naga X4
This versatile drone can carry a maximum load of up to 3kg and has a maximum takeoff weight of 8kg. Its endurance varies depending on the payload: up to 90 minutes with no payload, 68 minutes with a 0.8kg payload, and 45 minutes with an 2.5kg payload. The NAGA X4 offers impressive hovering accuracy, maintaining a vertical precision of ±0.2m and horizontal precision of ±0.1m in moderate or no wind conditions.
Performance Capabilities
The NAGA X4 is equipped with powerful performance capabilities, including a maximum angular velocity of 150°/s, a maximum pitch angle of 25°, an ascent speed of 3m/s, and a descent speed of 2.5m/s. It can reach a maximum horizontal speed of 15m/s and a flight altitude of up to 5500m. The drone is designed to Maximum Wind Speed Resistance of up to 12m/s and has an ingress protection rating of IP55, ensuring it can operate in harsh conditions. It functions efficiently within a temperature range of -20℃ to +50℃.
Power System

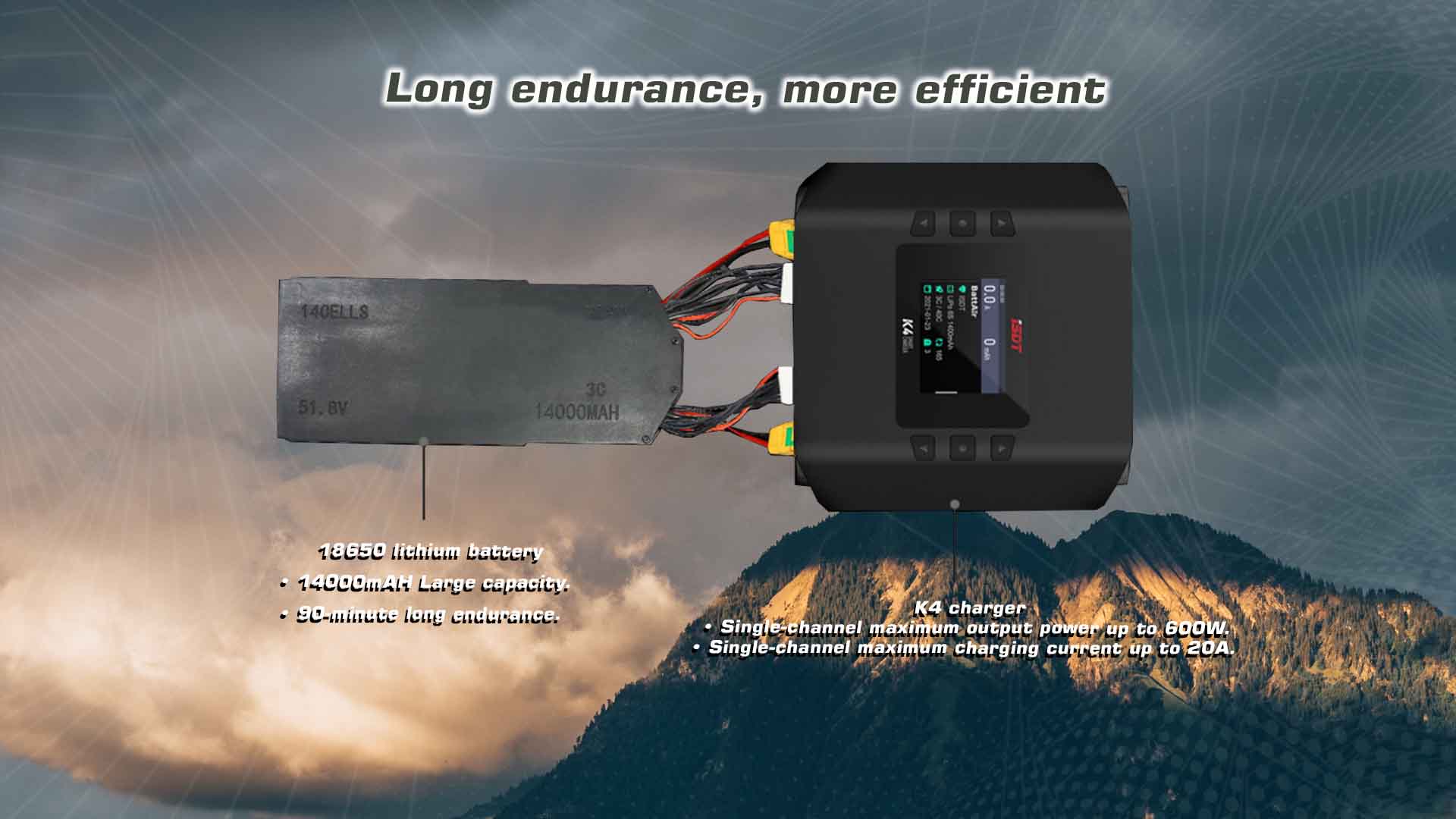

Powered by a 14S, 14000mAh battery, the NAGA X4 boasts substantial power reserves, with each battery weighing approximately 2.9kg and measuring 225x89x75mm. This makes the NAGA X4 a reliable and capable drone for a wide range of professional applications, offering excellent performance, durability, and versatility.
For a comprehensive reading of related products, please visit the Motionew website.
Specifications
NAGA X4 PARAMETERS | |
Model No | NAGA X4 |
Max. Symmetric Wheelbase | 815mm |
Material | Carbon fiber composite and Aircraft Aluminum |
Size | ≈960x960x455mm (Arms & landing gears Unfolded, Props removed) ≈440x210x200 (Arm&folded, Props disassemble, Landing gear disassemble) |
Weight | ≈ 2.5kg(excl. battery) ≈ 5.3kg(incl. battery x1 pcs) |
Max. Loading Capacity | ≤ 3kg |
Max. Takeoff Weight | ≤ 8kg |
Endurance | ≤ 90min @ no payload ≤ 68 min @ 0.8kg payload ≤ 45 min @ 2.5kg payload |
Hovering Accuracy (with moderate or no wind) | vertical ±0.2m; horizontal ±0.1m |
Max. Angular Velocity | 150°/s |
Max. Pitch Angle | 25° |
Max. Ascent Speed | 3m/s |
Max. Descent Speed | 2.5m/s |
Max. Horizontal Speed | 15m/s |
Max. Flight Altitude | 5500m |
Max. Wind Speed Resistance | 12m/s |
Ingress Protection Rating | IP55 |
Operating Temperature | ﹣20℃ ~ +50℃ |
Battery Capacity | 14S,14000mAh |
Battery Weight | ≈2.9kg |
Battery Size | 225x89x75mm |
Notes: The size and weight may be changed according to customer’s personalized customization requirements. Please refer to the actual object. |
Documents
Please contact us for more information.
You must be logged in to post a review.
MTOW |
8kg |
---|---|
Max. Payload |
3kg |
Multirotor Application |
Inspection/Surveillance ,Mapping |
Multirotor Wheelbase |
815mm |
Number of motors |
4 |
Number of arms |
4 |
Airframe Weight |
2.5kg |
Foldable Airframe |
YES |
Multirotor Type |
Electric |
Flight Time |
90min |
Cruise Speed |
15m/s |
Max Altitude |
5500m |
