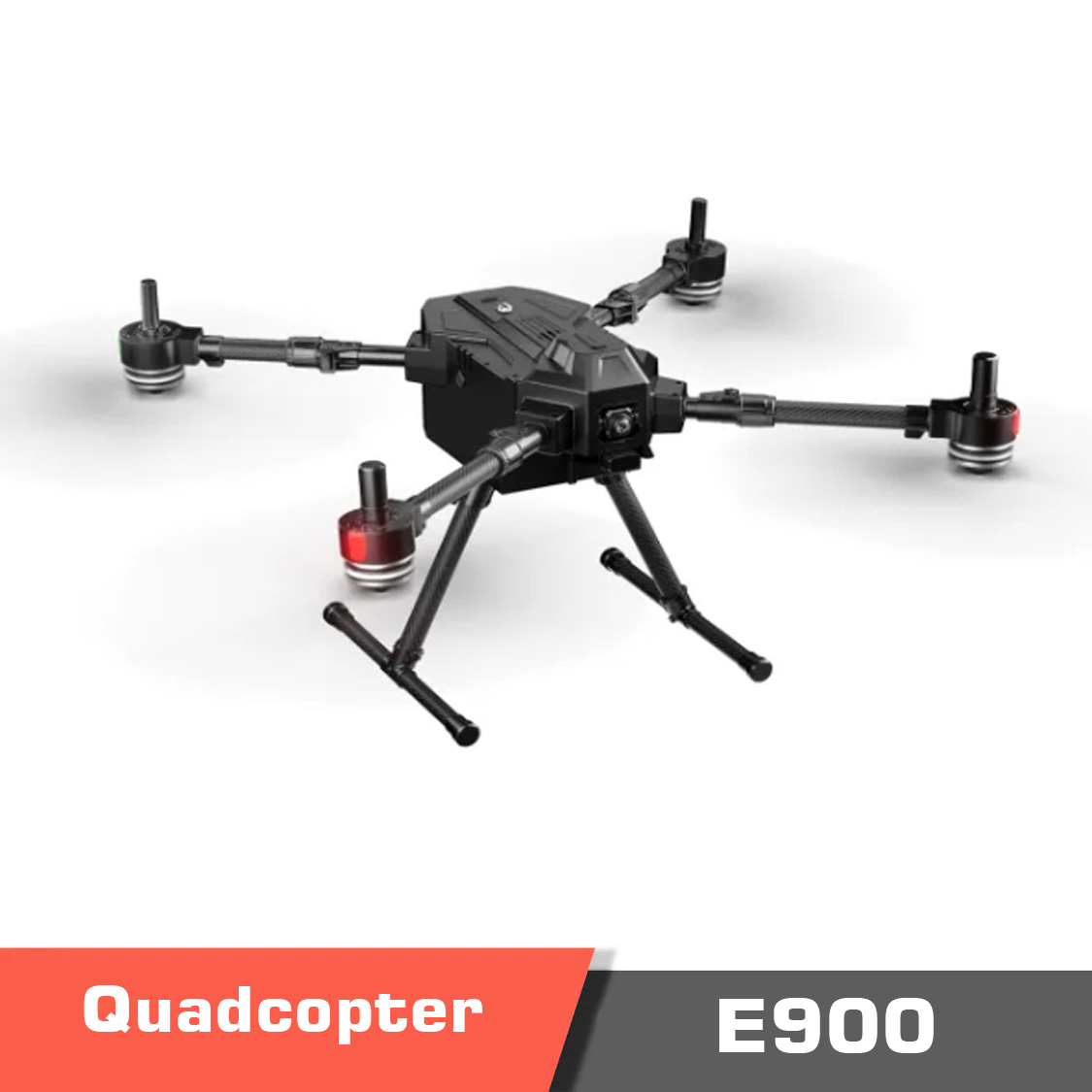

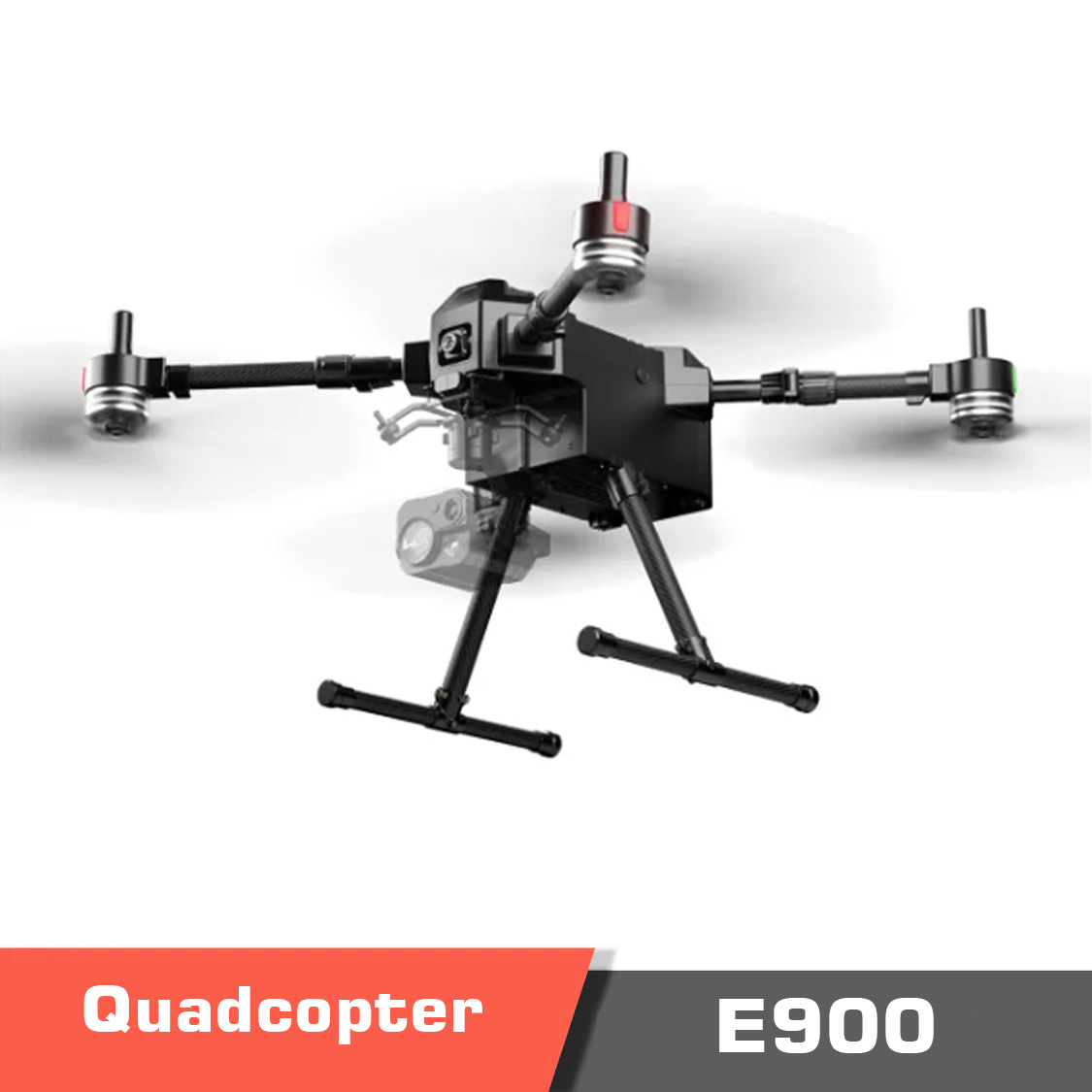

E900 Quadcopter Drone Airframe – Multirotor drone

The Reebot Robotics UniDrone E900 enterprise drone platform is built for teams that need a dependable ready to fly quadrotor for inspection, public safety support, smart agriculture, and rapid response missions. This platform combines long endurance, a long range control link, and onboard intelligence so operators can stay focused on the task instead of constantly managing the aircraft.

For solution planning across different Multirotor Drone classes, many integrators compare airframes by payload margin, link stability, and real workflow speed. In that broader Quadrotors ecosystem, the UniDrone E900 stands out for its 2.1 kg maximum payload capacity and its 55 minute no payload endurance, while keeping a field friendly folding structure for fast deployment.

Built for enterprise endurance and long range operations

A key advantage of the UniDrone E900 enterprise drone platform is predictability. The published flight time is 55 minutes with no payload and 43 minutes with full load, which helps planners size coverage for patrol routes and inspection corridors without excessive battery swaps. The smart battery design is plug and play for quick replacement, supporting continuous operations with minimal downtime.

On the link and control side, the system specifies 35 km transmission distance and a professional handheld ground station that supports demanding field work. It is compatible with both SIYI uniRC7 and SIYI UniRC10 pro remote controllers. The controller integrates a 7 inch 1080P HD screen with 1600 nit brightness (uniRC7) or a 10 inch 1080P HD screen with 2000 nit brightness (uniRC10 pro), plus multi channel customizable buttons and an innovative sub joystick for fine adjustments. It runs Android 13 on a Qualcomm Snapdragon octa core CPU and provides 2.4G and 5G dual band redundancy for more resilient communications in complex RF environments.

Smart battery workflow for longer sorties

For teams evaluating a UniDrone E900 55 minute flight time quadrotor solution, the real gain is operational rhythm. With a hot swap style battery approach and clear full load versus no load expectations, crews can build repeatable flight cycles for mapping, observation, or perimeter coverage.

Ground station readiness for field teams

If your mission depends on crisp situational awareness, the E900 workflow pairs well with a fleet standard Ground Control System strategy. MotioNew engineers can help align control layout, telemetry needs, and screen readability expectations for your environment, whether you are running infrastructure inspection routes or coordinating multi team field operations.

Payload capacity and expansion for practical mission kits

The UniDrone E900 platform lists a 10.5 kg maximum takeoff weight and a 2.1 kg maximum payload capacity, giving integrators room for stabilized payloads and mission accessories. The airframe supports third party mounting and includes dual expansion slots on the drone platform, which is useful when building a consistent kit across multiple departments.

Common enterprise payload directions include gimbal cameras, loudspeakers, and lighting equipment, especially for night operations or targeted search workflows. This makes the enterprise quadrotor with 35 km transmission range concept more than a spec sheet, because the platform is designed for modular add ons that can be swapped based on the mission.

Navigation precision, safety logic, and autonomous ecosystem

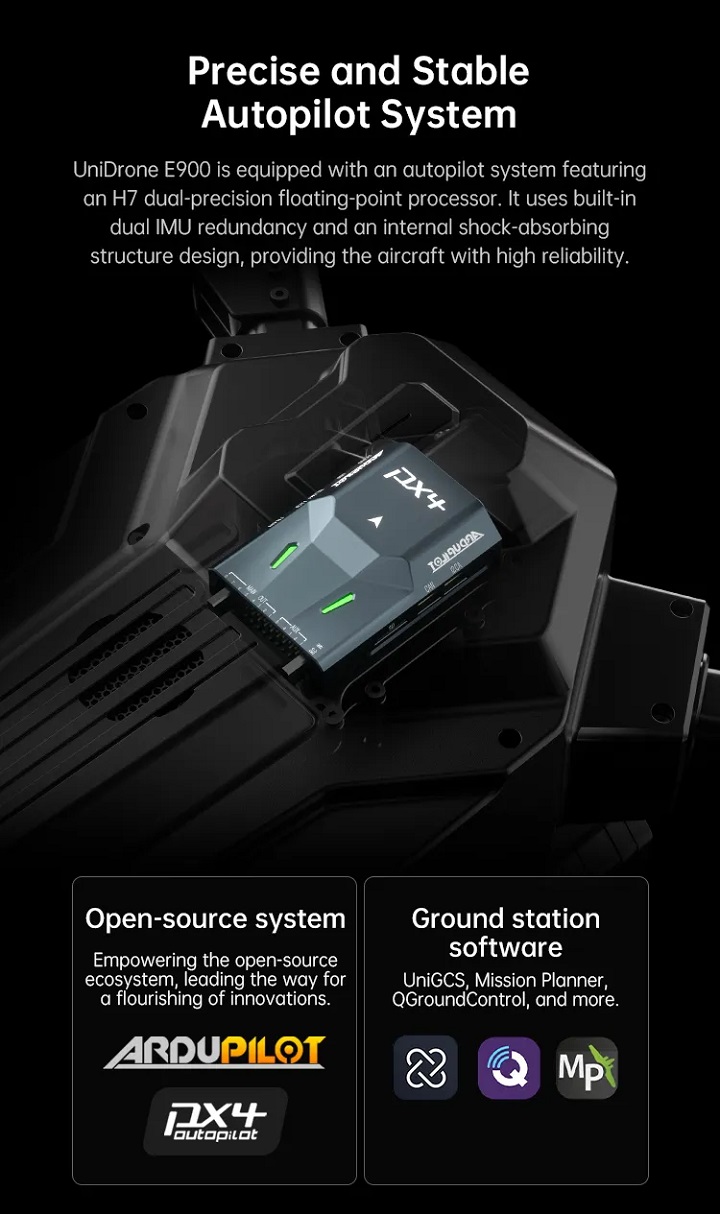

For teams that want both precision navigation and development flexibility, the platform highlights an autopilot architecture designed around reliability and open ecosystem integration. It is equipped with a SIYI N7 autopilot system featuring an H7 dual precision floating point processor, built in dual IMU redundancy, and an internal shock absorbing structure design. It also indicates compatibility with ArduPilot and PX4, and it supports common ground software options such as UniGCS, Mission Planner, and QGroundControl.

RTK positioning and orientation

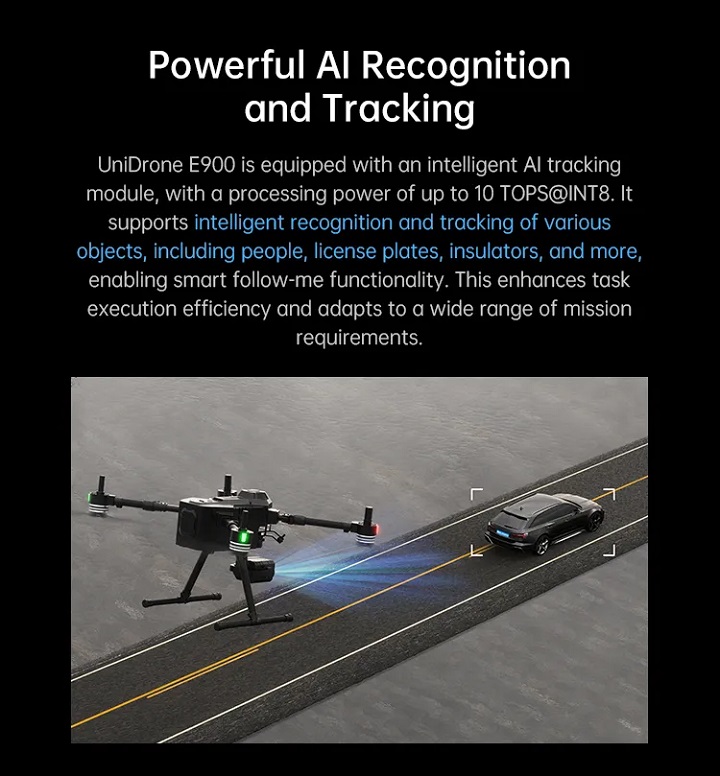

The platform specifies dual antenna RTK centimeter level positioning and orientation, supporting BeiDou, GPS, GLONASS, and Galileo. It also notes a built in RM3100 industrial grade magnetometer and dual antenna direction finding to improve anti interference performance in complex electromagnetic environments. For surveying and repeatable inspection paths, this is a strong match for a foldable IPX4 drone platform with AI tracking that still needs accurate georeferencing.

Geofencing and obstacle avoidance

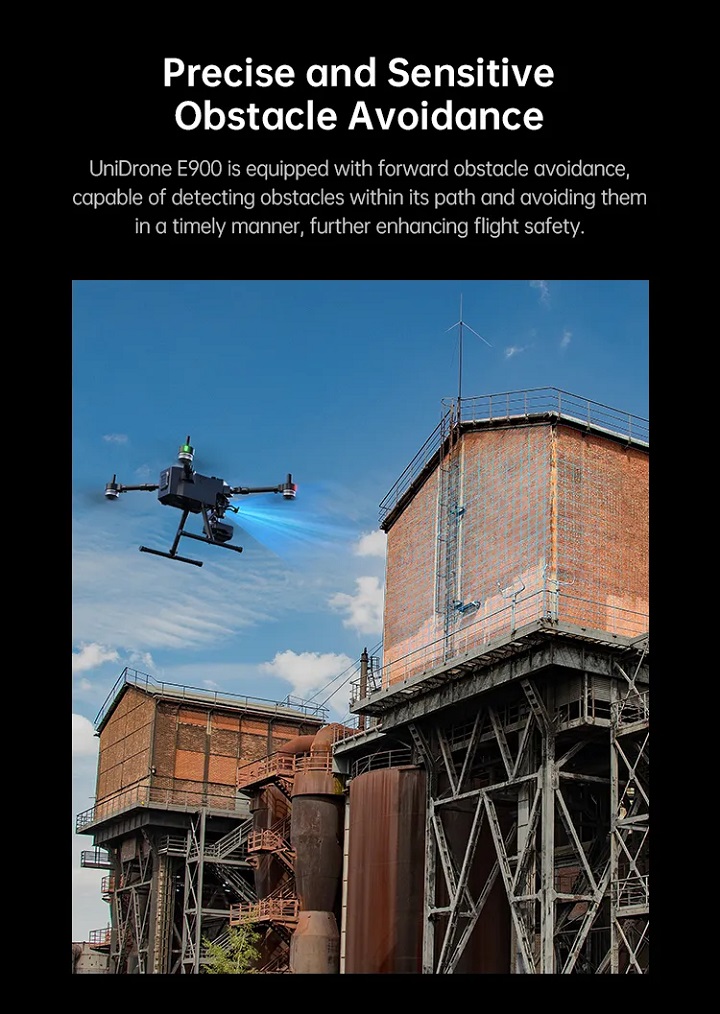

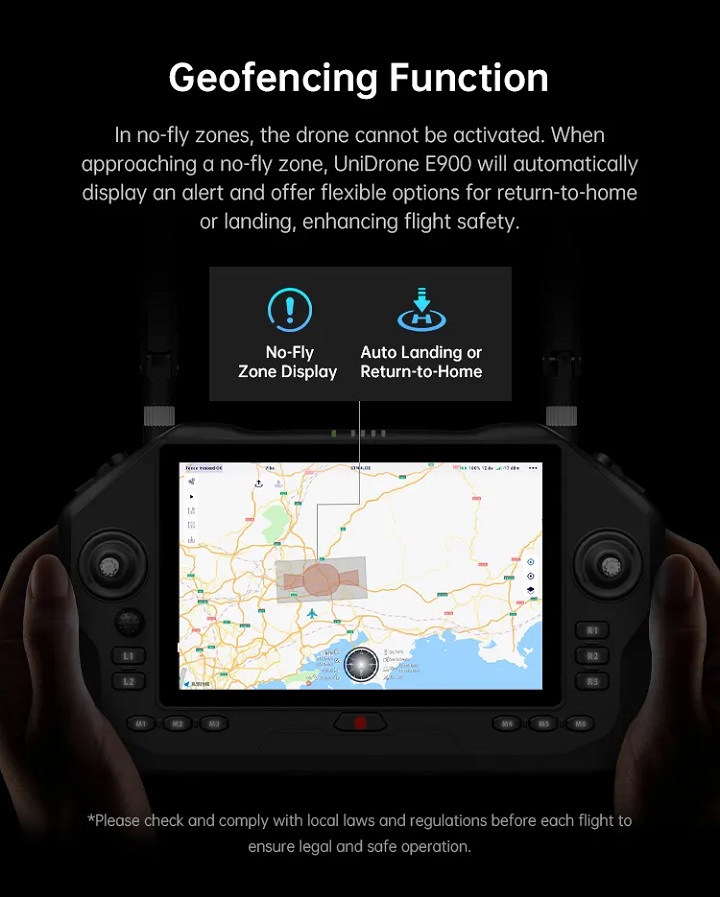

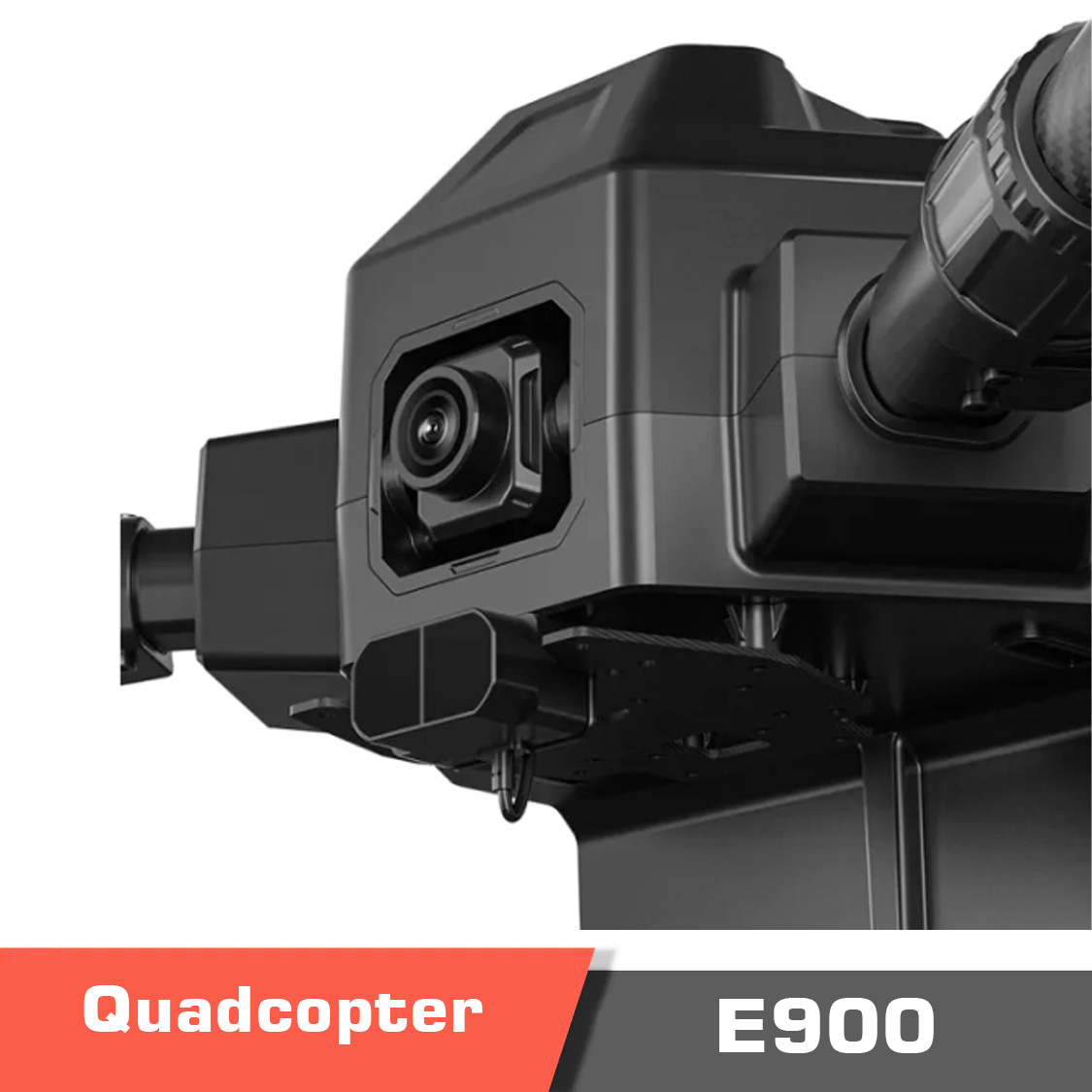

Operational safety features include a geofencing function that prevents activation in no fly zones and provides alerts with return to home or landing options when approaching restricted areas. The platform also states forward obstacle avoidance, designed to detect obstacles in the flight path and avoid them in a timely manner.

Mechanical design, weather tolerance, and transport efficiency

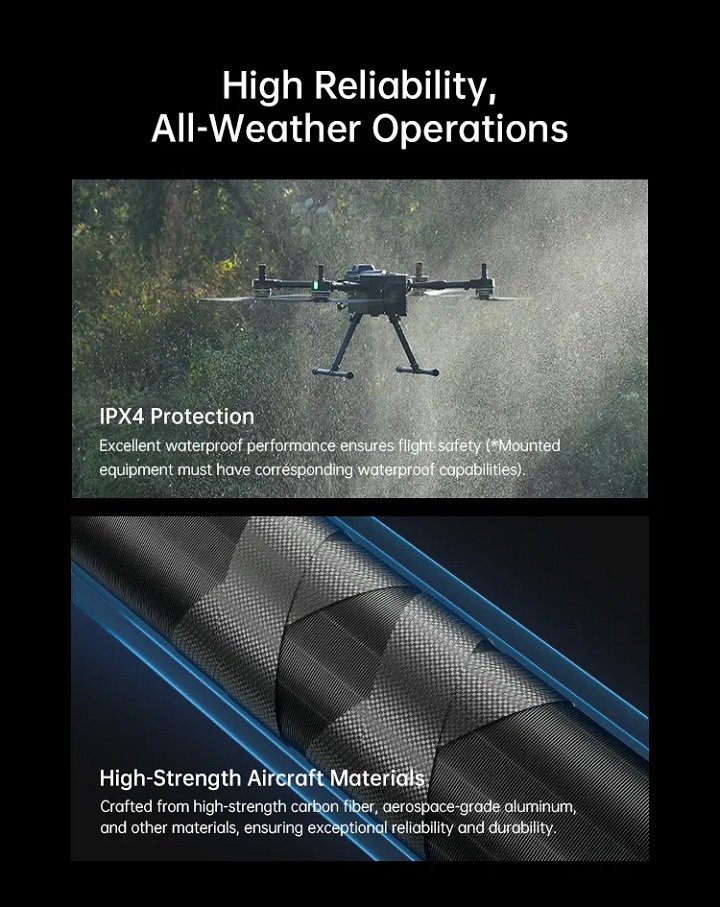

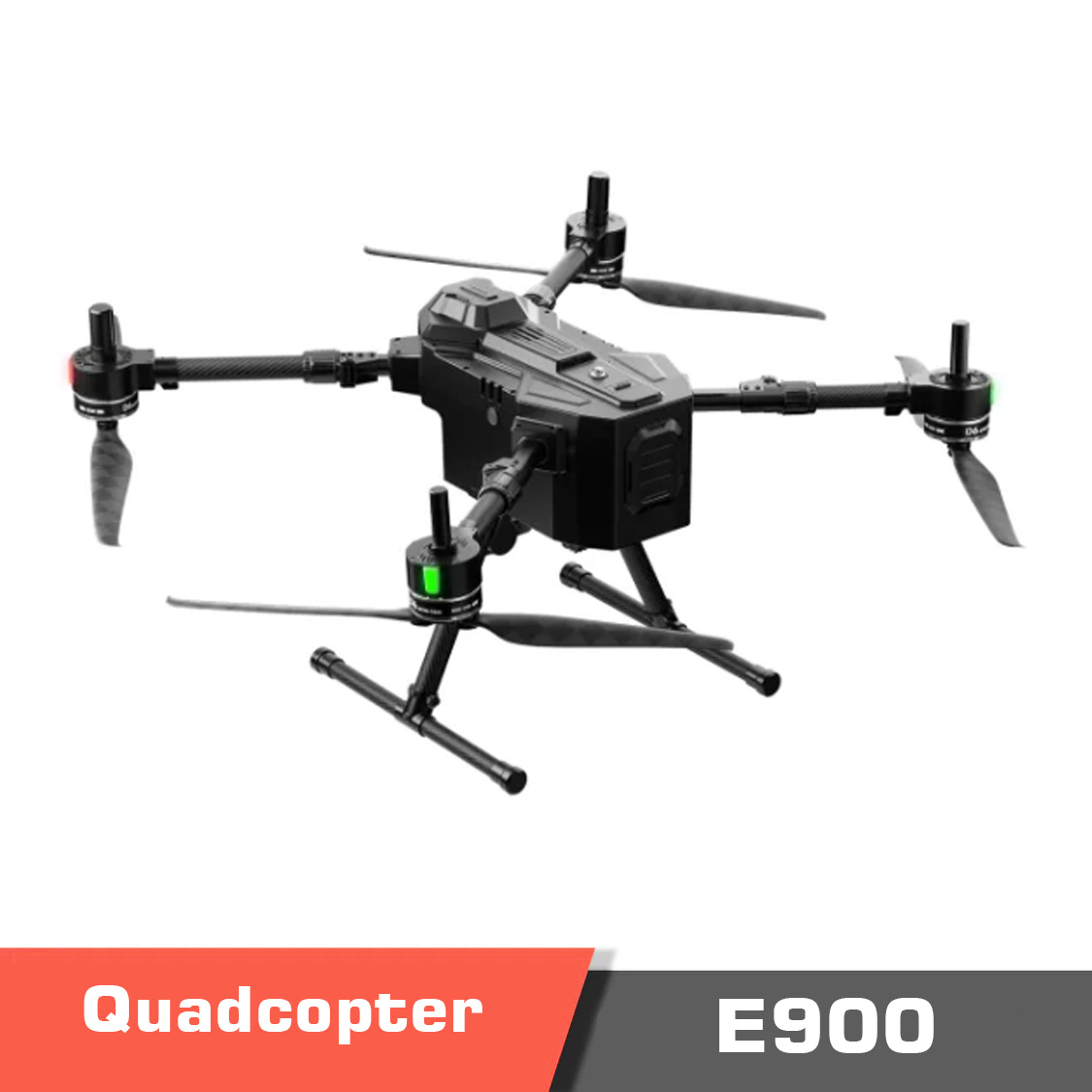

Rapid deployment matters in enterprise work. The UniDrone E900 uses foldable arms and quick release landing gear, reducing transport volume and speeding on site setup. It also lists IPX4 protection for the aircraft and highlights high strength aircraft body materials, including high strength carbon fiber and aerospace grade aluminum. For rainy or splash prone environments, note that mounted equipment must also have corresponding waterproof capability to maintain overall system readiness.

The platform also provides clear size expectations for transport planning. Published dimensions are L738 x W673 x H425 mm unfolded, and L428 x W412 x H425 mm folded, with a 900 mm symmetrical motor wheelbase.

Integration notes from MotioNew engineers

MotioNew typically supports enterprise deployments with pre integration checks, payload fit validation, and operational readiness guidance:

• Payload integration planning: Confirm weight, CG, and mounting method early so the 2.1 kg payload capacity is used efficiently, especially when combining a stabilized payload with auxiliary devices.
• Link and telemetry architecture: If your workflow needs dedicated video, telemetry, or relay planning, MotioNew can help map requirements to a suitable Datalink approach and field test channel stability.
• Autopilot and parameter alignment: When your team builds a standardized tuning baseline across fleets, pairing the platform with a compatible Flight controller strategy and documented parameter sets can reduce rollout time and training load.

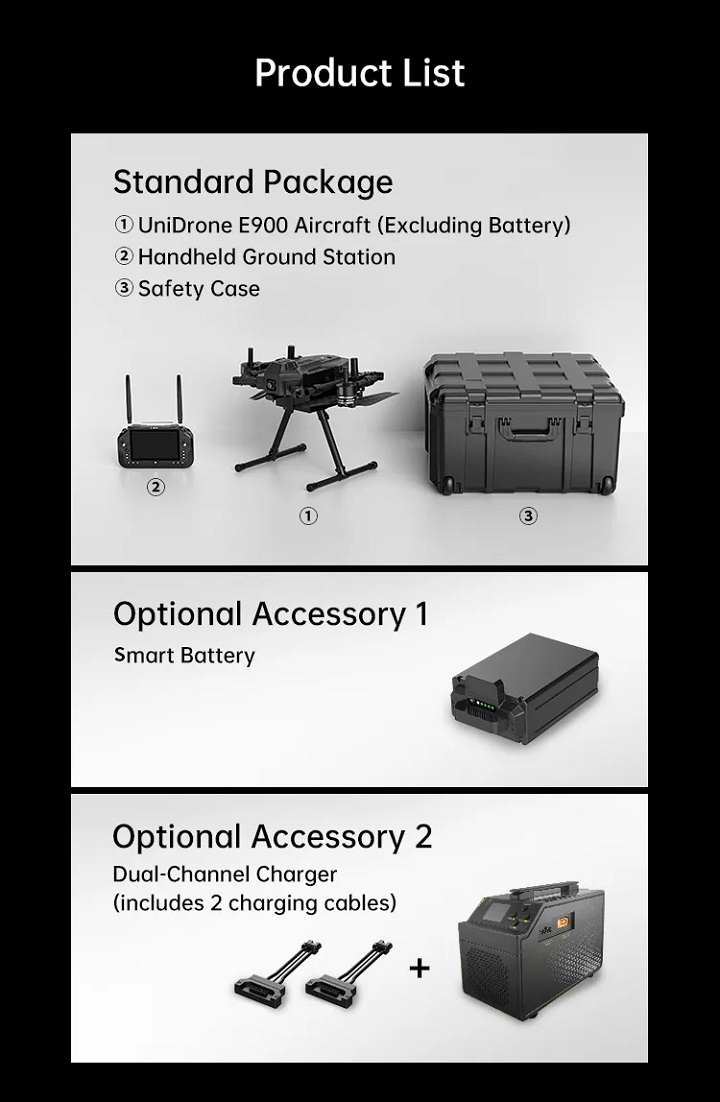

• Kit configuration: The standard package lists the aircraft excluding battery, a handheld ground station, and a safety case. Optional accessories include a smart battery and a dual channel charger that includes two charging cables, which is useful for building multi battery rotation kits.

FAQs

What makes the UniDrone E900 enterprise drone platform suitable for long range inspection missions

The platform lists a 35 km transmission distance, a high brightness 7 inch ground station screen, and RTK centimeter level positioning and orientation. Combined with 55 minutes no payload endurance, it supports longer inspection legs with fewer interruptions.

Can the UniDrone E900 55 minute flight time quadrotor support third party payloads

Yes. The platform specifies third party mounting support, dual expansion slots, and a 2.1 kg maximum payload capacity. MotioNew can help confirm mounting, balance, and integration details before deployment.

Can MotioNew support pricing for fleet orders and repeat procurement

Yes. MotioNew supports procurement teams with transparent configuration guidance, documentation support, and engineer assisted selection so your requested price aligns with the final kit contents and operational requirements.

Do you offer bulk and wholesale options for integrators and government buyers

Yes. MotioNew can handle bulk and wholesale orders, including multi unit packaging, accessory standardization, and technical onboarding support for your deployment teams.
