Autel EVO Lite 640T Enterprise
3,329.00 $ – 4,180.00 $
Payment Methods:
Description
Important Notice!
This product requires export license. MotioNew can apply for export license for this product for your company. Please contact us for more information before purchasing.
If your company intends to export UAV products from China, it is necessary to comply with Chinese regulations. MotioNew products cannot be used for military, terrorist, or war purposes. Please read our Terms of Service for more information.

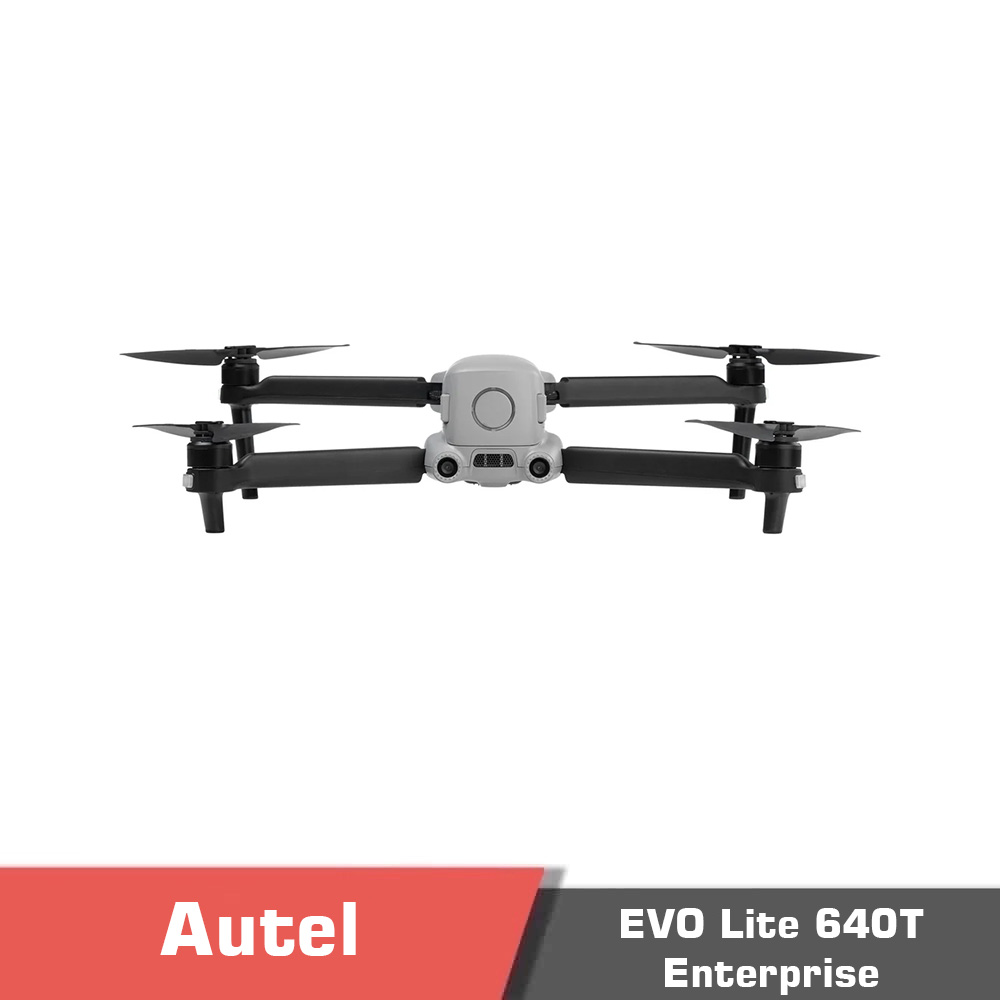

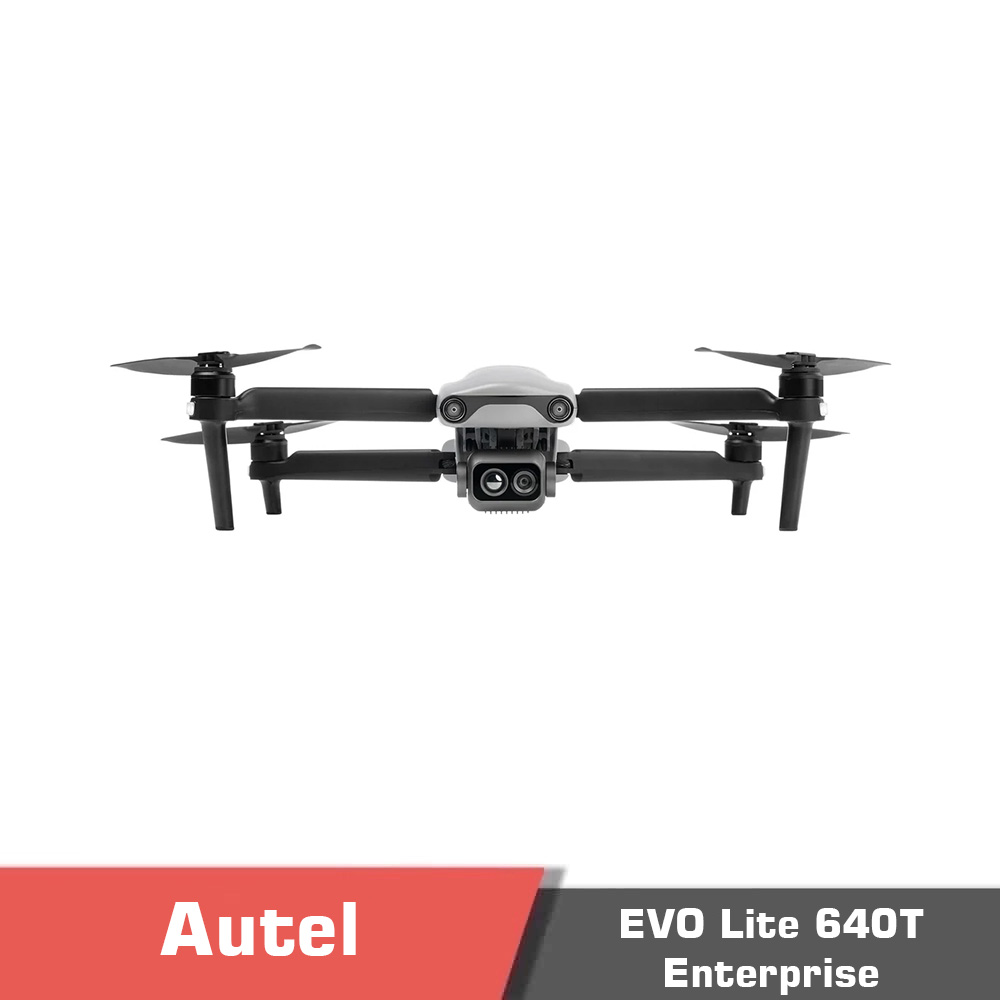

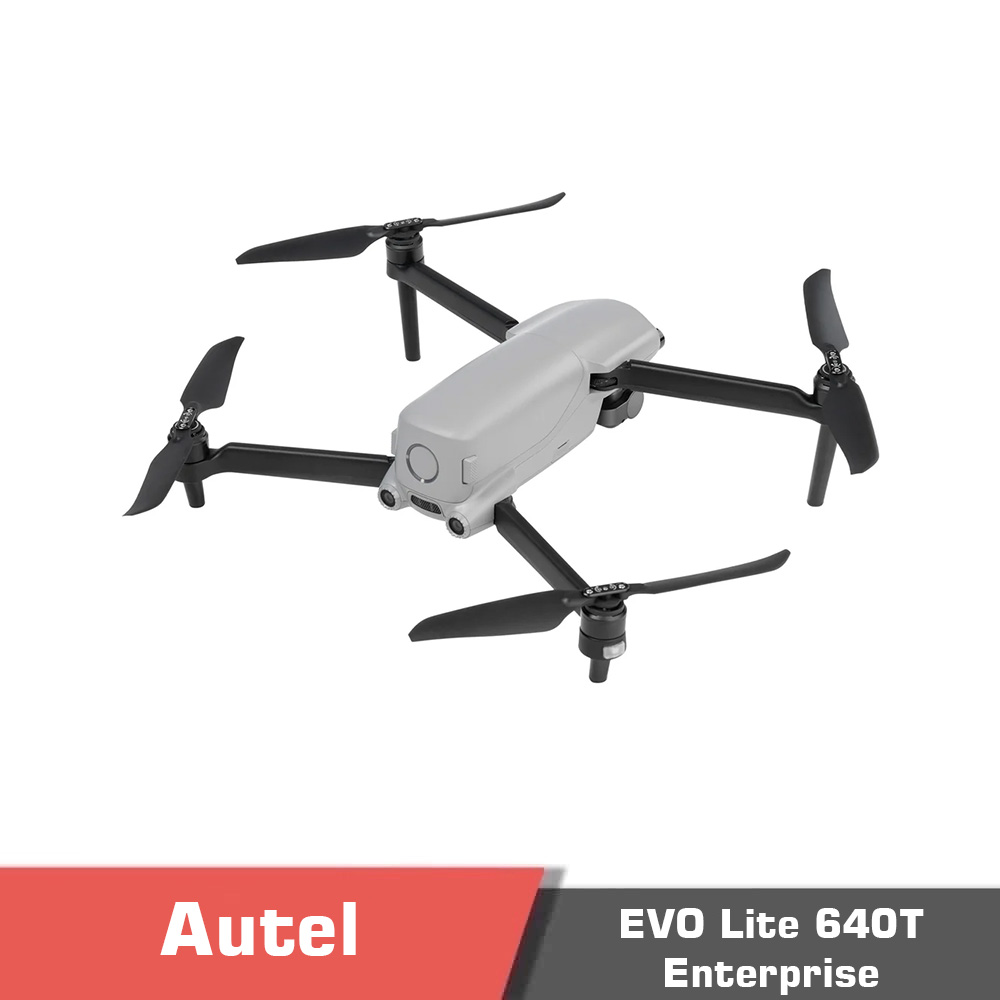

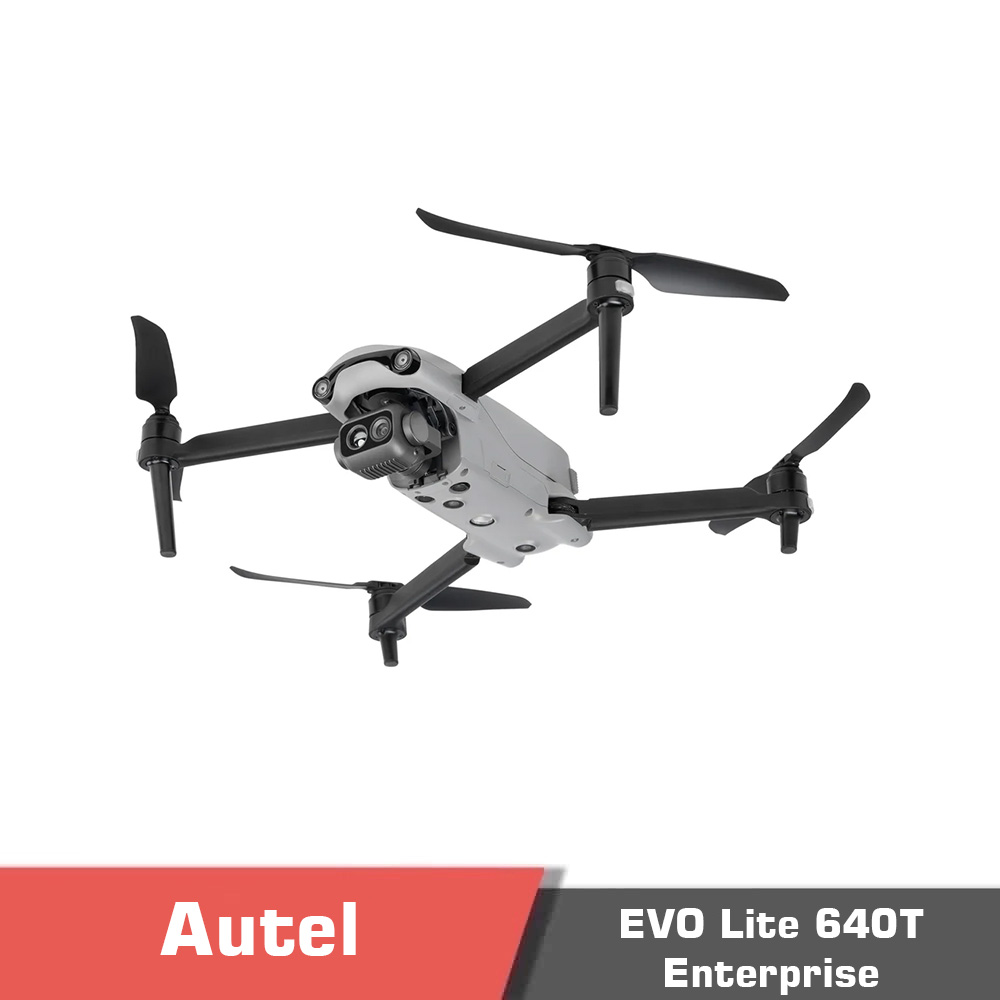

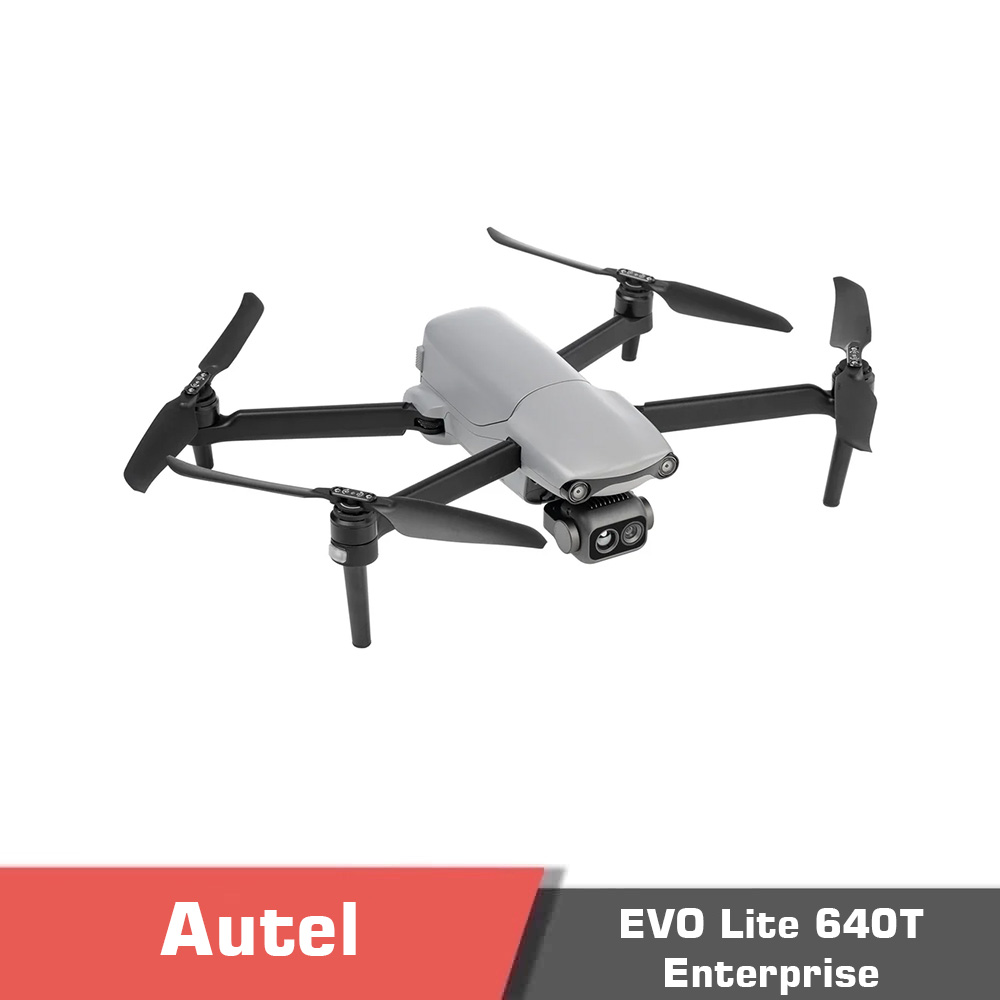

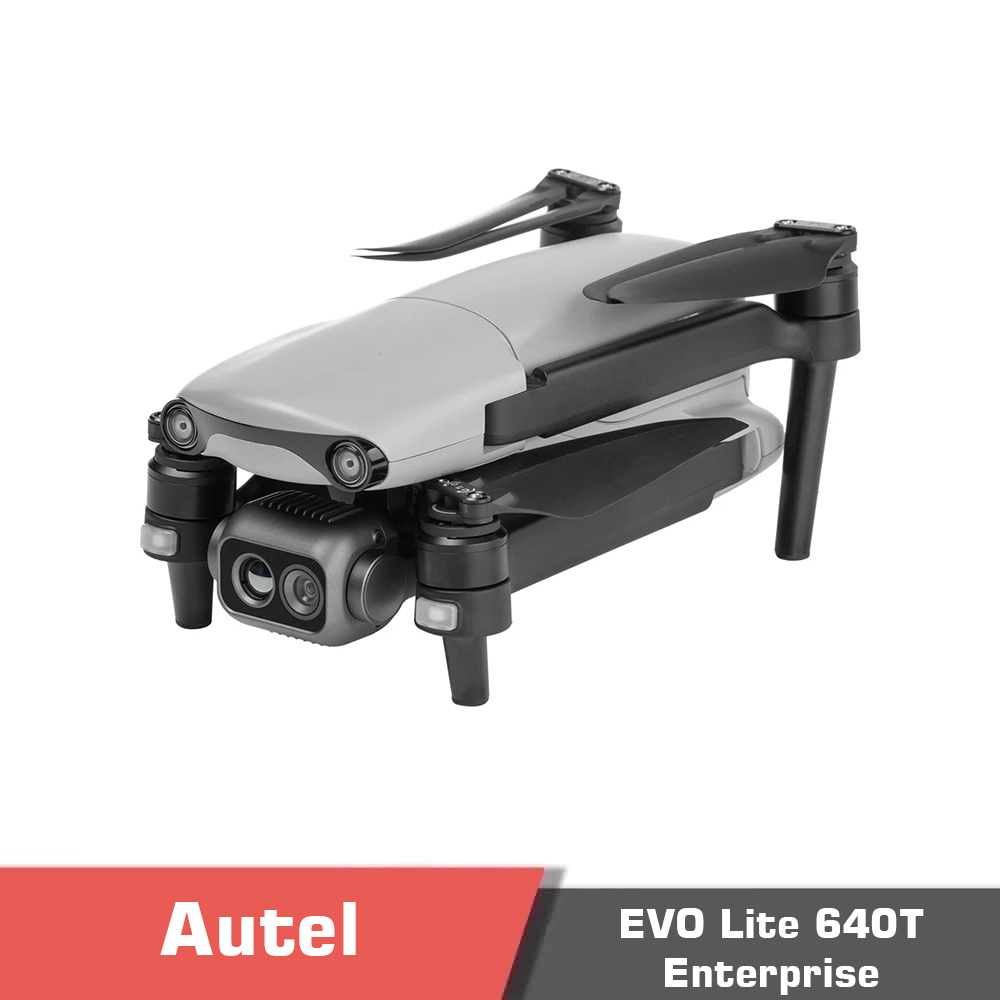

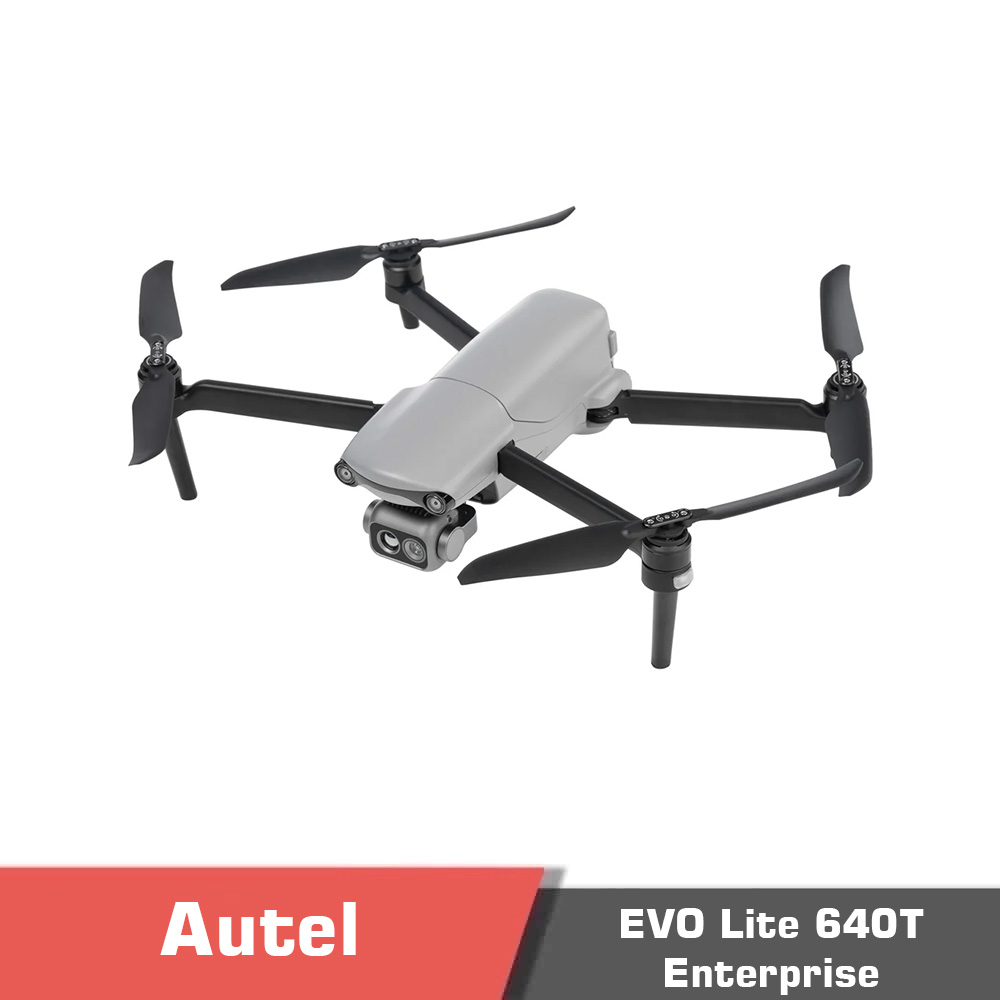

Autel EVO Lite 640T Enterprise – Compact Thermal Drone for Enterprise-Grade Missions
The Autel EVO Lite 640T Enterprise is a compact yet powerful dual-camera multirotor drone designed for professionals in public safety, inspection, construction, and infrastructure monitoring. Combining a high-resolution thermal sensor, a 48MP visible light camera, and a lightweight airframe, this drone offers advanced imaging and flight performance in a portable, easy-to-deploy solution.

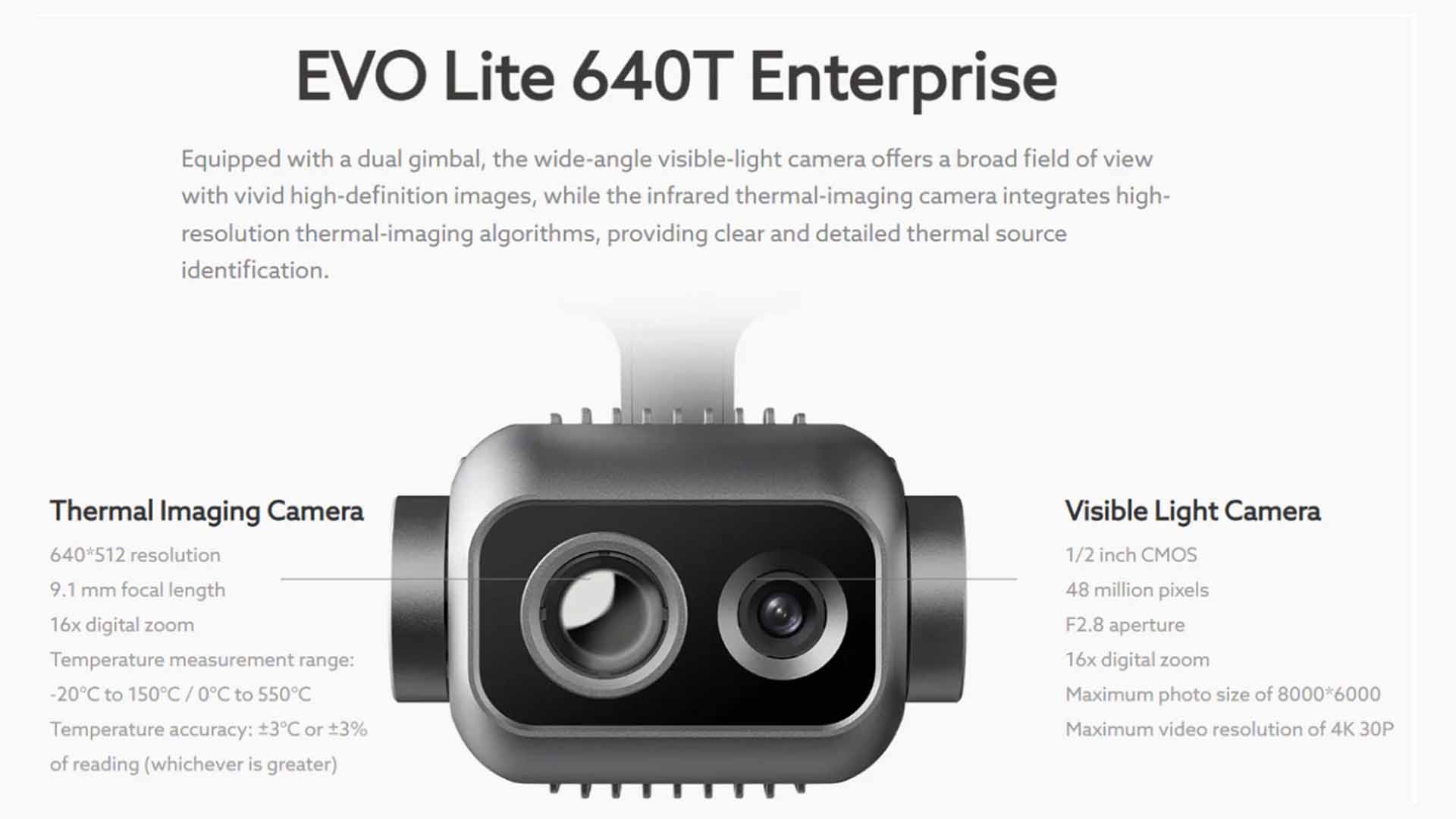

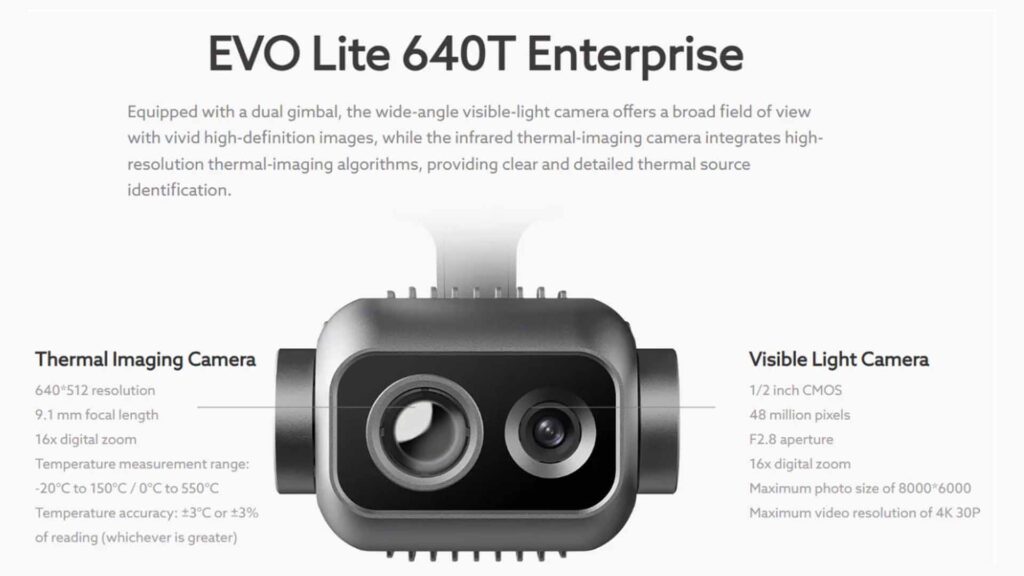

Dual-Camera Payload with Radiometric Thermal Imaging
Equipped with a 640×512 thermal camera, the EVO Lite 640T captures accurate temperature data in real time. The uncooled VOx microbolometer supports a temperature detection range from -20°C to 550°C, making it ideal for electrical inspections, solar panel monitoring, and search & rescue missions.
-
Radiometric accuracy: ±3°C or ±3%
-
16x digital zoom
-
Temperature measurement distance: 1–25 meters
-
Video resolution: 640×512 @ 30Hz
-
Multiple formats: MOV/MP4, JPG with temperature data
The visual camera features a 1/2″ CMOS sensor with 48MP resolution, capable of capturing 8K photos and 4K video with up to 16x zoom. This combination enables users to capture thermal anomalies and visual context in one flight.

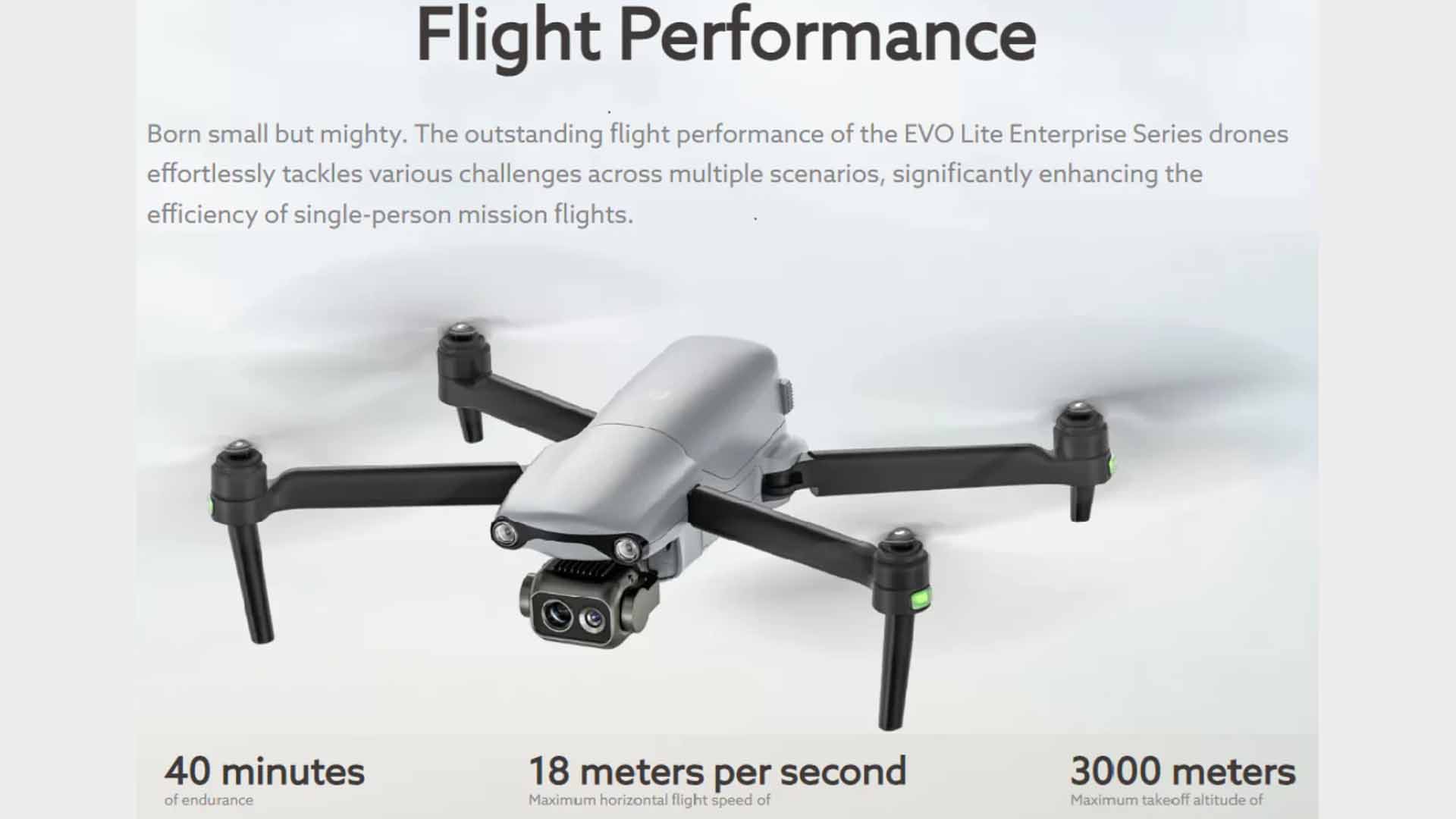

Long Flight Time and Strong Air Performance

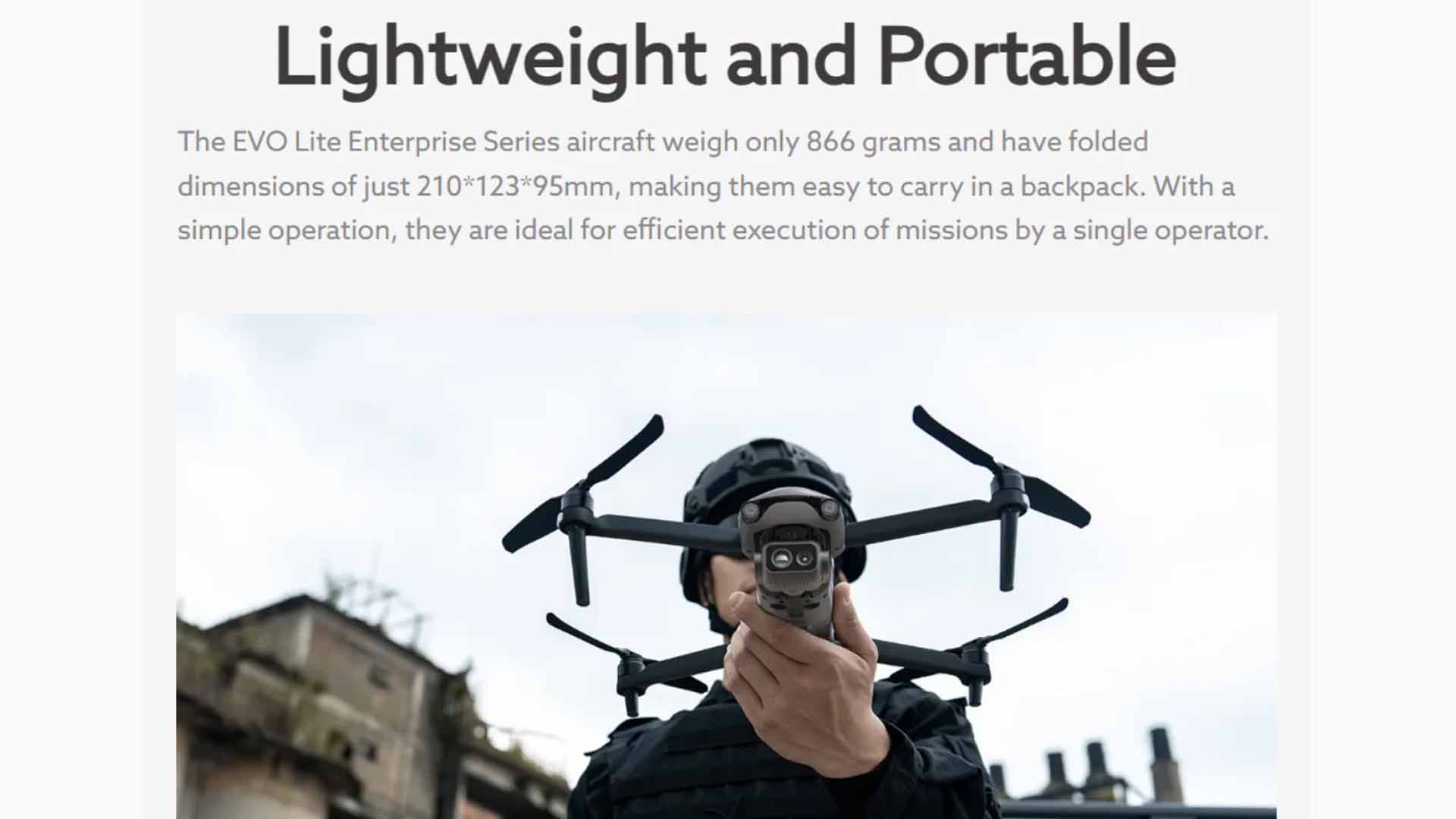

Despite its lightweight body (866g), the EVO Lite 640T delivers up to 40 minutes of flight time and can resist winds up to 10.7 m/s. It reaches a max horizontal speed of 18 m/s (≈40 mph) and has a maximum takeoff altitude of 3000 meters, enabling reliable performance in mountainous or high-altitude environments.
-
Max ascent speed: 6 m/s
-
Max hover time: 37 minutes
-
Max tilt angle: 33°
-
Max rotation speed: 200°/s

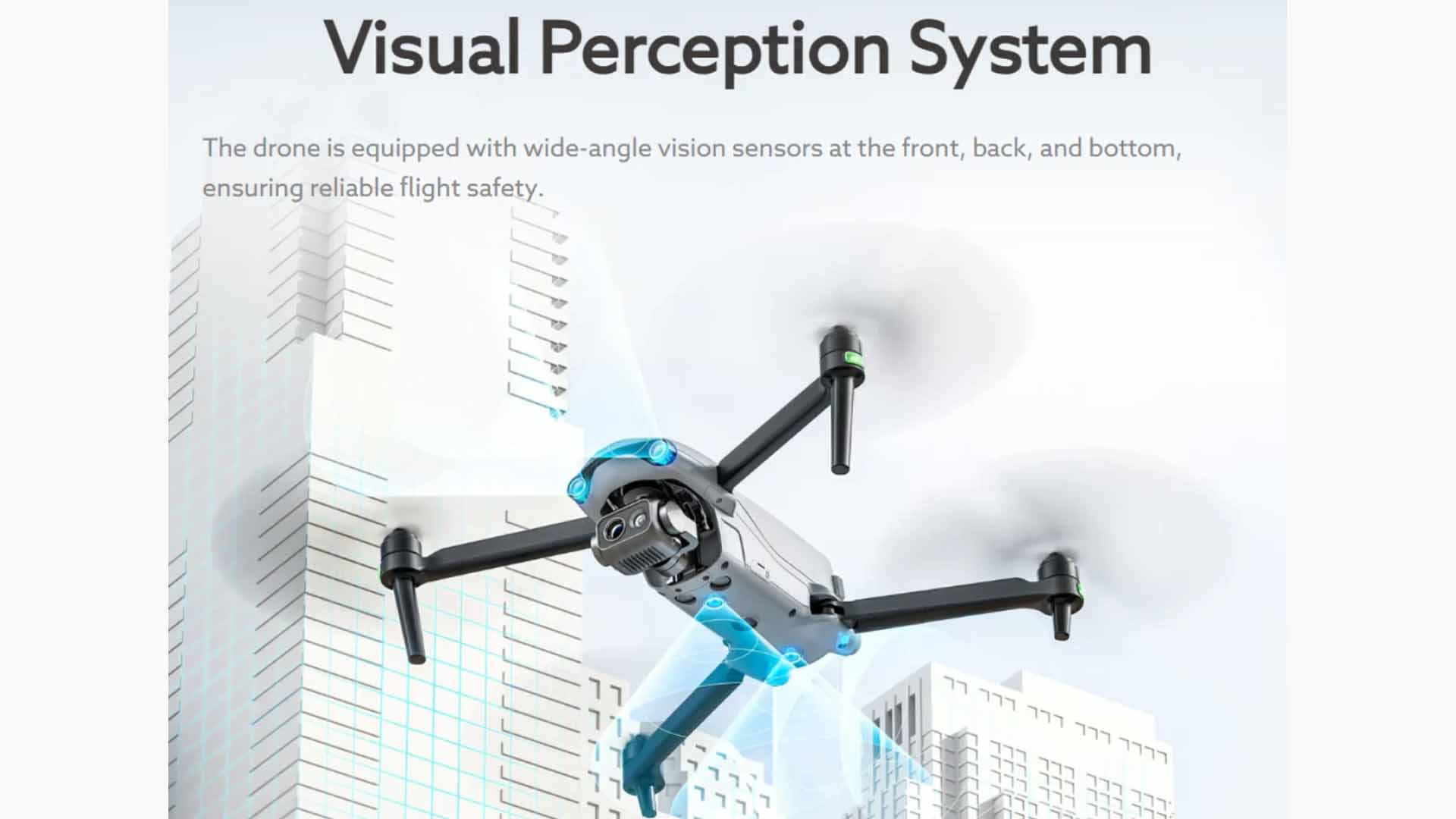

3-Axis Gimbal and Obstacle Avoidance
The onboard 3-axis gimbal ensures smooth footage and precise control. With obstacle avoidance sensors on the front, rear, and bottom, the drone intelligently detects its surroundings with:
-
Visual range up to 30 meters
-
Obstacle detection in low-light environments (>15 lux)
The gimbal supports ±0.003° angular vibration control for ultra-stable results in all directions.

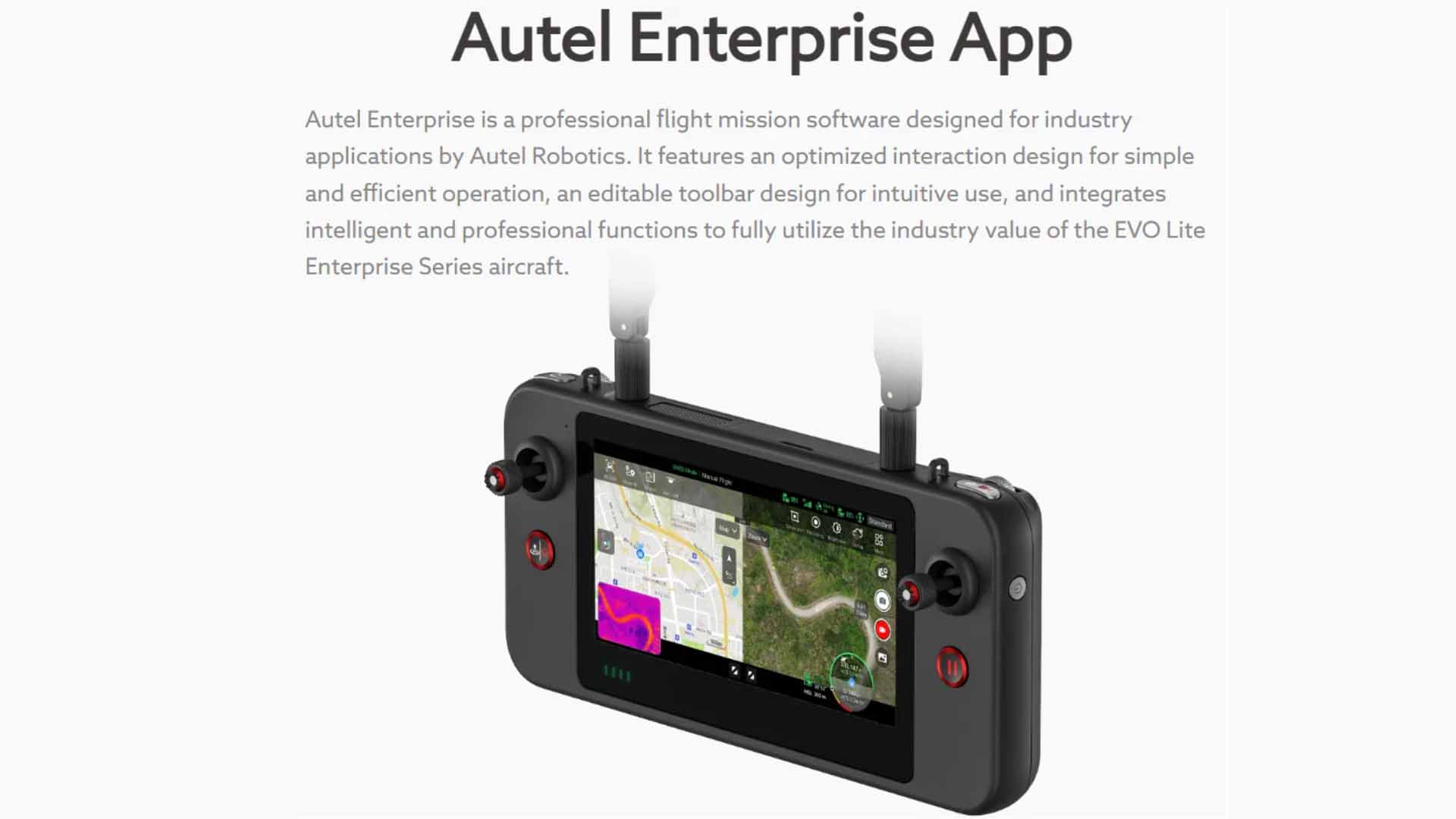

Smart Controller SE V2 & Long-Range Transmission
The included Autel Smart Controller SE V2 provides real-time transmission up to 12 km (FCC) with support for 2.4 GHz, 5.2 GHz, and 5.8 GHz frequencies. The controller features a 1440×720 HD screen, 128GB storage (expandable via TF card), and a 1900mAh battery offering up to 2.5 hours of use.
Intelligent Battery and Fast Charging
Powered by a 6175mAh 3S LiPo battery, the EVO Lite 640T supports 90-minute recharge times and max charging power of 78W. The charger supports dual output (battery + USB), making it perfect for field operations.
Lightweight. Intelligent. Enterprise-Ready.
Whether you’re conducting thermal inspections, managing disaster response, or performing critical infrastructure checks, the Autel EVO Lite 640T Enterprise gives you the tools of a heavy-duty drone in a compact form factor.
If you have any questions regarding our products, use the Motionew Contact us to consult our engineering team.

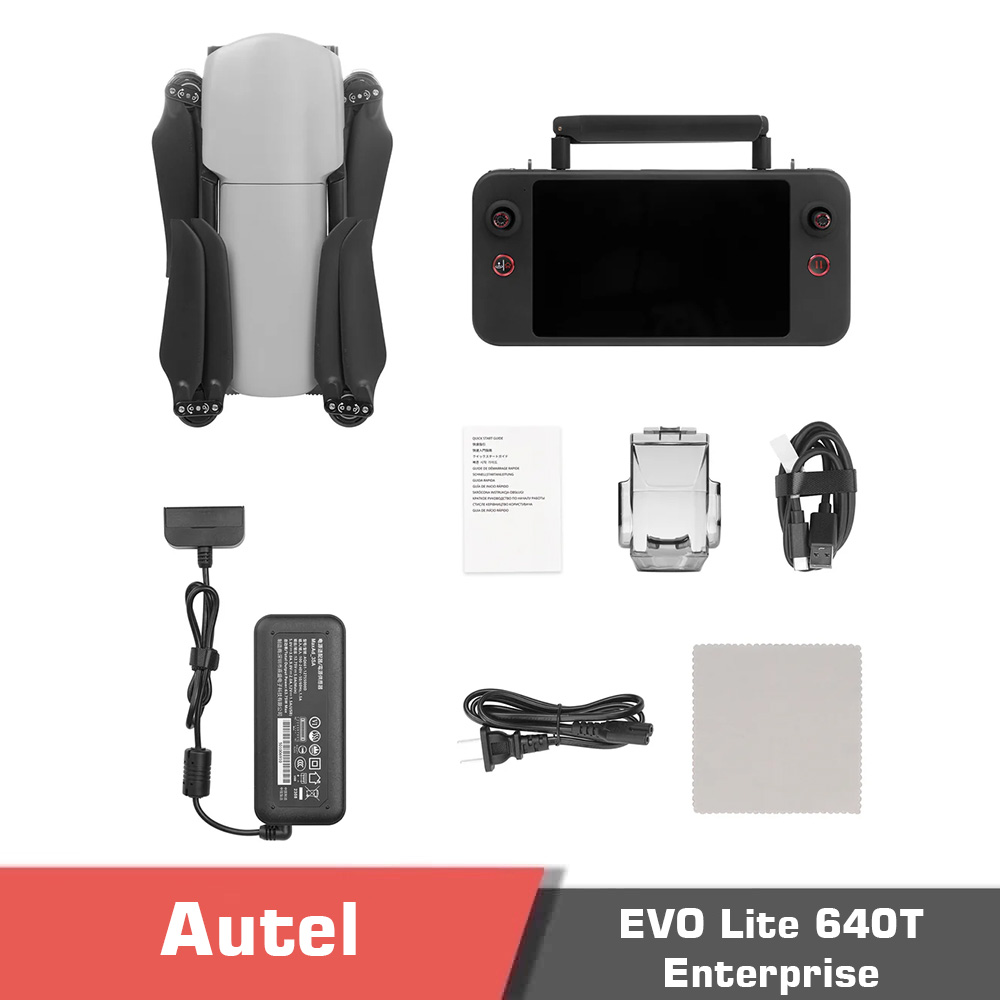

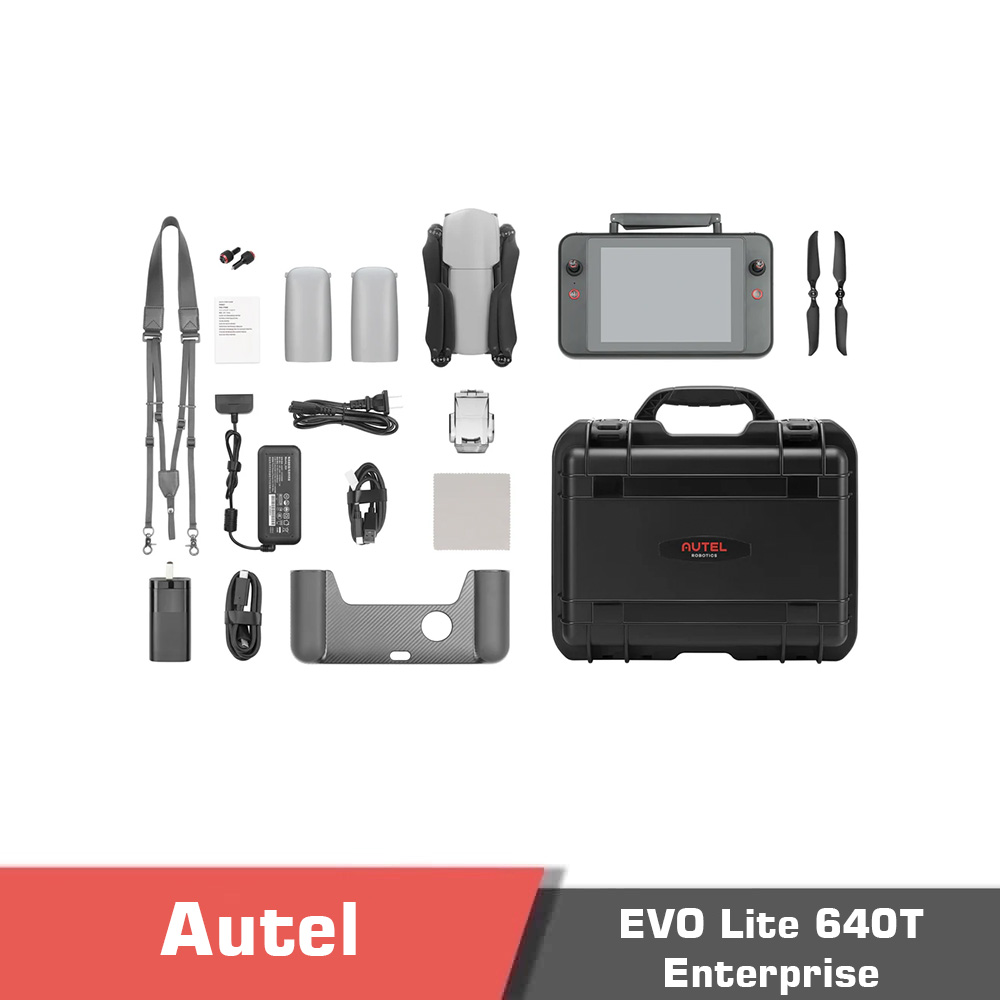

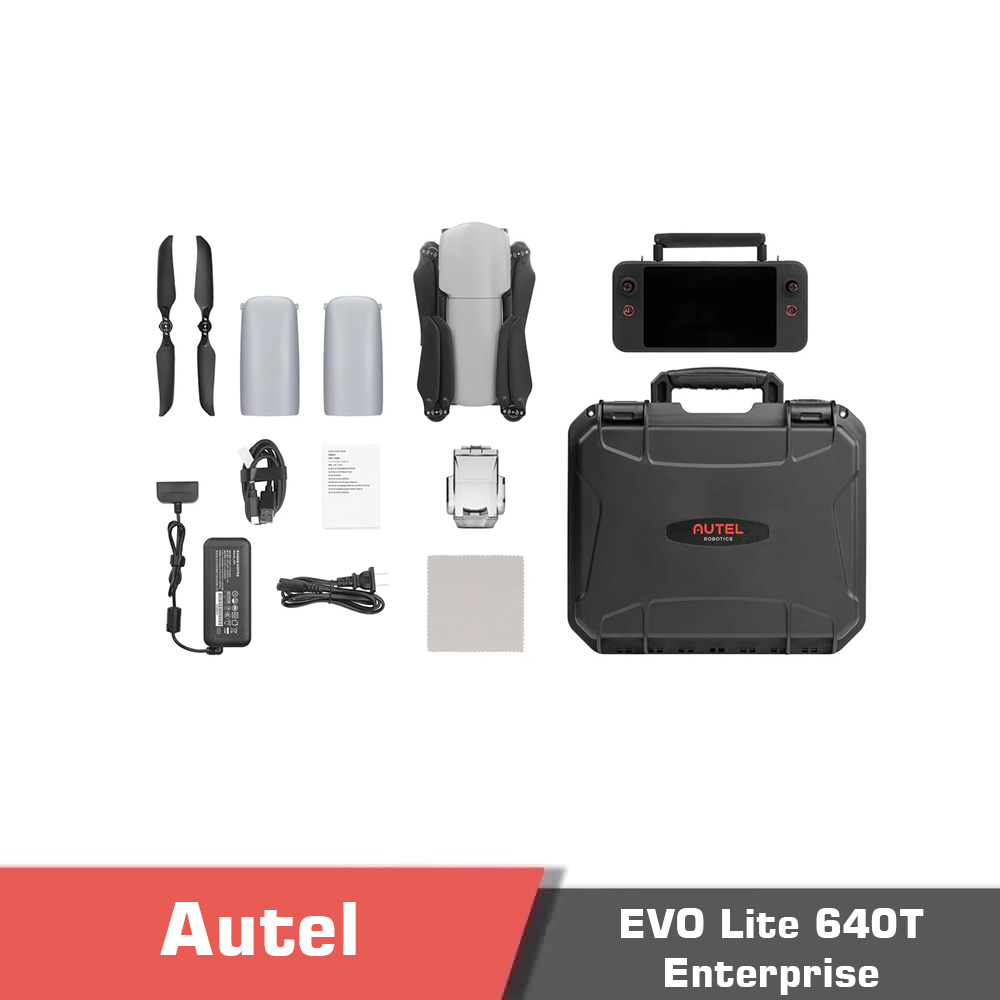

Product contents
Product contents
Standard 6 inch:
Premium 6inch:
Premium 7.9inch:
Specifications
Specifications
- Aircraft

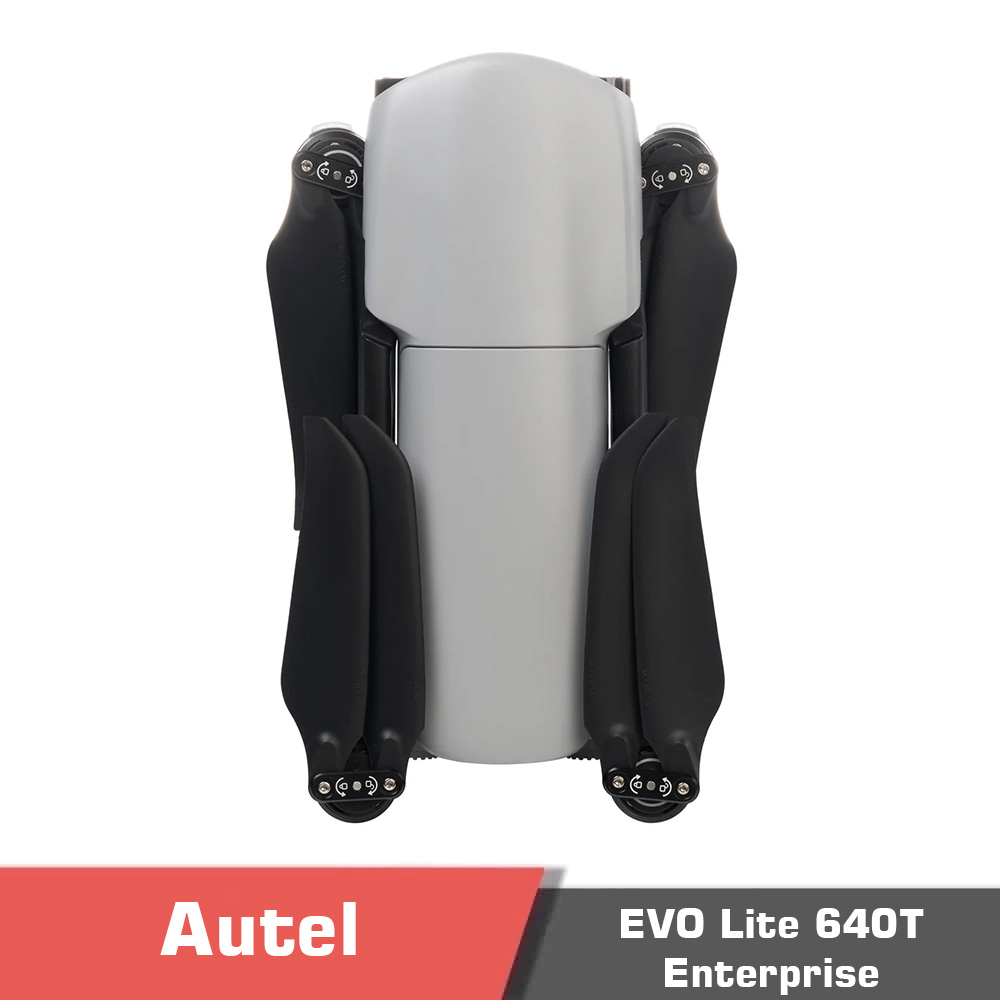

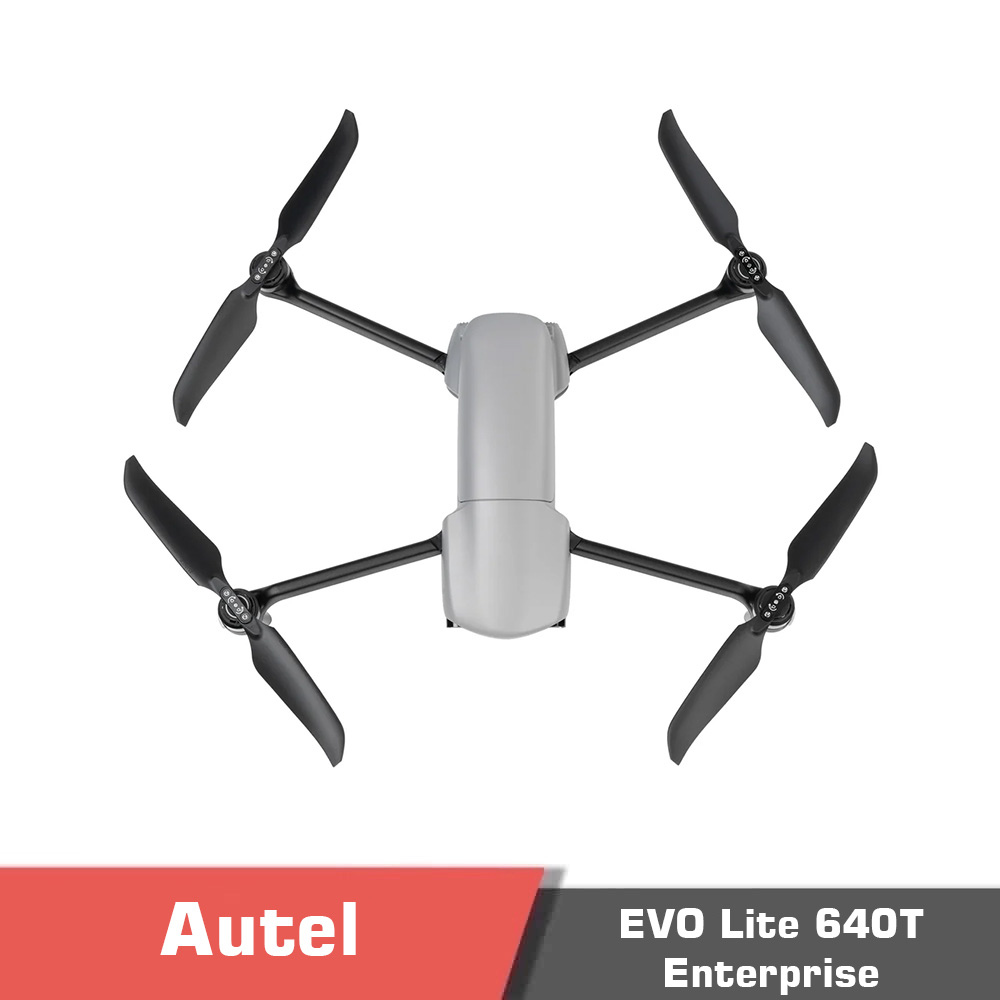

Weight 1.91 lbs (866 g) Max. Takeoff Weight 1.91 lbs (866 g) Dimensions 210*123*95 mm(fold, incl. propellers)
433*516*95 mm (unfold, excl. propellers)Diagonal Wheelbase 368mm Max Ascent Speed 6m/s Max Descent Speed 4m/s Max Horizontal Speed (windless near sea level) 18m/s Maximum Takeoff Altitude 9,842 ft (3000m) Max Flight Time (windless) 40 mins Max Hover Time (windless) 37 mins Max Wind Resistance 10.7m/s Max Tilt Angle 33° Max rotation angular speed 200°/s Operating Temperature -10℃～+40℃ Operating Frequency 2.4G: 2.400 – 2.476 GHz*; 2.400 – 2.4835 GHz
5.2G: 5.15 – 5.25 GHz**
5.8G: 5.725 – 5.829 GHz*, 5.725 – 5.850GHz
*Only applicable to SRRC regions
**Only applicable to FCC regions
Note: Some frequencies are only available in some regions and some frequencies are only allowed for indoor use. Check local laws and regulations for detailsGNSS GPS+Galileo+BDS+GLONASS Transmitter Power (EIRP) 2.4G: ≤30dBm (FCC/ISED/RCM); ≤20dBm(CE/SRRC/UKCA)
5.2G: ≤30dBm (FCC)
5.8G: ≤30dBm(FCC/SRRC/ISED/RCM); ≤14dBm(CE/UKCA)Hovering Accuracy Vertically:
±0.1 meters (when visual positioning is working normally)
±0.3 meters (when GNSS is working normally)
Horizontally:
±0.15 meters (when visual positioning is working normally)
±0.3 meters (when GNSS is working normally) - Gimbal
Gimbal 3-axis stabilization Mechanical range Pitch: -135°~45°
Roll: -45°~45°
Yaw: -90°~90°Controllable rotation range Pitch: -90°~30° Max control speed (Tilt) 100°/s Angular Vibration Range ±0.003° -
Sensing range Forward: 0.2~23 meters
Effective obstacle avoidance speed: ＜10m/s
Backward: 0.2~30 meters
Effective obstacle avoidance speed: ＜10m/s
Downward: 0.2~20 metersForward 75° horizontally, 87° vertically Backward 35° horizontally, 45° vertically Downward 99° horizontally, 83° vertically Effective use of the environment Front, rear: The surface has rich texture and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment)
Below: The ground is richly textured and the lighting conditions are sufficient (>15 lux, normal indoor fluorescent lighting environment) The surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.)Remote Controller and Transmission
Controller Model Autel Smart Controller SE V2 Operating frequency 900M: 902 – 928MHz*
2.4G: 2.400 – 2.476GHz**，2.400 – 2.4835GHz
5.2G: 5150-5250MHz***
5.8G: 5.725 – 5.829GHz**，5.725 – 5.850GHz
*Only applicable to FCC and ISED regions
**Only applicable to SRRC regions
***Only applicable to FCC and RCM regions
Note: Some frequencies are only available in some regions or only used in door. For details, please refer to local law and regulations.Effective Isotropic Radiated Power
(EIRP)900M：≤30dBm (FCC/ISED)
2.4G：≤30dBm (FCC/ISED/RCM); ≤20dBm(CE/SRRC)
5.2G: ≤30dBm (FCC/RCM)
5.8G：≤30dBm (FCC/SRRC/ISED/RCM); ≤14dBm(CE)Max Transmission Distance (unobstructed, free of interference) FCC：12km
CE/SRRC: 8 kmDisplay screen 1440×720 Battery 1900 mAh Operating time 1.5 hours (Max brightness)
2.5 hours (50% brightness)Charging time About 90 minutes
(charging time is related to actual remaining power)Internal Storage Built-in storage of 32GB
Available storage: 24GB - Thermal Camera
Sensor Uncooled VOx Microbolometer Lens FOV: 61° Focal length: 9.1 mm Zoom 1-16x digital zoom Pixel size 12μm Wavelength range 8 – 14μm Radiometric temperature range -20°C to 150°C (high gain mode); 0 to 550°C (low gain mode) Radiometric measurement accuracy ±3°C or reading ±3% (using the larger value) @ ambient temperature ranges from -20°C to 60°C Accurate temperature
measurement distance1-25 meters Video resolution 640×512 30P Video format MOV / MP4 (Support H.264/H.265) Photo format JPG (the images contain temperature information and are parsed by dedicated SDK and PC tools) - Visible light Camera
-
Sensor 1/2 inch CMOS, 48 million pixels Lens DFOV: 83.4°
Equivalent focal length of 35mm: 24 mm
Aperture: f/2.8
Focus distance: 0.5 meter ~ ∞
Focus: FF (Fixed Focus)ISO range Auto/Manual: ISO100 ~ ISO6400 Shutter speed 1/10000 ~1/60 seconds Zoom 4K: 1-16x digital zoom
8K: 1-8x digital zoomMaximum photo size 4000×3000, 8000×6000 Image Format JPG Video format MOV / MP4 Video resolution 4000×3000 P30 Supported file system FAT32/exFAT - Battery
Capacity 6175 mAh Voltage 11.13 V Battery type LiPo 3S Energy 68.7 Wh Weight 309 g Charging temperature range +5-+45℃ Storage temperature and humidity – 10℃ ~ +30℃, 65 ± 20%RH Recommended storage temperature 22-28℃ Max charging power 78W Charging time 90 minutes - Charger
Input 100-240 V, 50/60 Hz, 1.5A Output 12.75 V ⎓ 5 A
5V⎓3A 9V⎓2A 12V⎓1.5AOutput port Battery charging interface/USB-A Rated power 63.75W Max
Documents
Documents
Reviews
You must be logged in to post a review.
| Multirotor Application |
Inspection/Surveillance ,Mapping |
|---|---|
| Multirotor Wheelbase |
368mm |
| Number of motors |
4 |
| Number of arms |
4 |
| Multirotor Type |
Electric |
