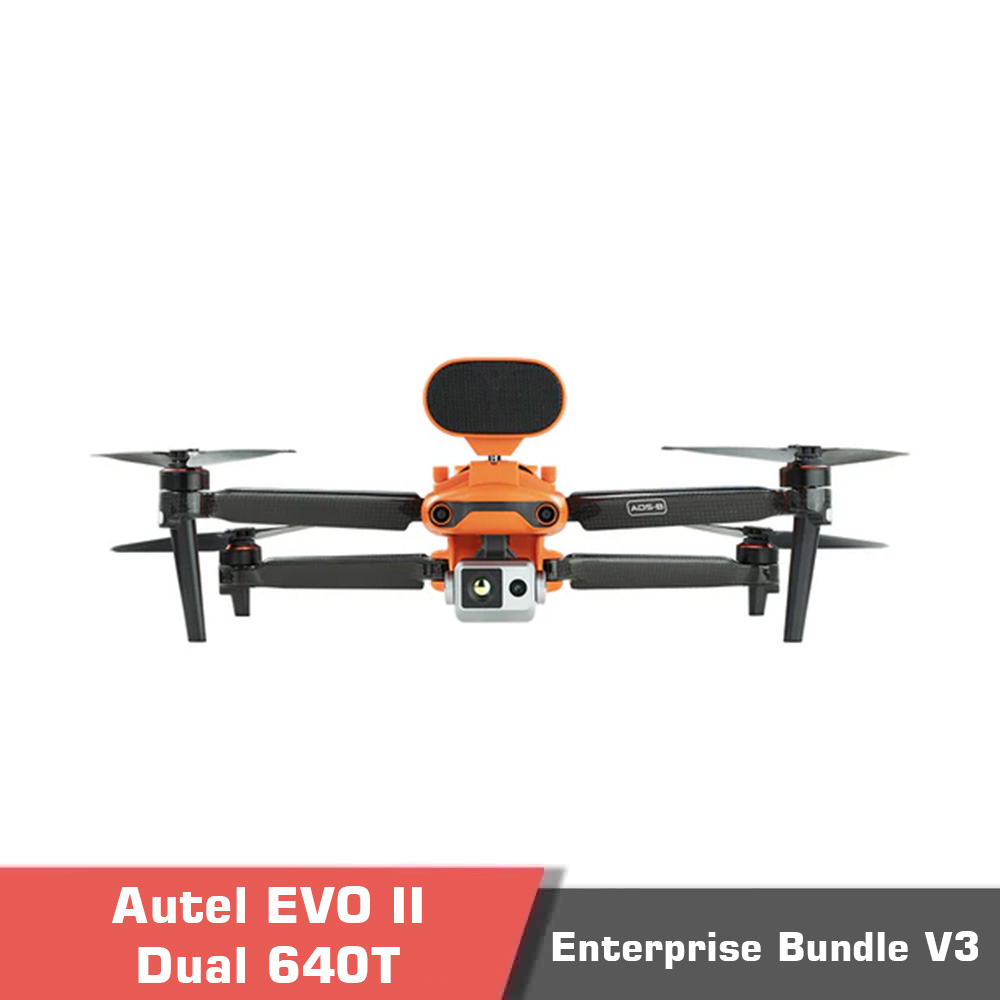

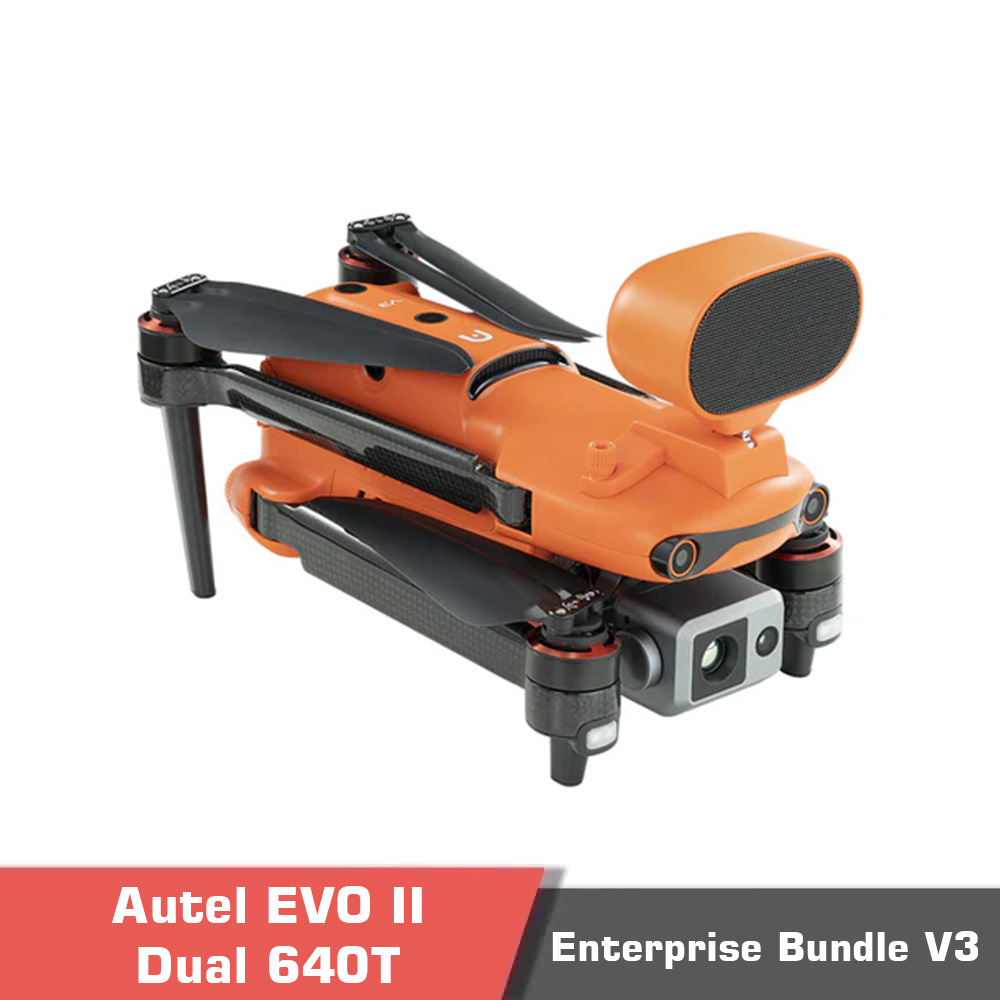

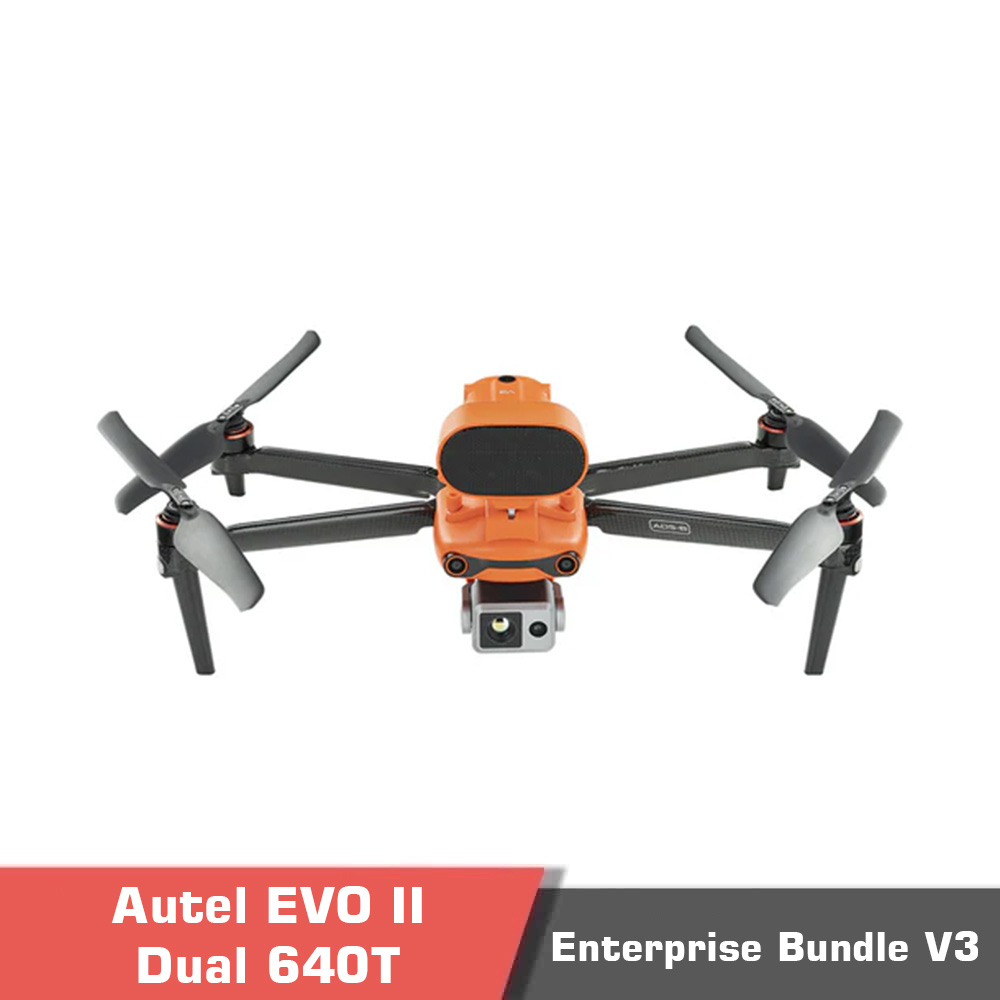

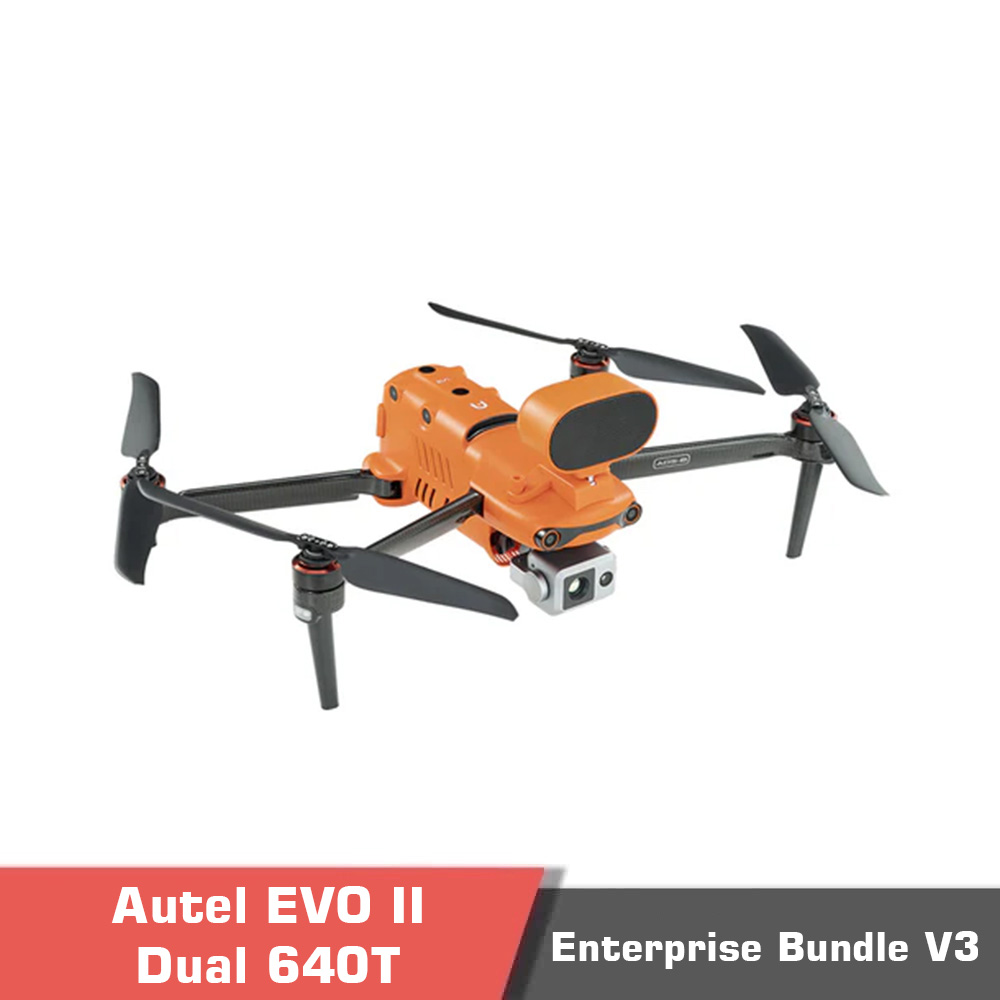

Autel EVO II Dual 640T Enterprise Bundle V3

Specifications

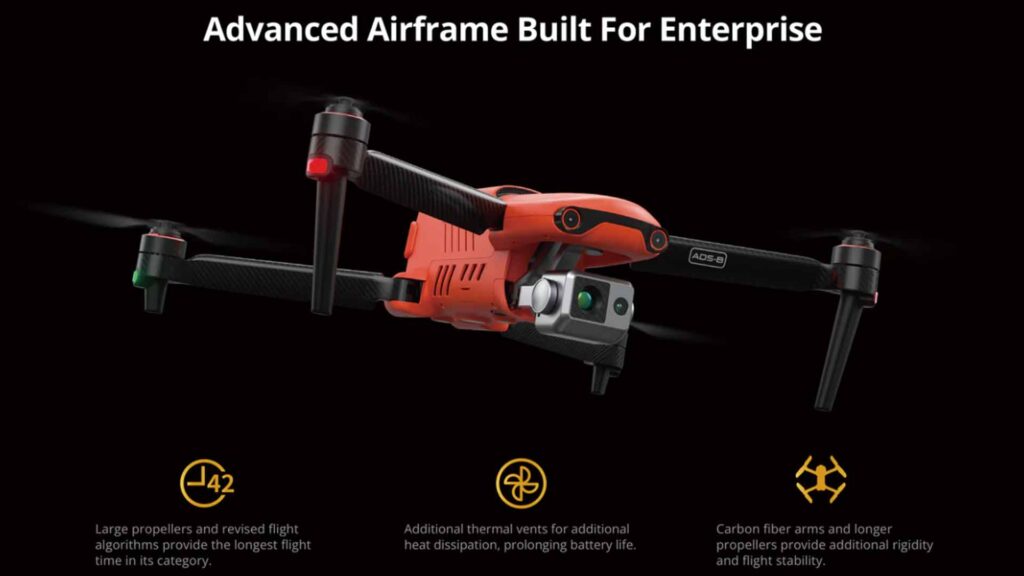

• Aircraft

  Takeoff Weight(Without Accessories)	EVO II Dual 640T Enterprise：2.51 lbs (1136.5 g)
  Max takeoff weight	2000 g
  Diagonal Length	16.8 inches (427 mm)
  Size(L*W*H)	245*130*111mm（folded） 506*620*111mm（unfolded）
  Max Service Ceiling Altitude	4.3 miles (7000 m) MSL
  Max Ascent Speed	18 mph (8 m/s) (Ludicrous)
  Max Descent Speed	9 mph (4 m/s) (Ludicrous)
  Max Level Flight Speed	45 mph (20 m/s) (Ludicrous)
  Max angular velocity	120°/s
  Max tilt angle	33° (Ludicrous)
  Max Flight Time (no wind)	42 min（without accessories）
  Max Hovering Time (no wind)	38 min（with strobe） 29 min（with spotlight） 34 min（with loudspeaker） 36 min（with RTK module）
  Operating Temperature Range	14℉ to 104℉ (-10℃ to 40℃)
  Max Wind Speed Resistance	39 – 46 mph (17-20 m/s)
  Operating Frequency	2.400 GHz – 2.4835 GHz； 5.725GHz – 5.850 GHz
  Hovering accuracy	When RTK is enabled and working normally: Vertical: ±0.1 m; Horizontal: ±0.1 m
  	Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GPS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GPS works normally)
  Internal storage	8GB
  SD storage	max. support 256GB (UHS-3 or Class 10)

  Gimbal

  Gimbal	3-axis stabilization
  Mechanical range	Tilt: -135° to +45°; Pan: -100° to +100°
  Controllable rotation range	Tilt: -90° to +30°; Pan: -90° to +90°
  Max control speed (Tilt)	300°/s
  Angular Vibration Range	±0.005°

  Sensing System

  Sensing system type	Omnidirectional sensing system
  Forward	Accurate measurement range: 0.5-18 m Effective sensing speed: <12m/s Viewing angle: Horizontal: 60°, Vertical: 80°
  Backward	Accurate measurement range: 0.5-16 m Effective sensing speed: <12m/s Viewing angle: Horizontal: 60°, Vertical: 80°
  Upward	Accurate measurement range: 0.5-10 m Effective sensing speed: <5m/s Viewing angle: Horizontal: 65°, Vertical: 50°
  Downward	Accurate measurement range: 0.5-10 m Effective sensing speed: <5m/s Viewing angle: horizontal: 100°, vertical: 80°
  Left and right	Accurate measurement range: 0.5-10 m Effective sensing speed: <5m/s Viewing angle: horizontal: 65°, vertical: 50°
  Operating Environment	Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)

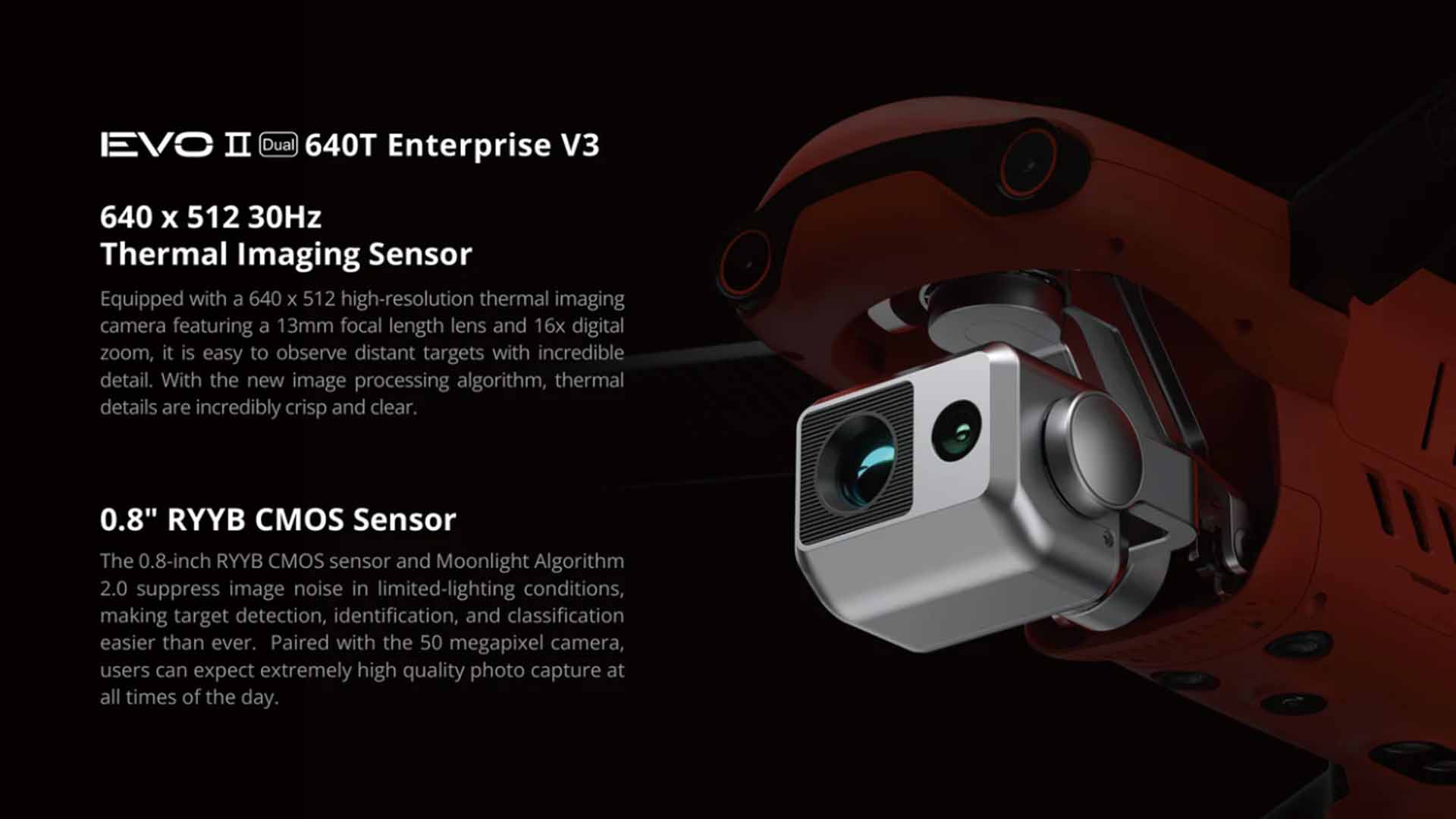

  Thermal Camera

  Sensor	Uncooled VOx Microbolometer
  Lens	FOV H33°V26°
  	Focal length 13mm
  Zoom	1-16x
  Sensor resolution	640*512
  Pixel size	12μm
  Wavelength range	8 – 14μm

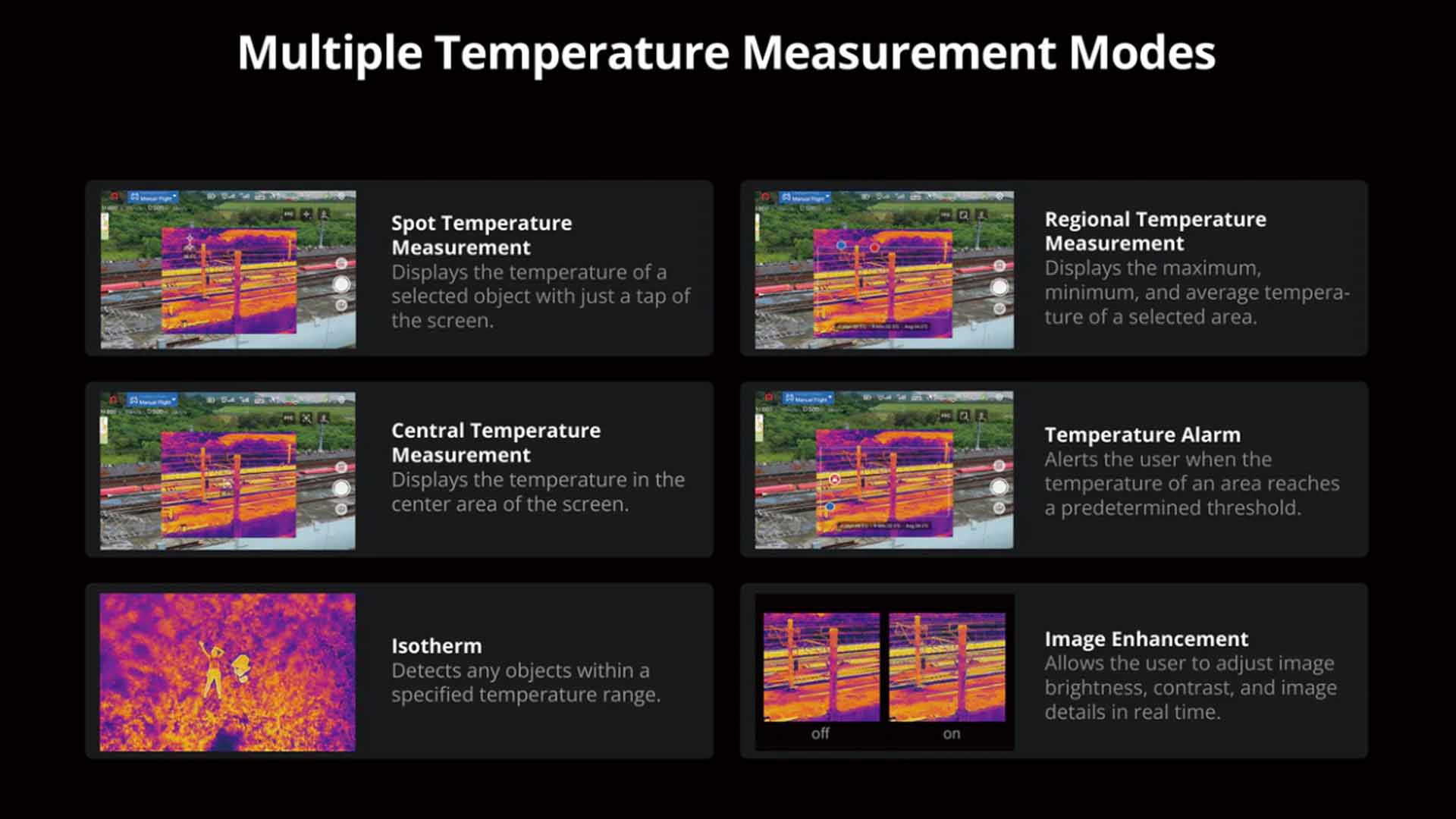

  Temperature range	High gain mode: -20° to +150° Low gain mode: 0° to +550°
  Temperature measurement accuracy	±3℃ or ±3% of reading (whichever is greater) @Environmental temperature-20℃~60℃
  Accurate temperature measurement distance	2-20 meters
  Video resolution	640×512@30fps
  Video format	MOV / MP4 (Support H.264/H.265)
  Camera resolution	Infrared mode: 640*512 Picture-in-picture mode: 1920*1080, 1280*720
  Photo mode	Single shot Burst shooting: 3/5 frames, 3 is the default Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s
  Photo format	JPG (with irg file)



• Visual Camera


  Sensor	1/1.28″(0.8″) CMOS; 50M effective pixels
  Lens	FOV: 85° 35 mm format equivalent focal length: 23 mm Aperture: f/1.9 Focus range: 0.5 m to infinity (with auto focus)
  ISO range	Video: 100-64000 Photo: 100-6400
  Shutter speed	Photo mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/frame rates
  Zoom	1-16x (up to 4x lossless zoom)
  Photo mode	Single shot/Burst shooting/AEB/Time Lapse/HDR imaging
  Maximum photo size	8192*6144（4:3） 4096*3072（4:3） 3840×2160（16:9）
  Image Format	JPG (default) / DNG / JPG+DNG
  Video format	MOV / MP4
  Video resolution	3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P60/P50/P48/P30/P25/P24
  Max bitrate	120Mbps
  Supported file system	FAT32/exFAT

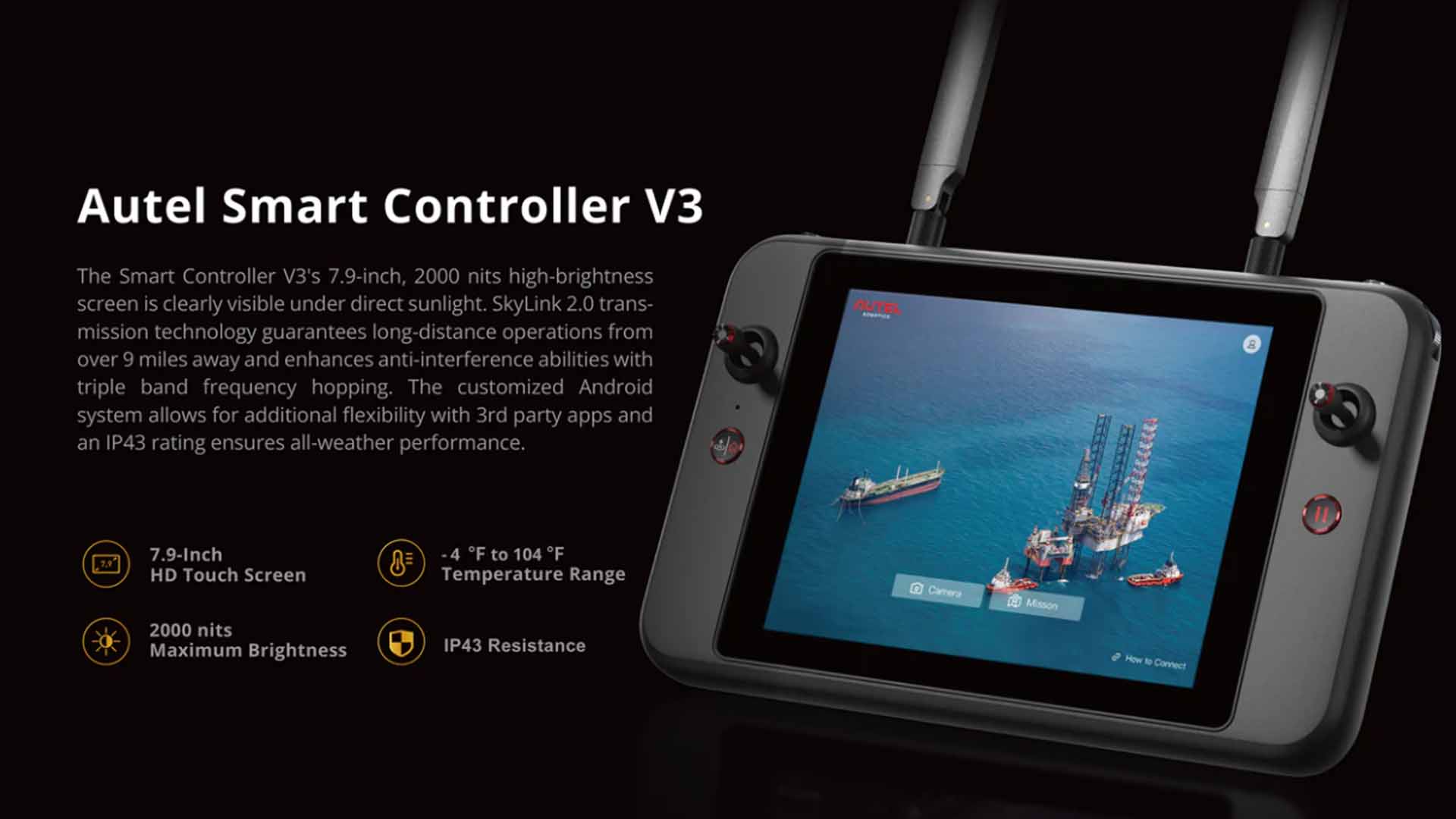

• Remote Controller and Transmission


  Operating frequency	902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz (non-Japan) 5.650-5.755GHz (Japan Only)
  Transmission power	FCC：≤33dBm CE：≤[email protected]，≤[email protected] SRRC：≤[email protected]，≤[email protected]/5.7G
  Max Transmission Distance (unobstructed, free of interference)	FCC：15km CE：8km
  Display screen	2048×1536 60fps
  Battery	5800mAh
  Operating time	~3 hours (Max. Brightness) ~4.5 hours (50% Brightness)
  Charging time	90 minutes
  Internal Storage	ROM 128GB

• Battery


  Capacity	7100 mAh
  Voltage	11.55 V
  Battery type	LiPo 3S
  Energy	82 Wh
  Weight	365 g
  Charging temperature range	5℃ to 45℃
  Storage temperature and humidity	-10~30℃，65±20%RH
  Recommended storage temperature	22-28℃
  Max charging power	93W
  Charging time	90 minutes

• Charger


  Input	100-240 V, 50/60 Hz, 1.5A
  Output	13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A
  Voltage	13.2±0.1V
  Rated power	66W

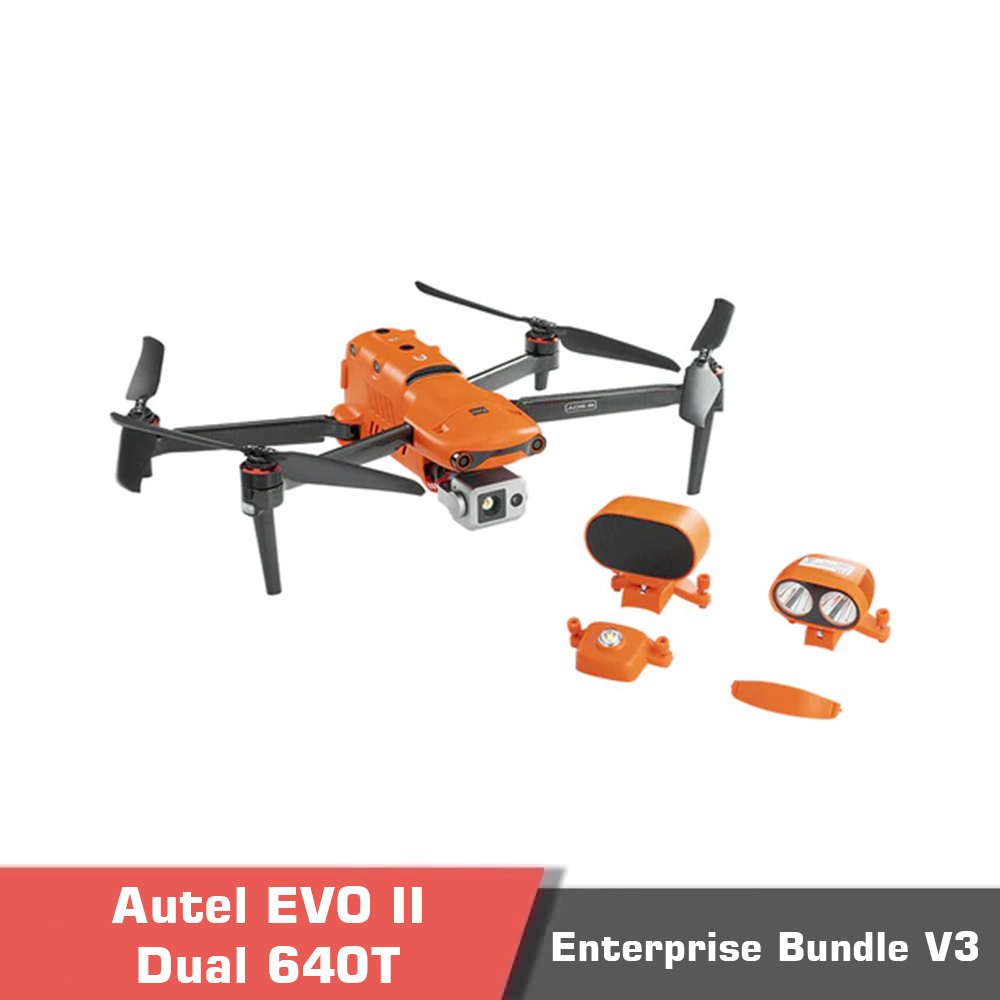

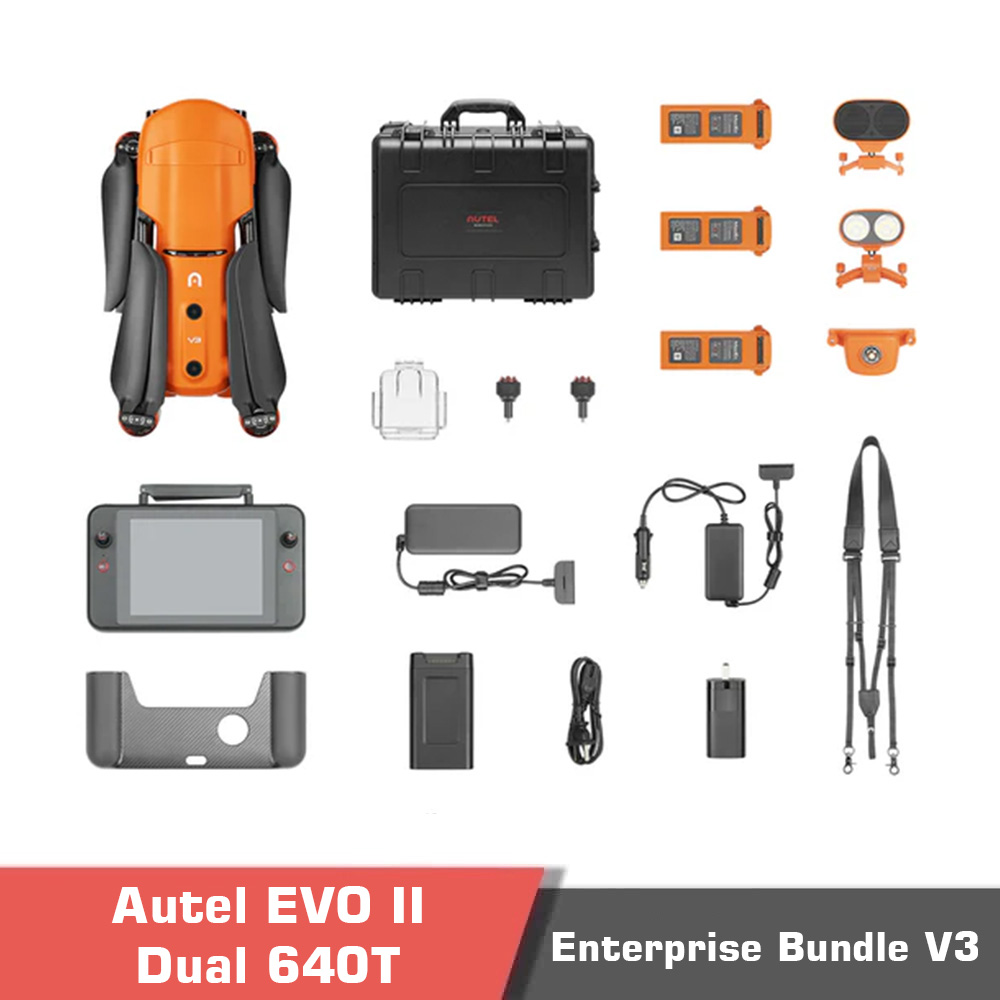

• Accessories


  Strobe	Dimensions：39*72*34 mm
  	Weight：19.5 g
  	Connections：Floating Connectors
  	Power：Avg. 1.6W
  	Controllable Range：5000 m
  	Light intensity：Min 50cd；Max 486cd；Avg. 290cd

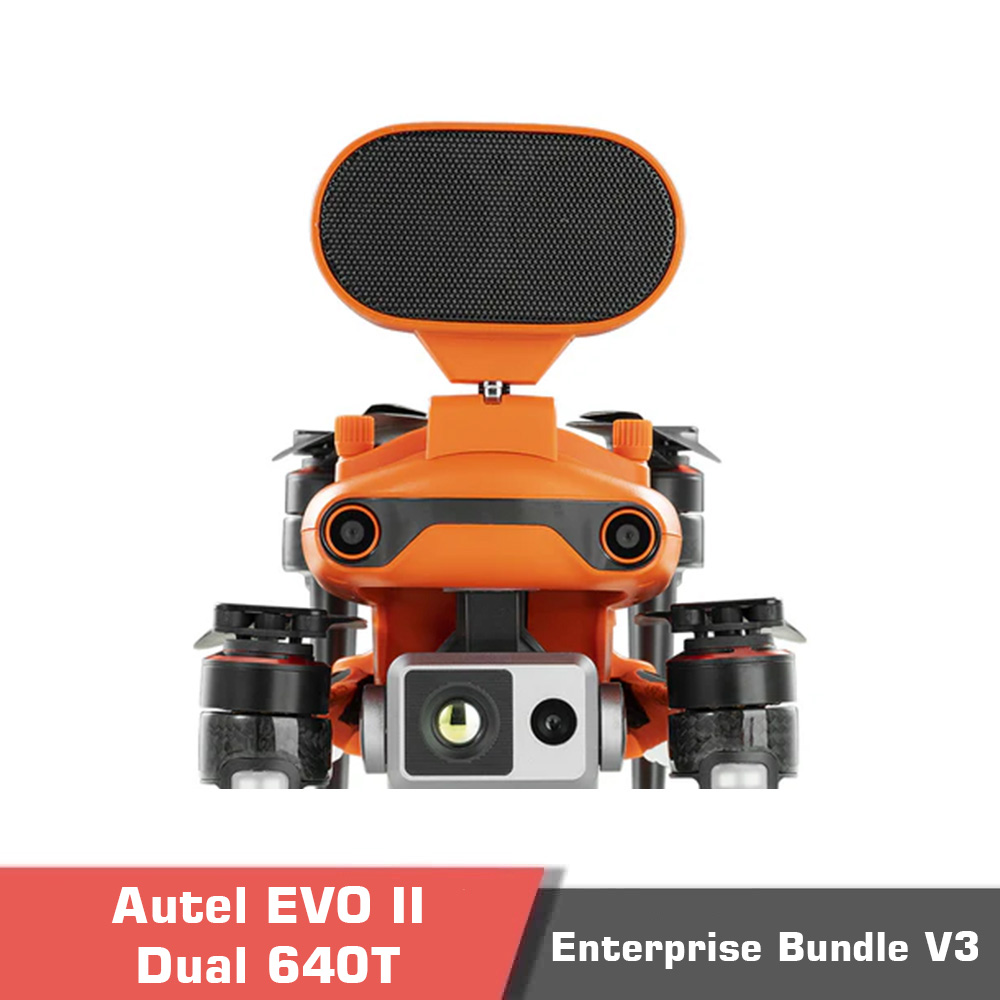

  Loudspeaker	Dimensions：46*80*77 mm
  	Weight：98.5 g
  	Connections：Floating Connectors
  	Power：Max 18W
  	Decibel：120dB @ 1m；88dB @ 60m；70dB @ 110m；
  	Max Bitrate：36kbps
  	Adjustable Angle Range：0°~45°
  Spotlight	Dimensions：48.5*72*63 mm
  	Weight：77 g
  	Connections：Floating Connectors
  	Power：Max 35W
  	Controllable Range：30 m
  	Adjustable Angle Range：0°~90°
  	Illuminance：FOV14°, Max：11lux @ 30m Straight
  RTK Module	Dimensions：55.5*72.5*57 mm
  	Weight：59.5 g
  	Connections：Floating Connectors
  	Power：~ 3W
  	RTK Positioning Precision： 1.5 cm + 1 ppm（(Vertical） 1 cm + 1 ppm（Horizontal）

• Multi Charger


  Voltage	13.2 V
  Charging temperature range	5℃ to  45℃
