Description

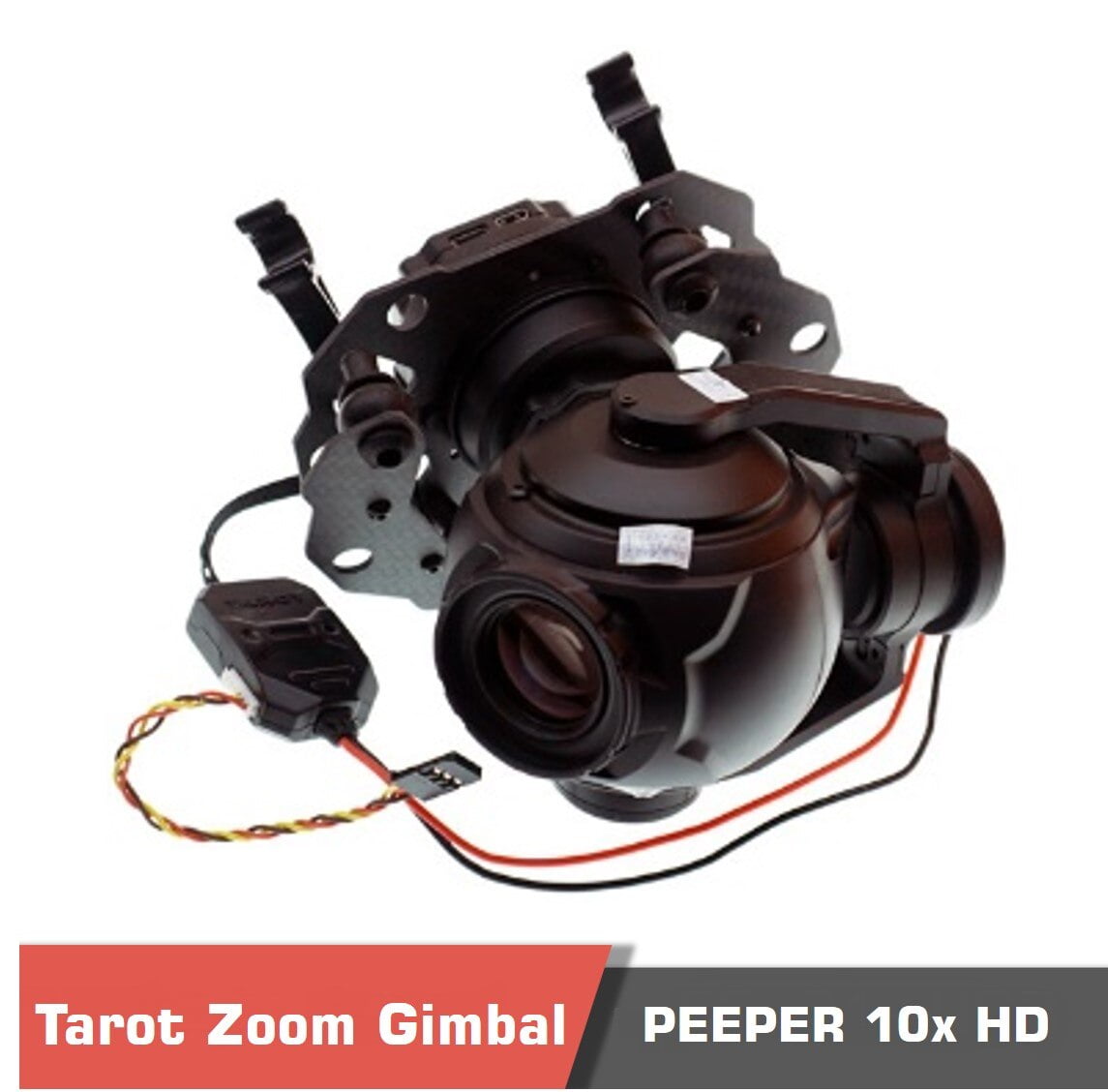

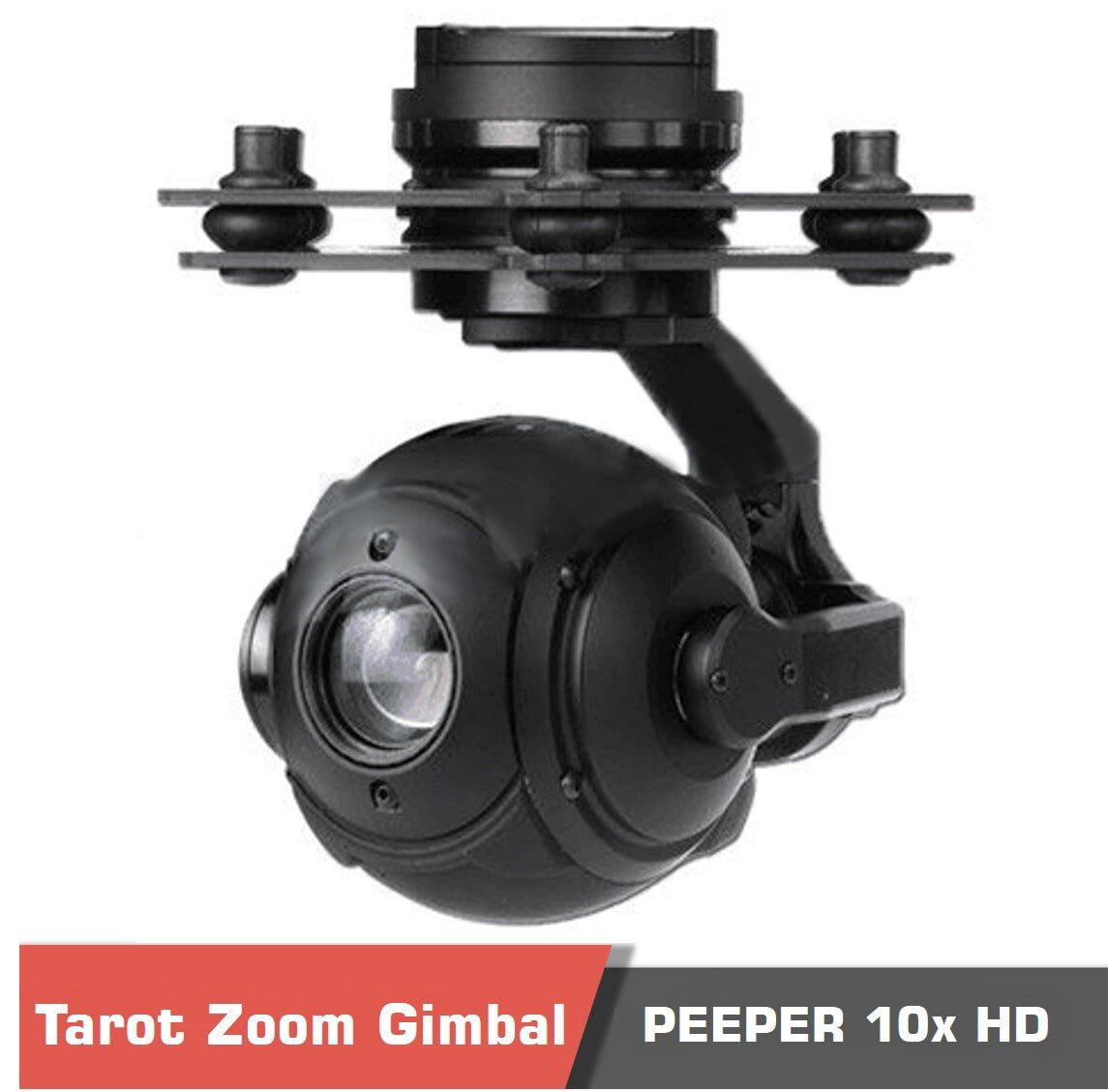

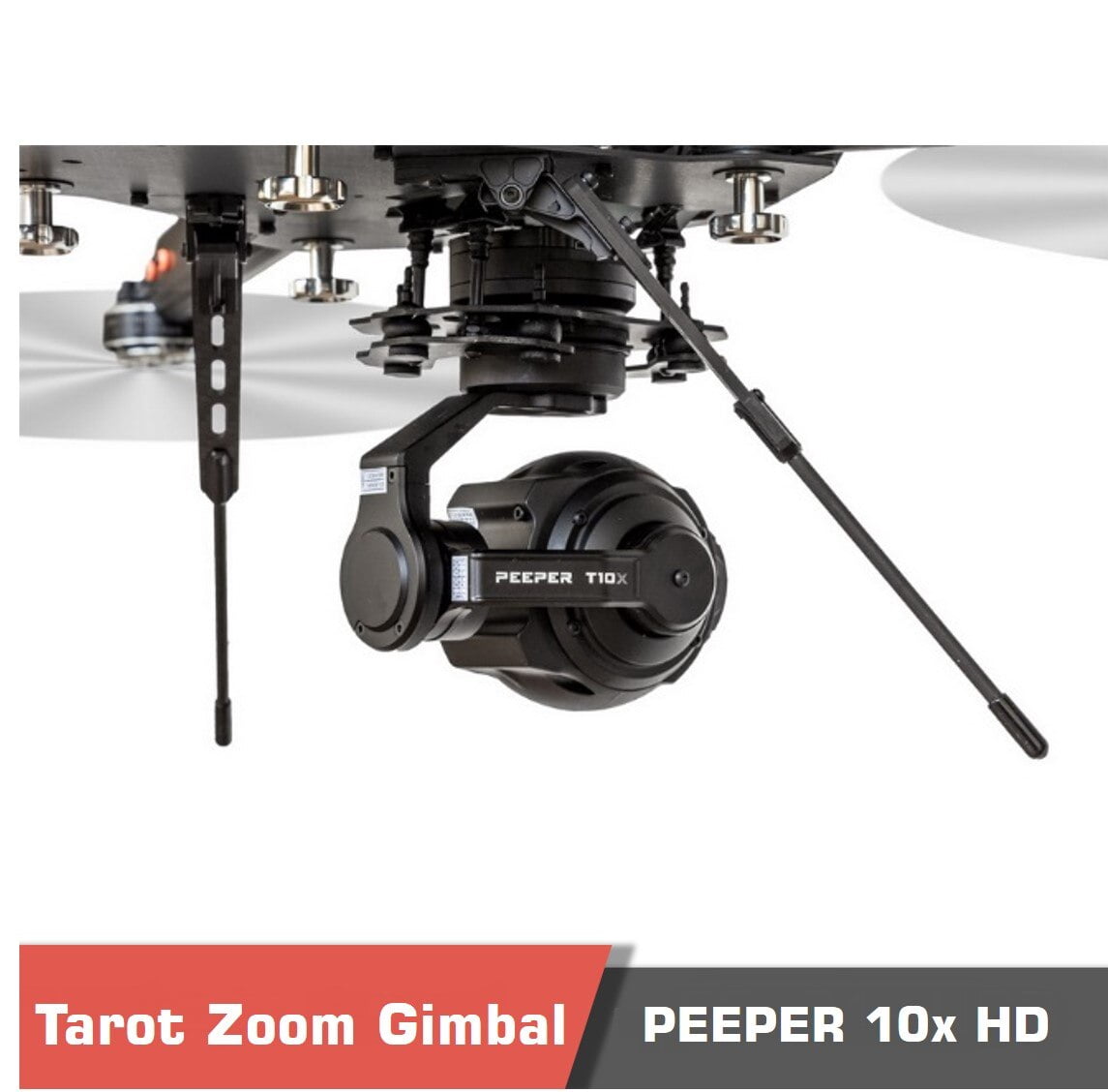

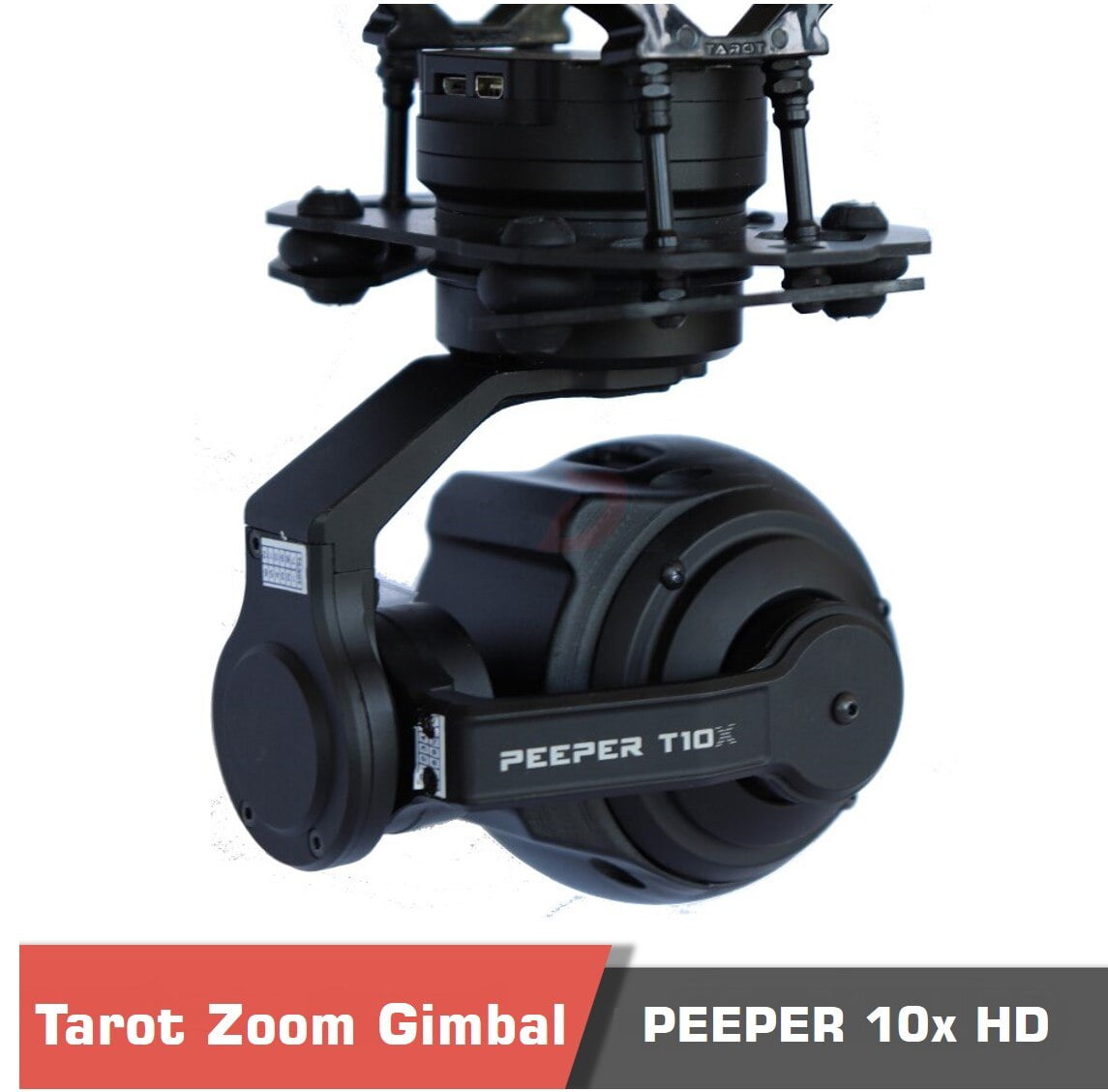

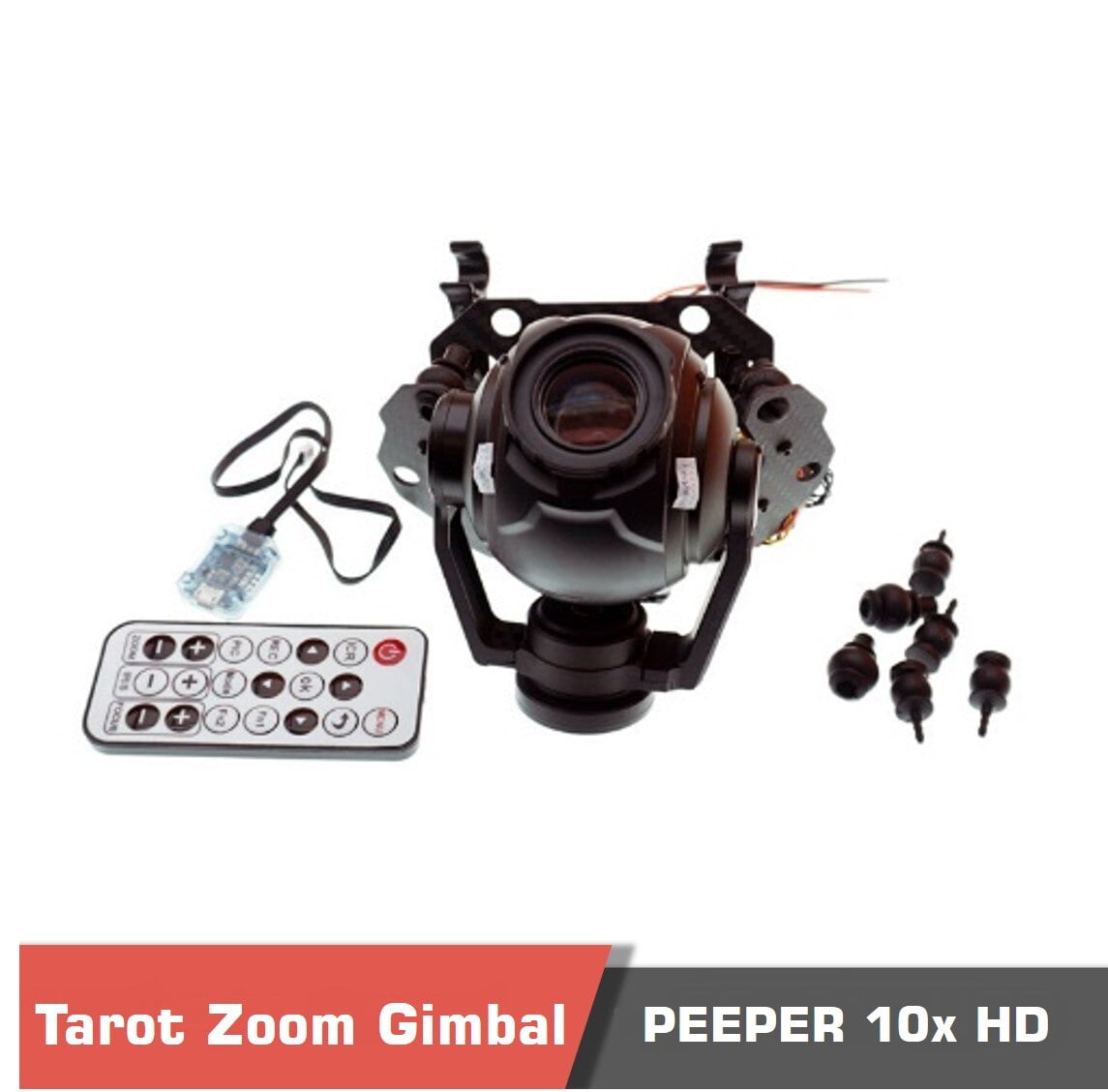

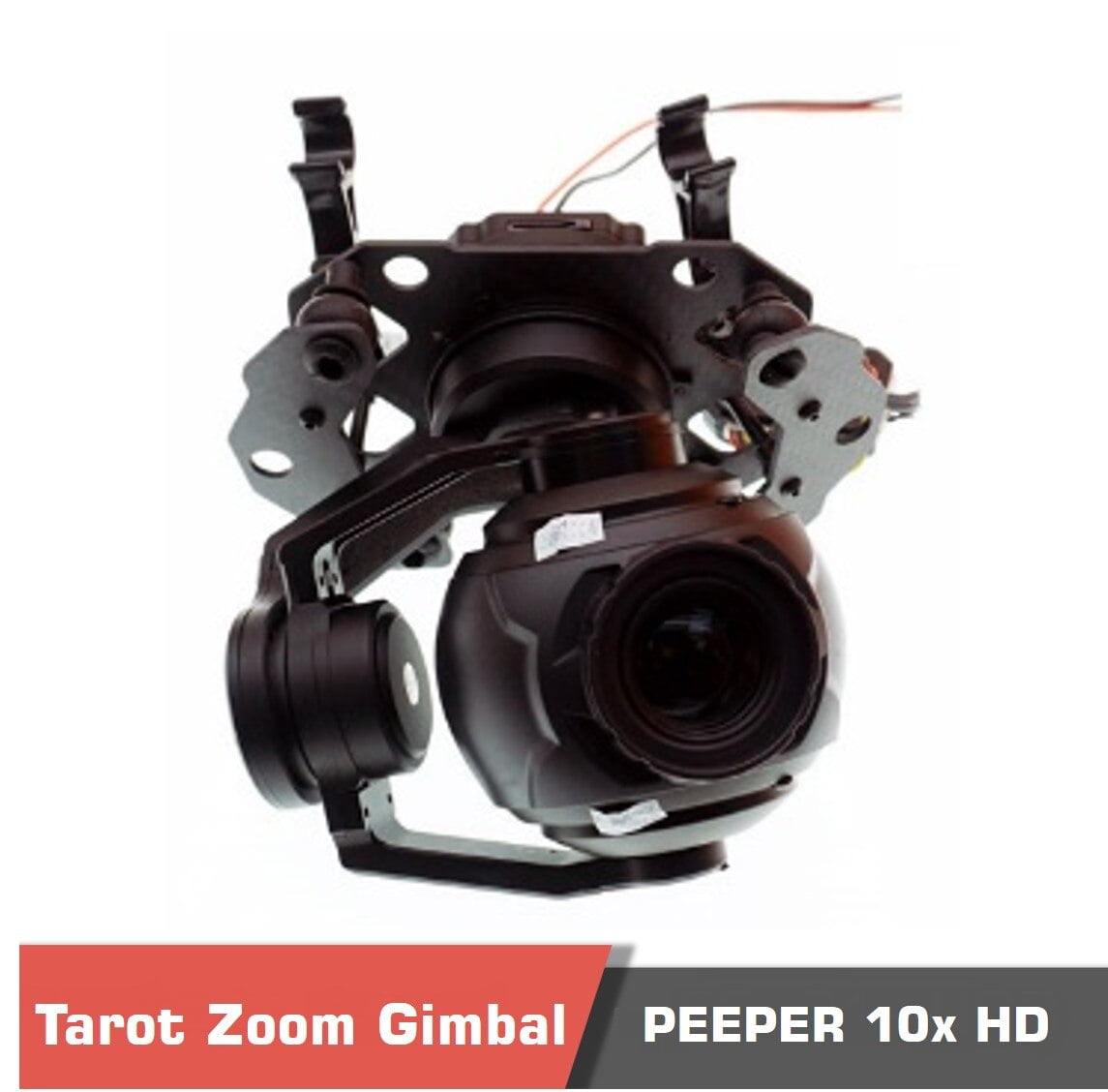

TAROT PEEPER T10X is a great 3-axis gimbal for model aircraft enthusiasts, it provides a 10X optical zoom. The F2.0 uses 1/3 colour CMOS4 image sensor which supports approx.4 million effective pixels(2688 x 1520). With unique internal wiring design, built-in IMU gimbal control module, specialized servo drive module, this peeper T10X can be widely applied to various model aircaft activities and entertainments.10X optical zoom breaks the limitations of light and space, providing a new visual dimension, you can use it to capture a clear, precise search area anytime, anywhere, which makes work more efficient, easy and safe. It is widely used in public security monitoring, power patrol, search and rescue, remote sensing mapping, life exploration and other types of UAV mission.
Simple FAQ (Tarot Peeper TL10A0 – Engineers & B2B Buyers)
1. What is the Tarot Peeper TL10A0 Gimbal used for?
The TL10A0 is a lightweight, self-stabilized HD gimbal camera designed for UAV surveillance, infrastructure inspection, environmental monitoring, and FPV operations where compact size and zoom functionality are needed.
2. What are the key technical features of the TL10A0?
It includes a 10x optical zoom HD sensor, supports 1080p video output, and is equipped with a 3-axis self-stabilizing mechanism. It features low-latency video feed, high zoom clarity, and basic tracking functions suitable for industrial applications.
3. What drones are compatible with the Tarot TL10A0?
The TL10A0 is compatible with most small to mid-size multirotor UAVs, and supports integration via PWM, serial, or custom control protocols, making it ideal for commercial drone platforms.
Business & Operational FAQs
4. Is the TL10A0 available for OEM or bulk purchase?
Yes. Motionew offers OEM supply options and volume pricing for drone system builders, commercial fleet operators, and R&D projects.
5. What documentation and support are included?
Each unit comes with a user guide, wiring diagrams, and access to Motionew’s remote technical support to assist with setup and integration.
6. What are the payment and invoicing options for B2B clients?
Motionew accepts international wire transfers, offers formal B2B invoicing, and provides flexible payment terms for verified enterprise buyers.
Specifications
Specifications
- Compatible Camera Style: Camcorders
- Package: Yes
- Model Number: TL10A00
- Weight: 365g
- Dimension: 77x105x147mm
- Working voltage: 11-26V
- FOV: 66.6~7.2°
- Total pixel: 4MP
- Optical zoom: 10x, F=10~300mm
- Video Output: HDMI(HD output 1080P 60fps)
- Pitch/Tilt: -120 ~ 15°
Key Features:
Key Features:
– High precision driving algorithm, independent IMU to control PTZ posture, attitude control accuracy reaches 0.02 degrees, the integrated precision servo drive module.
– Point angle is 420 degrees, support 3-6S wide voltage input.
– Micro-SD card slot is overhead to avoid the rain influence.
– HDMI1.4 HD output port.
– Support SBUS decoding module upgrade port, using the Micro-USB link to connect the computer to upgrade parameters.
Reviews
You must be logged in to post a review.
| Number of Sensors |
1 Sensor |
|---|---|
| EO Sensor Lens |
10x Zoom |
| EO Sensor resolution |
1920×1080 |
| Gimbal Video Output |
HDMI |
| AI Object Tracking |
No |
| Gimbal Weight |
365g |
| Gimbal Dimensions |
77x105x147mm |
